Machine learning inference of fission yields from gamma spectroscopy for very low-yield nuclear test verification

Julien de Troullioud de Lanversin , Jiehui Li , Christopher Fichtlscherer , Dongdong She , Moritz Kutt
Authors on Pith no claims yet

Pith reviewed 2026-05-08 16:29 UTC · model grok-4.3

classification ⚛️ physics.ins-det nucl-ex
keywords machine learninggamma spectroscopyfission yieldnuclear test verificationXGBoostMonte Carlo simulationCTBTgamma spectra
0
0 comments X

The pith

Machine learning models trained on simulated gamma spectra can infer fission yields from post-test measurements with over 95 percent accuracy near a 1 kg TNT threshold.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that machine learning can extract the fission yield of a very low-yield nuclear test directly from gamma spectroscopy of post-test debris. High-fidelity Monte Carlo simulations produce millions of realistic gamma spectra, from which 82 peak ratios are extracted and fed to XGBoost models for both threshold classification and numerical yield regression. This matters for a reader concerned with treaty verification because it reduces dependence on precise knowledge of test geometry and timing while still delivering usable estimates from measurements taken months later. If the approach holds, on-site gamma data becomes a practical input for deciding whether a test stayed below the zero-yield line.

Core claim

Using 66 million three-dimensional Monte Carlo particle-transport simulations of very low-yield tests in varied containments, gamma spectra measured outside the vessel are generated. Eighty-two fission-product-to-plutonium-239 peak ratios are extracted from each spectrum. XGBoost classifiers and regressors trained on these ratios classify whether yield exceeds a chosen threshold with greater than 95 percent accuracy for yields within plus or minus 100 grams of a 1 kg TNT threshold and estimate the actual yield with a mean absolute relative error of 12.4 percent when spectra are recorded between one month and one year after the test.

What carries the argument

XGBoost models trained on 82 fission-product-to-plutonium-239 peak ratios extracted from simulated gamma spectra measured outside containment vessels.

If this is right

  • On-site gamma measurements can be used to verify compliance with the zero-yield standard of the Comprehensive Nuclear-Test-Ban Treaty.
  • Yield estimates with roughly 12 percent relative error become available from data collected up to one year after the test.
  • A yield-threshold verification regime becomes technically feasible without requiring exhaustive knowledge of every experimental parameter.
  • The same simulation-to-measurement pipeline can be retrained for other yield thresholds or detection times.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Real debris measurements from an actual low-yield test would provide the decisive test of whether simulation-trained models transfer without retraining.
  • Combining gamma-derived yields with seismic or radionuclide data could tighten uncertainty bounds beyond what either method achieves alone.
  • If the approach works on real data, it could be adapted to verify subcritical experiments that stay below the fission threshold.

Load-bearing premise

The 66 million Monte Carlo scenarios cover enough real-world variability in containment geometry, detector placement, and fission-product transport that models trained only on simulation will perform similarly on actual post-test debris.

What would settle it

Measure gamma spectra after a real controlled very low-yield test whose actual fission yield is known independently, apply the trained models, and check whether the predicted yield or threshold classification matches the known value within the reported error bands.

Figures

Figures reproduced from arXiv: 2605.04674 by Christopher Fichtlscherer, Dongdong She, Jiehui Li, Julien de Troullioud de Lanversin, Moritz Kutt.

Figure 1
Figure 1. Figure 1: FIG. 1 view at source ↗

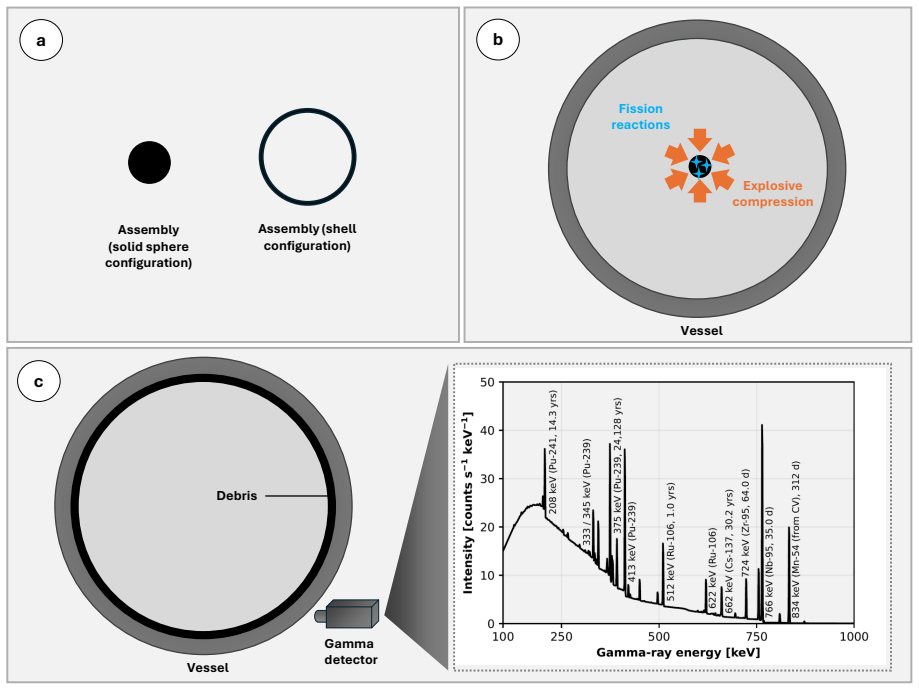

Figure 2
Figure 2. Figure 2: FIG. 2 view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3 view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4 view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5 view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6 view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7 view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8 view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9 view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10 view at source ↗
Figure 11
Figure 11. Figure 11: FIG. 11 view at source ↗
Figure 12
Figure 12. Figure 12: FIG. 12 view at source ↗
Figure 13
Figure 13. Figure 13: FIG. 13 view at source ↗
Figure 14
Figure 14. Figure 14: FIG. 14 view at source ↗

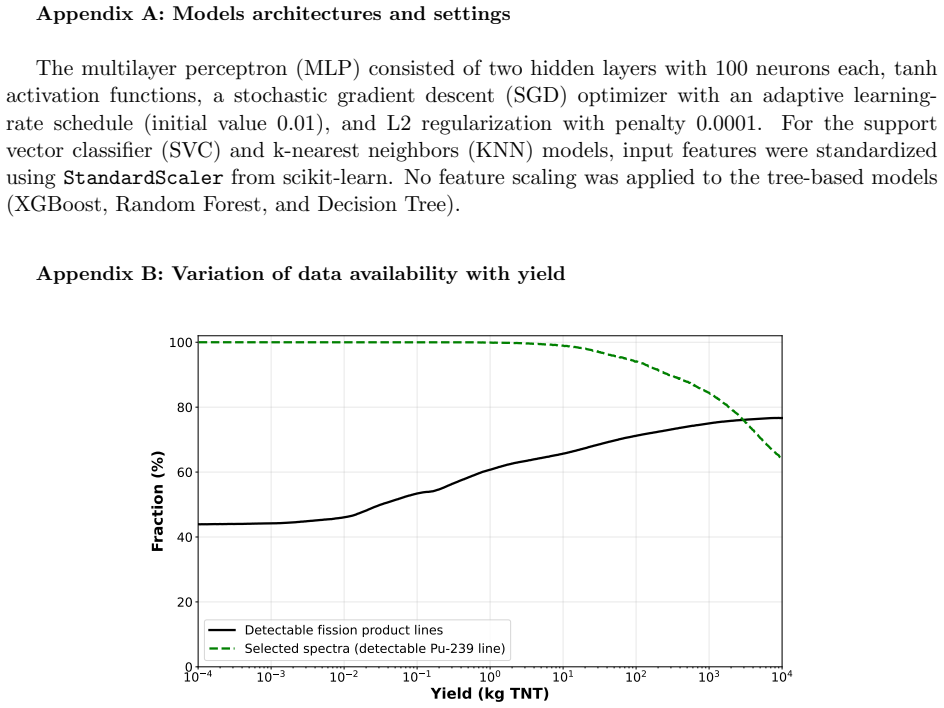

Figure 15
Figure 15. Figure 15: FIG. 15 view at source ↗
read the original abstract

Very low-yield nuclear tests pose a major verification challenge for the zero-yield standard of the Comprehensive Nuclear-Test-Ban Treaty (CTBT). The zero-yield standard prohibits any explosive experiment that produces a self-sustaining fission chain reaction while allowing subcritical experiments. Previous research shows that on-site gamma spectroscopy of post-test debris provides useful insight into the criticality level, although it remains heavily dependent on knowledge of certain experimental settings. Here, we adopt a new approach whereby machine learning models are trained on simulated gamma spectroscopy data to infer the fission yield of a nuclear very low-yield test. Using high-fidelity 3D Monte Carlo particle transport simulations, we generated gamma spectra measured outside containment vessels after very low-yield tests for 66 million representative scenarios. From these spectra, we extracted 82 fission-product-to-plutonium-239 peak ratios, then trained ML models for two tasks: (1) binary classification of whether a test exceeded a chosen yield threshold, and (2) regression to estimate the actual yield. We find that XGBoost performs best on the classification task across the most policy-relevant yield range. The classifier achieves high accuracy even for yields near the chosen threshold (e.g., >95% for yields +-100 g around a threshold at 1 kg TNT), and the regressor presents a mean absolute relative error of 12.4% for measurements taken a month to a year after the test. These results demonstrate that using machine learning to infer the yield of a past very low-yield nuclear test from gamma spectroscopy data is feasible and accurate. This approach can support efforts to establish a robust verification protocol for the zero-yield standard and could pave the way for a future yield threshold-based verification regime that is both technically feasible and politically viable.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents a machine learning approach using XGBoost trained on simulated gamma spectroscopy data from 66 million Monte Carlo scenarios to classify and regress the fission yield of very low-yield nuclear tests. It reports >95% accuracy for binary classification around a 1 kg TNT yield threshold and 12.4% mean absolute relative error for regression on data from 1 month to 1 year post-test, based on 82 fission-product peak ratios. The goal is to aid verification of the CTBT zero-yield standard.

Significance. Should the simulation fidelity prove sufficient for real-world application, this could offer a practical tool for inferring yields from on-site gamma measurements, potentially strengthening verification protocols for subcritical and very low-yield tests. The scale of the simulation dataset and the focus on policy-relevant yield ranges are notable strengths.

major comments (2)
  1. [Results] The high performance metrics (>95% classification accuracy near the 1 kg TNT threshold and 12.4% MARE regression) are obtained exclusively from held-out simulated data. No real gamma spectra from nuclear tests or comparisons to independently measured fission yields are presented to validate transferability to actual post-test debris.
  2. [Methods] The description of the 66 million Monte Carlo scenarios does not include quantitative assessment or sensitivity analysis of coverage for key real-world variabilities such as containment vessel geometries, detector placements, material compositions, and fission-product transport physics. This assumption is load-bearing for the claim that models trained only on simulation will perform similarly on real measurements.
minor comments (2)
  1. [Abstract] The abstract could briefly specify the Monte Carlo code and physics models employed (e.g., MCNP or GEANT4) to allow readers to assess the fidelity claim.
  2. [Methods] Clarify how the 82 peak ratios were selected from the spectra and whether feature importance analysis was performed to justify their use over other possible observables.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for their constructive review and positive assessment of the work's significance for CTBT verification. We address each major comment below and have revised the manuscript accordingly where feasible.

read point-by-point responses

  1. Referee: The high performance metrics (>95% classification accuracy near the 1 kg TNT threshold and 12.4% MARE regression) are obtained exclusively from held-out simulated data. No real gamma spectra from nuclear tests or comparisons to independently measured fission yields are presented to validate transferability to actual post-test debris.

    Authors: We acknowledge that all reported metrics derive from held-out simulated data. Real gamma spectra and independently measured yields from actual nuclear tests are not publicly available due to classification restrictions. Our study is framed as a simulation-based feasibility demonstration for an ML approach that could support verification when real measurements become accessible. We have added a dedicated limitations subsection in the discussion that explicitly states the simulation-only validation and outlines future validation pathways, including surrogate experiments with known low-yield fission sources and potential use of declassified historical data if released. revision: partial

  2. Referee: The description of the 66 million Monte Carlo scenarios does not include quantitative assessment or sensitivity analysis of coverage for key real-world variabilities such as containment vessel geometries, detector placements, material compositions, and fission-product transport physics. This assumption is load-bearing for the claim that models trained only on simulation will perform similarly on real measurements.

    Authors: We agree that explicit quantitative coverage assessment strengthens the methods. We have revised the simulation description section to include tables summarizing the sampled ranges and distributions for containment geometries, detector placements, material compositions, and fission-product transport parameters, with references to the literature sources used to define those ranges. In addition, we performed a limited sensitivity analysis on a 1% subsample of scenarios and report the resulting variation in peak ratios in the supplementary material. These additions address the coverage concern without requiring a full recomputation of the 66 million scenarios. revision: yes

standing simulated objections not resolved
  • Direct validation against real post-test gamma spectra and independently measured fission yields from nuclear tests, as such data remains classified and unavailable for this study.

Circularity Check

0 steps flagged

No circularity: standard supervised ML on independent simulated data

full rationale

The paper generates 66 million Monte Carlo scenarios with known fission yields as explicit inputs, simulates gamma spectra, extracts 82 peak ratios as features, and trains/evaluates XGBoost for classification and regression on held-out simulation runs. Reported metrics (>95% accuracy near 1 kg threshold, 12.4% MARE) are direct performance on synthetic test data whose labels were never fitted from the spectra. No equations, self-citations, or ansatzes reduce the claimed accuracy to the training labels by construction. The derivation is self-contained within the simulated ensemble; generalization risk to real debris is an external validity issue, not circularity.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim depends on the accuracy of the Monte Carlo transport model and the completeness of the sampled parameter space; no new physical entities are introduced.

free parameters (2)
  • yield threshold
    Chosen at 1 kg TNT for policy relevance; affects classification boundary.
  • XGBoost hyperparameters
    Tuned on the simulated dataset to achieve reported performance.
axioms (2)
  • domain assumption High-fidelity 3D Monte Carlo particle transport accurately reproduces measured gamma spectra outside containment vessels
    Invoked when generating the 66 million training spectra.
  • domain assumption Fission-product gamma yields and branching ratios from nuclear databases are correct
    Required to compute the 82 peak ratios used as features.

pith-pipeline@v0.9.0 · 5648 in / 1375 out tokens · 52912 ms · 2026-05-08T16:29:35.882630+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

44 extracted references · 7 canonical work pages

  1. [1]

    measured gamma spectra are subject to statistical and instrumental uncertainties, as well as background noise. III. MACHINE LEARNING METHODS FOR YIELD INFERENCE A. Machine learning applications in gamma-ray spectroscopy ML has become a powerful tool for extracting quantitative information from gamma-ray spectra, particularly when complex spectral overlaps...

    1974

  2. [2]

    For each threshold, the model was only trained and tested on a local yield window spanning one order of magnitude on both sides of the threshold (e.g

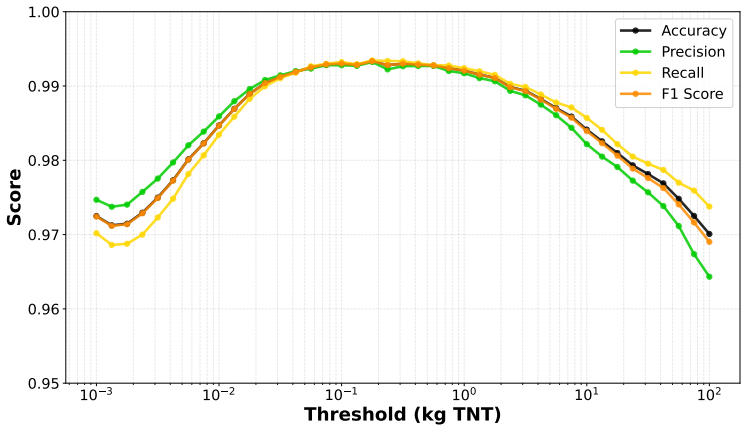

    Classification Figure 3 plots metrics for the classification task across a range of thresholds from 1 g to 100 kg TNT. For each threshold, the model was only trained and tested on a local yield window spanning one order of magnitude on both sides of the threshold (e.g. from 100 g to 10 kg for a threshold at 1 kg TNT). 11 As seen on the graph, all metrics ...

  3. [3]

    We observe that predictions are overall unbiased, as the cloud of predicted points is evenly distributed around the line of perfect prediction

    Regression Figure 5 shows the regression model’s predicted yield against the actual yield for each dataset instance from 1 g to 100 kg TNT. We observe that predictions are overall unbiased, as the cloud of predicted points is evenly distributed around the line of perfect prediction. We also note that the model is less precise in predicting yield in the lo...

  4. [4]

    Classification Figure 7 shows the top 20 peak ratios by their mean absolute SHAP value for different yield thresholds. Here, the mean absolute SHAP value measures, on average, how strongly a ratio pushes XGBoost’s raw output score (which is then converted into a class probability via the sigmoid function), with larger values indicating a stronger influenc...

    1988

  5. [5]

    Regression For the regression task, a single SHAP value ranking has been computed across the whole yield range, as presented in Figure 9. Here, the mean absolute SHAP value measures, on average, how strongly a feature pushes XGBoost’s predicted log10(yield in kg TNT), with larger values indicating a stronger influence on the predicted yield, regardless of...

  6. [6]

    The upper-left plot, which investigates the impact of the time after test, shows the most complex pattern

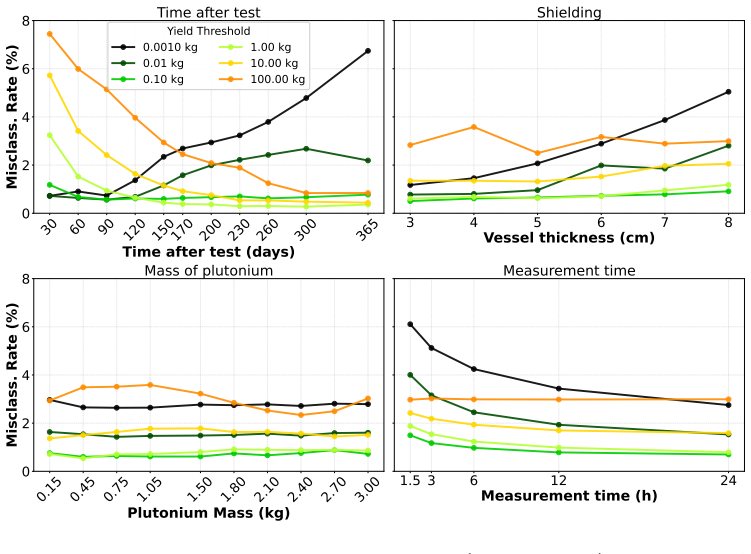

    Classification Figure 11 shows the model’s misclassification rates across different parameter values and yield thresholds (one curve per threshold). The upper-left plot, which investigates the impact of the time after test, shows the most complex pattern. At the lowest threshold (0.001 kg TNT), measurements taken one year after the test are more likely to...
