arxiv: 2605.05023 · v1 · submitted 2026-05-06 · 💻 cs.LG

Recognition: unknown

CuBridge: An LLM-Based Framework for Understanding and Reconstructing High-Performance Attention Kernels

Xing Ma , Yangjie Zhou , Wu Sun , Zihan Liu , Jingwen Leng , Yun Lin , Shixuan Sun , Minyi Guo

show 1 more author

Jin Song Dong

Authors on Pith no claims yet

Pith reviewed 2026-05-08 16:28 UTC · model grok-4.3

classification 💻 cs.LG

keywords attention kernelsCUDA code generationLLM-assisted kernel adaptationintermediate representationGPU performance optimizationdeep learning operatorskernel lifting and lowering

0 comments

The pith

CuBridge lifts expert-written CUDA attention kernels into an intermediate representation, adapts them with an LLM for new variants specified in PyTorch, and lowers the result back to optimized CUDA code.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tries to establish that expert CUDA kernels for attention can be systematically reused and adapted to new variants without sacrificing correctness or performance. It does this through a three-stage workflow that first abstracts an expert kernel into an executable intermediate form, then has an LLM generate a matching form for a fresh specification, and finally lowers the adapted form while consulting the original expert code as a reference. A sympathetic reader would care because attention is the performance-critical core of modern transformers, yet writing or retargeting high-performance CUDA kernels remains a manual bottleneck that neither general frameworks nor current compilers fully solve.

Core claim

CuBridge adapts expert-written CUDA attention kernels through a structured lift-transfer-lower workflow. It starts from expert-written CUDA attention kernels and lifts them into an executable intermediate representation that makes execution orchestration explicit while abstracting low-level CUDA syntax. Given a user-provided PyTorch specification, CuBridge generates and verifies a target IR program, then reconstructs optimized CUDA code via reference-guided lowering. Across diverse attention variants and GPU platforms, CuBridge consistently produces correct kernels and substantially outperforms general frameworks, compiler-based approaches, and prior LLM-based methods.

What carries the argument

The lift-transfer-lower workflow centered on an executable intermediate representation that exposes execution orchestration while hiding CUDA syntax, together with reference-guided lowering that consults the original expert kernel during code reconstruction.

If this is right

New attention mechanisms can be deployed with near-expert performance after only a high-level PyTorch specification is supplied.
The same expert kernel base can be reused across multiple GPU architectures without manual porting.
Development time for custom attention operators drops from weeks of CUDA tuning to hours of specification and verification.
Existing high-performance kernels become reusable assets rather than one-off implementations.
The approach scales to other complex GPU operators that currently lack flexible high-performance support.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The intermediate representation could become a shared substrate for mixing LLM generation with traditional compiler passes or formal verification.
If the workflow generalizes, the cost of supporting new hardware back-ends would shift from rewriting kernels to writing only the lowering rules.
The method suggests a broader pattern in which expert code serves as a performance anchor that constrains LLM outputs rather than being replaced by them.
Adoption would reduce the specialized CUDA expertise required to experiment with attention variants in research and production systems.

Load-bearing premise

That an LLM can reliably produce and verify correct intermediate programs for arbitrary new attention specifications and that the reference-guided lowering step will retain the performance of the original expert kernel.

What would settle it

A concrete new attention variant for which the generated kernel either fails verification on standard inputs or runs measurably slower than the closest hand-tuned expert kernel or a strong compiler baseline on the same GPU.

Figures

Figures reproduced from arXiv: 2605.05023 by Jingwen Leng, Jin Song Dong, Minyi Guo, Shixuan Sun, Wu Sun, Xing Ma, Yangjie Zhou, Yun Lin, Zihan Liu.

**Figure 1.** Figure 1: Hardware architecture and execution model view at source ↗

**Figure 3.** Figure 3: Overview of CuBridge. result, non-standard attention variants either suffer from noticeable performance degradation or demand significant manual engineering. Recent work has explored the use of large language models (LLMs) to automate GPU kernel generation. Benchmark studies (Ouyang et al., 2025) show that while LLM-generated CUDA kernels can perform competitively on simple operators, their correctness … view at source ↗

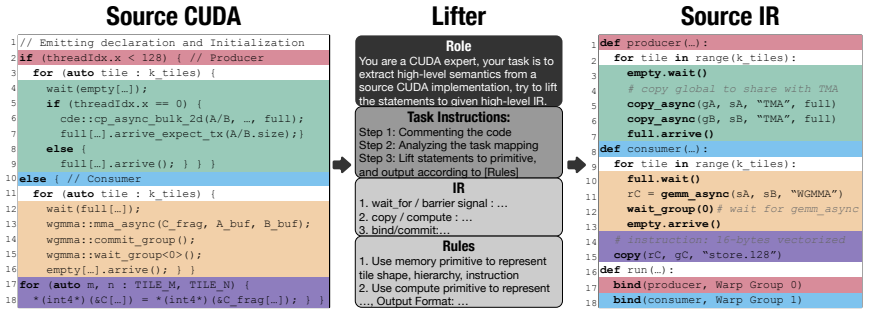

**Figure 4.** Figure 4: The Semantic Lifting Process. The left panel shows the complex Source CUDA, and the right panel displays the lifted Source IR, where code blocks of the same color represent mapping relationships. The center shows the modularized prompt, consisting of the CuIR documentation and the Chain-of-Thought reasoning process. Category Primitives Exposed Information Memory alloc, copy, copy_async Tile Shape, Memory H… view at source ↗

**Figure 5.** Figure 5: Performance-Aware Transformation for Pre view at source ↗

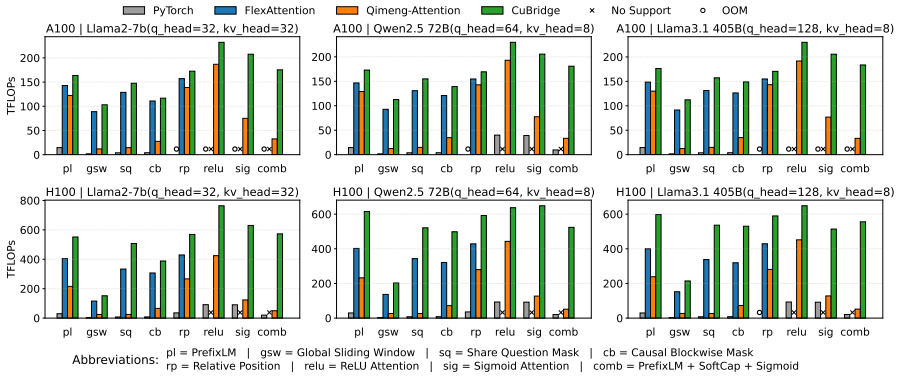

**Figure 6.** Figure 6: End-to-end performance comparison across attention variants and GPU platforms. view at source ↗

**Figure 7.** Figure 7: Performance comparison for the PrefixLM variant (Llama2-7B config) across different sequence lengths on A100 (left) and H100 (right) GPUs. 10.56×, while on H100 the speedups further increase to 1.43×–20.3×. As shown in view at source ↗

read the original abstract

Efficient CUDA implementations of attention mechanisms are critical to modern deep learning systems, yet supporting diverse and evolving attention variants remains challenging. Existing frameworks and compilers trade performance for flexibility, while expert-written kernels achieve high efficiency but are difficult to adapt. Recent work explores large language models (LLMs) for GPU kernel generation, but prior studies report unstable correctness and significant performance gaps for complex operators such as attention. We present CuBridge, an LLM-based framework that adapts expert-written attention kernels through a structured lift-transfer-lower workflow. CuBridge starts from expert-written CUDA attention kernels and lifts them into an executable intermediate representation that makes execution orchestration explicit while abstracting low-level CUDA syntax. Given a user-provided PyTorch specification, CuBridge generates and verifies a target IR program, then reconstructs optimized CUDA code via reference-guided lowering. Across diverse attention variants and GPU platforms, CuBridge consistently produces correct kernels and substantially outperforms general frameworks, compiler-based approaches, and prior LLM-based methods.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

CuBridge's lift-transfer-lower workflow looks like a practical step toward more stable LLM use for attention kernels, but the strong claims on consistent correctness rest on thin evidence so far.

read the letter

The core contribution here is the decision to start from existing expert CUDA attention kernels, lift them into an executable IR that exposes the orchestration, let the LLM handle only the adaptation to a new PyTorch spec, and then lower back with reference guidance to keep performance. That split feels more controlled than prior LLM kernel generators that try to produce full CUDA from scratch, and it directly targets the instability problem the abstract mentions for complex operators like attention. The paper does a decent job laying out why attention variants are hard to support and why pure compiler or framework routes lose too much speed. Anchoring the transfer step on lifted expert code is a clear difference from the referenced prior LLM work. If the full experiments show that this actually reduces subtle indexing or synchronization bugs while preserving most of the original kernel's efficiency, it would be a useful practical tool for people extending attention in production systems. The main soft spot is the gap between the abstract's assertions and the supporting data. It states that CuBridge consistently produces correct kernels and substantially outperforms the baselines across variants and platforms, yet the description supplies no error rates, no breakdown of which variants were tested, and no tables showing how close the generated kernels come to the expert originals in runtime or memory behavior. Without those numbers it is difficult to judge whether the verification step actually catches the kinds of errors LLMs commonly make in tiling, masking, and fusion logic, or whether the tested cases stayed close enough to the source kernels that the reference-guided lowering did most of the heavy lifting. The stress-test concern about generalization to truly arbitrary new specs is therefore still open. This paper is mainly for engineers and researchers who already maintain or extend high-performance attention code and want a faster path than hand-writing each variant. A reader focused on LLM-assisted performance engineering would find the workflow description worth examining even if the results need more scrutiny. It deserves peer review because the problem is real, the method is distinct, and the experiments—if they are as described—could move the field forward, but the current write-up would need the quantitative backing filled in before acceptance.

Referee Report

2 major / 2 minor

Summary. The paper presents CuBridge, an LLM-based framework for generating CUDA attention kernels via a lift-transfer-lower workflow. Expert-written CUDA kernels are lifted to an executable IR that exposes orchestration details while abstracting syntax. Given a user PyTorch attention specification, an LLM generates and verifies a target IR program, which is then lowered to optimized CUDA code using reference guidance from the expert kernel. The central claim is that this produces correct kernels across diverse attention variants and GPU platforms while substantially outperforming general frameworks, compilers, and prior LLM-based methods.

Significance. If the empirical claims hold, the work offers a practical bridge between the high performance of expert kernels and the flexibility needed for evolving attention mechanisms, addressing a key limitation in current DL systems. The structured workflow with explicit verification steps and reference-guided lowering is a strength over purely generative LLM approaches, and the absence of free parameters or fitted models supports reproducibility.

major comments (2)

[§4] §4 (Experiments) and abstract: The claim that CuBridge 'consistently produces correct kernels' for arbitrary new attention specifications is load-bearing but rests on unspecified verification procedures and lowering steps. No quantitative error rates, failure-mode analysis, or details on input sizes/edge cases for verification are provided, leaving open whether subtle indexing or synchronization errors in complex attention (tiling, masking, softmax) are reliably caught.
[§3.2] §3.2 (Transfer Step): The workflow depends on the LLM succeeding at generating executable IR from user specs rather than on automated compilation. Without reported success rates across a broad set of variants (beyond those close to the expert kernels) or ablation on LLM prompting/verification, the generalization of 'substantially outperforms' and 'consistently correct' cannot be assessed.

minor comments (2)

[Abstract] The abstract would benefit from a brief quantitative summary (e.g., average speedup or correctness rate) to support the performance and correctness claims.
[§3] Notation for the IR and lowering steps could be clarified with a small example in §3 to make the lift-transfer-lower process more accessible.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which help clarify the presentation of our results. We address each major comment point by point below and indicate the revisions we will incorporate.

read point-by-point responses

Referee: [§4] §4 (Experiments) and abstract: The claim that CuBridge 'consistently produces correct kernels' for arbitrary new attention specifications is load-bearing but rests on unspecified verification procedures and lowering steps. No quantitative error rates, failure-mode analysis, or details on input sizes/edge cases for verification are provided, leaving open whether subtle indexing or synchronization errors in complex attention (tiling, masking, softmax) are reliably caught.

Authors: We agree that the current manuscript does not provide sufficient quantitative detail on verification to fully support the 'consistently correct' claim. Section 4 describes verification via executable IR semantics and reference-guided checks, but we will revise both §4 and the abstract to report quantitative success rates from our experiments, a dedicated failure-mode analysis covering indexing, synchronization, tiling, masking, and softmax edge cases, and explicit details on the input sizes and test cases used. These additions will be included in the revised manuscript. revision: yes
Referee: [§3.2] §3.2 (Transfer Step): The workflow depends on the LLM succeeding at generating executable IR from user specs rather than on automated compilation. Without reported success rates across a broad set of variants (beyond those close to the expert kernels) or ablation on LLM prompting/verification, the generalization of 'substantially outperforms' and 'consistently correct' cannot be assessed.

Authors: The transfer step in §3.2 combines LLM generation of target IR with subsequent verification against the lifted executable IR. While the paper reports results on the evaluated variants, we acknowledge that broader success rates and prompting ablations are needed to substantiate generalization. We will expand §3.2 and the experiments to include success rates over a wider collection of attention variants (including those differing substantially from the expert kernels) and ablations on prompting strategies and verification methods. revision: yes

Circularity Check

0 steps flagged

No significant circularity; procedural framework with external references

full rationale

The paper describes a lift-transfer-lower workflow that starts from externally provided expert CUDA kernels and uses an LLM to adapt them to new PyTorch specifications, followed by reference-guided lowering. No equations, fitted parameters, predictions, or first-principles derivations appear in the abstract or described method. Claims rest on empirical verification across attention variants and platforms rather than any self-definitional reduction, self-citation load-bearing premise, or renaming of known results. The central assumptions (LLM correctness and performance preservation) are external to the paper's own structure and subject to independent testing, making the work self-contained against benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No mathematical axioms or free parameters; the framework depends on the empirical reliability of LLMs and the availability of expert kernels.

pith-pipeline@v0.9.0 · 5492 in / 931 out tokens · 42337 ms · 2026-05-08T16:28:10.663132+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

13 extracted references · 6 canonical work pages · 2 internal anchors

[1]

DeepSeek-V3 Technical Report

OpenReview.net. Tri Dao, Daniel Y . Fu, Stefano Ermon, Atri Rudra, and Christopher Ré. 2022. Flashattention: Fast and memory-efficient exact attention with io-awareness. InAdvances in Neural Information Processing Sys- tems 35: Annual Conference on Neural Information Processing Systems 2022, NeurIPS 2022, New Or- leans, LA, USA, November 28 - December 9, ...

work page internal anchor Pith review arXiv 2022
[2]

ClusterFusion: Expanding operator fusion scope for LLM inference via cluster-level collective primitive

IEEE. Xinhao Luo, Zihan Liu, Yangjie Zhou, Shihan Fang, Ziyu Huang, Yu Feng, Chen Zhang, Shixuan Sun, Zhenzhe Zheng, Jingwen Leng, and Minyi Guo. 2025. Clusterfusion: Expanding operator fusion scope for LLM inference via cluster-level collective primitive. CoRR, abs/2508.18850. Meta PyTorch. 2025. KernelAgent: Autonomous GPU kernel generation via deep age...

work page arXiv 2025
[3]

Training language models to follow instruc- tions with human feedback. InAdvances in Neural Information Processing Systems 35: Annual Confer- ence on Neural Information Processing Systems 2022, NeurIPS 2022, New Orleans, LA, USA, November 28 - December 9, 2022. Kuntal Kumar Pal, Kazuaki Kashihara, Ujjwala Anan- theswaran, Kirby C. Kuznia, Siddhesh Jagtap,...

work page arXiv 2022
[4]

Gemma 2: Improving Open Language Models at a Practical Size

OpenReview.net. Morgane Rivière, Shreya Pathak, Pier Giuseppe Sessa, and 1 others. 2024. Gemma 2: Improving open language models at a practical size.arXiv preprint arXiv:2408.00118. Jay Shah, Ganesh Bikshandi, Ying Zhang, Vijay Thakkar, Pradeep Ramani, and Tri Dao. 2024. Flashattention-3: Fast and accurate attention with asynchrony and low-precision. InAd...

work page internal anchor Pith review arXiv 2024
[5]

Astra: A multi-agent system for gpu kernel performance optimization.arXiv preprint arXiv:2509.07506, 2025

OpenReview.net. Anjiang Wei, Tianran Sun, Yogesh Seenichamy, Hang Song, Anne Ouyang, Azalia Mirhoseini, Ke Wang, and Alex Aiken. 2025. Astra: A multi-agent system for GPU kernel performance optimization.CoRR, abs/2509.07506. An Yang, Bowen Yu, Chengyuan Li, Dayiheng Liu, Fei Huang, Haoyan Huang, Jiandong Jiang, Jianhong Tu, Jianwei Zhang, Jingren Zhou, Ju...

work page arXiv 2025
[6]

Yangjie Zhou, Mengtian Yang, Cong Guo, Jingwen Leng, Yun Liang, Quan Chen, Minyi Guo, and Yuhao Zhu

Association for Computational Linguistics. Yangjie Zhou, Mengtian Yang, Cong Guo, Jingwen Leng, Yun Liang, Quan Chen, Minyi Guo, and Yuhao Zhu. 2021. Characterizing and demystifying the im- plicit convolution algorithm on commercial matrix- multiplication accelerators. In2021 IEEE Inter- national Symposium on Workload Characterization (IISWC), pages 214–2...

work page arXiv 2021
[7]

FlashMask (Wang et al., 2025) introduces a structural sparse mask representation, allowing it to support a wider range of mask variants

applies these techniques to speed up LLM in- ference. FlashMask (Wang et al., 2025) introduces a structural sparse mask representation, allowing it to support a wider range of mask variants. The second category is Compiler-based Ap- proaches (e.g., FlexAttention (Guessous et al., 2024), AttentionEngine (Chen et al., 2025a)). These methods improve programm...

2025
[8]

shared",

Step 1: Low-level Annotation.Begin by commenting all ptx usages andCuTeAPIs. You must refer to the technical document to explain the exact hardware behavior of each instruction. 2.Step 2: Worker Identification.Analyze the kernel’s parallel hierarchy to identify distinct execution units (e.g., warp, warpgroup, threadblock) and their code snippet. 3.Step 3:...
[9]

Signals thread arrival (incrementscurrent_threads)
[10]

Use this immediately before issuing acopy_async(TMA) operation

Increases the transaction goal bybytes_count(increments tx_goal). Use this immediately before issuing acopy_async(TMA) operation. •barrier.arrive(): –Signals thread arrival (incrementscurrent_threads) without modifying transaction expectations. •barrier.wait(parity): –Blocks the thread until the barrier completes the phase associated withparity. # Lifting...
[11]

Define one Python class inheriting fromKernelBase
[12]

Implement__init__,run, and logic methods
[13]

G IR Transfer Implementation Details IR Transfer is implemented as an iterative transformation-and-validation loop

Do NOT include explanations or markdown text outside the code block. G IR Transfer Implementation Details IR Transfer is implemented as an iterative transformation-and-validation loop. Given an Ori- gin CuIR, an Origin PyTorch specification, and a Target PyTorch specification,CuBridgegener- ates a Target CuIR under explicit transformation constraints, val...
