On-Chip Resonator for Nonlinear Kinetic Inductance Characterisation and Future Spectrometry Applications

Patrick Ashworth , Peter S. Barry , Chris S. Benson , Harry Gordon-Moys , Izaak Morris
Authors on Pith no claims yet

Pith reviewed 2026-05-08 15:52 UTC · model grok-4.3

classification 🌌 astro-ph.IM
keywords superconducting resonatorskinetic inductancealuminum thin filmsmm-wave spectrometersnonlinear effectsparametric amplifiersoxygen contentmicrowave characterization
0
0 comments X

The pith

On-chip resonators from oxygen-varied aluminum films characterize nonlinear kinetic inductance to guide mm-wave spectrometer design.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops tunable superconducting on-chip resonators from evaporated aluminum thin films whose oxygen content is systematically varied. DC measurements first extract basic film properties including resistivity, critical current, and critical temperature. Microwave testing of low-loss DC-coupled resonators then measures both their properties and the current-dependent nonlinear kinetic inductance, with results compared to a nonlinear kinetic model. The work supplies data intended to constrain optimization of yield, resolution, and efficiency in future millimeter-wave on-chip spectrometers. The same resonators are discussed as possible components in parametric amplifiers.

Core claim

Low-loss DC-coupled microwave resonators fabricated from evaporated Al films with controlled oxygen content enable direct characterization of microwave properties and the intrinsic current-dependent nonlinear kinetic inductance, with measured behavior matching a determined nonlinear kinetic model and thereby providing concrete constraints for mm-wave spectrometer design.

What carries the argument

Low-loss DC-coupled microwave resonators that exploit the current-dependent nonlinear kinetic inductance of superconducting aluminium films with varying oxygen stoichiometry.

If this is right

  • Varying oxygen content during evaporation allows extraction of film properties that correlate with nonlinear kinetic inductance behavior.
  • The resonator data can be used to set design targets for yield, resolution, and efficiency in mm-wave on-chip spectrometers.
  • The same devices offer a route to parametric amplification based on the observed nonlinearity.
  • Comparison to the nonlinear kinetic model validates the approach for predicting device performance from stoichiometry.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The oxygen-tuning method could be tested in other superconducting materials to broaden the range of available nonlinear inductances.
  • Embedding these resonators into prototype spectrometers would provide an end-to-end check on the claimed design constraints.
  • The characterization data might support development of fully parameter-free models linking evaporation conditions directly to inductance nonlinearity.

Load-bearing premise

Systematic variation of oxygen content in evaporated Al films produces predictable and optimizable changes in nonlinear kinetic inductance that can reliably constrain spectrometer parameters such as yield and resolution.

What would settle it

A set of measurements across multiple oxygen contents in which the extracted nonlinear inductance deviates substantially from the model predictions without clear correlation to film properties would falsify the utility for spectrometer design constraints.

Figures

Figures reproduced from arXiv: 2605.05452 by Chris S. Benson, Harry Gordon-Moys, Izaak Morris, Patrick Ashworth, Peter S. Barry.

Figure 1
Figure 1. Figure 1: Sonnet Simulation and recreation of Bothner et al CPW view at source ↗
Figure 3
Figure 3. Figure 3: cross sectional diagram of on-chip structure view at source ↗
Figure 4
Figure 4. Figure 4: Final Fabricated design First, a bottom aluminium layer 50 nm thick was deposited using an electron-beam sputter deposition system under high vacuum. A photolithographic process employing AZ2020 negative photoresist patterned with a Heidelberg MLA150 maskless lithography system. The aluminium was then wet￾etched using a phosphoric-nitric-acetic acid mixture, forming the inductively coupled resonator patter… view at source ↗
Figure 6
Figure 6. Figure 6: Resonator box and Biasing configuration circuit view at source ↗
Figure 5
Figure 5. Figure 5: Microscope image of the fabricated inductive short. view at source ↗

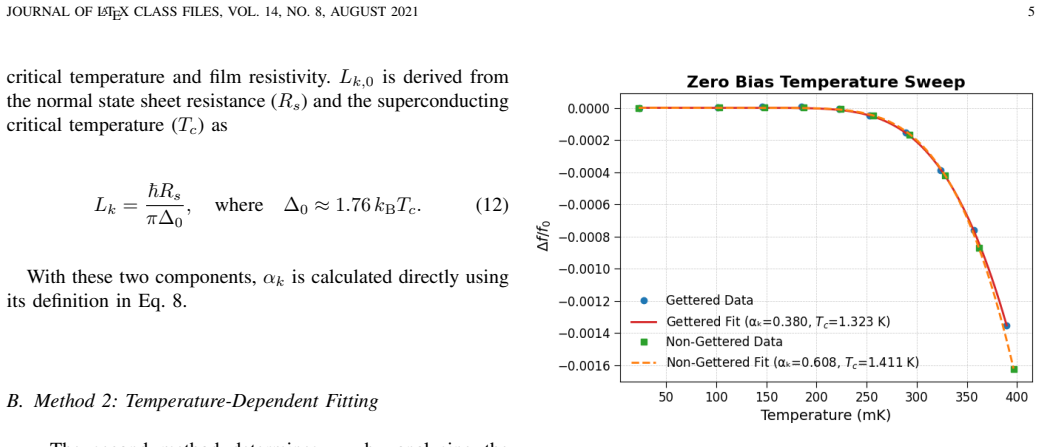

Figure 8
Figure 8. Figure 8: Mattis-Bardeen fit to temperature sweep data at zero DC bias view at source ↗

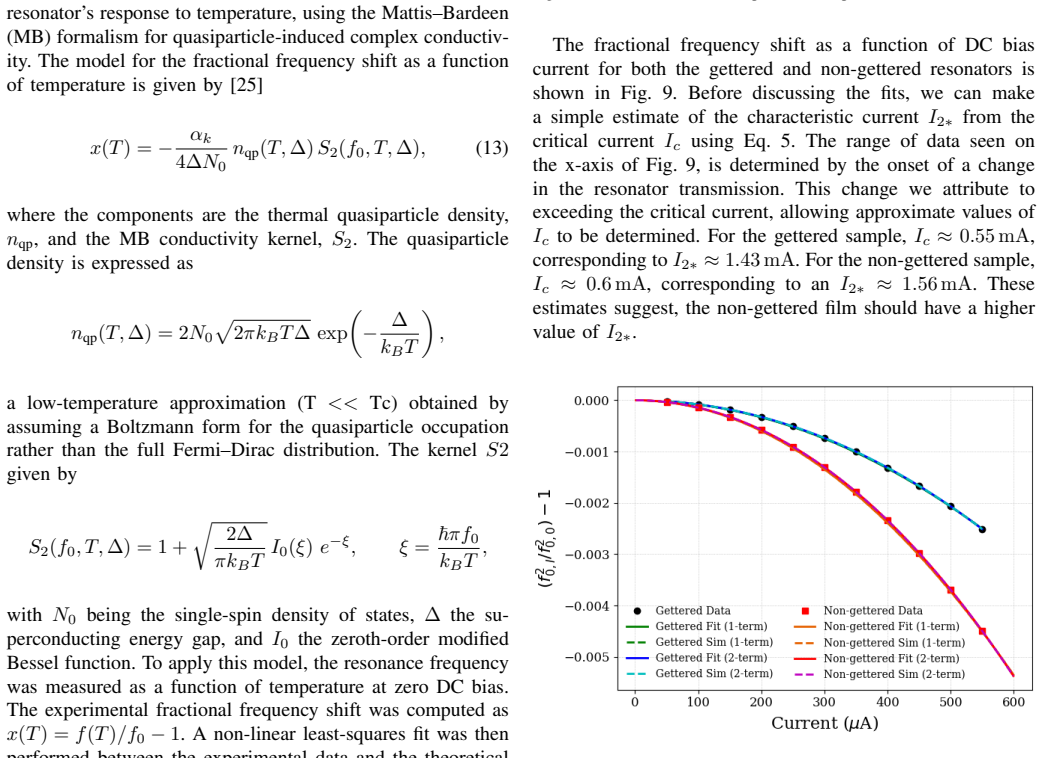

Figure 9
Figure 9. Figure 9: Extraction of In∗ in Al Resonators with and without Ti Gettering. Al Gettered Data; Fit 1-term (I2∗ = 6760.8); Sim 1-term (I2∗ = 4672.3); Fit 2-term (I2∗ = 6840.3, I4∗ = 4838.8); Sim 2-term (I2∗ = 4727.3, I4∗ = 4022.6); Non-gettered Data; Fit 1-term (I2∗ = 6376.8); Sim 1-term (I2∗ = 4002.0); Fit 2-term (I2∗ = 6508, I4∗ = 4260); Sim 2-term (I2∗ = 4084.3, I4∗ = 3374.8) view at source ↗
read the original abstract

This work focuses on the development and demonstration of tunable superconducting on-chip resonator, leveraging the intrinsic current-dependent non-linear kinetic inductance of superconducting aluminium, and investigating the effect of oxygen content. Thin films are deposited using standard metal evaporation. We present results from a comprehensive study based on a series of evaporated Al thin films. This research aims to inform and constrain optimisation strategies for the design of mm-wave on-chip spectrometers, particularly regarding yield, resolution, and efficiency. By systematically varying film stoichiometry, we use a series of DC measurements to extract fundamental film properties such as resistivity, critical current and critical temperature. Furthermore, we employ low-loss DC-coupled microwave resonators to characterise both their microwave properties and the non-linear kinetic inductance, comparing these findings to a determined non-linear kinetic model. Finally, we discuss the possibility of usage in a parametric amplifier.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript reports on evaporated aluminum thin films with systematically varied oxygen content. DC measurements extract resistivity, critical current, and critical temperature, while low-loss DC-coupled microwave resonators are used to characterize microwave properties and current-dependent nonlinear kinetic inductance. These results are compared to a nonlinear kinetic model, with the goal of constraining optimization strategies for mm-wave on-chip spectrometers (yield, resolution, efficiency) and discussing potential use in parametric amplifiers.

Significance. If the oxygen-content variation produces smooth, predictable shifts in nonlinearity that are independently validated by the model and directly linked to spectrometer metrics, the approach could offer a practical fabrication knob for improving yield and performance in superconducting mm-wave instrumentation.

major comments (2)
  1. [Abstract] Abstract: the claim that the measurements 'inform and constrain optimisation strategies' for spectrometer yield, resolution, and efficiency is unsupported; no quantitative mapping, simulation, or calculation is provided that connects the extracted resistivity, Ic, Tc, or nonlinear inductance values to these design parameters.
  2. [Abstract] Abstract and model-comparison description: the nonlinear kinetic model is described as 'determined' and then compared to the same DC and microwave data; the manuscript must clarify whether model parameters were fitted to the presented measurements (rendering the comparison circular) or obtained from an independent dataset or first-principles calculation.
minor comments (1)
  1. [Abstract] The abstract and introduction would benefit from explicit statements of the number of films studied, the oxygen-content range, and the specific resonator geometries used.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and constructive comments on our manuscript. We address each major comment point by point below, and have revised the abstract and relevant sections accordingly to improve clarity and accuracy.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that the measurements 'inform and constrain optimisation strategies' for spectrometer yield, resolution, and efficiency is unsupported; no quantitative mapping, simulation, or calculation is provided that connects the extracted resistivity, Ic, Tc, or nonlinear inductance values to these design parameters.

    Authors: We agree that the original abstract phrasing overstated the direct impact of our measurements on spectrometer optimization without providing explicit quantitative connections. While the extracted parameters (resistivity, Ic, Tc, and nonlinear inductance) are indeed the key inputs needed for such optimizations in mm-wave spectrometer design, the manuscript does not include simulations or calculations linking them directly to yield, resolution, or efficiency metrics. We will revise the abstract to remove or qualify this claim, focusing instead on the characterization results and their potential relevance. revision: yes

  2. Referee: [Abstract] Abstract and model-comparison description: the nonlinear kinetic model is described as 'determined' and then compared to the same DC and microwave data; the manuscript must clarify whether model parameters were fitted to the presented measurements (rendering the comparison circular) or obtained from an independent dataset or first-principles calculation.

    Authors: The referee is correct that the wording 'determined' followed by comparison to the same data could imply circularity. In fact, the nonlinear kinetic model parameters were extracted and fitted using the DC and microwave measurements from the films presented in this work. The comparison is intended to demonstrate consistency between the model and our experimental data for these oxygen-varied films, rather than an a priori prediction. We will revise the abstract and the model description section to explicitly state that the model parameters are determined from the presented data and clarify the validation purpose of the comparison. revision: yes

Circularity Check

0 steps flagged

No significant circularity in experimental characterization workflow.

full rationale

The manuscript presents an empirical study: DC measurements extract film properties (resistivity, Ic, Tc) from evaporated Al films with varied oxygen content, followed by microwave resonator characterization of nonlinear kinetic inductance, with results compared to a 'determined non-linear kinetic model.' No mathematical derivation chain, first-principles prediction, or equation set is claimed that reduces to its own inputs by construction. The model comparison is described in the abstract as part of characterization rather than a fitted prediction renamed as validation. No self-citation load-bearing steps, uniqueness theorems, or ansatz smuggling appear in the provided text. The central aim—to inform spectrometer design via systematic film variation—remains an independent experimental claim without reduction to tautology.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No explicit free parameters, axioms, or invented entities are identifiable from the abstract. The 'determined non-linear kinetic model' is referenced but its construction (whether first-principles or fitted) is not specified.
