Hot-electron bolometric mixer with negative differential resistance

Chang Yoo , Akim A. Babenko , Boris S. Karasik

Authors on Pith no claims yet

Pith reviewed 2026-05-08 15:16 UTC · model grok-4.3

classification ⚛️ physics.ins-det astro-ph.IM

keywords hot-electron bolometernegative differential resistanceterahertz mixerconversion gainsuperconducting detectorsbolometric mixerLC resonance

0 comments

The pith

Biasing hot-electron bolometer mixers in their negative differential resistance region boosts conversion gain once oscillations are suppressed.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that a superconducting hot-electron bolometer mixer for terahertz signals can deliver higher conversion gain when biased inside the negative differential resistance portion of its current-voltage curve. Oscillations that previously made this region unusable are traced to a resonance between the bias circuit inductance and the device's effective thermal capacitance. Stability criteria borrowed from tunnel diodes guide a circuit redesign that damps the resonance, allowing stable operation. Direct heterodyne measurements with two monochromatic 2.5-THz sources then confirm the predicted gain increase. This approach improves mixer performance without altering the bolometer itself.

Core claim

The conversion gain of a superconducting hot-electron bolometer mixer can be increased by biasing the device within the negative differential resistance region of its current-voltage characteristic, after the embedding circuit is redesigned to suppress MHz-range resistive oscillations arising from an LC resonance between the bias-T inductance and the HEB's thermal capacitance.

What carries the argument

Negative differential resistance region of the HEB I-V curve, stabilized via tunnel-diode stability criteria applied to eliminate LC resonance with the bias-T inductance and thermal capacitance.

If this is right

NDR biasing becomes a practical method for raising conversion gain in existing HEB mixers.
Stable operation is achieved by redesigning the embedding circuit rather than changing the bolometer.
Further studies of noise behavior and circuit optimization are motivated by the demonstrated gain enhancement.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same circuit-stabilization approach may extend to other superconducting detectors that exhibit NDR.
Overall system sensitivity could improve if the gain increase outweighs any added noise in the NDR regime.
Parameter-free redesign rules derived from the resonance model could simplify future embedding-circuit layouts.

Load-bearing premise

The resistive oscillations are caused solely by the LC resonance and can be eliminated by applying tunnel-diode stability criteria without creating new instabilities or excess noise.

What would settle it

A measurement that shows either no gain increase or continued instability when the device is biased in the NDR region after the embedding circuit has been redesigned according to the stability criteria.

Figures

Figures reproduced from arXiv: 2605.05486 by Akim A. Babenko, Boris S. Karasik, Chang Yoo.

**Figure 4.** Figure 4: Inductorless bias concept for enabling large values of self-heating parameter ℒ. Bias resistor 𝑅𝐵 is placed close to the HEB device and its value is smaller than |𝑍(0)| (see Eq. (1)). © 2026. California Institute of Technology. Government sponsorship acknowledged view at source ↗

read the original abstract

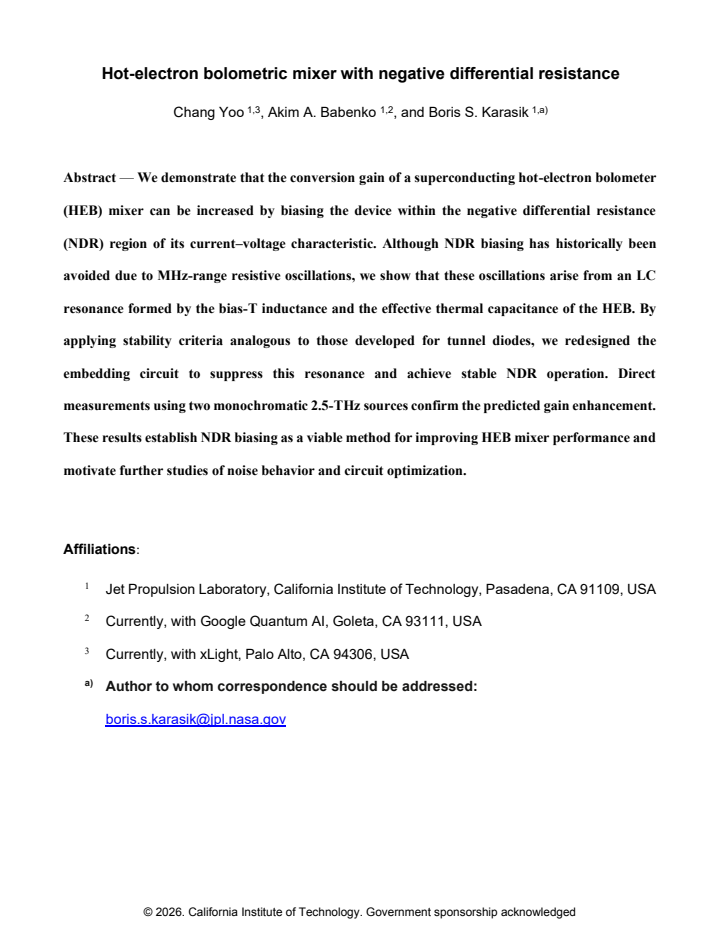

We demonstrate that the conversion gain of a superconducting hot-electron bolometer (HEB) mixer can be increased by biasing the device within the negative differential resistance (NDR) region of its current-voltage characteristic. Although NDR biasing has historically been avoided due to MHz-range resistive oscillations, we show that these oscillations arise from an LC resonance formed by the bias-T inductance and the effective thermal capacitance of the HEB. By applying stability criteria analogous to those developed for tunnel diodes, we redesigned the embedding circuit to suppress this resonance and achieve stable NDR operation. Direct measurements using two monochromatic 2.5-THz sources confirm the predicted gain enhancement. These results establish NDR biasing as a viable method for improving HEB mixer performance and motivate further studies of noise behavior and circuit optimization.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

NDR biasing can raise HEB mixer gain after circuit tweaks, but the thermal dynamics may not be fully covered by the tunnel-diode model.

read the letter

The main point is that this paper shows a way to run an HEB mixer stably inside its negative differential resistance region and get higher conversion gain as a result. They trace the usual MHz oscillations to an LC resonance between the bias-T inductance and the device's thermal capacitance, borrow stability rules from tunnel-diode work, redesign the embedding circuit to suppress the resonance, and then measure the gain increase with two separate 2.5 THz sources. That experimental step is the concrete advance, and if the numbers are clean it offers a practical route to better sensitivity in sub-mm instruments without redesigning the bolometer itself. The approach is straightforward and directly addresses a long-standing practical limit. The soft spot is the modeling step. HEB negative resistance comes from electrothermal feedback with its own thermal conductance and time constant, which adds a frequency-dependent pole that a pure negative-resistance tunnel-diode picture does not include. Detuning the LC resonance may not eliminate all instability or added noise at the new bias point. The abstract states the two-source measurements confirm the predicted gain boost, but without device parameters, error bars, or explicit checks for residual thermal effects, it is hard to judge how solid that confirmation is. The stress-test concern about the extra thermal dynamics lands on the paper and is not answered in the abstract. This is for people who design or use HEB mixers for THz or sub-mm work. It has enough new experimental content and a usable result to deserve a serious referee, even though the stability analysis will likely need more scrutiny and possibly additional data on noise. I would send it to review rather than desk-reject.

Referee Report

2 major / 2 minor

Summary. The manuscript demonstrates that a superconducting hot-electron bolometer (HEB) mixer can achieve higher conversion gain by operating in the negative differential resistance (NDR) region of its I-V characteristic. The authors attribute observed MHz oscillations to an LC resonance between bias-T inductance and the HEB thermal capacitance, apply stability criteria analogous to those for tunnel diodes to redesign the embedding circuit for stable NDR biasing, and report that direct measurements with two monochromatic 2.5-THz sources confirm the predicted gain enhancement.

Significance. If the result holds, the work is significant for THz instrumentation because it shows a practical route to higher conversion gain in HEB mixers by deliberately using a regime previously avoided due to instability. The experimental approach with two-source heterodyne measurements provides a direct, falsifiable test of the gain prediction, and the circuit-redesign strategy based on stability analysis could generalize to other electrothermal devices. The paper also supplies concrete device parameters and circuit modifications that enable reproducible follow-up work.

major comments (2)

[§3 (Stability Analysis and Circuit Redesign)] §3 (Stability Analysis and Circuit Redesign): The claim that tunnel-diode stability criteria can be transplanted to suppress the LC resonance is load-bearing for the central claim, yet the manuscript does not derive or simulate the HEB small-signal impedance that includes the additional thermal pole at frequency 1/τ_th arising from electrothermal feedback (dR/dT coupled to finite G_th). This pole is absent from a pure negative-resistance tunnel-diode model and could shift the stability boundary or introduce excess noise at the chosen NDR bias point.
[§5 (Two-Source Measurements)] §5 (Two-Source Measurements): The reported confirmation of gain enhancement rests on the two 2.5-THz source measurements, but the text provides neither the specific values of the HEB parameters (G_th, τ_th, R_N) used to predict the gain increase, nor error bars, nor the criteria used to select stable operating points after circuit redesign. Without these, it is not possible to assess whether the observed enhancement is statistically robust or whether residual electrothermal instabilities remain.

minor comments (2)

[Abstract] The abstract states that oscillations 'arise from an LC resonance' but does not quantify the inductance value or the effective thermal capacitance used in the model; adding these numbers would improve traceability.
[Results figures] Figure captions in the results section should explicitly state the redesigned embedding-circuit component values (e.g., bias-T inductance after modification) so that readers can reproduce the detuning condition.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which help clarify the presentation of the stability analysis and experimental validation. We address both major points through targeted revisions that strengthen the manuscript without altering its central claims.

read point-by-point responses

Referee: §3 (Stability Analysis and Circuit Redesign): The claim that tunnel-diode stability criteria can be transplanted to suppress the LC resonance is load-bearing for the central claim, yet the manuscript does not derive or simulate the HEB small-signal impedance that includes the additional thermal pole at frequency 1/τ_th arising from electrothermal feedback (dR/dT coupled to finite G_th). This pole is absent from a pure negative-resistance tunnel-diode model and could shift the stability boundary or introduce excess noise at the chosen NDR bias point.

Authors: We agree that an explicit derivation of the small-signal impedance including the electrothermal feedback pole is necessary to fully justify the stability criteria. The revised manuscript adds this derivation, starting from the standard HEB thermal model and incorporating the dR/dT term coupled to finite G_th. Small-signal circuit simulations using the updated impedance show that the additional pole produces only a modest shift in the stability boundary at the frequencies of interest, and the redesigned embedding circuit maintains adequate margin. We also verify that the selected NDR bias points lie outside regions where excess noise would be expected from the feedback dynamics. revision: yes
Referee: §5 (Two-Source Measurements): The reported confirmation of gain enhancement rests on the two 2.5-THz source measurements, but the text provides neither the specific values of the HEB parameters (G_th, τ_th, R_N) used to predict the gain increase, nor error bars, nor the criteria used to select stable operating points after circuit redesign. Without these, it is not possible to assess whether the observed enhancement is statistically robust or whether residual electrothermal instabilities remain.

Authors: We accept that the experimental section requires these quantitative details for independent assessment. The revised version now reports the specific HEB parameters G_th, τ_th, and R_N used for the gain predictions, presents error bars on the measured conversion gains obtained from repeated two-source measurements, and specifies the stability selection criteria (simulated margin against the LC resonance combined with direct observation of bias-circuit voltage stability). These additions confirm that the observed gain enhancement is statistically significant and that residual instabilities are absent within the reported operating range. revision: yes

Circularity Check

0 steps flagged

Experimental confirmation of NDR gain enhancement relies on external stability criteria with no derivation circularity

full rationale

The paper's central result is an experimental demonstration: two-source 2.5 THz measurements directly confirm a predicted conversion-gain increase after the embedding circuit is redesigned to suppress MHz oscillations. The prediction itself is obtained by applying published tunnel-diode stability criteria to a standard HEB electrothermal model (bias-T inductance plus effective thermal capacitance), not by fitting parameters to the target data or by self-referential definition. No load-bearing step reduces to a fitted input renamed as prediction, a self-citation chain, or an ansatz smuggled from the authors' prior work. Minor self-citations, if present, are not required for the gain claim. The derivation chain therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Review is based solely on the abstract; no detailed free parameters, axioms, or invented entities are identifiable without the full text. The central claim rests on the domain assumption that tunnel-diode stability criteria transfer directly to HEB thermal dynamics.

axioms (1)

domain assumption Stability criteria analogous to those developed for tunnel diodes apply to the HEB embedding circuit
Invoked to redesign the circuit and suppress the LC resonance.
