arxiv: 2605.05981 · v1 · submitted 2026-05-07 · ❄️ cond-mat.supr-con · physics.app-ph

Recognition: unknown

Massive Mitigation of Transport AC Losses in Superconducting Hybrid CORC-TSTC Cables

Hasan N. Al-Ssalih , Antonio Bad\'ia-Maj\'os , Harold S. Ruiz

Authors on Pith no claims yet

Pith reviewed 2026-05-08 04:27 UTC · model grok-4.3

classification ❄️ cond-mat.supr-con physics.app-ph

keywords superconducting cablestransport AC lossesCORC conductorsTSTC conductorshybrid cablescurrent feedingelectromagnetic modeling

0 comments

The pith

Independent current feeding cuts transport AC losses by up to 90% in hybrid CORC-TSTC cables

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that the method of injecting current into hybrid CORC-TSTC superconducting cables controls how current redistributes inside them and how much energy is lost. When the CORC and TSTC parts share a common electrical connection, current flows between them, distorting the waveforms and raising losses once the CORC layers reach magnetic saturation. Supplying current separately to each conductor type blocks this exchange, keeps the waveforms steady, and lowers the losses by as much as 90 percent at practical current levels. A reader would care because these cables are meant for high-capacity power lines, and lower losses directly improve efficiency and reduce the cooling power needed.

Core claim

Comparing common non-insulated feeding against independent insulated feeding in a fully-3D electromagnetic model shows that electrical coupling produces strong current redistribution and elevated AC losses once CORC layers approach magnetic saturation, while independent feeding suppresses inter-conductor exchange, stabilises the current waveforms, and reduces transport AC losses by up to 90 percent at practical operating currents.

What carries the argument

The current feeding configuration, specifically whether the CORC and TSTC conductors are electrically coupled or decoupled at the injection point

If this is right

Hybrid cables become practical for low-loss power transmission when conductors are decoupled at the feed point
Current waveforms remain stable because inter-conductor exchange is blocked
Electrical decoupling at the feeding point supplies a simple design change that scales to larger cables

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same decoupling principle may apply to other multi-conductor superconducting cable layouts to limit losses
Lower losses could reduce the cooling infrastructure required in grid-scale applications
Testing the cables under combined transport current and external magnetic field would check whether the benefit holds in real installations

Load-bearing premise

The fully-3D electromagnetic model, validated only against magnetization experiments, correctly predicts internal current redistribution and AC loss behavior under self-field transport current conditions for the hybrid geometry.

What would settle it

Direct experimental measurement of transport AC losses in a physical hybrid CORC-TSTC cable sample under both common and independent feeding at practical operating currents

Figures

Figures reproduced from arXiv: 2605.05981 by Antonio Bad\'ia-Maj\'os, Harold S. Ruiz, Hasan N. Al-Ssalih.

**Figure 1.** Figure 1: Pictorial representation of hybrid CORC-TSTC cables with current feeders in the so-called: a) non-insulated configuration where CORC & TSTC conductors are electrically connected in the terminals; b) the insulated configuration where the CORC and TSTC are electrically decoupled and; c) Simplified view of the helical winding characteristic of CORC Tapes, enclosing the twisted tapes of the TSTC along a pitch … view at source ↗

**Figure 2.** Figure 2: Simulated AC loss and transport current distribution in 6-by-6 and 6-by-2 hybrid CORC-TSTC cables subjected to an applied transport current equal to 90% of the cable’s rated capacity, i.e., Ia = 0.9 × ntapes × Ic, at a frequency of 60 Hz, and Ic = 190 A at 77 K. (a) Transport current response for the non-insulated and insulated configurations normalized by the theoretical maximum current allowed at the COR… view at source ↗

**Figure 3.** Figure 3: Percentual loss reduction of the 6 by 6 insulated CORC-TSTC hybrid cable under transport current with respect to a non-insulated hybrid cable with the same number of tapes. redistribution is accompanied by a pronounced waveform distortion in the individual conductor currents, even though the combined current delivered by the source remains sinusoidal (see view at source ↗

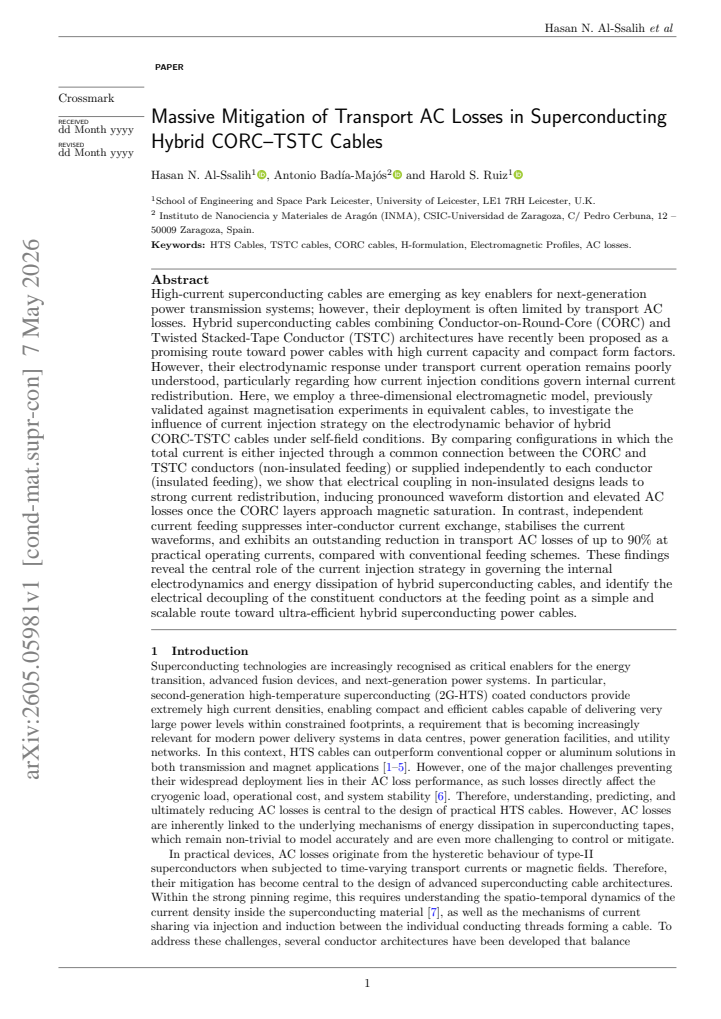

read the original abstract

High-current superconducting cables are emerging as key enablers for next-generation power transmission systems; however, their deployment is often limited by transport AC losses. Hybrid superconducting cables combining Conductor-on-Round-Core (CORC) and Twisted Stacked-Tape Conductor (TSTC) architectures have recently been proposed as a promising route toward cables with high current capacity and compact form factors. However, their electrodynamic response under transport current operation remains poorly understood, particularly regarding how current injection conditions govern internal current redistribution. Here, we employ a fully-3D electromagnetic model, previously validated against magnetisation experiments in equivalent cables, to investigate the influence of current injection strategy on the electrodynamics of hybrid CORC-TSTC cables under self-field conditions. By comparing configurations in which the total current is either injected through a common connection between the CORC and TSTC conductors (non-insulated feeding) or supplied independently to each conductor (insulated feeding), we show that electrical coupling in non-insulated designs leads to strong current redistribution, pronounced waveform distortion and elevated AC losses once the CORC layers approach magnetic saturation. In contrast, independent current feeding suppresses inter-conductor current exchange, stabilises the current waveforms, and exhibits an outstanding reduction in transport AC losses of up to 90% at practical operating currents, compared with conventional feeding schemes. These findings reveal the central role of the current injection strategy in governing the internal electrodynamics and energy dissipation of hybrid superconducting cables, and identify the electrical decoupling of the constituent conductors at the feeding point as a simple and scalable route toward ultra-efficient power cables.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper reports up to 90% lower transport AC losses in hybrid CORC-TSTC cables when current is fed independently to each conductor rather than through a shared connection, based on 3D simulations.

read the letter

The central finding is that insulated feeding prevents current exchange between the CORC and TSTC sections, which otherwise causes waveform distortion and higher losses once the CORC layers saturate. Their simulations show this effect clearly at practical current levels, with the non-insulated case producing much larger dissipation. The work applies an existing fully-3D electromagnetic model to this specific hybrid geometry under self-field transport conditions and quantifies the difference between the two feeding schemes. That comparison is the main new element, and it points to a straightforward design change that could matter for cable efficiency. The mechanism they describe follows from basic coupling physics and is presented with enough detail to follow the current redistribution. The model itself was already checked against magnetization data on similar cables, which gives some baseline credibility to the numerics. The soft spot is the validation scope. Magnetization tests involve external fields and zero net transport current, so the local field profiles, injection boundaries, and saturation dynamics differ from the self-field transport case the paper targets. No separate transport-current benchmark or error bars on the loss predictions are mentioned, which leaves the 90% reduction number dependent on how well the constitutive relations carry over. If the mesh or material laws miss some redistribution detail under net current, the magnitude could shift. This is a targeted simulation study for people working on high-current superconducting cables for power transmission or magnets. Readers who design or model CORC and TSTC hybrids will find the feeding-strategy result directly relevant and can test it in their own setups. It is solid enough on the modeling side to go to peer review, though referees should press for transport-specific checks or at least clearer discussion of why the magnetization validation transfers. I would send it out with that request rather than desk-reject.

Referee Report

1 major / 2 minor

Summary. The paper employs a fully-3D electromagnetic model, previously validated on magnetization experiments, to simulate transport AC losses in hybrid CORC-TSTC superconducting cables. It compares non-insulated (common) versus insulated (independent) current feeding and concludes that independent feeding suppresses inter-conductor current exchange, stabilizes waveforms, and reduces AC losses by up to 90% at practical operating currents relative to conventional schemes.

Significance. If the transport-current predictions are reliable, the work would be significant for high-current superconducting cable design, identifying electrical decoupling at the feed point as a scalable route to lower dissipation. The 3D modeling approach usefully isolates the role of current redistribution and saturation in hybrid architectures.

major comments (1)

[Abstract and model-validation statement] Abstract and model-validation statement: The headline result (up to 90% loss reduction) rests entirely on forward simulation. The model is described as 'previously validated against magnetisation experiments in equivalent cables,' but those tests apply external fields with zero net transport current. Under self-field transport conditions the local B-field distribution, current-injection boundary conditions, and inter-strand coupling currents differ qualitatively; without transport-specific benchmarks, error bars on the redistribution dynamics, or saturation checks, the quantitative loss-reduction claim lacks direct support.

minor comments (2)

The abstract refers to 'practical operating currents' without stating the specific I/Ic ratios or frequency range used; adding these values would improve reproducibility.
The phrase 'outstanding reduction' is subjective; a direct numerical comparison to published loss data for similar CORC or TSTC cables would strengthen the claim.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful and constructive review of our manuscript. We address the single major comment below and outline the revisions we will make.

read point-by-point responses

Referee: The headline result (up to 90% loss reduction) rests entirely on forward simulation. The model is described as 'previously validated against magnetisation experiments in equivalent cables,' but those tests apply external fields with zero net transport current. Under self-field transport conditions the local B-field distribution, current-injection boundary conditions, and inter-strand coupling currents differ qualitatively; without transport-specific benchmarks, error bars on the redistribution dynamics, or saturation checks, the quantitative loss-reduction claim lacks direct support.

Authors: We agree that the prior validation was performed exclusively on magnetization loss measurements under external AC fields with zero net transport current, and that the self-field transport regime introduces different local field distributions and current-injection boundary conditions. The 3D H-formulation model solves the same time-dependent Maxwell equations and employs the same power-law E-J relation in both cases; the transport simulations additionally enforce the chosen feeding topology (common versus independent) through explicit terminal boundary conditions. While this does not replace direct transport benchmarks, the relative difference between the two feeding schemes arises primarily from the presence or absence of inter-conductor current paths at the feed point, which is controlled directly by the boundary conditions and is therefore captured by the model. We will revise the abstract to state that the reported loss reduction is obtained from simulation, add a new subsection in the methods or discussion section that explicitly compares the magnetization and transport regimes, reports mesh-convergence and current-conservation checks, and notes the absence of transport-specific experimental validation as a limitation of the present study. These changes will qualify the quantitative claim while preserving the central physical insight. revision: partial

Circularity Check

0 steps flagged

No circularity; results from forward simulation of externally validated model

full rationale

The paper derives its claims on AC loss reduction (up to 90%) exclusively from numerical solutions of a fully-3D electromagnetic model applied to two current-injection boundary conditions. The model is described as previously validated against independent magnetization experiments on equivalent cables, supplying external grounding rather than self-referential fitting. No equations reduce to their own inputs by construction, no parameters are fitted to the reported transport-loss data, and no load-bearing uniqueness theorems or ansatzes are imported via self-citation. The derivation chain is therefore self-contained forward modeling whose outputs are not forced by the inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The claim depends on the accuracy of the 3D electromagnetic model for transport-current conditions and on the assumption that the simulated geometries and material properties match practical cables.

axioms (1)

domain assumption The fully-3D electromagnetic model accurately captures current redistribution and AC losses in hybrid CORC-TSTC cables under self-field transport current.
The paper invokes this model as the basis for all quantitative results after noting prior validation only against magnetization experiments.
