arxiv: 2605.06432 · v1 · submitted 2026-05-07 · 💻 cs.RO

TouchDrive: Electronics-Free Tactile Sensing Interface for Assistive Grasping

Jing Xu , Xuezhi Niu , Didem Gurdur Broo , Klas Hjort This is my paper

Pith reviewed 2026-05-08 08:50 UTC · model grok-4.3

classification 💻 cs.RO

keywords tactile sensingassistive graspingpneumatic feedbackelectronics-free interfacerobotic manipulationhaptic cuespassive sensingdelicate object handling

0 comments

The pith

TouchDrive converts grasp contact forces directly into pneumatic haptic feedback through a passive valve loop with no electronics.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents TouchDrive as a simple mechanical system that senses forces at a robot gripper and turns them into air-pressure signals felt by the user. A normally closed pneumatic valve opens under contact pressure to release air from a tank to a haptic actuator, completing the entire sensing-to-feedback path without sensors, processors, or power. This design aims to let users adjust grip on delicate or compliant objects such as fruits by providing immediate tactile cues. Validation across multiple robot platforms showed consistent performance when handling up to twenty everyday items. The approach seeks to lower cost and complexity while preserving reliable force modulation for assistive tasks.

Core claim

TouchDrive integrates sensing, signal generation, and feedback inside one passive pneumatic loop that uses a normally closed valve, compressed air tank, sensing element, and haptic actuator. Contact forces open the valve to deliver proportional air flow as haptic cues, allowing users to modulate grasp forces without any electronic processing or calibration. The system has been shown to support safe manipulation of compliant and fragile objects on diverse robotic platforms.

What carries the argument

The passive pneumatic loop with a normally closed valve that switches on contact force to route air to the haptic actuator.

If this is right

Users receive immediate tactile cues to adjust grasp force on fragile objects without electronic delays.
The same hardware works across different robotic platforms without platform-specific electronics.
System cost and complexity drop because sensing and feedback occur inside one mechanical loop.
Delicate manipulation becomes accessible for assistive tasks involving up to twenty everyday objects including fruits.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same passive valve principle could be tested on non-grasping force tasks such as probing or insertion.
Integration with existing pneumatic robot arms might allow entirely mechanical sensory upgrades at low added cost.
If the valve threshold proves stable over long use, the design could support field deployment where batteries or electronics are impractical.

Load-bearing premise

A purely passive pneumatic loop with a normally closed valve can reliably turn varying contact forces into usable haptic feedback across objects, platforms, and users without electronics or calibration.

What would settle it

Repeated trials in which the valve fails to open consistently under different object compliances or users cannot adjust grip in time to avoid crushing fragile items such as berries or eggs.

Figures

Figures reproduced from arXiv: 2605.06432 by Didem Gurdur Broo, Jing Xu, Klas Hjort, Xuezhi Niu.

**Figure 1.** Figure 1: System overview of the assistive grasping system. (a) Experimental view at source ↗

**Figure 2.** Figure 2: Passive NC valve and working principle. (a) Assembled valve view at source ↗

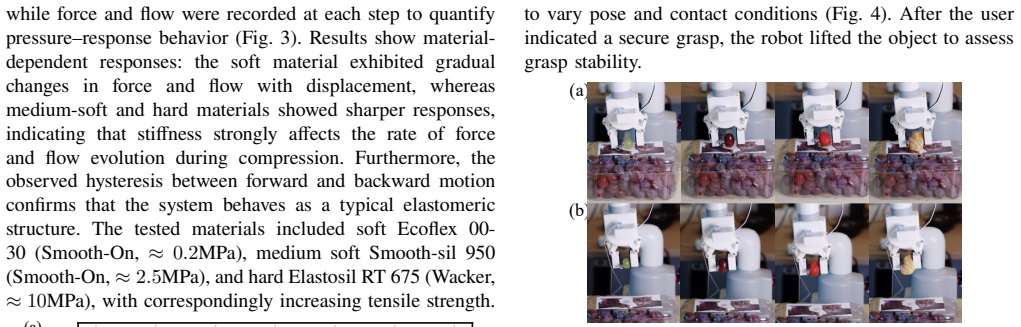

**Figure 4.** Figure 4: Grasping fruits with myCobot using the proposed system. (a) Pre view at source ↗

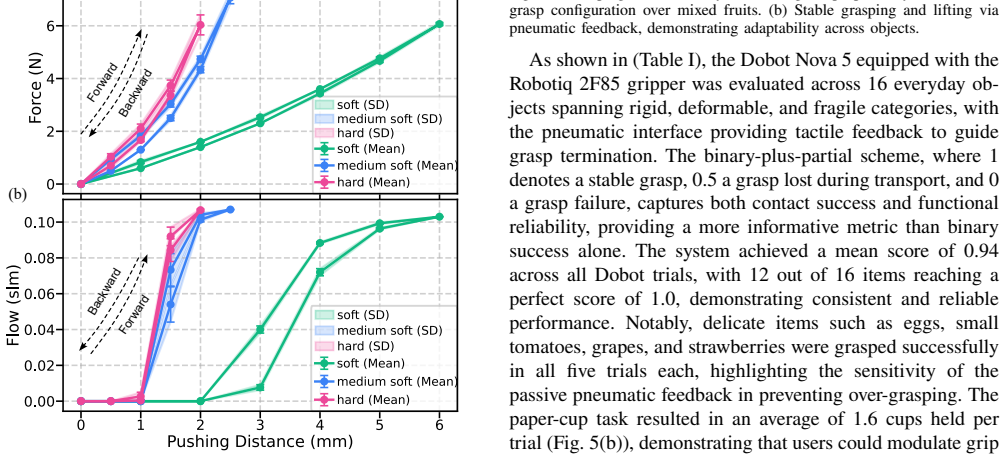

**Figure 3.** Figure 3: Experimental characterization of three silicone cubic with different view at source ↗

**Figure 5.** Figure 5: Grasping a stack of nine paper cups; nine cups correspond view at source ↗

read the original abstract

Assistive robotic grasping plays an important role in enabling safe and adaptive manipulation of diverse objects. However, existing systems often rely on electronic sensing and multi-stage processing pipelines, increasing system complexity and reducing accessibility. To address these limitations, we present TouchDrive, a cost-effective, electronics-free tactile sensing interface for assistive grasping. TouchDrive directly converts contact forces into pneumatic feedback through valve-mediated switching, integrating sensing, signal generation, and feedback within a single passive mechanical loop. The system can be employed using a pneumatic normally closed valve, a compressed air tank, sensing element, and haptic feedback actuator without electronics. By delivering tactile cues, TouchDrive empowers users to modulate grasp forces, enabling precise and robust delicate manipulation of compliant and fragile objects. The interface has been validated across diverse robotic platforms, consistently demonstrating reliable performance and practical applicability in assistive grasping tasks, such as handling fruits and everyday items (up to 20 objects).

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

TouchDrive describes a passive pneumatic loop using a normally closed valve to turn grasp forces into haptic feedback without electronics, but the abstract asserts reliable validation on 20 objects with no data, curves, or repeatability stats to back it up.

read the letter

The key thing here is a hardware-only pneumatic interface that routes air through a valve to deliver direct tactile cues during grasping. It avoids sensors, processors, and power by keeping everything in one passive circuit with a tank, valve, sensing element, and actuator. That setup targets the cost and complexity issues in assistive robots for delicate tasks like handling fruit or household items.

Referee Report

2 major / 0 minor

Summary. The manuscript presents TouchDrive, an electronics-free tactile sensing interface for assistive robotic grasping. It employs a passive pneumatic loop consisting of a normally closed valve, compressed air tank, sensing element, and haptic feedback actuator to directly convert variable contact forces into tactile cues without electronics or processing pipelines. The central claim is that this system has been validated across diverse robotic platforms and consistently demonstrates reliable performance for grasping up to 20 objects, including compliant fruits and everyday items, thereby enabling users to modulate grasp forces for delicate manipulation.

Significance. If the passive pneumatic mechanism can be shown to deliver repeatable, distinguishable haptic feedback across object types and platforms without calibration, the approach could meaningfully lower barriers to assistive robotics by eliminating electronic components, reducing cost and complexity while potentially increasing robustness. The work highlights a hardware-centric alternative to conventional sensor-plus-processing pipelines, which is a direction of practical interest for accessibility-focused applications.

major comments (2)

[Abstract] Abstract: The claim that the interface 'has been validated across diverse robotic platforms, consistently demonstrating reliable performance and practical applicability' is unsupported by any quantitative results, force-response data, repeatability statistics, error bars, test protocols, or failure-mode analysis. This absence directly undermines evaluation of the central claim of consistent reliability.
[Abstract] Abstract (and system description): The passive pneumatic loop is asserted to map variable contact forces (soft fruits to rigid items) into usable haptic feedback via a single normally closed valve, yet no evidence is provided on valve cracking pressure stability, flow characteristics, or repeatability across force ranges and users. This mechanical mapping is load-bearing for the 'electronics-free' and 'reliable' assertions but remains uncharacterized.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed comments on our manuscript. We have addressed each major comment point by point below, providing clarifications and indicating revisions where the feedback identifies areas for strengthening the presentation of our results and supporting data.

read point-by-point responses

Referee: [Abstract] Abstract: The claim that the interface 'has been validated across diverse robotic platforms, consistently demonstrating reliable performance and practical applicability' is unsupported by any quantitative results, force-response data, repeatability statistics, error bars, test protocols, or failure-mode analysis. This absence directly undermines evaluation of the central claim of consistent reliability.

Authors: We acknowledge that the abstract, as originally written, summarizes the validation outcomes at a high level without embedding specific quantitative metrics. The full manuscript describes experiments performed across multiple robotic platforms and object sets (including up to 20 items), but we agree that explicit summary statistics would better support the reliability claim. In the revised version we have updated the abstract to report key quantitative indicators drawn from our experimental protocol, including aggregate success rates, basic repeatability across trials, and reference to the test conditions used. revision: yes
Referee: [Abstract] Abstract (and system description): The passive pneumatic loop is asserted to map variable contact forces (soft fruits to rigid items) into usable haptic feedback via a single normally closed valve, yet no evidence is provided on valve cracking pressure stability, flow characteristics, or repeatability across force ranges and users. This mechanical mapping is load-bearing for the 'electronics-free' and 'reliable' assertions but remains uncharacterized.

Authors: The referee correctly notes that detailed characterization of the valve's mechanical behavior is necessary to substantiate the passive mapping. Our original submission emphasized system integration and end-to-end grasping demonstrations rather than component-level metrology. To address this gap we have added a dedicated subsection (with accompanying figures) that reports measured cracking-pressure thresholds, flow-rate response across the relevant force range, and repeatability statistics obtained over repeated cycles and with multiple users. These data directly support the stability and consistency of the electronics-free loop. revision: yes

Circularity Check

0 steps flagged

No circularity: purely hardware description with no derivations or fitted predictions

full rationale

The paper presents a passive pneumatic tactile interface using a normally-closed valve, compressed air tank, sensing element, and haptic actuator. No equations, models, parameter fits, or predictive derivations appear in the provided text or abstract. Claims of validation across platforms and objects rest on direct hardware implementation and empirical testing rather than any self-referential reduction or self-citation chain. The mechanism is described as a single passive mechanical loop without any fitted inputs renamed as outputs or uniqueness theorems imported from prior work.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No mathematical models, parameters, or axioms appear in the abstract; the contribution is a hardware concept description.
