arxiv: 2605.06744 · v1 · submitted 2026-05-07 · 💻 cs.CR

A UEFI System with SPDM to Protect Against Unauthorized Device Connections

\'Agatha de Freitas , Marcos A. Simplicio Jr , Bruno C. Albertini , Renan C. A. Alves This is my paper

Pith reviewed 2026-05-11 00:45 UTC · model grok-4.3

classification 💻 cs.CR
keywords UEFISPDMdevice authenticationPCIe securityUSB securityfirmware protectionmalicious peripheralssecure boot
0
0 comments X

The pith

UEFI firmware can use SPDM to authenticate PCIe and USB devices and block unauthorized connections.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes integrating the Security Protocol and Data Model into UEFI to authenticate peripherals attempting to connect via PCIe or USB. A sympathetic reader would care because this directly counters attacks that use malicious hardware to compromise systems without software-level detection. The work includes an open-source emulated proof-of-concept that enforces connection only to allowed devices. Experiments measure a 13 percent rise in instructions and 8 percent in CPU cycles during boot, presented as acceptable for the gained security. Institutions can adapt the approach to their specific security needs.

Core claim

By incorporating SPDM into the UEFI environment, the system authenticates PCIe and USB devices during connection attempts, restricting access exclusively to those previously allowed, thereby protecting against malicious peripherals; this is demonstrated through an emulated implementation whose performance overhead during firmware execution averages 13% more instructions and 8% more CPU cycles.

What carries the argument

SPDM (Security Protocol and Data Model) integrated into UEFI firmware for device authentication and access restriction.

If this is right

  • Only authorized PCIe and USB devices can connect to the system.
  • The approach provides protection against malicious peripheral-based attacks.
  • Performance overhead remains low enough to be practical.
  • Open-source proof-of-concept enables customization for high-security environments.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar authentication could be applied to other connection interfaces if SPDM support expands.
  • The mechanism might combine with existing secure boot processes for layered defense.
  • Real hardware validation would be needed to confirm emulation results hold outside virtualized setups.

Load-bearing premise

That the SPDM-based authentication tested in emulation will provide equivalent protection and acceptable performance when deployed on actual physical hardware.

What would settle it

Testing the system on physical hardware with a known malicious USB or PCIe device to see if connection is blocked as intended.

Figures

Figures reproduced from arXiv: 2605.06744 by \'Agatha de Freitas, Bruno C. Albertini, Marcos A. Simplicio Jr, Renan C. A. Alves.

Figure 1

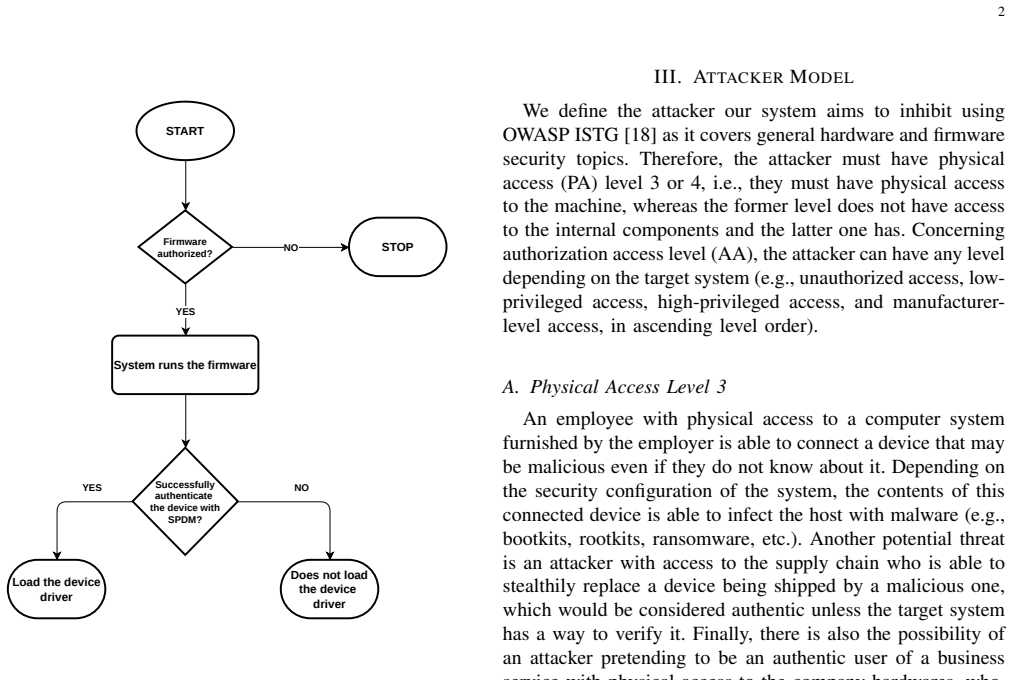

Figure 1. Figure 1: System behavior of secure boot with SPDM. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

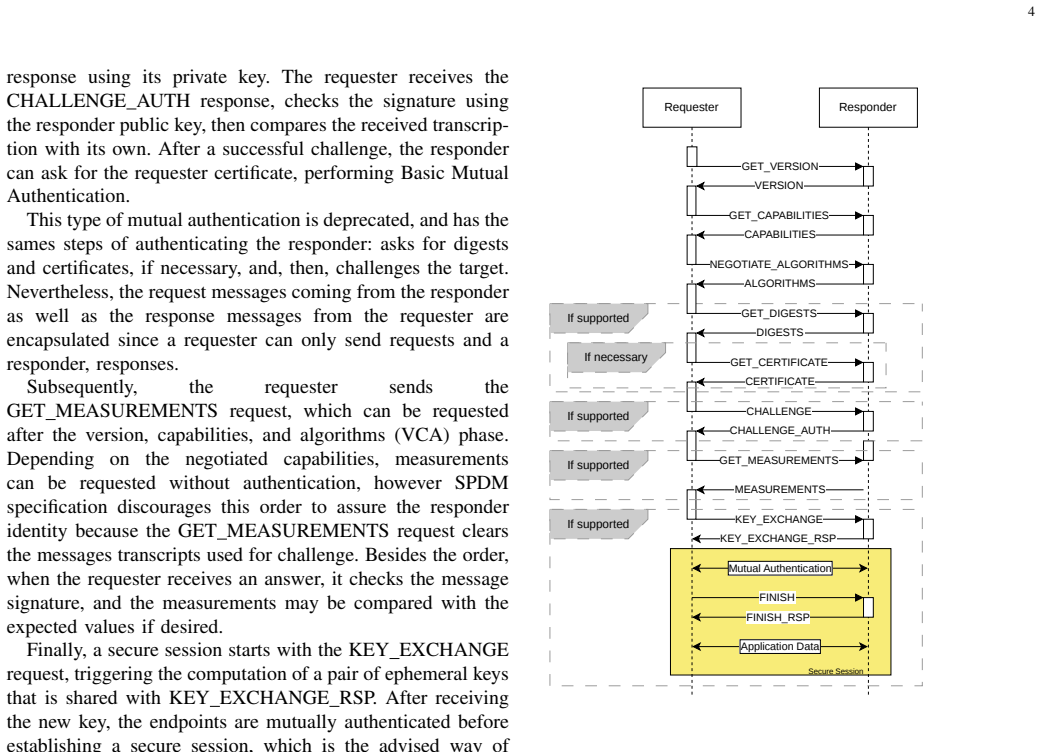

Figure 2. Figure 2: SPDM communication flow. Adapted from [21]. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

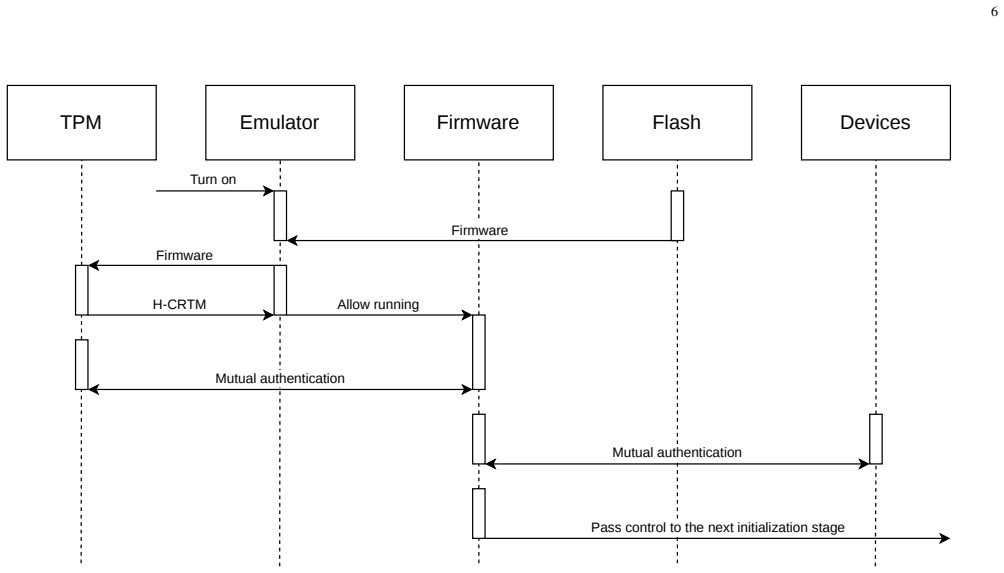

Figure 3. Figure 3: Communication between entities in our proposed system. [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

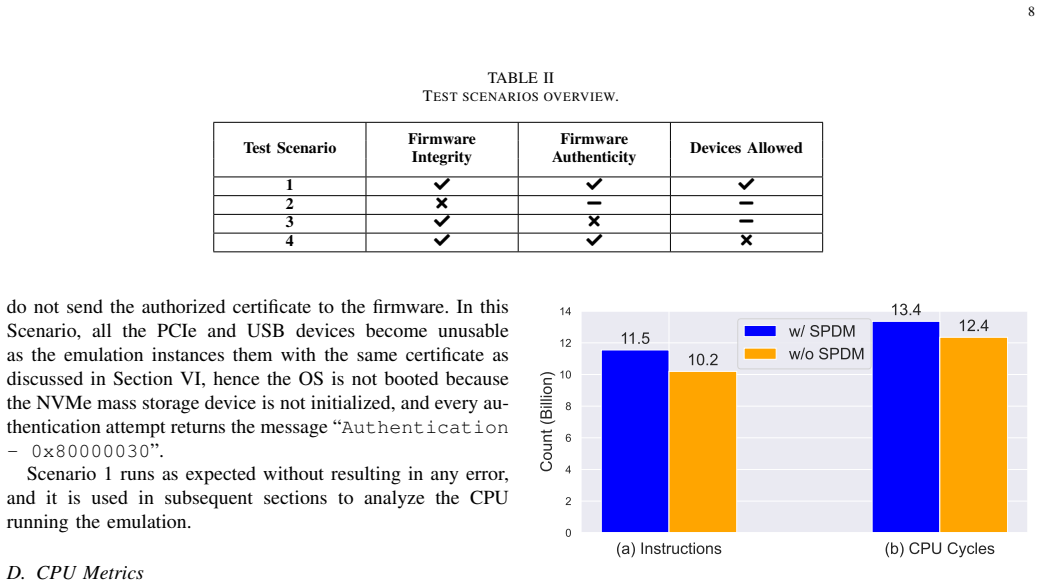

Figure 4. Figure 4: Comparison of the average number of (a) instructions and (b) CPU [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
read the original abstract

Attackers willing to compromise computing systems can use malicious peripherals as an attack vector, threatening users that cannot verify the hardware's authenticity. To address this problem, our work uses the Security Protocol and Data Model to propose a UEFI system capable of authenticating PCIe and USB devices trying to connect with it. We also develop an open source proof-of-concept using emulation to evaluate and illustrate our proposal, which is capable of restricting the devices' connections to only those allowed, thus protecting the system against malicious peripherals. Then, using kernel virtualization features to evaluate the emulation, we collect the number of instructions and CPU cycles during boot. Our experiments reveal that, during firmware execution, the number of instructions and the number of CPU cycles increased respectively 13% and 8% on average. This processing overhead is acceptable in view of enhanced security. Institutions requiring high security levels can leverage our proof-of-concept to tailor their own system based on their own requirements.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes a UEFI firmware design that integrates the Security Protocol and Data Model (SPDM) to authenticate PCIe and USB devices at connection time and restrict access to only authorized devices, thereby protecting against malicious peripherals. It describes an open-source proof-of-concept implemented and evaluated in an emulated environment via kernel virtualization, reporting average increases of 13% in instruction count and 8% in CPU cycles during boot, which the authors consider acceptable for the security gain.

Significance. If the approach can be shown to work on physical hardware, it would provide a concrete firmware-level mechanism for mitigating peripheral-based attacks, a relevant threat in high-security settings. The open-source PoC and quantitative overhead measurements are strengths that support reproducibility and allow others to assess practicality.

major comments (2)
  1. Evaluation section: All claims of functional authentication, connection restriction, and acceptable overhead rest on results from an emulated environment using kernel virtualization. This leaves unaddressed whether the SPDM handshake, certificate validation, and enforcement logic execute correctly under real hardware timing, DMA behavior before authentication completes, USB enumeration quirks, or firmware interactions, directly undermining the central claim of protection against malicious devices on actual systems.
  2. Implementation and threat model sections: The manuscript provides no explicit threat model or analysis of potential bypasses (e.g., devices that complete enumeration before SPDM authentication or exploit UEFI boot timing windows), which is load-bearing for asserting that the design 'protects the system against malicious peripherals.'
minor comments (2)
  1. The abstract and evaluation report overhead 'on average' without standard deviations, raw data, or per-phase breakdowns, which would clarify variability and help readers judge acceptability.
  2. No link or repository reference is given for the claimed open-source PoC, reducing the ability to inspect or reproduce the implementation.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We appreciate the referee's feedback on our manuscript. We have carefully considered the major comments and provide point-by-point responses below. Where revisions are needed, we indicate our plans to update the manuscript.

read point-by-point responses

  1. Referee: Evaluation section: All claims of functional authentication, connection restriction, and acceptable overhead rest on results from an emulated environment using kernel virtualization. This leaves unaddressed whether the SPDM handshake, certificate validation, and enforcement logic execute correctly under real hardware timing, DMA behavior before authentication completes, USB enumeration quirks, or firmware interactions, directly undermining the central claim of protection against malicious devices on actual systems.

    Authors: We acknowledge that our evaluation is conducted in an emulated environment using kernel virtualization, which simulates the UEFI firmware execution but does not fully replicate real hardware behaviors such as DMA timing or specific USB enumeration quirks. This is a limitation of the current proof-of-concept. In the revised manuscript, we will expand the Evaluation section to explicitly discuss these limitations, clarify that the results demonstrate feasibility in a controlled emulation setting, and outline plans for future validation on physical hardware. We believe this addresses the concern by tempering the claims appropriately while maintaining the value of the open-source PoC for further development. revision: yes

  2. Referee: Implementation and threat model sections: The manuscript provides no explicit threat model or analysis of potential bypasses (e.g., devices that complete enumeration before SPDM authentication or exploit UEFI boot timing windows), which is load-bearing for asserting that the design 'protects the system against malicious peripherals.'

    Authors: We agree that an explicit threat model would strengthen the paper. The current manuscript describes the design and its intended protections but does not include a dedicated threat model section analyzing potential bypasses. In the revision, we will add a Threat Model section that outlines the assumed attacker capabilities, such as malicious peripherals attempting to connect, and discusses potential bypasses including timing windows during boot and enumeration sequences, along with how the SPDM integration mitigates them where possible. This will provide a clearer foundation for the protection claims. revision: yes

Circularity Check

0 steps flagged

No circularity: design proposal + independent emulation PoC with direct measurements

full rationale

The paper presents a system design that integrates SPDM into UEFI for device authentication, implements an open-source emulation-based proof-of-concept, and reports direct performance measurements (instruction and cycle counts) from that emulation. No equations, fitted parameters, or derivations are present. No self-citations are used as load-bearing premises for the central claim. The emulation results are obtained by running the implemented code under kernel virtualization and counting instructions/cycles; these are not predictions derived from the design but direct outputs of the implementation. The security claim rests on the described authentication flow and restriction logic being realized in the PoC, which is externally verifiable via the open-source code rather than reducing to the paper's own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The proposal rests on the domain assumption that SPDM can be integrated into UEFI and that emulation results generalize to real hardware; no free parameters or invented entities are introduced.

axioms (1)
  • domain assumption SPDM protocol provides reliable device authentication when properly implemented
    The entire security claim depends on SPDM functioning as intended for PCIe and USB devices.
