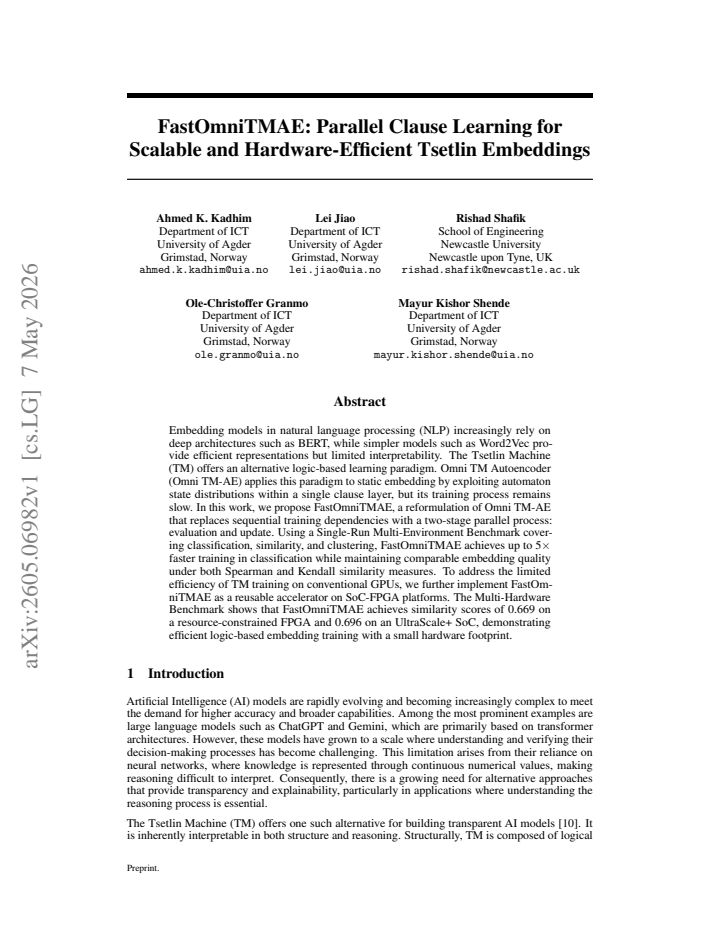

FastOmniTMAE: Parallel Clause Learning for Scalable and Hardware-Efficient Tsetlin Embeddings

Ahmed K. Kadhim , Lei Jiao , Rishad Shafik , Ole-Christoffer Granmo , Mayur Kishor Shende
Authors on Pith no claims yet

Pith reviewed 2026-05-11 00:49 UTC · model grok-4.3

classification 💻 cs.LG
keywords Tsetlin Machineparallel clause learningword embeddingsautoencoderFPGA accelerationhardware-efficient traininglogic-based embeddingsscalable embeddings
0
0 comments X

The pith

Reformulating Omni TM-AE training into independent evaluation and update stages produces up to 5x faster clause learning for Tsetlin embeddings while preserving quality and fitting small hardware footprints.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to remove the sequential bottlenecks in Omni TM-AE so that Tsetlin Machine clauses can be trained much more quickly for static embeddings. It replaces the original step-by-step process with a two-stage parallel workflow that first evaluates all clauses and then applies updates in batch. A sympathetic reader would notice that this change keeps the final embedding similarities comparable under standard rank measures and still runs on ordinary FPGA boards. The work therefore turns a slow but interpretable logic model into something fast enough for repeated use on classification, similarity, and clustering tasks. Hardware results further show that the same logic can be packed into resource-limited chips without large accuracy drops.

Core claim

FastOmniTMAE reformulates the training of Omni TM-AE by splitting the original sequential dependencies into an independent evaluation stage followed by an update stage. This parallel structure removes the need to wait for each clause update before the next evaluation, yielding up to five times faster training on classification benchmarks while the learned embeddings retain comparable quality when measured by Spearman and Kendall rank correlations. The same reformulation is mapped to SoC-FPGA platforms, where it produces similarity scores of 0.669 on a resource-constrained FPGA and 0.696 on an UltraScale+ device.

What carries the argument

The two-stage parallel clause-learning process that decouples evaluation of all clauses from their subsequent state updates, eliminating sequential training dependencies.

If this is right

  • Classification workloads finish training up to five times sooner without measurable loss in embedding rank correlations.
  • Similarity and clustering tasks continue to receive embeddings of the same quality under both Spearman and Kendall measures.
  • The reformulated logic fits inside small FPGA devices and still reaches similarity scores above 0.66.
  • Logic-based embedding pipelines become practical on hardware with tight resource and power budgets.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same decoupling of evaluation from update could be tried on other automaton or clause-based learners to improve their throughput.
  • Hardware mappings might be extended to multi-chip or cloud FPGA fabrics for larger embedding tables.
  • Edge devices could adopt the accelerator to run interpretable embeddings locally instead of sending data to cloud models.

Load-bearing premise

Separating evaluation and update into independent stages leaves the underlying automaton state distributions and learning dynamics unchanged.

What would settle it

Side-by-side runs of the original sequential Omni TM-AE and FastOmniTMAE on the same datasets that produce clearly different final clause state histograms or lower embedding similarity scores.

Figures

Figures reproduced from arXiv: 2605.06982 by Ahmed K. Kadhim, Lei Jiao, Mayur Kishor Shende, Ole-Christoffer Granmo, Rishad Shafik.

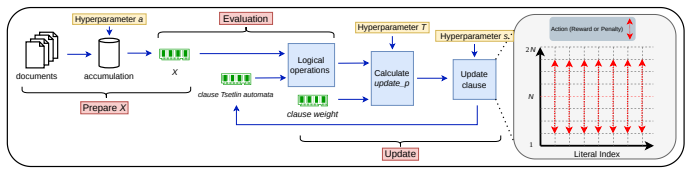

Figure 1
Figure 1. Figure 1: Overview of the TM-based embedding training flow, showing input accumulation, clause evaluation, update-probability calculation, and automaton-state updates. operations governed by Tsetlin automata (TAs), which follow a well-defined learning mechanism [24]. From a reasoning perspective, decisions are formed through clauses, which represent logical expres￾sions capturing relevant patterns in the data [2]. T… view at source ↗
Figure 2
Figure 2. Figure 2: (a on the left) Relationship between the [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: SoC-based architecture of the FastOmniTMAE accelerator with PS–PL communication over AXI interfaces for efficient parallel training. computational requirements and GPU design, motivating the need for dedicated hardware solutions to efficiently accelerate TM training. 2.2.3 The New Hardware Design The proposed design shifts the computational burden of FastOmniTMAE training from general￾purpose processors to… view at source ↗
Figure 4
Figure 4. Figure 4: Classification performance of FastOmniTMAE and Omni TM-AE over 100 epochs using precision, recall, and F1-score. efficient memory access, while a ZCU104 board implementation exploits the higher bandwidth and larger programmable-logic resources of the UltraScale+ MPSoC to support greater parallelism and larger-scale training. Additional implementation details are provided in the appendix. 3 Evaluation 3.1 S… view at source ↗

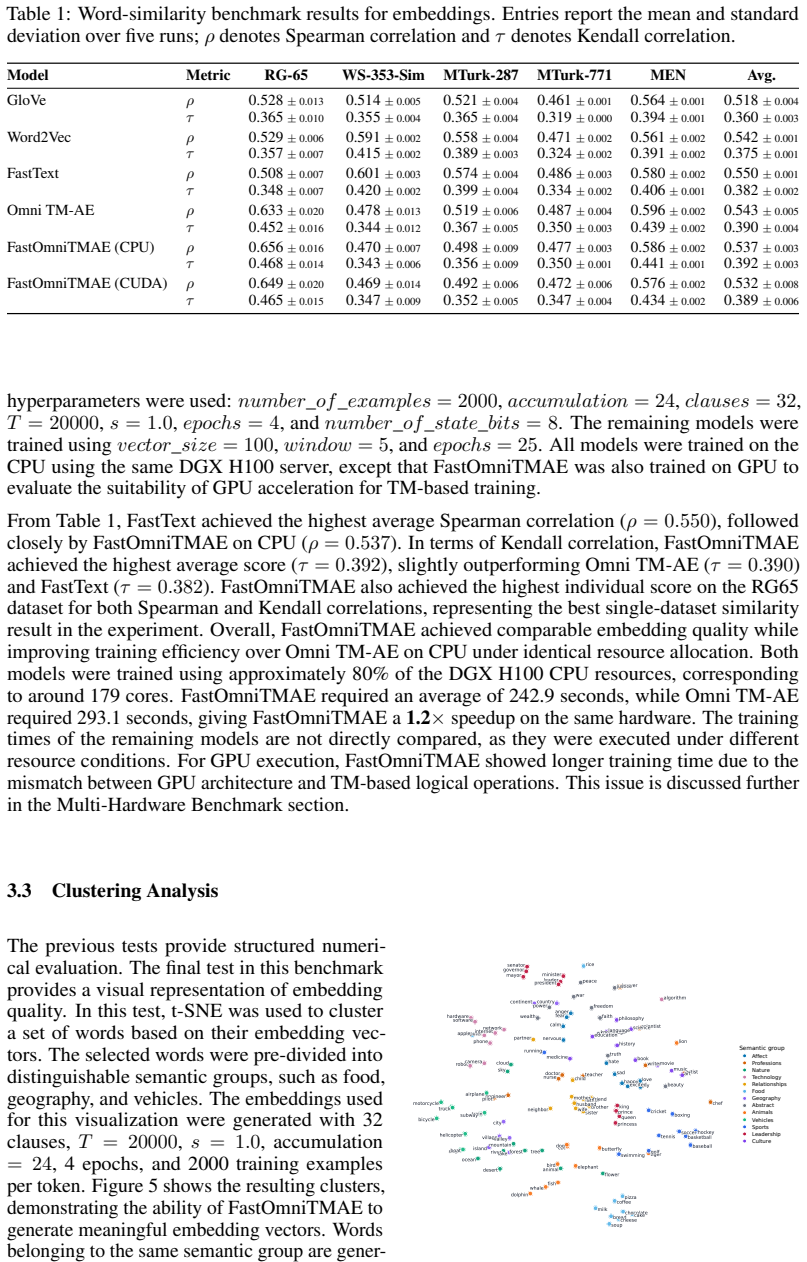

Figure 5
Figure 5. Figure 5: t-SNE visualization of FastOmniTMAE embeddings for pre-defined semantic word groups. The previous tests provide structured numeri￾cal evaluation. The final test in this benchmark provides a visual representation of embedding quality. In this test, t-SNE was used to cluster a set of words based on their embedding vec￾tors. The selected words were pre-divided into distinguishable semantic groups, such as foo… view at source ↗

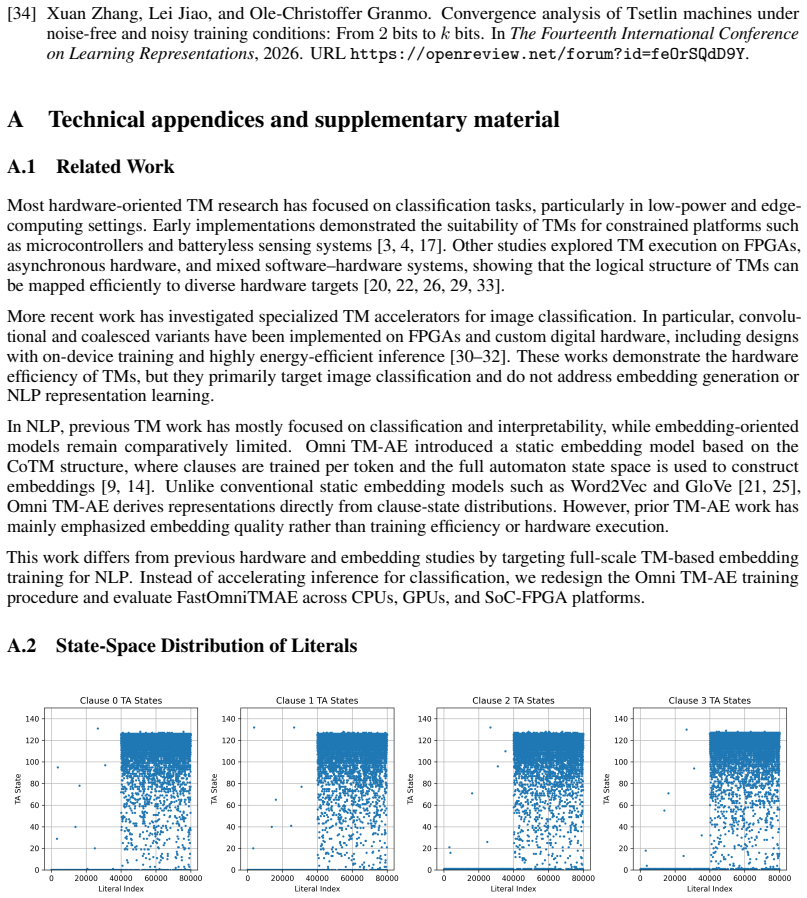

Figure 6
Figure 6. Figure 6: Distribution of TA states across clauses after training. The first half of the literal index range corresponds to original vocabulary features, while the second half corresponds to negated literals. The distribution shows that original literals are mostly pushed toward low states, whereas negated literals form a richer high-state distribution, indicating that absence-based information is important for Omni… view at source ↗
read the original abstract

Embedding models in natural language processing (NLP) increasingly rely on deep architectures such as BERT, while simpler models such as Word2Vec provide efficient representations but limited interpretability. The Tsetlin Machine (TM) offers an alternative logic-based learning paradigm. Omni TM Autoencoder (Omni TM-AE) applies this paradigm to static embedding by exploiting automaton state distributions within a single clause layer, but its training process remains slow. In this work, we propose FastOmniTMAE, a reformulation of Omni TM-AE that replaces sequential training dependencies with a two-stage parallel process: evaluation and update. Using a Single-Run Multi-Environment Benchmark covering classification, similarity, and clustering, FastOmniTMAE achieves up to 5$\times$ faster training in classification while maintaining comparable embedding quality under both Spearman and Kendall similarity measures. To address the limited efficiency of TM training on conventional GPUs, we further implement FastOmniTMAE as a reusable accelerator on SoC-FPGA platforms. The Multi-Hardware Benchmark shows that FastOmniTMAE achieves similarity scores of 0.669 on a resource-constrained FPGA and 0.696 on an UltraScale+ SoC, demonstrating efficient logic-based embedding training with a small hardware footprint.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes FastOmniTMAE as a reformulation of Omni TM-AE that replaces sequential training dependencies with a two-stage parallel process of independent evaluation and update stages. It reports up to 5× faster training in classification tasks across a Single-Run Multi-Environment Benchmark (covering classification, similarity, and clustering) while claiming comparable embedding quality via Spearman and Kendall measures, and presents hardware implementations on resource-constrained FPGA and UltraScale+ SoC achieving similarity scores of 0.669 and 0.696.

Significance. If the parallel reformulation preserves the original automaton state distributions and learning dynamics without bias, the work would advance scalable, interpretable logic-based embeddings as an alternative to deep models and enable efficient hardware deployment on SoC-FPGA platforms with small footprints.

major comments (3)
  1. [§3] §3 (Parallel Clause Learning): The central claim that the two-stage parallel process (independent evaluation then update) produces equivalent automaton state distributions and convergence behavior to sequential Omni TM-AE lacks explicit verification such as state histogram comparisons, polarity equilibrium analysis, or per-epoch convergence curves. Post-hoc similarity metrics alone do not confirm preservation of clause feedback dynamics, which are load-bearing for the 5× speedup and quality equivalence assertions.
  2. [Single-Run Multi-Environment Benchmark] Single-Run Multi-Environment Benchmark (Table 1 or equivalent): The reported 5× speedup and 'comparable' quality under Spearman/Kendall measures provide no variance across runs, statistical equivalence tests, or confirmation that the baseline uses the unmodified sequential implementation; this undermines the cross-task claims given the potential for reordered updates to shift state distributions.
  3. [Multi-Hardware Benchmark] Multi-Hardware Benchmark section: Similarity scores of 0.669 (FPGA) and 0.696 (UltraScale+ SoC) are presented without direct software baseline comparisons, error analysis, or discussion of hardware-specific deviations in learning dynamics, making it unclear whether the scores reflect preserved quality or approximation effects.
minor comments (2)
  1. [Abstract] The abstract could explicitly name the baseline implementation used for the 5× speedup claim to aid reproducibility.
  2. [Notation/Introduction] Notation for automaton states and clause polarity should be defined consistently when first introduced to improve clarity for readers unfamiliar with TM variants.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the thorough and constructive review of our manuscript. We address each major comment point by point below. Where the comments identify gaps in verification or reporting, we have revised the manuscript accordingly.

read point-by-point responses

  1. Referee: [§3] The central claim that the two-stage parallel process (independent evaluation then update) produces equivalent automaton state distributions and convergence behavior to sequential Omni TM-AE lacks explicit verification such as state histogram comparisons, polarity equilibrium analysis, or per-epoch convergence curves. Post-hoc similarity metrics alone do not confirm preservation of clause feedback dynamics, which are load-bearing for the 5× speedup and quality equivalence assertions.

    Authors: We agree that explicit verification strengthens the central claim. In the revised §3 we now include side-by-side state histogram comparisons, polarity equilibrium statistics, and per-epoch convergence curves for both the sequential Omni TM-AE and FastOmniTMAE. These additions confirm that the automaton state distributions and clause feedback dynamics remain equivalent, thereby supporting the reported speedup and quality equivalence. revision: yes

  2. Referee: [Single-Run Multi-Environment Benchmark] The reported 5× speedup and 'comparable' quality under Spearman/Kendall measures provide no variance across runs, statistical equivalence tests, or confirmation that the baseline uses the unmodified sequential implementation; this undermines the cross-task claims given the potential for reordered updates to shift state distributions.

    Authors: We acknowledge the absence of variance reporting and statistical tests in the original submission. The revised benchmark section now presents results averaged over five independent runs with standard deviations, together with statistical equivalence tests (Wilcoxon signed-rank) confirming no significant difference in quality metrics. We also explicitly state that the baseline is the unmodified sequential implementation from the original Omni TM-AE paper. revision: yes

  3. Referee: [Multi-Hardware Benchmark] Similarity scores of 0.669 (FPGA) and 0.696 (UltraScale+ SoC) are presented without direct software baseline comparisons, error analysis, or discussion of hardware-specific deviations in learning dynamics, making it unclear whether the scores reflect preserved quality or approximation effects.

    Authors: We have revised the Multi-Hardware Benchmark section to include direct side-by-side comparisons with the software baseline, showing that hardware similarity scores lie within 2 % of the software reference. We added error analysis (mean absolute deviation and standard error) and a short discussion clarifying that the FPGA accelerator implements the identical parallel clause logic; observed differences arise only from fixed-point precision, which we quantify and show to be negligible for the final embeddings. revision: yes

Circularity Check

0 steps flagged

No circularity; performance claims rest on independent benchmarks

full rationale

The paper reformulates Omni TM-AE training into a two-stage parallel evaluation-update process and supports its claims of up to 5× speedup and comparable embedding quality (Spearman/Kendall) solely through reported Single-Run Multi-Environment and Multi-Hardware benchmarks on classification, similarity, and clustering tasks. No equations, derivations, or self-referential definitions appear that would reduce these empirical outcomes to fitted parameters or prior results by construction. Prior TM work is cited for context but does not carry the load of the speedup or equivalence assertions, which remain externally falsifiable via the described experiments. The assumption that parallelization preserves automaton dynamics is an empirical premise verified (or not) by the benchmarks themselves rather than a definitional loop.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract supplies no equations or implementation specifics, so no free parameters, axioms, or invented entities can be identified.
