arxiv: 2605.07010 · v1 · submitted 2026-05-07 · 💻 cs.LG

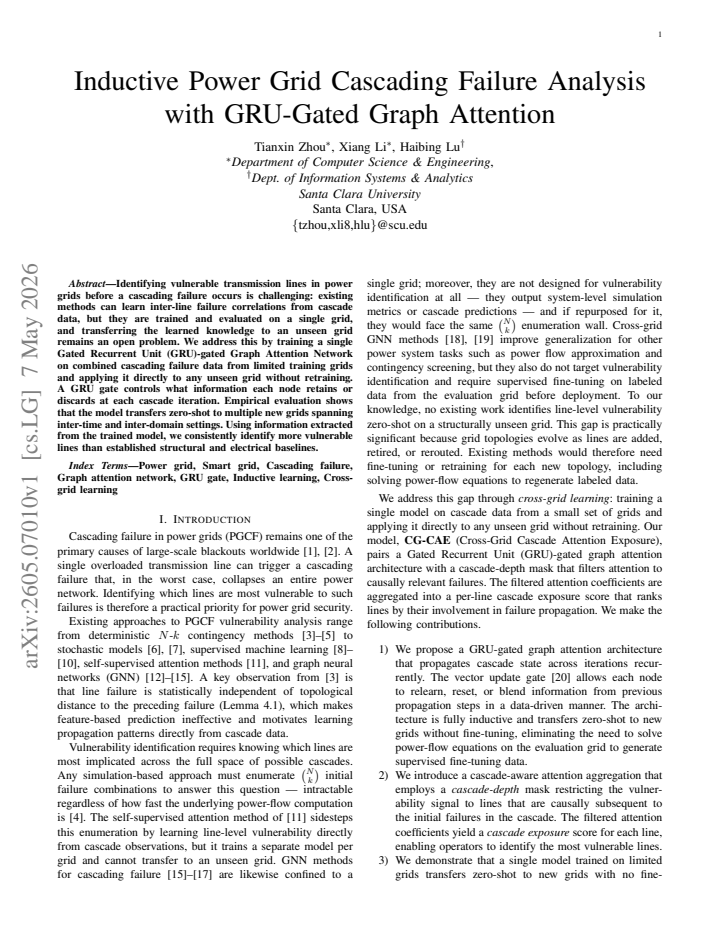

Inductive Power Grid Cascading Failure Analysis with GRU-Gated Graph Attention

Tianxin Zhou , Xiang Li , Haibing Lu This is my paper

Pith reviewed 2026-05-11 01:20 UTC · model grok-4.3

classification 💻 cs.LG
keywords power gridcascading failuregraph attention networkGRUzero-shot transfervulnerability analysisinductive learning
0
0 comments X

The pith

A single GRU-gated graph attention model trained on few grids identifies vulnerable lines zero-shot in any unseen grid

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper trains one GRU-gated Graph Attention Network on cascading failure data from a small set of power grids. This model is then applied directly to new grids to rank which transmission lines are most vulnerable, without any retraining or new data from the target grid. Earlier methods learned failure correlations but stayed tied to the single grid they were trained on. The GRU gate decides at each cascade step what failure history each node should keep or drop. Across tests on grids from different times and domains the model ranks vulnerable lines more accurately than structural or electrical baselines.

Core claim

A GRU-gated graph attention network trained on combined cascade data from limited grids transfers zero-shot to unseen grids in inter-time and inter-domain settings and consistently identifies more vulnerable lines than established structural and electrical baselines by extracting information from the trained model.

What carries the argument

The GRU gate inside the graph attention network, which at each cascade iteration decides what information each node retains or discards

If this is right

  • Grid operators can maintain one model rather than retraining separate models for each new or changing grid
  • Vulnerability assessment becomes possible for grids where cascade data have never been collected
  • The extracted node information yields rankings that outperform both topology-based and electrical-property baselines
  • The same trained model works across grids recorded at different times and in different operating domains

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the learned patterns truly generalize, then failure correlations depend more on local graph structure than on global grid specifics
  • The approach could be tested by feeding real historical outage logs from additional regions into the same model
  • Similar gated attention designs might transfer to other cascading processes such as traffic congestion or supply-chain disruptions
  • Adding more diverse grid topologies during training would likely increase the range of grids the model can handle without retraining

Load-bearing premise

Failure correlation patterns learned from the limited training grids are general enough to apply directly to any new grid without retraining or adaptation

What would settle it

Apply the model to an unseen grid, extract its vulnerability ranking, then run fresh cascade simulations on that same grid; if the model's top-ranked lines do not match the lines that actually fail first or most often, the zero-shot claim is falsified

Figures

Figures reproduced from arXiv: 2605.07010 by Haibing Lu, Tianxin Zhou, Xiang Li.

Figure 2
Figure 2. Figure 2: Transformation from power network to line graph: [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 1
Figure 1. Figure 1: Cascading Failure Model. This simulator produces cascade samples grounded in DC power-flow equations, providing the data CG-CAE uses for training and evaluation. B. Line Graph Construction In the original power network, buses are nodes and trans￾mission lines are edges, but cascading failure analysis requires reasoning about the lines themselves. Line graph representations have been applied in power system… view at source ↗
Figure 3
Figure 3. Figure 3: GRU-GAT recurrent architecture. Arrows trace the data [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Cascade-aware attention masking and aggregation. (a) On the three-node line graph from Fig. 2, red-shaded nodes pass [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: CG-CAE pipeline overview. Cross-Grid Learning (orange box): cascade data from multiple training grids are combined and used to train a single GRU-gated GAT ( [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Mean top-τ% vulnerability on six evaluation grids (100 cascade samples). Each panel shows one grid; lines represent CG-CAE, EB, and PR. CG-CAE (blue) sits above both baselines at every grid and threshold. TABLE III: Mean depth-specific vulnerability of each method’s global top-10% lines. CG-CAE’s ranking uses 100 cascade samples; vulnerability values are computed against the 1,000 held-out cascades. Bold m… view at source ↗
Figure 7
Figure 7. Figure 7: Per-grid sample efficiency of cascade exposure (top-10%). Grids are grouped by cascade scale and depth (Table II). [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Mean percentile rank of the high-exposure set under [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Depth-stratified mean top-10% vulnerability (precision angle) per evaluation grid. Each grid uses a per-grid cutoff [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Mean percentile rank of the depth-conditional high-exposure set (recall angle), split into shallow ( [PITH_FULL_IMAGE:figures/full_fig_p011_10.png] view at source ↗
read the original abstract

Identifying vulnerable transmission lines in power grids before a cascading failure occurs is challenging: existing methods can learn inter-line failure correlations from cascade data, but they are trained and evaluated on a single grid, and transferring the learned knowledge to an unseen grid remains an open problem. We address this by training a single Gated Recurrent Unit (GRU)-gated Graph Attention Network on combined cascading failure data from limited training grids and applying it directly to any unseen grid without retraining. A GRU gate controls what information each node retains or discards at each cascade iteration. Empirical evaluation shows that the model transfers zero-shot to multiple new grids spanning inter-time and inter-domain settings. Using information extracted from the trained model, we consistently identify more vulnerable lines than established structural and electrical baselines.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes a GRU-gated Graph Attention Network trained on combined cascading failure data from a limited number of power grids. The model is applied directly (zero-shot, without retraining) to unseen grids to identify vulnerable transmission lines, with the GRU gate controlling node information retention across cascade iterations. It claims consistent outperformance over structural and electrical baselines in inter-time and inter-domain transfer settings.

Significance. If the zero-shot inductive transfer results hold under rigorous controls, the work would advance graph neural network applications to power-system reliability by demonstrating that failure-correlation patterns can generalize across grids. This could reduce the need for per-grid retraining and data collection. The GRU gating for sequential cascade modeling is a technically interesting design choice that may apply to other dynamic graph processes.

major comments (2)
  1. [Methods] Methods section: no global normalization, feature standardization, or domain-invariant embedding is described for node/edge attributes such as power injections, line reactances, or capacities. This directly undermines the zero-shot transfer claim, because the attention mechanism could encode grid-specific scale or degree statistics rather than topology-invariant failure patterns; the skeptic's concern about unverified scale-invariance is therefore load-bearing.
  2. [Experiments] Experiments / evaluation: the abstract states that the model 'consistently identify more vulnerable lines than established structural and electrical baselines' yet supplies no dataset sizes, number of training vs. test grids, exact metrics (e.g., precision@K or AUC for line ranking), baseline re-implementation details, or leakage controls. These omissions prevent verification of the inter-time and inter-domain transfer results, which constitute the central empirical support.
minor comments (1)
  1. The abstract would be clearer if it briefly stated the number of source grids used for training and the precise evaluation protocol for 'vulnerable lines.'

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major point below and indicate the revisions we will make to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Methods] Methods section: no global normalization, feature standardization, or domain-invariant embedding is described for node/edge attributes such as power injections, line reactances, or capacities. This directly undermines the zero-shot transfer claim, because the attention mechanism could encode grid-specific scale or degree statistics rather than topology-invariant failure patterns; the skeptic's concern about unverified scale-invariance is therefore load-bearing.

    Authors: We acknowledge that the manuscript does not explicitly describe global normalization, feature standardization, or domain-invariant embeddings for node and edge attributes. While the GRU-GAT is trained on combined data from multiple grids to encourage learning of relational patterns, we agree that the absence of these details weakens support for the zero-shot claim. In the revision we will add a dedicated preprocessing subsection detailing the normalization and standardization steps applied to features such as power injections, reactances, and capacities, along with any cross-grid scaling procedures used to promote scale-invariance. revision: yes

  2. Referee: [Experiments] Experiments / evaluation: the abstract states that the model 'consistently identify more vulnerable lines than established structural and electrical baselines' yet supplies no dataset sizes, number of training vs. test grids, exact metrics (e.g., precision@K or AUC for line ranking), baseline re-implementation details, or leakage controls. These omissions prevent verification of the inter-time and inter-domain transfer results, which constitute the central empirical support.

    Authors: We agree that the current manuscript lacks the quantitative details required for independent verification. In the revised Experiments section we will report: the sizes of the cascading-failure datasets and number of simulations per grid; the exact count of training grids versus held-out test grids in both inter-time and inter-domain settings; the precise metrics (precision@K and AUC) used to evaluate line ranking; full re-implementation specifications for all structural and electrical baselines; and explicit controls confirming that test-grid data and cascades were never seen during training. These additions will make the zero-shot transfer results fully verifiable. revision: yes

Circularity Check

0 steps flagged

No circularity in claimed inductive transfer

full rationale

The paper presents an empirical ML model (GRU-gated GAT) trained on combined cascade data from source grids and evaluated zero-shot on held-out target grids. No equations, derivations, or self-citations are shown that reduce the transfer performance to quantities defined by the model's own fitted parameters on the test grids or by construction. Training and test phases remain independent, with the central claim resting on external empirical results rather than tautological reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Based solely on the abstract, the central claim rests on standard neural-network training assumptions and the unstated premise that cascade simulations from the training grids are representative of real-world dynamics in unseen grids; no explicit free parameters, axioms, or invented entities are described.

pith-pipeline@v0.9.0 · 5426 in / 1103 out tokens · 37518 ms · 2026-05-11T01:20:19.547035+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.
