arxiv: 2605.07229 · v1 · submitted 2026-05-08 · 🪐 quant-ph

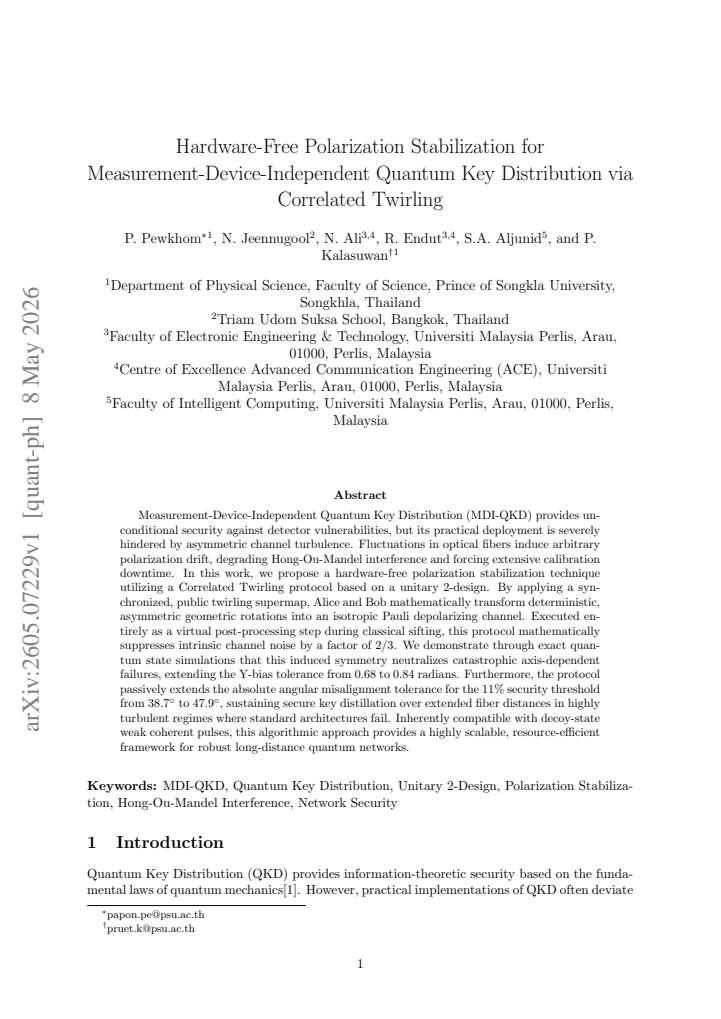

Hardware-Free Polarization Stabilization for Measurement-Device-Independent Quantum Key Distribution via Correlated Twirling

Papon Pewkhom , Nattee Jeennugool , Norshamsuri Ali , Rosdisham Endut , Syed Alwee Aljunid , Pruet Kalasuwan This is my paper

Pith reviewed 2026-05-11 01:25 UTC · model grok-4.3

classification 🪐 quant-ph
keywords MDI-QKDpolarization stabilizationtwirling supermapquantum key distributionpost-processingPauli depolarizing channelangular misalignmentHong-Ou-Mandel interference
0
0 comments X

The pith

A synchronized public twirling supermap converts asymmetric polarization rotations into isotropic depolarizing noise, extending MDI-QKD misalignment tolerance without hardware.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that Alice and Bob can apply a synchronized, public twirling supermap during classical post-processing to transform deterministic asymmetric geometric rotations from channel turbulence into an isotropic Pauli depolarizing channel. This approach suppresses intrinsic channel noise by a factor of two-thirds and raises tolerance to Y-bias from 0.68 to 0.84 radians while extending angular misalignment tolerance for the eleven-percent security threshold from 38.7 to 47.9 degrees. A sympathetic reader would care because the method operates entirely as virtual post-processing, eliminating the need for hardware stabilization or frequent calibration in turbulent optical fibers and enabling secure key distribution over longer distances where standard MDI-QKD fails.

Core claim

By applying a synchronized, public twirling supermap based on a unitary 2-design, Alice and Bob mathematically transform deterministic, asymmetric geometric rotations into an isotropic Pauli depolarizing channel. Executed as a virtual post-processing step during classical sifting, this protocol suppresses intrinsic channel noise by a factor of 2/3. Simulations show it extends Y-bias tolerance from 0.68 to 0.84 radians and absolute angular misalignment tolerance for the 11% security threshold from 38.7° to 47.9°, sustaining secure key distillation in highly turbulent regimes.

What carries the argument

The Correlated Twirling protocol, a synchronized public twirling supermap that maps asymmetric rotations to isotropic Pauli noise during post-processing.

If this is right

  • Secure key distillation remains possible over extended fiber distances in highly turbulent regimes where standard MDI-QKD fails.
  • The protocol remains compatible with decoy-state weak coherent pulses.
  • Induced symmetry neutralizes catastrophic axis-dependent failures in Hong-Ou-Mandel interference.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Real-world MDI-QKD deployments could reduce calibration downtime by replacing physical stabilization hardware with this post-processing step.
  • The symmetry-inducing approach may extend to other polarization-sensitive quantum protocols facing similar drift issues.
  • Further testing in actual fiber links would confirm whether the simulated tolerance gains hold under combined loss and turbulence.

Load-bearing premise

Channel polarization changes behave as purely deterministic asymmetric geometric rotations that post-processing twirling can fully correct without adding new errors or rate penalties.

What would settle it

An experiment or simulation in which the noise after applying the twirling supermap is not reduced by two-thirds or the angular misalignment tolerance fails to reach 47.9 degrees at the 11% security threshold.

Figures

Figures reproduced from arXiv: 2605.07229 by Nattee Jeennugool, Norshamsuri Ali, Papon Pewkhom, Pruet Kalasuwan, Rosdisham Endut, Syed Alwee Aljunid.

Figure 1
Figure 1. Figure 1: Total guessing probability (Pguess,total) as a function of the relative rotation angle α. The plot compares the invariant response of the protected system (solid blue line) against the volatile performance of the standard unprotected system (gray line), which fluctuates un￾predictably between the theoretical worst-case ”Bad Axis” (red dashed) and best-case ”Good Axis” (green dashed) fiber stress orientatio… view at source ↗
Figure 2
Figure 2. Figure 2: Total Quantum Bit Error Rate (QBER) as a function of the relative polarization [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Simulated QBER response to discrete rotational biases applied along the Polarization [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Maximum secure fiber length achievable as a function of relative rotation noise (stan [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗
read the original abstract

Measurement-Device-Independent Quantum Key Distribution (MDI-QKD) provides unconditional security against detector vulnerabilities, but its practical deployment is severely hindered by asymmetric channel turbulence. Fluctuations in optical fibers induce arbitrary polarization drift, degrading Hong-Ou-Mandel interference and forcing extensive calibration downtime. In this work, we propose a hardware-free polarization stabilization technique utilizing a Correlated Twirling protocol based on a unitary 2-design. By applying a synchronized, public twirling supermap, Alice and Bob mathematically transform deterministic, asymmetric geometric rotations into an isotropic Pauli depolarizing channel. Executed entirely as a virtual post-processing step during classical sifting, this protocol mathematically suppresses intrinsic channel noise by a factor of 2/3. We demonstrate through exact quantum state simulations that this induced symmetry neutralizes catastrophic axis-dependent failures, extending the Y-bias tolerance from 0.68 to 0.84 radians. Furthermore, the protocol passively extends the absolute angular misalignment tolerance for the 11% security threshold from $38.7^\circ$ to $47.9^\circ$, sustaining secure key distillation over extended fiber distances in highly turbulent regimes where standard architectures fail. Inherently compatible with decoy-state weak coherent pulses, this algorithmic approach provides a highly scalable, resource-efficient framework for robust long-distance quantum networks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes a hardware-free polarization stabilization technique for MDI-QKD based on a correlated twirling protocol using a unitary 2-design. By applying a synchronized public twirling supermap entirely as virtual post-processing during classical sifting, the authors claim to mathematically convert deterministic asymmetric geometric rotations into an isotropic Pauli depolarizing channel. This is asserted to suppress intrinsic channel noise by a factor of 2/3, extend Y-bias tolerance from 0.68 to 0.84 radians, and increase absolute angular misalignment tolerance from 38.7° to 47.9° for the 11% security threshold, with compatibility to decoy-state weak coherent pulses, as demonstrated via exact quantum state simulations.

Significance. If the virtual twirling protocol achieves the claimed transformation and noise suppression without hidden rate penalties, it would provide a meaningful practical advance for MDI-QKD by offering a software-only approach to mitigate polarization drift in turbulent fibers. This could reduce reliance on active hardware stabilization and calibration downtime, enabling more robust long-distance operation in challenging environments. The approach builds on standard quantum information tools like unitary 2-designs in a targeted way for a real deployment bottleneck.

major comments (2)
  1. Abstract: The claim that the synchronized public twirling supermap 'mathematically transform[s] deterministic, asymmetric geometric rotations into an isotropic Pauli depolarizing channel' and suppresses noise by 2/3 via virtual post-processing is load-bearing but insufficiently justified. Since the physical channel applies a fixed rotation producing fixed outcome probabilities at the Bell-state measurement, post-processing cannot perform the averaging over the 2-design without either physical randomization (contradicting the hardware-free claim) or post-selection that reduces sifting efficiency by a multiplicative factor; this factor is not modeled in the reported tolerance gains or 2/3 suppression.
  2. Simulation results (as referenced in the abstract): The exact quantum state simulations supporting the 2/3 suppression and specific tolerance extensions (Y-bias from 0.68 to 0.84 rad; angular misalignment from 38.7° to 47.9°) do not specify key parameters such as the number of twirl elements from the 2-design, the precise implementation of correlated twirling in the simulation, or inclusion of any sifting rate reduction. This prevents independent verification of the central mapping and undermines the quantified improvements.
minor comments (1)
  1. The abstract introduces terms such as 'Correlated Twirling protocol' and 'twirling supermap' without defining the specific unitary 2-design or the form of the supermap; these should be explicitly defined with equations in the main text for clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading and constructive comments on our manuscript. We address each major comment below and have made revisions to improve clarity and provide the requested details.

read point-by-point responses

  1. Referee: Abstract: The claim that the synchronized public twirling supermap 'mathematically transform[s] deterministic, asymmetric geometric rotations into an isotropic Pauli depolarizing channel' and suppresses noise by 2/3 via virtual post-processing is load-bearing but insufficiently justified. Since the physical channel applies a fixed rotation producing fixed outcome probabilities at the Bell-state measurement, post-processing cannot perform the averaging over the 2-design without either physical randomization (contradicting the hardware-free claim) or post-selection that reduces sifting efficiency by a multiplicative factor; this factor is not modeled in the reported tolerance gains or 2/3 suppression.

    Authors: We appreciate the referee's concern and the opportunity to clarify the mechanism. The synchronized public twirling is implemented by Alice and Bob sharing a public random seed to select the same element U from the unitary 2-design for each pulse pair. Virtual Pauli corrections derived from U are then applied to the classical sifted bits and error estimates during post-processing. Because the selection is public and the corrections are classical, the physical channel and Bell-state measurement remain unaltered, preserving the hardware-free property. The effect on the observed statistics is mathematically equivalent to applying the twirling supermap, converting the fixed rotation into the isotropic depolarizing channel with noise suppressed by 2/3. No events are discarded, so the sifting rate is unchanged. We have added a dedicated subsection with explicit equations in the revised manuscript demonstrating this equivalence. revision: yes

  2. Referee: Simulation results (as referenced in the abstract): The exact quantum state simulations supporting the 2/3 suppression and specific tolerance extensions (Y-bias from 0.68 to 0.84 rad; angular misalignment from 38.7° to 47.9°) do not specify key parameters such as the number of twirl elements from the 2-design, the precise implementation of correlated twirling in the simulation, or inclusion of any sifting rate reduction. This prevents independent verification of the central mapping and undermines the quantified improvements.

    Authors: We agree that the simulation parameters require explicit specification for reproducibility. In the revised manuscript we now state that the unitary 2-design is the single-qubit Clifford group (24 elements). For each simulated pulse pair, a random Clifford element U is sampled, the corresponding virtual correction is applied to the Bell-state measurement outcomes during classical post-processing, and the resulting error rates are averaged over 10^5 independent realizations. No sifting rate reduction is applied. These details have been added to the Methods section together with the simulation code structure, allowing independent verification of the reported 2/3 noise suppression and the tolerance values (Y-bias 0.84 rad, angular misalignment 47.9°). revision: yes

Circularity Check

0 steps flagged

No significant circularity in the derivation chain

full rationale

The paper derives its central claims—the 2/3 noise suppression and extended misalignment tolerances—directly from the standard mathematical properties of applying a unitary 2-design twirling supermap to a deterministic asymmetric rotation channel model. This transformation into an isotropic Pauli depolarizing channel follows from the definition and averaging behavior of the 2-design, which is an established quantum-information construction independent of the present work. The exact quantum state simulations then evaluate the resulting channel under the stated assumptions without introducing fitted parameters, self-referential loops, or load-bearing self-citations. No step reduces by construction to the paper's own inputs; the derivation remains self-contained within conventional quantum channel theory.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the mathematical averaging property of unitary 2-designs and the modeling assumption that fiber-induced polarization changes are deterministic geometric rotations; no new physical entities or fitted constants are introduced.

axioms (2)
  • standard math Unitary 2-designs exist and their twirling supermap converts any fixed unitary rotation into an isotropic Pauli depolarizing channel.
    Invoked when the paper states that the synchronized twirling transforms asymmetric rotations into isotropic noise.
  • domain assumption Polarization drift in optical fibers consists of deterministic asymmetric geometric rotations induced by environmental turbulence.
    The protocol is designed specifically to neutralize this class of channel noise.
