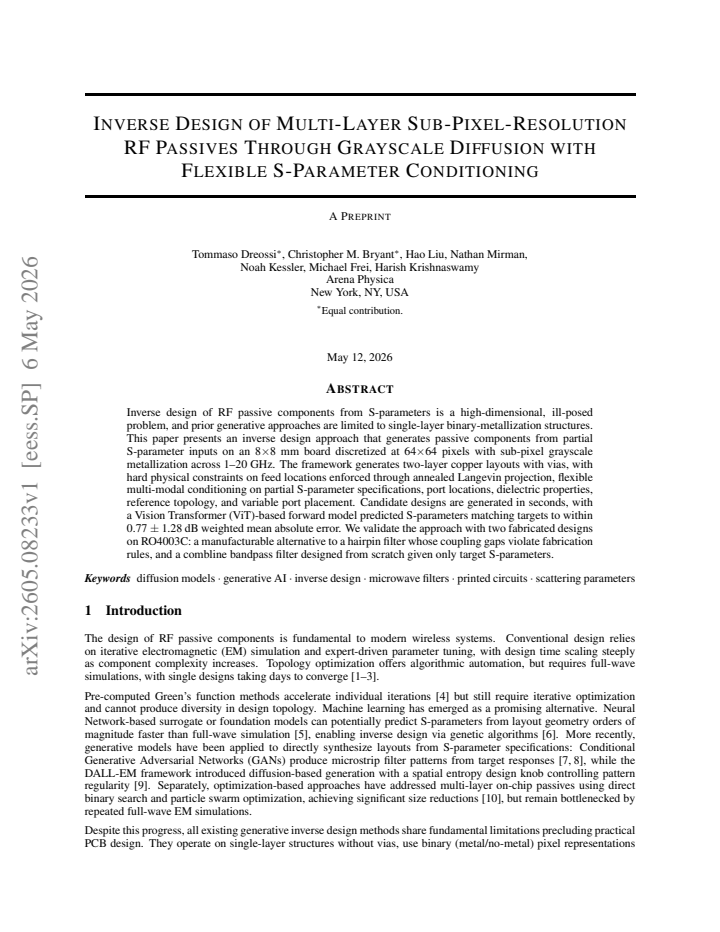

Inverse Design of Multi-Layer Sub-Pixel-Resolution RF Passives Through Grayscale Diffusion with Flexible S-Parameter Conditioning

Tommaso Dreossi , Christopher M. Bryant , Hao Liu , Nathan Mirman , Noah Kessler , Michael Frei , Harish Krishnaswamy

Authors on Pith no claims yet

Pith reviewed 2026-05-12 01:53 UTC · model grok-4.3

classification 📡 eess.SP cs.LG

keywords inverse designRF passivesdiffusion modelsS-parametersgrayscale metallizationmulti-layer circuitsgenerative designfilter synthesis

0 comments

The pith

A diffusion model generates two-layer RF passive layouts from partial S-parameter targets while enforcing physical constraints on feeds and ports.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a generative method that starts from desired frequency-response targets and produces complete two-layer copper layouts with vias on an 8 by 8 mm board. It discretizes the board at 64 by 64 pixels but allows grayscale metallization values for sub-pixel feature resolution across 1 to 20 GHz. Generation incorporates flexible conditioning on S-parameters, port locations, dielectric properties, and reference topologies, while hard constraints such as fixed feed positions are enforced by annealed Langevin projection during sampling. Candidate designs appear in seconds and the authors show that a surrogate predicts their S-parameters within roughly 0.8 dB weighted error on average. Fabricated examples on RO4003C material confirm that the generated layouts can replace or create standard filters such as hairpin and combline types.

Core claim

The central claim is that a grayscale diffusion process conditioned on multi-modal inputs can invert the high-dimensional mapping from partial S-parameter specifications to two-layer metallization patterns with vias, producing physically valid layouts whose surrogate-evaluated responses match targets to within 0.77 plus or minus 1.28 dB weighted mean absolute error, as demonstrated by two fabricated prototypes that satisfy fabrication rules.

What carries the argument

Grayscale diffusion model whose sampling is guided by annealed Langevin projection to enforce hard physical constraints on feed locations and port placement.

If this is right

Designs that would violate minimum-feature or spacing rules in conventional layout can be replaced by automatically generated alternatives that still meet the target frequency response.
The same conditioning mechanism supports both completing partial S-parameter data and designing entirely new components from scratch.
Variable port placement and reference-topology conditioning allow the generator to adapt existing filter families without retraining.
Generation completes in seconds, shifting the workflow from iterative manual tuning to rapid sampling followed by quick surrogate checks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If the surrogate accuracy holds across wider frequency bands or stack-ups, the same diffusion backbone could be reused for three-layer or embedded-component designs without new training data.
The constraint-projection step suggests a general template for adding fabrication rules to other generative models in microwave engineering.
Combining the generator with a subsequent gradient-based optimizer on the surrogate could further reduce the residual 0.8 dB mismatch.

Load-bearing premise

The surrogate model gives predictions of S-parameters that remain accurate enough when the generated layouts are fabricated and measured on real boards.

What would settle it

Fabricate several additional generated layouts and compare their measured S-parameters directly against the original targets; a systematic deviation larger than 1.3 dB across multiple designs would falsify the claim that the outputs are useful.

Figures

Figures reproduced from arXiv: 2605.08233 by Christopher M. Bryant, Hao Liu, Harish Krishnaswamy, Michael Frei, Nathan Mirman, Noah Kessler, Tommaso Dreossi.

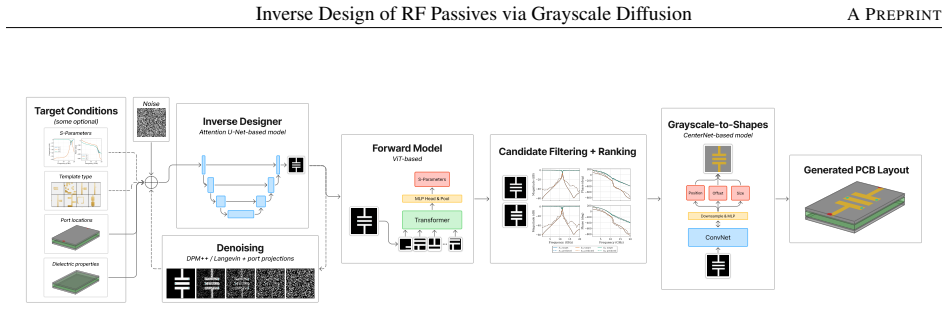

**Figure 1.** Figure 1: Inverse design framework overview. Target S-parameters, reference template type, port locations, and dielectric properties are encoded and concatenated channel-wise with the noisy board mask. The Attention UNet iteratively denoises via DPM-Solver++ (or annealed Langevin dynamics with constraint projection) to produce candidate layouts, each comprising both a grayscale metallization and a vias layer (depic… view at source ↗

**Figure 2.** Figure 2: Examples of generated designs with S-Parameters predicted via the ViT-based forward model (dashed) vs. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

**Figure 3.** Figure 3: Top: a hairpin filter whose original design has coupling gaps below fabrication limits; the framework [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

read the original abstract

Inverse design of RF passive components from S-parameters is a high-dimensional, ill-posed problem, and prior generative approaches are limited to single-layer binary-metallization structures. This paper presents an inverse design approach that generates passive components from partial S-parameter inputs on an $8\times8$ mm board discretized at $64\times64$ pixels with sub-pixel grayscale metallization across 1-20 GHz. The framework generates two-layer copper layouts with vias, with hard physical constraints on feed locations enforced through annealed Langevin projection, flexible multi-modal conditioning on partial S-parameter specifications, port locations, dielectric properties, reference topology, and variable port placement. Candidate designs are generated in seconds, with surrogate-predicted S-parameters matching targets to within $0.77 \pm 1.28$ dB weighted mean absolute error. We validate the approach with two fabricated designs on RO4003C: a manufacturable alternative to a hairpin filter whose coupling gaps violate fabrication rules, and a combline bandpass filter designed from scratch given only target S-parameters.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The diffusion model generates usable two-layer RF layouts with vias from S-param specs and shows they can be fabricated, but the key performance claims rest on surrogate predictions without measured confirmation.

read the letter

The paper takes inverse design for RF passives beyond the usual single-layer binary masks. It uses a conditional diffusion process to output two-layer copper with vias on an 8x8 mm board, handling partial S-parameter targets plus port locations, dielectric info, and reference topologies. Hard constraints on feeds are enforced with annealed Langevin projection, and it produces candidates in seconds at 64x64 sub-pixel grayscale resolution. That combination of multi-layer support, flexible conditioning, and fast generation is the real step forward from prior work. They also trained a surrogate for quick S-parameter checks and report 0.77 dB weighted error against targets, then fabricated two examples on RO4003C to prove the layouts are manufacturable—one as a fix for a rule-violating hairpin and one combline filter built from specs alone. The constraint handling and multi-modal setup look practical and well executed. The main gap is that the performance numbers come only from the surrogate. The abstract and results mention fabrication but give no measured S-parameters from the prototypes and no direct comparison of surrogate output versus actual board measurements. Without that, it is hard to know whether the generated designs actually meet the target specs or if the surrogate is accurate on the constrained grayscale outputs. The training data and surrogate accuracy details would need to be checked in the full text. This work is aimed at RF designers and tool builders who need faster ways to create complex passives. Anyone working on generative methods for physical constraints would find the conditioning and projection steps useful. It is worth sending to peer review so the surrogate validation and any measurement data can be examined in detail.

Referee Report

2 major / 2 minor

Summary. The paper introduces a grayscale diffusion-based generative framework for inverse design of two-layer RF passives with sub-pixel metallization and vias on an 8×8 mm board discretized at 64×64 pixels. It supports flexible multi-modal conditioning on partial S-parameter targets, port locations, dielectric properties, reference topologies, and variable port placement, while enforcing hard physical constraints (e.g., feed locations) via annealed Langevin projection. Candidate layouts are produced in seconds; surrogate-evaluated S-parameters match targets to within 0.77 ± 1.28 dB weighted mean absolute error. The approach is demonstrated on a manufacturable hairpin-filter alternative and a combline bandpass filter, with two designs fabricated on RO4003C to show physical realizability.

Significance. If the surrogate predictions prove reliable against measurements and the generated layouts consistently meet target specifications, the work would meaningfully extend inverse design beyond single-layer binary metallization, offering a practical tool for rapid exploration of multi-layer RF components with complex constraints. The combination of diffusion models, annealed projection for constraints, and multi-modal conditioning is a clear technical advance over prior generative methods in the field.

major comments (2)

[Abstract] Abstract and validation: The manuscript reports fabrication of two designs on RO4003C as validation, yet provides no measured S-parameter data for the prototypes. The headline performance metric (0.77 ± 1.28 dB weighted MAE) is obtained exclusively from surrogate predictions. Without a direct comparison of measured vs. surrogate vs. target S-parameters for the fabricated devices, the claim that the generated layouts are useful for meeting specifications cannot be fully substantiated. This is load-bearing for the central contribution.
[Method / Results] Surrogate model: No quantitative details are given on surrogate training data, architecture, or hold-out accuracy specifically on grayscale or constraint-projected layouts produced by the diffusion process. If the surrogate systematically deviates for these out-of-distribution samples, the reported error metric does not establish that the designs satisfy the target S-parameters in reality.

minor comments (2)

[Abstract] Clarify the precise definition and weighting scheme used for the reported 'weighted mean absolute error' metric, including frequency range and normalization.
[Implementation] The 64×64 pixel discretization and sub-pixel grayscale handling during fabrication should be described with explicit minimum feature-size rules and how grayscale values map to copper thickness or etching.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback, which helps clarify the scope of our validation and the need for additional surrogate details. We address each major comment below and outline the revisions we will make.

read point-by-point responses

Referee: [Abstract] Abstract and validation: The manuscript reports fabrication of two designs on RO4003C as validation, yet provides no measured S-parameter data for the prototypes. The headline performance metric (0.77 ± 1.28 dB weighted MAE) is obtained exclusively from surrogate predictions. Without a direct comparison of measured vs. surrogate vs. target S-parameters for the fabricated devices, the claim that the generated layouts are useful for meeting specifications cannot be fully substantiated. This is load-bearing for the central contribution.

Authors: We agree that the absence of measured S-parameter data limits the strength of the experimental validation claim. The manuscript uses fabrication of the two designs (hairpin alternative and combline filter on RO4003C) to demonstrate manufacturability and physical realizability of the generated grayscale layouts with vias, while the quantitative performance metric relies on surrogate predictions. In the revision we will (i) update the abstract and results sections to explicitly state that validation consists of surrogate-evaluated S-parameter fidelity plus fabrication feasibility rather than measured performance, and (ii) add a short discussion of surrogate reliability on the generated samples. If post-submission measurements become available we will include them; otherwise the claims will be adjusted accordingly. revision: partial
Referee: [Method / Results] Surrogate model: No quantitative details are given on surrogate training data, architecture, or hold-out accuracy specifically on grayscale or constraint-projected layouts produced by the diffusion process. If the surrogate systematically deviates for these out-of-distribution samples, the reported error metric does not establish that the designs satisfy the target S-parameters in reality.

Authors: We acknowledge the need for greater transparency on the surrogate. The revised manuscript will include a new subsection detailing the surrogate architecture (a convolutional neural network trained on full-wave EM simulation data), the size and composition of the training set (including both binary and grayscale layouts), and quantitative hold-out accuracy metrics. We will additionally report surrogate error specifically on a set of diffusion-generated grayscale layouts and annealed-Langevin-projected designs to confirm that the 0.77 ± 1.28 dB weighted MAE remains representative for the out-of-distribution samples produced by our pipeline. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper's framework uses a conditional diffusion model to generate layouts from partial S-parameter inputs, with a distinct surrogate model for post-generation S-parameter evaluation and annealed Langevin projection for constraints. The reported 0.77 dB weighted error is an empirical match between surrogate outputs and conditioning targets on generated samples, not a quantity forced by construction or self-definition. No load-bearing step reduces to its own inputs via fitted parameters renamed as predictions, self-citation chains, or ansatz smuggling; the surrogate training and generative process remain separate, and fabrication examples provide external grounding. The derivation is self-contained against the stated benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

Abstract only provides high-level description; specific parameters and assumptions like training dataset size or exact model architecture are not detailed.

free parameters (1)

Diffusion model hyperparameters
Typical for such models but not specified in abstract.

axioms (2)

domain assumption The mapping from layout to S-parameters can be inverted using generative models
Fundamental to inverse design approach
domain assumption Annealed Langevin projection enforces physical constraints without violating them
Used for feed locations
