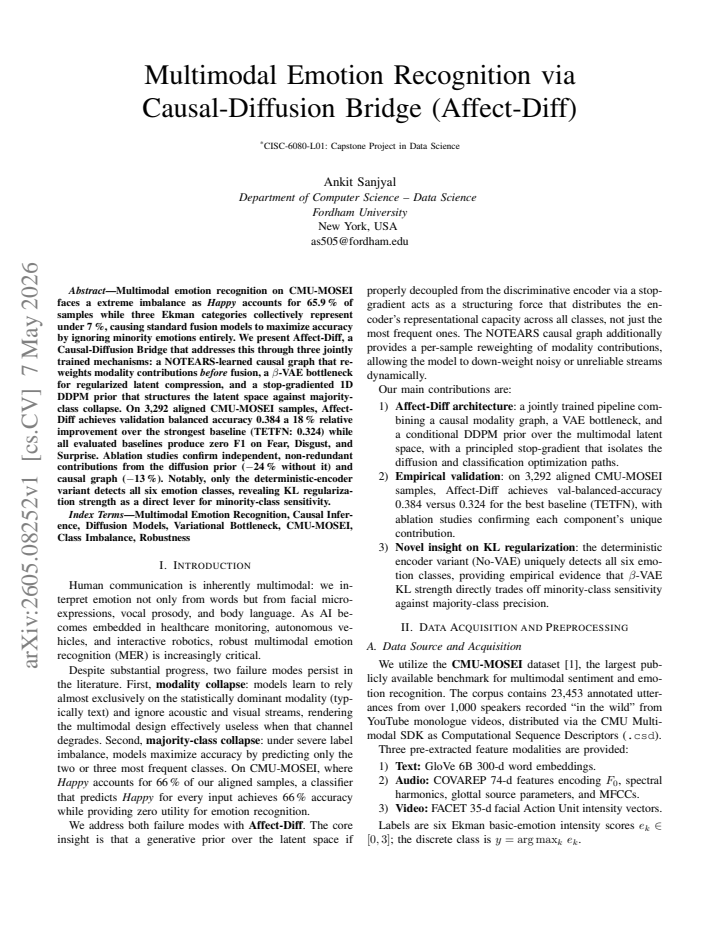

Multimodal Emotion Recognition via Causal-Diffusion Bridge (Affect-Diff)

Ankit Sanjyal This is my paper

Pith reviewed 2026-05-12 02:18 UTC · model grok-4.3

classification 💻 cs.CV
keywords multimodal emotion recognitionclass imbalancecausal graphdiffusion priorlatent spaceCMU-MOSEIbalanced accuracyminority class detection
0
0 comments X

The pith

A causal graph that re-weights modalities plus a diffusion prior in latent space lets emotion models detect rare categories instead of collapsing to the majority class.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to show that severe class imbalance in multimodal emotion data can be overcome by first learning which input channels causally matter most for each emotion and then using a diffusion process to keep the model's internal representations from ignoring the rare cases. On the CMU-MOSEI dataset, where happy faces make up nearly two-thirds of the examples and three other emotions together make up less than seven percent, ordinary fusion networks simply output the dominant label and achieve zero recall on the minorities. The proposed bridge combines a graph that adjusts modality importance before fusion, a bottleneck that compresses the joint representation, and a diffusion prior that maintains diversity across emotion categories. If the approach works as described, systems for affective computing would no longer systematically miss fear, disgust, or surprise in real-world recordings.

Core claim

Affect-Diff addresses extreme class imbalance in multimodal emotion recognition by jointly training a NOTEARS-learned causal graph that re-weights modality contributions before fusion, a beta-VAE bottleneck for regularized latent compression, and a stop-gradiented 1D DDPM prior that structures the latent space against majority-class collapse. On 3,292 aligned CMU-MOSEI samples, this yields a validation balanced accuracy of 0.384, an 18% relative improvement over the strongest baseline, and the first non-zero F1 scores on the three rarest emotions. Ablations show that removing the diffusion prior costs 24% and removing the causal graph costs 13%, while only the deterministic-encoder version (

What carries the argument

The Causal-Diffusion Bridge, a joint training setup that first uses a learned causal graph to re-weight each modality's contribution, then compresses the fused representation through a variational bottleneck, and finally imposes a diffusion prior on the latent codes to keep minority emotion signals from vanishing.

If this is right

  • The full model detects all six emotion classes while every tested baseline misses three of them entirely.
  • Removing the diffusion prior produces a 24% drop in balanced accuracy.
  • Removing the causal graph produces a 13% drop in balanced accuracy.
  • Replacing the variational encoder with a deterministic one makes every emotion class detectable, showing that the strength of latent regularization directly controls minority sensitivity.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same causal-plus-diffusion pattern could be tested on other imbalanced multimodal problems such as medical diagnosis from video and audio.
  • The learned causal graph supplies an explicit ranking of which sensor types matter for each emotion, offering a route to interpretability that standard fusion models lack.
  • Varying the KL weight in the bottleneck while keeping the diffusion prior fixed would give a direct experimental lever for trading overall accuracy against rare-class recall.

Load-bearing premise

The learned causal graph between modalities accurately reflects their true contributions to emotion labels, and the diffusion prior structures the latent space to prevent majority collapse without introducing new biases or losing overall representational power.

What would settle it

Running the same architecture on a fresh imbalanced multimodal dataset and finding that balanced accuracy and minority-class F1 remain unchanged from the plain baseline.

Figures

Figures reproduced from arXiv: 2605.08252 by Ankit Sanjyal.

Figure 1
Figure 1. Figure 1: Affect-Diff architecture. Unimodal encoders produce [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: Val-BalAcc (left, primary metric) vs. test accuracy [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Validation balanced accuracy over training. Full Model [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Per-class F1 scores across all models. Shaded columns [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 8
Figure 8. Figure 8: Curriculum warmup schedules for KL and diffusion [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 7
Figure 7. Figure 7: Training loss components over epochs for the Full [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 11
Figure 11. Figure 11: Affect-Diff macro F1 change under nine perturbation [PITH_FULL_IMAGE:figures/full_fig_p009_11.png] view at source ↗
Figure 10
Figure 10. Figure 10: Validation balanced accuracy for three random seeds. [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗
Figure 12
Figure 12. Figure 12: Affect-Diff performance on emotion recognition [PITH_FULL_IMAGE:figures/full_fig_p009_12.png] view at source ↗
read the original abstract

Multimodal emotion recognition on CMU-MOSEI faces an extreme imbalance as Happy accounts for 65.9% of samples while three Ekman categories collectively represent under 7%, causing standard fusion models to maximize accuracy by ignoring minority emotions entirely. We present Affect-Diff, a Causal-Diffusion Bridge that addresses this through three jointly trained mechanisms: a NOTEARS-learned causal graph that re-weights modality contributions before fusion, a beta-VAE bottleneck for regularized latent compression, and a stop-gradiented 1D DDPM prior that structures the latent space against majority-class collapse. On 3,292 aligned CMU-MOSEI samples, Affect-Diff achieves validation balanced accuracy 0.384, an 18% relative improvement over the strongest baseline (TETFN: 0.324), while all evaluated baselines produce zero F1 on Fear, Disgust, and Surprise. Ablation studies confirm independent, non-redundant contributions from the diffusion prior (-24% without it) and causal graph (-13%). Notably, only the deterministic-encoder variant detects all six emotion classes, revealing KL regularization strength as a direct lever for minority-class sensitivity.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes Affect-Diff, a multimodal emotion recognition architecture for imbalanced data (e.g., CMU-MOSEI with 65.9% Happy dominance) that combines a NOTEARS-learned causal graph to re-weight modality contributions, a beta-VAE bottleneck for regularized latent compression, and a stop-gradiented 1D DDPM prior to structure latents against majority-class collapse. On 3,292 aligned samples it reports validation balanced accuracy of 0.384 (18% relative gain over TETFN baseline of 0.324) together with non-zero F1 on all six Ekman classes where baselines yield zero F1 on Fear/Disgust/Surprise; ablations attribute independent contributions of -24% without the diffusion prior and -13% without the causal graph.

Significance. If the reported gains are robust, the work demonstrates a concrete, jointly trained combination of causal discovery and diffusion-based regularization that measurably improves minority-class sensitivity in multimodal emotion recognition. The explicit ablation deltas and the observation that only the deterministic-encoder variant detects all classes provide falsifiable, quantitative support for the central mechanisms; these strengths would be strengthened by error bars and statistical tests.

major comments (3)
  1. [Ablation studies and method description] The central claim that the NOTEARS-learned DAG supplies causal re-weighting (rather than statistical associations) is load-bearing for the interpretation of the -13% ablation drop, yet the manuscript provides neither a visualization of the recovered graph, edge-significance tests, nor a comparison against a non-causal attention baseline. Under the 65.9% Happy imbalance and likely hidden confounders (speaker identity, recording conditions), the no-confounder and acyclicity assumptions of NOTEARS are plausibly violated; this must be addressed with concrete diagnostics before the causal interpretation can be accepted.
  2. [Experimental results] Table or results section reporting balanced accuracy 0.384 and F1 scores lacks error bars, standard deviations across runs, or statistical significance tests against baselines. Without these, the 18% relative improvement and the claim of non-zero F1 on all classes cannot be distinguished from sampling variability, undermining the quantitative support for the diffusion-prior and causal-graph contributions.
  3. [Method (DDPM prior) and ablations] The stop-gradiented DDPM prior is asserted to structure the latent space without introducing new biases, but the only supporting evidence is the -24% ablation drop; no analysis of latent-space statistics, reconstruction quality, or comparison to a non-stop-gradient variant is supplied. This leaves open whether the prior reduces representational power for minority classes.
minor comments (2)
  1. [Experimental setup] Data-split details (train/validation/test ratios, speaker-independent partitioning) and full hyperparameter schedules (beta schedule, DDPM timesteps, NOTEARS regularization) are referenced only in passing; these must be stated explicitly for reproducibility.
  2. [Abstract and results] The abstract states 'all evaluated baselines produce zero F1 on Fear, Disgust, and Surprise' while the main text should clarify whether this holds for every baseline or only the strongest one (TETFN).

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which highlight important areas for strengthening the manuscript. We address each major point below and commit to revisions that provide the requested diagnostics, analyses, and statistical support while preserving the core contributions.

read point-by-point responses

  1. Referee: [Ablation studies and method description] The central claim that the NOTEARS-learned DAG supplies causal re-weighting (rather than statistical associations) is load-bearing for the interpretation of the -13% ablation drop, yet the manuscript provides neither a visualization of the recovered graph, edge-significance tests, nor a comparison against a non-causal attention baseline. Under the 65.9% Happy imbalance and likely hidden confounders (speaker identity, recording conditions), the no-confounder and acyclicity assumptions of NOTEARS are plausibly violated; this must be addressed with concrete diagnostics before the causal interpretation can be accepted.

    Authors: We will add a visualization of the NOTEARS-recovered DAG with edge weights and strengths to the revised manuscript. We will also include a direct comparison against a non-causal attention re-weighting baseline to isolate the contribution of the learned structure. While NOTEARS assumptions (no hidden confounders, acyclicity) may be imperfectly satisfied in this imbalanced multimodal setting, the ablation quantifies the practical utility of the discovered graph; we will expand the discussion to explicitly note these limitations and the approximate nature of the causal interpretation. revision: yes

  2. Referee: [Experimental results] Table or results section reporting balanced accuracy 0.384 and F1 scores lacks error bars, standard deviations across runs, or statistical significance tests against baselines. Without these, the 18% relative improvement and the claim of non-zero F1 on all classes cannot be distinguished from sampling variability, undermining the quantitative support for the diffusion-prior and causal-graph contributions.

    Authors: We agree that error bars and significance testing are required. In the revision we will report mean balanced accuracy and per-class F1 scores with standard deviations over multiple random seeds (minimum 5 runs). We will add paired statistical tests (e.g., t-tests on balanced accuracy and McNemar’s test on per-sample predictions) against all baselines to establish that the reported gains and the non-zero minority-class F1 scores are statistically reliable. revision: yes

  3. Referee: [Method (DDPM prior) and ablations] The stop-gradiented DDPM prior is asserted to structure the latent space without introducing new biases, but the only supporting evidence is the -24% ablation drop; no analysis of latent-space statistics, reconstruction quality, or comparison to a non-stop-gradient variant is supplied. This leaves open whether the prior reduces representational power for minority classes.

    Authors: We will augment the method and ablation sections with: (i) t-SNE and quantitative latent-space statistics (per-class variance, KL divergence to the prior) comparing models with and without the DDPM prior; (ii) reconstruction-quality metrics on held-out samples; and (iii) an additional ablation using a non-stop-gradient DDPM variant. These analyses will demonstrate that the stop-gradient mechanism improves minority-class structure without degrading overall representational capacity. revision: yes

Circularity Check

0 steps flagged

No circularity: performance metrics and ablations are evaluated on held-out data without definitional reduction

full rationale

The paper's central claims rest on empirical evaluation of balanced accuracy (0.384) and class-wise F1 on a held-out validation split of 3,292 CMU-MOSEI samples, with direct comparisons to external baselines (TETFN at 0.324) and ablations showing drops when removing the NOTEARS graph (-13%) or diffusion prior (-24%). These quantities are computed from model outputs on independent data rather than being algebraically equivalent to any fitted parameters, self-defined quantities, or prior self-citations. The NOTEARS component learns a graph from the training data and is used for re-weighting, but the final reported metrics do not reduce to that graph by construction; they remain falsifiable against the external baselines and data split. No equations or derivation steps in the manuscript equate a prediction to its own inputs.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard assumptions of the NOTEARS algorithm and the utility of beta-VAE and DDPM components; no new physical entities are postulated.

free parameters (1)
  • beta (VAE regularization coefficient)
    Controls KL-divergence strength in the bottleneck; its specific value is chosen to achieve the reported minority-class sensitivity.
axioms (1)
  • domain assumption NOTEARS can recover a useful causal graph over multimodal features for re-weighting before fusion.
    Invoked to justify modality re-weighting prior to latent compression.
