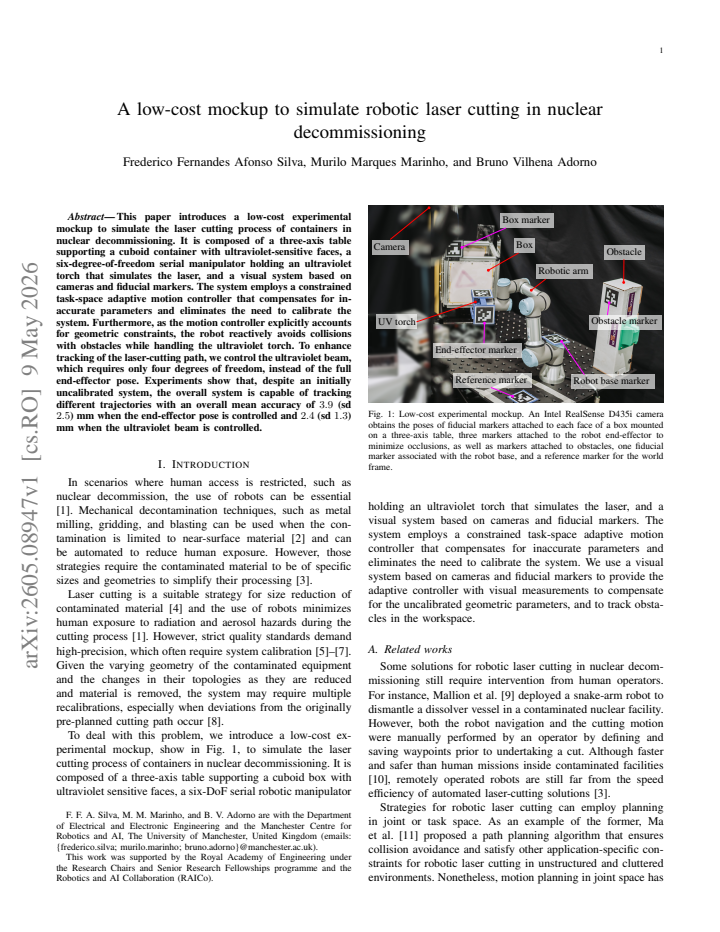

A low-cost mockup to simulate robotic laser cutting in nuclear decommissioning

Frederico Fernandes Afonso Silva , Murilo Marques Marinho , Bruno Vilhena Adorno

Authors on Pith no claims yet

Pith reviewed 2026-05-12 02:42 UTC · model grok-4.3

classification 💻 cs.RO

keywords robotic laser cuttingnuclear decommissioningadaptive controllow-cost mockupultraviolet simulationvisual servoingcollision avoidancetask-space control

0 comments

The pith

A low-cost ultraviolet mockup with adaptive control simulates robotic laser cutting without needing calibration.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces a low-cost experimental setup to replicate the laser cutting of containers in nuclear decommissioning scenarios. The mockup consists of a three-axis table holding a cuboid container with ultraviolet-sensitive faces, a six-degree-of-freedom robot arm equipped with an ultraviolet torch, and a camera-based visual system using fiducial markers. A constrained task-space adaptive motion controller compensates for parameter inaccuracies, removes the need for calibration, and enforces geometric constraints to avoid collisions. Experiments demonstrate that the system tracks various trajectories with a mean accuracy of 3.9 mm when controlling the full end-effector pose and improves to 2.4 mm when controlling only the ultraviolet beam.

Core claim

The central claim is that an uncalibrated robotic system using a low-cost ultraviolet-sensitive mockup and a constrained task-space adaptive controller can track laser-cutting trajectories with mean accuracies of 3.9 mm (sd 2.5 mm) under end-effector pose control and 2.4 mm (sd 1.3 mm) under ultraviolet beam control while avoiding collisions.

What carries the argument

The constrained task-space adaptive motion controller, which compensates for inaccurate parameters without calibration and explicitly accounts for geometric constraints to enable reactive collision avoidance.

Load-bearing premise

The ultraviolet-sensitive faces and torch provide a sufficiently faithful simulation of real laser cutting physics, visual feedback, and material interaction in nuclear containers.

What would settle it

A side-by-side test where the same trajectories and controller are applied to a real high-power laser cutter on comparable container materials, then measuring whether the physical cut deviations exceed the mockup's reported 2.4-3.9 mm range.

Figures

Figures reproduced from arXiv: 2605.08947 by Bruno Vilhena Adorno, Frederico Fernandes Afonso Silva, Murilo Marques Marinho.

**Figure 2.** Figure 2: Mockup architecture. The visual system provides information for the adaptive controller to compensate for the system’s uncalibrated geometric [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

**Figure 3.** Figure 3: Digital-twin. Geometric primitives in red indicate zones for the robot’s [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

**Figure 4.** Figure 4: Cuboid container with ultraviolet sensitive faces. The acrylic surfaces [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

**Figure 2.** Figure 2: This way, all the pipeline, including the perception [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

**Figure 5.** Figure 5: Line paths for ALPO. Reference lines perpendicular to the box surface [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

**Figure 6.** Figure 6: Effects of different rotation angles around the ultraviolet beam axis, [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗

**Figure 7.** Figure 7: Traced path while tracking different paths over three of circulations. [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗

read the original abstract

This paper introduces a low-cost experimental mockup to simulate the laser cutting process of containers in nuclear decommissioning. It is composed of a three-axis table supporting a cuboid container with ultraviolet-sensitive faces, a six-degree-of-freedom serial manipulator holding an ultraviolet torch that simulates the laser, and a visual system based on cameras and fiducial markers. The system employs a constrained task-space adaptive motion controller that compensates for inaccurate parameters and eliminates the need to calibrate the system. Furthermore, as the motion controller explicitly accounts for geometric constraints, the robot reactively avoids collisions with obstacles while handling the ultraviolet torch. To enhance tracking of the laser-cutting path, we control the ultraviolet beam, which requires only four degrees of freedom, instead of the full end-effector pose. Experiments show that, despite an initially uncalibrated system, the overall system is capable of tracking different trajectories with an overall mean accuracy of 3.9 (sd 2.5) mm when the end-effector pose is controlled and 2.4 (sd 1.3) mm when the ultraviolet beam is controlled.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper gives a concrete low-cost UV mockup and adaptive controller for testing robotic path tracking in simulated nuclear laser cutting, with reported accuracies around 2-4 mm, but leaves the mockup's realism to actual laser physics unaddressed.

read the letter

This paper describes a low-cost mockup for robotic laser cutting simulation in nuclear decommissioning. It uses a three-axis table holding a cuboid container with UV-sensitive faces, a 6DOF manipulator with a UV torch, and a vision system with cameras and fiducials. The key addition is a constrained task-space adaptive controller that handles inaccurate parameters without calibration and includes collision avoidance. They also switch to controlling just the UV beam with four degrees of freedom instead of full end-effector pose to improve tracking. Experiments on different trajectories give mean accuracies of 3.9 mm (sd 2.5) for pose control and 2.4 mm (sd 1.3) for beam control, even starting uncalibrated. That hardware-plus-controller combination is the practical contribution here and could serve as a test platform for early development in hazardous robotics work. The adaptive approach and beam-only control are straightforward ways to reduce setup time and improve performance on the mockup. The main limitation is that the UV setup's fidelity to real laser cutting is not checked. There is no quantitative comparison of material removal, kerf shape, spatter effects on vision, or thermal behavior against actual high-power laser cuts on steel containers. Without that, it is hard to know how well results will carry over to the real nuclear environment. The abstract also gives limited experimental details on trial counts or error sources. This work is aimed at robotics researchers focused on nuclear decommissioning or similar hazardous tasks who want an inexpensive way to prototype controllers before expensive field tests. It is worth sending for peer review because the hardware demonstration and numbers are there, and referees can ask for the missing validation steps.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces a low-cost mockup for simulating robotic laser cutting of containers in nuclear decommissioning. The hardware consists of a three-axis table holding a cuboid container with ultraviolet-sensitive faces, a 6-DOF serial manipulator carrying an ultraviolet torch, and a vision system using cameras and fiducial markers. A constrained task-space adaptive controller compensates for inaccurate kinematic and dynamic parameters without requiring calibration and enforces geometric constraints for reactive collision avoidance. Experiments demonstrate trajectory tracking by controlling either the full end-effector pose or the ultraviolet beam (4 DOF), reporting overall mean accuracies of 3.9 mm (sd 2.5 mm) and 2.4 mm (sd 1.3 mm), respectively.

Significance. If the mockup fidelity holds, the work offers a practical, low-cost testbed for developing calibration-free adaptive controllers with explicit constraint handling for hazardous-environment robotics. The explicit demonstration that an uncalibrated adaptive controller achieves millimeter-scale accuracy while avoiding collisions is a concrete engineering contribution that could accelerate controller validation before deployment in nuclear settings.

major comments (2)

[Experiments] Experiments section: the reported mean accuracies of 3.9 mm (sd 2.5 mm) and 2.4 mm (sd 1.3 mm) are presented without stating the number of trials, the exact trajectories tested, the procedure used to measure UV-marking error, or any statistical hypothesis testing. These omissions prevent assessment of whether the results reliably support the performance claims.
[System Description] System setup and introduction: the ultraviolet-sensitive faces and torch are asserted to simulate laser cutting, yet no quantitative comparison (cut-depth profiles, spatter-induced occlusion statistics, thermal-distortion measurements, or sensor-noise spectra) is given against real high-power laser ablation on steel. This unvalidated assumption is load-bearing for the paper's stated motivation in nuclear decommissioning.

minor comments (2)

[Abstract] Abstract: the phrase 'different trajectories' is used without enumerating or characterizing them; a brief list or reference to a figure would improve clarity.
[Controller] Notation: the distinction between end-effector pose control and ultraviolet-beam control (4 DOF) is introduced without an explicit kinematic mapping or figure; a small diagram would aid readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We appreciate the opportunity to clarify the experimental details and the scope of the mockup validation. Below we address each major comment point by point, indicating the revisions we will make.

read point-by-point responses

Referee: [Experiments] Experiments section: the reported mean accuracies of 3.9 mm (sd 2.5 mm) and 2.4 mm (sd 1.3 mm) are presented without stating the number of trials, the exact trajectories tested, the procedure used to measure UV-marking error, or any statistical hypothesis testing. These omissions prevent assessment of whether the results reliably support the performance claims.

Authors: We agree that these details are necessary for a complete evaluation of the results. In the revised manuscript, we will expand the Experiments section to report the number of trials conducted, describe the specific trajectories tested (including linear, circular, and more complex paths), detail the measurement procedure for UV-marking error (post-processing of images captured by the vision system to compute deviations from the intended paths using fiducial markers), and include statistical analysis such as confidence intervals and hypothesis testing to substantiate the reported mean accuracies and standard deviations. revision: yes
Referee: [System Description] System setup and introduction: the ultraviolet-sensitive faces and torch are asserted to simulate laser cutting, yet no quantitative comparison (cut-depth profiles, spatter-induced occlusion statistics, thermal-distortion measurements, or sensor-noise spectra) is given against real high-power laser ablation on steel. This unvalidated assumption is load-bearing for the paper's stated motivation in nuclear decommissioning.

Authors: We acknowledge that the manuscript does not include a quantitative comparison to real high-power laser ablation. The mockup is designed to safely replicate the geometric trajectory tracking, visual feedback, and collision-avoidance aspects of the task in a low-cost laboratory setting, which is the core focus of the adaptive control contribution. Full replication of thermal, spatter, and material-removal effects would require specialized high-power equipment and facilities that are outside the scope and safety constraints of this work. In the revision, we will update the introduction and add a dedicated limitations subsection to explicitly discuss the mockup's intended scope, the aspects it simulates, and the differences from real laser cutting, while clarifying that the results demonstrate controller performance under these simulated conditions. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental hardware demonstration with results from physical tests

full rationale

The paper describes a physical mockup, visual system, and adaptive controller, then reports measured tracking accuracies (3.9 mm and 2.4 mm means) from direct experiments on trajectories. No derivation chain exists that reduces a claimed prediction or result to fitted parameters or self-referential definitions by construction. The controller compensates for uncalibrated parameters, but this is implemented and validated through hardware trials rather than mathematical reduction to inputs. Any self-citations for the controller formulation are not load-bearing for the central experimental claims, which rest on observable physical outcomes independent of prior fitted values.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that the UV mockup faithfully simulates laser cutting behavior and that the adaptive controller compensates for real inaccuracies as claimed. No free parameters or invented entities are introduced.

axioms (1)

domain assumption The UV-sensitive container faces and torch accurately simulate the visual and cutting process of real laser cutting in nuclear containers.
Invoked in the mockup design and experimental validation to stand in for hazardous real-world conditions.

pith-pipeline@v0.9.0 · 5498 in / 1229 out tokens · 61121 ms · 2026-05-12T02:42:40.430353+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Foundation/RealityFromDistinction reality_from_one_distinction unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

The system employs a constrained task-space adaptive motion controller that compensates for inaccurate parameters... Experiments show... mean accuracy of 3.9 (sd 2.5) mm when the end-effector pose is controlled and 2.4 (sd 1.3) mm when the ultraviolet beam is controlled.
IndisputableMonolith/Foundation/AbsoluteFloorClosure absolute_floor_iff_bare_distinguishability unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

We use vector field inequalities (VFIs) to enforce hard constraints based on the geometry of the workspace... 19 VFIs... for collision avoidance.

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

21 extracted references · 21 canonical work pages

[1]

Laser cutting hazards of nuclear infrastructure decommissioning and dismantling,

L. C. R. Jones, J. Lavin, A. Cousins, M. Jones, E. J. Long, J. T. Spencer, J. M. Dodds, and J. R. Tyrer, “Laser cutting hazards of nuclear infrastructure decommissioning and dismantling,”Journal of Laser Applications, vol. 38, no. 1, p. 012010, Feb. 2026

work page 2026
[2]

Decommissioning of nuclear facilities and environmental remediation: Generation and management of radioactive and other wastes,

M. Laraia, “Decommissioning of nuclear facilities and environmental remediation: Generation and management of radioactive and other wastes,” inHandbook of Advanced Radioactive Waste Conditioning Technologies. Elsevier, 2011, pp. 173–204

work page 2011
[3]

Laser Size Reduction of Contaminated Magnox Pond Skips–15166,

A. Khan, H. Cruickshank, T. Woodcock, I. Pullin, and S. Silverwood, “Laser Size Reduction of Contaminated Magnox Pond Skips–15166,” in WM2015 Proceedings, Phoenix, Arizona, USA, March 15 – 19, 2015, p. 16

work page 2015
[4]

New Developments in Laser Cutting for Nuclear Decommissioning - 14045,

P. Hilton and A. Khan, “New Developments in Laser Cutting for Nuclear Decommissioning - 14045,” inWM2014 Proceedings, Phoenix, Arizona, USA, Mar. 2014, p. 15

work page 2014
[5]

Industrial camera model positioned on an effector for automated tool center point calibration,

J. Konecny, P. Beremlijski, M. Bailova, Z. Machacek, J. Koziorek, and M. Prauzek, “Industrial camera model positioned on an effector for automated tool center point calibration,”Sci Rep, vol. 14, no. 1, p. 323, Jan. 2024

work page 2024
[6]

A Kinematic Parameter Calibration Method of a 6-Axis Industrial Robot Using an Eye-in-Hand 2-D Laser Profiler,

J.-X. Liu, T. Chen, Y .-Y . Tsai, and P.-C. Lin, “A Kinematic Parameter Calibration Method of a 6-Axis Industrial Robot Using an Eye-in-Hand 2-D Laser Profiler,”IEEE Sens. Lett., vol. 9, no. 7, pp. 1–4, Jul. 2025

work page 2025
[7]

High-Precision and Robust Calibration of the Laser Tool Frame for Industrial Robotic Scribing,

Y . Yang, P. Zhang, Y . Shi, and Z. Li, “High-Precision and Robust Calibration of the Laser Tool Frame for Industrial Robotic Scribing,” in2025 7th International Conference on Robotics, Intelligent Control and Artificial Intelligence (RICAI). Hangzhou, China: IEEE, Nov. 2025, pp. 54–60

work page 2025
[8]

Remote dismantling system using a digital manufacturing system and workpiece localization for nuclear facility decommissioning,

D. Hyun, I. Kim, S. Joo, J. Ha, and J. Lee, “Remote dismantling system using a digital manufacturing system and workpiece localization for nuclear facility decommissioning,”Annals of Nuclear Energy, vol. 195, p. 110182, Jan. 2024

work page 2024
[9]

LaserSnake2: An Innovative Approach to Nuclear Decommissioning,

A. Mallion, C. Wilson, R. Smith, G. Ferguson, R. Roberts, and P. Hilton, “LaserSnake2: An Innovative Approach to Nuclear Decommissioning,” inWM2017 Proceedings, Phoenix, Arizona, USA, March 5 – 9, 2017, p. 11

work page 2017
[10]

LaserSnake2: Remote High Powered Laser Cutting in Confined Hazardous Spaces,

A. Mallion, C. Wilson, A. Graham, and P. Hilton, “LaserSnake2: Remote High Powered Laser Cutting in Confined Hazardous Spaces,” inWM2016 Proceedings, Phoenix, Arizona, USA, March 6 – 10, 2016, p. 13

work page 2016
[11]

Constrained Motion Planning for Safe Operation of a Vision-Based Laser Cutting Manipulator,

S. Ma, S. Zabihifar, and A. Montazeri, “Constrained Motion Planning for Safe Operation of a Vision-Based Laser Cutting Manipulator,” in 2024 UKACC 14th International Conference on Control (CONTROL). Winchester, United Kingdom: IEEE, Apr. 2024, pp. 84–89

work page 2024
[12]

S. M. LaValle,Planning Algorithms. Cambridge: Cambridge University Press, 2006

work page 2006
[13]

Task Space Regions: A framework for pose-constrained manipulation planning,

D. Berenson, S. Srinivasa, and J. Kuffner, “Task Space Regions: A framework for pose-constrained manipulation planning,”The Interna- tional Journal of Robotics Research, vol. 30, no. 12, pp. 1435–1460, Oct. 2011

work page 2011
[14]

Robotic 3D Laser Cutting of Textiles,

J. Antoš and M. Bušek, “Robotic 3D Laser Cutting of Textiles,” in Advances in Mechanism Design IV, J. Beran, M. Bílek, M. Václavík, and P. Žabka, Eds. Cham: Springer Nature Switzerland, 2024, vol. 171, pp. 167–172

work page 2024
[15]

Adaptive Constrained Kinematic Control Using Partial or Complete Task-Space Measurements,

M. M. Marinho and B. V . Adorno, “Adaptive Constrained Kinematic Control Using Partial or Complete Task-Space Measurements,”IEEE Trans. Robot., vol. 38, no. 6, pp. 3498–3513, Dec. 2022

work page 2022
[16]

Robot Kinematic Modeling and Control Based on Dual Quaternion Algebra – Part I: Fundamentals,

B. V . Adorno, “Robot Kinematic Modeling and Control Based on Dual Quaternion Algebra – Part I: Fundamentals,” Tech. Rep., 2017

work page 2017
[17]

Dynamic Active Constraints for Surgical Robots Using Vector-Field Inequalities,

M. M. Marinho, B. V . Adorno, K. Harada, and M. Mitsuishi, “Dynamic Active Constraints for Surgical Robots Using Vector-Field Inequalities,” IEEE Transactions on Robotics, vol. 35, no. 5, pp. 1166–1185, Oct. 2019

work page 2019
[18]

DQ Robotics: A Library for Robot Modeling and Control,

B. V . Adorno and M. Marques Marinho, “DQ Robotics: A Library for Robot Modeling and Control,”IEEE Robotics & Automation Magazine, vol. 28, no. 3, pp. 102–116, Sep. 2021

work page 2021
[19]

A Multiarm Robotic Platform for Scientific Exploration: Its Design, Digital Twins, and Validation,

M. M. Marinho, J. J. Quiroz-Omaña, and K. Harada, “A Multiarm Robotic Platform for Scientific Exploration: Its Design, Digital Twins, and Validation,”IEEE Robot. Automat. Mag., pp. 2–12, 2024

work page 2024
[20]

V-REP: A versatile and scalable robot simulation framework,

E. Rohmer, S. P. N. Singh, and M. Freese, “V-REP: A versatile and scalable robot simulation framework,” in2013 IEEE/RSJ International Conference on Intelligent Robots and Systems. IEEE, Nov. 2013, pp. 1321–1326

work page 2013
[21]

On Screw Linear Interpolation for Point-to-Point Path Planning,

A. Sarker, A. Sinha, and N. Chakraborty, “On Screw Linear Interpolation for Point-to-Point Path Planning,” in2020 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). Las Vegas, NV , USA: IEEE, Oct. 2020, pp. 9480–9487

work page 2020
