The Direct Integration Theorem: A Rigorous Framework for Consistent Discrete Solutions of the Inverse Radon Problem

Mikhail G. Mozerov
Authors on Pith no claims yet

Pith reviewed 2026-05-14 21:09 UTC · model grok-4.3

classification 💻 cs.CV
keywords Direct Integration TheoremCentral Slice Theoreminverse Radon problemcomputed tomographydiscrete reconstructionFiltered Back Projectionquasi-exact reconstructionvariance preservation
0
0 comments X

The pith

The Direct Integration Theorem provides a consistent discrete solution to the inverse Radon problem without ramp filtering or interpolation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper derives the Direct Integration Theorem as a corollary of the Central Slice Theorem to enable a direct transition from continuous to discrete domains in computed tomography. The theorem supports reconstructions where errors arise only from sampling parameters and grid geometry, while preserving the variance of the original image. Unlike Filtered Back Projection, it avoids zero-frequency singularities and spectral distortions. A reader should care because it offers a path to artifact-free images that better match the statistical properties of the scanned object.

Core claim

The Direct Integration Theorem, derived as a non-trivial corollary of the Central Slice Theorem, provides a mathematically consistent transition from the continuous to the discrete domain for solving the inverse Radon problem, eliminating the need for frequency-domain interpolation and ramp-filtering, thereby achieving quasi-exact reconstruction with errors constrained solely by sampling parameters and grid geometry, and preserving the original image variance.

What carries the argument

The Direct Integration Theorem, a corollary of the Central Slice Theorem that enables direct computation of the inverse Radon transform in the discrete domain.

Load-bearing premise

That the Direct Integration Theorem is a valid non-trivial corollary of the Central Slice Theorem yielding consistent discrete solutions without introducing new discretization errors.

What would settle it

A simulation or experiment showing DIT-based reconstruction with errors beyond sampling parameters and grid geometry, or with altered image variance, would falsify the claim.

Figures

Figures reproduced from arXiv: 2605.09020 by Mikhail G. Mozerov.

Figure 1
Figure 1. Figure 1: Comparison of reconstruction workflows: (a) the conventional filtered [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

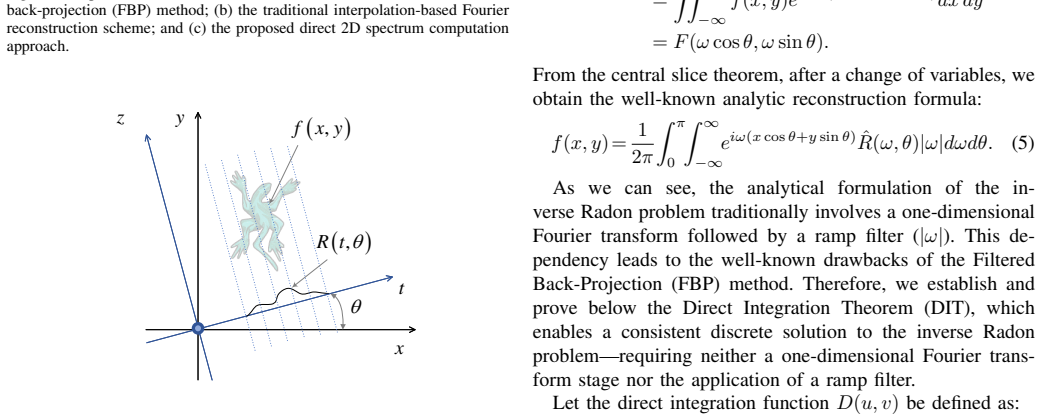

Figure 2. Figure 2: Geometry of the Radon integral projection [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

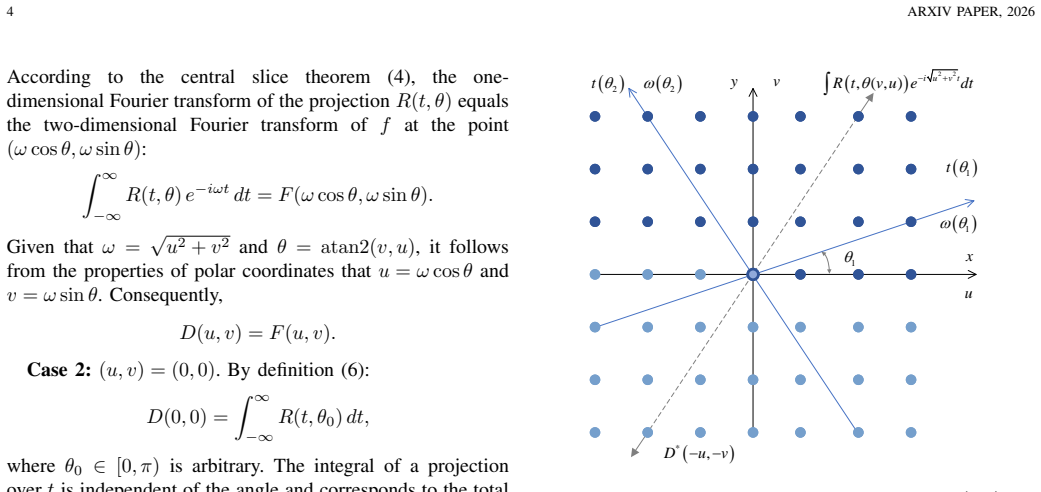

Figure 3. Figure 3: Sampling of the continuous direct integration function [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

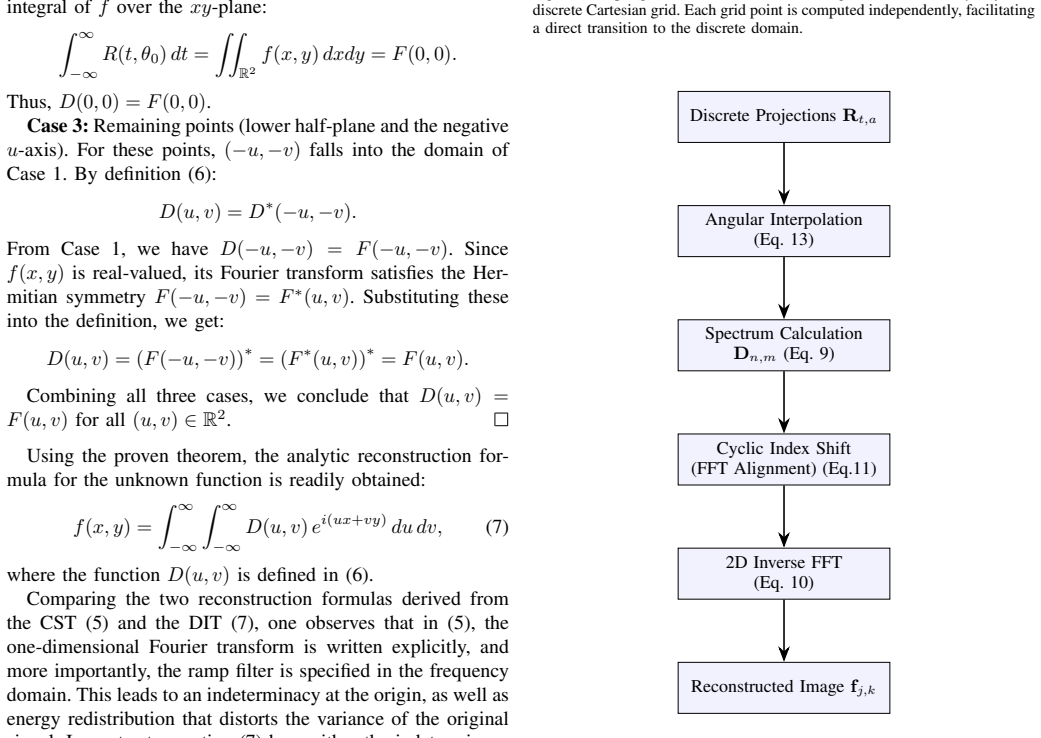

Figure 4. Figure 4: Flowchart of the proposed discrete reconstruction algorithm. [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

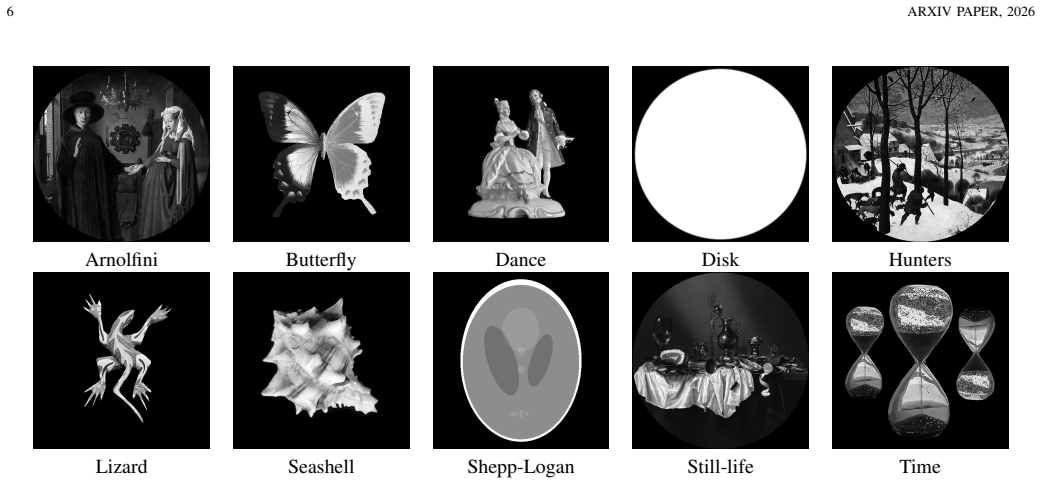

Figure 5. Figure 5: The set of 512 × 512 test images used for numerical simulation and reconstruction. to achieve robust estimation, we calculate this value as the average sum across all projection rows. Since this information is intrinsically available in the data, a comparison with an unnormalized FBP would be algorithmically trivial. While FBP-M ensures the comparison focuses on reconstruction fidelity rather than intensit… view at source ↗
Figure 6

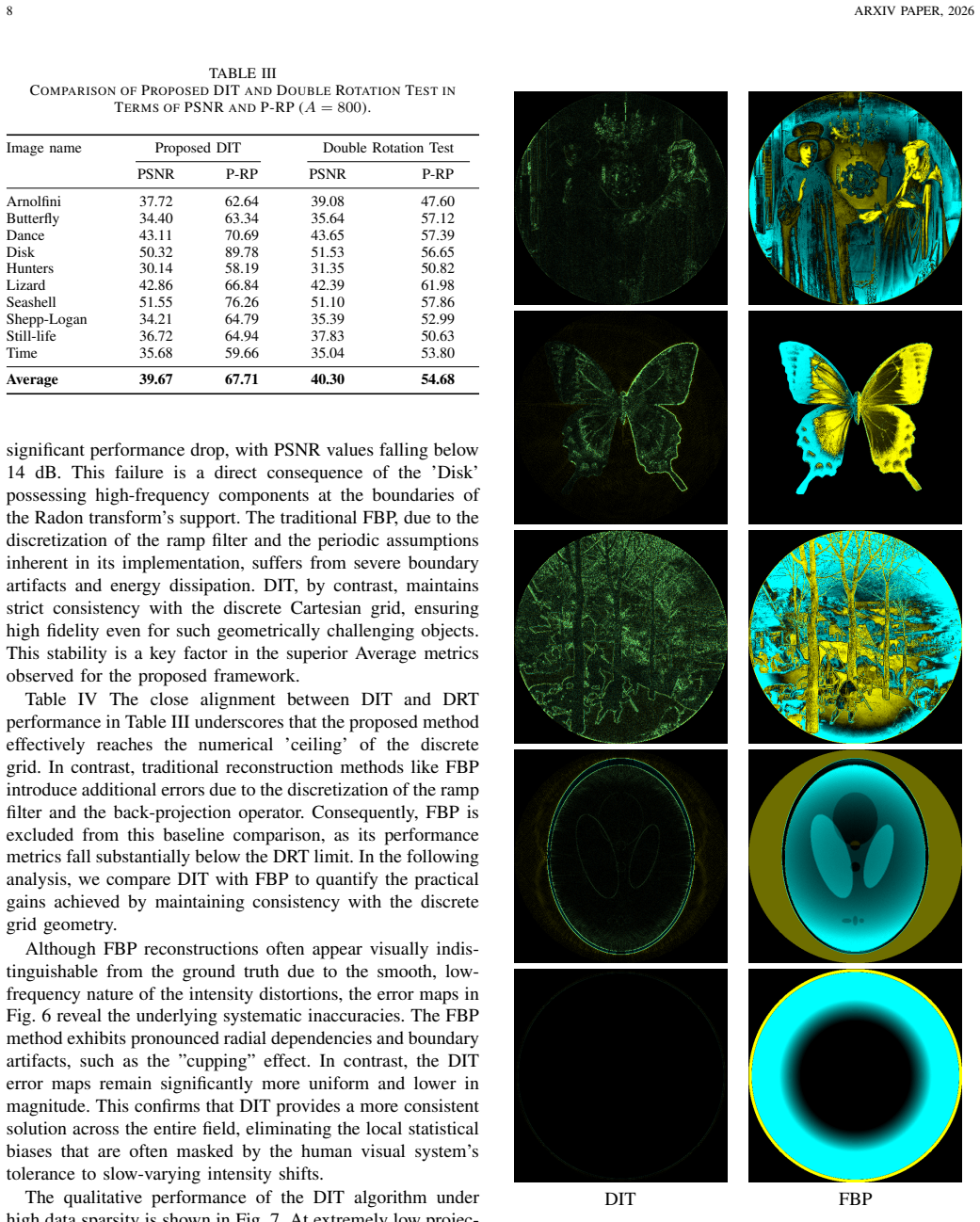

Figure 6. Figure 6: Comparison of reconstruction error maps for representative phantoms [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7

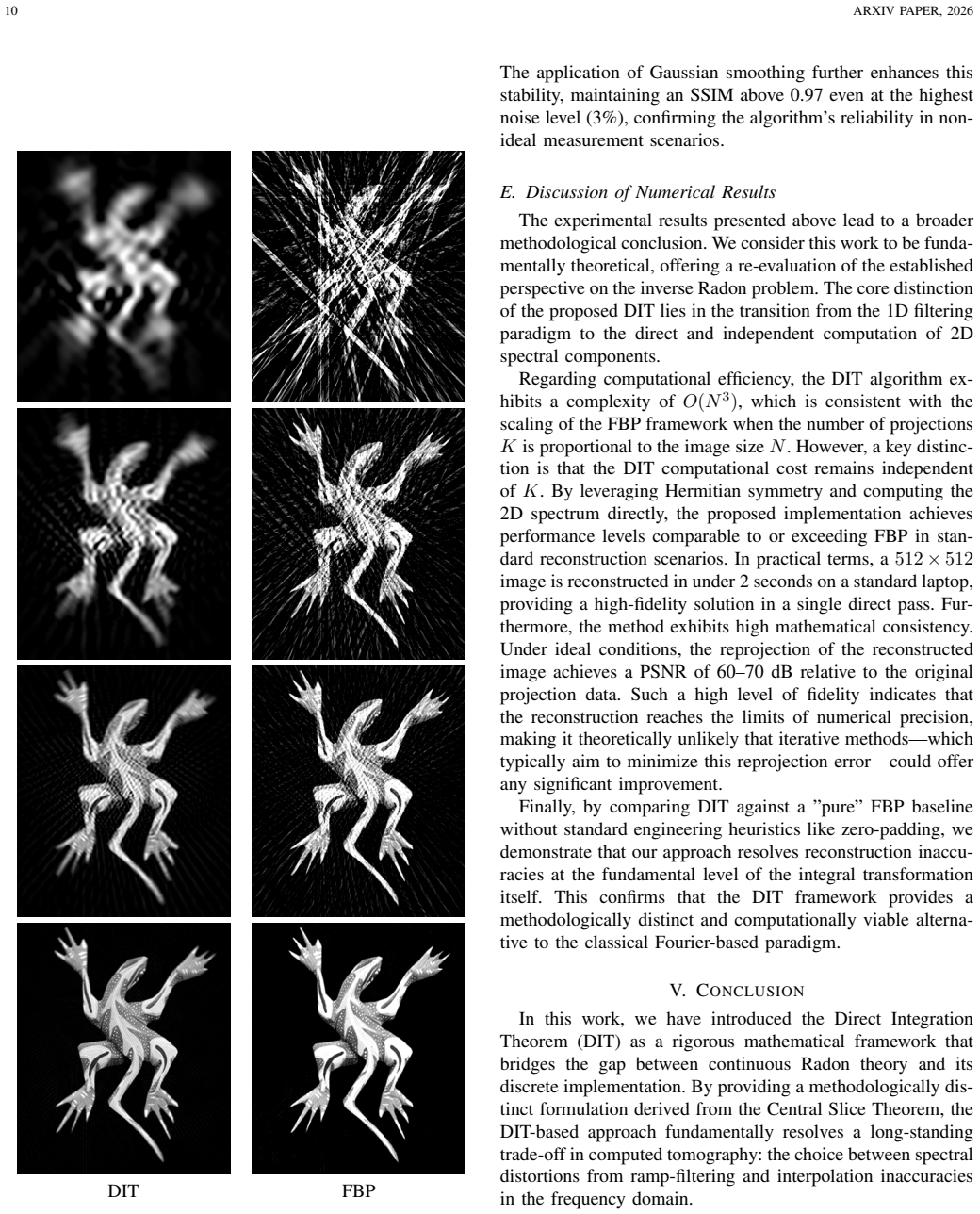

Figure 7. Figure 7: Visual comparison of reconstruction quality for the ’Lizard’ phantom [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗
read the original abstract

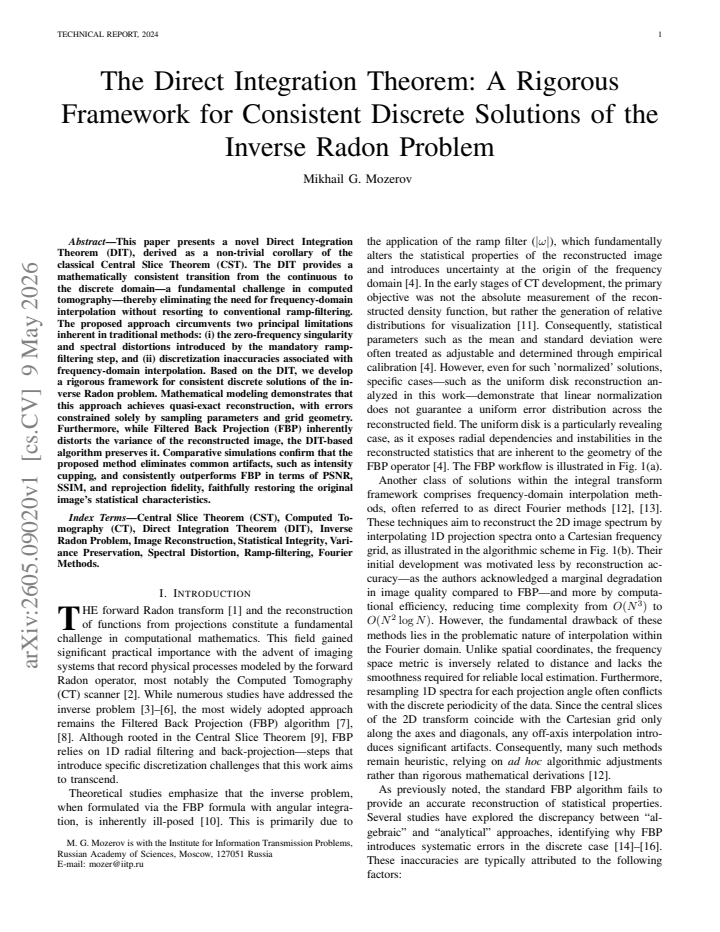

This paper presents a novel Direct Integration Theorem (DIT), derived as a non-trivial corollary of the classical Central Slice Theorem (CST). The DIT provides a mathematically consistent transition from the continuous to the discrete domain - a fundamental challenge in computed tomography - thereby eliminating the need for frequency-domain interpolation without resorting to conventional ramp-filtering. The proposed approach circumvents two principal limitations inherent in traditional methods: (i) the zero-frequency singularity and spectral distortions introduced by the mandatory ramp-filtering step, and (ii) discretization inaccuracies associated with frequency-domain interpolation. Based on the DIT, we develop a rigorous framework for consistent discrete solutions of the inverse Radon problem. Mathematical modeling demonstrates that this approach achieves quasi-exact reconstruction, with errors constrained solely by sampling parameters and grid geometry. Furthermore, while Filtered Back Projection (FBP) inherently distorts the variance of the reconstructed image, the DIT-based algorithm preserves it. Comparative simulations confirm that the proposed method eliminates common artifacts, such as intensity cupping, and consistently outperforms FBP in terms of PSNR, SSIM, and reprojection fidelity, faithfully restoring the original image's statistical characteristics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript claims to derive a Direct Integration Theorem (DIT) as a non-trivial corollary of the Central Slice Theorem (CST), enabling consistent discrete solutions to the inverse Radon problem. This framework purportedly achieves quasi-exact reconstruction with errors solely due to sampling parameters and grid geometry, preserves the variance of the reconstructed image (unlike FBP which distorts it), eliminates artifacts such as intensity cupping, and outperforms FBP in PSNR, SSIM, and reprojection fidelity.

Significance. If the DIT provides a direct discrete integration rule from CST without hidden approximations or post-hoc corrections, this would be a meaningful contribution to computed tomography by avoiding ramp-filter singularities and frequency interpolation errors while preserving statistical image properties. The mathematical modeling and simulation comparisons, if rigorously derived as described, could offer a cleaner alternative to FBP for discrete settings.

minor comments (3)
  1. The abstract states that 'mathematical modeling demonstrates' quasi-exact reconstruction, but the main text should include explicit step-by-step derivation of the DIT from CST (e.g., in the section introducing the theorem) to allow readers to verify the transition under the stated sampling assumptions.
  2. Simulation protocols for the comparative results (PSNR, SSIM, variance preservation) are referenced but lack sufficient detail on grid sizes, sampling rates, and noise models; adding these to §4 or a supplementary methods section would improve reproducibility.
  3. The claim that errors are 'constrained solely by sampling parameters and grid geometry' is central; ensure this is quantified with explicit bounds or error expressions tied to the DIT in the theoretical section.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of our manuscript and the recommendation for minor revision. The summary accurately captures the core contribution of the Direct Integration Theorem as a corollary of the Central Slice Theorem that enables consistent discrete inversion without ramp filtering or frequency interpolation. We will incorporate minor clarifications to strengthen the presentation of the mathematical derivation and simulation results.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The derivation begins from the classical Central Slice Theorem (CST), an established external result independent of this paper. The Direct Integration Theorem is explicitly positioned as a corollary that enables a direct transition to discrete integration under stated sampling and grid assumptions, without fitted parameters, self-referential definitions, or load-bearing self-citations that collapse the claim back to its inputs. Claims of quasi-exact reconstruction, variance preservation, and artifact elimination follow as consequences of this step rather than being presupposed by it. The argument remains self-contained against external mathematical benchmarks and does not reduce any prediction or uniqueness assertion to a renaming or internal fit.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the validity of the newly introduced Direct Integration Theorem as a corollary of the standard Central Slice Theorem and its direct applicability to discrete data without additional corrections.

axioms (1)
  • standard math The Central Slice Theorem holds for the continuous Radon transform
    The DIT is explicitly derived as a non-trivial corollary of this classical result.
invented entities (1)
  • Direct Integration Theorem no independent evidence
    purpose: To provide a mathematically consistent transition from continuous to discrete domain for the inverse Radon problem
    New theorem introduced in the paper to eliminate frequency-domain interpolation and ramp filtering.

pith-pipeline@v0.9.0 · 5501 in / 1341 out tokens · 39444 ms · 2026-05-14T21:09:40.664523+00:00 · methodology
