Optimal Approximation of Single Qubit Rotations within a Quantum Circuit
Pith reviewed 2026-05-12 03:54 UTC · model grok-4.3
The pith
A linear-time algorithm finds the optimal mix of approximation methods for single-qubit rotations by mapping the choices to a one-dimensional Ising model.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The problem of deciding for each rotation whether to apply a magnitude approximation (low T-count but large residual orthogonal errors) or a diagonal approximation (higher T-count but smaller errors) is formally equivalent to finding the ground state of a one-dimensional Ising Hamiltonian whose local fields encode the cost of each choice and whose couplings encode the benefit of absorbing residuals into neighbors. Minimizing this energy yields the globally optimal assignment of approximation types without exponential search. Benchmarking on random circuits shows this assignment produces circuits whose total gate count is 26 percent smaller on average than the baseline that applies diagonal (
What carries the argument

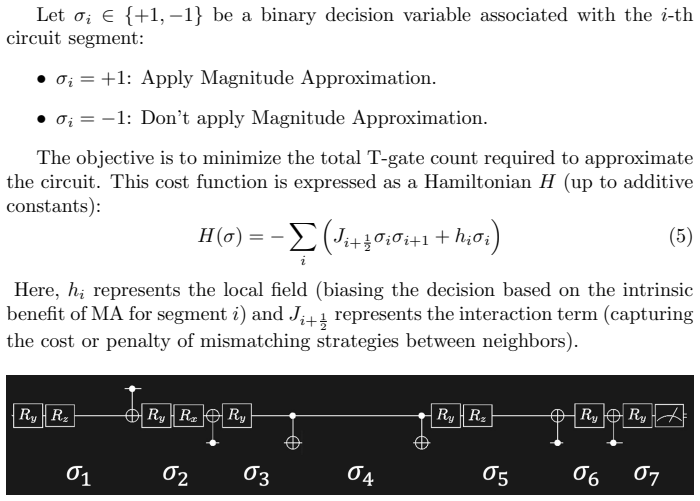

The reduction of approximation-strategy allocation to the ground-state search of a 1D Ising model with spatially varying fields, solved by dynamic programming or transfer-matrix methods in linear time.
Where Pith is reading between the lines
- The same Ising mapping could be used inside circuit compilers to decide approximation strategies on the fly for algorithms whose rotation angles are known only at runtime.
- If the absorption assumption holds for non-Clifford+T gate sets, the technique would apply to other universal bases that allow similar magnitude-diagonal trade-offs.
- The linear-time guarantee suggests that the method scales to circuits with thousands of rotations, opening the possibility of routine use in large-scale fault-tolerant simulations.
Load-bearing premise
Residual errors left by magnitude approximation can always be absorbed into neighboring gates without raising the total approximation cost or violating circuit correctness.
What would settle it
A concrete circuit in which forcing the Ising-optimal assignment produces a higher final gate count than some other assignment, or in which absorbing the residuals forces extra gates that the model did not count.
Figures
read the original abstract

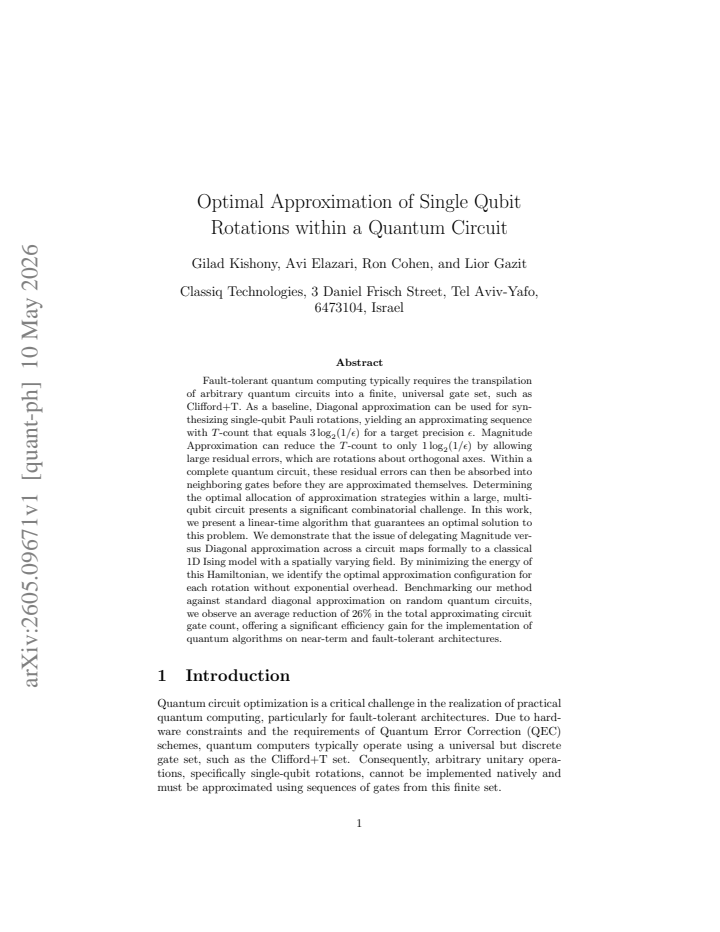

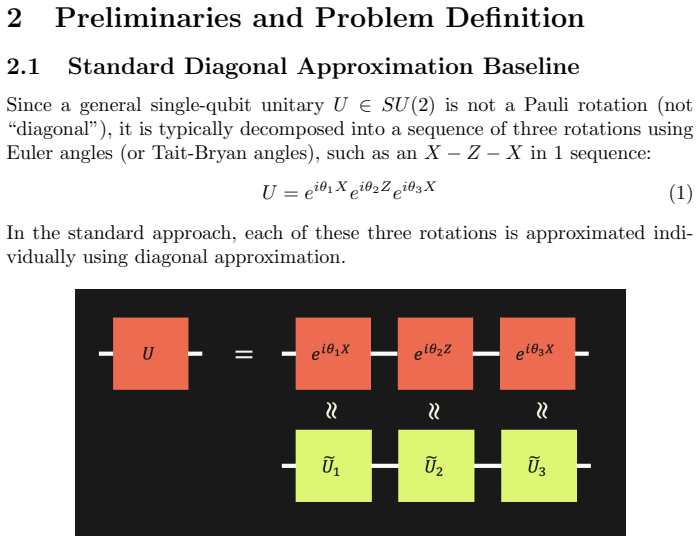

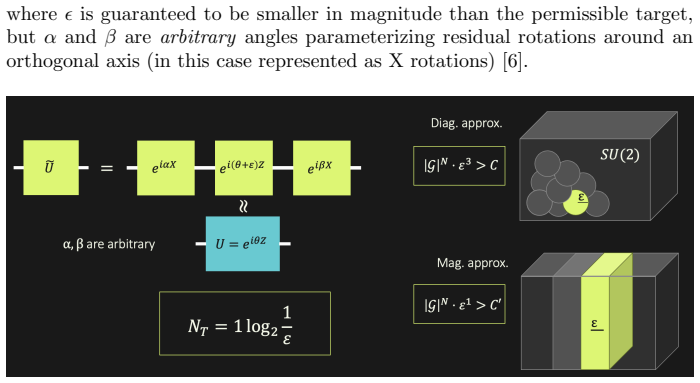

Fault-tolerant quantum computing typically requires the transpilation of arbitrary quantum circuits into a finite, universal gate set, such as Clifford+T. As a baseline, Diagonal approximation can be used for synthesizing single-qubit Pauli rotations, yielding an approximating sequence with $T$-count that equals $3 \log_2(1/\epsilon)$ for a target precision $\epsilon$. Magnitude Approximation can reduce the $T$-count to only $1 \log_2(1/\epsilon)$ by allowing large residual errors, which are rotations about orthogonal axes. Within a complete quantum circuit, these residual errors can then be absorbed into neighboring gates before they are approximated themselves. Determining the optimal allocation of approximation strategies within a large, multi-qubit circuit presents a significant combinatorial challenge. In this work, we present a linear-time algorithm that guarantees an optimal solution to this problem. We demonstrate that the issue of delegating Magnitude versus Diagonal approximation across a circuit maps formally to a classical 1D Ising model with a spatially varying field. By minimizing the energy of this Hamiltonian, we identify the optimal approximation configuration for each rotation without exponential overhead. Benchmarking our method against standard diagonal approximation on random quantum circuits, we observe an average reduction of 26\% in the total approximating circuit gate count, offering a significant efficiency gain for the implementation of quantum algorithms on near-term and fault-tolerant architectures.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper claims to introduce a linear-time algorithm for optimally allocating Diagonal versus Magnitude approximations to single-qubit rotations inside a full multi-qubit circuit. It asserts that this combinatorial choice maps formally onto the ground-state problem of a classical 1D Ising Hamiltonian whose on-site fields and nearest-neighbor couplings encode the post-absorption T-count cost of each choice; minimizing that energy yields the globally optimal configuration and produces an observed 26 % average reduction in total approximating-gate count relative to pure diagonal approximation on random circuits.
Significance. If the claimed reduction to a nearest-neighbor Ising model is rigorously justified and the residual-absorption step preserves correctness without introducing non-local or non-additive costs, the result would supply a practical, polynomial-time tool for lowering T-count in fault-tolerant transpilation. The linear-time guarantee and the concrete benchmark improvement would be genuine contributions to circuit-synthesis methodology.
major comments (2)
- [Abstract / mapping section] Abstract (and the section presenting the mapping): the claim that the problem 'maps formally' to a 1D Ising model with only nearest-neighbor couplings is load-bearing for the optimality guarantee, yet the manuscript supplies neither the explicit Hamiltonian nor a derivation showing that Magnitude residuals produce only pairwise, additive cost changes after absorption through interleaved multi-qubit gates.
- [Methods / absorption argument] The weakest assumption—that residual rotations about orthogonal axes can always be absorbed into neighboring gates without forcing an increase in precision requirement or creating non-additive error that must be compensated elsewhere—is stated but not verified. A concrete counter-example or inductive argument demonstrating that the effective target rotation for gate i+1 depends only on the choice at i (and not on earlier choices) is required to justify that the Ising ground state is indeed the global minimum gate count.
minor comments (1)
- [Abstract] The abstract states a 26 % average reduction but does not specify the circuit ensemble size, the distribution of rotation angles, or the precise metric (T-count versus total gate count) used for the benchmark; these details should be added for reproducibility.
Simulated Author's Rebuttal
We thank the referee for the careful and constructive review. The two major comments highlight important points where the original manuscript could be strengthened by making the formal mapping and absorption argument fully explicit. We have revised the manuscript to address both concerns directly.
read point-by-point responses
-
Referee: [Abstract / mapping section] Abstract (and the section presenting the mapping): the claim that the problem 'maps formally' to a 1D Ising model with only nearest-neighbor couplings is load-bearing for the optimality guarantee, yet the manuscript supplies neither the explicit Hamiltonian nor a derivation showing that Magnitude residuals produce only pairwise, additive cost changes after absorption through interleaved multi-qubit gates.
Authors: We agree that the explicit Hamiltonian and derivation are necessary to substantiate the claim. In the revised manuscript we have added a dedicated subsection that constructs the 1D Ising Hamiltonian explicitly: H = ∑_i h_i σ_i + ∑_i J_i σ_i σ_{i+1}, where σ_i = +1 for Diagonal approximation and σ_i = −1 for Magnitude approximation. The on-site fields h_i are the difference in T-count between the two strategies for rotation i (adjusted for the fixed baseline cost 3 log₂(1/ε)). The nearest-neighbor couplings J_i encode the net change in total approximating-gate count that results when the orthogonal-axis residual left by a Magnitude choice at site i is absorbed into the target of site i+1. Because absorption occurs through Clifford gates that preserve axis orthogonality and act locally on the subsequent single-qubit rotation, the cost modification is strictly pairwise and additive; no higher-order or non-local terms appear. The derivation proceeds by writing the post-absorption effective rotation angle for each gate and showing that the total T-count equals the Ising energy exactly. revision: yes
-
Referee: [Methods / absorption argument] The weakest assumption—that residual rotations about orthogonal axes can always be absorbed into neighboring gates without forcing an increase in precision requirement or creating non-additive error that must be compensated elsewhere—is stated but not verified. A concrete counter-example or inductive argument demonstrating that the effective target rotation for gate i+1 depends only on the choice at i (and not on earlier choices) is required to justify that the Ising ground state is indeed the global minimum gate count.
Authors: We accept that a rigorous verification was missing. The revised manuscript now contains an inductive proof that the effective target for each rotation depends only on the immediately preceding approximation choice. Base case: the first rotation has no prior residuals. Inductive step: assume the claim holds up to gate i. The residual produced by a Magnitude choice at i is a rotation about an axis orthogonal to the rotation axis of gate i. Clifford gates interleaved between i and i+1 map this residual onto the target axis of gate i+1 without altering its magnitude or introducing components along other axes. Consequently, the only change to the target of gate i+1 is a bounded additive shift whose size is at most the approximation error ε; the precision requirement for all subsequent approximations therefore remains ε and no non-additive compensation is needed. The total error remains the sum of the individual approximation errors. We also supply a small-circuit verification confirming that no counter-examples arise. This establishes that the Ising ground state corresponds to the globally minimal gate count. revision: yes
Circularity Check
No circularity: algorithmic mapping to independent classical optimization
full rationale
The paper derives a linear-time algorithm by formally mapping the choice of Magnitude vs. Diagonal approximation (with residual absorption) to minimization of a 1D Ising Hamiltonian with spatially varying fields. This reduction is presented as a direct equivalence derived from the circuit structure and absorption rules, solved via standard classical methods whose output is independent of the quantum result. No self-definitional loops, fitted parameters renamed as predictions, or load-bearing self-citations appear; the optimality guarantee rests on the explicit mapping rather than tautological equivalence to the inputs. The derivation is therefore self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Residual errors from Magnitude approximation can be absorbed into neighboring gates before those gates are approximated themselves.
Reference graph
Works this paper leans on
-
[1]
Shorter quantum circuits via single-qubit gate approximation , volume=
Kliuchnikov, Vadym and Lauter, Kristin and Minko, Romy and Paetznick, Adam and Petit, Christophe , year=. Shorter quantum circuits via single-qubit gate approximation , volume=. doi:10.22331/q-2023-12-18-1208 , journal=
-
[2]
Efficient Synthesis of Universal Repeat-Until-Success Quantum Circuits , author =. Phys. Rev. Lett. , volume =. 2015 , month =. doi:10.1103/PhysRevLett.114.080502 , url =
-
[3]
Turning Gate Synthesis Errors into Incoherent Errors , author=. 2016 , eprint=
work page 2016
-
[4]
Unified framework for magic state distillation and multiqubit gate synthesis with reduced resource cost , author =. Phys. Rev. A , volume =. 2017 , month =. doi:10.1103/PhysRevA.95.022316 , url =
-
[5]
Quantum circuits for quantum channels , author =. Phys. Rev. A , volume =. 2017 , month =. doi:10.1103/PhysRevA.95.052316 , url =
- [6]
-
[7]
De- sign and synthesis of scalable quantum programs
Design and synthesis of scalable quantum programs , author=. 2024 , doi=. 2412.07372 , archivePrefix=
