Environmental γ-Ray Flux in Hall C at LNGS and Its Correlation with Radon Activity

L. Luzzi , R. Santorelli , G. Zuzel , P. Agnes , D. Cano-Ott , C. Ghiano , M. Laubenstein , T. Mroz

show 3 more authors

V. Pesudo Fortes J. Plaza del Olmo G. Vera D\'iaz

Authors on Pith no claims yet

Pith reviewed 2026-05-12 04:12 UTC · model grok-4.3

classification ⚛️ physics.ins-det

keywords environmental gamma-ray fluxHall C LNGSradon correlationhigh-purity germanium detectorGeant4 simulationsunderground laboratoryrare-event experimentsradiological characterization

0 comments

The pith

Environmental gamma-ray flux in Hall C at LNGS averages 0.46 cm^{-2} s^{-1} between 57 and 2800 keV and correlates directly with radon levels.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper maps gamma-ray radiation across eight locations in Hall C by moving a high-purity germanium detector on a cart. Geant4 simulations, checked against calibration sources, correct for detector efficiency so the measured counts convert to true flux. The resulting average flux carries both statistical and systematic uncertainties, and simultaneous radon monitoring over weeks reveals that gamma rates rise and fall with radon concentration because of the short-lived decay products. This spatial picture supplies concrete numbers for the background environment that underground experiments must contend with.

Core claim

A high-purity germanium detector was deployed at eight positions in Hall C; after Geant4-based efficiency corrections validated by sources, the gamma-ray flux integrated from 57 to 2800 keV equals (0.46 ± 0.06_stat ± 0.03_syst) cm^{-2} s^{-1}. Radon levels recorded on the same cart for roughly one month track the gamma rate, matching the expected contribution from the short-lived daughters of 222Rn. The work supplies the first efficiency-corrected spatial map of the flux in this hall.

What carries the argument

High-purity germanium detector on a movable cart whose full-energy-peak efficiencies are computed location-by-location with Geant4 simulations validated by calibrated sources.

If this is right

The reported flux number can be inserted directly into background models for rare-event searches planned in the same hall.
The observed correlation implies that lowering radon concentration will reduce the gamma-ray background rate in a predictable way.
Location-to-location differences allow experimenters to choose lower-flux spots or to design local shielding accordingly.
The efficiency-corrected method provides a repeatable template for characterizing other underground halls.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Radon monitors already installed in the lab could serve as a real-time proxy for estimating the instantaneous gamma flux without moving the germanium detector.
Repeating the cart survey after changes in ventilation or sealing might quantify how much background reduction is achievable.
The same cart-based approach could be applied in other underground sites to produce comparable flux maps for cross-lab comparisons.

Load-bearing premise

The Geant4 simulations correctly reproduce the detector response and peak efficiencies for the actual mixture of gamma energies present at each of the eight sites.

What would settle it

An independent measurement of the same flux using a different detector technology or a different efficiency-calibration method that falls outside the quoted uncertainty band.

Figures

Figures reproduced from arXiv: 2605.09835 by C. Ghiano, D. Cano-Ott, G. Vera D\'iaz, G. Zuzel, J. Plaza del Olmo, L. Luzzi, M. Laubenstein, P. Agnes, R. Santorelli, T. Mroz, V. Pesudo Fortes.

**Figure 2.** Figure 2: FIG. 2. Picture of the measurement station, including the HPGe in the U–type cryostat. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

**Figure 3.** Figure 3: FIG. 3. Left: Measured peak energies as a function of their nominal values from [ [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

**Figure 4.** Figure 4: FIG. 4. Environmental energy–calibrated [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

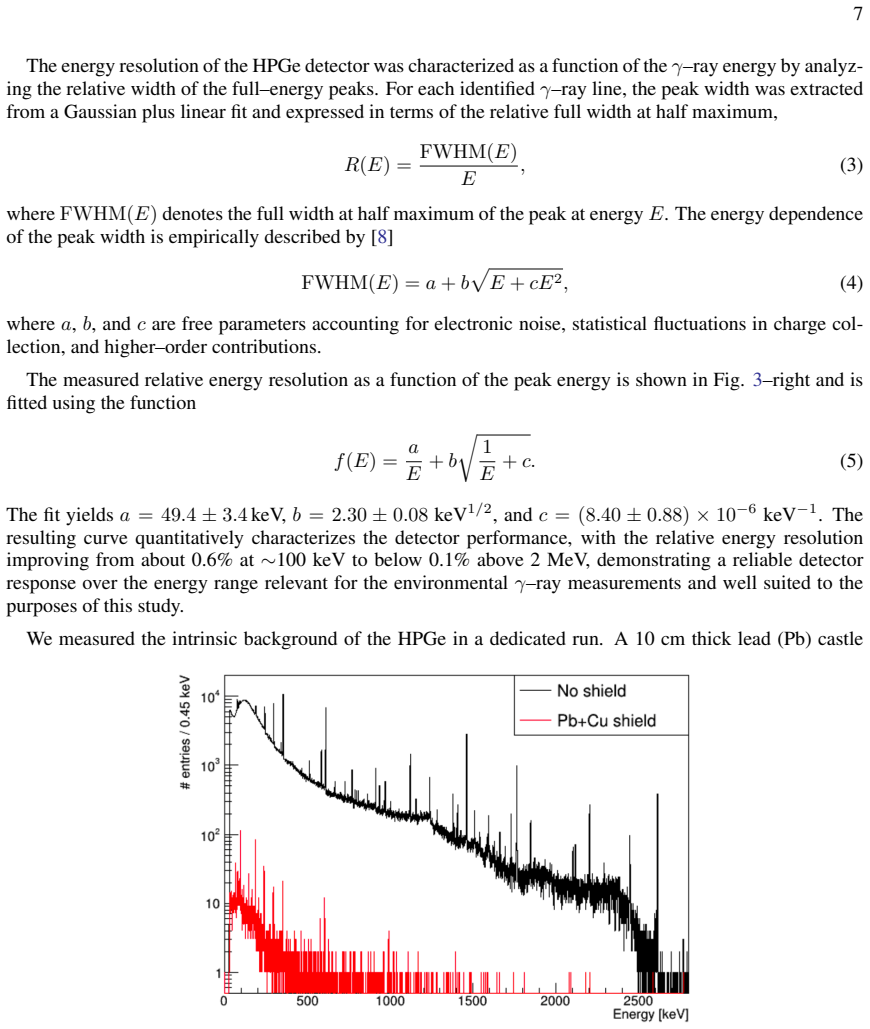

**Figure 5.** Figure 5: FIG. 5. In black, the [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

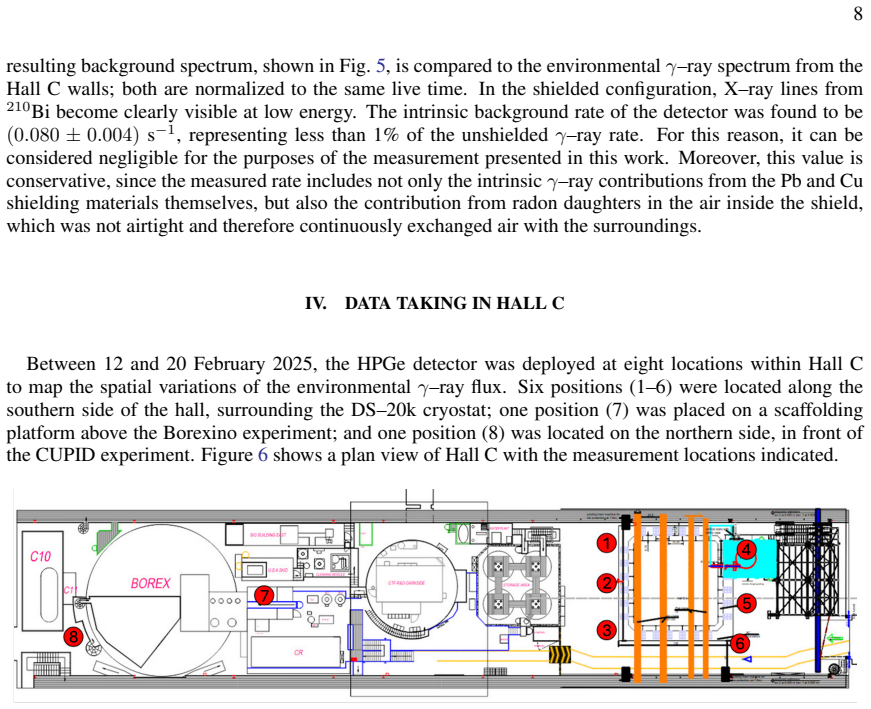

**Figure 6.** Figure 6: FIG. 6. Plan view of Hall C showing the eight measurement locations. [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗

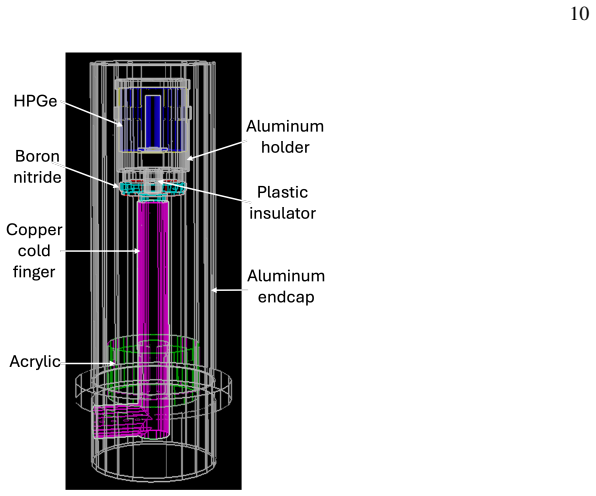

**Figure 7.** Figure 7: FIG. 7. Geometry of the HPGe spectrometers implemented in [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗

**Figure 8.** Figure 8: FIG. 8. Data–MC comparison of the [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗

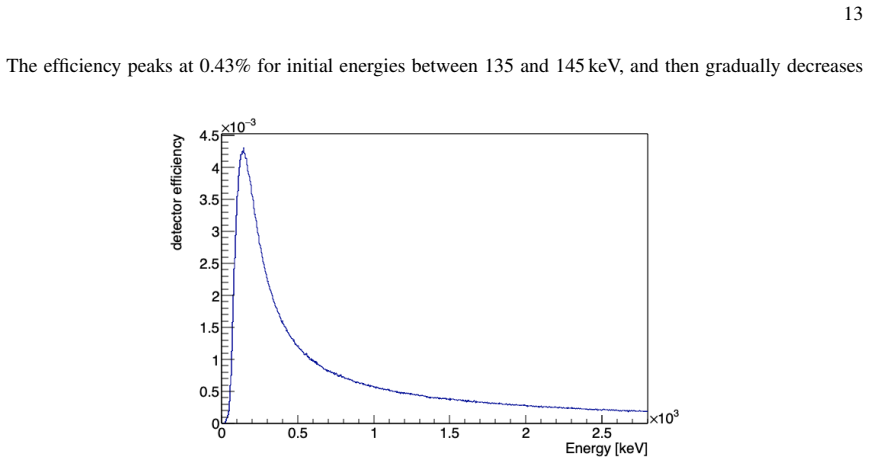

**Figure 9.** Figure 9: FIG. 9. Detector efficiency as a function of the initial [PITH_FULL_IMAGE:figures/full_fig_p013_9.png] view at source ↗

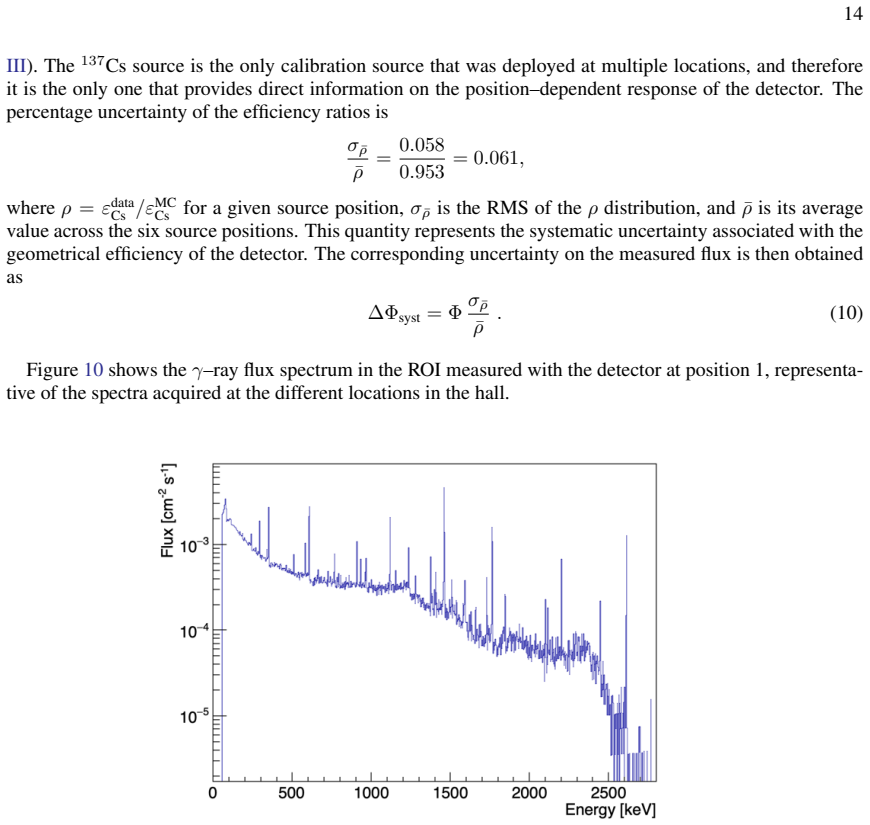

**Figure 10.** Figure 10: shows the γ–ray flux spectrum in the ROI measured with the detector at position 1, representative of the spectra acquired at the different locations in the hall. FIG. 10. γ–ray flux energy spectrum measured with the detector at position 1 within the ROI. The γ–ray fluxes measured across Hall C are broadly consistent with each other, showing moderate position–dependent variations. However, measurements at… view at source ↗

**Figure 11.** Figure 11: FIG. 11 [PITH_FULL_IMAGE:figures/full_fig_p016_11.png] view at source ↗

**Figure 12.** Figure 12: FIG. 12. Left: Time evolution of the measured [PITH_FULL_IMAGE:figures/full_fig_p016_12.png] view at source ↗

read the original abstract

We report a comprehensive measurement of the environmental $\gamma$-ray flux in Hall C of the Gran Sasso National Laboratory. A spatial mapping of the radiation was carried out using a high-purity germanium detector mounted on a movable cart and deployed at eight locations within the hall. The detector response function and full-energy-peak efficiencies were determined through Geant4 simulations validated with calibrated $\gamma$-ray sources, with particular attention devoted to the efficiency modeling and associated systematic uncertainties. In the energy range of 57-2800 keV, the average $\gamma$-ray flux is measured to be $(\mathrm{0.46} \pm \mathrm{0.06}_{stat} \pm \mathrm{0.03}_{syst})$ $\mathrm{cm}^{-2}$ $\mathrm{s}^{-1}$. The radon level was monitored for about a month using a radon detector mounted on the same cart, and a clear correlation is observed between the environmental $\gamma$-ray rate and the ambient radon concentration, consistent with the short-lived daughters of $^{222}\mathrm{Rn}$. This result represents the first high-precision and efficiency-corrected mapping of the $\gamma$-ray flux in Hall C, substantially improving its radiological characterization and providing key input for future rare-event experiments operating in this hall.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper gives a usable first high-precision gamma flux map for Hall C at LNGS plus a radon correlation, but the central number rests on Geant4 efficiencies checked only with point sources.

read the letter

The main takeaway is that this work supplies a concrete, efficiency-corrected gamma-ray flux value for Hall C—0.46 cm^{-2} s^{-1} averaged over 57-2800 keV across eight locations—along with a month of radon monitoring that shows a clear correlation with the gamma rate. That number and the spatial map are new for this specific hall and will be directly usable by any experiment planning to run there for background budgeting. The measurement itself follows standard HPGe cart techniques, with the detector response modeled in Geant4 and cross-checked against calibrated sources, and both statistical and systematic uncertainties are reported. The radon correlation part is even simpler, relying on raw rates rather than the full efficiency chain. What stands out is the practical output: a ready-to-use radiological characterization that improves on prior general LNGS data. The soft spot is the efficiency step. Point-source validation is a reasonable start, but the actual field includes a distributed continuum from radon daughters plus other hall materials, so mismatches in dead-layer modeling, angular acceptance, or Compton handling could scale the entire flux. The abstract notes attention to systematics, yet the size of any residual bias is not easy to judge without the detailed efficiency curves or how the continuum was treated. No circularity in the central result, and the citation pattern looks clean. This is for underground-lab experimentalists who need Hall C background numbers rather than for method developers. A serious referee should see it because the data are new, the setup is described, and the result is falsifiable with similar equipment, even if the efficiency discussion might need tightening in review.

Referee Report

1 major / 2 minor

Summary. The manuscript reports a spatial mapping of the environmental γ-ray flux in Hall C at LNGS using a high-purity germanium detector deployed at eight locations on a movable cart. Detector response functions and full-energy-peak efficiencies are obtained from Geant4 simulations that were validated against calibrated γ-ray sources. In the 57-2800 keV range the average flux is given as (0.46 ± 0.06_stat ± 0.03_syst) cm^{-2} s^{-1}. A month-long radon monitoring campaign on the same cart shows a clear correlation between the observed γ-ray rate and ambient radon concentration, attributed to the short-lived daughters of ^{222}Rn. The work is presented as the first efficiency-corrected, high-precision characterization of this hall.

Significance. If the central result holds, the paper supplies a directly calibrated, spatially resolved γ-ray flux measurement together with an explicit radon correlation that is useful for background budgeting in rare-event searches. The use of external-source calibration rather than internal fitting, the reporting of both statistical and systematic uncertainties, and the multi-location mapping are clear strengths.

major comments (1)

Geant4 Simulations section: Validation is performed exclusively with calibrated point sources, yet the environmental field is a volume-distributed continuum plus discrete lines from ^{214}Pb and ^{214}Bi. No quantitative test is shown that the modeled full-energy-peak efficiencies remain accurate for this geometry and angular distribution; any mismatch would rescale the entire reported flux. A dedicated comparison (e.g., using a distributed source or Monte-Carlo closure test on the actual spectrum) is required before the efficiency correction can be considered robust.

minor comments (2)

The 57 keV lower threshold is stated without justification; a brief explanation (detector threshold, analysis cut, or noise floor) would improve clarity.
Figure captions should explicitly list the eight measurement locations and indicate whether error bars include both statistical and systematic contributions.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful and constructive review of our manuscript. We address the single major comment below and will incorporate the requested validation into the revised version.

read point-by-point responses

Referee: Geant4 Simulations section: Validation is performed exclusively with calibrated point sources, yet the environmental field is a volume-distributed continuum plus discrete lines from ^{214}Pb and ^{214}Bi. No quantitative test is shown that the modeled full-energy-peak efficiencies remain accurate for this geometry and angular distribution; any mismatch would rescale the entire reported flux. A dedicated comparison (e.g., using a distributed source or Monte-Carlo closure test on the actual spectrum) is required before the efficiency correction can be considered robust.

Authors: We agree that the environmental gamma-ray field is a volume-distributed source with both continuum and discrete lines, and that point-source validation alone does not fully demonstrate the accuracy of the full-energy-peak efficiencies for this geometry. Although the Geant4 model incorporates the hall geometry and was validated with point sources placed at representative positions and orientations, we acknowledge that an explicit test for the distributed case is warranted. We will add a Monte-Carlo closure test to the revised Geant4 Simulations section: the full environmental spectrum (including the ^{214}Pb and ^{214}Bi lines and continuum) will be simulated as input, the detector response generated, and the flux reconstructed using the same efficiency model applied to the data. Quantitative agreement between input and recovered flux will be reported, confirming that any mismatch remains within the quoted systematic uncertainty. revision: yes

Circularity Check

0 steps flagged

Direct measurement with externally validated Geant4 efficiencies; no circularity

full rationale

The reported flux is obtained by dividing observed count rates by full-energy-peak efficiencies derived from Geant4 simulations that were validated against independent calibrated point sources. This calibration chain is external to the environmental data set. The radon correlation is performed on raw count rates and does not depend on the efficiency-corrected flux value. No equations reduce the final result to a fitted parameter defined from the same data, no self-citation chains support the central claim, and no ansatz or uniqueness theorem is invoked. The derivation is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The measurement rests on the accuracy of standard Geant4 detector modeling validated by sources and on the assumption that the observed gamma-radon correlation arises from 222Rn daughters; no new particles or forces are introduced.

axioms (2)

domain assumption Geant4 Monte Carlo accurately reproduces the detector response function and full-energy-peak efficiencies for the environmental gamma spectrum
Invoked to convert measured counts into flux; validated with calibrated sources but details not in abstract.
domain assumption The gamma-ray rate variation tracks the short-lived daughters of 222Rn
Stated as the explanation for the observed correlation.
