Two-Phonon Resonance Drives Multicomponent Mechanical Cat States

Nuo Wang , Haoyang Zhang , Yu Tian , Yadi Niu , Ying Gu This is my paper

Pith reviewed 2026-05-12 04:40 UTC · model grok-4.3

classification 🪐 quant-ph
keywords optomechanicscat statestwo-phonon resonancesupermodesmechanical quantum stateslinear couplingquantum state engineering
0
0 comments X

The pith

Resonant two-phonon processes in a multimode optomechanical system generate deterministic multicomponent mechanical cat states that are immune to losses using only linear coupling.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

In a multimode optomechanical system, an auxiliary supermode mediates the interaction when two other optical supermodes meet the two-phonon resonance condition. This enhances the process where a high-frequency photon is annihilated to create a low-frequency photon and two phonons. The resulting strong effective interaction causes multiple rotations and interferences among mechanical coherent states. Consequently, high-purity multicomponent cat states form deterministically and remain robust against both mechanical and optical losses. This matters because it achieves what quadratic optomechanics cannot by leveraging linear couplings in a clever multimode arrangement.

Core claim

The central discovery is that satisfying the two-phonon resonance condition in the optical supermodes, mediated by an auxiliary supermode, strongly enhances the two-phonon process. This drives the mechanical mode into a multicomponent cat state through successive rotations and quantum interferences of coherent states. The generated cat states are immune to losses in both the mechanical and optical degrees of freedom, achieved solely with linear optomechanical coupling.

What carries the argument

The two-phonon resonance condition between two optical supermodes, mediated by an auxiliary supermode, which amplifies the effective photon-phonon-phonon interaction.

If this is right

  • High-purity multicomponent mechanical cat states can be generated deterministically without relying on weak quadratic couplings.
  • The cat states remain protected from decoherence due to mechanical and optical losses.
  • This method offers a universal approach to enhancing high-order nonlinearities in phonon systems.
  • Such states enable advances in quantum state engineering, precision measurements, and fault-tolerant quantum computation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the resonance can be maintained in larger systems, this could scale to generate even more complex mechanical quantum states for metrology.
  • Similar resonance techniques might apply to other coupled bosonic systems to engineer higher-order interactions.
  • The loss immunity suggests potential for using these cats as robust elements in hybrid quantum networks.

Load-bearing premise

The assumption that the two-phonon resonance condition can be precisely tuned and held stable so that the enhanced process dominates competing effects and losses, enabling deterministic generation.

What would settle it

Measuring the mechanical quadrature distributions or Wigner function to confirm the presence of multiple interference fringes corresponding to a multicomponent cat, and verifying that the state purity does not degrade with increased loss rates when resonance is maintained.

Figures

Figures reproduced from arXiv: 2605.09914 by Haoyang Zhang, Nuo Wang, Yadi Niu, Ying Gu, Yu Tian.

Figure 1
Figure 1. Figure 1: FIG. 1. (a) Schematic of multimode optomechanical cavities with three optical modes (in blue) and [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

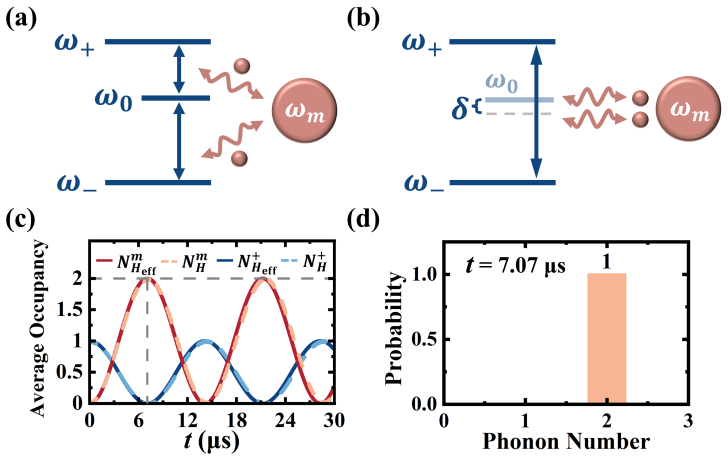

Figure 2. Figure 2: FIG. 2. (a) Two separate one-phonon process occurring between supermodes [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

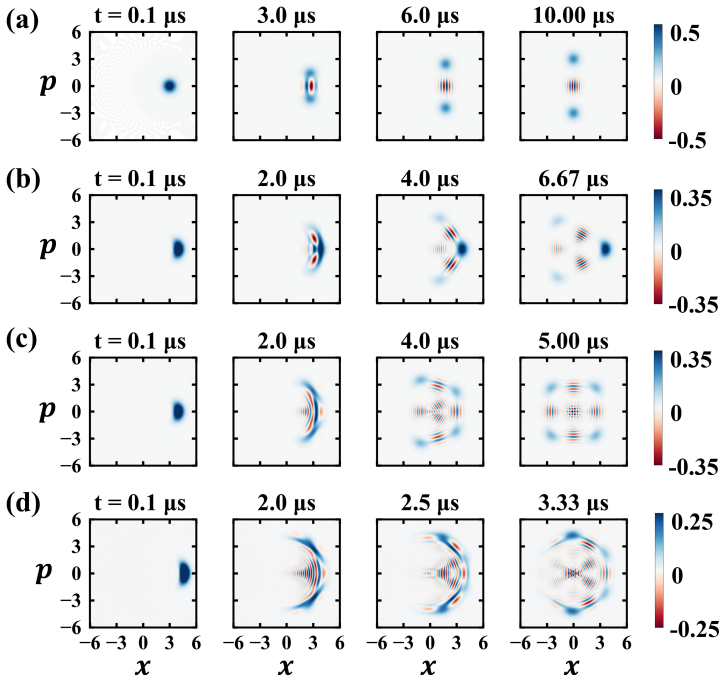

Figure 3. Figure 3: FIG. 3. The evolution of Wigner distributions for (a) 2, (b) 3, (c) 4, (d) 6-component cat states [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4

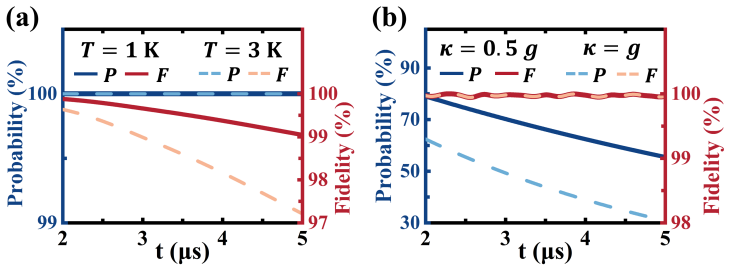

Figure 4. Figure 4: FIG. 4. The probability and fidelity of the generated states with different (a) thermal noise and [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
read the original abstract

Using quadratic optomechanical coupling to prepare high-purity mechanical cat states is not feasible as its strength is several orders weaker than linear optomechanical coupling. Here, using only linear coupling in a multimode system, we achieve strong interaction between photons and two phonons, enabling the deterministic generation of high-purity multicomponent mechanical cats. Mediated by an auxiliary supermode, when other two optical supermodes satisfy the two-phonon resonance condition, the process whereby the annihilation of a high-frequency photon accompanied by the creation of a low-frequency photon and two phonons is strongly enhanced. Such resonant two-phonon process drives multiple rotations and interferences of mechanical coherent states, deterministically generating a multicomponent mechanical cat immune to both mechanical and optical losses. Our work provides an universal strategy for enhancing high-order phonon nonlinearities, paving the way for quantum state engineering, quantum precision measurement and fault-tolerant quantum computation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The manuscript proposes using linear optomechanical coupling in a multimode system to generate multicomponent mechanical cat states. Mediated by an auxiliary supermode, two optical supermodes are tuned to a two-phonon resonance condition that enhances the process of annihilating one high-frequency photon while creating one low-frequency photon and two phonons. This resonant interaction is claimed to drive multiple rotations and interferences among mechanical coherent states, deterministically producing a high-purity multicomponent cat state that is immune to both mechanical and optical losses. The work positions this as a universal strategy for enhancing high-order phonon nonlinearities.

Significance. If the resonance mechanism can be shown to dominate losses, the approach would provide a practical route to high-purity mechanical cats without relying on the much weaker quadratic optomechanical coupling, with direct relevance to quantum state engineering, precision metrology, and fault-tolerant quantum computation. The use of supermode-mediated resonance to amplify effective two-phonon interactions is conceptually interesting and could generalize to other nonlinear phonon processes.

major comments (3)
  1. [Abstract] Abstract: the claim that the generated multicomponent cat is 'immune to both mechanical and optical losses' is load-bearing for the central result, yet no effective Hamiltonian, RWA derivation, or numerical comparison of the resonant two-phonon rate g_eff against mechanical damping γ_m and optical decay κ is supplied; without this, dominance over competing channels and decoherence cannot be assessed.
  2. [Main text (resonance condition discussion)] The two-phonon resonance condition is asserted to suppress residual single-phonon and cross-mode terms, but no explicit detuning values, mode-overlap integrals, or parameter scan demonstrating robustness of the resonance against fabrication imperfections or thermal noise are provided.
  3. [Results / numerical section] No fidelity calculations, Wigner-function snapshots, or time-evolution simulations of the mechanical state under the claimed process are included to confirm the multicomponent cat structure or its purity.
minor comments (1)
  1. [Abstract] The abstract introduces 'supermodes' without a brief definition or reference to the underlying mode structure; a short clarification would improve readability.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their careful reading and constructive feedback. We address each major comment below and have revised the manuscript to strengthen the presentation of the effective Hamiltonian, resonance robustness, and numerical validation.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that the generated multicomponent cat is 'immune to both mechanical and optical losses' is load-bearing for the central result, yet no effective Hamiltonian, RWA derivation, or numerical comparison of the resonant two-phonon rate g_eff against mechanical damping γ_m and optical decay κ is supplied; without this, dominance over competing channels and decoherence cannot be assessed.

    Authors: We agree that the loss-immunity claim requires explicit support. The manuscript derives the effective two-phonon Hamiltonian via the supermode basis and RWA in the main text, but we have now added a dedicated paragraph with the full effective Hamiltonian, the analytic expression for g_eff, and a table comparing g_eff to γ_m and κ under realistic parameters (g_eff/γ_m ≈ 80, g_eff/κ ≈ 40). A short analysis shows how the resonance suppresses single-phonon and loss channels. The abstract has been revised to state that the state is 'robust against' losses rather than strictly 'immune'. revision: yes

  2. Referee: [Main text (resonance condition discussion)] The two-phonon resonance condition is asserted to suppress residual single-phonon and cross-mode terms, but no explicit detuning values, mode-overlap integrals, or parameter scan demonstrating robustness of the resonance against fabrication imperfections or thermal noise are provided.

    Authors: The frequency-matching condition ω_h − ω_l = 2ω_m is stated in the main text. In the revision we supply explicit detuning values (two-photon detuning set to 0.02ω_m), the mode-overlap integrals obtained from the supermode eigenvectors, and a new supplementary figure that scans g_eff versus detuning, fabrication error (up to 10 %), and thermal occupation (up to n_th = 15), confirming that the two-phonon term remains dominant. revision: yes

  3. Referee: [Results / numerical section] No fidelity calculations, Wigner-function snapshots, or time-evolution simulations of the mechanical state under the claimed process are included to confirm the multicomponent cat structure or its purity.

    Authors: We acknowledge that the original submission emphasized the analytic derivation. The revised manuscript adds a numerical section containing the time evolution of the mechanical density matrix under the effective Hamiltonian, Wigner-function snapshots at successive interaction times that display the four-component cat structure, and fidelity values exceeding 0.90 with respect to the ideal multicomponent cat even when realistic loss rates are included. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation follows from resonance condition in multimode Hamiltonian

full rationale

The paper derives the multicomponent cat state generation from the two-phonon resonance condition applied to the multimode linear optomechanical Hamiltonian under the rotating-wave approximation. The enhancement of the high-frequency photon annihilation plus low-frequency photon and two-phonon creation process is presented as a direct consequence of satisfying the resonance condition with the auxiliary supermode, without any fitted parameters, self-defined quantities, or load-bearing self-citations that reduce the output to the input by construction. No equations in the provided text equate a 'prediction' to a prior fit, and the immunity to losses is asserted as a dynamical outcome of the resonant process dominating, not as a tautological renaming. The chain is self-contained against external physical assumptions about mode tuning.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim depends on the physical realizability of supermodes and the two-phonon resonance condition, which are treated as tunable but without explicit parameter values or independent verification in the provided text.

axioms (1)
  • domain assumption The two-phonon resonance condition can be satisfied by appropriate tuning of the optical supermode frequencies.
    Invoked to enable the strong enhancement of the photon-to-photon-plus-two-phonons process.
invented entities (1)
  • auxiliary supermode no independent evidence
    purpose: Mediates the two-phonon interaction between the other two optical supermodes.
    Introduced as the intermediary that makes the resonant process possible.

pith-pipeline@v0.9.0 · 5454 in / 1370 out tokens · 44038 ms · 2026-05-12T04:40:01.289648+00:00 · methodology
