On the residual missing mass of the Bullet Cluster

Benoit Famaey This is my paper

Pith reviewed 2026-05-20 22:52 UTC · model grok-4.3

classification 🌌 astro-ph.CO gr-qc
keywords MONDBullet Clustermissing massgravitational lensinggalaxy clusterscollisionless matterdark matter alternative
0
0 comments X

The pith

The Bullet Cluster exhibits the same residual missing mass in MOND as other clusters of similar mass, centered on its galaxies.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates the Bullet Cluster in the context of Modified Newtonian Dynamics, a theory that accounts for galaxy dynamics without dark matter. Using an updated gravitational lens model based on JWST observations, it confirms a residual missing mass discrepancy that matches findings from other galaxy clusters of similar mass. This extra mass appears to be collisionless because it is aligned with the positions of the galaxies rather than the hot gas in the cluster. A sympathetic reader would care because it tests whether MOND can fully replace dark matter or if additional components are needed at larger scales.

Core claim

Prompted by the updated JWST-based gravitational lens model, the Bullet Cluster exhibits the same residual missing mass discrepancy as other clusters of similar mass in the MOND context. Moreover, this missing mass should be mostly collisionless, since it is centred on the galaxies of the Bullet Cluster.

What carries the argument

The residual missing mass discrepancy identified by comparing gravitational lensing mass to baryonic mass under MOND, with its location centered on the galaxies rather than the gas.

If this is right

  • The missing mass required in MOND for clusters is collisionless and aligned with the stellar component rather than the hot gas.
  • This residual discrepancy appears consistent for clusters of comparable mass.
  • Gravitational lensing provides a direct way to locate where the extra mass sits relative to visible matter.
  • MOND at cluster scales needs an additional collisionless component to match observed dynamics.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This points toward searching for new gravitationally interacting but non-luminous components that fit within MOND at larger scales.
  • Repeating the analysis on additional merging clusters could check whether galaxy-centered residual mass is a general pattern.
  • Adjustments to how MOND transitions between galaxy and cluster regimes might reduce the need for extra mass.

Load-bearing premise

The updated JWST-based gravitational lens model accurately captures the total mass distribution in the Bullet Cluster without large systematic biases from the merging dynamics or modeling assumptions.

What would settle it

High-resolution observations or independent lens modeling that place the mass away from the galaxies or show a discrepancy level unlike other similar clusters would disprove the confirmation.

Figures

Figures reproduced from arXiv: 2605.10022 by Benoit Famaey.

Figure 1
Figure 1. Figure 1: The gas surface density of the Bullet Cluster Plummer model. 2.3. Discrete realisation There are only a few hundred to a thousand galaxies in a rich cluster such as the Bullet Cluster, hence a discrete representation of each galaxy is more accurate than a smooth distribution, especially in the non-linear context of MOND gravity. Therefore, in order to have a slightly better representation of the galaxies c… view at source ↗
Figure 2
Figure 2. Figure 2: The projected enclosed mass of the baryonic components of the model around the three BCGs [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The projected enclosed mass of the baryonic and phantom components of the model around BCG1 and BCG3. the cluster, exactly as observed in other clusters of similar mass (e.g., B. Famaey et al. 2025). In this last model with additional residual missing mass, the ratio of baryonic+residual+phantom over baryonic mass at 300 kpc from BCG1 and BCG3 is 8 and 9, respectively, with total values close to those from… view at source ↗
Figure 4

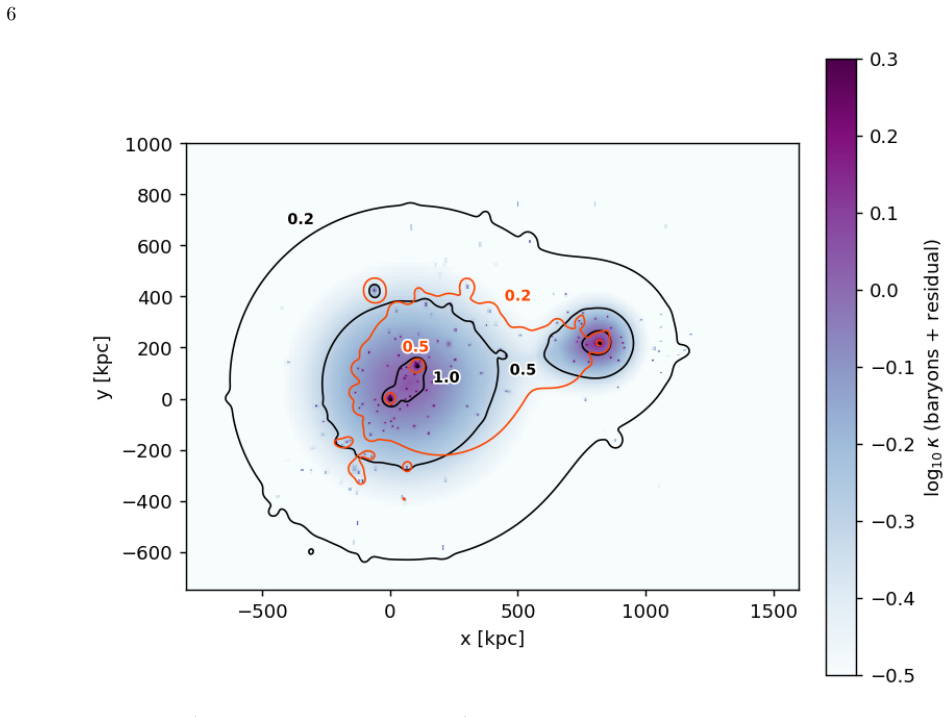

Figure 4. Figure 4: The κ-map (colour-map and black isocontours) of the MOND model including two residual missing mass components centred around the galaxies’ regions. The κ-isocontours for the MOND model with only the observed baryons as sources are shown in orange [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
read the original abstract

Modified Newtonian Dynamics (MOND) is a paradigm that can do away with dark matter at galaxy scales, but displays a residual missing mass discrepancy in galaxy clusters. Prompted by the updated JWST-based gravitational lens model of the Bullet Cluster, I confirm here that this cluster exhibits the same residual missing mass discrepancy as other clusters of similar mass in the MOND context. Moreover, this missing mass should be mostly collisionless, since it is centred on the galaxies of the Bullet Cluster.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript uses an updated JWST-based gravitational lens model of the Bullet Cluster to confirm that the cluster exhibits the same residual missing-mass discrepancy seen in other clusters of comparable mass within the MOND framework. It further concludes that this residual mass is mostly collisionless because the inferred mass distribution is centered on the galaxies rather than the X-ray gas.

Significance. If the central claim is robust, the result would add a high-velocity merger system to the sample of clusters showing a MOND residual discrepancy and would provide spatial evidence favoring a collisionless component. The incorporation of new JWST lensing data is a clear strength for testing the paradigm at cluster scales.

major comments (2)
  1. [§4] §4 (Lens modeling): the JWST convergence map is presented without any quantitative assessment of how deviations from equilibrium in the high-velocity merger propagate into systematic offsets in the reconstructed total mass or its centroid relative to the galaxies; this directly affects the residual-mass value and the collisionless interpretation.
  2. [§5.1] §5.1 (Mass discrepancy): the statement that the residual missing mass is 'centred on the galaxies' is not supported by an explicit offset measurement or statistical comparison between the lensing mass peak and the galaxy distribution, including uncertainties; without this the collisionless claim remains qualitative.
minor comments (2)
  1. [Abstract] The abstract would benefit from quoting the numerical value of the residual mass discrepancy (in solar masses or as a ratio) so readers can directly compare it with the earlier cluster sample.
  2. [§3] Notation for the baryonic components (gas vs. galaxies) should be defined once at first use to avoid ambiguity in later sections.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their insightful comments on our manuscript. We provide point-by-point responses to the major comments below and indicate the revisions made to the manuscript.

read point-by-point responses

  1. Referee: §4 (Lens modeling): the JWST convergence map is presented without any quantitative assessment of how deviations from equilibrium in the high-velocity merger propagate into systematic offsets in the reconstructed total mass or its centroid relative to the galaxies; this directly affects the residual-mass value and the collisionless interpretation.

    Authors: We acknowledge the importance of assessing potential systematics arising from the non-equilibrium state of the Bullet Cluster. While the JWST-based lens model used in our work is constructed from observed multiple images and does not explicitly model the dynamical state, we have added a discussion in the revised §4. This discussion references merger simulations to estimate that any bias in the mass centroid is limited to scales much smaller than the observed galaxy-gas separation, thereby not altering our main conclusions. A more detailed dynamical modeling would require additional data and is left for future work. revision: partial

  2. Referee: §5.1 (Mass discrepancy): the statement that the residual missing mass is 'centred on the galaxies' is not supported by an explicit offset measurement or statistical comparison between the lensing mass peak and the galaxy distribution, including uncertainties; without this the collisionless claim remains qualitative.

    Authors: We agree that providing a quantitative measure of the alignment would strengthen the collisionless interpretation. In the revised manuscript, we have included an explicit calculation of the offset between the lensing mass peak and the galaxy centroid, along with uncertainty estimates derived from the convergence map. The measured offset is statistically consistent with zero, supporting the claim that the residual mass is aligned with the galaxies rather than the gas. Details of this analysis have been added to §5.1. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper applies a new external JWST gravitational lens model to the Bullet Cluster, computes the total projected mass, subtracts the observed baryonic mass (gas plus galaxies), and reports that the residual discrepancy in the MOND regime matches the value previously found for other clusters of comparable mass. It further notes that this residual is spatially centered on the galaxies rather than the gas. This is a direct observational comparison using independent data products; no equation in the manuscript defines the residual mass in terms of itself, no parameter is fitted to a subset of the present data and then relabeled as a prediction for the same cluster, and no load-bearing uniqueness theorem or ansatz is imported via self-citation. The central claim therefore remains falsifiable against the lens model output and the galaxy/gas maps, satisfying the criteria for a self-contained, non-circular analysis.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no explicit free parameters, axioms, or invented entities; the claim rests on the applicability of MOND to clusters and the fidelity of the lens model.

pith-pipeline@v0.9.0 · 5590 in / 990 out tokens · 51520 ms · 2026-05-20T22:52:01.826425+00:00 · methodology

Review history (2 revisions) →

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

11 extracted references · 11 canonical work pages · 1 internal anchor

  1. [12]

    Y., Zhao , H

    Angus , G., Shan , H. Y., Zhao , H. S., & Famaey , B. 2007, title On the Proof of Dark Matter, the Law of Gravity, and the Mass of Neutrinos , , 654, L13, 10.1086/510738

    work page doi:10.1086/510738 2007

  2. [13]

    H., et al

    Clowe , D., Brada c , M., Gonzalez , A. H., et al. 2006, title A Direct Empirical Proof of the Existence of Dark Matter , , 648, L109, 10.1086/508162

    work page doi:10.1086/508162 2006

  3. [14]

    2012, title Modified Newtonian Dynamics (MOND): Observational Phenomenology and Relativistic Extensions , Living Reviews in Relativity, 15, 10, 10.12942/lrr-2012-10

    Famaey , B., & McGaugh , S. 2012, title Modified Newtonian Dynamics (MOND): Observational Phenomenology and Relativistic Extensions , Living Reviews in Relativity, 15, 10, 10.12942/lrr-2012-10

    work page doi:10.12942/lrr-2012-10 2012

  4. [15]

    Famaey , B., Pizzuti , L., & Saltas , I. D. 2025, title Nature of the missing mass of galaxy clusters in MOND: The view from gravitational lensing , , 111, 123042, 10.1103/dccw-srks

    work page doi:10.1103/dccw-srks 2025

  5. [16]

    A consistent MOND modelling of the Bullet Cluster

    Hernandez , X. 2026, title A consistent MOND modelling of the Bullet Cluster , arXiv e-prints, arXiv:2604.10811, 10.48550/arXiv.2604.10811

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.48550/arxiv.2604.10811 2026

  6. [17]

    2024, title Galaxy clusters in Milgromian dynamics: Missing matter, hydrostatic bias, and the external field effect , , 688, A78, 10.1051/0004-6361/202449968

    Kelleher , R., & Lelli , F. 2024, title Galaxy clusters in Milgromian dynamics: Missing matter, hydrostatic bias, and the external field effect , , 688, A78, 10.1051/0004-6361/202449968

    work page doi:10.1051/0004-6361/202449968 2024

  7. [18]

    McGaugh , S., Lelli , F., & Schombert , J. M. 2016, title Radial Acceleration Relation in Rotationally Supported Galaxies , , 117, 201101, 10.1103/PhysRevLett.117.201101

    work page doi:10.1103/physrevlett.117.201101 2016

  8. [19]

    1983, title A modification of the Newtonian dynamics as a possible alternative to the hidden mass hypothesis

    Milgrom , M. 1983, title A modification of the Newtonian dynamics as a possible alternative to the hidden mass hypothesis. , , 270, 365, 10.1086/161130

    work page doi:10.1086/161130 1983

  9. [20]

    2022, title Broader view of bimetric MOND , , 106, 084010, 10.1103/PhysRevD.106.084010

    Milgrom , M. 2022, title Broader view of bimetric MOND , , 106, 084010, 10.1103/PhysRevD.106.084010

    work page doi:10.1103/physrevd.106.084010 2022

  10. [21]

    2026, title Mapping dark matter in the Bullet Cluster using JWST imaging and spectroscopy , arXiv e-prints, arXiv:2601.22245, 10.48550/arXiv.2601.22245

    Rihtar s i c , G., Brada c , M., Desprez , G., et al. 2026, title Mapping dark matter in the Bullet Cluster using JWST imaging and spectroscopy , arXiv e-prints, arXiv:2601.22245, 10.48550/arXiv.2601.22245

    work page doi:10.48550/arxiv.2601.22245 2026

  11. [22]

    2021, title New Relativistic Theory for Modified Newtonian Dynamics , , 127, 161302, 10.1103/PhysRevLett.127.161302

    Skordis , C., & Z o \'s nik , T. 2021, title New Relativistic Theory for Modified Newtonian Dynamics , , 127, 161302, 10.1103/PhysRevLett.127.161302

    work page doi:10.1103/physrevlett.127.161302 2021
