arxiv: 2605.10126 · v1 · submitted 2026-05-11 · 🪐 quant-ph

Modulation of electron wave packets by scattering on time-harmonic potentials

Mads Br{\o}ndum Carlsen , Lars Bojer Madsen This is my paper

Pith reviewed 2026-05-12 02:50 UTC · model grok-4.3

classification 🪐 quant-ph
keywords electron wave packetstime-harmonic potentialsFloquet spacePINEMquantum scattering theoryR-matrix methodeikonal approximationultrafast electron microscopy
0
0 comments X

The pith

A 3D quantum scattering theory maps electron interactions with oscillating potentials to multi-channel Floquet scattering, showing sideband generation sensitive to transverse focusing.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a rigorous 3D quantum scattering theory for free electrons interacting with time-periodic potentials like optical near-fields. It maps the time-dependent dynamics into an extended Floquet space to treat the problem as time-independent multi-channel scattering. Both exact R-matrix and approximate multi-channel eikonal methods are used to compute scattering amplitudes. For an oscillating potential, this generates distinct energy sidebands in the electron wave packet, with modulation strength depending on the transverse profile of the incident pulse. This demonstrates the need for fully three-dimensional treatments especially at low kinetic energies.

Core claim

By mapping the time-dependent dynamics into an extended Floquet space, we formally connect the modulation process to time-independent multi-channel scattering. We evaluate the resulting scattering amplitudes using both an exact R-matrix approach and a multi-channel eikonal approximation. The latter analytical approach recovers PINEM-like probabilities weighted by the wave packet's transverse profile. Application of the theory to an oscillating potential demonstrates the generation of distinct energy sidebands, revealing that the modulation strength is sensitive to the transverse focusing of the incident electron pulse, underlining the importance of a fully 3D treatment.

What carries the argument

Extended Floquet space mapping of time-dependent electron-potential interactions to multi-channel scattering, evaluated via R-matrix and eikonal approximations.

If this is right

  • Distinct energy sidebands appear in the scattered electron spectrum due to the interaction.
  • The strength of modulation depends sensitively on the transverse focusing of the incident electron pulse.
  • The multi-channel eikonal approximation yields PINEM-like probabilities weighted by the wave packet transverse profile.
  • A fully 3D treatment is required for accurate description at low kinetic energies.
  • Existing high-energy approximations may fail for low-energy ultrafast electron microscopy.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This framework could be applied to design experiments controlling electron wave packets via tailored potentials.
  • Accounting for transverse effects might improve resolution in photon-induced near-field electron microscopy at low energies.
  • Future work could test the theory by varying the focus of the electron beam and measuring sideband ratios.
  • Recoil effects neglected in some approximations may need inclusion for even lower energies.

Load-bearing premise

The assumption that interactions remain coherent and that the multi-channel eikonal approximation holds without decoherence or non-ideal field effects at low kinetic energies.

What would settle it

Experimental measurements showing that energy sideband intensities in low-energy electron scattering do not change with varying transverse focusing of the pulse.

Figures

Figures reproduced from arXiv: 2605.10126 by Lars Bojer Madsen, Mads Br{\o}ndum Carlsen.

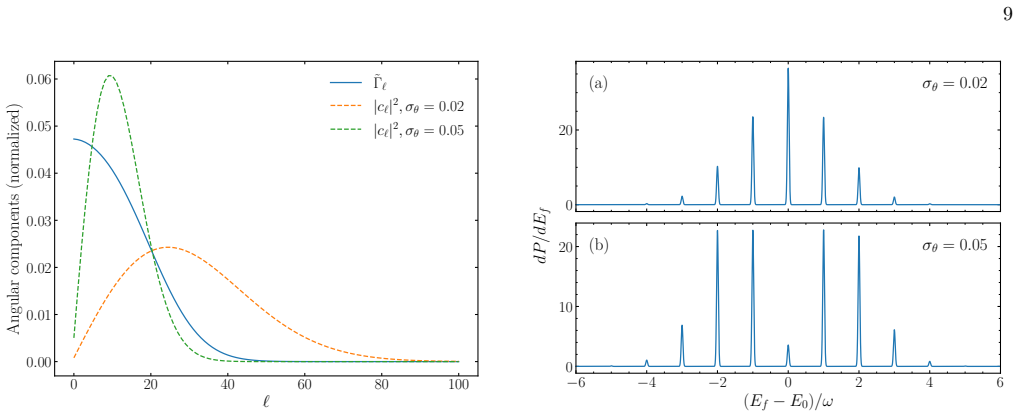

Figure 2
Figure 2. Figure 2: FIG. 2. Differential scattering probabilities, Eq. ( [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Differential scattering probabilities, Eq. ( [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Total channel probabilities for the six first Fourier channels, indicated in the legend, as a function of potential strength, [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Results displaying a sensitivity to the phase, [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Comparison of Fourier channel probabilities obtained [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
read the original abstract

The coherent interaction between free electrons and optical near-fields enables the active modulation of electron wave packets, a mechanism central to photon-induced near-field electron microscopy (PINEM). While existing theories effectively describe these interactions at high kinetic energies, the growing interest in low-energy ultrafast electron microscopy demands frameworks that explicitly account for finite wave packet geometries and recoil effects. In this paper, we develop a rigorous 3D quantum scattering theory for electron wave packets interacting with time-periodic potentials, capturing the case of optical near-field interaction. By mapping the time-dependent dynamics into an extended Floquet space, we formally connect the modulation process to time-independent multi-channel scattering. We evaluate the resulting scattering amplitudes using both an exact R-matrix approach and a multi-channel eikonal approximation. The latter analytical approach recovers PINEM-like probabilities weighted by the wave packet's transverse profile. Application of the theory to an oscillating potential demonstrates the generation of distinct energy sidebands, revealing that the modulation strength is sensitive to the transverse focusing of the incident electron pulse, underlining the importance of a fully 3D treatment.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper develops a 3D quantum scattering theory for free-electron wave packets interacting with time-periodic potentials (relevant to low-energy PINEM). It maps the time-dependent Schrödinger equation to a time-independent multi-channel scattering problem in an extended Floquet space, then computes amplitudes via both an exact R-matrix method and a multi-channel eikonal approximation. The eikonal approach yields PINEM-like sideband probabilities weighted by the transverse wave-packet profile. Application to an oscillating potential shows generation of distinct energy sidebands whose strength depends on transverse focusing, underscoring the need for a fully 3D treatment over 1D models.

Significance. If the central mapping and approximations hold, the work supplies a needed framework for low-kinetic-energy regimes where recoil and finite packet geometry matter, while recovering standard PINEM results as a limit. The dual provision of an exact numerical method (R-matrix) and an analytical approximation (multi-channel eikonal) is a clear strength, as is the explicit demonstration that modulation depends on transverse focusing.

major comments (1)
  1. [Application to oscillating potential (abstract and corresponding results section)] The headline result—that modulation strength is sensitive to transverse focusing and therefore requires a 3D treatment—is obtained analytically via the multi-channel eikonal approximation after the Floquet mapping. This semiclassical approximation is typically justified at high energy and small deflection; the manuscript targets the low-energy regime where recoil and packet size are emphasized, yet supplies no quantitative error bound or side-by-side R-matrix versus eikonal comparison for the oscillating-potential example. Because the 3D-sensitivity claim rests on this approximation, the absence of such validation is load-bearing.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading and constructive feedback. We address the single major comment below and will revise the manuscript to incorporate additional validation as requested.

read point-by-point responses

  1. Referee: [Application to oscillating potential (abstract and corresponding results section)] The headline result—that modulation strength is sensitive to transverse focusing and therefore requires a 3D treatment—is obtained analytically via the multi-channel eikonal approximation after the Floquet mapping. This semiclassical approximation is typically justified at high energy and small deflection; the manuscript targets the low-energy regime where recoil and packet size are emphasized, yet supplies no quantitative error bound or side-by-side R-matrix versus eikonal comparison for the oscillating-potential example. Because the 3D-sensitivity claim rests on this approximation, the absence of such validation is load-bearing.

    Authors: We agree that a direct quantitative comparison between the multi-channel eikonal approximation and the exact R-matrix method for the oscillating-potential example would strengthen the manuscript, especially in the low-energy regime emphasized in the work. In the revised version, we will add such a side-by-side comparison (including relative errors in sideband probabilities) for the specific parameters of the example. This will provide explicit error bounds and confirm the regime in which the eikonal approximation reliably captures the transverse-focusing dependence, thereby supporting the headline claim without altering the central conclusions. revision: yes

Circularity Check

0 steps flagged

No circularity: standard Floquet mapping and scattering methods applied independently to 3D case

full rationale

The derivation begins with the time-dependent Schrödinger equation for electron wave packets interacting with a time-periodic potential, maps it to an extended Floquet space to obtain time-independent multi-channel scattering, and evaluates amplitudes via the exact R-matrix method or the multi-channel eikonal approximation. The key result—that modulation strength depends on transverse focusing—follows directly from weighting the PINEM-like probabilities by the incident wave packet's transverse profile in the eikonal expressions. This is an independent analytical step, not a fit, self-definition, or reduction to prior inputs by construction. No load-bearing premise relies on self-citations whose validity is unverified within the paper; the methods are standard and externally established. The approach remains self-contained against benchmarks such as high-energy PINEM theory.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard quantum mechanics and Floquet theory applied to the electron-light interaction; no free parameters, ad-hoc axioms, or new invented entities are introduced in the abstract description.

axioms (2)
  • standard math Time-periodic potentials allow mapping to time-independent multi-channel scattering via Floquet theorem
    Invoked in the abstract to convert the time-dependent problem into extended Floquet space.
  • domain assumption Coherent interaction between free electrons and optical near-fields
    Stated as the enabling mechanism for modulation in the abstract.

pith-pipeline@v0.9.0 · 5490 in / 1382 out tokens · 53648 ms · 2026-05-12T02:50:52.481364+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

52 extracted references · 52 canonical work pages
