arxiv: 2605.10551 · v1 · submitted 2026-05-11 · 💻 cs.LG

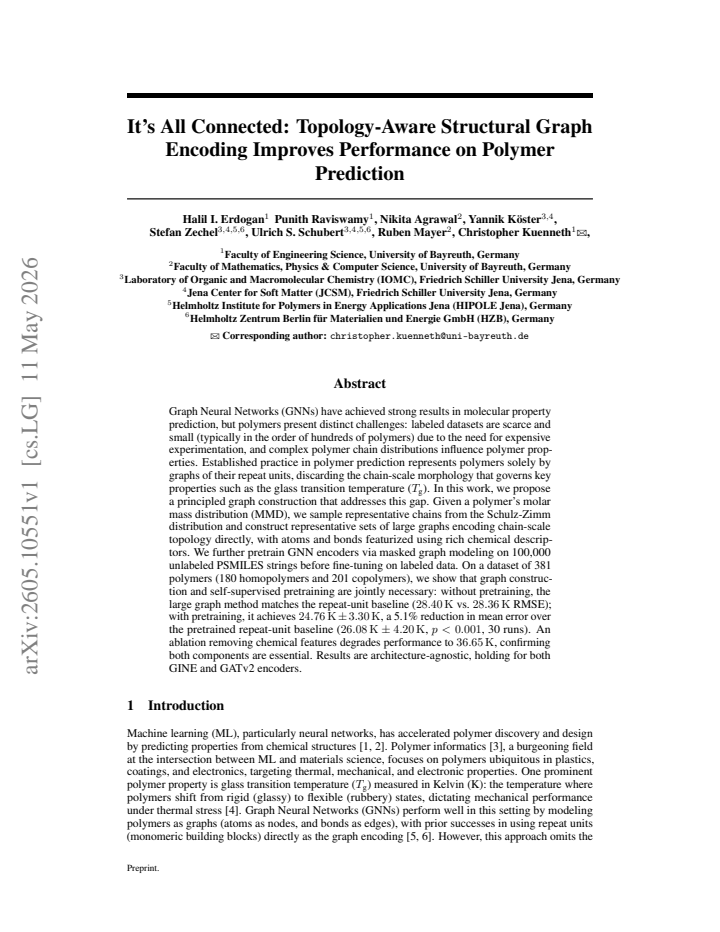

It's All Connected: Topology-Aware Structural Graph Encoding Improves Performance on Polymer Prediction

H. Ibrahim Erdogan (University of Bayreuth , Germany) , Punith Raviswamy (University of Bayreuth , Nikita Agrawal (University of Bayreuth , Yannik K\"oster (Friedrich Schiller University Jena , Stefan Zechel (Friedrich Schiller University Jena , Ulrich S. Schubert (Friedrich Schiller University Jena , Ruben Mayer (University of Bayreuth
show 1 more author
Christopher Kuenneth (University of Bayreuth
This is my paper

Pith reviewed 2026-05-12 05:12 UTC · model grok-4.3

classification 💻 cs.LG
keywords graph neural networkspolymer property predictionglass transition temperaturemasked pretrainingSchulz-Zimm distributionchain topologyself-supervised learningmolecular mass distribution
0
0 comments X

The pith

Encoding polymers as large graphs of sampled chains from their molecular mass distribution plus masked pretraining improves glass transition temperature prediction accuracy.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Polymers have properties such as glass transition temperature that depend on the full distribution of chain lengths and connections rather than only on the repeating chemical unit. Standard graph neural network approaches represent polymers by graphs of repeat units alone and therefore miss this chain-scale information. The paper constructs representative sets of large graphs by sampling chains from the Schulz-Zimm distribution given a polymer's molecular mass distribution, adds rich chemical features to atoms and bonds, and pretrains the encoders with masked graph modeling on 100000 unlabeled PSMILES strings before fine-tuning. On a dataset of 381 polymers the combined method reduces mean error by 5.1 percent compared with the pretrained repeat-unit baseline, while ablations show that both the large-graph construction and the pretraining step are required.

Core claim

The paper shows that jointly applying topology-aware large graphs built from Schulz-Zimm sampled representative chains and masked pretraining on PSMILES produces an RMSE of 24.76 K plus or minus 3.30 K on glass transition temperature prediction for 381 polymers, a statistically significant 5.1 percent reduction relative to the pretrained repeat-unit baseline of 26.08 K plus or minus 4.20 K.

What carries the argument

Representative sets of large graphs that directly encode chain-scale topology sampled from the Schulz-Zimm distribution according to a polymer's molecular mass distribution, combined with masked graph modeling pretraining on PSMILES strings.

If this is right

  • Graph construction from sampled chains and self-supervised pretraining are jointly necessary; neither alone improves over the repeat-unit baseline.
  • The performance gain is architecture-agnostic and holds for both GINE and GATv2 encoders.
  • Removing chemical features from the large graphs degrades RMSE to 36.65 K, confirming that both topology and rich atom-bond descriptors matter.
  • The approach mitigates the scarcity of labeled polymer data by leveraging abundant unlabeled PSMILES for pretraining.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the improvement generalizes, the same sampling and pretraining strategy could be applied to other chain-length-dependent polymer properties such as mechanical modulus or melt viscosity.
  • Analogous distribution-aware graph encodings may help machine learning models for other polydisperse systems including proteins or synthetic macromolecules.
  • Testing the method on polymers with intentionally varied molecular weight distributions outside the Schulz-Zimm family would clarify how sensitive the gains are to the sampling assumption.
  • The results point toward multi-scale graph representations that explicitly include both repeat-unit chemistry and chain topology as a general direction for materials property prediction.

Load-bearing premise

That representative chains sampled from the Schulz-Zimm distribution and encoded as large graphs with chemical features sufficiently capture the chain-scale morphology that governs key properties such as Tg, and that masked pretraining on PSMILES transfers effectively to the labeled fine-tuning task.

What would settle it

A new experiment on a different polymer property or dataset in which chain morphology is not the dominant factor that shows no error reduction or an increase when switching from repeat-unit graphs to the large-graph plus pretraining pipeline would falsify the central claim.

Figures

Figures reproduced from arXiv: 2605.10551 by Christopher Kuenneth (University of Bayreuth, Germany), H. Ibrahim Erdogan (University of Bayreuth, Nikita Agrawal (University of Bayreuth, Punith Raviswamy (University of Bayreuth, Ruben Mayer (University of Bayreuth, Stefan Zechel (Friedrich Schiller University Jena, Ulrich S. Schubert (Friedrich Schiller University Jena, Yannik K\"oster (Friedrich Schiller University Jena.

Figure 1
Figure 1. Figure 1: Comparison of graph construction strategies. [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

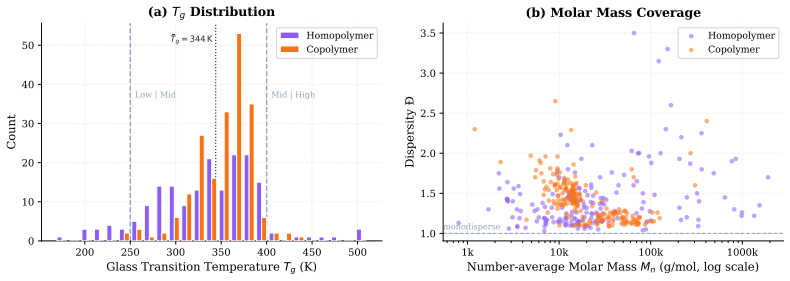

Figure 2. Figure 2: Dataset statistics for the 381-polymer labeled set. [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

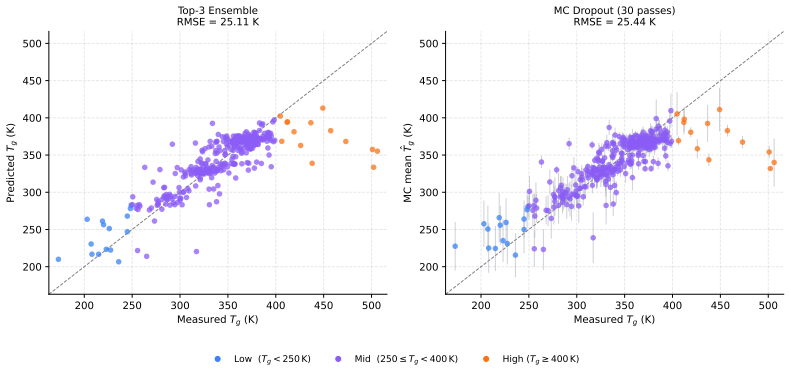

Figure 3. Figure 3: Predicted vs. measured Tg for all 381 polymers (out-of-fold predictions from one repre￾sentative seed). Left: top-3 checkpoint ensemble predictions. Right: Monte Carlo Dropout mean with ±1 std uncertainty bars (30 stochastic forward passes). Points are colored by Tg stratum: Low (Tg < 250 K, blue), Mid (250 ≤ Tg < 400 K, purple), High (Tg ≥ 400 K, orange). chain-scale structural vocabulary before any Tg la… view at source ↗
Figure 4
Figure 4. Figure 4: Sensitivity sweep for PSMILES [*]CC([*])(C)C(=O)OC. Note the crossing Mn slices at low Ð (bottom-left): higher Mn yields lower Tˆ g in the low-dispersity regime, a non-monotonic interaction invisible to additive models. Sensitivity magnitude is low throughout (<3 K per Ð unit) with a patchy, non-uniform spatial structure. Non-linearity and saturation. The bottom-left panels show Tˆ g as a function of Ð at … view at source ↗
Figure 5
Figure 5. Figure 5: Sensitivity sweep for PSMILES [*]CCOCCS([*])(=O)=O. Tˆ g spans ∼37 K across the grid and sensitivity reaches up to 30 K per Ð unit at low Ð, an order of magnitude larger than in [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗
read the original abstract

Graph Neural Networks (GNNs) have achieved strong results in molecular property prediction, but polymers present distinct challenges: labeled datasets are scarce and small (typically in the order of hundreds of polymers) due to the need for expensive experimentation, and complex polymer chain distributions influence polymer properties. Established practice in polymer prediction represents polymers solely by graphs of their repeat units, discarding the chain-scale morphology that governs key properties such as the glass transition temperature ($T_g$). In this work, we propose a principled graph construction that addresses this gap. Given a polymer's molecular mass distribution (MMD), we sample representative chains from the Schulz-Zimm distribution and construct representative sets of large graphs encoding chain-scale topology directly, with atoms and bonds featurized using rich chemical descriptors. We further pretrain GNN encoders via masked graph modeling on 100,000 unlabeled PSMILES strings before fine-tuning on labeled data. On a dataset of 381 polymers (180 homopolymers and 201 copolymers), we show that graph construction and self-supervised pretraining are jointly necessary: without pretraining, the large graph method matches the repeat-unit baseline (28.40 K vs. 28.36 K RMSE); with pretraining, it achieves 24.76 K +/- 3.30 K, a 5.1% reduction in mean error over the pretrained repeat-unit baseline (26.08 K +/- 4.20 K, p < 0.001, 30 runs). An ablation removing chemical features degrades performance to 36.65 K, confirming both components are essential. Results are architecture-agnostic, holding for both GINE and GATv2 encoders.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims that representing polymers via large graphs constructed by sampling representative chains from the Schulz-Zimm distribution (given MMD) to encode chain-scale topology, combined with masked-graph pretraining of GNNs on 100k unlabeled PSMILES, yields better property prediction than repeat-unit baselines. On 381 polymers, the joint approach achieves 24.76 K ± 3.30 K RMSE (5.1% reduction vs. pretrained repeat-unit baseline of 26.08 K ± 4.20 K, p<0.001 over 30 runs); ablations confirm neither large graphs nor pretraining alone suffices, chemical features are essential, and results hold for GINE and GATv2.

Significance. If the result holds, the work would meaningfully advance polymer ML by directly incorporating chain-scale morphology (often discarded in repeat-unit graphs) into GNN inputs, addressing a key limitation for properties like Tg where labeled data is scarce. Credit is due for the quantitative rigor: error bars, p-values from 30 runs, and ablations establishing joint necessity of the two components. This provides a falsifiable, architecture-agnostic empirical demonstration that could influence how polymers are featurized in future work.

major comments (2)
  1. [Methods (pretraining and graph construction)] Methods section on pretraining and fine-tuning: the manuscript provides no explicit validation (e.g., representation alignment metrics, size-generalization tests, or size-augmented pretraining) that masked pretraining on small PSMILES repeat-unit graphs transfers effectively to fine-tuning on much larger multi-chain graphs sampled via Schulz-Zimm; without this, the joint-necessity result (large-graph + pretrain beats both alone) risks being an artifact of mismatched scales rather than genuine capture of morphology, which is load-bearing for the central claim.
  2. [Results and experimental details] Experimental setup and results: the abstract and main text omit precise parameters for Schulz-Zimm sampling (e.g., distribution shape/scale, number of chains per polymer, resulting average graph sizes in atoms/bonds), exact validation-split construction, and feature-implementation details; these omissions directly affect whether the sampled chains are representative of the morphology governing Tg and whether the 5.1% gain is reproducible.
minor comments (2)
  1. [Abstract] Abstract: expand the description of the dataset (381 polymers: 180 homopolymers, 201 copolymers) to include how MMDs were obtained or assumed, as this is prerequisite for the sampling procedure.
  2. Notation: ensure consistent definition of all acronyms (PSMILES, MMD, Tg) on first use in the main body and clarify whether 'large graphs' refers to single long chains or explicit multi-chain ensembles.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We are grateful to the referee for the positive assessment of the significance and rigor of our work, and for the detailed comments that will help improve the manuscript. We address each major comment below.

read point-by-point responses

  1. Referee: Methods section on pretraining and fine-tuning: the manuscript provides no explicit validation (e.g., representation alignment metrics, size-generalization tests, or size-augmented pretraining) that masked pretraining on small PSMILES repeat-unit graphs transfers effectively to fine-tuning on much larger multi-chain graphs sampled via Schulz-Zimm; without this, the joint-necessity result (large-graph + pretrain beats both alone) risks being an artifact of mismatched scales rather than genuine capture of morphology, which is load-bearing for the central claim.

    Authors: We appreciate this concern regarding potential scale mismatch. Our ablation studies provide evidence against this being a mere artifact: the large-graph representation without pretraining performs comparably to the repeat-unit baseline (28.40 K vs. 28.36 K RMSE), indicating that the large graphs alone do not confer an advantage. Pretraining on repeat units improves the baseline to 26.08 K, but the combination with large graphs yields a further significant improvement to 24.76 K (p<0.001). This pattern suggests that the pretraining learns representations that are beneficial specifically when applied to the richer topological structures in the large graphs. Nevertheless, we agree that additional validation would strengthen the paper. In the revised version, we will include an analysis of embedding similarities between pretraining and fine-tuning graphs or a test of size generalization by varying chain lengths in pretraining. revision: partial

  2. Referee: Experimental setup and results: the abstract and main text omit precise parameters for Schulz-Zimm sampling (e.g., distribution shape/scale, number of chains per polymer, resulting average graph sizes in atoms/bonds), exact validation-split construction, and feature-implementation details; these omissions directly affect whether the sampled chains are representative of the morphology governing Tg and whether the 5.1% gain is reproducible.

    Authors: We apologize for these omissions in the manuscript, which are indeed critical for full reproducibility and understanding. The revised manuscript will include the specific Schulz-Zimm distribution parameters (shape and scale derived from the given MMD for each polymer), the number of chains sampled per polymer, the resulting average graph sizes, the details of the validation split, and the exact chemical feature implementations. These will be added to ensure readers can assess the representativeness for Tg prediction and reproduce the results. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical results are self-contained

full rationale

The paper's central claims rest on direct experimental comparisons of graph construction methods and pretraining on held-out labeled polymer data (381 polymers, 30 runs). Performance metrics (RMSE on Tg) are measured against baselines without any reduction to fitted parameters, self-definitions, or self-citation chains. The joint necessity of large-graph sampling plus pretraining is shown by ablation (no pretrain: 28.40 K matches repeat-unit baseline; with pretrain: 24.76 K). No equations, uniqueness theorems, or ansatzes are invoked that collapse the result to its inputs by construction. This is a standard empirical ML evaluation with independent external validation on experimental labels.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the validity of the Schulz-Zimm sampling for morphology and the benefit of masked pretraining, which are domain assumptions rather than derived from first principles or new evidence.

axioms (2)
  • domain assumption Schulz-Zimm distribution accurately models polymer molecular mass distributions for sampling representative chains
    Invoked to construct large graphs encoding chain-scale topology from given MMD.
  • domain assumption Masked graph modeling pretraining on PSMILES strings yields representations that transfer to improve fine-tuning on labeled polymer property data
    Basis for the self-supervised step shown to be jointly necessary with the graph construction.
