Demystifying Deep Reinforcement Learning: A Neuro-Symbolic Framework for Interpretable Open RAN Automation

Jie Lu , Peihao Yan , Pang-Ning Tan , Y. Thomas Hou , Huacheng Zeng
Authors on Pith no claims yet

Pith reviewed 2026-05-13 07:03 UTC · model grok-4.3

classification 💻 cs.NI cs.SYeess.SY
keywords neuro-symbolic learningdeep reinforcement learningopen RANinterpretabilitynetwork automationsymbolic regressionO-RAN testbed
0
0 comments X

The pith

DeRAN distills black-box deep reinforcement learning policies into human-readable symbolic rules for open RAN tasks while retaining most of the performance.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces DeRAN to address the opacity of deep reinforcement learning in open radio access networks. It uses a concept-driven layer to simplify network telemetry into semantic features, then applies deep symbolic regression and neurally guided logic to create executable symbolic policies. This produces policies that operators can read and audit while retaining most of the original performance. The result matters because carrier networks require transparency for safe and compliant operation, which standard DRL lacks. Evaluation on a live 5G testbed shows it works for network slicing and mobility management.

Core claim

DeRAN bridges DRL performance and transparency by first abstracting high-dimensional telemetry into semantically meaningful concepts, then synthesizing symbolic policies via deep symbolic regression for continuous control and neurally guided differentiable logic for discrete decisions, yielding policies that achieve 78% and 87% of DRL cumulative rewards in the evaluated use cases on a live 5G O-RAN testbed.

What carries the argument

The concept-driven abstraction layer combined with deep symbolic regression (DSR) and neurally guided differentiable logic (NUDGE) that together distill black-box DRL policies into human-readable symbolic representations.

If this is right

  • Network operators gain direct inspectability and modifiability of control policies before deployment in carrier networks.
  • The framework provides built-in auditability that meets requirements for safe operation in open RAN environments.
  • Performance retention at 78% and 87% of DRL levels indicates that interpretability constraints impose only moderate overhead in the tested tasks.
  • The method supports practical implementation on existing 5G O-RAN hardware for tasks such as slicing and mobility management.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The abstraction approach could extend to other critical infrastructure domains where opaque AI must be replaced by auditable rules.
  • Hybrid systems might emerge in which symbolic policies handle safety constraints while DRL handles optimization subtasks.
  • Operators could integrate the resulting symbolic rules into legacy rule-based network management platforms with minimal adaptation.

Load-bearing premise

The concept-driven abstraction layer transforms high-dimensional network telemetry into a compact set of semantically meaningful features without losing information critical to policy performance.

What would settle it

If the symbolic policies extracted by DeRAN achieve below 60% of DRL cumulative rewards when re-evaluated on the same live 5G testbed scenarios or produce rules that cannot be directly audited by operators, the central performance and interpretability claims would be falsified.

Figures

Figures reproduced from arXiv: 2605.10648 by Huacheng Zeng, Jie Lu, Pang-Ning Tan, Peihao Yan, Y. Thomas Hou.

Figure 1
Figure 1. Figure 1: DeRAN transforms a black-box DRL model into a [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

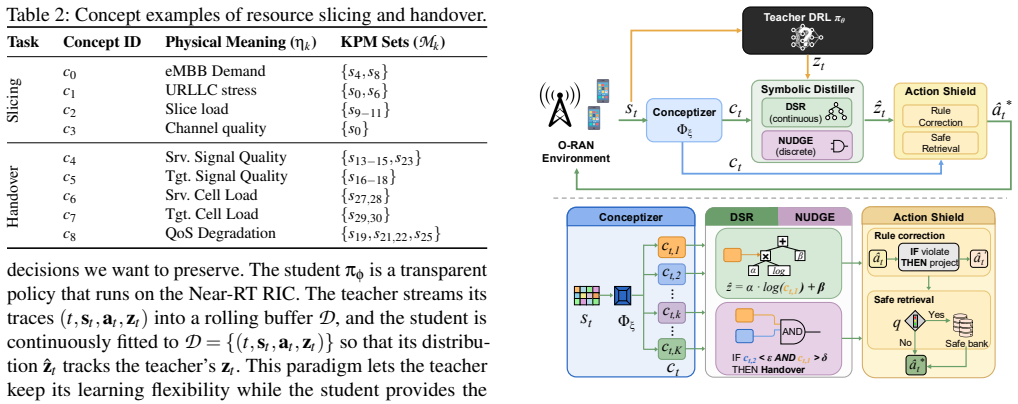

Figure 2. Figure 2: Overview of DeRAN. where d(·,·) is a distribution divergence between the teacher and student over the current buffer window N = |D|. The optimization is performed in two stages, i.e., a spec-grounded conceptizer followed by per-dimension symbolic distillers, which are detailed in §4.1. The student symbolic policy πφ is designed to satisfy the following requirements. (i) Deterministic execution. During real… view at source ↗
Figure 3
Figure 3. Figure 3: The logic flow of the proposed action distillation. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: A multi-cell indoor 5G NR O-RAN testbed. [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗

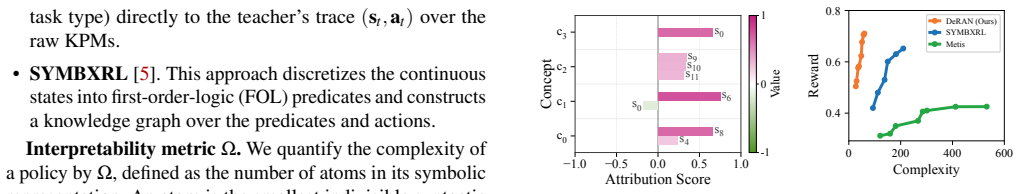

Figure 6
Figure 6. Figure 6: Reward vs. sym￾bolic complexity. zeMBB = log(1+c0) +1.32c3 +0.62c0c3 −1.86c2 −0.45c1, zURLLC = 1.74c1 +1.26c 2 1 +0.62c1c2 −0.74c3, zmMTC = 1 1.42+c0 +c1 −0.36log(1+c2) +0.23c3 [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: Control performance comparison on the resource [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: Reward vs. symbolic complexity. if c5 −c4 > 0.12 and c7 < 0.47 then switch else if c4 < 0.32 and c5 > 0.58 then switch else if c8 > 0.50 and c5 > 0.63 and c7 < 0.42 then switch else stay end if [PITH_FULL_IMAGE:figures/full_fig_p011_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: An instance of the distilled rules for handover task. [PITH_FULL_IMAGE:figures/full_fig_p011_11.png] view at source ↗
read the original abstract

Open Radio Access Networks (O-RAN) are increasingly adopting data-driven control through Deep Reinforcement Learning (DRL) to optimize complex tasks such as network slicing and mobility management. However, the deployment of DRL in carrier-grade networks is hindered by its inherent opacity and stochastic execution, which limit operator trust, auditability, and safe deployment. Existing explainable AI (XAI) approaches primarily provide post-hoc insights and fail to produce executable, interpretable policies suitable for operational environments. In this paper, we present DeRAN, a neuro-symbolic framework that bridges the gap between DRL performance and operational transparency by distilling black-box DRL policies into human-readable symbolic representations. DeRAN introduces a concept-driven abstraction layer that transforms high-dimensional network telemetry into a compact set of semantically meaningful features, enabling interpretable policy learning. Building on the semantically grounded concepts, DeRAN synthesizes symbolic policies using deep symbolic regression (DSR) for continuous control and neurally guided differentiable logic (NUDGE) for discrete decision-making. We implement DeRAN on a live 5G O-RAN testbed and evaluate it on two representative use cases. Experimental results demonstrate that DeRAN achieves 78% and 87% of DRL's cumulative rewards in the two use cases, while offering interpretability and auditability by design. Source code is available at https://github.com/Jadejavu/DeRAN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper introduces DeRAN, a neuro-symbolic framework for interpretable Open RAN automation. It proposes a concept-driven abstraction layer to convert high-dimensional network telemetry into compact semantic features, followed by deep symbolic regression (DSR) for continuous control and neurally guided differentiable logic (NUDGE) for discrete decisions to distill black-box DRL policies into human-readable symbolic policies. The framework is implemented and evaluated on a live 5G O-RAN testbed for two use cases (network slicing and mobility management), claiming to achieve 78% and 87% of DRL cumulative rewards while providing built-in interpretability and auditability. Source code is released.

Significance. If the performance claims hold under rigorous validation, this could meaningfully advance practical deployment of data-driven control in O-RAN by addressing opacity concerns that currently limit operator trust. The explicit focus on executable symbolic policies (rather than post-hoc explanations) and the open-source release are positive contributions to reproducibility in the field.

major comments (1)
  1. [Concept-driven abstraction layer and experimental evaluation sections] The central performance claims (78% and 87% of DRL cumulative rewards) rest on the concept-driven abstraction layer preserving all policy-relevant information. No ablation study is presented that compares DRL performance when trained on raw telemetry versus the same abstracted feature set; without this, it is impossible to isolate whether the observed reward gap originates in the DSR/NUDGE synthesis or in irreversible compression at the abstraction step. This directly affects the validity of attributing the results to the neuro-symbolic pipeline.
minor comments (1)
  1. [Abstract] The abstract states performance percentages without any mention of experimental setup, baselines, statistical significance, or number of runs; this should be expanded even in the abstract for a methods paper.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. The major comment raises a valid point about experimental rigor that we will address directly in revision.

read point-by-point responses

  1. Referee: The central performance claims (78% and 87% of DRL cumulative rewards) rest on the concept-driven abstraction layer preserving all policy-relevant information. No ablation study is presented that compares DRL performance when trained on raw telemetry versus the same abstracted feature set; without this, it is impossible to isolate whether the observed reward gap originates in the DSR/NUDGE synthesis or in irreversible compression at the abstraction step. This directly affects the validity of attributing the results to the neuro-symbolic pipeline.

    Authors: We agree that an ablation study isolating the abstraction layer's contribution is necessary to strengthen the attribution of results. The concept-driven abstraction is designed using O-RAN domain knowledge to map raw telemetry to a compact, semantically complete feature set without irreversible loss of policy-relevant information. However, to rigorously demonstrate this, the revised manuscript will include a new ablation experiment comparing DRL performance when trained on raw high-dimensional telemetry versus the abstracted features. This will quantify any reward degradation attributable solely to the abstraction step and clarify the source of the observed gap relative to the DSR/NUDGE synthesis. revision: yes

Circularity Check

0 steps flagged

No circularity detected; claims rest on independent testbed evaluation of neuro-symbolic distillation

full rationale

The paper presents DeRAN as a framework that applies a concept-driven abstraction to telemetry, then uses DSR and NUDGE to synthesize symbolic policies from DRL. The 78% and 87% reward figures are reported as outcomes of live 5G O-RAN testbed runs rather than quantities derived by construction from fitted parameters or prior self-referential definitions. No equations, uniqueness theorems, or ansatzes in the provided text reduce the performance claims to the inputs by definition, and the cited methods (DSR, NUDGE) are treated as external building blocks. The derivation chain therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no explicit free parameters, axioms, or invented entities; the approach relies on existing DSR and NUDGE techniques whose internal assumptions are not detailed here.
