Photonic integrated circuits for astronomy: A formal description of an integrated photonics-based wavefront sensor (IP-WFS)

Diego Portero-Rodr\'iguez , Hugo Garc\'ia-V\'azquez , Jos\'e Javier D\'iaz Garc\'ia , Luis Fernando Rodr\'iguez Ramos , F\'elix Gracia T\'emich , J. Alfonso L. Aguerri
Authors on Pith no claims yet

Pith reviewed 2026-05-12 05:17 UTC · model grok-4.3

classification 🌌 astro-ph.IM
keywords integrated photonicswavefront sensorsolar astronomyadaptive opticsinterferometryphotonic integrated circuitsastrophysics instrumentation
0
0 comments X

The pith

An integrated photonics wavefront sensor measures solar phase differences directly via interferometry without forming images.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a method for solar wavefront sensing that avoids the limitations of image-based analysis on low-contrast extended sources. Instead it uses integrated photonic circuits to perform interferometry and capture phase differences across the incoming wavefront. A mathematical model is derived to describe the sensor's response, and the system is tested through simulations in a Python adaptive optics package. The results show the expected physical behavior and identify operational factors such as source extension and contrast that affect performance. This direct approach could remove resolution constraints that currently limit adaptive optics correction on the Sun.

Core claim

The authors derive a mathematical model for an integrated photonics-based wavefront sensor (IP-WFS) that characterizes its ability to sense wavefronts by measuring phase differences using interferometry on photonic integrated circuits, without requiring image formation. Simulations in a Python-based adaptive optics simulator confirm the physical behavior of the proposed system and identify operational factors.

What carries the argument

The mathematical model of the IP-WFS that describes phase difference measurements through photonic interferometry on an extended low-contrast source.

If this is right

  • Direct phase sensing removes spatial resolution limits imposed by image formation on extended sources.
  • The miniaturized low-power photonic approach offers a compact alternative for solar adaptive optics instrumentation.
  • Simulations identify contrast level and source size as critical parameters that must be included in any practical design.
  • The model provides a quantitative framework for predicting sensor output under solar observing conditions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The sensor could be packaged into existing solar telescope adaptive optics systems to bypass image-processing steps.
  • Real on-sky solar data would provide a direct test of whether the simulated behavior holds under variable atmospheric conditions.
  • The same interferometric principle might apply to wavefront sensing of other extended astronomical objects where image contrast is low.

Load-bearing premise

That integrated photonic interferometry can accurately capture wavefront phase differences from extended low-contrast sources like the Sun without forming an image.

What would settle it

A laboratory measurement comparing the IP-WFS phase readings to a known applied wavefront distortion on an extended low-contrast test source.

Figures

Figures reproduced from arXiv: 2605.10649 by Diego Portero-Rodr\'iguez, F\'elix Gracia T\'emich, Hugo Garc\'ia-V\'azquez, J. Alfonso L. Aguerri, Jos\'e Javier D\'iaz Garc\'ia, Luis Fernando Rodr\'iguez Ramos.

Figure 1
Figure 1. Figure 1: Adaptive optic system with IP-WFS. Different regions of the wavefront are coupled to the phase difference measurement circuit using a fibre array or grating coupler. A deformable mirror then corrects the wavefront aberrations using the information provided by the wavefront sensor. 2.1. System description The light is coupled to the wavefront sensor through a microlens array. There are then two main approac… view at source ↗
Figure 2

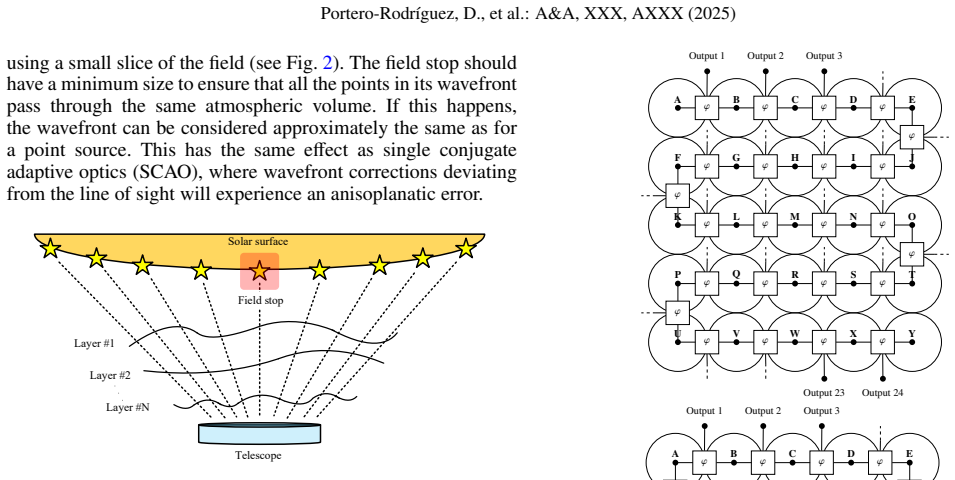

Figure 2. Figure 2: Depending on the angle of view, different portions of the Sun undergo different optical paths. This phenomenon is known as anisoplanatic error. A field stop is used to restrict the field of view, thereby ensuring that the wavefront can be approximated as a point source. The layers represent atmospheric layers at different heights. The primary objective of the photonic circuit is to calculate phase shifts w… view at source ↗
Figure 3

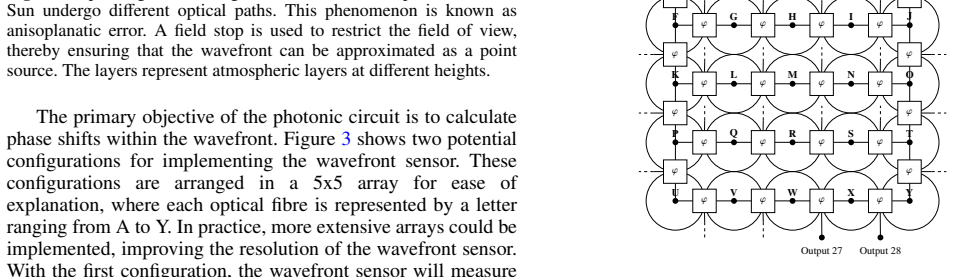

Figure 3. Figure 3: Phase difference measurement potential configurations. The top panel shows the first configuration, which corresponds to a snake pattern. The bottom panel shows a more robust configuration that is more expensive. at the input. The remainder is sent to another MMI. This allows, for example, input B(r, t) to be compared with inputs A(r, t) and C(r, t). As previously explained, SOAs can offer several advantag… view at source ↗
Figure 4
Figure 4. Figure 4: Proposed IP-WFS circuit. Top: Simplified circuit diagram illustrating how the wavefront sensing is performed through the phenomenon of interferometry, resulting in an electrical signal. Bottom: Complete circuit diagram, including all the components. and 2N electrical connections, reducing the area and power consumption [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

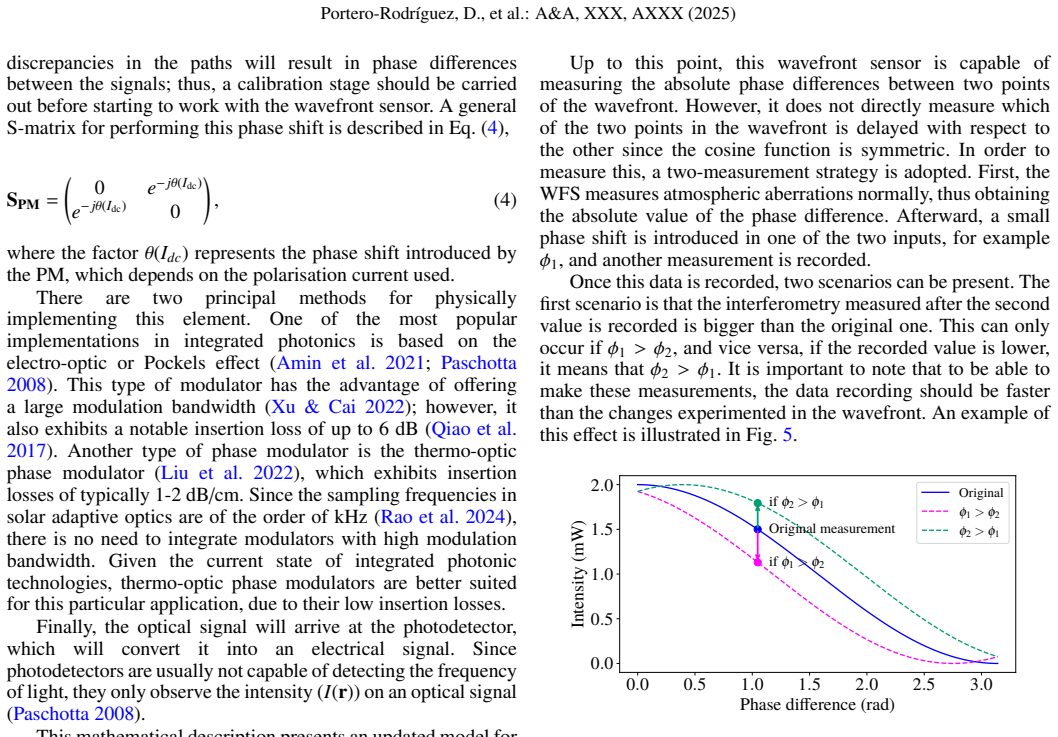

Figure 5. Figure 5: Original and after calibration measurements. Firstly, a direct measurement is done, which yields the absolute value of the phase difference. To know whether ϕ1 is bigger or smaller than ϕ2, a second measurement is taken, thus adding a phase shift to ϕ1. There is an alternative method of performing wavefront sensing using only one measurement, which will double the frequency at which the adaptive optics sys… view at source ↗
Figure 6
Figure 6. Figure 6: Two different methods for performing light coupling to PICs. Left: Light coupling using grating couplers. Right: Light coupling using edge couplers. Edge couplers are a widely used option for coupling light as they can be integrated into platforms such as InP. However, grating couplers emerge as a potential and favourable option for this kind of application due to their low losses and the possibility of di… view at source ↗
Figure 7
Figure 7. Figure 7: Optical fibre coupling efficiency at the pupil and focal plane for a 1m and 4m class telescope for different seeing values at 1550 nm. This coupling efficiency can be improved by using adaptive optics or photonic lanterns (Ellis et al. 2023). In a closed-loop AO system, the incoming beam is progressively corrected by the deformable mirror, thereby increasing the coupling efficiency into the single-mode fib… view at source ↗
Figure 9
Figure 9. Figure 9: Total coupling efficiency for a 2×2, 4×4, and 8×8 microlens array, and without microlens array, in the pupil plane for a 4m class telescope (top) and a 1m class telescope (bottom). stability is related to the size of the microlens array. On the other hand, the complexity of the design, the number of components, and the power consumed by the proposed wavefront sensor increase with the size of the microlens … view at source ↗
Figure 10
Figure 10. Figure 10: From top left to bottom right: Kolmogorov phase screen with overlaid microlens array during the first iteration of the control loop, mean phase per subaperture, interferometric signal at the WFS output, wavefront sensor output, deformable mirror shape, and location of the actuators, marked with a cross, and residual WFE for a 10x10 microlens array at a seeing of 0.5 arcsec after 500 iterations. ∆ϕi = sgn … view at source ↗
Figure 11
Figure 11. Figure 11: PSF before and after the wavefront correction in the logarithmic scale. The wavefront sensing was performed at a wavelength of 1550 nm using a natural guide star, and the correction was applied to a point source in the K-band [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
read the original abstract

Context. Solar wavefront sensing has been a challenge for astrophysical instrumentalists, due to the low contrast between the Sun and the sky background compared to night-time observations, which limits the performance of adaptive optics systems. Aims. Wavefront correction in solar physics requires the analysis of extended images; meanwhile, at night the displacement of a punctual object is analysed. This technique limits the spatial resolution, and therefore the accuracy in the wavefront reconstruction. Methods. To solve this problem, a new method of direct wavefront sensing without the need for image formation was explored for this work. A novel and promising technology called integrated photonics was used to accomplish this task. It allows the direct measurement of phase differences across the wavefront without the need to form images, using the principle of interferometry. This technology offers a low-consumption, miniaturised solution to astrophysical problems. Results. For this work a mathematical model was derived to characterise the behaviour of the proposed wavefront sensor. The proposed system was verified and simulated using a Python-based adaptive optics simulator. These simulations demonstrate the physical behaviour of the proposed wavefront sensor and highlight the factors that must be taken into account for its correct functioning.
