Learning When to Act: Communication-Efficient Reinforcement Learning via Run-Time Assurance

Adam Haroon , Erick J. Rodr\'iguez-Seda , Cody Fleming , Tristan Schuler
Authors on Pith no claims yet

Pith reviewed 2026-05-14 20:39 UTC · model grok-4.3

classification 💻 cs.LG cs.RO
keywords safe reinforcement learningrun-time assuranceLyapunov stabilitycommunication-efficient controlsparse actuationstabilizationself-triggered control
0
0 comments X

The pith

A single RL policy learns both control actions and sparse timing decisions while a Lyapunov run-time assurance shield enforces stability via LQR overrides.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that reinforcement learning can jointly optimize what control input to apply and when to apply it, producing communication-efficient policies that remain stable under a pointwise safety guarantee. It focuses on stabilization tasks around a known equilibrium, where classical LQR and Lyapunov tools are available, allowing direct comparison to analytical baselines. Experiments across inverted pendulum, cart-pole, and planar quadrotor show the learned policy increases mean inter-sample interval by factors of 1.91, 1.45, and 3.51 over a Lyapunov-triggered controller; a constant-rate LQR at the same average interval is unstable, indicating that adaptive timing itself enables safe sparsity. A single tunable weight in a CARE-derived Lyapunov reward controls the stability-communication tradeoff and transfers across plants without retuning.

Core claim

By training under a run-time assurance layer that predicts the next state under the current policy and overrides with a precomputed LQR backup whenever the Lyapunov function would increase, the policy learns to issue controls only when necessary; this yields substantially longer average intervals between actions than fixed-trigger baselines while preserving stability on three benchmark plants, with the same average rate proving insufficient for a non-adaptive controller.

What carries the argument

The run-time assurance (RTA) layer that performs one-step-ahead Lyapunov prediction and substitutes a CARE-based LQR backup whenever the certificate would be violated.

If this is right

  • Adaptive timing, rather than merely lower average rate, is what makes sparse control safe on these plants.
  • A single scalar weight in the Lyapunov reward trades off stability against communication cost and transfers across environments.
  • Preference conditioning recovers the full tradeoff curve from one training run at roughly one-fifth the compute.
  • The framework scales to a 12-state 3D quadrotor where classical self-triggered control is intractable and tolerates 30 percent mass variation with graceful degradation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same shield structure could be applied to other networked control problems where communication is costly but a nominal stabilizing controller is known.
  • Removing the RTA shield in ablations drops performance sharply, suggesting that pure learning approaches may need explicit safety overrides to reach comparable sparsity.
  • The method's reliance on a known equilibrium points toward extensions that first identify or learn an operating point before applying the timing policy.

Load-bearing premise

The method requires a known equilibrium point at which LQR backups and Lyapunov certificates are well-defined and supply strict pointwise safety.

What would settle it

A fixed-rate LQR controller running at the learned policy's average inter-sample interval remains stable on the same plants, or the learned policy without the RTA layer achieves comparable intervals without violating stability.

Figures

Figures reproduced from arXiv: 2605.12561 by Adam Haroon, Cody Fleming, Erick J. Rodr\'iguez-Seda, Tristan Schuler.

Figure 1
Figure 1. Figure 1: Proposed self-triggered control framework. The RL agent outputs a joint action [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Best-model MSI vs. wc for DQN, SAC, and Preference-Conditioned DQN across all three environments (seed-0 curves; multi-seed DQN aggregates are in Tables 10–12). Reference lines mark τmin (dotted), τmax (dashed), and Classical Lyapunov-STC baseline B3 (dash-dot green). All algorithms exceed B3 at moderate-to-high wc; the gap above B3 represents communication efficiency that conservative analytical methods l… view at source ↗
Figure 3
Figure 3. Figure 3: Per-step reward distribution (100 episodes; seed-0 trajectories per Appendix E): RL-STC [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: DQN training curves for five wc values across the three lower-dimensional environments (seed-0 runs from the multi-seed sweep). (top) Mean inter-sample interval; dashed line shows the Classical STC baseline. (middle) RTA activation rate (%). (bottom) Per-step reward. Faint traces are raw per-episode data; bold lines are EMA-smoothed (α = 0.06, ≈17-episode window). Higher wc accelerates exploration of the s… view at source ↗

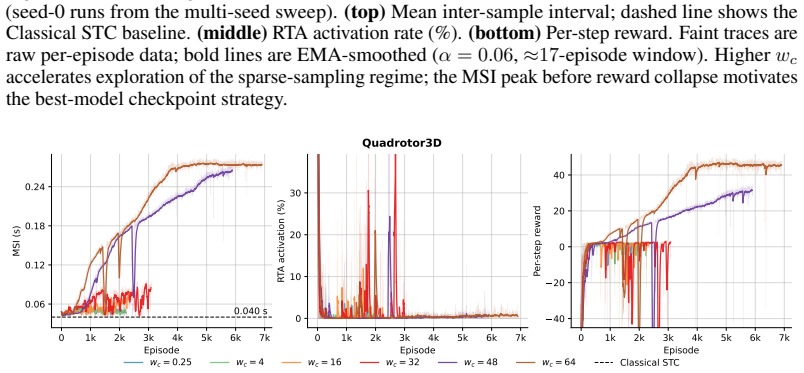

Figure 5
Figure 5. Figure 5: SAC training curves for six representative [PITH_FULL_IMAGE:figures/full_fig_p026_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Representative episode trajectories on the three lower-dimensional environments (seed 0, [PITH_FULL_IMAGE:figures/full_fig_p027_6.png] view at source ↗
read the original abstract

Safe reinforcement learning (RL) typically asks $\textit{what}$ an agent should do. We ask $\textit{when}$ it needs to act, and show that a single policy can jointly learn control inputs and communication-efficient timing decisions under a pointwise Lyapunov safety shield. We focus on stabilization around a known equilibrium, where CARE-based LQR backups, Lyapunov certificates, and classical Lyapunov-STC are well defined, enabling clean comparison against analytical baselines. A run-time assurance (RTA) layer overrides the policy via a one-step-ahead Lyapunov prediction and a precomputed LQR backup, providing a strictly stronger guarantee than constrained MDP methods that enforce safety only in expectation. On an inverted pendulum, cart--pole, and planar quadrotor, the learned policy achieves $1.91\times$, $1.45\times$, and $3.51\times$ higher mean inter-sample interval (MSI) than a Lyapunov-triggered baseline; a fixed LQR controller at the same average rate is unstable on all three plants, showing that adaptive timing, not a lower average rate, makes sparsity safe. A CARE-derived Lyapunov reward transfers across environments without redesign, with a single weight $w_c$ controlling the stability--communication tradeoff; ablations confirm the RTA shield is essential, with its removal reducing MSI by $1.27$--$1.84\times$ and degrading state norms. A preference-conditioned extension recovers the full tradeoff frontier from one model at $\tfrac{2}{11}$ of training compute, and SAC experiments show the results are algorithm-agnostic across discrete and continuous domains. A 12-state 3D quadrotor case study extends the framework to higher-dimensional systems where classical STC is intractable, and robustness to $\pm30\%$ mass variation and disturbances shows graceful degradation, with the RTA absorbing what the learned policy cannot.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes a safe RL framework that jointly learns control inputs and communication timing decisions for stabilization tasks around a known equilibrium. A run-time assurance (RTA) layer using one-step Lyapunov prediction and precomputed CARE-based LQR backups overrides unsafe actions, providing pointwise safety stronger than expectation-based constrained MDPs. Experiments on inverted pendulum, cart-pole, and planar quadrotor report 1.91×, 1.45×, and 3.51× higher mean inter-sample interval (MSI) than Lyapunov-triggered baselines; fixed-rate LQR at equivalent average rate is unstable. A single CARE-derived Lyapunov reward with weight w_c controls the stability-communication tradeoff, transfers across environments, and supports a preference-conditioned extension plus 12-state 3D quadrotor case study with robustness to mass variation.

Significance. If the empirical claims hold, the work meaningfully advances communication-efficient safe RL by showing that adaptive timing under a strict pointwise shield enables safe sparsity where fixed-rate or expectation-based methods fail. Strengths include cross-environment transfer of the Lyapunov reward, ablations confirming RTA necessity, algorithm-agnostic results (SAC), and extension to higher-dimensional systems where classical STC is intractable. The explicit scoping to known equilibria with well-defined LQR/Lyapunov certificates allows clean comparison to analytical baselines.

major comments (2)
  1. [Results] Results section: the reported MSI gains (1.91×, 1.45×, 3.51×) and ablation effects (1.27–1.84× MSI reduction without RTA) are presented without error bars, number of seeds, or statistical tests; this weakens confidence in the central claim that adaptive timing (not merely lower average rate) makes sparsity safe, especially given RL training stochasticity.
  2. [Method] Method (RTA integration): the one-step-ahead Lyapunov prediction and override logic are described at a high level but lack the precise mathematical formulation (e.g., the exact inequality or prediction horizon used to trigger the LQR backup), which is load-bearing for the claim of strictly stronger guarantees than expectation-based methods.
minor comments (2)
  1. [Abstract] Abstract: the long paragraph is information-dense; splitting the contributions into bullets would improve readability without changing length.
  2. [Method] Notation: the single weight w_c is introduced without an explicit equation showing how it enters the reward; a short equation would clarify the stability-communication tradeoff.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback and the recommendation for minor revision. We address each major comment below and will revise the manuscript accordingly to strengthen the presentation.

read point-by-point responses

  1. Referee: [Results] Results section: the reported MSI gains (1.91×, 1.45×, 3.51×) and ablation effects (1.27–1.84× MSI reduction without RTA) are presented without error bars, number of seeds, or statistical tests; this weakens confidence in the central claim that adaptive timing (not merely lower average rate) makes sparsity safe, especially given RL training stochasticity.

    Authors: We agree that reporting error bars, the number of random seeds, and statistical tests would strengthen confidence in the empirical results given the stochasticity of RL training. In the revised manuscript, we will present all MSI values and ablation results as means over 5 independent random seeds with standard deviation error bars. We will also include statistical significance tests (paired t-tests) comparing the proposed method to the Lyapunov-triggered baseline and the no-RTA ablation to confirm that the observed gains are not due to chance. revision: yes

  2. Referee: [Method] Method (RTA integration): the one-step-ahead Lyapunov prediction and override logic are described at a high level but lack the precise mathematical formulation (e.g., the exact inequality or prediction horizon used to trigger the LQR backup), which is load-bearing for the claim of strictly stronger guarantees than expectation-based methods.

    Authors: We acknowledge that a more explicit mathematical statement of the RTA trigger would improve clarity. In the revised manuscript, we will expand the description in Section 3.2 to include the precise one-step prediction inequality (the condition V(x_{t+1}) > V(x_t) that triggers the LQR backup) and the exact override logic, making the pointwise safety guarantee explicit and easier to compare against expectation-based constrained MDP approaches. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected in derivation or claims

full rationale

The paper's core claims rest on empirical comparisons (higher MSI than Lyapunov-STC baseline on inverted pendulum, cart-pole, and quadrotor; fixed-rate LQR unstable at matched average rate; RTA ablation degrades MSI and norms) performed on standard benchmark plants with known equilibria. These results are independent of any fitted parameter or self-referential definition. The method combines standard RL (SAC or similar) with a precomputed CARE LQR backup and pointwise Lyapunov shield; the shield is not derived from the learned policy but supplied externally, and the reward shaping uses a fixed CARE-derived Lyapunov function whose weight wc is a single tunable hyperparameter. No equation reduces a prediction to its own input by construction, no uniqueness theorem is imported from the authors' prior work, and no ansatz is smuggled via self-citation. The argument that adaptive timing (rather than merely lower average rate) enables safe sparsity is directly supported by the reported fixed-rate control experiments and ablations, which are falsifiable outside the learned policy.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The framework rests on classical Lyapunov theory and LQR for the safety shield, with one tunable weight.

free parameters (1)
  • w_c
    Single weight controlling the stability-communication tradeoff, transferred across environments without redesign.
axioms (1)
  • domain assumption CARE-based LQR backups and Lyapunov certificates are well-defined at the known equilibrium
    Invoked to enable the RTA override and clean comparison against analytical baselines.

pith-pipeline@v0.9.0 · 5652 in / 1163 out tokens · 31257 ms · 2026-05-14T20:39:20.796514+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

31 extracted references · 31 canonical work pages · 2 internal anchors

  1. [1]

    Abels, D

    A. Abels, D. Roijers, T. Lenaerts, A. Nowé, and D. Steckelmacher. Dynamic weights in multi-objective deep reinforcement learning. InInternational Conference on Machine Learning, pages 11–20. PMLR, 2019

    work page 2019

  2. [2]

    Achiam, D

    J. Achiam, D. Held, A. Tamar, and P. Abbeel. Constrained policy optimization. InInternational Conference on Machine Learning, pages 22–31. PMLR, 2017

    work page 2017

  3. [3]

    Aggarwal, D

    S. Aggarwal, D. Maity, and T. Ba¸ sar. Interq: A dqn framework for optimal intermittent control. IEEE Control Systems Letters, 2025

    work page 2025

  4. [4]

    Alshiekh, R

    M. Alshiekh, R. Bloem, R. Ehlers, B. Könighofer, S. Niekum, and U. Topcu. Safe reinforcement learning via shielding. InProceedings of the AAAI Conference on Artificial Intelligence, volume 32, 2018

    work page 2018

  5. [5]

    Altman.Constrained Markov Decision Processes

    E. Altman.Constrained Markov Decision Processes. Routledge, 2021

    work page 2021

  6. [6]

    Anta and P

    A. Anta and P. Tabuada. To sample or not to sample: Self-triggered control for nonlinear systems.IEEE Transactions on Automatic Control, 55(9):2030–2042, 2010

    work page 2030

  7. [7]

    Baumann, J.-J

    D. Baumann, J.-J. Zhu, G. Martius, and S. Trimpe. Deep reinforcement learning for event- triggered control. In2018 IEEE Conference on Decision and Control (CDC), pages 943–950. IEEE, 2018

    work page 2018

  8. [8]

    S. Boyd, L. El Ghaoui, E. Feron, and V . Balakrishnan.Linear Matrix Inequalities in System and Control Theory. SIAM, 1994

    work page 1994

  9. [9]

    Brunke, M

    L. Brunke, M. Greeff, A. W. Hall, Z. Yuan, S. Zhou, J. Panerati, and A. P. Schoellig. Safe learning in robotics: From learning-based control to safe reinforcement learning.Annual Review of Control, Robotics, and Autonomous Systems, 5(1):411–444, 2022

    work page 2022

  10. [10]

    Dunlap, M

    K. Dunlap, M. Mote, K. Delsing, and K. L. Hobbs. Run time assured reinforcement learning for safe satellite docking.Journal of Aerospace Information Systems, 20(1):25–36, 2023

    work page 2023

  11. [11]

    N. Funk, D. Baumann, V . Berenz, and S. Trimpe. Learning event-triggered control from data through joint optimization.IFAC Journal of Systems and Control, 16:100144, 2021

    work page 2021

  12. [12]

    Garcıa and F

    J. Garcıa and F. Fernández. A comprehensive survey on safe reinforcement learning.Journal of Machine Learning Research, 16(1):1437–1480, 2015

    work page 2015

  13. [13]

    Gommans, D

    T. Gommans, D. Antunes, T. Donkers, P. Tabuada, and M. Heemels. Self-triggered linear quadratic control.Automatica, 50(4):1279–1287, 2014

    work page 2014

  14. [14]

    S. Gu, L. Yang, Y . Du, G. Chen, F. Walter, J. Wang, and A. Knoll. A review of safe reinforcement learning: Methods, theories, and applications.IEEE Transactions on Pattern Analysis and Machine Intelligence, 46(12):11216–11235, 2024. 10

    work page 2024

  15. [15]

    Haarnoja, A

    T. Haarnoja, A. Zhou, P. Abbeel, and S. Levine. Soft actor-critic: Off-policy maximum entropy deep reinforcement learning with a stochastic actor. InInternational conference on machine learning, pages 1861–1870. Pmlr, 2018

    work page 2018

  16. [16]

    W. P. Heemels, K. H. Johansson, and P. Tabuada. An introduction to event-triggered and self-triggered control. In2012 IEEE 51st IEEE Conference on Decision and Control (CDC), pages 3270–3285. IEEE, 2012

    work page 2012

  17. [17]

    K. L. Hobbs, M. L. Mote, M. C. Abate, S. D. Coogan, and E. M. Feron. Runtime assurance for safety-critical systems: An introduction to safety filtering approaches for complex control systems.IEEE Control Systems Magazine, 43(2):28–65, 2023

    work page 2023

  18. [18]

    H. K. Khalil and J. W. Grizzle.Nonlinear Systems, volume 3. Prentice Hall Upper Saddle River, NJ, 2002

    work page 2002

  19. [19]

    Lazarus, J

    C. Lazarus, J. G. Lopez, and M. J. Kochenderfer. Runtime safety assurance using reinforcement learning. In2020 AIAA/IEEE 39th Digital Avionics Systems Conference (DASC), pages 1–9. IEEE, 2020

    work page 2020

  20. [20]

    Mazo and P

    M. Mazo and P. Tabuada. Decentralized event-triggered control over wireless sensor/actuator networks.IEEE Transactions on Automatic Control, 56(10):2456–2461, 2011

    work page 2011

  21. [21]

    Miller, C

    K. Miller, C. K. Zeitler, W. Shen, K. Hobbs, J. Schierman, M. Viswanathan, and S. Mitra. Optimal runtime assurance via reinforcement learning. In2024 ACM/IEEE 15th International Conference on Cyber-Physical Systems (ICCPS), pages 67–76. IEEE Computer Society, 2024

    work page 2024

  22. [22]

    Raffin, A

    A. Raffin, A. Hill, A. Gleave, A. Kanervisto, M. Ernestus, and N. Dormann. Stable-baselines3: Reliable reinforcement learning implementations, 2021

    work page 2021

  23. [23]

    Proximal Policy Optimization Algorithms

    J. Schulman, F. Wolski, P. Dhariwal, A. Radford, and O. Klimov. Proximal policy optimization algorithms.arXiv preprint arXiv:1707.06347, 2017

    work page internal anchor Pith review Pith/arXiv arXiv 2017

  24. [24]

    Sedghi, Z

    L. Sedghi, Z. Ijaz, M. Noor-A-Rahim, K. Witheephanich, and D. Pesch. Machine learning in event-triggered control: Recent advances and open issues.IEEE Access, 10:74671–74690, 2022

    work page 2022

  25. [25]

    D. Seto, B. Krogh, L. Sha, and A. Chutinan. The simplex architecture for safe online control system upgrades. InProceedings of the 1998 American Control Conference. ACC (IEEE Cat. No. 98CH36207), volume 6, pages 3504–3508. IEEE, 1998

    work page 1998

  26. [26]

    Gymnasium: A Standard Interface for Reinforcement Learning Environments

    M. Towers, A. Kwiatkowski, J. Terry, J. U. Balis, G. De Cola, T. Deleu, M. Goulão, A. Kallinteris, M. Krimmel, A. KG, et al. Gymnasium: A standard interface for reinforcement learning environments.arXiv preprint arXiv:2407.17032, 2024

    work page internal anchor Pith review Pith/arXiv arXiv 2024

  27. [27]

    Treven, B

    L. Treven, B. Sukhija, Y . As, F. Dörfler, and A. Krause. When to sense and control? a time- adaptive approach for continuous-time rl.Advances in Neural Information Processing Systems, 37:63654–63685, 2024

    work page 2024

  28. [28]

    H. Wan, H. R. Karimi, X. Luan, and F. Liu. Model-free self-triggered control based on deep reinforcement learning for unknown nonlinear systems.International Journal of Robust and Nonlinear Control, 33(3):2238–2250, 2023

    work page 2023

  29. [29]

    R. Wang, I. Takeuchi, and K. Kashima. Deep reinforcement learning for continuous-time self-triggered control.IFAC-PapersOnLine, 54(14):203–208, 2021

    work page 2021

  30. [30]

    Wang and M

    X. Wang and M. D. Lemmon. Event-triggering in distributed networked control systems.IEEE Transactions on Automatic Control, 56(3):586–601, 2010

    work page 2010

  31. [31]

    Pred. Safety (%)

    R. Yang, X. Sun, and K. Narasimhan. A generalized algorithm for multi-objective reinforcement learning and policy adaptation.Advances in Neural Information Processing Systems, 32, 2019. 11 A Proofs A.1 Proof of Proposition 1 Under ZOH with uk =−Kx k held constant on [tk, t k +τ min), the linear plant ˙x=Ax+Bu integrates to x(tk +τ min) =e Aτmin xk + Z τmi...

    work page arXiv 2019
