Generative Texture Diversification of 3D Pedestrians for Robust Autonomous Driving Perception

Arka Bhowmick , Enes Ozeren , Ahmed Abdullah , Oliver Wasenmuller
Authors on Pith no claims yet

Pith reviewed 2026-05-14 19:37 UTC · model grok-4.3

classification 💻 cs.CV
keywords synthetic datapedestrian detectionStyleGAN23D meshesautonomous drivingtexture synthesisdomain gappoint cloud detection
0
0 comments X

The pith

Synthesizing diverse facial textures on one 3D pedestrian base asset improves 2D detection robustness but exposes geometric sensitivities in 3D point-cloud models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that a single 3D pedestrian mesh can be turned into many distinct instances by generating varied facial textures with StyleGAN2 and mapping them automatically onto the geometry. These assets are inserted into synthetic scenes that are then mixed with real images to train object detectors. Experiments show measurable gains in 2D RGB detection robustness, while 3D detectors on point clouds suffer clear performance drops traceable to differences in underlying shape. A sympathetic reader cares because autonomous-driving systems must detect pedestrians reliably across lighting, clothing, and weather shifts, and scalable synthetic data offers a cheaper route than repeated real-world collection campaigns.

Core claim

Starting from a single 3D base asset, StyleGAN2-generated facial textures are automatically mapped onto the mesh to produce multiple distinct pedestrian instances without new geometry designs. When these assets populate synthetic datasets mixed with real data, 2D object detection gains robustness. Complementary tests reveal that 3D point-cloud detectors remain sensitive to geometric domain gaps between the synthetic meshes and real sensor data.

What carries the argument

StyleGAN2 facial texture synthesis automatically mapped onto fixed 3D pedestrian meshes to produce scalable appearance-level diversification without redesigning geometry.

If this is right

  • Appearance-level diversification of existing 3D assets can be inserted into training pipelines to raise 2D detector robustness against real-world pedestrian variation.
  • 3D point-cloud models require geometric fidelity between synthetic and real meshes to prevent domain-gap losses.
  • Synthetic dataset construction for pedestrian tasks becomes feasible at scale without manual redesign of each new identity.
  • Cross-domain training strategies deliver asymmetric benefits: clear gains for RGB detection and limited or negative effects for point-cloud detection.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same texture-mapping pipeline could be applied to vehicle or cyclist assets to test whether 2D gains generalize beyond pedestrians.
  • Closing the observed 3D gap would likely require generative methods that also vary mesh geometry rather than texture alone.
  • Current synthetic pipelines can be prioritized for 2D perception modules while 3D modules continue to rely more heavily on real data.

Load-bearing premise

The mapped StyleGAN2 textures create appearance changes realistic enough to boost detection performance without mapping artifacts or new distribution shifts that erase the gains.

What would settle it

Measure 2D detection accuracy on a held-out real test set after training with and without the texture variations while keeping geometry and scene layout fixed; a null result would falsify the claim that diversification itself drives the robustness improvement.

Figures

Figures reproduced from arXiv: 2605.13755 by Ahmed Abdullah, Arka Bhowmick, Enes Ozeren, Oliver Wasenmuller.

Figure 2
Figure 2. Figure 2: Latent-space manipulation of the beard attribute for two [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4
Figure 4. Figure 4: Generated 5 different pedestrian instances from the same [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Synthetic data generation snapshot where we combine [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 7
Figure 7. Figure 7: 2D texture is mapped onto the 3D model, rendered and [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗
Figure 6
Figure 6. Figure 6: The steps that have been followed to validate individual [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: Image examples from three datasets: Synthetic data (top [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
Figure 9

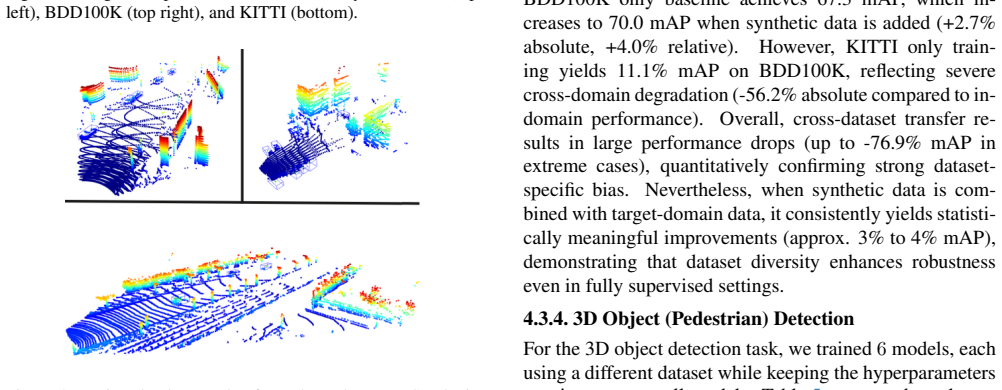

Figure 9. Figure 9: Point cloud examples from three datasets: Synthetic [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Test-set 2D object detection performance (mAP@50) for YOLOv7 trained on different dataset compositions and evaluated on [PITH_FULL_IMAGE:figures/full_fig_p007_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Test-set 3D object detection mAP@50 values for SECOND-3D Detection Models trained on different dataset compositions and [PITH_FULL_IMAGE:figures/full_fig_p007_11.png] view at source ↗
read the original abstract

In recent years, autonomous driving has significantly in creased the demand for high-quality data to train 2D and 3D perception models for safety-critical scenarios. Real world datasets struggle to meet this demand as require ments continuously evolve and large-scale annotated data collection remains costly and time-consuming making syn thetic data a scalable, practical and controllable alterna tive. Pedestrian detection is among the most safety-critical tasks in autonomous driving. In this paper, we propose a simple yet effective method for scaling variability in 3D pedestrian assets for synthetic scene generation. Starting from a single 3D base asset, we generate multiple distinct pedestrian instances by synthesizing diverse facial textures and identity-level appearance variations using StyleGAN2 and automatically mapping them onto 3D meshes. This ap proach enables scalable appearance-level asset diversifica tion without requiring the design of new geometries for each instance. Using the assets, we construct synthetic datasets and study the impact of mixing real and synthetic data for RGB-based object detection. Through complementary ex periments, we analyze geometry-driven distribution shifts in point cloud perception for 3D object detection. Our findings demonstrate that controlled synthetic diversifica tion improves robustness in 2D detection while revealing the sensitivity of 3D perception models to geometric domain gaps. Overall, this work highlights how generative AI en ables scalable, simulation-ready pedestrian diversification through controlled facial texture synthesis, along with the benefits and limitations of cross-domain training strategies in autonomous driving pipelines.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes generating diverse pedestrian textures and identities via StyleGAN2 from a single base 3D mesh, automatically mapping the outputs onto the mesh to create varied synthetic assets without new geometry design. These assets are used to build synthetic datasets whose mixing with real data is shown to improve robustness for 2D RGB pedestrian detection, while 3D point-cloud detectors remain sensitive to geometric domain gaps.

Significance. If the mapping step produces artifact-free, realistic appearance variation, the approach supplies a scalable, low-cost route to asset diversification that could reduce reliance on expensive real-world collection for safety-critical autonomous-driving perception. The 2D-vs-3D contrast also supplies a concrete diagnostic for when appearance-level augmentation suffices versus when geometric fidelity must be addressed.

major comments (2)
  1. [§3] §3 (Texture-to-Mesh Mapping): the procedure for automatically mapping StyleGAN2 textures onto the 3D mesh is described only at a high level; no details are given on UV parameterization, seam handling, lighting transfer, or normal-map consistency. This step is load-bearing for the central claim that diversification improves 2D robustness, because any introduced artifacts or shading inconsistencies could create spurious distribution shifts that explain measured gains rather than genuine appearance robustness.
  2. [§4] §4 (Experimental Results): the abstract and summary state that controlled diversification “improves robustness in 2D detection” yet supply no numerical metrics (AP, mAP deltas, dataset sizes, ablation tables, or error bars). Without these, it is impossible to judge whether the reported gains are statistically meaningful or merely artifacts of the synthetic training distribution.
minor comments (2)
  1. [Abstract] Abstract contains multiple typographical and spacing artifacts (“in creased”, “re quire ments”, “syn thetic”, “en ables”) that impair readability.
  2. [Abstract] The abstract would be strengthened by a single sentence summarizing the magnitude of the 2D improvement (e.g., “+X % AP on real test set when mixing Y % synthetic data”).

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We address each major comment below and will revise the manuscript to incorporate additional details and quantitative results.

read point-by-point responses

  1. Referee: [§3] §3 (Texture-to-Mesh Mapping): the procedure for automatically mapping StyleGAN2 textures onto the 3D mesh is described only at a high level; no details are given on UV parameterization, seam handling, lighting transfer, or normal-map consistency. This step is load-bearing for the central claim that diversification improves 2D robustness, because any introduced artifacts or shading inconsistencies could create spurious distribution shifts that explain measured gains rather than genuine appearance robustness.

    Authors: We agree that the current description of the texture-to-mesh mapping is insufficiently detailed. In the revised manuscript we will expand §3 with explicit information on the UV parameterization (including the specific atlas layout and resolution), seam-handling strategy (blending and inpainting at boundaries), lighting transfer (how StyleGAN2 outputs are adapted to the mesh's illumination model), and normal-map consistency checks. These additions will allow readers to verify that the reported 2D robustness gains arise from genuine appearance variation rather than mapping artifacts. revision: yes

  2. Referee: [§4] §4 (Experimental Results): the abstract and summary state that controlled diversification “improves robustness in 2D detection” yet supply no numerical metrics (AP, mAP deltas, dataset sizes, ablation tables, or error bars). Without these, it is impossible to judge whether the reported gains are statistically meaningful or merely artifacts of the synthetic training distribution.

    Authors: We acknowledge that the abstract and summary lack explicit numerical values. Although the full experimental section contains the underlying results, we will revise the abstract, introduction, and §4 to report concrete metrics: AP and mAP deltas for 2D detection, exact dataset sizes (real vs. synthetic), ablation tables isolating the contribution of texture diversification, and error bars from multiple random seeds. This will enable direct assessment of statistical significance. revision: yes

Circularity Check

0 steps flagged

No circularity: claims rest on experimental pipeline without self-referential derivations

full rationale

The paper describes an empirical pipeline: StyleGAN2 texture synthesis on a single base 3D mesh, automatic mapping to create varied assets, synthetic dataset construction, and mixed real/synthetic training for 2D/3D detection. No equations, fitted parameters renamed as predictions, or load-bearing self-citations appear in the provided text or abstract. Central claims (robustness gains in 2D detection, sensitivity to geometric gaps in 3D) are justified by reported experiments rather than reducing to inputs by construction. This is a standard non-circular experimental study.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Based on the abstract alone, no explicit free parameters, axioms, or invented entities are stated; the method relies on a pre-trained StyleGAN2 model from prior work and standard 3D mesh texturing assumptions.
