Attention-Based Multimodal Survival Prediction with Cross-Modal Bilinear Fusion

Hassan Keshvarikhojasteh , Josien P.W. Pluim , Mitko Veta

Authors on Pith no claims yet

Pith reviewed 2026-05-15 05:16 UTC · model grok-4.3

classification 🧬 q-bio.QM cs.LG

keywords multimodal survival predictionbilinear fusionhistology imagesRNA-seqbladder cancerattention-based MILdeep learning

0 comments

The pith

A multimodal model fuses histology, RNA-seq, and clinical data with low-rank bilinear pooling to predict survival more accurately than concatenation baselines.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a deep learning framework that extracts slide-level features from whole-slide histology images using attention-based multiple instance learning, encodes RNA-seq profiles and clinical variables with feedforward networks, and combines these embeddings through low-rank bilinear cross-modal fusion. This fusion step models conditional interactions between modalities while limiting parameter growth and enabling pairwise interpretability. Risk scores are then converted to survival estimates via a nonparametric Kaplan-Meier calibration. On the CHIMERA challenge dataset for high-risk non-muscle invasive bladder cancer, the approach outperforms simple concatenation baselines and generalizes competitively to hidden cohorts.

Core claim

By decomposing multimodal reasoning into independent pairwise interactions via low-rank bilinear cross-modal fusion, the architecture integrates histology, RNA-seq, and clinical data to produce continuous risk scores that are calibrated to survival times with the Kaplan-Meier estimator, yielding improved predictive performance over concatenation-based baselines on the CHIMERA dataset.

What carries the argument

Low-rank bilinear cross-modal fusion, which combines modality-specific embeddings to capture conditional interactions across histology, RNA-seq, and clinical data while controlling parameter count.

Load-bearing premise

The low-rank bilinear fusion captures the clinically relevant conditional interactions across histology, RNA-seq, and clinical modalities without discarding important information, and the Kaplan-Meier calibration produces well-calibrated survival estimates.

What would settle it

A replication experiment on an independent cohort of HR-NMIBC patients in which the proposed model shows no gain in concordance index or integrated Brier score over a simple concatenation baseline would falsify the claimed advantage of the bilinear fusion.

Figures

Figures reproduced from arXiv: 2605.13897 by Hassan Keshvarikhojasteh, Josien P.W. Pluim, Mitko Veta.

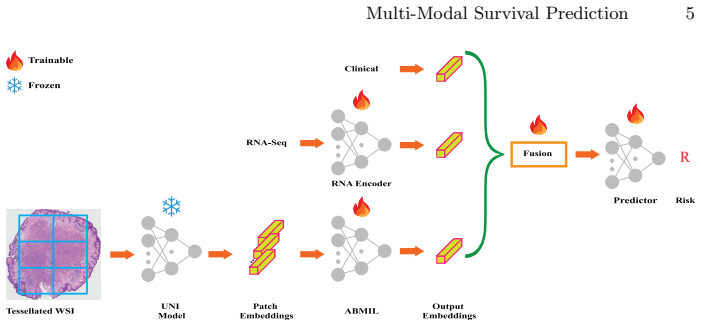

**Figure 1.** Figure 1: Framework of the proposed method. Patch features are first extracted using the UNI model, and the slide representation is obtained using Attention-Based Multiple Instance Learning (ABMIL). The RNA-seq profile is compressed via the RNA encoder. The slide representation, compressed RNA embedding, and clinical data are then input to the fusion module. Finally, the risk score is predicted using a fully connect… view at source ↗

**Figure 2.** Figure 2: Different fusion modules. From left to right: naive concatenation; pair-wise fusion between modalities using low-rank bilinear followed by concatenation of the computed outputs; and concatenation with a residual connection. 3 Experiments 3.1 Implementation Details Training was performed using the Cox proportional hazards objective [7] and optimized with the Adam optimizer [10] (learning rate 1 × 10−3 , wei… view at source ↗

**Figure 3.** Figure 3: Training and internal validation censored concordance index (C-index) of ABMIL Surv PG across epochs. (50% survival probability), dropping to about 18% event-free survival by 48 months. By sharp contrast, patients in the lowest risk quartile (Q1) maintain 100% event-free survival throughout the entire 205-month observation period. This dramatic separation across risk-score quartiles quantitatively validat… view at source ↗

**Figure 4.** Figure 4: Kaplan–Meier survival curves on the internal validation set, stratified by quartiles of the predicted raw risk score (Q1: lowest risk, Q4: highest risk). higher-order cross-modal dependencies between histology, RNA-seq, and clinical features, outperforming na¨ıve concatenation under equal model capacity. Interpretability and modularity are key advantages of this framework. Attention maps derived from ABM… view at source ↗

read the original abstract

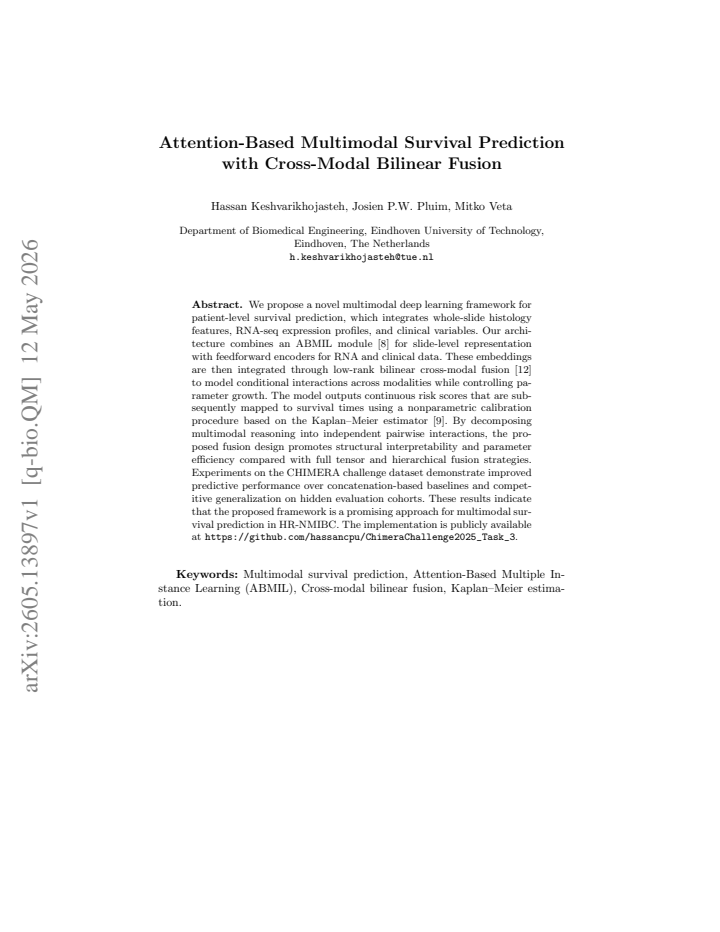

We propose a novel multimodal deep learning framework for patient-level survival prediction, which integrates whole-slide histology features, RNA-seq expression profiles, and clinical variables. Our architecture combines an ABMIL module~\cite{ilse2018attention} for slide-level representation with feedforward encoders for RNA and clinical data. These embeddings are then integrated through low-rank bilinear cross-modal fusion~\cite{liu2018efficient} to model conditional interactions across modalities while controlling parameter growth. The model outputs continuous risk scores that are subsequently mapped to survival times using a nonparametric calibration procedure based on the Kaplan--Meier estimator~\cite{kaplan1958nonparametric}. By decomposing multimodal reasoning into independent pairwise interactions, the proposed fusion design promotes structural interpretability and parameter efficiency compared with full tensor and hierarchical fusion strategies. Experiments on the CHIMERA challenge dataset demonstrate improved predictive performance over concatenation-based baselines and competitive generalization on hidden evaluation cohorts. These results indicate that the proposed framework is a promising approach for multimodal survival prediction in HR-NMIBC. The implementation is publicly available at https://github.com/hassancpu/ChimeraChallenge2025_Task_3.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper applies ABMIL plus low-rank bilinear fusion to multimodal survival in HR-NMIBC and releases code, but the abstract shows no metrics or ablations so the performance claim stays unverified.

read the letter

The main thing here is a practical pipeline that takes whole-slide histology through ABMIL, encodes RNA-seq and clinical variables with feedforward nets, fuses them with low-rank bilinear pooling, and calibrates risk scores via Kaplan-Meier. The specific end-to-end combination for the CHIMERA dataset in high-risk non-muscle invasive bladder cancer is new even if the pieces are drawn from earlier papers. The code release is a clear plus and makes the work easy to inspect or reuse. The low-rank fusion choice keeps parameter counts reasonable for high-dimensional inputs, which is a sensible engineering decision. The architecture description is clean and the motivation for pairwise interactions over full tensor fusion is stated plainly. The soft spots are in the evidence. The abstract claims better results than concatenation baselines and competitive hidden-cohort performance, yet supplies no numbers, confidence intervals, or ablation tables. Without those, it is impossible to judge whether the low-rank approximation retains the clinically relevant cross-modal signals or drops higher-order interactions, which is the exact concern raised in the stress-test note. The scope is also limited to one cancer subtype, so any broader claims about multimodal survival modeling rest on future extension work. This paper is for researchers who build or adapt multimodal tools for precision oncology and need a concrete starting point on histology-plus-genomics survival tasks. A reader working with similar datasets or the CHIMERA challenge would get usable code and a clear baseline architecture. I would send it to peer review. The application is grounded, the implementation is public, and referees can require the missing metrics and rank ablations to decide whether the fusion step actually delivers the claimed gains.

Referee Report

3 major / 1 minor

Summary. The manuscript proposes a multimodal deep learning framework for patient-level survival prediction in high-risk non-muscle invasive bladder cancer (HR-NMIBC). It encodes whole-slide histology via attention-based multiple instance learning (ABMIL), RNA-seq and clinical data via feedforward encoders, integrates the embeddings with low-rank bilinear cross-modal fusion to model pairwise interactions, and calibrates continuous risk scores to survival times using a nonparametric Kaplan-Meier procedure. The authors claim improved predictive performance over concatenation-based baselines on the CHIMERA challenge dataset, with competitive generalization on hidden evaluation cohorts, and release the implementation publicly.

Significance. If the performance gains are substantiated, the framework would provide a parameter-efficient and structurally interpretable approach to cross-modal fusion for survival modeling in oncology, extending established components (ABMIL and low-rank bilinear pooling) while controlling parameter growth. The public code release strengthens reproducibility and allows direct testing of the fusion design.

major comments (3)

[Abstract] Abstract: The central claim of 'improved predictive performance over concatenation-based baselines' is stated without any quantitative metrics (e.g., C-index, integrated Brier score), confidence intervals, or statistical significance tests. This absence makes it impossible to evaluate whether the reported gains are robust or driven by post-hoc choices.
[Methods] Methods (Cross-Modal Bilinear Fusion): The low-rank bilinear pooling approximates the full outer-product tensor via a sum of rank-1 terms. No ablation on the fusion rank hyperparameter is reported, nor is there a direct comparison to full bilinear or tensor fusion; without these, it remains untested whether the retained low-rank subspace preserves the clinically relevant conditional interactions for HR-NMIBC survival.
[Experiments] Experiments: The evaluation on the CHIMERA dataset is described only qualitatively ('improved' and 'competitive'). The manuscript must supply concrete performance numbers, ablation tables isolating the fusion module, and calibration diagnostics (e.g., calibration plots or Brier scores) to support the survival prediction claim.

minor comments (1)

[Abstract] Abstract: The citation style for ABMIL (ilse2018attention) and low-rank bilinear pooling (liu2018efficient) should be cross-checked against the reference list for completeness and consistency.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive feedback. We address each major comment below and will revise the manuscript to provide the requested quantitative details and analyses.

read point-by-point responses

Referee: [Abstract] Abstract: The central claim of 'improved predictive performance over concatenation-based baselines' is stated without any quantitative metrics (e.g., C-index, integrated Brier score), confidence intervals, or statistical significance tests. This absence makes it impossible to evaluate whether the reported gains are robust or driven by post-hoc choices.

Authors: We agree that the abstract should include specific quantitative support for the performance claims. In the revised manuscript we will report the C-index (with 95% confidence intervals) and integrated Brier score for both the proposed model and the concatenation baseline, together with the p-value from an appropriate statistical test (e.g., paired Wilcoxon or log-rank test) to demonstrate that the observed gains are statistically meaningful. revision: yes
Referee: [Methods] Methods (Cross-Modal Bilinear Fusion): The low-rank bilinear pooling approximates the full outer-product tensor via a sum of rank-1 terms. No ablation on the fusion rank hyperparameter is reported, nor is there a direct comparison to full bilinear or tensor fusion; without these, it remains untested whether the retained low-rank subspace preserves the clinically relevant conditional interactions for HR-NMIBC survival.

Authors: We acknowledge the value of an explicit ablation on the fusion rank. We will add a table reporting C-index and integrated Brier score for ranks 1, 2, 4 and 8, and will include a comparison against full bilinear pooling (on a reduced feature dimension if necessary to keep computation tractable) to confirm that the low-rank approximation retains the clinically relevant cross-modal interactions. revision: yes
Referee: [Experiments] Experiments: The evaluation on the CHIMERA dataset is described only qualitatively ('improved' and 'competitive'). The manuscript must supply concrete performance numbers, ablation tables isolating the fusion module, and calibration diagnostics (e.g., calibration plots or Brier scores) to support the survival prediction claim.

Authors: We agree that the experimental results should be presented quantitatively. The revised manuscript will include (i) concrete C-index and integrated Brier scores with confidence intervals on the CHIMERA public test set, (ii) an ablation table that isolates the contribution of the low-rank bilinear fusion module versus simple concatenation, and (iii) calibration plots together with Brier scores to document the reliability of the predicted survival probabilities. revision: yes

Circularity Check

0 steps flagged

No significant circularity; performance claims rest on empirical evaluation of assembled modules

full rationale

The paper defines a multimodal architecture by combining ABMIL (cited to Ilse et al.), low-rank bilinear fusion (cited to Liu et al. 2018), and nonparametric Kaplan-Meier calibration (cited to Kaplan & Meier 1958). The central claims concern improved predictive performance on the CHIMERA dataset relative to concatenation baselines; these are experimental outcomes, not quantities derived by construction from fitted parameters inside the paper. No self-citations appear in the load-bearing steps, no parameter is fitted on a subset and then renamed as a prediction, and no uniqueness theorem or ansatz is smuggled via self-reference. The low-rank approximation is an explicit design choice whose information-loss consequences are left to empirical validation rather than being asserted by definition.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard neural-network training assumptions, the validity of the cited ABMIL and bilinear pooling modules, and the appropriateness of Kaplan-Meier for post-hoc calibration; no new entities are postulated.

free parameters (1)

bilinear fusion rank
The rank hyperparameter in the low-rank bilinear pooling controls expressivity versus parameter count and must be chosen or tuned.

axioms (2)

domain assumption Embeddings from histology, RNA-seq, and clinical data can be meaningfully combined through pairwise bilinear interactions
Invoked in the cross-modal fusion design described in the abstract.
standard math Kaplan-Meier estimator provides a valid nonparametric mapping from continuous risk scores to survival times
Used for the final calibration step.
