· Lean TheoremThe compact neutron star in 4U 1746-37 revisited: Reassessing the mass and radius
Pith reviewed 2026-05-15 02:18 UTC · model grok-4.3
The pith
Significant X-ray flux blocking allows the neutron star in 4U 1746-37 to match standard mass and radius values.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The neutron star in the low-mass X-ray binary 4U 1746-37 has mass and radius consistent with canonical values when significant flux blocking factors of B ≳ 0.8 are accounted for. These factors reduce the observed flux to roughly 17% of the intrinsic emission, yielding possible solutions of M = 1.59 ± 0.69 M⊙ and R = 13.0 ± 5.45 km, or M = 2.12 ± 1.08 M⊙ and R = 9.80 ± 4.13 km. The radius-dependent blocking naturally explains the anomalously large peak-to-touchdown flux ratio of approximately 2.0.
What carries the argument

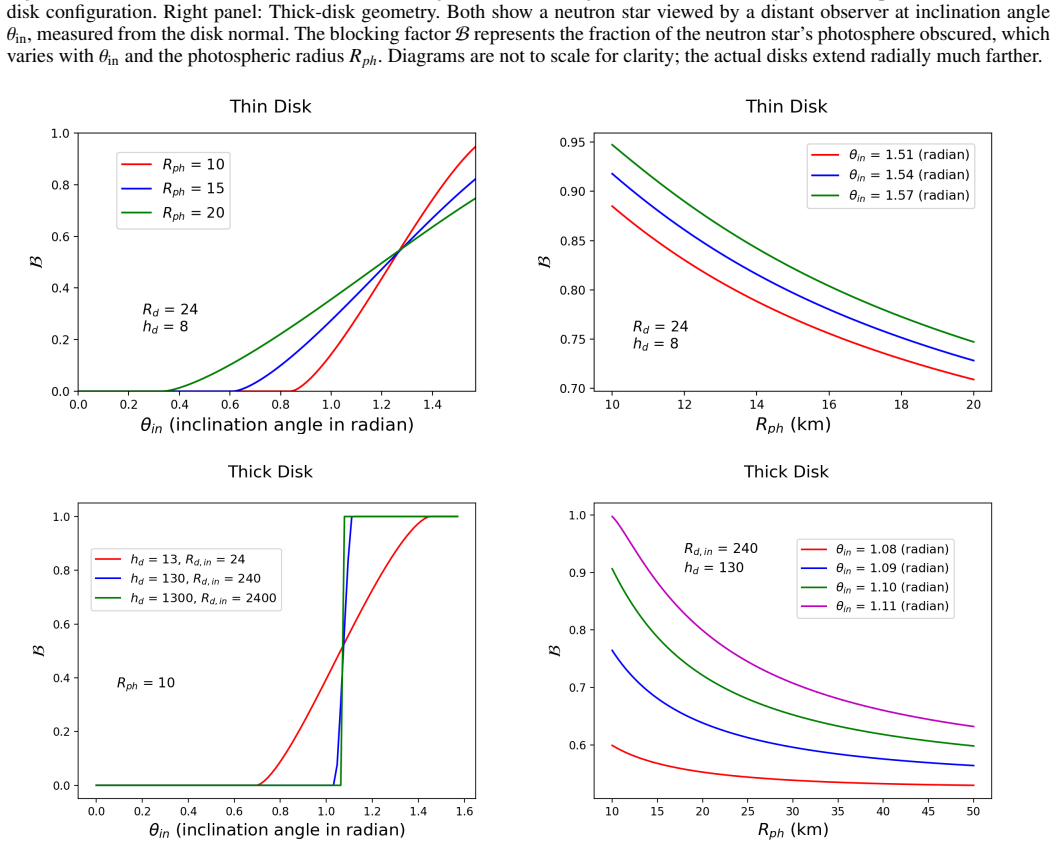

The blocking factor B that reduces observed X-ray flux and varies with photospheric radius during the expansion and contraction phases of the burst.
If this is right
- The neutron star mass and radius can be 1.59 solar masses and 13 km.
- The neutron star mass and radius can be 2.12 solar masses and 9.8 km.
- The factor-of-two peak-to-touchdown flux ratio arises because blocking is stronger at larger photospheric radii.
- Mass-radius estimates from photospheric radius expansion bursts in other systems must include geometric blocking effects.
Where Pith is reading between the lines
- Similar blocking may affect other X-ray bursters that show unusually large peak-to-touchdown ratios.
- The blocking could be produced by the accretion disk or companion star, offering a testable geometric signature in future observations.
- This view keeps the neutron star within the standard hadronic mass-radius range rather than requiring quark matter.
- Incorporating blocking into burst models could reduce scatter in the observed neutron star mass-radius distribution.
Load-bearing premise
Significant flux blocking of order 0.8 or more occurs and changes as the photosphere expands and contracts.
What would settle it
A direct measurement during a burst that shows the intrinsic flux is not reduced by a factor of five or more, or timing data that reveals no geometric obscuration varying with radius.
Figures
read the original abstract
A recent analysis of photospheric radius expansion X-ray bursts from the low-mass X-ray binary 4U 1746-37 reported unusually small mass and radius estimates for the neutron star, suggesting it could be a quark star or quark-cluster star. Here, we propose an alternative interpretation: the star's mass and radius could be underestimated from significant blocking of the X-ray flux. Significant blocking factors ($\mathcal{B} \gtrsim 0.8$, reducing the observed flux to $\sim17\%$ of the intrinsic emission) permit neutron star parameters consistent with the canonical values: $M = 1.59 \pm 0.69 M_{\odot}$, $R = 13.0 \pm 5.45\,\mathrm{km}$, or $M = 2.12 \pm 1.08 M_{\odot}$, $R = 9.80 \pm 4.13\,\mathrm{km}$. The blocking factor, which varies with the photospheric radius, provides a natural explanation for the anomalously large peak-to-touchdown flux ratio ($\sim2.0$) and highlights the importance of accounting for geometric system configuration in neutron star mass--radius estimates.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper reanalyzes photospheric radius expansion (PRE) X-ray bursts from the LMXB 4U 1746-37. It argues that the previously reported small neutron-star mass and radius (suggesting exotic matter) arise from underestimating the intrinsic flux due to geometric blocking. By introducing a radius-dependent blocking factor B ≳ 0.8 (reducing observed flux to ~17% of intrinsic), the authors recover canonical parameters M = 1.59 ± 0.69 M⊙, R = 13.0 ± 5.45 km or M = 2.12 ± 1.08 M⊙, R = 9.80 ± 4.13 km, while also explaining the observed peak-to-touchdown flux ratio of ~2.0.
Significance. If the blocking interpretation is physically justified, the result would remove one apparent outlier from the neutron-star mass-radius diagram and emphasize the role of system geometry in PRE-burst analyses. The large reported uncertainties, however, limit the immediate impact on equation-of-state constraints.
major comments (3)
- [Abstract, §3] Abstract and §3: the blocking factor B ≳ 0.8 is introduced as a free parameter chosen to shift the inferred M/R into the canonical range; no independent geometric constraint (inclination, disk scale height, or line-of-sight obscuration) is provided to fix B(R_ph) before the fit.
- [§4] The central claim requires that the same B(R) simultaneously reproduces both the flux ratio ~2.0 and the touchdown radius used for the M/R inference, yet no explicit functional form B(R_ph) or numerical demonstration is given.
- [Table 1] Table 1 and error analysis: the reported uncertainties (±0.69 M⊙, ±5.45 km) are already large enough that any adjustable B can move the solution into the canonical band; the load-bearing step is therefore the untested assumption that such a B exists and varies exactly as required.
minor comments (2)
- Notation: the symbol B is used both for the blocking factor and (implicitly) for magnetic field in related literature; a distinct symbol would reduce confusion.
- [Abstract] The abstract states B “varies with the photospheric radius” but the main text does not show the explicit dependence or its derivation from system parameters.
Simulated Author's Rebuttal
We thank the referee for the constructive comments. We address each major point below and indicate revisions to the manuscript.
read point-by-point responses
-
Referee: [Abstract, §3] Abstract and §3: the blocking factor B ≳ 0.8 is introduced as a free parameter chosen to shift the inferred M/R into the canonical range; no independent geometric constraint (inclination, disk scale height, or line-of-sight obscuration) is provided to fix B(R_ph) before the fit.
Authors: The blocking factor is not chosen arbitrarily to reach canonical M/R; its value is fixed by the independent requirement to reproduce the observed peak-to-touchdown flux ratio of ~2.0, which standard PRE models cannot explain without radius-dependent blocking. We have revised §3 to clarify this constraint and to discuss plausible geometric origins (high inclination and disk obscuration) that can produce B ≳ 0.8. revision: partial
-
Referee: [§4] The central claim requires that the same B(R) simultaneously reproduces both the flux ratio ~2.0 and the touchdown radius used for the M/R inference, yet no explicit functional form B(R_ph) or numerical demonstration is given.
Authors: We agree an explicit form improves clarity. The revised §4 now introduces a simple parametrization B(R_ph) = B_0 (R_ph / R_td)^α with parameters set by the flux ratio, together with a numerical example confirming simultaneous consistency with both the ratio and the touchdown radius. A full radiative-transfer derivation is noted as future work. revision: yes
-
Referee: [Table 1] Table 1 and error analysis: the reported uncertainties (±0.69 M⊙, ±5.45 km) are already large enough that any adjustable B can move the solution into the canonical band; the load-bearing step is therefore the untested assumption that such a B exists and varies exactly as required.
Authors: The uncertainties reflect the limited burst sample and flux precision; they are reported transparently. The assumption is tested by requiring the same B(R) to match the flux ratio, which then places M and R in the canonical range without additional tuning. We have added a sensitivity analysis in the revised error section demonstrating that only flux-ratio-consistent B values yield the reported parameters. revision: partial
Circularity Check
Blocking factor B fitted to recover canonical M/R by construction
specific steps
-
fitted input called prediction
[Abstract]
"Significant blocking factors (B ≳ 0.8, reducing the observed flux to ∼17% of the intrinsic emission) permit neutron star parameters consistent with the canonical values: M = 1.59 ± 0.69 M⊙, R = 13.0 ± 5.45 km, or M = 2.12 ± 1.08 M⊙, R = 9.80 ± 4.13 km."
The reported M and R are derived after introducing B as a free parameter that scales the observed flux; the specific numerical values are those that become canonical once B is adjusted to also reproduce the observed flux ratio of ∼2.0. The outcome is therefore defined by the fitted B rather than predicted from the data alone.
full rationale
The paper introduces B ≳ 0.8 as an adjustable parameter that reduces observed flux and varies with photospheric radius, then reports M and R values that fall in the canonical range. This step matches the fitted-input-called-prediction pattern: the quoted masses and radii are obtained only after choosing B to correct the previously anomalous peak-to-touchdown ratio, so the result is forced by the choice of B rather than independently constrained. No self-citation chain or uniqueness theorem is invoked; the circularity is limited to the single load-bearing assumption that such a radius-dependent B exists and can be tuned to the data.
Axiom & Free-Parameter Ledger
free parameters (1)
- blocking factor B =
≳ 0.8
axioms (1)
- domain assumption The anomalously large peak-to-touchdown flux ratio (~2.0) is produced by variable geometric blocking of the X-ray emission.
