BEAM: Binary Expert Activation Masking for Dynamic Routing in MoE

Authors on Pith no claims yet

Pith reviewed 2026-05-15 01:55 UTC · model grok-4.3

classification 💻 cs.AI
keywords Mixture of ExpertsDynamic RoutingInference EfficiencyBinary MasksSparse ActivationLarge Language ModelsvLLM Integration
0
0 comments X

The pith

Trainable binary masks let MoE models pick experts token-by-token, cutting expert-layer FLOPs by up to 85 percent while keeping more than 98 percent of original accuracy.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Standard MoE routing activates a fixed number of experts for every token, which leaves substantial unused computation even when many experts are redundant for that token. BEAM replaces the fixed top-k rule with per-token binary masks that are learned end-to-end; a straight-through estimator lets gradients pass through the discrete decisions, and an auxiliary loss pushes the masks toward sparsity. The masks remain active at inference, so the same dynamic selection that was trained also runs during decoding. A custom CUDA kernel makes the sparse path fast enough to integrate directly with vLLM. The result is large reductions in FLOPs and wall-clock time with only marginal accuracy loss.

Core claim

BEAM shows that token-adaptive expert activation can be induced by optimizing binary masks inside the existing MoE training loop. The masks are produced by a lightweight gating network whose outputs are binarized; the straight-through estimator plus an auxiliary sparsity penalty lets the model discover which experts are truly needed for each token while the base weights stay largely unchanged. At inference the same masks deliver genuine dynamic routing, yielding the reported FLOPs and latency gains.

What carries the argument

Trainable binary expert activation masks, realized through a straight-through estimator and an auxiliary regularization loss that together replace fixed top-k routing.

If this is right

  • Expert-layer compute becomes proportional to the actual number of useful experts per token rather than a fixed budget.
  • Decoding latency improves without any architectural change to the base model or costly retraining.
  • The same trained masks can be reused across different inference back-ends once the CUDA kernel is in place.
  • Throughput gains scale with batch size because fewer expert parameters are touched per forward pass.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach could be stacked with existing weight pruning or quantization pipelines to compound savings.
  • If the masks prove stable across domains, the technique might reduce the need for separate sparse fine-tuning stages.
  • Extending the mask training to also learn which experts to drop entirely could produce permanent model compression.

Load-bearing premise

The sparsity pattern the masks learn on the training distribution will continue to be effective and stable on new inputs seen only at inference.

What would settle it

Measure the fraction of tokens whose activated expert set changes when the same prompt is fed through the model once on training data and once on held-out data; if the change exceeds a few percent while accuracy drops more than two points, the central claim fails.

Figures

Figures reproduced from arXiv: 2605.14438 by Fuyu Lv, Jialiang Cheng, Juntong Wu, Li Yuan, Ou Dan, Qishen Yin, Yue Dai, Yuliang Yan.

Figure 1
Figure 1. Figure 1: Performance–sparsity trade-off of BEAM and [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

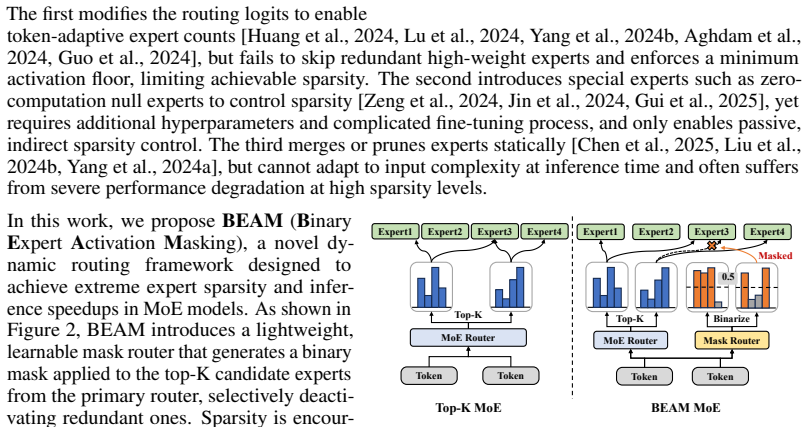

Figure 2
Figure 2. Figure 2: Vanilla Top-K vs. BEAM: BEAM learns a binary mask over Top-K candidates for token-adaptive activation. In this work, we propose BEAM (Binary Expert Activation Masking), a novel dy￾namic routing framework designed to achieve extreme expert sparsity and infer￾ence speedups in MoE models. As shown in [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The illustration of our proposed BEAM method with 4 experts and K=3 as an example. [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Comparison of TPOT, TTFT, and throughput across different methods. [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: The average number of activated experts per token in BEAM: Qwen3-30B-A3B. [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Layer-wise sparsity and position-wise masking analysis. [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗

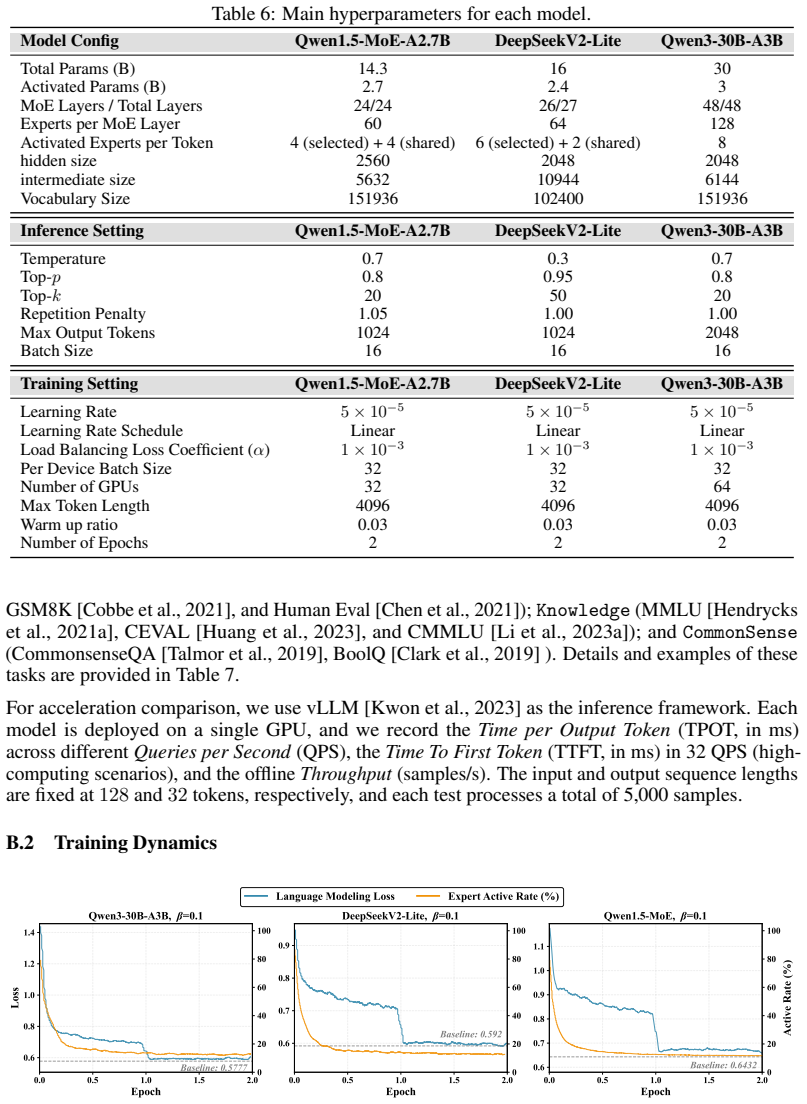

Figure 7
Figure 7. Figure 7: Training curves of BEAM (β = 0.1) on three MoEs. Blue: language modeling loss (left axis). Orange: expert active rate (right axis). Gray dashed line: SFT baseline loss without BEAM [PITH_FULL_IMAGE:figures/full_fig_p015_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Layer-wise masking rank analysis across three MoE models. The shaded region between [PITH_FULL_IMAGE:figures/full_fig_p017_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Expert load balance visualization of MoE models before and after BEAM fine-tuning. [PITH_FULL_IMAGE:figures/full_fig_p018_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Per-token and per-layer expert activation heatmap for DeepSeekV2-Lite. Each cell [PITH_FULL_IMAGE:figures/full_fig_p020_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Per-token and per-layer expert activation heatmap for Qwen1.5-MoE-A2.7B. Each cell [PITH_FULL_IMAGE:figures/full_fig_p021_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Per-token and per-layer expert activation heatmap for Qwen3-30B-A3B. Each cell indicates [PITH_FULL_IMAGE:figures/full_fig_p022_12.png] view at source ↗
read the original abstract

Mixture-of-Experts (MoE) architectures enhance the efficiency of large language models by activating only a subset of experts per token. However, standard MoE employs a fixed Top-K routing strategy, leading to redundant computation and suboptimal inference latency. Existing acceleration methods either require costly retraining with architectural changes or suffer from severe performance drop at high sparsity due to train-inference mismatch. To address these limitations, we propose BEAM (Binary Expert Activation Masking), a novel method that learns token-adaptive expert selection via trainable binary masks. With a straight-through estimator and an auxiliary regularization loss, BEAM induces dynamic expert sparsity through end-to-end training while maintaining model capability. We further implement an efficient custom CUDA kernel for BEAM, ensuring seamless integration with the vLLM inference framework. Experiments show that BEAM retains over 98\% of the original model's performance while reducing MoE layer FLOPs by up to 85\%, achieving up to 2.5$\times$ faster decoding and 1.4$\times$ higher throughput, demonstrating its effectiveness as a practical, plug-and-play solution for efficient MoE inference.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes BEAM, a method that learns token-adaptive binary masks for expert selection in MoE layers via end-to-end training with a straight-through estimator and auxiliary regularization loss. It includes a custom CUDA kernel for vLLM integration and claims retention of over 98% of baseline performance while cutting MoE-layer FLOPs by up to 85%, yielding up to 2.5× faster decoding and 1.4× higher throughput as a plug-and-play inference optimization.

Significance. If the central empirical claims hold under scrutiny, BEAM would supply a lightweight, training-compatible route to dynamic sparsity in MoE models that avoids full retraining or architectural overhaul. The reported speedups and high performance retention would be practically relevant for latency-sensitive deployment of large MoE LLMs.

major comments (3)
  1. [§3] §3 (Method), straight-through estimator description: the paper does not quantify the train-inference activation mismatch (e.g., via overlap statistics or KL divergence between training soft masks and hardened inference selections), which directly bears on whether the reported 85% FLOPs reduction and >98% performance retention survive when masks are frozen at inference.
  2. [§5] §5 (Experiments), performance tables: the >98% retention figures are presented without standard deviations across runs, number of random seeds, or statistical significance tests, and no ablation is shown for the auxiliary-loss weight (the sole free hyperparameter), leaving the robustness of the sparsity-performance trade-off unverified.
  3. [§5.3] §5.3 (Inference results): the 2.5× decoding and 1.4× throughput claims rest on the custom CUDA kernel, yet no measurement is given of actual expert activation overlap or FLOPs realized when the learned binary masks are applied in their hardened inference form, undermining the central claim that STE plus auxiliary loss closes the train-inference gap.
minor comments (2)
  1. [Abstract] Abstract: the 'up to' qualifiers for FLOPs reduction and speedups are not tied to specific model sizes, sparsity targets, or benchmark suites, making the headline numbers difficult to interpret.
  2. [§3] Notation: the binary-mask formulation uses an undefined symbol for the temperature parameter in the STE; a brief definition or reference to the exact estimator equation would improve clarity.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. The comments highlight important areas for strengthening the empirical validation of BEAM. We address each major comment below and will incorporate the suggested revisions to improve the manuscript.

read point-by-point responses
  1. Referee: [§3] §3 (Method), straight-through estimator description: the paper does not quantify the train-inference activation mismatch (e.g., via overlap statistics or KL divergence between training soft masks and hardened inference selections), which directly bears on whether the reported 85% FLOPs reduction and >98% performance retention survive when masks are frozen at inference.

    Authors: We agree that explicitly quantifying the train-inference mismatch would provide stronger support for the claims. In the revised manuscript, we will add overlap statistics (e.g., Jaccard similarity or activation agreement rate) and KL divergence between the soft masks during training and the hardened binary selections at inference. These metrics will demonstrate that the auxiliary regularization loss effectively minimizes the discrepancy, thereby validating that the reported FLOPs reduction and performance retention hold under the hardened inference regime. revision: yes

  2. Referee: [§5] §5 (Experiments), performance tables: the >98% retention figures are presented without standard deviations across runs, number of random seeds, or statistical significance tests, and no ablation is shown for the auxiliary-loss weight (the sole free hyperparameter), leaving the robustness of the sparsity-performance trade-off unverified.

    Authors: We acknowledge the need for greater statistical rigor. We will update all performance tables to report means and standard deviations over multiple random seeds (at least three) and include p-values from appropriate statistical tests for the retention figures. We will also add a dedicated ablation subsection varying the auxiliary-loss weight across a range of values to verify the stability of the sparsity-performance trade-off. revision: yes

  3. Referee: [§5.3] §5.3 (Inference results): the 2.5× decoding and 1.4× throughput claims rest on the custom CUDA kernel, yet no measurement is given of actual expert activation overlap or FLOPs realized when the learned binary masks are applied in their hardened inference form, undermining the central claim that STE plus auxiliary loss closes the train-inference gap.

    Authors: The speedups are measured using the custom CUDA kernel that applies the hardened masks at inference. To directly address the concern, we will include new measurements in §5.3 of the realized expert activation rates (overlap with training soft masks) and the actual FLOPs computed under the hardened inference masks. These will confirm that the STE and auxiliary loss close the train-inference gap sufficiently to support the reported throughput gains. revision: yes

Circularity Check

0 steps flagged

No significant circularity in empirical training and evaluation

full rationale

The paper proposes an empirical training procedure for binary expert masks using straight-through estimator and auxiliary loss, then reports experimental results on performance retention and FLOPs reduction against standard MoE baselines. No mathematical derivation chain exists that reduces predictions or uniqueness claims to fitted inputs by construction, nor any load-bearing self-citation of prior author work that substitutes for independent verification. Claims rest on external benchmarks and measured speedups rather than self-referential definitions or renamed known results.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The paper relies on standard assumptions from machine learning optimization and introduces binary masks as the main new element without new physical entities.

free parameters (1)
  • auxiliary loss weight
    The regularization loss for inducing sparsity likely requires tuning a hyperparameter.
axioms (1)
  • standard math The straight-through estimator provides a valid gradient approximation for binary mask training
    This is a standard technique in training binary neural networks and discrete variables.
