arxiv: 2606.19397 · v1 · pith:EC2ICSMR · submitted 2026-06-17 · cs.RO

DiffusionVS: A Generative Framework for Robust Visual Servoing Based on Diffusion Policy

Hongkang Cui , Rui He , Haoyao Chen This is my paper

Reviewed by Pith T0 review T1 audit T2 compute T3 formal T4 kernel 2026-06-26 21:14 UTCgrok-4.3pith:EC2ICSMRrecord.jsonopen to challenge →

classification cs.RO
keywords visual servoingdiffusion policyrobotic manipulationonline trainingimage-based controlcamera velocity generationAprilTag detection
0
0 comments X

The pith

Diffusion policy generates camera velocity sequences from normalized tag corners to deliver robust visual servoing.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper claims that regression-based visual servoing produces jitter because single-step predictions are sensitive to noise and drift under distribution shift. In contrast, a diffusion model that predicts entire action sequences maintains temporal consistency and gains robustness from implicit augmentation. The method takes normalized image coordinates of AprilTag corners as input and uses conditional denoising to output camera velocities. An online training loop continuously collects new interactive experiences to expand the dataset and improve generalization. Experiments report near-100 percent success in simulation and 93 percent in hardware, with the diffusion module also lifting performance when added to existing visual servoing networks.

Core claim

The central claim is that a diffusion policy adapted for visual servoing, conditioned on normalized tag-corner observations and trained online through interactive data collection, produces temporally consistent velocity commands that eliminate jitter and reach high success rates while also serving as a modular enhancer for other servoing controllers.

What carries the argument

Conditional denoising diffusion policy that maps sequences of normalized tag-corner coordinates to sequences of camera velocities.

If this is right

  • Nearly 100 percent success rate in simulation under the reported conditions.
  • 93 percent success rate achieved in physical experiments.
  • Existing regression-based visual servoing networks show consistent performance gains when the diffusion module is added.
  • Online interactive data collection expands training diversity and thereby improves generalization.
  • The diffusion mechanism applies beyond the presented pipeline to other visual servoing architectures.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The normalized-coordinate input may reduce sensitivity to camera intrinsics, allowing easier transfer across different robot platforms.
  • Online training could enable lifelong adaptation if the robot encounters gradual environmental changes.
  • Treating velocity commands as a generative sequence problem may extend to other image-based control tasks such as grasping or navigation.
  • The reported integration gains suggest diffusion modules could serve as a drop-in stabilizer for any single-step regression controller.

Load-bearing premise

Continuously expanding the training set through interactive experience collection will improve generalization and performance without introducing new biases, instability, or prohibitive computational cost.

What would settle it

Deploy the trained model on a physical robot in a new environment with altered lighting and unseen objects, without further online updates, and measure whether success rate falls below 70 percent or trajectory jitter reappears.

Figures

Figures reproduced from arXiv: 2606.19397 by Haoyao Chen, Hongkang Cui, Rui He.

Figure 1
Figure 1. Figure 1: DiffusionVS Framework The main contributions are as follows: • An end-to-end visual servoing framework, DiffusionVS, is proposed based on the Diffusion Policy. Experimen￾tal results demonstrate that this generative approach consistently outperforms comparable regression-based models, achieving a near-perfect success rate of 100% in simulation (with position and orientation errors of 0.54 cm and 0.53◦ , res… view at source ↗
Figure 2
Figure 2. Figure 2: Network architecture of DiffusionVS. IV. SIMULATIONS AND EXPERIMENTS A. Evaluation Metrics For the purpose of convenient validation, we utilize an AprilTag calibration board as the visual target; However, the network is not restricted to the specific type of target. We first define the following metrics to evaluate servoing performance: (1) TE (Translation Error): the Euclidean distance between the final a… view at source ↗
Figure 3

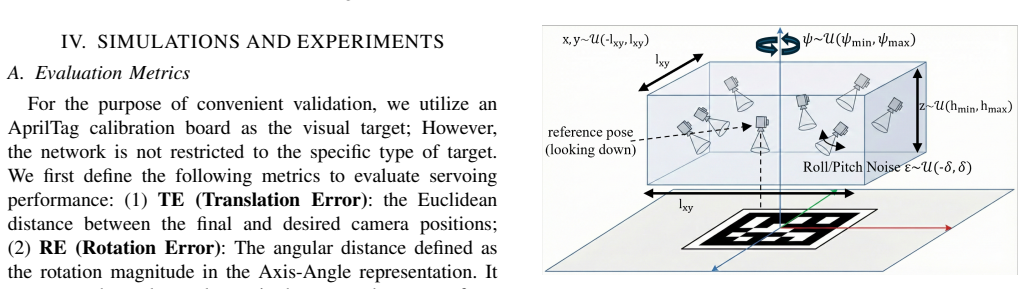

Figure 3. Figure 3: Setup for viewpoint generation in the simulation [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Evaluation environments The core claim of this work is first validated: in the task of visual servoing, the diffusion-based architecture significantly outperforms conventional regression-based approaches. To clearly illustrate this performance gap, two controlled abla￾tion experiments are conducted using networks with nearly identical parameter counts and architectural components. Specifically, the regress… view at source ↗
read the original abstract

Visual servoing is a fundamental technique in robotic manipulation and navigation. Regression-based visual servoing frequently experiences trajectory jitter as a result of noise-sensitive single-step mappings and the accumulation of errors during distribution shifts. In contrast, Diffusion Policy maintains temporal consistency by predicting action sequences and improves robustness through implicit data augmentation. This paper presents a novel diffusion-based servoing method. Based on Diffusion Policy, the proposed approach uses normalized image coordinates of observed tag corners as input and generates camera velocity through conditional denoising. To overcome the generalization limitations of models trained on static datasets, an online training paradigm is adopted, continuously expanding the diversity of training data through interactive experience collection. This strategy substantially enhances both the performance and generalization capability of the model. Comprehensive simulations and real-world experiments demonstrate the effectiveness of the proposed method, achieving success rates of nearly 100\% in simulation and 93\% in physical experiments. Beyond the specific pipeline, we further validate the generality of the diffusion mechanism. Experiments show that existing visual servoing networks consistently achieve improved performance when integrated with our diffusion-based module. These results indicate that the proposed strategy possesses broad applicability and can enhance various visual servoing systems beyond the specific architecture presented here.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The manuscript proposes DiffusionVS, a generative visual servoing framework based on Diffusion Policy. It takes normalized image coordinates of observed tag corners as input and uses conditional denoising to output camera velocity sequences. An online training paradigm with interactive experience collection is introduced to expand training data diversity and improve generalization beyond static datasets. The paper reports success rates of nearly 100% in simulation and 93% in physical experiments, and claims that integrating the diffusion-based module consistently improves performance of existing visual servoing networks.

Significance. If the reported performance gains and generality results hold under rigorous evaluation, the work would offer a practical way to mitigate trajectory jitter and distribution-shift sensitivity in visual servoing through generative sequence prediction and continual data collection. The empirical demonstration that a diffusion module can be grafted onto multiple existing networks is potentially high-impact for the field. However, the absence of detailed experimental protocols, baselines, error bars, and safeguards for the online training loop prevents a full assessment of whether these advantages are robust.

major comments (2)
  1. [Abstract] Abstract: the central performance claims (nearly 100% sim success, 93% real success, and consistent improvement when the diffusion module is added to other networks) are presented without any experimental details, baselines, error bars, statistical tests, or failure-mode analysis. These omissions make the headline results impossible to evaluate and are load-bearing for the paper's contribution.
  2. [Abstract] Abstract (online training description): the generalization improvement is attributed to 'continuously expanding the diversity of training data through interactive experience collection,' yet no description is given of replay buffers, regularization, monitoring for distribution shift or catastrophic forgetting, or any other safeguard. Because diffusion policies are sensitive to data quality, this is a load-bearing assumption for the reported gains.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We agree that the abstract would benefit from additional context on the experimental claims and safeguards, and we will revise it to address these points while preserving conciseness. We respond to each major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central performance claims (nearly 100% sim success, 93% real success, and consistent improvement when the diffusion module is added to other networks) are presented without any experimental details, baselines, error bars, statistical tests, or failure-mode analysis. These omissions make the headline results impossible to evaluate and are load-bearing for the paper's contribution.

    Authors: The abstract provides a concise summary of results, with full experimental protocols, baselines (including traditional VS and other learning-based methods), multiple runs with error bars, and failure-mode analysis presented in Sections 4 and 5. We will revise the abstract to briefly reference the evaluation setup and key baselines, improving evaluability without exceeding typical length constraints. revision: yes

  2. Referee: [Abstract] Abstract (online training description): the generalization improvement is attributed to 'continuously expanding the diversity of training data through interactive experience collection,' yet no description is given of replay buffers, regularization, monitoring for distribution shift or catastrophic forgetting, or any other safeguard. Because diffusion policies are sensitive to data quality, this is a load-bearing assumption for the reported gains.

    Authors: The online training procedure, including experience collection and use of replay mechanisms with monitoring to mitigate distribution shift, is detailed in Section 3 of the manuscript. The abstract summarizes this concisely. We will add a brief clause to the abstract referencing these safeguards as implemented in the full method. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical claims rest on experiments, not self-referential derivations

full rationale

The paper describes a diffusion-based visual servoing method using normalized image coordinates and conditional denoising, with an online training paradigm for data expansion. All performance claims (near-100% simulation success, 93% real-world, improved performance when integrated with other networks) are presented as results from simulation and physical experiments. No equations, derivations, fitted parameters renamed as predictions, or self-citation load-bearing steps appear in the abstract or described content. The approach builds on existing Diffusion Policy but does not reduce its central results to inputs by construction or via unverified self-citations.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available; no free parameters, axioms, or invented entities are described in sufficient detail to populate the ledger.
