Network sheaves with flat orthogonal frames align multi-site channel charts into one shared latent space without hurting local geometry.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · grok-4.5

2026-07-12 02:11 UTC pith:VDHOUOMX

load-bearing objection Clean methods paper: sheaf inductive bias on representation spaces + flat SO(n) frames gives a distributed Procrustes+SGD algorithm that beats OT and federated baselines on alignment without hurting local geometry. the 2 major comments →

arxiv 2607.03480 v1 pith:VDHOUOMX submitted 2026-07-03 eess.SP

A Sheaf-Theoretic Framework for Distributed Multi-Site Channel Charting

Enrico Grimaldi , Leonardo Di Nino , Mario Edoardo Pandolfo , Gabriele D'Acunto , Sergio Barbarossa , Paolo Di Lorenzo This is my paper
classification eess.SP
keywords channel chartingnetwork sheavestopological signal processingdistributed representation learningflat bundlesmulti-site CSIorthogonal transport maps
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

When each base station learns its own low-dimensional channel chart from CSI, the charts do not line up in the regions where coverage overlaps. That misalignment blocks network-wide uses such as continuous user tracking and handover prediction. This paper models the collection of local charts as a network sheaf whose restriction maps are orthogonal transports, then reparameterizes those maps through local SO(n) reference frames so that non-trivial global sections are guaranteed to exist. The resulting inductive bias is optimized by an alternating algorithm: closed-form Procrustes updates for the frames and ordinary gradient steps for the neural encoders. On a multi-access-point indoor CSI dataset the flat-bundle variant produces the best cross-site matching scores while keeping Kruskal stress, trustworthiness and continuity at or above the level of independent single-site training. The practical claim is that a topologically motivated, linearly scaling alignment step can turn separately learned charts into a coherent global representation without sacrificing the geometric fidelity that makes channel charting useful.

Core claim

Casting multi-site channel charting as a network sheaf whose edge maps factor through local SO(n) reference frames yields an inductive bias that guarantees consistent global sections; the associated alternating optimization (Kabsch frame updates plus local encoder SGD) measurably improves cross-site alignment while preserving local embedding quality.

What carries the argument

The multi-site channel-charting network sheaf with flat-bundle factorization: restriction maps are reparameterized as R^(bi,bj)_bi = R_bj^T R_bi and R^(bi,bj)_bj = I, turning edge-wise alignment into node-wise frame synchronization that admits a closed-form Procrustes solution and guarantees non-trivial global sections.

Load-bearing premise

That the relationship between embeddings of the same physical points seen by different base stations can be captured by global orthogonal reference frames; if the true map is substantially nonlinear or orientation-reversing, both the global-section guarantee and the closed-form update fail.

What would settle it

On a multi-site CSI dataset whose true overlap maps are known to be non-isometric (for example, with strong non-linear multipath or reflections that reverse orientation), check whether the flat-bundle method still achieves lower FOSCTTM than unconstrained optimal-transport alignment while keeping KS and TW competitive with the vanilla baseline; a clear reversal would falsify the claim.

Watch this falsifier — get emailed when new claim-graph text bears on it.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 4 minor

Summary. The paper proposes a sheaf-theoretic framework for multi-site channel charting. Local CSI embeddings produced by per-base-station neural encoders are modeled as node stalks of a network sheaf; restriction maps on edges are orthogonal transports that enforce agreement on coverage overlaps. By reparameterizing the maps as a flat O(n)/SO(n) bundle (factorization through local reference frames, eqs. 5a–5b), the authors guarantee non-trivial global sections and reduce complexity from O(B^{2}n^{2}) to O(Bn^{2}). The resulting regularized objective (triplet loss plus sheaf gluing term, eq. 6) is solved by a distributed alternating algorithm: closed-form Kabsch/Procrustes updates of the frames and local SGD on the encoders. On the public DICHASUS trajectories the flat-bundle variant attains the best FOSCTTM while matching or slightly improving local KS/TW/CT relative to vanilla single-site training and outperforming optimal-transport, cover-sheaf, O(n)-bundle and federated baselines (Table I).

Significance. If the claims hold, the work supplies a clean, interpretable inductive bias for network-wide channel charting that is both theoretically grounded (global-section existence via flat bundles) and practically attractive (closed-form alignment, linear scaling, message-passing implementation). The empirical demonstration that a simple SO(n) frame already beats more expressive nonlinear OT maps on alignment while preserving local geometry is noteworthy and suggests that the right structural prior can be more valuable than extra degrees of freedom. Public data, multiple baselines and an open-source repository further strengthen the contribution for the wireless-signal-processing community.

major comments (2)
  1. The load-bearing modeling assumption (Sec. II, eqs. 5a–5b and the paragraph that introduces the flat-bundle factorization) is that the true relationship between overlapping charts is capturable by global SO(n) frames. While Table I shows that Flat Bundle already outperforms both the more flexible O(n) Bundle and the nonlinear Opt. Transport baseline on FOSCTTM, the manuscript never quantifies residual misalignment after Procrustes (e.g., mean residual of the gluing term on held-out overlaps, or a controlled synthetic experiment with known nonlinear distortion). A short diagnostic of this residual would make the sufficiency claim falsifiable rather than merely empirically competitive on one dataset.
  2. Coverage regions are hand-partitioned according to “dominant scatterers” (Fig. 2 and Sec. IV). Because the sheaf edges are defined exactly by these overlaps, the reported alignment gains are conditioned on a favorable cover. Sensitivity to alternative partitions (or to automatically estimated overlaps) is not examined; without it the practical scope of the method remains unclear.
minor comments (4)
  1. Table I reports point estimates only; no standard deviations or multiple random seeds are given, so the ranking of FOSCTTM (0.154 vs 0.183) cannot be assessed for statistical reliability.
  2. The cosine annealing schedule for λ and the precise maximum value used for the reported runs are not stated; both should be listed for reproducibility.
  3. Notation for the indicator 1_{x∈Ubi∩Ubj} is slightly inconsistent across the restriction-map definitions and the subsequent optimization; a uniform symbol would improve readability.
  4. Fig. 3 shows qualitative alignment but lacks a quantitative color-bar or distance scale that would let a reader judge residual scatter.

Circularity Check

0 steps flagged

No significant circularity: sheaf inductive bias and alternating optimization are self-contained; metrics are independent of the training penalty; only minor non-load-bearing self-citations of related sheaf work.

full rationale

The derivation begins from standard network-sheaf definitions (Def. 1–2, citations [3],[4]) and constructs a multi-site CC sheaf whose restriction maps are orthogonal isometries. The shift to flat bundles via the factorization (5a–5b) is motivated by the classical spectral guarantee of non-trivial global sections and by complexity reduction; it is not defined in terms of the later experimental metrics. The joint objective (6) simply adds an explicit gluing penalty to ordinary triplet losses; the alternating algorithm then solves the SO(n) Procrustes subproblem in closed form (Kabsch) and updates encoders by SGD. Reported quantities (KS/TW/CT for local geometry, FOSCTTM for cross-site matching) are computed on the resulting embeddings and compared against external baselines (vanilla, OT [7], federated, etc.) on a public dataset; none of them is a tautological restatement of the annealed λ-penalty. Self-citations ([11],[16],[23]) appear only in related-work discussion or as optional algorithmic variants and are not used to import uniqueness theorems or to force the central claim. Consequently the paper’s strongest claim—improved alignment without loss of local fidelity—is an empirical outcome of an independently stated optimization problem, not a circular reduction.

Axiom & Free-Parameter Ledger

4 free parameters · 4 axioms · 1 invented entities

The central claim rests on standard sheaf and Procrustes mathematics plus domain modeling choices (isometric restriction maps, temporal triplet loss, hand-defined coverage overlaps). Free parameters are the usual training knobs; the only invented modeling object is the multi-site CC network sheaf itself, which is an application of existing sheaf language rather than a new physical entity.

free parameters (4)
  • sheaf penalty λ (cosine schedule to a max value)
    Controls strength of the gluing term in eq. (6); schedule and final value are chosen by the authors and affect the reported FOSCTTM.
  • triplet margin m and temporal window ΔT=5 s
    Define positive/negative pairs for the unsupervised local loss (eq. 7); fixed by hand.
  • embedding dimension n=2
    Chosen for spatial interpretability; all geometry and SO(n) claims are demonstrated only at this dimension.
  • learning-rate schedule (1e-3 then 1e-4) and 20 epochs
    Training hyper-parameters that determine the final table numbers.
axioms (4)
  • standard math Network sheaves with vector-space stalks and linear restriction maps correctly encode local-to-global consistency of embeddings (Defs. 1–2).
    Taken from Curry/Hansen; used throughout Sec. II.
  • domain assumption Restriction maps may be taken orthogonal (isometries) and further factored through local SO(n) frames so that non-trivial global sections exist (eqs. 5a–5b).
    Key modeling choice that turns an O(n) bundle into a flat bundle; if false for real CSI geometry the consistency guarantee collapses.
  • domain assumption Temporally close CSI samples are geometrically close in the true environment, justifying the triplet loss with ΔT=5 s.
    Standard channel-charting assumption (cited from Ferrand et al.); underpins the local loss Lb.
  • domain assumption Coverage regions can be partitioned so that overlaps are non-empty and known (Fig. 2).
    Required to define edge stalks and the index set I; partitions are constructed from dominant scatterers.
invented entities (1)
  • multi-site channel charting network sheaf (node stalks = local embeddings, edge stalks = overlap embeddings, restriction maps = orthogonal transports) no independent evidence
    purpose: Provides the inductive bias that couples local encoders while guaranteeing global sections under the flat-bundle factorization.
    Application of existing sheaf language to CSI charts; no independent physical prediction outside the alignment metrics of this paper.

pith-pipeline@v1.1.0-grok45 · 13571 in / 3084 out tokens · 27602 ms · 2026-07-12T02:11:45.242144+00:00 · methodology

0 comments
read the original abstract

Channel charting (CC) enables data-driven user localization in wireless networks by embedding channel state information (CSI) into low-dimensional representations. In multi-cell scenarios, each base station independently learns a local chart via neural encoders, leading to misaligned representation spaces across overlapping coverage areas. This lack of consistency hinders network-level tasks such as user tracking, handover prediction, and resource allocation. To address this issue, we propose a principled framework for multi-site channel charting based on topological signal processing. We model the collection of local charts as a network sheaf, which encodes consistency constraints across the network and enables the coherent integration of locally learned representations into a shared global structure. This formulation introduces an interpretable inductive bias that promotes alignment across base stations while preserving local geometric fidelity. Building on this model, we develop a multi-site channel charting architecture and an alternating optimization algorithm that jointly updates neural encoders and inter-site orthogonal transport maps, with theoretical guarantees on consistency. Experimental results validate the effectiveness of the proposed approach, demonstrating improved cross-site alignment without degrading the quality of local embeddings.

Figures

Figures reproduced from arXiv: 2607.03480 by Enrico Grimaldi, Gabriele D'Acunto, Leonardo Di Nino, Mario Edoardo Pandolfo, Paolo Di Lorenzo, Sergio Barbarossa.

Figure 1
Figure 1. Figure 1: Visualization of an edge of the proposed network [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Visualization of the dataset and the partition of [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

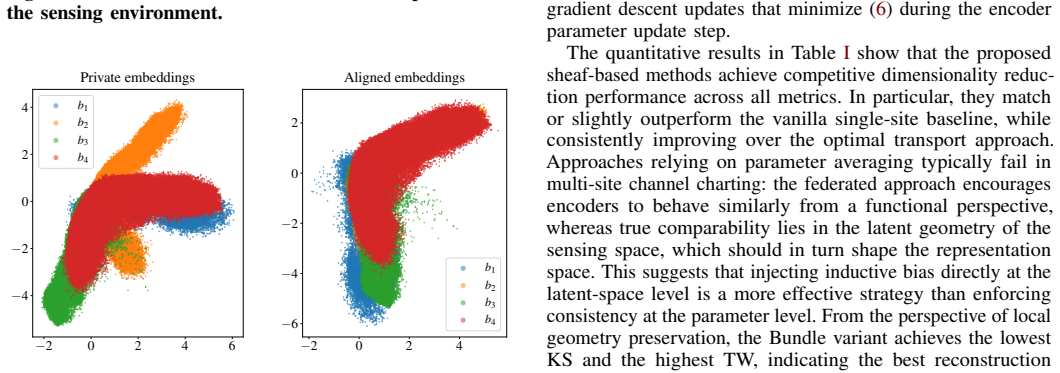

Figure 3
Figure 3. Figure 3: Learned embedding with flat bundle alignment [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

26 extracted references · 1 linked inside Pith

  1. [1]

    Wireless channel charting: Theory, practice, and applications,

    P. Ferrand, M. Guillaud, C. Studer, and O. Tirkkonen, “Wireless channel charting: Theory, practice, and applications,”IEEE Communications Magazine, vol. 61, no. 6, pp. 124–130, 2023

    2023

  2. [2]

    Channel charting: Locating users within the radio environment using channel state information,

    C. Studer, S. Medjkouh, E. Gonulta s ¸, T. Goldstein, and O. Tirkkonen, “Channel charting: Locating users within the radio environment using channel state information,”IEEE Access, vol. 6, pp. 47682–47698, 2018

    2018

  3. [3]

    J. M. Curry,Sheaves, cosheaves and applications, University of Pennsylvania, 2014

    2014

  4. [4]

    Hansen,Laplacians of cellular sheaves: Theory and applications, Ph.D

    J. Hansen,Laplacians of cellular sheaves: Theory and applications, Ph.D. thesis, University of Pennsylvania, 2020

    2020

  5. [5]

    Multipoint channel charting for wireless networks,

    J. Deng, S. Medjkouh, N. Malm, O. Tirkkonen, and C. Studer, “Multipoint channel charting for wireless networks,” inAsilomar Conference on Signals, Systems, and Computers, 2018, pp. 286–290

    2018

  6. [6]

    Federated learning for multipoint channel charting,

    P. Agostini, Z. Utkovski, and S. Sta ´nczak, “Federated learning for multipoint channel charting,” inIEEE 23rd International Workshop on Signal Processing Advances in Wireless Communication (SPAWC). IEEE, 2022, pp. 1–5

    2022

  7. [7]

    Multi-site wireless channel charting through latent space alignment,

    Y . Vindas and M. Guillaud, “Multi-site wireless channel charting through latent space alignment,” inIEEE 25th International Workshop on Signal Processing Advances in Wireless Communications, 2024, pp. 826–830

    2024

  8. [8]

    Distributed optimization with sheaf homolog- ical constraints,

    J. Hansen and R. Ghrist, “Distributed optimization with sheaf homolog- ical constraints,” in57th annual allerton conference on communication, control, and computing (allerton). IEEE, 2019, pp. 565–571

    2019

  9. [9]

    Distributed multi-agent coordination over cellular sheaves,

    T. Hanks, H. Riess, S. Cohen, T. Gross, M. Hale, and J. Fairbanks, “Distributed multi-agent coordination over cellular sheaves,” inIEEE Conference on Decision and Control, 2025, pp. 3057–3064

    2025

  10. [10]

    Tackling feature and sample heterogeneity in decentralized multi-task learning: A sheaf- theoretic approach,

    C. B. Issaid, P. Vepakomma, and M. Bennis, “Tackling feature and sample heterogeneity in decentralized multi-task learning: A sheaf- theoretic approach,”arXiv preprint arXiv:2502.01145, 2025

    Pith/arXiv arXiv 2025

  11. [11]

    Learning network sheaves for ai-native semantic communication,

    E. Grimaldi, M.E. Pandolfo, Gabriele G. D’Acunto, S. Barbarossa, and P. Di Lorenzo, “Learning network sheaves for ai-native semantic communication,” in2025 59th Asilomar Conference on Signals, Systems, and Computers. IEEE, 2025, pp. 1692–1696

    2025

  12. [12]

    Sheaves are the canonical data structure for sensor integration,

    M. Robinson, “Sheaves are the canonical data structure for sensor integration,”Information Fusion, vol. 36, pp. 208–224, 2017

    2017

  13. [13]

    Neural sheaf diffusion: A topological perspective on heterophily and oversmoothing in gnns,

    C. Bodnar, F. Di Giovanni, B. Chamberlain, P. Lio, and M. Bronstein, “Neural sheaf diffusion: A topological perspective on heterophily and oversmoothing in gnns,”Advances in Neural Information Processing Systems, vol. 35, pp. 18527–18541, 2022

    2022

  14. [14]

    Sheaf neural networks with connection laplacians,

    F. Barbero, C. Bodnar, H. S. de Oc´ariz Borde, M. Bronstein, P. Veliˇckovi´c, and P. Li `o, “Sheaf neural networks with connection laplacians,” in Topological, Algebraic and Geometric Learning Workshops. PMLR, 2022, pp. 28–36

    2022

  15. [15]

    Ranking and sparsifying a connection graph,

    F. Chung, W. Zhao, and M. Kempton, “Ranking and sparsifying a connection graph,”Internet Mathematics, vol. 10, pp. 87–115, 2014

    2014

  16. [16]

    Learning the structure of connection graphs,

    L. Di Nino, G. D’Acunto, S. Barbarossa, and P. Di Lorenzo, “Learning the structure of connection graphs,” inICASSP 2026-2026 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP). IEEE, 2026, pp. 76–80

    2026

  17. [17]

    Bundle neural network for message diffusion on graphs,

    J. Bamberger, F. Barbero, X. Dong, and M. M. Bronstein, “Bundle neural network for message diffusion on graphs,” inThe Thirteenth International Conference on Learning Representations

  18. [18]

    Triplet- based wireless channel charting: Architecture and experiments,

    P. Ferrand, A. Decurninge, L. G. Ordonez, and M. Guillaud, “Triplet- based wireless channel charting: Architecture and experiments,”IEEE Journal on Selected Areas in Communications, vol. 39, no. 8, pp. 2361– 2373, 2021

    2021

  19. [19]

    A solution for the best rotation to relate two sets of vectors,

    W. Kabsch, “A solution for the best rotation to relate two sets of vectors,” Foundations of Crystallography, vol. 32, no. 5, pp. 922–923, 1976

    1976

  20. [20]

    Towards optimal transport with global invariances,

    D. Alvarez-Melis, S. Jegelka, and T. S. Jaakkola, “Towards optimal transport with global invariances,” inThe 22nd International Conference on Artificial Intelligence and Statistics. PMLR, 2019, pp. 1870–1879

    2019

  21. [21]

    Manifold alignment using procrustes analysis,

    C. Wang and S. Mahadevan, “Manifold alignment using procrustes analysis,” inProceedings of the 25th international conference on Machine learning, 2008, pp. 1120–1127

    2008

  22. [22]

    A distributed massive mimo channel sounder for “big csi data

    F. Euchner, M. Gauger, S. D ¨orner, and S. ten Brink, “A distributed massive mimo channel sounder for “big csi data”-driven machine learning,” inWSA ; 25th International ITG Workshop on Smart Antennas. VDE, 2021, pp. 1–6

    2021

  23. [23]

    Learning sheaf laplacian optimizing restriction maps,

    L. Di Nino, S. Barbarossa, and P. Di Lorenzo, “Learning sheaf laplacian optimizing restriction maps,” in58th Asilomar Conference on Signals, Systems, and Computers. IEEE, 2024, pp. 59–63

    2024

  24. [24]

    Multidimensional scaling by optimizing goodness of fit to a nonmetric hypothesis,

    J. B. Kruskal, “Multidimensional scaling by optimizing goodness of fit to a nonmetric hypothesis,”Psychometrika, vol. 29, pp. 1–27, 1964

    1964

  25. [25]

    Neighborhood preservation in nonlinear projection methods: An experimental study,

    J. Venna and S. Kaski, “Neighborhood preservation in nonlinear projection methods: An experimental study,” inInternational conference on artificial neural networks. Springer, 2001, pp. 485–491

    2001

  26. [26]

    Unsupervised manifold alignment with joint multidimensional scaling,

    D. Chen, B. Fan, C. Oliver, and K. Borgwardt, “Unsupervised manifold alignment with joint multidimensional scaling,” inEleventh International Conference on Learning Representations (ICLR ), 2023

    2023
