PIER-Flow: Physics-Informed Efficient Rectified Flow for Real-Time Mobile Robot Navigation

T0 review · 2 major / 5 minor · reviewed 2026-07-14 · grok-4.5

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A single-step physics-informed flow policy matches MPC safety at millisecond latency for mobile robots.

desk verdict Solid edge-deployable systems paper: single-step RF distillation of MPC with a kinematic rollout loss and real Jetson numbers; safety is empirical under K=3/M=2 coverage, not a free guarantee. read the letter →

arxiv 2607.10288 v1 pith:232GVRDM submitted 2026-07-11 cs.RO

Shibo Li , Zhongcheng Wang , Jiahe Cao , Jianhua Yang , Ke Wu This is my paper
classification cs.RO
keywords collisionavoidancerectifiedflowphysics-informedtrainingactionchunkingmobilerobotnavigationmodelpredictivecontroldistillationedgeinference
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Mobile robots in dense, moving crowds need look-ahead planning that respects kinematics and stays safe, yet classical optimizers often become too slow or jittery on edge hardware, while pure behavior cloning averages incompatible maneuvers and diffusion models take too many steps. This paper claims that distilling an MPC expert into a rectified-flow ODE, trained with an extra differentiable kinematic rollout loss, lets a compact network produce a full action chunk in one Euler step. Parallel latent samples plus a cheap feasibility check over only the imminent commands then pick a safe mode without re-solving a nonlinear program. In simulation the method reaches 98.85 percent success with zero collisions at roughly 1.29 ms; on a Jetson Orin Nano it holds a stable ~5.3 ms latency and avoids the freezes and latency spikes of the baselines. The result matters because constant-time, multimodal, kinematically consistent planning becomes practical on the same compute that drives the chassis.

What carries the argument

Physics-informed rectified flow: a flow-matching loss on expert velocity chunks is augmented by a state loss that unrolls both predicted and expert commands through the same omnidirectional kinematics, transferring kinematic consistency into offline training; inference then runs one Euler step over a small fixed latent bank and selects by a non-optimized feasibility cost on the next E commands.

What would settle it

Run the same physical multi-dynamic trials with denser or faster obstacle fields outside the three-obstacle expert distribution; if collisions or freezes appear while latency remains low, the distillation-plus-selector claim fails.

Watch

Extended reading notes

Core claim

PIER-Flow shows that an MPC expert can be distilled into a rectified-flow velocity field regularized by differentiable kinematic unrolling, so that a single Euler step plus parallel latent sampling and a lightweight imminent-horizon feasibility selector recovers multimodal, collision-free action chunks at constant, near-millisecond latency both in simulation and on resource-constrained edge hardware.

Load-bearing premise

Safety is assumed to transfer from collision-free MPC demonstrations plus a simple cost check on only the next few commands and a few tracked obstacles, without any online optimizer or barrier correction.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 5 minor

Summary. The paper proposes PIER-Flow, a rectified-flow policy that distills an MPC expert into a conditional velocity field for horizon-H body-frame velocity chunks. Training combines a standard flow-matching loss with a physics-informed state loss obtained by unrolling predicted and expert actions through the same differentiable omnidirectional kinematics (Eqs. 6–9). At inference a single Euler step generates M parallel candidates from a fixed latent bank; a lightweight feasibility cost over only the imminent E execution steps selects a chunk that is then dispatched asynchronously to a higher-rate chassis controller. Simulation on 2000 held-out multi-obstacle cases reports 98.85% success, zero collisions and ~1.29 ms mean latency (Table I); ablations support single-step integration (Fig. 4) and the physics term (Table II). Hardware on a Jetson Orin Nano with RPLIDAR-S2 reports ~5.3 ms stable latency and success across four progressive static/dynamic scenarios, while MPC exhibits latency spikes, CBF freezing-like delays and DDIM fails to meet real-time constraints (Table III, Figs. 5–7).

Significance. If the reported latency–safety trade-off holds under broader conditions, the work supplies a practical constant-time generative alternative to online MPC and multi-step diffusion for edge mobile robots. Strengths include a clear expert-distillation pipeline, an explicit kinematic inductive bias rather than test-time projection, asynchronous action chunking that matches perception/control rates, and both large-scale simulation metrics and physical edge deployment with latency CDFs. The combination of single-step rectified flow, parallel candidate generation and a non-optimized feasibility selector is a concrete engineering contribution for high-frequency chassis control.

major comments (2)
  1. The central safety claim (zero collisions / high success at constant latency) rests on offline distillation of collision-free MPC rollouts plus a non-optimized feasibility cost over only the imminent E steps and K=3 tracked obstacles (Problem II vs. Eqs. 9–10 and Sec. III.C). The physics loss (Eqs. 6–9) matches kinematic rollouts to the expert trajectory; it does not enforce collision constraints. Expert data and the selector both assume at most three circular obstacles (padded dummies), a fixed 0.2 m margin and M=2 candidates. Hardware (Table III) uses four progressive but still low-density scenarios and does not stress higher obstacle counts, non-circular geometry or modes outside expert/selector support. Without additional closed-loop stress tests or an explicit statement of the coverage assumptions under which zero-collision transfer is claimed, the generalization of the safety resul
  2. Table I and Sec. IV.B report that BC-MLP is faster (0.54 ms) yet incurs 0.30% collisions, while PIER-Flow reaches zero collisions with M=2. The manuscript attributes this to multimodality, but provides no quantitative mode-coverage or diversity analysis (e.g., fraction of left/right passages recovered, entropy of selected candidates, or failure cases when the mean latent alone is used). Given that M=2 is deliberately minimal, a short ablation isolating the contribution of the second latent versus the feasibility selector would strengthen the claim that generative multimodality, rather than the selector alone, is responsible for the safety gain over BC-MLP.
minor comments (5)
  1. Eq. (1) and the subsequent expert description set commanded yaw rate to zero during data collection, yet the policy outputs a full [vx, vy, ω] chunk. Clarify whether nonzero ω appears in the expert set and how the physics loss treats yaw when the expert is effectively holonomic.
  2. Fig. 4 shows single-step integration dominating multi-step solvers; a one-sentence discussion of why additional Euler steps degrade success (overshoot of the learned straight path, accumulation of network error) would help readers.
  3. Notation: St is defined as R^24 with K=3, yet the network input dimension is written as 60+64+24; a brief consistency check or expanded dimension table would avoid confusion.
  4. Real-world perception (Sec. V.A) uses NMS clustering and EMA velocity estimation; report the effective tracking error or false-positive rate so that residual sim-to-real perception gap can be assessed.
  5. Minor presentation: arXiv date stamp and placeholder manuscript dates; ensure final DOI/affiliation lines are complete. A few repeated phrases (“approximately stable”) can be tightened.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: standard MPC distillation into rectified flow with empirical closed-loop evaluation; physics term is inductive bias, not a forced prediction.

full rationale

The paper proposes an engineering method (PIER-Flow) that trains a conditional rectified-flow velocity network on collision-free MPC expert action chunks (Eqs. 2–5), augments the flow-matching loss with a differentiable kinematic rollout matching the same expert trajectories under shared omnidirectional kinematics (Eqs. 6–9), and at inference performs single-step Euler generation of M candidates followed by a non-optimized feasibility cost over only the imminent E steps (Eq. 10). Headline numbers (98.85 % success, 0 collisions, ~1.29 ms sim / ~5.3 ms edge latency) are measured closed-loop outcomes against the same expert and independent baselines (Tables I, III; Figs. 3, 5), not quantities derived by construction from fitted constants or self-defined identities. No uniqueness theorem, ansatz, or load-bearing premise is imported solely via overlapping-author citation; the physics term simply regularizes imitation and does not equate a prediction to its own input. The derivation chain is therefore self-contained empirical imitation learning, free of the enumerated circularity patterns.

Assumptions & free parameters 5 free parameters · 5 assumptions · 2 invented entities

The central empirical claim rests on standard robot kinematics and imitation of an MPC expert, plus several hand-chosen training and inference knobs (loss weight, action scaling, horizon, candidate count, execution ratio). No new physical entity is postulated; the ‘entities’ are engineering modules. Safety is not derived from a certificate—it is assumed to transfer from expert data plus a cheap selector.

free parameters (5)
  • lambda_phys = 10
    Weight on the kinematic state loss in L_total = L_flow + λ_phys L_state; set empirically to 10 and used in the final model (Sec. III.B, IV.A).
  • gamma_scale = 10
    Action amplification scalar for gradient flow during training; set to 10 and inverted after inference (Sec. III.A–B, IV.A).
  • M_parallel_candidates = 2
    Number of parallel latent candidates at inference; set to 2 (noise mean + one fixed seed) for reported latency/performance (Sec. IV.B, V.A).
  • H_horizon_and_E_execution = H=20, E=2, Δt=0.05s
    Action chunk length H=20 (1.0 s at Δt=0.05 s) and execution steps E=f_ctrl/f_plan=2 for 10 Hz plan / 20 Hz control; structural free design choices that define the reported system (Sec. III.A, III.C).
  • K_obstacles_and_safety_margins = K=3; d_safe/margins as stated
    Observation tracks K=3 most threatening obstacles; MPC data and feasibility cost use fixed safety inflation (e.g., 0.2 m in sim). These hand choices bound what the policy can see and reject (Sec. III.A, III.C, IV.A).
assumptions (5)
  • domain assumption Discrete omnidirectional kinematics f_kin and the finite-horizon NLP (Eq. 1) correctly represent the local navigation task for the mecanum platform.
    Problem formulation (Sec. II) and rollout (Eq. 7) treat this model as ground truth for both expert generation and the physics loss.
  • domain assumption Collision-free MPC rollouts are high-quality multimodal expert demonstrations worth imitating.
    All learning baselines train on the same 2000 successful MPC episodes (Sec. III.A, IV.A); performance is judged largely by matching expert safety/success.
  • domain assumption Rectified-flow transport is sufficiently straight that a single Euler step yields usable action chunks.
    Inference uses one-step Euler; ablation (Fig. 4) is offered as support, but the operational system assumes this property holds after training.
  • ad hoc to paper Evaluating only the imminent E steps with a hand-designed feasibility cost is enough to reject unsafe candidates without online optimization.
    Sec. III.C and Eq. 10 define C_feas over E steps only; this is a paper-specific substitute for MPC/CBF correction.
  • standard math Standard flow-matching / rectified-flow training objectives and MLP universal approximation are valid for conditional action-chunk generation.
    Eqs. 4–5 follow Liu et al. / Lipman et al. flow matching as cited; used without re-derivation.
invented entities (2)
  • PIER-Flow physics-informed flow objective (L_flow + λ_phys L_state via differentiable kinematic unrolling)
    purpose: Transfer kinematic consistency into offline training so single-step generation stays closer to expert trajectories without test-time projection.
    Defined in Sec. III.B (Eqs. 6–9). It is a training construction, not an independently measured physical object; evidence is ablation Table II and sim-to-real claims.
  • Lightweight feasibility selector over parallel single-step candidates
    purpose: Screen unsafe or limit-violating action chunks in constant time without invoking MPC.
    Introduced in Sec. III.C (Eq. 10). Performance evidence is internal (success/collision/latency tables); no external certificate or third-party validation.

how reviews work

0 comments
Cite this review

Pith. "Pith review of PIER-Flow: Physics-Informed Efficient Rectified Flow for Real-Time Mobile Robot Navigation." pith.science (2026). https://pith.science/paper/232GVRDM

@misc{pith2026260710288,
  author       = {Pith},
  title        = {Pith review of: PIER-Flow: Physics-Informed Efficient Rectified Flow for Real-Time Mobile Robot Navigation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/232GVRDM}},
  note         = {Machine review of arXiv:2607.10288}
}
abstract

Autonomous navigation in dense and highly dynamic environments requires both physically feasible control and low-latency replanning. Optimization-based methods such as Model Predictive Control (MPC) explicitly handle robot kinematics and safety constraints, but repeated nonlinear optimization can limit real-time responsiveness. Deterministic behavior-cloning policies enable efficient inference but may fail to represent multimodal avoidance behaviors, whereas diffusion policies capture multimodality at the cost of time-consuming iterative denoising. We propose PIER-Flow (Physics-Informed Efficient Rectified Flow), a lightweight navigation policy for mobile robots. By distilling an MPC expert into a continuous-time Ordinary Differential Equation (ODE), PIER-Flow achieves single-step action generation through parallel latent sampling and lightweight feasibility selection. We introduce a physics-informed training objective to enforce kinematic consistency, paired with an asynchronous action chunking architecture for robust sim-to-real deployment. Extensive simulations demonstrate that PIER-Flow achieves a 98.85\% success rate and zero collisions, with an average inference of $\sim$1.29 ms, which accelerates planning by 37.2$\times$ compared to MPC and over 800$\times$ against standard diffusion models. Crucially, real-world deployment on a resource-constrained edge computer further achieves an approximately stable inference latency of $\sim$5.3 ms, avoiding the latency spikes and freezing events observed with planning baselines.

Figures

Figures reproduced from arXiv: 2607.10288 by the authors.

Figure 1
Figure 1. Overview of the proposed Physics-Informed Efficient Rectified Flow (PIER-Flow) navigation framework. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Asynchronous timing diagram illustrating the action chunking strategy. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Comparison of success rates and inference latency (log-scale). [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (4 more)

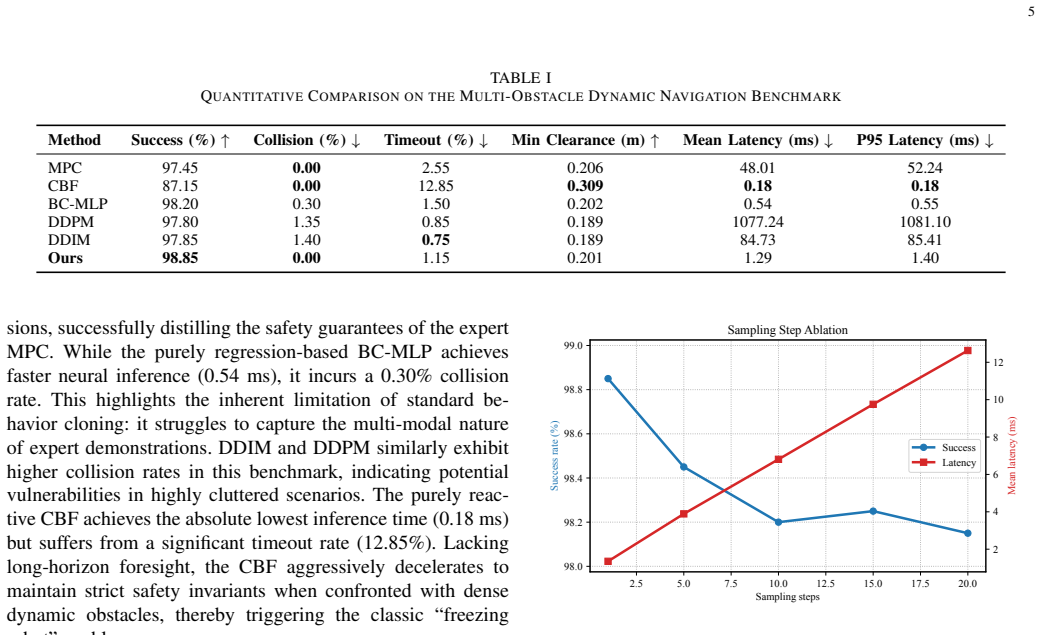

Figure 4
Figure 4. Figure 4: Impact of integration steps on navigation success rate and inference [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5
Figure 5. Figure 5: Per-step Latency CDF recorded during physical deployment. Our [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]
Figure 6
Figure 6. Figure 6: Trajectory visualization for Ours, MPC, and CBF across the four [PITH_FULL_IMAGE:figures/full_fig_p007_6.png]
Figure 7
Figure 7. Figure 7: Real-world deployment snapshots in the Multi Dynamic scenario (corresponding to the trajectories in Fig. 6). Red arrows indicate the robot’s [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]
