Medical Image Segmentation based on Deep Active Contour and Mean Curvature Loss Function

T0 review · 3 major / 5 minor · reviewed 2026-07-15 · grok-4.5

Pith's one-line read A loss that adds mean-curvature geometry to active-contour training yields smoother, more connected organ segmentations on liver CT and spleen MRI.

desk verdict Incremental geometric loss that posts small Dice gains on two tiny 2-D sets; the SOTA claim is real relative to the four baselines shown, but the “mean-curvature” term is a fixed 3 imes3 filter whose geometric fidelity is never checked. read the letter →

arxiv 2607.12586 v1 pith:PMGNTDEM submitted 2026-07-14 eess.IV cs.CV

classification eess.IVcs.CV
keywords medicalimagesegmentationmeancurvatureactivecontourmodellossfunctionregularizationdeeplearningChan-Vese
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Pixel-wise losses used in deep medical segmentation ignore the geometry of the regions they produce, so networks often leave holes or jagged boundaries. Earlier work folded the Chan-Vese energy (region averages plus boundary length) into the training objective; this paper goes one step further by adding mean curvature as an explicit geometric penalty. The resulting DACMC loss is the sum of a region-fitting term and a cheap convolution-kernel estimate of mean curvature, and it is trained end-to-end with ordinary U-Net or CE-Net backbones. On a public liver CT set and a spleen MRI set the same networks reach higher Dice and better surface metrics than cross-entropy, Dice, active-contour, or elastica losses. The practical claim is that a lightweight geometric regularizer can restore the connectivity and smoothness that pure data-driven losses lack, without changing the network architecture.

What carries the argument

The DACMC loss: a region term taken from the Mumford-Shah/Chan-Vese model plus a mean-curvature penalty approximated by a fixed 3x3 convolution kernel, evaluated on the network's soft prediction mask.

What would settle it

Replace the kernel approximation with an exact discrete mean-curvature operator (or a higher-order finite-difference scheme) on the same networks and datasets; if Dice and surface metrics then drop or become unstable, the kernel-surrogate premise fails.

Watch

Extended reading notes

Core claim

The authors claim that embedding a convolution-kernel approximation of mean curvature into a Chan-Vese-style region loss produces a single training objective (DACMC) that measurably improves organ segmentation accuracy and boundary quality over several established geometric and pixel-wise losses.

Load-bearing premise

The fixed convolution kernel is assumed to be a faithful enough stand-in for true mean curvature that the geometric penalty it produces reliably enforces connectivity and smoothness without systematic bias.

Editorial extensions

If this is right

  • Any encoder-decoder network can adopt the same loss without architectural change and obtain smoother, more connected organ masks.
  • The single scalar weight on the curvature term becomes a practical dial for trading boundary regularity against region fidelity.
  • Because the kernel is GPU-friendly, the geometric prior can be used at full resolution during training rather than only at post-processing.
  • The same construction can be applied to other organs or modalities whose topology is known a priori to be simply connected.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the kernel approximation is the dominant source of error, replacing it with a learned or higher-order curvature estimator should yield further gains without altering the rest of the loss.
  • The method may be especially useful for few-shot or noisy-label regimes where geometric priors can compensate for scarce or imperfect annotations.
  • Extending the curvature term to multi-class or 3-D volumes would test whether the same cheap approximation continues to enforce topology at higher dimension.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The manuscript proposes DACMC, a supervised loss for medical image segmentation that combines a Chan-Vese/Mumford-Shah region term with a geometric regularizer intended to encode mean curvature. The continuous mean-curvature definition is stated (Definition 1, Eq. 9), but the implemented term (Eqs. 16-19) replaces it by a fixed 3x3 convolution kernel of Gong applied to both prediction and ground-truth masks, followed by a normalized absolute Hadamard product. The loss is trained with U-Net (and claimed with CE-Net) on a small liver CT set (100 train / 15 val / 16 test) and a spleen MRI subset of CHAOS (120/20/25). Table 1 reports the highest DSC among CE, DC, AC and ACE baselines (0.9426 liver, 0.8443 spleen) and improved surface metrics on the spleen set; qualitative figures illustrate smoother, more connected masks.

Significance. If the geometric term were a faithful, differentiable surrogate for mean curvature and the gains held under stronger baselines and larger cohorts, the work would supply a simple, drop-in regularizer that injects classical geometric priors into modern segmentation networks. The idea of marrying active-contour energies with deep losses is already present in the literature (AC, ACE, MS-driven losses), so the incremental contribution rests entirely on the curvature approximation and the empirical numbers. The paper does not ship code, analytic error bounds, or machine-checked derivations; its value is therefore purely empirical and currently limited by the narrow experimental design.

major comments (3)
  1. Section IV, Eqs. (16)-(19) versus Definition 1 / Eq. (9): the implemented regularizer is not mean curvature. Definition 1 correctly writes H(u)=div(nabla u / sqrt(1+|nabla u|^2)), yet the loss replaces this by | (Kernel * u) * (Kernel * v) / (Kernel * v + eps) | with a fixed 3x3 stencil. No derivation, consistency proof, or numerical comparison to analytic or finite-difference mean curvature is supplied. Consequently the claim that performance gains arise from 'mean-curvature geometric constraints' (abstract, highlights, ablation narrative) is unsupported; any local smoother could produce the same effect. A quantitative validation of the approximation (or an explicit re-statement that the term is merely a local filter) is load-bearing for the central mechanistic claim.
  2. Table 1 and Section V.A: experimental evidence is too thin to support a 'new state-of-the-art' claim. Test sets contain only 16 liver and 25 spleen images; only four classical losses are compared; CE-Net results are promised in the text but never tabulated; lambda is hand-tuned without sensitivity curves or cross-validation ranges; no statistical significance tests or multi-run standard deviations beyond the reported variances are given. These limitations make the numerical superiority fragile and non-generalizable.
  3. Section VI.C (Ablation Study): the narrative attributes successive DSC gains to 'deep active contour regularization, mean curvature loss, and their synergistic combination,' yet the only tabulated numbers are the five complete loss functions. No controlled experiment isolates the kernel term from the region term, nor compares the Gong kernel against a true discrete mean-curvature operator or against a simple total-variation / length term. Without that isolation the causal attribution remains conjectural.
minor comments (5)
  1. Equation numbering is inconsistent: the Mumford-Shah model is labeled (3) then later referred to as (2); the hybrid loss is (5) while the ACE loss is (7); the DACMC loss appears both as (10) and (16).
  2. Notation for the predicted mask switches among u_bar_theta, u_tilde_theta, u_i,j without definition of the relationship between continuous and discrete forms.
  3. Figures 3 and 4 lack quantitative per-image metrics or zoomed boundary insets that would let a reader verify the claimed connectivity/smoothness improvements.
  4. Several references carry future or mismatched years (e.g., 2025-2026 arXiv entries, 'CVPR 2026 Forthcoming'); these should be cleaned or replaced by stable citations.
  5. The abstract and highlights claim 'several segmentation datasets' while only two organs are evaluated; the wording should be tightened.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: DACMC is an empirical loss design (region term + fixed kernel) trained and scored on held-out images; nothing is forced by construction or self-citation.

full rationale

The paper defines a composite loss (Eqs. 16–19) that adds a fixed 3 imes3 convolution kernel (taken from independent prior work of Gong) to a Chan-Vese/Mumford-Shah region term, then trains standard U-Net/CE-Net architectures and reports Dice/HD95/etc. on held-out liver CT and spleen MRI slices (Table 1). No parameter is fitted to a subset of the evaluation data and then re-used as a “prediction”; the kernel coefficients are constant, c1/c2 are either recomputed from the current mask or fixed to the binary constants 1/0, and the SOTA claim is simply the numerical ranking of those experimental numbers against CE/DC/AC/ACE. Definition 1 and the continuous mean-curvature formula (Eq. 9) are never algebraically recovered from the implemented Hadamard-product term, but that is a correctness/approximation issue, not a circular derivation. There are no load-bearing self-citations of uniqueness theorems, no ansatz smuggled from the authors’ own prior papers, and no renaming of a known empirical pattern. The entire chain is therefore self-contained and non-circular.

Assumptions & free parameters 3 free parameters · 3 assumptions · 1 invented entities

The central empirical claim rests on a small number of free weights, standard geometric definitions, and one ad-hoc surrogate for curvature; no new physical entities are postulated. The ledger therefore mainly records the tunable scalar λ and the modeling choice that a fixed convolution equals mean curvature.

free parameters (3)
  • λ (curvature weight) = not numerically reported
    Hand-tuned on validation data; paper states only that a 'suitable interval' was found and that values too large or small degrade results (Section VI.B).
  • learning rate = 0.0001
    Fixed at 0.0001 after informal search for each loss (Section V.C); affects all reported metrics.
  • c1, c2 (region means) = 1 and 0
    Hard-coded to 1 and 0 for supervised training rather than recomputed each iteration (Section IV).
assumptions (3)
  • standard math Mean curvature of a graph surface is given by the classical divergence formula H(u) = div(∇u / √(1+|∇u|²))
    Invoked as Definition 1 and Eq. (9) without proof; standard differential geometry.
  • ad hoc to paper A fixed 3×3 convolution kernel supplies a sufficiently accurate and differentiable approximation to mean curvature for back-propagation
    Stated in Eqs. (18)–(19) and used throughout training; no error bound or comparison to finite-difference curvature is supplied.
  • domain assumption Medical organ masks benefit from an explicit mean-curvature geometric prior that promotes connectivity and smoothness
    Motivating claim of Sections I and IV; taken as given from classical active-contour literature.
invented entities (1)
  • DACMC loss function
    purpose: Combines Chan-Vese region energy with the convolution-approximated mean-curvature term into a single scalar used for end-to-end training.
    Defined in Eqs. (10), (16)–(17); the specific combination and the particular form of C are original to this paper.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Medical Image Segmentation based on Deep Active Contour and Mean Curvature Loss Function." pith.science (2026). https://pith.science/paper/PMGNTDEM

@misc{pith2026260712586,
  author       = {Pith},
  title        = {Pith review of: Medical Image Segmentation based on Deep Active Contour and Mean Curvature Loss Function},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/PMGNTDEM}},
  note         = {Machine review of arXiv:2607.12586}
}
read the original abstract

Medical image segmentation is a crucial task in the field of clinical analysis and applications. Though deep learning techniques recently play a crucial role in several scenarios, the training at the individual pixel level leads to a lack of geometric prior information. Scholars proposed to integrate the Chan-Vese model into the loss function for training which can take into account the region and length of the region inside and outside the segmentation process and then improve the performance in medical image segmentation. However, these methods still lack an effective characterization of the segmented region. To overcome this problem, we introduce the mean curvature as a geometric natural constraint and propose a Deep Active Contour and Mean Curvature (DACMC) loss function where the convolution kernel is used to approximate the mean curvature to save computational cost. We have validated the performance of our method on the liver and spleen dataset. Our proposed method demonstrates new state-of-the-art performance on several segmentation datasets.

Figures

Figures reproduced from arXiv: 2607.12586 by the authors.

Figure 1

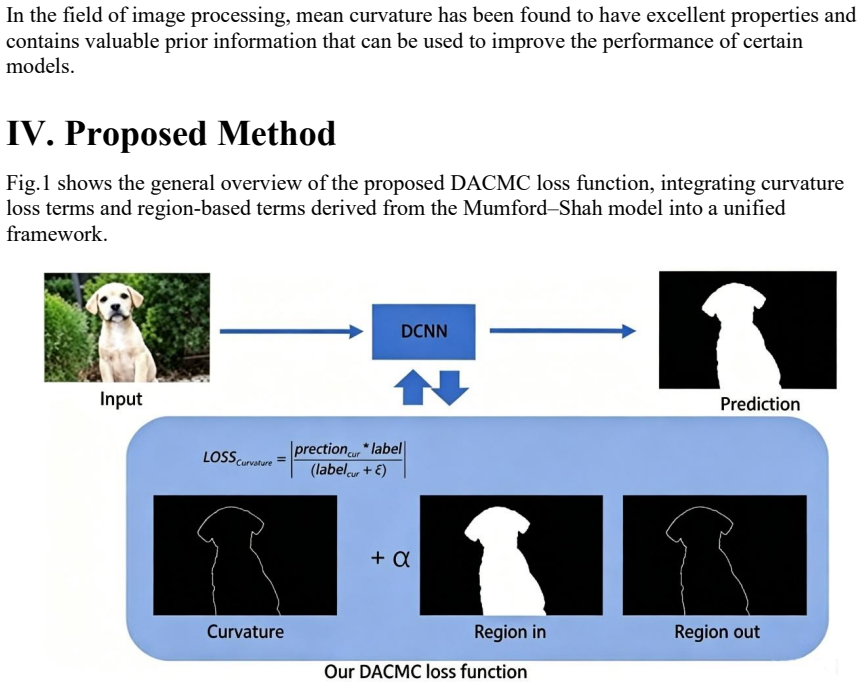

Figure 1. The general overview of the proposed DACMC loss, integrating curvature loss terms and [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗
Figure 2
Figure 2. Consider the iterative case of segmentation boundaries for network prediction. The region [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. Segmentation results on the liver CT dataset. From left to right: original image, Ground [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figures from the paper (1 more)
Figure 4
Figure 4. Figure 4: Segmentation results on the spleen MRI dataset. From left to right: original image, Ground [PITH_FULL_IMAGE:figures/full_fig_p011_4.png]
