REVIEW 4 major objections 6 minor 36 references
Effective Complexity Reduction of the Landau-de Gennes Elastic Energy: A Quantitative Framework and Numerical Validation
T0 review · 4 major / 6 minor · reviewed 2026-08-01 · deepseek-v4-flash
Pith's one-line read This paper derives explicit thresholds on the Landau–de Gennes elastic constants below which dropping L3 or L2 leaves minimizers essentially unchanged, with error proportional to the dropped ratio.
desk verdict Useful new thresholds for reducing the LdG elastic energy, but the numerics never test the L3 boundary: the GOS value sits above the Ericksen cap, so the validation shows only that smaller is smaller. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The central object is the Generalized Optimal Scaling (GOS) procedure, an equation-free method that builds a complete set of dimensionless governing parameters from the physical parameters' units, then minimizes a cost function in log-space so that all dimensionless coefficients except the targeted one are driven to order unity. Its output is a power-law monomial threshold for the targeted parameter — for L3 a 41st root, for L2 a 26th root — and the paper's claim is that the ratio λ = P/P_crit controls the error: when λ ≪ 1, the minimizers of the full and reduced energies deviate only at order λ. The paper also proves (Appendix D) that these thresholds are invariant under the spatial and ene
What would settle it
Repeat the same comparison with the FIRE force cutoff set to 10^-10; if the measured relative deviation μ0 no longer tracks λ^0.82 or λ^0.93 at small λ but instead saturates at a noise floor, the numerical confirmation of the GOS scaling fails. Also, run the (L1,L2,0)→(L1,0,0) comparison at a different domain size (e.g., L=1 μm instead of 300 nm) or a different anchoring strength; the GOS threshold changes with these parameters, so the predicted μ0 should change accordingly.
Extended reading notes
Core claim
The claim, stated on the paper's own terms, is that both model reductions admit explicit boundaries: L3 << (L1^15 L2^15 a b c W^8 L^7 R^7)^(1/41) for (L1,L2,L3) → (L1,L2,0), and L2 << (L1^15 a b c L^7 R^7 W^8)^(1/26) for (L1,L2,0) → (L1,0,0). These thresholds are computed by GOS, which rescales space and energy so that every dimensionless coefficient except the targeted one is pushed toward unity, forcing the target constant to scale away. The numerical experiments bear out the scaling: the relative L2 deviation between minimizers is of the same order as λ = (neglected constant)/(critical threshold), decreasing to ~10^-7 when λ=10^-7, and the fitted exponents (0.82 and 0.93) are both near 1.
Load-bearing premise
The numerical verification assumes that the minimizer at force tolerance 10^-12 resolves Q-tensor differences as small as those produced by λ=10^-7, and that one spherical-colloid geometry with one initial random configuration represents the general parameter dependence of the GOS threshold — an assumption the paper itself flags in Remark 9, noting that looser tolerances inflate the measured error by one to two orders of magnitude.
Editorial extensions
If this is right
- Computational physicists can pre-check whether a planned reduction is safe by evaluating one power-law monomial, and quantify the expected error before running expensive simulations.
- The two reductions can be chained (L1,L2,L3)→(L1,L2,0)→(L1,0,0), with the total error bounded by roughly the sum of the two ratios; in the paper's example this justifies the one-constant approximation within 14%.
- The same GOS machinery gives similar thresholds for other parameters (W, L, R, a, b, c) in Tables II and III, so the framework extends beyond elastic constants.
- The fitted power laws (exponents near 1) mean that the deviation shrinks essentially linearly with the ratio λ, so a factor-of-ten smaller constant gives a factor-of-ten smaller error.
Reading between the lines
- The two fitted exponents (0.82 and 0.93) sit close to, but not exactly at, 1; whether the deviation from unity is a finite-size effect, a consequence of the single geometry, or an intrinsic feature of GOS is not resolved by the paper, and testing a second geometry would distinguish these.
- Because the thresholds depend on W, L, and R as powers, the criterion can be rephrased as a dimensionless comparison — for instance, against the anchoring extrapolation length K/W — which could connect GOS to familiar regimes in colloid science without additional computation.
- The strong sensitivity of μ0 to the FIRE force tolerance (Remark 9) suggests that any practical use of this diagnostic should include a tolerance check; otherwise, numerical noise at looser tolerances will be mistaken for the physical scaling.
- A natural next test is a multi-colloid or patterned-wall system, where the elastic energy landscape is qualitatively different; if the same thresholds hold there, the criterion would become a general tool for complex nematic geometries.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper applies the Generalized Optimal Scaling (GOS) procedure, introduced in a previous paper by two of the authors, to derive explicit power-law thresholds for reducing the Landau–de Gennes elastic energy from (L1,L2,L3) to (L1,L2,0) and from (L1,L2,0) to (L1,0,0). The thresholds are Eqs. (5) and (7). The authors then use openQmin simulations of a spherical colloid in a periodic nematic cell to measure the relative L2 deviation between full and reduced minimizers, and report log-log scaling laws (6) and (8) that they interpret as confirming the GOS predictions. The paper concludes that the GOS thresholds provide a quantitative validity criterion for the one-constant approximation.
Significance. If the quantitative claim were fully established, the paper would give practitioners a much-needed, non-ad-hoc rule for when the one-constant approximation is safe in Landau–de Gennes simulations. The GOS algebra in Appendix B is explicit and reproducible, the input tables (Appendix C) are detailed, and the raw simulation data are deposited on Zenodo. The paper also connects a formal dimensional-analysis framework to concrete parameter regimes, which is potentially useful. However, as discussed below, the numerical validation does not currently support the central claim that the GOS threshold marks the boundary of validity, and there are internal inconsistencies in the stated physical parameters.
major comments (4)
- [§IV, Eq. (5), Appendix C, Table IV] The GOS threshold for the (L1,L2,L3)->(L1,L2,0) reduction lies outside the Ericksen-admissible domain. With L1≈3.913 pN, Eq. (4) requires L3<2L1≈7.826 pN, but Eq. (5) gives L3≈9.276 pN. Thus no Ericksen-valid L3 can equal or exceed the threshold; the numerical sweep includes λ3=1 (Table IV, last row), whose rescaled L3≈5.993 exceeds 2L1≈5.056 and violates the paper's own stability constraint (K24<2K2). The simulations therefore probe only the regime where L3 is small relative to the threshold and never test whether the reduction fails as L3 approaches the predicted boundary. The data show that small L3 gives small deviations, but they cannot distinguish the GOS boundary from the Ericksen stability boundary. To validate Eq. (5), the authors need a parameter set for which the threshold lies inside the admissible interval, or a direct test of the error across the boundary.
- [§III, Eqs. (6) and (8), Remark 1] The error scalings (6) and (8) are fitted to the same openQmin data that they are then used to confirm. The exponents 0.820 and 0.928 and the prefactors 0.174 and 0.925 are free parameters of a log-log least-squares regression, not outputs of the GOS derivation. GOS provides thresholds, not error-scaling exponents; Remark 1's claim that the error has 'the same order of magnitude as λ_p' is not a quantitative prediction of a specific exponent. Consequently, the numerical agreement is a consistency check with a power-law ansatz, not an independent validation of a derived scaling law. Moreover, the fits include λ3=1, which is nonphysical as noted above, so the reported regression may be biased.
- [§IV, Eqs. (13)-(14), Remark 6, Appendix C.2] The second reduction case contains an internal inconsistency in the physical parameters. The text states that for the (L1,L2,0)->(L1,0,0) case, K1=K3=8 pN, K2=5 pN, and K24=5 pN. Using Eq. (11), this gives L2=α(K1-K24)=1.565×(8-5)=4.695 pN, not the 1.565 pN reported in Eq. (14). A consistent set yielding L2=1.565 pN and L3=0 would require K1=K3=6 pN. This propagates to Remark 6, where λ2≈0.060 is used, whereas the stated K values would give λ2≈4.695/25.897≈0.181. The input data in Table V are consistent with L2≈4.695 pN at the initial state (dimensionless L2≈3.033), not with Eq. (14). The authors should specify the exact OF constants used for the openQmin runs and reconcile them with Eq. (14), the threshold value L2≈25.897 pN, and the numerical examples.
- [§V, Remark 9] The validation is sensitive to the numerical minimization tolerance. The authors state that using a FIRE force cutoff of 10^-10 instead of 10^-12 inflates the measured µ0 by one to two orders of magnitude and changes the scaling coefficients. The smallest λ values correspond to µ0 ~10^-7, close to typical convergence noise, so the reported power laws at the low-λ end may reflect numerical artifacts rather than physical model error. A convergence study over force tolerance, lattice size, and several independent random initial conditions is needed to establish that the observed scaling is robust. As written, the evidence rests on a single random configuration and a single geometry.
minor comments (6)
- [§IV, Eq. (10)] The definition of α is ambiguous: 'α=4/9S^2' should read α=4/(9S^2) to yield the stated numerical value ≈1.565.
- [Appendix B, Table II] In the row for target L3, the right-hand side contains L15_3 instead of L15_1; this is inconsistent with Eq. (5) and with the dimensional balance of the inequality.
- [Throughout] The symbol L3 is used both for the elastic constant and for the threshold in Eqs. (5), (7), and Appendix C. This overloaded notation is confusing; consider using L_3^c or an overbar.
- [Figures 1 and 2] The figures show no error bars or confidence bands for the fits. Given the tolerance sensitivity reported in Remark 9, the authors should indicate whether the data points are deterministic for the fixed seed and provide residual or confidence information for the regression.
- [Appendix C, headings] The heading 'The (L1,L2,L3)->(L1,L2,0) case' appears twice; the second section should be titled 'The (L1,L2,0)->(L1,0,0) case'.
- [Appendix B, Eqs. (B4)-(B5)] 'Semipositive definite' should be 'positive semidefinite'.
Circularity Check
GOS thresholds rest on a self-citation chain; the numerical 'confirmation' is a regression on the same data used as validation.
-
self citation load bearing
[Section III (GOS paragraph); Appendix B.1 (Eqs. B2-B4, B3; citations to [1, Theorems 1,2,3,5,7])]
"Generalized Optimal Scaling (GOS), developed in [1], is an advanced, equation-free methodology... We assume, as in [1], that the characteristic constants θ1 and θ2 can be written as a product of powers of the physical parameters... The existence of such optimal choice for the exponents ⃗α is given by [1, Theorem 7]."
The central thresholds (5) and (7) are not derived from first principles in this paper: they are outputs of GOS as defined in the same-authors' prior work [1]. The power-law rescaling ansatz and the existence/optimality theorem that set the 41st- and 26th-root exponents are imported by citation, not independently derived or benchmarked. The only later verification is simulations parameterized by these same thresholds (λ3 = L3/L3bar, λ2 = L2/L2bar), so the threshold formula itself is never tested independently of its self-cited source.
-
fitted input called prediction
[Section III.A, Eq. (6); Section III.B, Eq. (8); Remark 5; Abstract]
"For the numerical values of µ0 and λ3, we pass them into the log−log scale and the Pearson coefficient for the achieved data is 0.9893... we find the following relation: log10(µ0)≈0.820 log10(λ3)−0.760, which is equivalent to µ0 ≈0.174·λ3^0.820. (6)"
The relation presented as confirming the GOS prediction is obtained by a log-log regression on the very same simulated µ0 values that are then said to confirm it. The exponent 0.820 and prefactor 0.174 are outputs of the data, not independent predictions from the scaling theory; the same holds for Eq. (8) with 0.928 and 0.925. Remark 5 then evaluates this fitted curve at the initial λ3≈0.338 to 'predict' a 7% deviation, so the numerical validation is partly an interpolation of the data used to fit the power law.
full rationale
The paper has algebraic content: the GOS threshold expressions are explicit, dimensionally consistent formulas, and real openQmin simulations were performed. However, the load-bearing threshold framework is taken from [1], whose authors overlap with the present paper, and no independent benchmark of GOS is provided. More importantly, the headline numerical 'confirmation' reduces to a fit: Eqs. (6) and (8) are regressions on the same µ0 data that are then advertised as validating the scaling theory, and Remarks 5-6 use those fitted curves to 'predict' errors. I do not count the Ericksen-admissibility problem (λ3=1 and L3≈5.99 exceeding 2L1≈5.06 in the rescaled setting, violating K24<2K2) as circularity; it is a separate correctness risk showing the boundary is never approached from the admissible side. Likewise, Remark 9's disclosure that looser FIRE tolerances inflate µ0 by one to two orders of magnitude is a data-quality limitation, not circularity. Overall, the central validation claim is partially constructed from its own outputs, so a score of 6 reflects partial circularity rather than a fully empty derivation.
Assumptions & free parameters
free parameters (4)
- error-scaling exponent in Eq. (6) =
0.820
- error-scaling prefactor in Eq. (6) =
0.174
- error-scaling exponent in Eq. (8) =
0.928
- error-scaling prefactor in Eq. (8) =
0.925
assumptions (4)
- domain assumption GOS methodology from [1] correctly identifies scale-separation regimes for the LdG functional; specifically the existence and optimality of the exponents used in Eqs. (5) and (7) (Theorems 1,2,3,5,7 in [1]).
- domain assumption FIRE minimization in openQmin reliably finds the global minimizer (or at least the same minimizing branch) for the considered parameters, and the discrete L2 norm of the difference between full and reduced minimizers is dominated by physical model error rather than numerical noise at force tolerance
- domain assumption The single chosen geometry and material parameters (L=300 nm, R=75 nm, W=5×10^-4 J/m^2, 5CB bulk coefficients, K1=K3=8 pN, K2=5 pN) are representative for validating the general parameter dependence of the GOS thresholds.
- domain assumption The discrete L2 norm on the 100^3 lattice approximates the continuum L2 norm (stated in Section V).
Cite this review
Pith. "Pith review of Effective Complexity Reduction of the Landau-de Gennes Elastic Energy: A Quantitative Framework and Numerical Validation." pith.science (2026). https://pith.science/paper/YRUOIDUO
@misc{pith2026260719920,
author = {Pith},
title = {Pith review of: Effective Complexity Reduction of the Landau-de Gennes Elastic Energy: A Quantitative Framework and Numerical Validation},
year = {2026},
howpublished = {\url{https://pith.science/paper/YRUOIDUO}},
note = {Machine review of arXiv:2607.19920}
}
abstract
We revisit the elastic energy formulation of the Landau-de Gennes model for nematic liquid crystals, focusing on quantitative reductions of the multi-constant elastic energy. Building on the generalized optimal scaling procedure (GOS) introduced by Rusconi et al. in 2025, we identify explicit parameter regimes in which the three-constant model $(L_1,L_2,L_3)$ can be reduced to $(L_1,L_2,0)$ and how the two-constant model $(L_1,L_2,0)$ can be reduced to the commonly used one-constant configuration $(L_1,0,0)$. The analytical scaling predictions are tested numerically using the openQmin simulation framework, confirming that below a critical threshold for $L_3$ or $L_2$, given by GOS, the deviation from the reduced model remains of the same order of magnitude as predicted by the scaling theory. These results provide a quantitative criterion for the validity of reduced elastic models and establish a direct connection between optimal scaling arguments and numerical observations within the Landau-de Gennes framework.

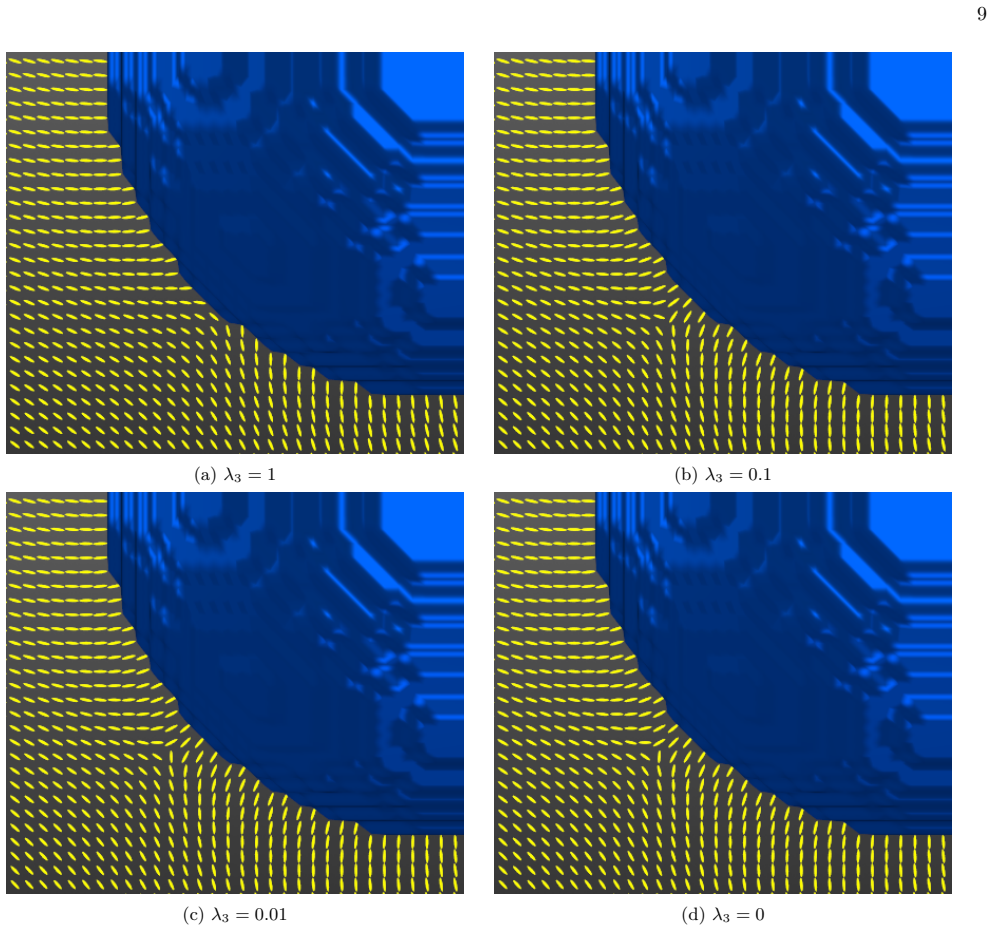

Figures
