Uncertainty-quantified $J$-integral computation for quasicontinuum and finite element methods

T0 review · 3 major / 5 minor · reviewed 2026-08-01 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read This paper claims that the J-integral evaluated only in the continuum region of a relaxed quasicontinuum model equals the coupled system's energy release rate, matching virtual crack extension within 3% and Griffith's criterion within 4%.

desk verdict Useful first QC3D J-integral implementation with honest staged validation, but the central path-independence claim needs a direct check and the UQ label oversells the MCMC sensitivity analysis. read the letter →

arxiv 2607.23003 v1 pith:BTGWW4I2 submitted 2026-07-25 cond-mat.mtrl-sci

Sai Harshith Badi , Stephen M. Whalen , Ronald E. Miller , Ellad B. Tadmor This is my paper · ORCID
classification cond-mat.mtrl-sci MSC 74R1074S0565C05
keywords J-integralquasicontinuummethodenergyreleaserateCauchy-BornruleGriffithcriterionuncertaintyquantificationMarkovchainMonteCarlofracturemechanics
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper sets out to prove that the J-integral — the standard fracture-mechanics measure of energy release rate — can be computed in a multiscale atomistic/continuum model using only the coarse-grained continuum region, and that the result equals the true energy release rate of the coupled system. If that holds, fracture toughness can be extracted from a single relaxed multiscale configuration, even though the atomistic crack-tip core is excluded from the integration domain. The authors validate this in three escalating regimes: small-strain linear elasticity against exact LEFM, nonlinear Cauchy-Born response against virtual crack extension, and fully relaxed nonlinear response where J and VCE agree to within about 3% at the point of fracture instability. A three-point bending test of silicon then shows the critical J reproducing the Griffith energy balance within 3.85%. They also introduce a Markov chain Monte Carlo sampler over the J-integral's q-field that gives statistical error bars on J and, as the paper argues, applies to conventional finite element fracture computations as well.

What carries the argument

The load-bearing machinery is the volume form of the J-integral, written in terms of the Eshelby stress tensor — an energy-momentum quantity defined from the strain energy density and the stress times displacement gradient — and summed element by element over linear tetrahedra in the continuum region. The scalar weight function q of the classical domain integral is promoted to a vector field pointing along the crack direction, so the same q-values serve both the J computation and the nodal perturbation in the virtual crack extension validation. The Cauchy-Born rule makes the continuum stress and energy density inherit the interatomic potential, so the excluded atomistic core and the integrat

What would settle it

Run the same relaxed quasicontinuum fracture test with the inner integration contour moved into the atomistic region, or with the domain substantially enlarged or shrunk, and check whether J shifts by more than the MCMC-reported standard deviation; alternatively, compute an independently constructed atomistic J-integral on a model with a much larger atomistic region fully enclosing the crack tip and compare — if either test gives a discrepancy beyond the quoted ~3%, the claim that the continuum-only domain integral equals the true energy release rate fails.

Watch

Extended reading notes

Core claim

The central claim is that a domain-integral form of the J-integral — evaluated entirely in the continuum region of a three-dimensional quasicontinuum model, using stress and strain energy density derived from the interatomic potential through the Cauchy-Born rule — correctly measures the energy release rate of the full atomistic/continuum system. The integration domain is bounded internally by the atomistic/continuum interface, so the atomistic crack tip is excluded, and the weighting function q is set to unity on that interface and zero on the outer boundary. In a fully relaxed, finite-strain silicon model under mode I loading, the continuum-domain J and an independently constructed virtual

Load-bearing premise

The load-bearing premise is that a J-integral evaluated only in the continuum region — with the atomistic crack-tip core excluded and the interface subject to ghost-force corrections — still equals the energy release rate of the entire coupled atomistic/continuum system; the paper tests this only indirectly through agreement with a second numerical method.

Editorial extensions

If this is right

  • J can be obtained from a single equilibrated multiscale configuration, avoiding the two-simulation cost of virtual crack extension at every load step.
  • The critical J at cleavage directly yields the material's fracture toughness for the interatomic potential, enabling direct comparison with the Griffith criterion and potential-driven toughness predictions.
  • The MCMC standard deviation serves as a quantitative certificate of integration-domain quality, usable in ordinary finite element codes for mesh-convergence verification.
  • Agreement across linear elastic, nonlinear elastic, and fully relaxed regimes means the method spans the practical range from LEFM-dominated remote loading to atomistically relaxed crack tips.
  • The three-point bending demonstration shows structural-scale simulations are feasible: 358k repatoms reproduce a model that would require about 12 million atoms fully atomistically.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The vector-q formulation for an arbitrary crack direction suggests a natural route to mixed-mode and curved crack fronts via piecewise integration along straight segments, an extension the paper leaves implicit.
  • The MCMC spread could be repurposed as an adaptive-mesh criterion: large local sensitivity of J to q would flag under-resolved regions and drive refinement or domain repositioning automatically.
  • Because the integration domain stops at the atomistic/continuum interface, residual ghost forces there could contribute a small systematic error to J; comparing against a ghost-force-free formulation or a much larger atomistic region would isolate that contribution, which the paper does not do.
  • The ~3% J–VCE gap at the final stable load step is attributed to VCE's forward-difference error, but testing a central-difference VCE across several crack-extension sizes would show whether the residual is purely numerical or reflects physical lattice trapping.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper presents an implementation of the domain-form J-integral in the three-dimensional quasicontinuum (QC3D) method. The J-integral is evaluated from Cauchy–Born continuum fields (stress and strain energy density) in the local (continuum) region of a relaxed QC model, with the integration domain bounded internally by the atomistic/continuum interface. Validation is organized in three regimes: (1) linear elasticity, where the anisotropic LEFM K-field is prescribed and Hooke's law is used; (2) the same prescribed K-field evaluated through the nonlinear Cauchy–Born relation without relaxation; and (3) the same nonlinear relation with full atomic relaxation. In each regime the J-integral is compared with the virtual crack extension (VCE) method; agreement is exact in Regime 1 and within about 3% in Regime 3. The paper also introduces an MCMC sampling scheme over admissible q-fields to quantify sensitivity of the computed J to the choice of interpolation function, and demonstrates the method on a three-point bending test of silicon, reporting J_c = 0.1886 J/m^2 versus 2γ_s = 0.1814 J/m^2 (3.85% error).

Significance. If the central claim holds, this is a valuable contribution: it would allow users of multiscale codes such as QC3D to extract a standard fracture mechanics parameter (the energy release rate) directly from continuum fields in the local region, bridging atomistic crack-tip processes and continuum driving forces. The validation hierarchy is thoughtfully designed: Regime 1 is a genuine exact benchmark, Regime 2 is honestly labeled as code verification rather than physics validation, and the authors state plainly that no closed-form solution exists for Regime 3. The MCMC uncertainty quantification is novel and the detailed-balance proof in Appendix A is a useful addition. The paper is also transparent about the limitations of the interatomic potential and the quasistatic plane-strain scope. However, the load-bearing assertion—that the domain integral evaluated in the continuum region measures the energy release rate of the fully coupled atomistic/continuum system—is not independently established; the Regime 3 validation relies on consistency with VCE, which shares the same q-field and the same energy functional.

major comments (3)
  1. [Sec. 3.1, Eq. (14); Sec. 2.2, Eq. (10)] The inner contour (q=1) is placed exactly on the atomistic/continuum interface, so the integrand samples the annulus of elements adjacent to that interface. In QC, ghost forces f_ghost act as external dead loads at the interface. A relaxed QC state balances these forces only at repatom nodes; it does not imply div P = 0 in the continuum sense, and therefore the Eshelby tensor is not guaranteed divergence-free in the region that contributes most to the domain integral. Rice's path independence, which is the premise for J = G of the full coupled system, is thus an unverified assumption. The Regime 3 validation does not close this gap because VCE uses the same q-field and the same QC energy functional. A direct numerical check is needed: compute J for a family of inner contours moved progressively into the continuum (away from the interface) and show convergence; or compare with a global en
  2. [Sec. 4.2, Sec. 4.5, Fig. 10] The claim that VCE provides an 'independently constructed' measure of G is overstated. By the deLorenzi equivalence cited by the authors, VCE reduces to the domain J-integral for elastic equilibrium, and the implementation here uses the same q-field and the same energy functional as the J computation. The 3% agreement in Regime 3 is therefore primarily a consistency check between two implementations, not a validation against an external reference. The only external anchor in Regime 3 is the LEFM limit at small loads, which is insensitive to interface and ghost-force effects. The paper should either soften the wording or supply an independent benchmark, e.g., a fully atomistic simulation of a small model, or an energy-vs-crack-length curve from multiple relaxed simulations with actual crack advance.
  3. [Sec. 6, Table 1] The three-point bending comparison to 2γ_s is a useful end-to-end sanity check, but it is a single data point and J_c is computed with the same contested domain integral. The surface energy γ_s is not defined or computed in the manuscript (cleavage plane, potential, methodology), so the reader cannot assess whether the 3.85% agreement is meaningful. This check does not address path independence across the atomistic/continuum interface. Please provide details of the γ_s calculation and, if possible, report the MCMC sensitivity for the bending configuration.
minor comments (5)
  1. [Sec. 4.5] The text says 'as in Region 2' where 'Regime 2' is meant. Please make terminology consistent.
  2. [Eq. (18), Eq. (20)] The display equations have unbalanced parentheses/brackets; please check the formatting, especially the summation terms.
  3. [Sec. 4.5, Fig. 10] The sentence 'all three quantities drop suddenly together as the crack propagates' is ambiguous: J is normally defined for a stationary crack. Clarify whether J is reported for the last stable configuration before cleavage and what the post-drop values represent.
  4. [Sec. 5] The MCMC standard deviation is described as providing 'rigorous error bars' in Sec. 5.2. Since the target distribution is uniform over q-fields and the chain is generated with all proposals accepted, the result is a sensitivity measure, not a rigorous statistical error bar on J. Please temper the wording.
  5. [General] No data availability or code availability statement is included. Given the reproducibility emphasis of the field, please add one.

Circularity Check

1 steps flagged · score 2.0 of 10

No significant circularity in the J-integral derivation; main caveat is that the Regime-3 VCE agreement is an internal consistency check rather than an independent physical benchmark.

  1. other [Section 4.2 (VCE description) and Section 4.5 (Regime 3 validation)]
    "deLorenzi [74] later derived ... showing that the VCE formulation reduces to the J-integral where the essence of nodal shifts is captured by the q-function. This theoretical connection motivated us to use the VCE method to validate the J-integral results at finite deformations where LEFM is not applicable. ... Instead the close correspondence observed between the J and VCE calculations provides strong evidence that both methods correctly capture the energy release rate of the equilibrated, fully nonlinear system."

    The paper's own cited result (deLorenzi) makes VCE and the domain J-integral two evaluations of the same energy-release-rate derivative, connected through the same q-field. Therefore the Regime-3 J/VCE agreement is a numerical consistency check, not an independent confirmation that the continuum-domain integral equals the energy release rate of the full atomistic/continuum system. The unverified path-independence assumption across the ghost-force-affected interface is not tested by this comparison. This is a real limitation on validation strength, but it is not a fitted-parameter circularity and does not contaminate the core derivation.

full rationale

The core J-integral implementation is self-contained: Eq. (14) is the standard Shih/deLorenzi domain integral, evaluated from Cauchy-Born stress and strain-energy fields without any fitted parameters. Regime 1 provides an external ground truth (anisotropic LEFM G-K relation) and Regime 2 is explicitly labeled a code-verification step, with the paper honestly stating that J/VCE agreement there follows from calculus alone. Regime 3 correctly notes the absence of a closed-form nonlinear crack-tip solution and relies on J/VCE agreement as mutual consistency; because the paper itself cites the theoretical equivalence of VCE and J, this agreement is a weaker form of validation than an independent benchmark, though it is not circular in the derivation. The three-point-bending comparison of J_c to 2γ_s uses the same interatomic potential for both sides, making it a model-consistency check rather than an externally fitted prediction. Self-citations to prior QC work are for method background, ghost-force corrections, and QC3D implementation, and are not load-bearing for the J-integral formulas. Overall, no central claim reduces to its inputs by construction, so the circularity burden is low.

Assumptions & free parameters 4 free parameters · 4 assumptions · 0 invented entities

No new physical entities are introduced. The q-function is a standard test function of the domain-integral method, not an invented entity. The central claim rests on standard fracture theory, the QC/Cauchy-Born approximation, and an unproven path-independence assumption across the atomistic/continuum interface.

free parameters (4)
  • cleavage detection tolerance factor f = not stated
    Algorithm 1 uses a user-chosen tolerance f to decide when a drop in total potential energy is flagged as cleavage; this picks the final load step and hence the reported Gc in the bending test.
  • initial SIF K_I,0 and load increment ΔK_I = not stated
    Section 4.1 chooses these for numerical stability; they affect the quasistatic loading path and the load step at which fracture is detected.
  • virtual crack extension length Δa = not stated
    Section 4.2 uses a finite-difference step Δa for the VCE energy difference; its value influences the VCE result and the 3% J/VCE agreement.
  • MCMC sample count = 1,200,000
    Section 5 fixes the number of q-field samples after observing convergence near 1M; it affects the reported standard deviation but not the central physics.
assumptions (4)
  • ad hoc to paper Rice J-integral path independence holds for the QC multiscale energy even though the atomistic core is excluded.
    Section 3.1 places the integration domain entirely in the continuum region with q=1 at the atomistic/continuum interface. This assumes the contour/domain integral far from the core still equals the total energy release rate of the coupled system.
  • domain assumption The Cauchy-Born rule gives an adequate constitutive description in the continuum region.
    Eq. (10) and Section 2.2 use Cauchy-Born strain energy density for continuum elements; this is valid only when deformation in those elements is smoothly varying at the atomic scale.
  • domain assumption Periodic boundary conditions along the crack front enforce plane strain without spurious image interactions.
    Section 4.1 applies periodic boundary conditions along z and keeps q constant through the thickness; any unintended coupling between periodic images would distort the crack-front fields.
  • domain assumption The modified Stillinger-Weber potential is a faithful enough model for the targeted validation.
    The paper uses a brittle-Si potential for computational efficiency and notes it is not physically realistic for silicon fracture. Validation conclusions are potential-specific.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Uncertainty-quantified $J$-integral computation for quasicontinuum and finite element methods." pith.science (2026). https://pith.science/paper/BTGWW4I2

@misc{pith2026260723003,
  author       = {Pith},
  title        = {Pith review of: Uncertainty-quantified $J$-integral computation for quasicontinuum and finite element methods},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/BTGWW4I2}},
  note         = {Machine review of arXiv:2607.23003}
}
abstract

The $J$-integral is a fundamental concept in fracture mechanics, quantifying the energy release rate that drives crack propagation. While extensively implemented in finite element (FE) codes and adapted for atomistic calculations, its application within multiscale frameworks bridging atomistic and continuum formulations remains unexplored. This work presents a rigorous implementation and validation of the $J$-integral within the three-dimensional quasicontinuum (QC3D) method, computed under plane strain assumptions, using continuum fields (stress, strain energy density) derived from the interatomic potential via the Cauchy-Born rule. The implementation is validated against linear elastic fracture mechanics (LEFM) theory and the virtual crack extension (VCE) method across three regimes: (1) small-strain linear elasticity, with a prescribed anisotropic $K$-field displacement applied throughout; (2) the same field evaluated through the nonlinear Cauchy-Born constitutive relation, without atomic relaxation; and (3) the same relation with atomic relaxation enabled, allowing the crack-tip region to equilibrate. Excellent agreement is shown throughout. We further introduce a Markov chain Monte Carlo framework to statistically quantify the uncertainty of $J$-integral results for a given mesh and integration domain, applicable to conventional FE methods as well. Predictive capability is demonstrated via a QC3D simulation of a three-point bending test of silicon, where the computed critical energy release rate agrees closely with the Griffith criterion. This work establishes a reliable framework for evaluating crack driving forces in multiscale fracture simulations with quantified uncertainty, enabling large-scale fracture simulations while resolving atomistic mechanisms at the crack tip.

Figures

Figures reproduced from arXiv: 2607.23003 by the authors.

Figure 1
Figure 1. (a) Schematic of the contour Γ over which [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. QC model for a crack geometry showing the atomistic region [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. A schematic of the crack geometry considered, indicating the important dimensions. [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figures from the paper (17 more)
Figure 4
Figure 4. Figure 4: Potential energy Π versus the mode I stress intensity factor [PITH_FULL_IMAGE:figures/full_fig_p013_4.png]
Figure 5
Figure 5. Figure 5: A schematic of the repatoms perturbation during virtual crack extension. [PITH_FULL_IMAGE:figures/full_fig_p014_5.png]
Figure 6
Figure 6. Figure 6: Schematic of the (a) reference, and (b) virtually extended configurations used in VCE. [PITH_FULL_IMAGE:figures/full_fig_p015_6.png]
Figure 7
Figure 7. Figure 7: The configuration of the model used in the validation studies (a) Fully refined mesh [PITH_FULL_IMAGE:figures/full_fig_p017_7.png]
Figure 8
Figure 8. Figure 8: Comparison of energy release rates computed from analytical LEFM, [PITH_FULL_IMAGE:figures/full_fig_p018_8.png]
Figure 9
Figure 9. Figure 9: Comparison of energy release rates computed from analytical LEFM, [PITH_FULL_IMAGE:figures/full_fig_p019_9.png]
Figure 10
Figure 10. Figure 10: Comparison of energy release rates computed from analytical LEFM, [PITH_FULL_IMAGE:figures/full_fig_p020_10.png]
Figure 11
Figure 11. Figure 11: Snapshot of crack propagation in the atomistic region at an applied load of [PITH_FULL_IMAGE:figures/full_fig_p021_11.png]
Figure 12
Figure 12. Figure 12: Convergence of the running mean of the J-integral during MCMC sampling indicating a thorough exploration of q-field space. a histogram with 200 bins over the range 0.65 to 0.75; results for the small-strain and finite-strain regimes are presented in Section 5.1 and Se…
Figure 13
Figure 13. Figure 13: (a) Reference mesh configurations of the considered four models. Model-I to Model-IV [PITH_FULL_IMAGE:figures/full_fig_p023_13.png]
Figure 14

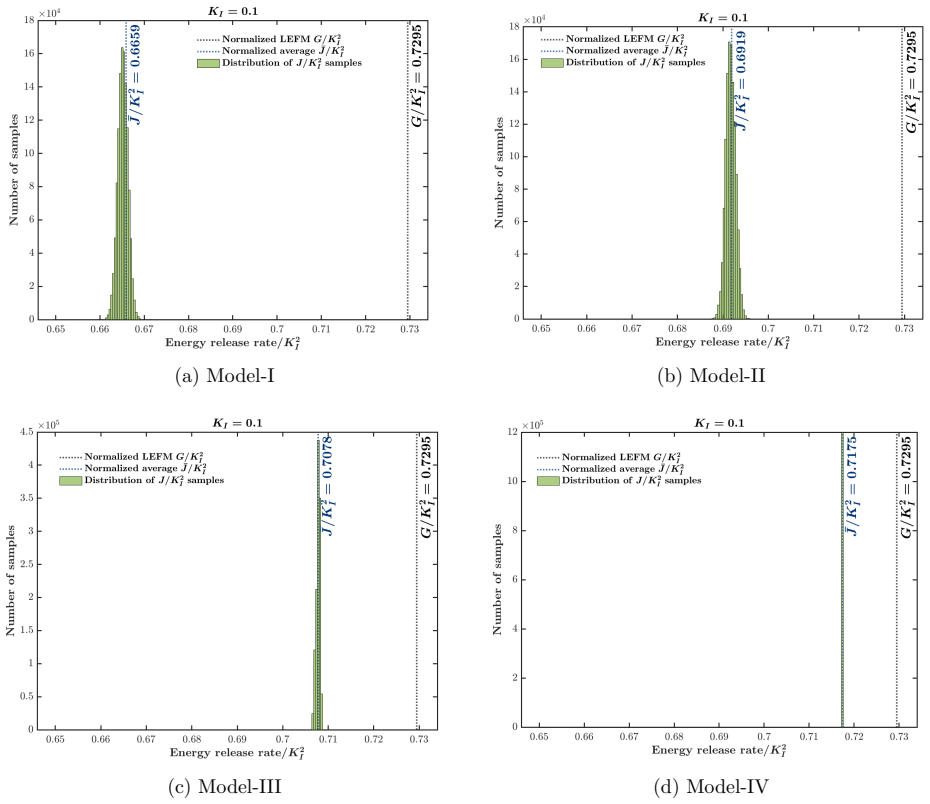

Figure 14. Figure 14: Distribution of J-integral results from MCMC sampling for models I to IV at KI = 0.1 MPa m1/2 . in contrast to the 12,053,441 atoms required for an equivalent fully atomistic simulation of the same specimen dimensions and crystal orientation (see [PITH_FULL_IMAGE:fig…
Figure 15
Figure 15. Figure 15: Final standard deviations from sampling of all models along with their deformed mesh [PITH_FULL_IMAGE:figures/full_fig_p025_15.png]
Figure 16
Figure 16. Figure 16: Distribution of J-integral results from MCMC sampling for models I to IV at KI = 0.8 MPa m1/2 . second under the full nonlinear Cauchy–Born response, and finally third with atomic relaxation enabled, allowing the crack-tip region to reach a nonlinear equilibrium state…
Figure 17
Figure 17. Figure 17: Final standard deviations from sampling of all models along with their deformed mesh [PITH_FULL_IMAGE:figures/full_fig_p027_17.png]
Figure 18

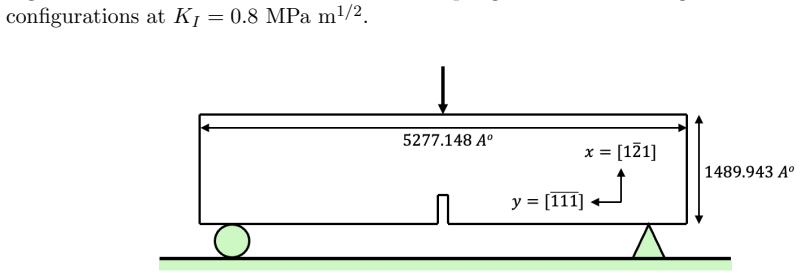

Figure 18. Figure 18: Schematic of the three-point bending specimen. [PITH_FULL_IMAGE:figures/full_fig_p027_18.png]
Figure 19
Figure 19. Figure 19: Comparison of the QC3D and fully atomistic models of the three-point bending speci [PITH_FULL_IMAGE:figures/full_fig_p028_19.png]
Figure 20
Figure 20. Figure 20: Linearly interpolated q-field of three-point bending configuration. As in Fig. 13b, the internal blue region (q = 0) marks the atomistic region excluded from the J-integral; q decreases linearly to 0 across the continuum integration domain. 28 [PITH_FULL_IMAGE:figure…

Discussion (0). Continue with ORCID to comment.
