Vortex dynamics and air entrainment in dam break wave impacting on vertical walls: A multiphase lattice Boltzmann study

T0 review · 4 major / 4 minor · reviewed 2026-08-01 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A multiphase lattice Boltzmann study of dam-break waves hitting a vertical wall argues that the large air cavity often seen in simulations during run-down is a numerical artifact of free-slip wall treatment, not a real flow feature.

desk verdict Solid, honest DNS study of dam-break impact with a plausible central claim about the large air cavity being a free-slip artifact—but the evidence is a single low-Re comparison without grid convergence, so the claim is conditional, not definitive. read the letter →

arxiv 2607.25433 v1 pith:6R24M6FK submitted 2026-07-28 physics.flu-dyn physics.comp-ph

Massimiliano Mustè , Andrea Montessori , Pietro Prestininzi This is my paper · ORCID
classification physics.flu-dynphysics.comp-ph
keywords dam-breakwaveverticalwallimpactairentrainmentcavityartifactlatticeBoltzmannmethodAllen–Cahninterfacecapturingno-slipboundaryconditionpressurepeaks
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper uses high-resolution multiphase lattice Boltzmann simulations of a dam-break wave hitting a vertical wall to argue that the large, smooth air cavity commonly reported in simulations of the run-down phase is not a physical flow feature. By comparing otherwise identical simulations with no-slip and free-slip wall boundary conditions, the authors show the cavity appears only when near-wall shear is absent. They conclude that wall friction triggers jet breakup and air–water mixing, and that under-resolved boundary treatments that behave like free-slip create the artifact. If correct, this shifts how the second pressure peak is interpreted and makes resolving the boundary layer essential for reliable impact-load predictions.

What carries the argument

The central machinery is a high-resolution, 3D multiphase lattice Boltzmann solver (thread-safe, D3Q27, with a conservative Allen–Cahn interface-capturing equation) used to run two dam-break simulations that differ only in the wall boundary condition—no-slip versus free-slip—at the same Reynolds number (2.2×10^3). This controlled comparison isolates the role of near-wall shear: the resolved boundary-layer vorticity (a clockwise corner vortex and secondary counter-clockwise vorticity) is the physical mechanism that breaks the jet and mixes air into the water, and its absence in the free-slip case produces the artifact cavity.

What would settle it

A no-slip dam-break simulation at Reynolds number close to 10^5 with a fully resolved boundary layer that still produces a single coherent air cavity during run-down would falsify the artifact claim.

Watch

Extended reading notes

Core claim

The central claim is that the coherent, macroscopic air cavity that appears between the reflected jet and the incoming flow during the run-down phase of dam-break wall impact is a numerical artifact caused by free-slip wall treatment, not an intrinsic flow feature. In otherwise identical simulations at the same Reynolds number, the no-slip case produces a corner vortex that destabilizes the jet, breaks it into droplets, and disperses air into a mixture—matching experiments—while the free-slip case keeps the jet intact and traps a smooth cavity. The paper further shows that this artifact is responsible for spurious pressure oscillations on the wall and that air compressibility is not needed t

Load-bearing premise

The artifact conclusion rests on a low-Reynolds-number comparison (Re=2.2×10^3) and the untested premise that the boundary-layer-induced jet breakup seen at this scale also occurs at experimental Reynolds numbers (10^5–10^6).

Editorial extensions

If this is right

  • Simulations that under-resolve the boundary layer and effectively behave as free-slip at the wall will generate spurious large air cavities and over-estimated pressure oscillations during run-down.
  • Accurately capturing the no-slip condition is needed to predict the first pressure peak: the corner vortex deflects the wave front and moves the point of maximum pressure away from the wall base.
  • Air compressibility plays a secondary role for the second pressure peak; an incompressible 3D model with proper near-wall resolution avoids the spurious peaks seen in 2D and free-slip simulations.
  • The corner vortex is a persistent source of finely mixed air that feeds the upward jet, so air entrainment begins near the bottom corner rather than only in run-up and run-down.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A natural extension is a partial-slip boundary scan: varying the degree of wall slip in the same setup should produce a continuous transition from a coherent cavity to a mixed jet, which would test the artifact interpretation directly.
  • If the artifact claim transfers to engineering-scale Reynolds numbers, it implies that RANS wall-function treatments applied outside their valid range (effectively slip-like) may systematically mispredict the second force peak on walls.
  • The analogy drawn by the authors between the free-slip cavity and plunging-wave air entrapment suggests a quantitative comparison with breaking-wave entrainment scaling could refine the explanation of cavity dynamics.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 4 minor

Summary. The paper presents three-dimensional multiphase lattice Boltzmann simulations (TSLB) of dam-break waves impacting a vertical wall, using a recursive-regularized D3Q27 lattice Boltzmann solver coupled with a conservative Allen–Cahn interface-capturing scheme. The model is validated against two experimental datasets (Lobovský et al. 2014 and Tan et al. 2023) with good reported agreement for free-surface evolution, water levels, pressure histories, and velocity fields. The authors then compare no-slip and free-slip wall boundary conditions at Re = 2.2×10^3 (Case III, Table I) and observe that only the free-slip run develops a large, smooth, coherent air cavity during the run-down phase; the no-slip run instead exhibits jet breakup, strong aeration, and damping of pressure oscillations. On this basis, the paper concludes that the large air cavity commonly reported in dam-break impact CFD is a numerical artifact of wall boundary treatment rather than a physical phenomenon, and that accurate no-slip boundary-layer resolution is essential for predicting impact pressures.

Significance. If correct, the central claim would overturn a common interpretation in the dam-break impact CFD literature, attributing the large run-down cavity to inadequate near-wall shear resolution rather than to physical air entrapment and compressibility. The paper also provides a substantial 3D validation exercise for the TSLB model on grids of approximately 10^8 nodes, including boundary-layer-resolved velocity profiles, and offers a plausible mechanism for the long-standing difficulty of predicting the first pressure peak near the wall corner. The clean no-slip/free-slip comparison at identical Reynolds number and geometry is a useful diagnostic. However, the significance is conditional: the artifact claim is drawn at Re = 2.2×10^3, below the validated cases and far below engineering-scale experiments, and the paper provides no grid-convergence or interface-parameter sensitivity study. The validation strengths are real, but they do not by themselves establish the scale-transferability of the central conclusion.

major comments (4)
  1. [Section III A and Table I] The central claim of §V B—that the large run-down air cavity is a numerical artifact—rests entirely on a no-slip versus free-slip comparison at Re = 2.2×10^3 (Case III). Section III A explicitly states that strict Reynolds-number similarity with experiments is not enforced; the validated cases are Re = 6×10^3 (Case I) and Re = 5×10^3 (Case II). The proposed mechanism—wall shear amplifies interfacial perturbations and breaks up the jet—is plausible at low Re, where boundary layers are thick, but it is not demonstrated to transfer to engineering-scale Re (~10^5–10^6), where boundary layers are thin and turbulent entrainment is different. Please either restrict the conclusion to the computed Reynolds number or provide a scale analysis/higher-Re test (e.g., repeat Case III at Re = 5×10^3 with the same resolution) showing that no-slip cavity suppression persists.
  2. [Sections IV–V, Eqs. (29) and (31)] No grid-convergence study or sensitivity analysis for the diffuse-interface parameters D and δ is reported. The no-slip jet breakup and aeration in Case III could be influenced by numerical resolution or by the interface thickness/diffusivity, rather than solely by the boundary condition. Because the central claim is that the cavity seen in earlier simulations is an artifact, the no-slip result must be shown to be independent of these numerical choices. At minimum, provide a coarser/refined run for Case III and a variation of D (or δ) with the boundary condition fixed, and show that the cavity remains suppressed.
  3. [Section V B, Fig. 19] The no-slip versus free-slip comparison at Case III is not directly validated against experiment at the comparison Reynolds number. The two validation cases are at Re = 6×10^3 and 5×10^3, while Case III is at Re = 2.2×10^3. Figure 19 compares the no-slip and free-slip pressure histories with each other and with qualitative literature observations, but not with a measured pressure signal for this configuration. This leaves open whether the no-slip branch at Re = 2.2×10^3 is the experimentally relevant branch. Please add a quantitative comparison with an experimental dataset for Case III, or justify in more detail why this lower-Reynolds-number run is representative.
  4. [Section VI, conclusion 1] The inference from resolved no-slip DNS to under-resolved RANS wall-function behavior assumes that an under-resolved no-slip wall is dynamically equivalent to free slip. This is plausible and is supported by reference [42], but the manuscript does not demonstrate the equivalence (for example, with a partial-slip or wall-modeled test). The central conclusion would be better framed as 'in the present resolved simulations, free-slip produces a cavity; under-resolved no-slip may behave similarly' unless the link to wall-function RANS is made explicit.
minor comments (4)
  1. [Section IV A 3, Fig. 4] The water-level comparison uses a density threshold of ρ = 5 for the primary wave and ρ = 0.3 for the secondary/return wave. This post-hoc threshold selection should be justified more rigorously, and a brief statement of sensitivity to the chosen threshold would help the reader assess the validation.
  2. [Section IV A 4, Eq. (50)] The mixture classification 0.02 < ρmix < 10 is arbitrary. Since the air-fraction time history is presented as a quantitative result, please provide a sensitivity check or a reference justifying this choice.
  3. [Section V B 2, Fig. 19] The statement that the no-slip condition produces a smoother profile 'showing better agreement with experimental evidence' is qualitative. Overlay an experimental pressure trace in Fig. 19, or cite the specific dataset used for that comparison.
  4. [Section IV A 2] Typo: 'istantaneous' should be 'instantaneous'.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the central artifact claim rests on a controlled no-slip/free-slip comparison, not on fitted inputs or load-bearing self-citations.

full rationale

The paper's central claim—that the large run-down air cavity is a numerical artifact—is supported by a controlled comparison of no-slip and free-slip wall treatments at identical Reynolds number (Section V B, Figs. 14, 19, 20). This is a difference-of-conditions experiment, not a fit to the target quantity: the no-slip result independently reproduces experimentally observed jet breakup and mixing ([14], [23]; Section IV), while the free-slip result produces the cavity. The multiphase solver accLB is self-cited ([19]-[22]), but the governing equations are given in full (Eqs. 1-44) and the code is benchmarked against external experiments (Sections IV A and IV B), so the self-citation is method attribution, not the load-bearing justification. The only post-processing degree of freedom is the choice of density iso-surface thresholds for water levels (Section IV A 3: rho=5 vs rho=0.3), which is a diagnostic representation of a strongly mixed free surface, not a fitted parameter in the dynamics and not used in the no-slip/free-slip comparison. The paper explicitly acknowledges 'Strict Reynolds-number similarity with the experiments is not enforced' (Section III A) and provides no grid-convergence study; these are scale-transferability and resolution-robustness limitations, not circular reductions. No equation or prediction in the paper reduces by construction to its own input.

Assumptions & free parameters 5 free parameters · 5 assumptions · 0 invented entities

The central claim does not introduce new physical entities, but it leans on several modeling choices — most importantly the low Reynolds number and the chosen interface parameters — that are not matched to the experiments. The post-hoc density thresholds are a clear instance of data-dependent calibration.

free parameters (5)
  • Reynolds number for boundary-condition comparison = 2.2e3
    Chosen for numerical stability and affordability (Case III), not matched to experimental Re; central to the free-slip vs no-slip comparison.
  • Interface diffusivity D and interface thickness δ = not reported
    Appear in the Allen-Cahn equation (Eq. 29-31); values not given for the simulations, yet they control interface sharpness and breakup.
  • Lattice density ratio ρ_l/ρ_g = 500 (10 vs 0.02)
    Chosen for the diffuse-interface model; lower than the physical water-air ratio (~1000).
  • Lattice gravity g_n = 1e-7 to 1e-6
    Numerical parameter to keep Mach number small (Eq. 47).
  • Post-hoc density thresholds for water level = 0.3 and 5
    Chosen after comparing to experimental water levels to represent primary vs secondary wave interfaces.
assumptions (5)
  • standard math The lattice Boltzmann scheme recovers variable-density incompressible Navier-Stokes equations
    Underlying kinetic theory assumption in Section II A.
  • domain assumption The conservative Allen-Cahn equation with γ=4D/δ accurately captures air-water interface dynamics including entrainment
    Interface-capturing model is used to simulate air entrainment; accuracy is assumed from prior validation.
  • domain assumption The flow is effectively incompressible; air compressibility has only marginal influence on pressure peaks
    Used to justify incompressible 3D model; supported by agreement with experiment but not directly tested.
  • domain assumption Froude scaling is the dominant similarity; Reynolds number need not match experiments
    Explicitly stated in Section III A; central to transferring conclusions to experimental scale.
  • domain assumption No-slip wall with resolved boundary layer represents the experimental wall condition
    The no-slip simulation is taken to be the physical reference to which free-slip is compared.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Vortex dynamics and air entrainment in dam break wave impacting on vertical walls: A multiphase lattice Boltzmann study." pith.science (2026). https://pith.science/paper/6R24M6FK

@misc{pith2026260725433,
  author       = {Pith},
  title        = {Pith review of: Vortex dynamics and air entrainment in dam break wave impacting on vertical walls: A multiphase lattice Boltzmann study},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/6R24M6FK}},
  note         = {Machine review of arXiv:2607.25433}
}
read the original abstract

Air entrainment often plays a crucial role in determining impact loads exerted by free-surface wave flows interacting with structures, yet its modelling is often oversimplified in numerical approaches. In this study a two-phase numerical model, based on the Lattice Boltzmann Method coupled to a conservative Allen--Cahn interface-capturing equation is employed to perform direct numerical simulations of dam-break waves propagating over a dry bed and impacting on vertical walls. Access to high-resolution simulations enables a detailed assessment of how accurately resolving both air--water and solid--water interfaces affects local and overall dynamics, as well as quantities of extreme engineering interest. Indeed, the magnitudes and locations of the pressure peaks are strongly affected by wave front deflection and local aeration induced by a small corner vortex. Additionally, comparisons between no-slip and free-slip implementations suggest that the large air cavity formation, commonly observed as trapped inside the reflected jet falling back onto the incoming flow, may be the result of modeling assumptions rather than intrinsic flow physics, again highlighting the key role of near-wall shear in jet breakup dynamics.

Figures

Figures reproduced from arXiv: 2607.25433 by the authors.

Figure 1
Figure 1. FIG. 1: Schematic representation of the experimental domain (Case I). Side view of the tank [PITH_FULL_IMAGE:figures/full_fig_p014_1.png] view at source ↗
Figure 2
Figure 2. FIG. 2: Comparison between snapshots of the experiments by [23] (top) and the [PITH_FULL_IMAGE:figures/full_fig_p016_2.png] view at source ↗
Figure 5
Figure 5. FIG. 5: Temporal evolution of the air fraction in the mixture. Aeration process during [PITH_FULL_IMAGE:figures/full_fig_p020_5.png] view at source ↗
Figures from the paper (14 more)
Figure 7
Figure 7. Figure 7: FIG. 7: Pressure peaks for Sensor 1 from 100 experimental tests by [ [PITH_FULL_IMAGE:figures/full_fig_p023_7.png]
Figure 8
Figure 8. Figure 8: FIG. 8: Schematic representation of the experimental domain (Case II), dimensions in mm [PITH_FULL_IMAGE:figures/full_fig_p024_8.png]
Figure 9

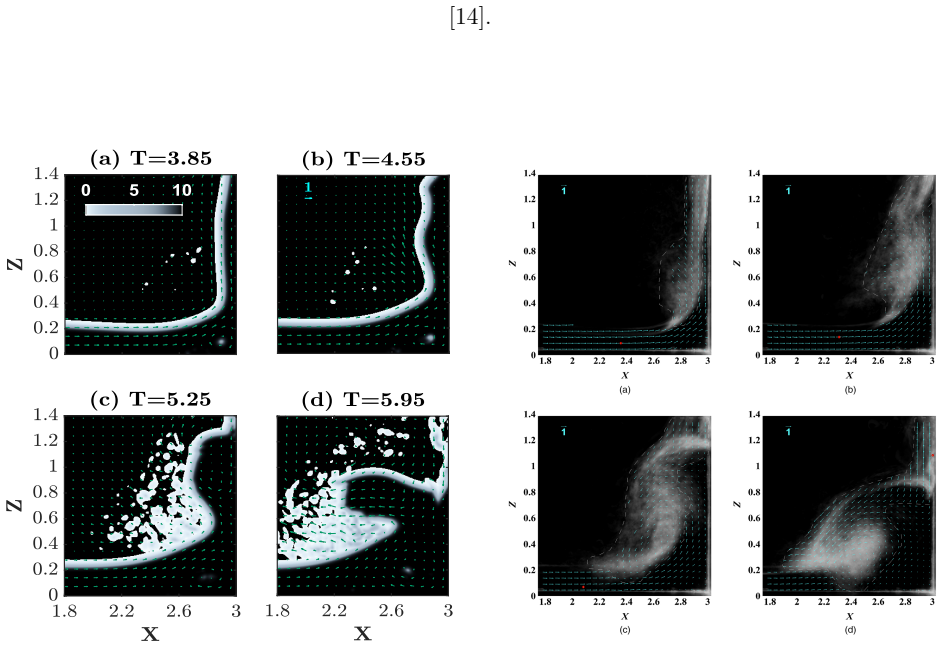

Figure 9. Figure 9: FIG. 9: Comparison of the free-surface profiles at different times: (a) [PITH_FULL_IMAGE:figures/full_fig_p024_9.png]
Figure 10
Figure 10. Figure 10: FIG. 10: Comparison of the velocity magnitude mapping at different times: (a) [PITH_FULL_IMAGE:figures/full_fig_p026_10.png]
Figure 11
Figure 11. Figure 11: FIG. 11: Detailed view of the dimensionless velocity gradients within the boundary layer, [PITH_FULL_IMAGE:figures/full_fig_p026_11.png]
Figure 12
Figure 12. Figure 12: FIG. 12: Comparison of vertical velocity profiles along the impact wall between the TSLB [PITH_FULL_IMAGE:figures/full_fig_p027_12.png]
Figure 13
Figure 13. Figure 13: FIG. 13: Formation of the counterclockwise vortex during the run-up phase of the [PITH_FULL_IMAGE:figures/full_fig_p028_13.png]
Figure 14
Figure 14. Figure 14: FIG. 14: Comparison between no-slip (left) and free-slip (right) conditions of the velocity [PITH_FULL_IMAGE:figures/full_fig_p031_14.png]
Figure 16
Figure 16. Figure 16: Further evidence of these distinct impact dynamics is confirmed by comparisons between the experimental pressure distributions measured by [44] and the theoretical predictions of [45], as well as by the numerical results of [9]. In particular, the latter demonstrated …
Figure 15
Figure 15. Figure 15: FIG. 15: TSLB numerical density maps: comparison between no-slip (left) and free-slip [PITH_FULL_IMAGE:figures/full_fig_p032_15.png]
Figure 16
Figure 16. Figure 16: FIG. 16: Pressure distribution along the vertical wall during the initial stages of wave tip [PITH_FULL_IMAGE:figures/full_fig_p032_16.png]
Figure 18
Figure 18. Figure 18: FIG. 18: Mechanism of generation of secondary counterclockwise vorticity at the [PITH_FULL_IMAGE:figures/full_fig_p034_18.png]
Figure 19

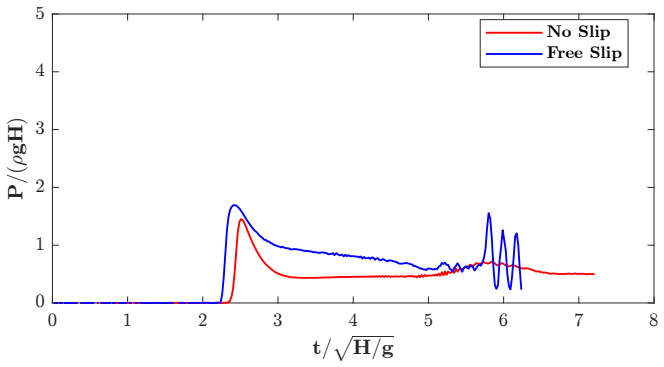

Figure 19. Figure 19: FIG. 19: Temporal distributions of pressure in the two different conditions of no-slip and [PITH_FULL_IMAGE:figures/full_fig_p035_19.png]
Figure 20
Figure 20. Figure 20: FIG. 20: Nondimensional pressure field at different time instants during the run-down phase, [PITH_FULL_IMAGE:figures/full_fig_p036_20.png]

Discussion (0). Continue with ORCID to comment.
