FedQML-Edge: Compact Quantum Feature Sketches for Communication-Constrained Roadside Federated Learning
T0 review · 3 major / 5 minor · reviewed 2026-08-03 · deepseek-v4-flash
Pith's one-line read Six-qubit Pauli sketches outperform compact baselines in federated roadside gating.
desk verdict Honest, well-scoped empirical paper whose headline quantum advantage over classical sketches rests on a circular NGSIM label and disappears on the more predictive SUMO benchmark; still worth refereeing, but the central claim needs external labels and uncertainty quantification. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The central object is the fixed six-qubit Pauli feature sketch. For each traffic-state vector s, normalized to [0,1]^6, the circuit applies Ry and Rz rotations with angle gain κ, entangles nearest-neighbor qubits with CNOT chains, and returns expectations ⟨Z_i⟩, ⟨Z_i Z_{i+1}⟩, and ⟨X_i⟩ — a 17-dim vector. This sketch is computed once per sample and reused across all federated rounds; the only trainable component is an 18-parameter logistic classifier over the sketch. The Z terms capture marginal structure, the ZZ terms capture adjacent-feature interactions, and the X terms add complementary-basis information. The architecture separates representation quality (fixed nonlinear map) from update
What would settle it
Re-run the SUMO predictive-gating benchmark with stability labels defined by an independent operational outcome (e.g., measured platooning fuel savings or expert-annotated stable windows) and with a third-party-chosen stable threshold; if FedQML's gate recall drops below the polynomial sketch's recall or its log-loss advantage disappears, the central claim that the Pauli map is a superior compact sketch for roadside gating is refuted.
Extended reading notes
Core claim
The central claim is that a fixed quantum feature map — six Ry and Rz rotations interleaved with nearest-neighbor CNOT entangling layers — produces a 17-dimensional Pauli sketch (per-qubit Z, adjacent ZZ, and per-qubit X expectations) that, combined with an 18-parameter logistic head trained by FedAvg, outperforms matched 17-dimensional random Fourier, polynomial, and Nyström/RBF sketches and a 64-neuron MLP on NGSIM log loss (0.394 vs 0.441), and reaches within 0.8 percentage points of the H=64 MLP's SUMO gate recall while using 28.5× less communication. A quantum-hardware run with 5000 shots per circuit degrades performance only slightly (0.400 vs 0.394), showing the sketch is measurable o
Load-bearing premise
The NGSIM stability label is a same-window percentile-rank formula applied to the same six features the classifier sees, so the quantum sketch's advantage there may reflect inverting that formula rather than identifying operationally meaningful traffic stability; if this proxy does not correspond to the real gate decision, the headline improvements do not transfer to deployment.
Editorial extensions
If this is right
- With a fixed quantum sketch and an 18-parameter head, each roadside unit uploads only 144 bytes per federated round — independent of traffic volume or observation duration.
- On the trajectory benchmark, the Pauli sketch achieves the best held-out log loss among compact baselines, improving calibration for downstream reward gating.
- On the predictive simulation, FedQML comes within 0.8 percentage points of the H=64 MLP in stable-window recall while using 28.5 times less communication.
- A hardware run with 5000 shots per circuit yields 0.400 log loss versus 0.394 for statevector simulation, indicating the representation is robust to device noise.
- Validation-selected angle gain κ improves SUMO performance without increasing update size, giving a tunable knob for the fixed sketch.
Reading between the lines
- The NGSIM result is partly a test of whether the sketch can invert a label-generating rule (Eq. 8) that is a function of the same six features; the future-horizon SUMO experiment is the stronger evidence for predictive value, and the method should be re-tested with externally grounded stability labels on real corridors.
- If the result holds, it suggests a general recipe for communication-constrained FL: a fixed high-dimensional nonlinear sketch (quantum or otherwise) plus a tiny linear head can rival large learned models when labels are structured.
- The 144-byte update could extend to other edge-sensing tasks, such as intersection safety or pedestrian flow, where bandwidth is shared with safety-critical messages.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. This paper presents FedQML-Edge, a federated learning pipeline for roadside traffic-stability gating. Each RSU converts a six-dimensional traffic-state vector into a 17-dimensional quantum Pauli sketch via a fixed six-qubit feature-map circuit, trains an 18-parameter logistic head locally, and transmits only the 144-byte head update to a FedAvg aggregator. The authors evaluate the approach on NGSIM (same-window turbulence labels from Eq. (8)) and SUMO (future-horizon predictive labels with sensing noise), comparing against raw logistic regression, one-hidden-layer MLPs, and three 17-dimensional classical sketches, with an additional 1,038-circuit IBM Fez hardware run. Headline results are a 14.4% relative reduction in NGSIM test log loss versus the best classical sketch and a SUMO gate recall of 30.0% at a 4.8% false-enable rate, close to much larger MLPs at far lower communication cost.
Significance. The paper's strengths are real: it formulates a concrete communication-constrained problem, keeps the federated update size fixed at 144 bytes independent of observation volume, includes matched 17-dimensional classical baselines, selects SUMO thresholds on validation episodes before test evaluation, and reports a complete hardware execution. The authors are also transparent about limitations, noting that the NGSIM label is 'used only to evaluate representation quality' and that deployment needs held-out RSU tests and controller-grounded outcomes. However, the significance of the central quantum-advantage claim is conditional on the NGSIM label being meaningful. The label in Eq. (8) is a deterministic function of three of the six input features, and it is computed with percentile ranks over all benchmark windows, so the 14.4% improvement may largely reflect how well the Pauli sketch inverts the authors' own ranking. On the SUMO benchmark, which has a stronger predictive label, the polynomial sketch actually achieves lower log loss than FedQML, so the cross-benchmark case for the quantum sketch is currently weak. The paper would be a solid empirical study, but the quantum-specific a
major comments (3)
- [V.B, Eq. (8)] The NGSIM label is built from the same variables the classifier sees and from all benchmark windows. T_e,t = 0.45 R(CV_v) + 0.45 R(σ²_a) + 0.10(1−R(v̄)) is a deterministic monotone function of three of the six inputs to Eq. (1). Labeling the bottom 35% as stable makes the task inversion of the authors' own ranking; any sufficiently expressive fixed feature map can approximate it. Moreover, R(·) is defined over 'the N benchmark windows' (all 519 windows), so training labels depend on held-out test windows. This is a leakage path. The 14.4% advantage in Table I is therefore not evidence about operational traffic stability. The authors should recompute ranks and the threshold on training windows only and add an external or future-horizon label on NGSIM (e.g., the Eq. (2) absolute thresholds or SUMO-style future labels).
- [VI.B, Table II] The only benchmark where FedQML beats all matched classical sketches is NGSIM, whose label is the one in Eq. (8). In the SUMO predictive-gating benchmark, the polynomial sketch has lower test log loss (0.527 vs 0.534) and Brier score (0.178 vs 0.180); FedQML's advantage is limited to gate recall (30.0% vs 28.0%), within 0.1 pp of the H=16 MLP (30.1%). The conclusion that quantum-derived sketches are 'a promising compact representation' is therefore supported only by the circular NGSIM benchmark. The authors should either temper the conclusion or add a predictive benchmark where the Pauli sketch wins on log loss.
- [V.B, Tables I-II] No uncertainty quantification is reported. NGSIM has only 156 test windows and a single split; there are no repeated seeds, confidence intervals, or error bars. The MLP baselines are random-initialized, so single runs are insufficient to establish that 0.394 is reliably better than 0.460 or 0.441. The hardware run in §VI.A is a single 1038-circuit job. The authors should report bootstrap intervals or repeated-run means with standard deviations. In addition, classical sketch hyperparameters (RBF bandwidth, random Fourier scale) are never specified; FedQML's κ, η, E are validation-tuned, so the 'matched classical sketches' comparison is incomplete. The same validation protocol should be applied to the classical baselines.
minor comments (5)
- [Table I / VI.A] The NGSIM gate-recall numbers use a threshold selected on the held-out test split and are labeled 'diagnostic' in the text, but this caveat is absent from the table caption. Readers may misread values such as the polynomial sketch's 50.0% as test-fair operational recall.
- [Fig. 1] The caption reads 'FedQML-Edgecomputation' — missing space between 'Edge' and 'computation'.
- [V.B] 'FHW A Next Generation Simulation' should be 'FHWA'; the phrase '10 sedgeDataoutputs' is unclear and should be rephrased.
- [Eq. (8)] The definition of R needs a clear statement of whether the percentile rank is computed on training windows only. The current 'over the N benchmark windows' wording invites the leakage problem described in the major comments.
- [V.B] The hyperparameter grids differ across models: FedQML tunes η in {0.2,0.4,0.7,1.0,1.5} while the MLP grid uses learning rates 0.1,0.3,0.5,0.7,1.0. This is not necessarily wrong, but the asymmetry should be justified for a 'matched' comparison.
Circularity Check
NGSIM stability label is built from the same features the classifier consumes, making the headline 14.4% log-loss gain partially self-referential; the disclosed SUMO future-horizon benchmark and hardware run prevent a higher score.
-
self definitional
[Section V.B (NGSIM benchmark), Eq. (8)]
"Because the downloaded NGSIM slice is heavily congested under strict absolute platooning thresholds, and because NGSIM does not provide ground-truth stability labels, we use a reproducible relative turbulence label for the benchmark... Te,t = 0.45R(CV v,e,t) + 0.45R(σ2 a,e,t) + 0.10(1−R(¯ve,t)), (8)... The lowest 35% of Te,t values are labeled stable... Because this same-window label is derived from the input variables, it is used only to evaluate representation quality."
Eq. (8) defines the NGSIM stability target T as a weighted sum of percentile ranks of CV_v, σ²_a, and v̄, and labels the bottom 35% of T as stable. These three variables are also components of the six-feature input vector in Eq. (1), so the task reduces to inverting a deterministic monotone function of the classifier's own inputs. The headline 14.4% NGSIM log-loss reduction therefore mainly measures which 17-dimensional sketch best recovers the authors' hand-built ranking, not an externally grounded traffic-stability property. The paper's own disclosure ('used only to evaluate representation quality') and the SUMO future-horizon label are genuine mitigations, so this is partial rather than total circularity.
full rationale
The paper is an empirical benchmark comparison rather than a formal derivation, so circularity must be assessed through the benchmark construction. The only load-bearing self-reference is the NGSIM target: Eq. (8) constructs the stability label from percentile ranks of three of the six input features, making the NGSIM classification task an inversion of a deterministic function of the inputs. The authors explicitly disclose this and do not present NGSIM as an operational stability test. The SUMO predictive-gating benchmark uses future-horizon labels with episode-level splits and validation-calibrated thresholds, providing independent evidence; the IBM Fez hardware run is a separate robustness check, not a circular argument. No significant load-bearing self-citation appears: the authors' cited works [14] and [17] are background and are not used to force the central claim. The FedAvg update rule and fixed feature-sketch construction are standard and non-circular. Score 4 reflects one central benchmark target that is self-referential, while the independent SUMO and hardware evidence keeps the paper from fully reducing to its own definitions.
Assumptions & free parameters
free parameters (7)
- angle gain κ =
1.0 (NGSIM/hardware), 2.5 (SUMO validation-selected)
- FedAvg learning rate η =
1.5 (SUMO)
- local epochs E =
1 (SUMO)
- turbulence label weights =
0.45, 0.45, 0.10
- stable-window quantile =
35%
- SUMO stability threshold =
not reported
- SUMO sensing noise =
not specified
assumptions (7)
- domain assumption The six-dimensional traffic-state vector (count, mean speed, CV speed, acceleration variance, density, headway) is a sufficient summary for traffic-stability gating.
- domain assumption NGSIM trajectory aggregation into 10-second / 500-ft windows, with filtering of sparse windows, yields representative RSU clients.
- ad hoc to paper The turbulence proxy T in Eq. (8) is a valid proxy for 'stable enough for cooperative-maneuver rewards'.
- domain assumption The fixed six-qubit feature map U_Φ,κ (Eq. 4) provides a useful nonlinear representation for this task.
- domain assumption FedAvg over 8 NGSIM clients / 12 SUMO clients with an 18-parameter logistic head converges to a useful global model.
- domain assumption Pauli expectation estimates from 5000 shots on IBM Fez are accurate enough for the learned head.
- domain assumption Sending normalized six-feature circuit inputs to a remote quantum service preserves privacy.
Cite this review
Pith. "Pith review of FedQML-Edge: Compact Quantum Feature Sketches for Communication-Constrained Roadside Federated Learning." pith.science (2026). https://pith.science/paper/ZLCB4RPV
@misc{pith2026260728799,
author = {Pith},
title = {Pith review of: FedQML-Edge: Compact Quantum Feature Sketches for Communication-Constrained Roadside Federated Learning},
year = {2026},
howpublished = {\url{https://pith.science/paper/ZLCB4RPV}},
note = {Machine review of arXiv:2607.28799}
}

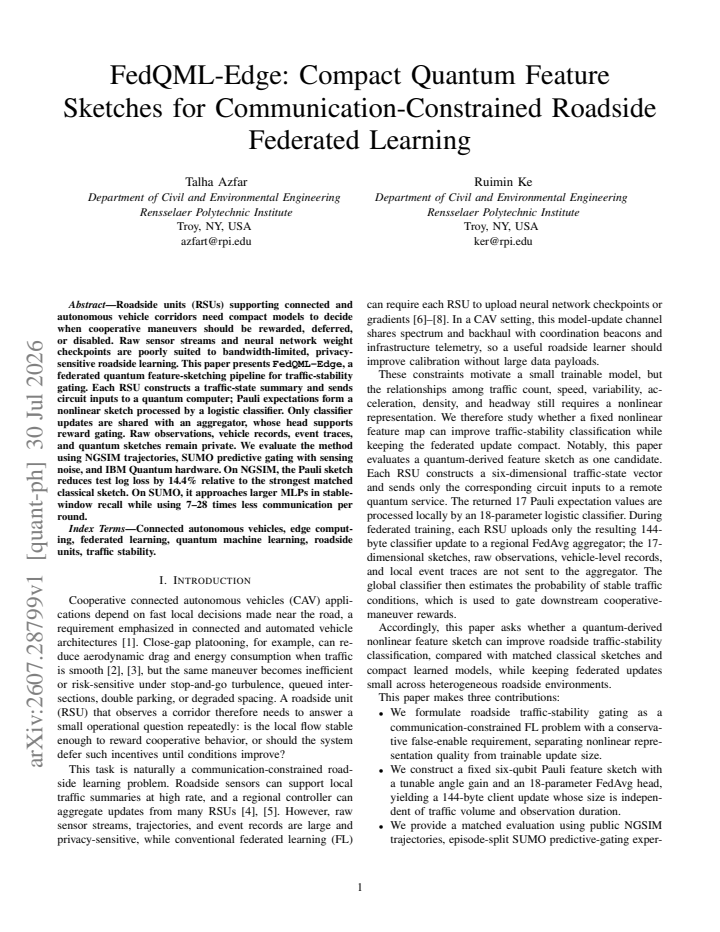

abstract
Roadside units (RSUs) supporting connected and autonomous vehicle corridors need compact models to decide when cooperative maneuvers should be rewarded, deferred, or disabled. Raw sensor streams and neural network weight checkpoints are poorly suited to bandwidth-limited, privacy-sensitive roadside learning. This paper presents $\texttt{FedQML-Edge}$, a federated quantum feature-sketching pipeline for traffic-stability gating. Each RSU constructs a traffic-state summary and sends circuit inputs to a quantum computer; Pauli expectations form a nonlinear sketch processed by a logistic classifier. Only classifier updates are shared with an aggregator, whose head supports reward gating. Raw observations, vehicle records, event traces, and quantum sketches remain private. We evaluate the method using NGSIM trajectories, SUMO predictive gating with sensing noise, and IBM Quantum hardware. On NGSIM, the Pauli sketch reduces test log loss by $14.4\%$ relative to the strongest matched classical sketch. On SUMO, it approaches larger MLPs in stable-window recall while using $7-28$ times less communication per round.
Figures
Reference graph
Works this paper leans on
-
[1]
Shladover
Steven E. Shladover. Connected and automated vehicle systems: Intro- duction and overview.Journal of Intelligent Transportation Systems, 22(3):190–200, 2018
2018
-
[2]
Michael P Lammert, Adam Duran, Jeremy Diez, Kevin Burton, and Alex Nicholson. Effect of platooning on fuel consumption of class 8 vehicles over a range of speeds, following distances, and mass.SAE International Journal of Commercial Vehicles, 7(2014-01-2438):626–639, 2014
2014
-
[3]
An experimental study on the fuel reduction potential of heavy duty ve- hicle platooning
Assad Al Alam, Ather Gattami, and Karl Henrik Johansson. An experimental study on the fuel reduction potential of heavy duty ve- hicle platooning. In13th international IEEE conference on intelligent transportation systems, pages 306–311. IEEE, 2010
2010
-
[4]
Edge computing: Vision and challenges.IEEE Internet of Things Journal, 3(5):637–646, 2016
Weisong Shi, Jie Cao, Quan Zhang, Youhuizi Li, and Lanyu Xu. Edge computing: Vision and challenges.IEEE Internet of Things Journal, 3(5):637–646, 2016
2016
-
[5]
Yuyi Mao, Changsheng You, Jun Zhang, Kaibin Huang, and Khaled B. Letaief. A survey on mobile edge computing: The communication perspective.IEEE Communications Surveys & Tutorials, 19(4):2322– 2358, 2017
2017
-
[6]
Communication-efficient learning of deep networks from decentralized data
Brendan McMahan, Eider Moore, Daniel Ramage, Seth Hampson, and Blaise Aguera y Arcas. Communication-efficient learning of deep networks from decentralized data. InProc. 20th Int. Conf. Artificial Intelligence and Statistics (AISTATS), pages 1273–1282. Pmlr, 2017
2017
-
[7]
Towards federated learning at scale: System design
Keith Bonawitz et al. Towards federated learning at scale: System design. InProceedings of Machine Learning and Systems, volume 1, pages 374–388, 2019
2019
-
[8]
Brendan McMahan, Brendan Avent, et al
Peter Kairouz, H. Brendan McMahan, Brendan Avent, et al. Advances and open problems in federated learning.Foundations and Trends in Machine Learning, 14(1–2):1–210, 2021
2021
Show all 26 references
-
[9]
F-cooper: Feature based cooperative perception for autonomous vehicle edge computing system using 3d point clouds
Qi Chen, Xu Ma, Sihai Tang, Jingda Guo, Qing Yang, and Song Fu. F-cooper: Feature based cooperative perception for autonomous vehicle edge computing system using 3d point clouds. InProceedings of the 4th ACM/IEEE Symposium on Edge Computing, pages 88–100, 2019
2019
-
[10]
Making a case for fed- erated learning in the internet of vehicles and intelligent transportation systems.IEEE Network, 35(3):88–94, 2021
Dimitrios Michael Manias and Abdallah Shami. Making a case for fed- erated learning in the internet of vehicles and intelligent transportation systems.IEEE Network, 35(3):88–94, 2021
2021
-
[11]
Random features for large-scale kernel machines
Ali Rahimi and Benjamin Recht. Random features for large-scale kernel machines. InAdvances in Neural Information Processing Systems, pages 1177–1184, 2007
2007
-
[12]
Christopher K. I. Williams and Matthias Seeger. Using the Nystr ¨om method to speed up kernel machines. InAdvances in Neural Information Processing Systems 13, pages 682–688, 2000
2000
-
[13]
Petros Drineas and Michael W. Mahoney. On the Nystr ¨om method for approximating a gram matrix for improved kernel-based learning. Journal of Machine Learning Research, 6:2153–2175, 2005
2005
-
[14]
Quantum computing in intelligent transportation systems: A survey.CHAIN, 1(2):138–149, 2024
Yifan Zhuang, Talha Azfar, Yinhai Wang, Wei Sun, Xiaokun Wang, Qianwen Guo, and Ruimin Ke. Quantum computing in intelligent transportation systems: A survey.CHAIN, 1(2):138–149, 2024
2024
-
[15]
Quantum machine learning in feature hilbert spaces.Physical Review Letters, 122(4):040504, 2019
Maria Schuld and Nathan Killoran. Quantum machine learning in feature hilbert spaces.Physical Review Letters, 122(4):040504, 2019
2019
-
[16]
Corcoles, Kristan Temme, Aram W
V ojtech Havlicek, Antonio D. Corcoles, Kristan Temme, Aram W. Harrow, Abhinav Kandala, Jerry M. Chow, and Jay M. Gambetta. Supervised learning with quantum-enhanced feature spaces.Nature, 567(7747):209–212, 2019
2019
-
[17]
Shallow and robust QAOA: Improv- ing feasibility and hardware performance via linear-chain and ramp schedules
Talha Azfar and Ruimin Ke. Shallow and robust QAOA: Improv- ing feasibility and hardware performance via linear-chain and ramp schedules. Research Square preprint, Version 1, 2026. Jan. 5, 2026, doi:10.21203/rs.3.rs-8297477/v1
2026 doi
-
[18]
Qiskit: An open-source framework for quantum computing
Qiskit contributors. Qiskit: An open-source framework for quantum computing. Zenodo, 2019. doi:10.5281/zenodo.2562111
2019 doi
-
[19]
Department of Transportation Federal Highway Administration
U.S. Department of Transportation Federal Highway Administration. Next generation simulation (NGSIM) vehicle trajectories and supporting data. dataset, ITS DataHub, 2016. doi:10.21949/1504477, accessed: Jul. 2026
2016 doi
-
[20]
Measurement and estimation of traffic oscillation properties.Transportation Research Part B: Methodological, 44(1):1–14, 2010
Xiaopeng Li, Fan Peng, and Yanfeng Ouyang. Measurement and estimation of traffic oscillation properties.Transportation Research Part B: Methodological, 44(1):1–14, 2010
2010
-
[21]
Freeway traffic oscillations: microscopic analysis of formations and propagations using wavelet transform.Procedia-Social and Behavioral Sciences, 17:702–716, 2011
Zuduo Zheng, Soyoung Ahn, Danjue Chen, and Jorge Laval. Freeway traffic oscillations: microscopic analysis of formations and propagations using wavelet transform.Procedia-Social and Behavioral Sciences, 17:702–716, 2011
2011
-
[22]
Variability in traffic flow quality experienced by drivers: Evidence from instrumented vehicles.Transportation research record, 1988(1):1–9, 2006
Joonho Ko, Randall Guensler, and Michael Hunter. Variability in traffic flow quality experienced by drivers: Evidence from instrumented vehicles.Transportation research record, 1988(1):1–9, 2006
1988
-
[23]
Recent development and applications of sumo-simulation of urban mobility.International Journal On Advances in Systems and Measurements, 5(3-4):128–138, 2012
Daniel Krajzewicz, Jakob Erdmann, Michael Behrisch, and Laura Bieker. Recent development and applications of sumo-simulation of urban mobility.International Journal On Advances in Systems and Measurements, 5(3-4):128–138, 2012
2012
-
[24]
Support-vector networks.Machine Learning, 20(3):273–297, 1995
Corinna Cortes and Vladimir Vapnik. Support-vector networks.Machine Learning, 20(3):273–297, 1995
1995
-
[25]
Multilayer feedforward networks are universal approximators.Neural Networks, 2(5):359–366, 1989
Kurt Hornik, Maxwell Stinchcombe, and Halbert White. Multilayer feedforward networks are universal approximators.Neural Networks, 2(5):359–366, 1989
1989
-
[26]
Weinberger
Chuan Guo, Geoff Pleiss, Yu Sun, and Kilian Q. Weinberger. On calibration of modern neural networks. InProceedings of the 34th International Conference on Machine Learning, volume 70, pages 1321– 1330, 2017. 7
2017
