Pith. sign in

REVIEW 3 major objections 6 minor 95 references

First-principles carrier mobility and optical absorption of strained ZnO with self-consistent Hubbard interactions

T0 review · 3 major / 6 minor · reviewed 2026-08-03 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Uniaxial tensile strain of 4.8% along [1-10] increases room-temperature electron mobility of ZnO by 19% without changing visible absorption.

desk verdict Solid transport prediction; the constant scissor shift makes the 'visible absorption unchanged' claim fragile. read the letter →

arxiv 2607.29030 v1 pith:HIT6HJX7 submitted 2026-07-31 cond-mat.mtrl-sci cond-mat.str-el

Hong-Guk Min , Wooil Yang , Sabyasachi Tiwari , Feliciano Giustino , Young-Woo Son This is my paper · ORCID
classification cond-mat.mtrl-scicond-mat.str-el PACS 71.38.-k78.20.Ci72.20.Dp
keywords ZnOelectronmobilitystrainengineeringHubbardcorrectionDFPT+Uelectron-phononcouplingopticalabsorptiontransparentconductingoxide
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to establish that moderate uniaxial tensile strain can selectively improve electron transport in zinc oxide (ZnO) without sacrificing optical transparency. Using a parameter-free first-principles method that includes the Hubbard correction for electron correlations, it finds that 4.8% strain along one in-plane direction increases the room-temperature electron mobility along that direction by 19%, while visible-light absorption stays essentially unchanged. The authors attribute the mobility gain mainly to reduced acoustic-phonon scattering, with a smaller contribution from a lighter effective mass. If correct, this gives quantitative guidance for strain-engineered transparent and flexible display backplanes.

What carries the argument

The central mechanism is the self-consistent Hubbard-corrected density-functional perturbation theory (DFPT+U), which supplies phonon dispersions and electron-phonon matrix elements from a DFT+U ground state with the Hubbard parameter determined self-consistently for each strained geometry. This is combined with Wannier interpolation, the iterative Boltzmann transport equation for mobility, and quasi-degenerate perturbation theory for phonon-assisted optical absorption. A scissor correction aligns the computed band gap to experiment for the optical spectra.

What would settle it

Grow or bend a ZnO film to 4.8% uniaxial in-plane tensile strain, measure Hall or drift mobility along the strain direction and optical absorption in the visible range; if the mobility increase is not ~19% or the absorption changes by more than a few percent, the central prediction fails. Alternatively, recompute the optical spectrum with a strain-dependent scissor shift and check whether the visible absorption remains unchanged.

Watch

Extended reading notes

Core claim

Within density-functional perturbation theory augmented with a self-consistent Hubbard U applied only to O 2p orbitals, the paper computes electron-phonon interactions from the DFT+U ground state and evaluates phonon-limited mobility and optical absorption of wurtzite ZnO under uniaxial tensile strain. It finds that 4.8% strain along [1-10] raises the 300 K electron mobility along the strain direction by 19% (with the perpendicular in-plane component up 4.2% and the out-of-plane component down 8%) while the absorption spectrum below 3.2 eV changes negligibly. The deformation potential near Gamma is essentially strain-independent, so the scattering reduction is attributed to changes in electr

Load-bearing premise

The load-bearing premise is that applying the Hubbard correction only to O 2p orbitals, together with a single scissor shift held fixed across all strains, captures the strain dependence of the conduction band and electron-phonon coupling accurately enough that the computed 19% mobility increase and unchanged absorption are quantitatively meaningful.

Editorial extensions

If this is right

  • In a ZnO thin-film transistor, bending-induced tensile strain of a few percent could raise channel mobility without degrading transparency.
  • The strain-dependent band-gap shift (~12 meV per 1% strain) can serve as a benchmark for future calculations and experiments.
  • The same parameter-free DFPT+U pipeline can be applied to other wide-band-gap oxides (e.g., InGaZnO) to screen strain-engineered transport.
  • The finding that deformation potentials stay nearly constant under strain indicates that mobility changes in this material are dominated by phase-space and effective-mass effects.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The 19% gain is computed at 4.8% strain; whether the trend continues at larger strains is an open question, since the paper does not test beyond 4.8% and structural instabilities could set in.
  • Because the strain is uniaxial, the in-plane mobility is anisotropic; a device aligned with the strain direction should benefit more than one aligned perpendicularly, which could be checked in experiments.
  • If the fixed scissor correction were allowed to vary with strain, the visible-absorption 'unchanged' conclusion might need revisiting; a strain-dependent gap correction is a natural next test.
  • The claim that visible transparency is unaffected relies on direct transitions dominating; phonon-assisted transitions grow slightly but stay small, so future resonant Raman or sub-gap absorption measurements could probe this.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The manuscript applies a newly developed DFPT+U implementation, with a self-consistent ACBN0 Hubbard U on O 2p orbitals, to wurtzite ZnO under uniaxial tensile strain. It computes electronic and phonon band structures, electron-phonon matrix elements, iterative Boltzmann transport mobilities, and direct plus phonon-assisted optical absorption for three strain directions, focusing on ε_yy ([1-10]) strain. The central claim is that 4.8% uniaxial tensile strain along [1-10] increases the room-temperature electron mobility along the strain direction by 19% while leaving visible-range optical absorption essentially unchanged, which the authors interpret as a strain-selective transport enhancement relevant to transparent flexible display backplanes.

Significance. If confirmed, the result would establish a practical design principle for strain-engineered oxide TFT channels and demonstrate the usefulness of DFPT+U with self-consistent Hubbard parameters for transport and optical response in correlated wide-gap oxides. The transport calculations are carefully executed: dense k/q grids, iterative solution of the Boltzmann equation, Wannier interpolation cross-checked against direct DFPT+U deformation potentials (Fig. 4c,d), verification of phonon stability, and a clear decomposition of the mobility enhancement into effective-mass and scattering-rate contributions. The main weakness is the optical half of the headline, which relies on a constant empirical scissor shift without accounting for the strain dependence of the DFT+U gap error. After this calibration issue is addressed, the paper would be a solid contribution.

major comments (3)
  1. [III.C, Fig. 3(d)] The 'visible absorption essentially unchanged' claim is not robust because the same scissor shift Δ=1.61 eV is applied to all strained structures. The text reports dE_g/dε ≈ -12 meV/% for DFT+U, versus ≈ -16 meV/% in Ref. [33]; hence the corrected absorption edge at 4.8% strain is miscalibrated by ~19 meV. This is not a negligible calibration error: Fig. 3(e) places strain-induced direct-transition changes at 3.1–3.2 eV, inside the quoted visible range (1.6–3.3 eV). Please repeat the optical calculation with a strain-dependent scissor calibrated to the experimental gap-strain coefficient, or at minimum show that a rigid 20 meV shift of the strained spectra leaves the conclusion unchanged. The abstract's 'parameter-free' wording is also inconsistent with the empirical scissor input.
  2. [II/III.B, Table I] The method applies a Hubbard U only to O 2p, with no U on Zn 3d, following Ref. [61] without an independent justification under strain. The headline mobility increase is driven by the strain dependence of the conduction-band effective mass and acoustic-phonon scattering phase space (§III.D, Fig. 4). The same U_p-only ground state already underestimates the gap-strain coefficient by 25% relative to experiment, so it is plausible that the strain dependence of m* and the el-ph matrix elements is also biased. Please provide a sensitivity test at, e.g., 4.8% strain with a self-consistent U_d on Zn 3d (or compare against a GW/hybrid-functional strain coefficient), or explicitly state this as a limitation of the transport conclusion.
  3. [III.C] The phrase 'essentially unchanged' is not quantified. Fig. 3(d) displays spectra without a quantitative tolerance, and Fig. 3(f) shows a weak phonon-assisted peak developing in the visible range with increasing strain. Please report the maximum relative change in α(ω) over 1.6–3.3 eV at 4.8% strain and state what threshold is used for 'essentially unchanged'.
minor comments (6)
  1. [Abstract/Conclusion] The 19% increase is direction-specific: µ_y +19%, µ_x +4.2%, µ_z -8% at 300 K and 4.8% strain. The abstract and conclusion should explicitly say 'along the strain direction' to avoid overstatement.
  2. [Eq. (1)] Define all symbols in Eq. (1), especially the sum over k and the meaning of N. As written, Dν(Γ,q) appears on the left while the right-hand side contains g_{mnν}(k,q) with no explicit k summation or normalization over the BZ.
  3. [Appendix B] The text says 'Wannierization converged within 10 4 iterations'; this should read 10^4 iterations. Also, the frozen-window values in Table A1 would benefit from a statement of the energy reference.
  4. [Appendix C] Title has a typo: 'principle axis' should be 'principal axes'.
  5. [Page 1] Typo: 'accelerateing' should be 'accelerating'.
  6. [III.C, visible range] The quoted visible range 1.6–3.3 eV extends beyond the conventional visible spectrum (≈1.6–3.1 eV). Specify the convention, since the near-edge changes at 3.1–3.2 eV are relevant to the discussion.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the strain-dependent mobility and absorption are computed outputs, not fitted targets.

full rationale

The core derivation chain is self-contained. The Hubbard U_p is recomputed self-consistently for each strained structure via ACBN0, and the phonon-limited mobility is obtained by solving the Boltzmann transport equation with DFPT+U electron-phonon matrix elements; no transport or optical observable is used as input to set U_p. The mobility enhancement is therefore a computed output, not a fit. The only explicit calibration is the scissor correction: 'Following Ref. [87], a scissor operator ... is introduced ... Δ = 1.61 eV ... For simplicity and to enable direct comparison across strain conditions, the same scissor correction is applied to all strained structures.' This is a transparent one-parameter alignment of the zero-strain DFT+U gap to experiment; the strain dependence of the gap, effective mass, and absorption are still computed rather than imposed. Thus the 'visible absorption essentially unchanged' statement is a prediction, albeit one whose near-edge robustness is limited by the DFT+U strain coefficient (-12 meV/% vs. the cited experimental ~-16 meV/%), a calibration concern rather than circularity. The U_p-only approximation is inherited from the same group's Ref. [61] ('According to a recent work [61], we adopt a minimal Hubbard correction applied only to the O 2p orbital'), which is a self-citation; however, the paper states that work reproduces experimental phonon-limited mobility and optical absorption, so it is externally benchmarked supporting evidence, not an unverified premise. No equation in the paper reduces the claimed 19% mobility change or the absorption flatness to an input parameter by construction.

Assumptions & free parameters 1 free parameters · 5 assumptions · 0 invented entities

The main external input is a single scissor shift fitted to the experimental band gap. The Hubbard U is computed self-consistently, and no new physical entities are postulated. The method relies on standard DFT+U and transport machinery, with the key domain assumption being the adequacy of the U_p-only correction.

free parameters (1)
  • Scissor correction Δ = 1.61 eV
    Applied uniformly to align the DFT+U band gap (1.59 eV) with the experimental gap (3.3 eV) for optical absorption (Section III.C). This is an empirical adjustment, so the 'parameter-free' claim applies cleanly only to the mobility part.
assumptions (5)
  • domain assumption DFT+U with Hubbard U applied only to O 2p orbitals gives reliable electronic structure and electron-phonon coupling for ZnO
    Adopted from prior work [61] by the same group; underpins all computed mobilities and spectra. If invalid under strain, the central trend could be an artifact.
  • domain assumption The ACBN0 self-consistent scheme yields accurate U_p without external fitting
    Used to compute U_p for each strained geometry (Section II). ACBN0 is a defined method, but its accuracy for ZnO is an assumption inherited from previous benchmarks.
  • ad hoc to paper The same scissor shift Δ=1.61 eV applies to all strain conditions
    Assumed so optical spectra can be compared across strains (Section III.C). If the band-gap error varies with strain, the absorption comparison could be distorted.
  • domain assumption Wannier interpolation faithfully reproduces the DFPT+U electron-phonon matrix elements
    Partially verified in Fig. 4(c,d) by comparing deformation potentials from interpolation and direct DFPT+U; assumed for all q-points and all strains.
  • domain assumption The iterative solution of the linearized Boltzmann transport equation gives accurate phonon-limited mobility
    Standard transport theory; used to compute mobilities (Section II). It assumes phonon-limited scattering is the dominant mobility-limiting mechanism.

how reviews work

0 comments
Cite this review

Pith. "Pith review of First-principles carrier mobility and optical absorption of strained ZnO with self-consistent Hubbard interactions." pith.science (2026). https://pith.science/paper/HIT6HJX7

@misc{pith2026260729030,
  author       = {Pith},
  title        = {Pith review of: First-principles carrier mobility and optical absorption of strained ZnO with self-consistent Hubbard interactions},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/HIT6HJX7}},
  note         = {Machine review of arXiv:2607.29030}
}
read the original abstract

Carrier mobility and optical absorption are key performance parameters of oxide semiconductors in transparent and flexible displays. We use a newly developed density-functional perturbation theory with a self-consistent Hubbard correction (DFPT+U) to study phonon-limited electron transport and phonon-assisted optical absorption in strained zinc oxide (ZnO). This parameter-free approach accounts for electron-phonon interactions and on-site correlation effects simultaneously. Electronic structures and phonon dispersions are computed under three distinct uniaxial strain directions. Uniaxial tensile strain up to 4.8% along [\bar110] is found to increase the room-temperature electron mobility by 19% while leaving visible-range optical absorption essentially unchanged. These results demonstrate that moderate strain can selectively enhance carrier transport without degrading optical transparency, and establish DFPT+U as an effective framework for predicting strain-dependent transport and optical properties in wide-band-gap oxides with implications for strain-engineered display and optoelectronic applications.

Figures

Figures reproduced from arXiv: 2607.29030 by the authors.

Figure 1

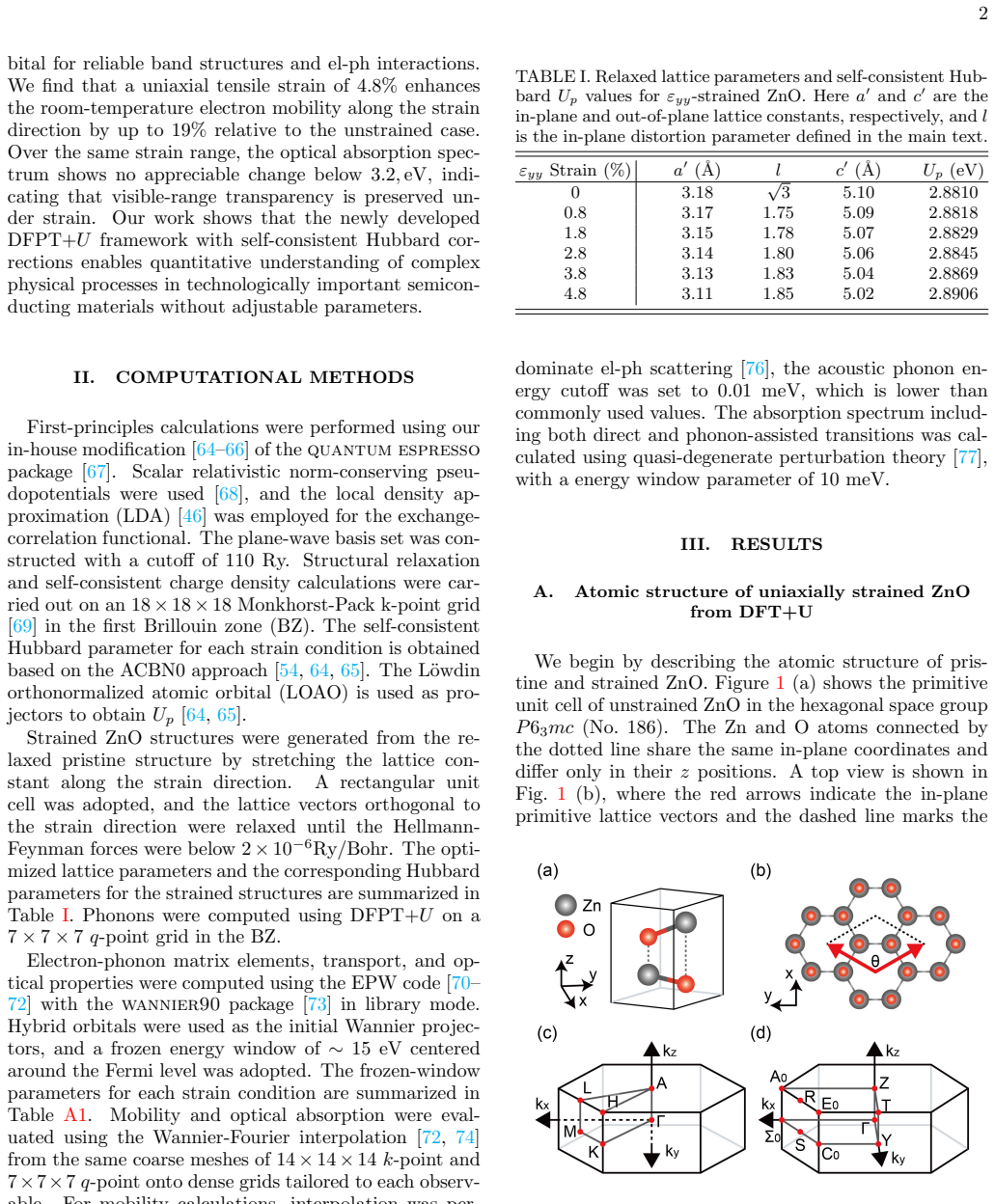

Figure 1. FIG. 1. Atomic structure of ZnO and the corresponding [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. FIG. 2. Electron and phonon band structures of ZnO under [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. FIG. 3. Transport and optical properties of ZnO under [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (1 more)
Figure 4
Figure 4. Figure 4: FIG. 4. Strain dependence of el-ph interactions. (a) Rel [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]

Discussion (0). Continue with ORCID to comment.

Reference graph

Works this paper leans on

95 extracted references · 1 linked inside Pith

  1. [33]

    K. Eun, W. Hwang, B. Sharma, J. Ahn, Y. Lee, and S. Choa, Mechanical flexibility of zinc oxide thin-film transistors prepared by transfer printing method, Mod- ern Physics Letters B26, 1250077 (2012)

    2012

  2. [61]

    Floris, S

    A. Floris, S. de Gironcoli, E. Gross, and M. Cococcioni, Vibrational properties of mno and nio from dft+ u-based density functional perturbation theory, Physical Review B—Condensed Matter and Materials Physics84, 161102 (2011)

    2011

  3. [1]

    Shockley, The theory of p-n junctions in semiconduc- tors and p-n junction transistors, Bell system technical journal28, 435 (1949)

    W. Shockley, The theory of p-n junctions in semiconduc- tors and p-n junction transistors, Bell system technical journal28, 435 (1949)

    1949

  4. [2]

    Bardeen and W

    J. Bardeen and W. H. Brattain, The transistor, a semi- conductor triode, Physical review74, 230 (1948)

    1948

  5. [3]

    In this case, the out-of-plane lattice parameter 9 FIG. A5. Electronic and phonon band structures of ZnO under tensile strain. The left panels, (a), (c), and (e), corre- spond toε xx strain, while the right panels, (b), (d), and (f), correspond toε zz strain. (a),(b) Electronic band structures. (c),(d) phonon band structures. (e),(f) Relative change in th...

  6. [4]

    G. E. Mooreet al., Cramming more components onto integrated circuits (1965)

    1965

  7. [5]

    S. M. Sze, Y. Li, and K. K. Ng,Physics of semiconductor devices(John wiley & sons, 2021)

    2021

  8. [6]

    Bohr, A 30 year retrospective on dennard’s mosfet scaling paper, IEEE Solid-State Circuits Society Newslet- ter12, 11 (2007)

    M. Bohr, A 30 year retrospective on dennard’s mosfet scaling paper, IEEE Solid-State Circuits Society Newslet- ter12, 11 (2007)

    2007

Show all 95 references
  1. [7]

    Dennard, F

    R. Dennard, F. Gaensslen, H.-N. Yu, V. Rideout, E. Bas- sous, and A. LeBlanc, Design of ion-implanted mosfet’s with very small physical dimensions, IEEE Journal of 10 Solid-State Circuits9, 256 (1974)

    1974

  2. [8]

    Kahng, Silicon-silicon dioxide field induced surface de- vices, inIRE Solid State Device Res

    D. Kahng, Silicon-silicon dioxide field induced surface de- vices, inIRE Solid State Device Res. Conf.(1960)

    1960

  3. [9]

    M. M. Atalla, E. Tannenbaum, and E. Scheibner, Sta- bilization of silicon surfaces by thermally grown oxides, Bell System Technical Journal38, 749 (1959)

    1959

  4. [10]

    B. E. Deal and A. Grove, General relationship for the thermal oxidation of silicon, Journal of applied physics 36, 3770 (1965)

    1965

  5. [11]

    Hofstein and F

    S. Hofstein and F. Heiman, The silicon insulated-gate field-effect transistor, Proceedings of the IEEE51, 1190 (1963)

    1963

  6. [12]

    Le Comber, W

    P. Le Comber, W. Spear, and A. Ghaith, Amorphous- silicon field-effect device and possible application, Elec- tronics Letters15, 179 (1979)

    1979

  7. [13]

    P. K. Weimer, The tft a new thin-film transistor, Pro- ceedings of the IRE50, 1462 (1962)

    1962

  8. [14]

    H. Sato, T. Minami, S. Takata, and T. Yamada, Trans- parent conducting p-type nio thin films prepared by mag- netron sputtering, Thin solid films236, 27 (1993)

    1993

  9. [15]

    C. R. Kagan and P. Andry,Thin-film transistors(CRC Press, 2003)

    2003

  10. [16]

    Hoffman, B

    R. Hoffman, B. J. Norris, and J. Wager, Zno-based trans- parent thin-film transistors, Applied Physics Letters82, 733 (2003)

    2003

  11. [17]

    Orita, H

    M. Orita, H. Tanji, M. Mizuno, H. Adachi, and I. Tanaka, Mechanism of electrical conductivity of transparent ingazno 4, Physical Review B61, 1811 (2000)

    2000

  12. [18]

    Yabuta, M

    H. Yabuta, M. Sano, K. Abe, T. Aiba, T. Den, H. Ku- momi, K. Nomura, T. Kamiya, and H. Hosono, High- mobility thin-film transistor with amorphous ingazno4 channel fabricated by room temperature rf-magnetron sputtering, Applied physics letters89(2006)

    2006

  13. [19]

    Nomura, H

    K. Nomura, H. Ohta, A. Takagi, T. Kamiya, M. Hirano, and H. Hosono, Room-temperature fabrication of trans- parent flexible thin-film transistors using amorphous ox- ide semiconductors, nature432, 488 (2004)

    2004

  14. [20]

    Ohta and H

    H. Ohta and H. Hosono, Transparent oxide optoelectron- ics, Materials Today7, 42 (2004)

    2004

  15. [21]

    Fortunato, P

    E. Fortunato, P. Barquinha, and R. Martins, Oxide semi- conductor thin-film transistors: a review of recent ad- vances, Advanced materials24, 2945 (2012)

    2012

  16. [22]

    B. J. Lechner, F. J. Marlowe, E. O. Nester, and J. Tults, Liquid crystal matrix displays, Proceedings of the IEEE 59, 1566 (1971)

    1971

  17. [23]

    T. P. Brody, J. A. Asars, and G. D. Dixon, A 6×6 inch 20 lines-per-inch liquid-crystal display panel, IEEE Transac- tions on Electron Devices20, 995 (1973)

    1973

  18. [24]

    Byeon, S

    G. Byeon, S. C. Jang, T. Roh, J.-M. Park, H.-S. Kim, and Y.-Y. Noh, Recent progress in the development of backplane thin film transistors for information displays, Journal of Information Display24, 159 (2023)

    2023

  19. [25]

    D. W. Kim, S. W. Kim, G. Lee, J. Yoon, S. Kim, J.- H. Hong, S.-C. Jo, and U. Jeong, Fabrication of practi- cal deformable displays: advances and challenges, Light: Science & Applications12, 61 (2023)

    2023

  20. [26]

    Park, T.-W

    J.-S. Park, T.-W. Kim, D. Stryakhilev, J.-S. Lee, S.-G. An, Y.-S. Pyo, D.-B. Lee, Y. G. Mo, D.-U. Jin, and H. K. Chung, Flexible full color organic light-emitting diode display on polyimide plastic substrate driven by amorphous indium gallium zinc oxide thin-film transis- tors...

    2009

  21. [27]

    E. M. Fortunato, P. M. Barquinha, A. Pimentel, A. M. Goncalves, A. J. Marques, L. M. Pereira, and R. F. Martins, Fully transparent zno thin-film transistor pro- duced at room temperature, Advanced Materials17, 590 (2005)

    2005

  22. [28]

    T. Jun, K. Song, Y. Jeong, K. Woo, D. Kim, C. Bae, and J. Moon, High-performance low-temperature solution- processable zno thin film transistors by microwave- assisted annealing, Journal of Materials Chemistry21, 1102 (2011)

    2011

  23. [29]

    K. Song, J. Noh, T. Jun, Y. Jung, H.-Y. Kang, and J. Moon, Fully flexible solution-deposited zno thin-film transistors, Adv. Mater22, 4308 (2010)

    2010

  24. [30]

    K. H. Cherenack, N. S. Munzenrieder, and G. Troster, Impact of mechanical bending on zno and igzo thin- film transistors, IEEE Electron Device Letters31, 1254 (2010)

    2010

  25. [31]

    Lin, C.-C

    Y.-Y. Lin, C.-C. Hsu, M.-H. Tseng, J.-J. Shyue, and F.- Y. Tsai, Stable and high-performance flexible zno thin- film transistors by atomic layer deposition, ACS applied materials & interfaces7, 22610 (2015)

    2015

  26. [32]

    Y. Li, B. Yao, Y. Lu, C. Cong, Z. Zhang, Y. Gai, C. Zheng, B. Li, Z. Wei, D. Shen,et al., Characterization of biaxial stress and its effect on optical properties of zno thin films, Applied physics letters91(2007)

    2007

  27. [34]

    Fan, Temperature dependence of the energy gap in semiconductors, Physical Review82, 900 (1951)

    H. Fan, Temperature dependence of the energy gap in semiconductors, Physical Review82, 900 (1951)

    1951

  28. [35]

    J. Liu, Z. Zhou, H. Gu, J. Zhu, H. Jiang, and S. Liu, Asymmetric optical properties and bandgap shift of pre- strained flexible zno films, APL Materials12(2024)

    2024

  29. [36]

    Grimvall, New aspects on the electron-phonon system at finite temperatures with an application on lead and mercury, Physik der kondensierten Materie9, 283 (1969)

    G. Grimvall, New aspects on the electron-phonon system at finite temperatures with an application on lead and mercury, Physik der kondensierten Materie9, 283 (1969)

    1969

  30. [37]

    Bardeen and W

    J. Bardeen and W. Shockley, Deformation potentials and mobilities in non-polar crystals, Physical review80, 72 (1950)

    1950

  31. [38]

    Kohn and L

    W. Kohn and L. J. Sham, Self-consistent equations in- cluding exchange and correlation effects, Phys. Rev.140, A1133 (1965)

    1965

  32. [39]

    Hohenberg and W

    P. Hohenberg and W. Kohn, Inhomogeneous electron gas, Physical review136, B864 (1964)

    1964

  33. [40]

    Giannozzi, S

    P. Giannozzi, S. De Gironcoli, P. Pavone, and S. Baroni, Ab initio calculation of phonon dispersions in semicon- ductors, Physical Review B43, 7231 (1991)

    1991

  34. [41]

    Baroni, P

    S. Baroni, P. Giannozzi, and A. Testa, Green’s-function approach to linear response in solids, Physical review let- ters58, 1861 (1987)

    1987

  35. [42]

    Gonze, Erratum: Adiabatic density-functional pertur- bation theory, Phys

    X. Gonze, Erratum: Adiabatic density-functional pertur- bation theory, Phys. Rev. A54, 4591 (1996)

    1996

  36. [43]

    Gonze, Adiabatic density-functional perturbation the- ory, Physical Review A52, 1096 (1995)

    X. Gonze, Adiabatic density-functional perturbation the- ory, Physical Review A52, 1096 (1995)

    1995

  37. [44]

    Giustino, Electron-phonon interactions from first prin- ciples, Reviews of Modern Physics89, 015003 (2017)

    F. Giustino, Electron-phonon interactions from first prin- ciples, Reviews of Modern Physics89, 015003 (2017)

    2017

  38. [45]

    Baroni, S

    S. Baroni, S. De Gironcoli, A. Dal Corso, and P. Gi- annozzi, Phonons and related crystal properties from density-functional perturbation theory, Reviews of mod- ern Physics73, 515 (2001)

    2001

  39. [46]

    J. P. Perdew and A. Zunger, Self-interaction correction to density-functional approximations for many-electron systems, Physical review B23, 5048 (1981)

    1981

  40. [47]

    R. O. Jones, Density functional theory: Its origins, rise to prominence, and future, Reviews of modern physics 11 87, 897 (2015)

    2015

  41. [48]

    Mori-S´ anchez, A

    P. Mori-S´ anchez, A. J. Cohen, and W. Yang, Localiza- tion and delocalization errors in density functional the- ory¡? format?¿ and implications for band-gap prediction, Physical review letters100, 146401 (2008)

    2008

  42. [49]

    J. P. Perdew, K. Burke, and M. Ernzerhof, Generalized gradient approximation made simple, Physical review let- ters77, 3865 (1996)

    1996

  43. [50]

    F. Oba, M. Choi, A. Togo, and I. Tanaka, Point defects in zno: an approach from first principles, Science and Technology of Advanced Materials12, 034302 (2011)

    2011

  44. [51]

    L. Y. Lim, S. Lany, Y. J. Chang, E. Rotenberg, A. Zunger, and M. F. Toney, Angle-resolved photoemis- sion and quasiparticle calculation of zno: The need for d band shift in oxide semiconductors, Physical Review B—Condensed Matter and Materials Physics86, 235113 (2012)

    2012

  45. [52]

    S. L. Dudarev, G. A. Botton, S. Y. Savrasov, C. Humphreys, and A. P. Sutton, Electron-energy-loss spectra and the structural stability of nickel oxide: An lsda+ u study, Physical Review B57, 1505 (1998)

    1998

  46. [53]

    V. I. Anisimov, F. Aryasetiawan, and A. Lichtenstein, First-principles calculations of the electronic structure and spectra of strongly correlated systems: the lda+ u method, Journal of Physics: Condensed Matter9, 767 (1997)

    1997

  47. [54]

    L. A. Agapito, S. Curtarolo, and M. Buongiorno Nardelli, Reformulation of dft+ u as a pseudohybrid hubbard den- sity functional for accelerated materials discovery, Phys- ical Review X5, 011006 (2015)

    2015

  48. [55]

    Himmetoglu, A

    B. Himmetoglu, A. Floris, S. De Gironcoli, and M. Co- coccioni, Hubbard-corrected dft energy functionals: The lda+ u description of correlated systems, International Journal of Quantum Chemistry114, 14 (2014)

    2014

  49. [56]

    H. J. Kulik, M. Cococcioni, D. A. Scherlis, and N. Marzari, Density functional theory in transition-metal chemistry:¡? format?¿ a self-consistent hubbard u ap- proach, Physical Review Letters97, 103001 (2006)

    2006

  50. [57]

    Cococcioni and S

    M. Cococcioni and S. De Gironcoli, Linear response approach to the calculation of the effective interaction parameters in the lda+ u method, Physical Review B—Condensed Matter and Materials Physics71, 035105 (2005)

    2005

  51. [58]

    N. J. Mosey, P. Liao, and E. A. Carter, Rotationally in- variant ab initio evaluation of coulomb and exchange pa- rameters for dft+ u calculations, The Journal of chemical physics129(2008)

    2008

  52. [59]

    N. J. Mosey and E. A. Carter, Ab initio evaluation of coulomb and exchange parameters for dft+ u calcula- tions, Physical Review B—Condensed Matter and Mate- rials Physics76, 155123 (2007)

    2007

  53. [60]

    Floris, I

    A. Floris, I. Timrov, B. Himmetoglu, N. Marzari, S. de Gironcoli, and M. Cococcioni, Hubbard-corrected density functional perturbation theory with ultrasoft pseudopotentials, Physical Review B101, 064305 (2020)

    2020

  54. [62]

    Lany and A

    S. Lany and A. Zunger, Assessment of correction meth- ods for the band-gap problem and for finite-size effects in supercell defect calculations: Case studies for zno and gaas, Physical Review B—Condensed Matter and Mate- rials Physics78, 235104 (2008)

    2008

  55. [63]

    W. Yang, S. Tiwari, F. Giustino, and Y.-W. Son, First-principles electron-phonon interactions with self- consistent hubbard interaction: Application to transpar- ent conducting oxides, Physical Review B112, 075203 (2025)

    2025

  56. [64]

    Lee and Y.-W

    S.-H. Lee and Y.-W. Son, First-principles approach with a pseudohybrid density functional for extended hubbard interactions, Physical Review Research2, 043410 (2020)

    2020

  57. [65]

    Gopal, M

    P. Gopal, M. Fornari, S. Curtarolo, L. A. Agapito, L. S. Liyanage, and M. B. Nardelli, Improved predictions of the physical properties of zn-and cd-based wide band-gap semiconductors: A validation of the acbn0 functional, Physical Review B91, 245202 (2015)

    2015

  58. [67]

    Yang, S.-H

    W. Yang, S.-H. Jhi, S.-H. Lee, and Y.-W. Son, Ab ini- tio study of lattice dynamics of group iv semiconductors using pseudohybrid functionals for extended hubbard in- teractions, arXiv preprint arXiv:2106.07201 (2021). [66]https://github.com/KIAS-CMT/DFT-U-V

    2021 arXiv

  59. [68]

    Giannozzi, S

    P. Giannozzi, S. Baroni, N. Bonini, M. Calandra, R. Car, C. Cavazzoni, D. Ceresoli, G. L. Chiarotti, M. Cococ- cioni, I. Dabo,et al., Quantum espresso: a modular and open-source software project for quantumsimulations of materials, Journal of physics: Condensed matter21, 395502 (2009)

    2009

  60. [69]

    The self-consistent Hubbard parameter for each strain condition is obtained based on the ACBN0 approach [54, 64, 65]

    in the first Brillouin zone (BZ). The self-consistent Hubbard parameter for each strain condition is obtained based on the ACBN0 approach [54, 64, 65]. The L¨ owdin orthonormalized atomic orbital (LOAO) is used as pro- jectors to obtainU p [64, 65]. Strained ZnO structures wer...

  61. [70]

    Hamann, Optimized norm-conserving vanderbilt pseu- dopotentials, Physical Review B—Condensed Matter and Materials Physics88, 085117 (2013)

    D. Hamann, Optimized norm-conserving vanderbilt pseu- dopotentials, Physical Review B—Condensed Matter and Materials Physics88, 085117 (2013)

    2013

  62. [71]

    H. J. Monkhorst and J. D. Pack, Special points for brillouin-zone integrations, Physical review B13, 5188 (1976)

    1976

  63. [72]

    Ponc´ e, E

    S. Ponc´ e, E. R. Margine, C. Verdi, and F. Giustino, Epw: Electron–phonon coupling, transport and super- conducting properties using maximally localized wannier functions, Computer Physics Communications209, 116 (2016)

    2016

  64. [73]

    H. Lee, S. Ponc´ e, K. Bushick, S. Hajinazar, J. Lafuente- Bartolome, J. Leveillee, C. Lian, J.-M. Lihm, F. Macheda, H. Mori,et al., Electron–phonon physics from first principles using the epw code, npj Computa- tional Materials9, 156 (2023)

    2023

  65. [74]

    Giustino, M

    F. Giustino, M. L. Cohen, and S. G. Louie, Electron- phonon interaction using wannier functions, Physical Re- view B—Condensed Matter and Materials Physics76, 165108 (2007)

    2007

  66. [75]

    Pizzi, V

    G. Pizzi, V. Vitale, R. Arita, S. Bl¨ ugel, F. Freimuth, G. G´ eranton, M. Gibertini, D. Gresch, C. Johnson, T. Koretsune,et al., Wannier90 as a community code: new features and applications, Journal of Physics: Con- densed Matter32, 165902 (2020)

    2020

  67. [76]

    A. A. Mostofi, J. R. Yates, G. Pizzi, Y.-S. Lee, I. Souza, D. Vanderbilt, and N. Marzari, An updated version of wannier90: A tool for obtaining maximally-localised wannier functions, Computer Physics Communications 185, 2309 (2014)

    2014

  68. [77]

    Ponc´ e, E

    S. Ponc´ e, E. R. Margine, and F. Giustino, Towards pre- dictive many-body calculations of phonon-limited car- rier mobilities in semiconductors, Physical Review B97, 121201 (2018)

    2018

  69. [78]

    J.-M. Lihm, S. Ponc´ e, and C.-H. Park, Self-consistent electron lifetimes for electron-phonon scattering, Physical 12 Review B110, L121106 (2024)

    2024

  70. [79]

    Tiwari, E

    S. Tiwari, E. Kioupakis, J. Menendez, and F. Giustino, Unified theory of optical absorption and luminescence in- cluding both direct and phonon-assisted processes, Phys- ical Review B109, 195127 (2024)

    2024

  71. [80]

    Abrahams and J

    S. Abrahams and J. Bernstein, Remeasurement of the structure of hexagonal zno, Structural Science25, 1233 (1969)

    1969

  72. [81]

    Schulz and K

    H. Schulz and K. Thiemann, Structure parameters and polarity of the wurtzite type compounds sic—2h and zno, Solid State Communications32, 783 (1979)

    1979

  73. [82]

    E. H. Kisi and M. M. Elcombe, u parameters for the wurtzite structure of zns and zno using powder neutron diffraction, Crystal Structure Communications45, 1867 (1989)

    1989

  74. [83]

    J. F. Nye,Physical Properties of Crystals: Their Rep- resentation by Tensors and Matrices(Oxford University Press, New York, 1985)

    1985

  75. [84]

    Kohan, G

    A. Kohan, G. Ceder, D. Morgan, and C. G. Van de Walle, First-principles study of native point defects in zno, Physical Review B61, 15019 (2000)

    2000

  76. [85]

    Janotti and C

    A. Janotti and C. G. Van de Walle, Fundamentals of zinc oxide as a semiconductor, Reports on progress in physics 72, 126501 (2009)

    2009

  77. [86]

    A. Mang, K. Reimann,et al., Band gaps, crystal-field splitting, spin-orbit coupling, and exciton binding ener- gies in zno under hydrostatic pressure, Solid state com- munications94, 251 (1995)

    1995

  78. [87]

    C. Dong, C. Persson, L. Vayssieres, A. Augustsson, T. Schmitt, M. Mattesini, R. Ahuja, C. Chang, and J.-H. Guo, Electronic structure of nanostructured zno from x- ray absorption and emission spectroscopy and the local density approximation, Physical Review B—Condensed Matter a...

    2004

  79. [88]

    Reynolds, D

    D. Reynolds, D. C. Look, B. Jogai, C. Litton, G. Cantwell, and W. Harsch, Valence-band ordering in zno, Physical Review B60, 2340 (1999)

    1999

  80. [89]

    Zacharias and F

    M. Zacharias and F. Giustino, One-shot calculation of temperature-dependent optical spectra and phonon- induced band-gap renormalization, Physical Review B 94, 075125 (2016)

    2016

  81. [90]

    Kobayashi, O

    A. Kobayashi, O. F. Sankey, S. M. Volz, and J. D. Dow, Semiempirical tight-binding band structures of wurtzite semiconductors: Aln, cds, cdse, zns, and zno, Physical Review B28, 935 (1983)

    1983

  82. [91]

    Ivanov and J

    I. Ivanov and J. Pollmann, Electronic structure of ideal and relaxed surfaces of zno: A prototype ionic wurtzite semiconductor and its surface properties, Physical Re- view B24, 7275 (1981)

    1981

  83. [92]

    J. C. Slater and G. F. Koster, Simplified lcao method for the periodic potential problem, Physical review94, 1498 (1954)

    1954

  84. [93]

    Ponc´ e, W

    S. Ponc´ e, W. Li, S. Reichardt, and F. Giustino, First- principles calculations of charge carrier mobility and con- ductivity in bulk semiconductors and two-dimensional materials, Reports on Progress in Physics83, 036501 (2020)

    2020

  85. [94]

    Ponc´ e, M

    S. Ponc´ e, M. Schlipf, and F. Giustino, Origin of low car- rier mobilities in halide perovskites, ACS Energy Letters 4, 456 (2019)

    2019

  86. [95]

    Ponc´ e, F

    S. Ponc´ e, F. Macheda, E. R. Margine, N. Marzari, N. Bonini, and F. Giustino, First-principles predictions of hall and drift mobilities in semiconductors, Physical Review Research3, 043022 (2021)

    2021

  87. [96]

    N. Pant, S. Tiwari, S. G. Louie, Z. Li, and F. Giustino, First-principles predictions of carrier mobility with record accuracy using gw perturbation theory, Phys. Rev. Lett. (2026)

    2026

Pith tools

Reviewed August 3, 2026 · model on record in the stance chip above.
