AutoFOAM: The Self-Refining Autonomous OpenFOAM Agent

T0 review · 4 major / 5 minor · reviewed 2026-08-04 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read AutoFOAM claims a self-evolving language-model agent can turn natural-language descriptions into runnable OpenFOAM simulations, reporting 100% execution on novel prompts and a seven-layer loop that improves without collapsing.

desk verdict Convincing single-pass agent, but the headline self-evolution loop is never actually run in the experiments; the paper asserts rather than demonstrates safe self-improvement. read the letter →

arxiv 2608.00003 v1 pith:VQ4MVACA submitted 2026-05-22 cs.AI

Arun Govind Neelan , A Seshaditya This is my paper · ORCID
classification cs.AI
keywords LLMagentOpenFOAMcomputationalfluiddynamicsself-evolutionloopDirectPreferenceOptimizationretrieval-augmentedgenerationsolverroutingnatural-language-to-simulation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper tries to establish that a large language model can be made into a fully autonomous CFD engineer: given a plain-English request, AutoFOAM extracts physics parameters, selects an OpenFOAM solver by deterministic rules, writes all configuration dictionaries, runs the simulation, and scores its own output. The central claim is that this loop can be closed—successful runs are fed back as training data while failures become preference gradients—without the model degrading into self-distillation collapse. If true, it removes the steep, expert-only configuration barrier to OpenFOAM and offers a blueprint for self-improving scientific software agents. On a held-out set of 110 out-of-distribution prompts, the agent executes every case end-to-end and matches the canonical solver in 106 cases.

What carries the argument

The central mechanism is the seven-layer self-evolution loop, a closed cycle of in-run correction, execution-gated curation, supervised fine-tuning, Direct Preference Optimization on failed-versus-successful retry pairs, anchor mixing to preserve old knowledge, active learning on the weakest solver family, and per-prompt regression auditing before weights are promoted. The loop is steered by a multi-objective reward function r in [0,1] that scores convergence, residual magnitude, mass conservation, solver correctness, boundary validity, and mesh quality, with penalties for slow or stagnated runs. Three anti-collapse streams (retrieval-augmented retry context, surgical dictionary-level patchi

What would settle it

Run AutoFOAM on a standard benchmark with a well-known published solution (for example, lid-driven cavity flow at a specified Reynolds number), let it generate and execute the case, and compare the resulting velocity profiles against the reference data. If the case passes every reward gate and converges cleanly but its flow field deviates beyond numerical error, the reward function has failed as a physical proxy and the curation/DPO loop is being fed false positives.

Watch

Extended reading notes

Core claim

On the paper's own terms, the central discovery is that an LLM, constrained to emit a fixed JSON physical-parameter object and allowed to act only at three decision points (prompt refinement, parameter extraction, retry generation), can reliably translate natural language into syntactically correct, physically stable OpenFOAM cases while all other steps are deterministic. The proof is the seven-layer self-evolution pipeline that converts execution telemetry into fine-tuning data and preference-optimization pairs, with anchor mixing, active learning, and a per-prompt regression diff guarding against collapse. The reported numbers are 100% end-to-end execution without fatal errors and 96.4% ex

Load-bearing premise

The entire curation and preference-optimization loop treats the scalar reward r as a faithful proxy for physically correct simulation, and the paper itself concedes that a simulation can be mathematically stable yet physically flawed, letting such cases pass the Layer 2 gate.

Editorial extensions

If this is right

  • A natural-language interface to OpenFOAM is feasible: an engineer can describe a flow scenario and receive a validated, runnable case without hand-writing any configuration dictionaries.
  • Routing solver selection deterministically around the LLM eliminates a common failure mode where geometric keywords bias the model toward the wrong numerical regime.
  • The anti-collapse streams (retrieval-augmented context, dictionary patching, and paraphrasing) can keep a self-trained agent stable across repeated generations, addressing the known self-distillation collapse problem.
  • Because the loop is closed and execution-gated, the agent's capability should continue to grow as it processes more cases, within its supported solver and geometry envelope.
  • The 100% execution rate on out-of-distribution prompts indicates the fine-tuned model learned transferable physical semantics rather than prompt-template matching.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the reward function is later augmented with an external physics validator that checks flow fields against published benchmark data, the pipeline should be able to filter out the 'numerically converged but physically wrong' cases the paper itself flags; that would make the claimed self-improvement trustworthy for quantitative engineering.
  • The separation of LLM decision points from deterministic execution is a transferable template for other rigid scientific software where configuration files must satisfy strict schemas, such as structural analysis or chemistry packages.
  • The four routing mismatches, all in low-Reynolds transient cylinder cases, suggest a testable path: adding ambiguous-regime prompts to the active-learning step could push routing precision toward 100%, or would reveal a need for a non-deterministic fallback.
  • The anti-collapse claim is reported at initial deployment; a longer-horizon test—running the seven-layer loop for dozens of cycles and monitoring reward variance and output diversity—would show whether the safeguards hold under sustained self-training.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. AutoFOAM is presented as a self-evolving LLM agent that converts natural-language CFD requests into executable OpenFOAM case files. The system couples LLM-based parameter extraction with deterministic routing, meshing, dictionary generation, and a multi-objective reward r. The paper's central contribution is a seven-layer evolution loop (retry correction, reward-based curation, SFT, DPO, anchor mixing, active learning, regression auditing) intended to improve the model over repeated self-training without model collapse. The reported experiments, however, cover only a single end-to-end pass: on a held-out set of 110 OOD prompts the agent achieves 100% execution success, 96.4% exact-match solver routing, and a mean reward of 0.64. The paper explicitly concedes in Section 6 that the reward function can pass numerically converged but physically wrong simulations, and it does not report any empirical run of the full seven-layer loop.

Significance. If the self-evolution claims were experimentally supported, AutoFOAM would be a valuable contribution to the growing line of work on LLM agents for computational science. The paper has real strengths: it commits to open releases of weights, code, and data; it uses constrained decoding and deterministic routing to reduce hallucination; and it is unusually explicit about its operational envelope and the physics-validation gap. The underlying idea of separating LLM semantic interpretation from deterministic CFD execution is sensible and likely to be adopted by others. The significance of the paper as written, however, is conditional: the advertised core novelty, the seven-layer loop that 'safely scales capabilities without succumbing to self-distillation model collapse,' is never measured. The experiments validate only a single generation, not self-evolution, and the reward used for curation and preference mining is not independently validated against physical ground truth. The paper therefore currently contributes a promising architecture and an honest limitation statement, but not a demonstrated method for safe self-improving CFD agents.

major comments (4)
  1. [§4 (Fig. 2), §5.2, §7] The paper's central claim—the seven-layer self-evolution loop safely scales capabilities without model collapse—is not empirically tested anywhere. Section 5.2 reports only a single pass of 110 OOD prompts (Table 3) with no generation count, no reward trajectory across iterations, no before/after SFT or DPO evaluation, no held-out evaluation after a loop pass, no ablation with the anti-collapse streams disabled, and no comparison against FoamGPT or OpenFOAMGPT. The Introduction's 'marked improvements across solver-family match rates, mean reward scores, and first-pass simulation success' and the Conclusion's collapse-resistance claim are therefore unsupported by the data presented.
  2. [§3.2, §4.1 Layer 4, §6] The curation threshold (Layer 2), the SFT data, and the DPO preference pairs all derive from the hand-set reward function r (Table 1), yet Section 6 concedes that 'physically inaccurate but numerically converged cases can inadvertently pass the Layer 2 curation gate' and that this 'risks starving the Layer 4 DPO loop of vital negative preference signals.' Since r is the only quality signal in the self-improvement loop, the claimed 'physics-aware' self-evolution is circular unless r is independently validated against empirical or benchmark physics. No such validation is reported.
  3. [Table 1, §2, §5.2] The 96.4% solver-routing 'exact match' metric is measured against the authors' own deterministic router: Table 1 defines the 'Correct solver pick' reward component as solver = select_solver(params). Thus the metric demonstrates agreement with the routing heuristic, not independently established physical correctness. Section 5.2's phrasing that this shows 'robust physical reasoning' and 'zero-shot physics reasoning' overstates what this metric can establish, especially given the absence of external CFD validation.
  4. [§5.2, Table 3] Headline metrics are reported as single-run point values on 110 prompts, with no confidence intervals, no baseline model comparison (e.g., the untuned Qwen-2.5-Coder or FoamGPT), and no repeat runs to assess variance. Moreover, the 'strictly held-out' nature of the OOD set is asserted but not demonstrated: no overlap analysis with the 402-row foundational corpus is provided, and Section 5.2 itself restricts evaluation to the supported solver/geometry families, so 'out-of-distribution' refers mainly to phrasing and parameter variation. The quantitative claims should be tempered accordingly.
minor comments (5)
  1. [Abstract and §1 and §2] The base model is described inconsistently as 'Qwen-coder 2.5-14B,' 'Qwen-chat backbone,' and 'Qwen2.5-Coder.' Please use one consistent name and specify the exact checkpoint.
  2. [§1] The Introduction lists 'three complementary anti-collapse streams' but then enumerates four items: RAG, retry context, surgical dictionary-level patching, and prompt-diversity paraphrasing. Clarify whether 'RAG-augmented retry context' is intended as one combined stream.
  3. [Figure 2] The seven-layer protocol diagram is difficult to read in the manuscript text. Please provide a higher-resolution figure with a legend, and ensure the layer labels match the prose (e.g., L3 gate, L7 diff).
  4. [§5.2] The phrase 'strictly held-out set of 110 OOD prompts' is potentially misleading because the evaluation is restricted to supported solvers and geometries. The manuscript should state explicitly that OOD variation is limited to linguistic phrasing and parameter values, not new tasks or geometries.
  5. [§3.1] The foundational corpus is described as '402-row instruction-tuning dataset' and later as '252 unique prompts'; the relationship between these numbers (e.g., multi-turn dialogues per prompt) should be clarified.

Circularity Check

0 steps flagged · score 1.0 of 10

No load-bearing circularity; execution metrics are anchored by external OpenFOAM runs, though reward-based self-evolution is unevidenced and the physics-validity gap is candidly acknowledged.

full rationale

The headline quantitative claims rest on running OpenFOAM cases end-to-end; '100% end-to-end execution without FOAM FATAL' is an external ground truth: the solver either exits cleanly or not, so this is not a fitted-input prediction. The 96.4% solver-routing exact match is measured against the authors' own deterministic select_solver(params) heuristic (Table 1), which weakens external validity but is not circular because the LLM must independently extract the transient/compressible/thermal/multiphase/Reynolds parameters, and the canonical labels in Table 2 are distinct from the extracted parameter sets. The foundational corpus is filtered by r>=0.5 and dynamic capture by r>=0.65, and the same reward is used in evaluation, but the OOD set is held out and the reward does not directly invert outputs into the reported metrics. The paper itself flags the load-bearing limitation in Section 6: 'a simulation can be mathematically stable while remaining physically flawed' and 'physically inaccurate but numerically converged cases can inadvertently pass the Layer 2 curation gate', which undermines the physics-aware claim but is a validation gap, not a circular reduction. No self-citation chain is load-bearing; all cited techniques (DPO, RAG, xgrammar) are standard external methods. The seven-layer evolution loop is described but never executed in any reported experiment, so the 'safe scaling without model collapse' claim is unsupported evidence-wise, but absence of evidence is not circularity.

Assumptions & free parameters 4 free parameters · 4 assumptions · 0 invented entities

The quantitative claims rest on hand-set reward weights and curation thresholds that also generate the training data. The OOD benchmark is self-authored, and the deterministic router is used as the ground truth for 'correct solver pick.' These choices do not invalidate the external OpenFOAM execution check, but they weaken the self-improvement and physical-accuracy claims.

free parameters (4)
  • Reward component weights = Table 1: +0.40, +0.15, +0.20, +0.10, +0.10, +0.05, +0.05, -0.10, -0.10, -0.05
    Hand-set weights define what counts as a successful simulation for curation and DPO training. No sensitivity analysis or ablation is shown, and the paper admits the weights over-emphasize convergence over physical fidelity.
  • Curation thresholds = r >= 0.5 for retry context; r >= 0.65 for training corpus
    These thresholds gate which executed trajectories enter the retry memory and the curated training set. They directly shape the model's learning signal and the reported benchmark performance.
  • Anchor mixing fraction = 30% foundational corpus per retraining batch
    The fraction of the original corpus injected into every dynamic retraining batch is chosen without ablation. It is load-bearing for the claimed collapse prevention.
  • Penalty cutoffs = non-orthogonality >70°, wall-clock >300 s, stagnation detection
    Arbitrary cutoffs in the reward function determine pass/fail and affect which trajectories are promoted.
assumptions (4)
  • domain assumption For converged OpenFOAM runs, residual decay and mass conservation are sufficient proxies for physically correct CFD solutions
    The entire reward/curation pipeline depends on this. Section 6 explicitly states it is false for many cases, e.g., converged solutions with incorrect drag coefficients.
  • domain assumption The 110 OOD prompts are truly out-of-distribution with respect to the 252-prompt training corpus
    The authors assert novel phrasing and vocabulary, but provide no embedding-distance or leakage analysis. Section 3.3 defines the benchmark.
  • ad hoc to paper The deterministic routing heuristic table correctly maps extracted physics flags to the optimal OpenFOAM solver
    The 'correct solver pick' ground truth in the reward is the same hand-built table, making the 96.4% routing accuracy partially self-referential. Section 2.
  • domain assumption DPO on retry pairs combined with anchor mixing prevents self-distillation collapse
    The paper relies on Rafailov et al. [8] and Shumailov et al. [15] but provides no direct longitudinal experiment showing that its seven-layer loop actually prevents collapse.

how reviews work

0 comments
Cite this review

Pith. "Pith review of AutoFOAM: The Self-Refining Autonomous OpenFOAM Agent." pith.science (2026). https://pith.science/paper/VQ4MVACA

@misc{pith2026260800003,
  author       = {Pith},
  title        = {Pith review of: AutoFOAM: The Self-Refining Autonomous OpenFOAM Agent},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/VQ4MVACA}},
  note         = {Machine review of arXiv:2608.00003}
}
read the original abstract

Computational Fluid Dynamics (CFD) plays an important role in modern engineering, but using open-source solvers such as OpenFOAM requires considerable knowledge and skills, as well as time-consuming configuration file setup. To reduce this burden, we propose AutoFOAM - a self-evolving large language model (LLM) agent that creates, evaluates, runs, and evolves its own OpenFOAM simulations based solely on natural-language instructions. Our model is pre-trained on the Qwen-coder 2.5-14B, which is then fine-tuned on 252 text prompts targeting 7 OpenFOAM solvers, 13 parametrized mesh templates, and a y plus-aware numerical policy. The crucial element of the algorithm is a sophisticated evolution loop composed of 7 stages. To prevent model degeneration under repeated self-training, the agent employs three complementary anti-collapse streams: RAG-augmented retry context, surgical dictionary-level patching, and prompt-diversity paraphrasing. By bridging generative artificial intelligence with rigorous fluid simulations, AutoFOAM accelerates rapid prototyping and democratizes advanced CFD workflows.

Figures

Figures reproduced from arXiv: 2608.00003 by the authors.

Figure 1
Figure 1. Eight-stage agent pipeline. The LLM-driven stages (orange) manage semantic interpretation and context [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. The seven-layer evolution protocol. The green module represents foundational memory retention (L5), and the orange module signifies targeted active learning (L6). L7 functions as a strict regression firewall before promoting the new weights. 4.1 The Seven-Layer Evolution Architecture The pipeline strictly regulates the flow of telemetry into the model weights through the following sequential protocols: Layer 1: Auto… view at source ↗
Figure 3
Figure 3. Mesh generated by AutoFOAM 5.2 Out-of-Distribution Zero-Shot Generalization The absolute efficacy of the autonomous pipeline was benchmarked using a strictly held-out set of 110 out-of-distribution (OOD) prompts, executed on an 8-way sharded cluster of NVIDIA H100 GPUs. The evaluation was restricted to solver families and geometries supported by AutoFOAM, while varying the geometric parameters and physical operating… view at source ↗
Figures from the paper (1 more)
Figure 4

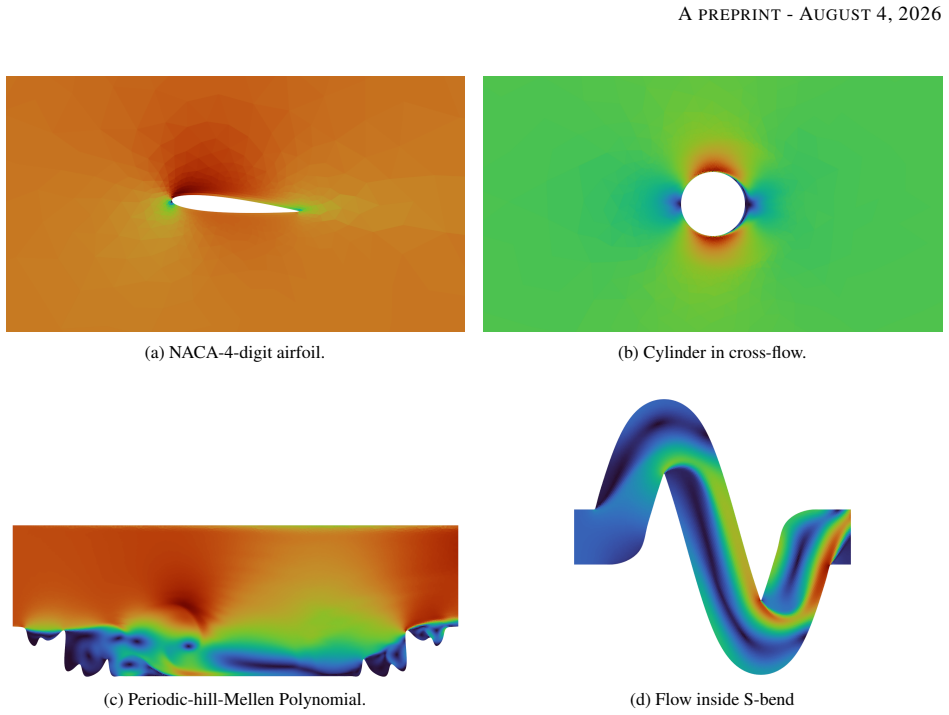

Figure 4. Figure 4: Velocity contours generated by AutoFOAM [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
