ROEVO: Robust Organized Edge Feature-based Visual Odometry Using RGB-D Cameras

T0 review · 4 major / 7 minor · reviewed 2026-08-11 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Organized edges—ordered chains of edge pixels—let a visual odometry system track and map using only edges, outperforming point-feature and learning-based baselines in sparse-texture scenes.

desk verdict A genuinely new organized-edge representation and a complete VO built on it, with a strong empirical effort, but the ICL-NUIM truncation protocol undercuts the headline robustness claim and the fine-tracking Jacobian has a dimension slip. read the letter →

arxiv 2608.09112 v1 pith:OLZRSYR2 submitted 2026-08-10 cs.RO

Mingrui Liu , Xingxing Zuo , Renlang Huang , Minglei Zhao , Jiming Chen , Liang Li This is my paper · ORCID
classification cs.RO
keywords organizededgesvisualodometryRGB-Dcamerasedge-basedtrackingbundleadjustmentco-visibilitygraphsparsetextureedgefeatures
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper claims that image edges, which most visual odometry systems treat as loose pixels, can be turned into ordered chains it calls organized edges, and that this representation alone is enough to build a full RGB-D visual odometry system that tracks and maps accurately. The authors argue that previous edge-based methods fail because they scatter edge pixels, losing the sequential order that carries structural information. By clustering edges by gradient direction and ordering each cluster into a single path, the system can associate whole edges across frames, build a co-visibility graph, and run bundle adjustment over fused map edges. The payoff, if true, is a VO system that stays accurate in sparse-texture and structure-heavy indoor scenes where point features and learning-based pipelines struggle.

What carries the argument

The load-bearing object is the organized edge: a Canny edge mask is preprocessed to remove two ambiguous local pixel patterns, then traversed by an oriented breadth-first search that clusters adjacent pixels whose gradient directions differ by at most 20 degrees, recording the expansion route. Backtracking from end nodes and retaining the longest combined path turns each cluster into a single ordered sequence of pixels. This ordering is what makes edge-level association possible: normals and tangents are computed from neighboring points in the chain, strict 5-degree normal-direction agreement validates candidate correspondences, and a disjoint-set structure chains associations across keyframes into a co-visibility graph. The same ordering supports the fusion of multiple views of one spatial edge into a fitted 3D map edge, and the decoupled bundle adjustment that alternates fitting with per-pose registration.

What would settle it

Take a sequence with sharp corners or significant motion blur, extract organized edges with the paper's fixed thresholds, and count how many true scene edges fragment into multiple chains or fail to associate across viewpoints; if the fragmentation rate is high enough that the co-visibility graph inherits wrong correspondences, the reported robustness in sparse-texture scenes would collapse.

Watch

Extended reading notes

Core claim

The central discovery is that representing edges as organized, sequentialized clusters rather than raw edge masks makes edge-only visual odometry viable and competitive. Each organized edge is an ordered point sequence whose textural information comes from gradient orientation and whose structural information comes from curvature along the chain. With this representation, the paper builds edge-wise residuals for 3D-2D registration, a disjoint-set co-visibility graph for multi-frame association, a shape-preserving fitting and stitching step for map edges, and a bundle adjustment that decouples into edge fitting followed by per-pose registration. On ICL-NUIM, TUM RGB-D, ETH-3D, and custom indoor and outdoor sequences, the full system achieves the best ATE rank in 13 of 24 sequences and the top-three rank in 18 of 24, while completing sparse-texture sequences where several baselines fail.

Load-bearing premise

The whole pipeline assumes that true scene edges, after Canny extraction and suppression of two ambiguous local patterns, can be unambiguously sequentialized by oriented BFS with a fixed 20-degree gradient-direction clustering threshold, and that such chains repeat across viewpoints enough for the 5-degree normal-association threshold.

Editorial extensions

If this is right

  • An RGB-D VO system that uses only edges can run at roughly 35 Hz on a laptop CPU and remain accurate in sparse-texture indoor rooms.
  • Sliding-window bundle adjustment over organized edges reduces rotation drift and improves local mapping quality, as shown by the relative pose error improvements from tracking-only to tracking-plus-BA configurations.
  • Because organized edges encode gradient orientation, coarse tracking with a rotation-invariant patch-based photometric error beats raw Canny edges and keypoint-selection baselines in relative pose accuracy.
  • The method completes sequences where distance-field edge methods and geometry-based pipelines fail, indicating that the representation transfers to cluttered outdoor scenes with repeated structures and dynamic shadows.
  • Edge fusion filters pseudo-edges caused by dynamic disturbances, so the semi-dense reconstruction in scenes with human shadows is cleaner than the raw edge input would allow.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Beyond the paper's experiments, the fixed 20-degree clustering threshold implies an upper bound on detectable curvature: sharp corners will fragment into several organized edges, so the stitching step in edge fusion likely carries much of the burden in man-made scenes with many right angles.
  • A natural testable extension is to make the 20-degree and 5-degree thresholds adaptive to local edge curvature or gradient noise; the paper's own note that motion blur remains a weakness suggests such adaptation could widen the operating range.
  • The organized-edge representation could plausibly serve as a constraint source inside a full SLAM system with loop closure, since it already produces a co-visibility graph and fused map elements that look like landmarks.
  • Because the association is edge-level rather than pixel-level, the representation may transfer to monocular or stereo settings, where depth comes from triangulation instead of a depth sensor; the paper lists this as future work, not a demonstrated result.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 7 minor

Summary. ROEVO is an RGB-D visual odometry system that uses only edge features. Edge pixels are clustered into sequentially ordered 'organized edges' via oriented BFS, then tracked with a coarse photometric step and a fine edge-wise association step that combines geometric point-to-tangent and photometric residuals. A local mapping thread maintains a co-visibility graph via a disjoint set, fuses associated edges into 3D map edges, and performs a decoupled bundle adjustment. The system is evaluated on ICL-NUIM, TUM RGB-D, ETH-3D, and two custom datasets, with ablations for coarse tracking, repeatability, and runtime, and it reports state-of-the-art ATE on many sequences.

Significance. The organized-edge representation is a useful and well-motivated contribution: it gives edge features an ordered structure that supports edge-level association, co-visibility, and local map fusion, and the empirical study is extensive, with public code. If the reported results hold, the paper demonstrates that an edge-only VO can be competitive with point-based, direct, and learning-based methods, particularly in structure-rich but texture-sparse scenes. The main limitation is that the sparse-texture claim is weakened by the ICL-NUIM evaluation protocol, and the core optimization equations contain inconsistencies that must be corrected.

major comments (4)
  1. [Section VII-B.1, Table I] The ICL-NUIM protocol truncates segments that 'only capture bare walls' and excludes 'frames where pose estimation is not feasible,' then reports a frame-count-weighted average. This removes exactly the frames in which an edge-only system has no edge features to associate, so Table I cannot support the paper's headline claim of robustness in sparse-texture environments. Please report results on the full sequences, including failure counts or lost-track segments, and compare baselines on the same full inputs, or restrict the claim to segments where edges are actually observable.
  2. [Section V-C, Eqs. (8)-(9) and (12)-(13)] Equation (8) has a dimension mismatch: e_g is in R^2, p' is a 2D reprojected point, and the projection Jacobian in Eq. (25) is 2x6, so the left factor must be I_{2x2} - uu^T rather than I_{3x3} - ... . In Eq. (12), the Hessian terms for the photometric part omit the alpha^2 factor that follows from J_a = [J_g; alpha J_p] in Eq. (9), while Eq. (13) contains alpha^2; H and g are therefore inconsistent. These equations are central to the fine-tracking and BA implementation and need to be corrected and re-derived.
  3. [Section VI-C, Eqs. (17)-(19)] The transformation of joint BA into 'argmin_T (argmin_E ...)' in Eq. (18) is not an equality for general nonlinear least squares; the authors acknowledge that the subsequent use of edge fusion is approximate ('approximately preserve the minimum fitting geometric residuals'). Since the paper presents decoupled BA as a contribution, this approximation should be stated clearly, justified with a convergence or accuracy comparison against joint BA on a subset of sequences, and its error quantified. As written, the derivation implies an exactness that the method does not provide.
  4. [Section IV-B and Section V-C] The extraction and association depend on two fixed thresholds: 20 degrees for gradient-direction clustering in oriented BFS and 5 degrees for edge-normal association in fine tracking. No sensitivity analysis is provided, and these thresholds directly determine whether edges are sequentialized and whether correspondences survive viewpoint changes. Please add a sensitivity study (e.g., 5-40 degrees and 1-20 degrees) on at least TUM and ICL sequences, and report how often tracking is lost as the thresholds vary.
minor comments (7)
  1. [Section I] The first paragraph contains corrupted text: 'pose esfine time:18.6219 timates' should be cleaned up.
  2. [Table II] The header uses 'RMES' instead of 'RMSE', and the average columns repeat 'RMES (t)'; please correct these typos.
  3. [Fig. 13 caption] The caption repeats the ICL-NUIM sentence '(c) and (d) are the estimated trajectories ... lr kt2 and lr kt1' in the ETH-3D results; replace it with the actual ETH-3D sequence names.
  4. [Table IX] The row for ManhattanSLAM cites reference [54], but the correct reference is [34].
  5. [Section VII-C, Table XII] The ablation table reports a single row of RPE values without naming the sequences or indicating how the values are aggregated; add the sequence list and standard deviations.
  6. [Table XIII] The loop-closure error on the Plant-Fence sequence is reported on a single trajectory without ground truth; state that this is a qualitative indicator and report repeated runs if available.
  7. [Algorithm 1] The pseudo-code uses informal conventions such as 'set union' and 'associate list[j] != false'; define these operations or replace them with standard mathematical notation.

Circularity Check

0 steps flagged · score 1.0 of 10

No derivation-level circularity: the organized-edge pipeline is self-contained, and the reported tuning/truncation choices are evaluation caveats rather than fitted predictions.

full rationale

I walked the claimed derivation chain: organized edges are produced by a feed-forward Canny + oriented-BFS sequentialization (Section IV), tracking minimizes photometric and point-to-tangent residuals with formulas (1)-(13), and local mapping uses co-visibility, edge fusion, and a decoupled BA (17)-(19). None of these equations reduces to a value fitted on the test trajectories; the depth-weight parameters, the 20-degree clustering threshold, the 5-degree normal-association threshold, and the Otsu-based Canny threshold are configuration choices, not quantities being predicted, and the paper does not rename any fitted quantity as a result. The only potentially self-referential citation is Photo-SLAM [53] as an experimental baseline, and it is not load-bearing for the method. BALM [48] is an external citation for the decoupling idea. One evaluation caveat should be flagged explicitly: Section VII-B.1 truncates ICL-NUIM segments and excludes frames where 'pose estimation is not feasible,' then reports a frame-weighted mean; this weakens the sparse-texture robustness claim as an external-validity matter, but it is not a circular reduction because all baselines are evaluated on the same truncated segments and the reported errors are measured rather than derived from the exclusion rule. Overall, the central derivation is self-contained and no load-bearing step reduces to its own inputs.

Assumptions & free parameters 7 free parameters · 5 assumptions · 0 invented entities

The organized-edge representation is a data structure, not a new physical entity. The central results depend on the hand-set thresholds above, on brightness constancy and normal repeatability assumptions, and on the approximate BA decoupling; these are the main unbudgeted inputs.

free parameters (7)
  • Gradient-clustering angular threshold = 20 degrees
    Section IV-B clusters edge pixels along BFS routes only when gradient directions differ by less than 20 degrees; this sets how edges are fragmented and later associated.
  • Fine-tracking edge-normal association threshold = 5 degrees
    Section V-C accepts a candidate edge point only if its normal is within 5 degrees of the reprojected reference normal; the value is justified only by the authors' experiments.
  • Depth-weighting sigmoid parameters = (0.5, 0.1, 6), (0.75, 0.2, 4.5), (0.5, 0.15, 5)
    Eq. 20 down-weights residuals from distant pixels; the three tuples are hand-selected per dataset and enter every tracking and BA residual.
  • Geometric-photometric residual balance factor alpha = Not reported
    Eq. 9 scales photometric residuals relative to geometric residuals; the chosen value is not given, yet it controls the tracking objective.
  • Keyframe insertion associability ratio = 80 percent
    Section V-C inserts a keyframe when associable organized edges fall below 80 percent, determining keyframe density and the BA graph.
  • Short-path exclusion length = Not reported
    In Fig. 3e, paths described as relatively short are discarded during sequentialization; this threshold is not quantified despite changing the features used.
  • BA sliding window size = Not reported
    The local mapping thread uses a sliding window for BA, but the paper never states how many keyframes are kept.
assumptions (5)
  • domain assumption Brightness constancy holds for small patches on edges across frames.
    Used to define photometric errors in Eq. 2; violated by specular reflections and shadows, which the paper itself notes for lr_kt3 and chair sequences.
  • domain assumption True edges are locally smooth, so gradient directions along an edge stay within the fixed 20 degree clustering threshold.
    Section IV-B uses a 20 degree threshold to cluster pixels; junctions, blur, or rounded corners cause fragmentation.
  • domain assumption The camera is fully calibrated and depth is aligned with color, so the projection functions in Eq. 1 are valid.
    Section V-A assumes a pinhole model; the paper cites TUM RGB-D synchronization issues as harmful to learning methods, but geometry methods also depend on this assumption.
  • domain assumption Edge normals of the same physical edge are repeatable enough for the 5 degree association threshold across frames.
    Section V-C rejects candidates whose normals disagree by more than 5 degrees; Section VII-D shows repeatability degrades under large viewpoint changes.
  • ad hoc to paper Centroid-based edge fusion approximates the optimal fitting result in the decoupled BA.
    Section VI-C says fusion only approximately preserves the minimum fitting residual; no convergence or optimality argument is provided.

how reviews work

0 comments
Cite this review

Pith. "Pith review of ROEVO: Robust Organized Edge Feature-based Visual Odometry Using RGB-D Cameras." pith.science (2026). https://pith.science/paper/OLZRSYR2

@misc{pith2026260809112,
  author       = {Pith},
  title        = {Pith review of: ROEVO: Robust Organized Edge Feature-based Visual Odometry Using RGB-D Cameras},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/OLZRSYR2}},
  note         = {Machine review of arXiv:2608.09112}
}
read the original abstract

This work presents a visual odometry (VO) system that leverages image edge features. Edges are spatially expressive cues commonly present across diverse environments, offering rich textural and structural information. However, existing edge-based VO methods often fail to fully exploit this potential. To this end, we introduce a novel feature representation termed \textit{organized edges}, which transforms disjoint edge pixels into sequentialized clusters, enabling more effective retention and utilization of the underlying textural and structural information. Another nice property of this formulation is that organized edges can perform edge-level association across multiple frames, enabling the establishment of a co-visibility graph. To achieve precise and efficient pose estimation, we propose a range of particularly designed tracking and joint optimization methods based on the characteristics of organized edges. For tracking, we formulate edge-wise rather than pixel-wise residuals to achieve robust and accurate inter-frame registration. For joint optimization, we introduce a novel shape-preserving edge-fitting method and an organized edge-based Bundle Adjustment (BA) approach, which decomposes the traditional BA problem into fitting and registration to preserve the structural integrity. Based on these novel techniques, we develop a complete VO system that exclusively employs organized edge features, achieving efficient tracking and precise local mapping. Extensive experiments demonstrate its accuracy and robustness in indoor environments, outperforming or achieving comparable performance to state-of-the-art methods. The source code is publicly available at https://github.com/liumingrui814/ROEVO

Figures

Figures reproduced from arXiv: 2608.09112 by the authors.

Figure 1
Figure 1. Pipeline of the ROEVO system, including the tracking thread marked in yellow and the local mapping thread marked in green. In the tracking thread, [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. The illustration of organized edge features. (a) The raw image; (b) [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 4
Figure 4. An example of organized edge feature extraction from a real-world [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figures from the paper (16 more)
Figure 6
Figure 6. Figure 6: An illustration of fine tracking and edge-wise association. (a) Details [PITH_FULL_IMAGE:figures/full_fig_p006_6.png]
Figure 5
Figure 5. Figure 5: An illustration of coarse tracking. (a) A local patch selected for [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]
Figure 7
Figure 7. Figure 7: (a) Illustration of a co-visibility graph for organized edges, along [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]
Figure 8
Figure 8. Figure 8: Illustrations of the edge fusing process. (a) A cluster of edges that need [PITH_FULL_IMAGE:figures/full_fig_p009_8.png]
Figure 10

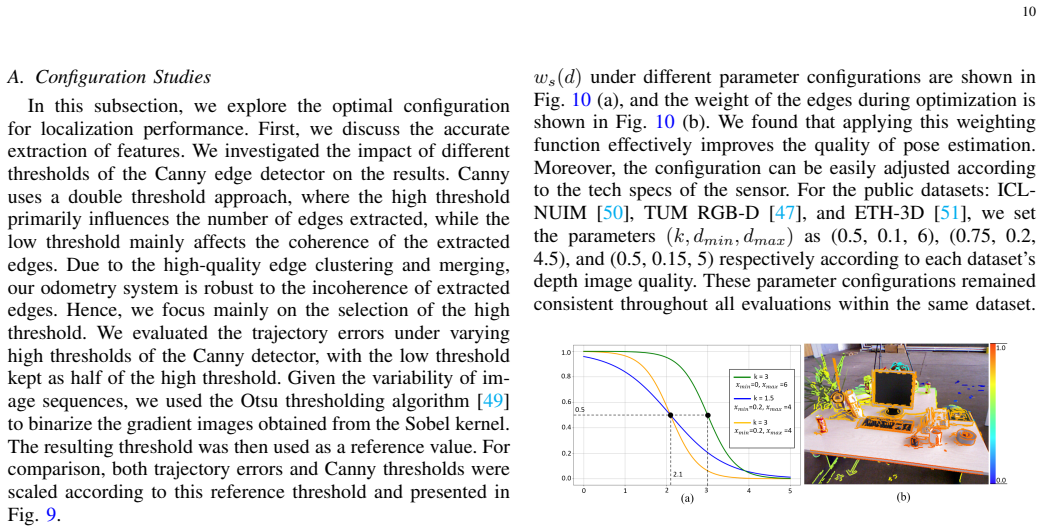

Figure 10. Figure 10: Illustration of depth-based weighting scheme. (a) Function curves [PITH_FULL_IMAGE:figures/full_fig_p010_10.png]
Figure 9
Figure 9. Figure 9: Trajectory errors under different Canny thresholds (scaled based on [PITH_FULL_IMAGE:figures/full_fig_p010_9.png]
Figure 11

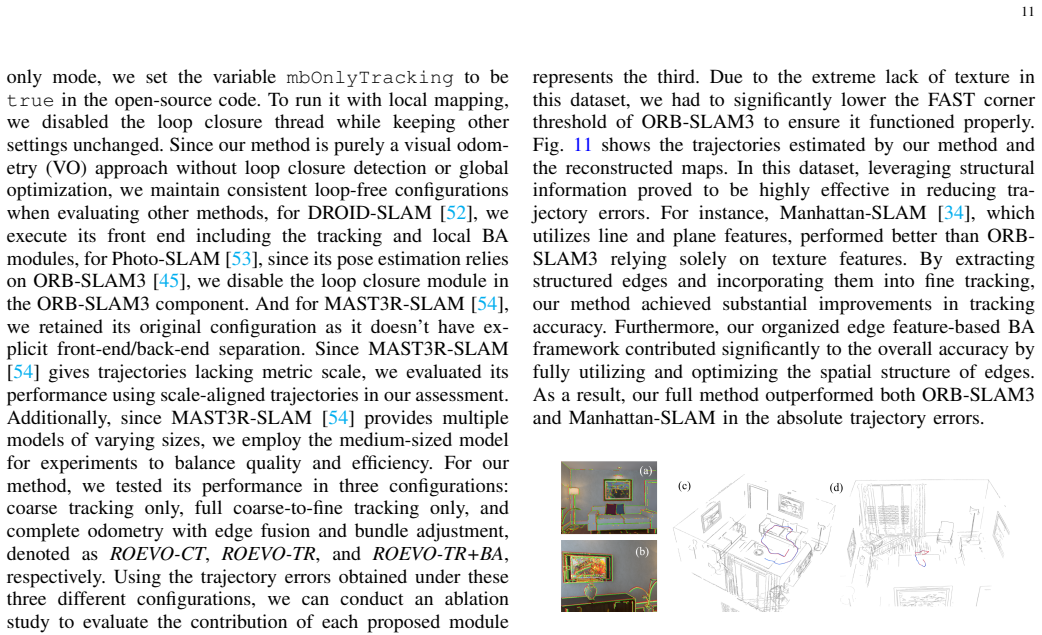

Figure 11. Figure 11: Qualitative results of the proposed ROEVO on the synthetic ICL [PITH_FULL_IMAGE:figures/full_fig_p011_11.png]
Figure 12
Figure 12. Figure 12: Performance from the synthetic TUM-RGBD dataset. (a) and (b) [PITH_FULL_IMAGE:figures/full_fig_p012_12.png]
Figure 13
Figure 13. Figure 13: Qualitative results of the proposed ROEVO on the ETH-3D dataset. [PITH_FULL_IMAGE:figures/full_fig_p012_13.png]
Figure 15
Figure 15. Figure 15: Performance on the chair datasets. (a) Tracking process in [PITH_FULL_IMAGE:figures/full_fig_p013_15.png]
Figure 16
Figure 16. Figure 16: Trajectory and semi-dense reconstruction results from Chair datasets, [PITH_FULL_IMAGE:figures/full_fig_p013_16.png]
Figure 17
Figure 17. Figure 17: Illustrations of the environment of the Plant-Fence sequence. The [PITH_FULL_IMAGE:figures/full_fig_p016_17.png]
Figure 18

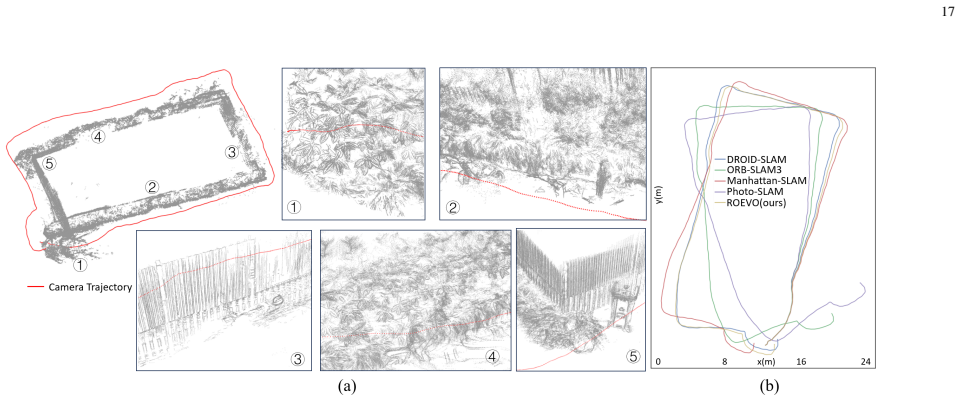

Figure 18. Figure 18: Trajectories and semi-dense reconstruction results on the Plant-Fence dataset. (a) The reconstruction results and detailed examples in some typical [PITH_FULL_IMAGE:figures/full_fig_p017_18.png]
Figure 19
Figure 19. Figure 19: Bar chart of algorithm runtime statistics, where each block corre [PITH_FULL_IMAGE:figures/full_fig_p017_19.png]
Figure 20
Figure 20. Figure 20: The trajectories from various sequences, including those from the ICL-NUIM, ETH-3D, TUM-RGBD, and Chair datasets. The ground truth is [PITH_FULL_IMAGE:figures/full_fig_p018_20.png]
Figure 21
Figure 21. Figure 21: Cross-frame association result using different methods, where results [PITH_FULL_IMAGE:figures/full_fig_p018_21.png]
