REVIEW 4 major objections 4 minor
JAPE: Joint Anomaly Prediction and Intrinsic Explanation in Multivariate Time Series
T0 review · 4 major / 4 minor · reviewed 2026-08-16 · deepseek-v4-flash
Pith's one-line read JAPE claims that forecasting evolving directed dependency graphs alongside numerical values improves multivariate time-series anomaly prediction and yields variable-level explanations with no extra model.
desk verdict A coherent, well-specified framework that makes a plausible case for dependency-structure modeling in anomaly prediction; the headline numbers are stronger than the evidence, but the paper deserves a serious referee. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The load-bearing object is the lag-aware directed dependency graph $\mathbf{A}_i$, built from a directional contrast score $\mathbf{S}_i = \mathbf{Q}_i(\tilde{\mathbf{K}}_i)^\top - \mathbf{K}_i(\tilde{\mathbf{Q}}_i)^\top$: for an ordered pair $(u,v)$, a positive score indicates that the past of $v$ helps predict the present of $u$, and a ReLU-tanh Top-$K$ gate with $K_g=5$ turns those scores into sparse directed edges per target variable. This graph is produced inside a decoupled spatio-temporal backbone whose temporal axis is channel-independent and whose spatial axis aggregates lagged projections with learnable exponential decay, plus a future-oriented branch that extends graph construction into the forecast horizon. The same graph sequence is compressed into 13-dimensional structural descriptors for the dual-view alerting head, and it is directly reused by the Graph Deviation Score for variable-level explanation. The machinery's work is to make structural precursors explicit, reusable, and trainable under a pure forecasting objective before the alerting head is optimized.
What would settle it
Run a permutation control on SMD, MSL, and PSM where, at inference, the learned source variables in each graph slice are randomly rewired before the alerting head and the Graph Deviation Score are applied; if F1, AUC-PR, and MRR do not clearly drop relative to the true graphs, then the dependency structure is not carrying the reported gains.
Extended reading notes
Core claim
The central claim is that modeling evolving dependency structure is not merely an auxiliary signal but a primary carrier of anomaly-predictive evidence. JAPE constructs, for each patch position and encoder layer, a lag-aware directed graph representing directional influence from the past of one variable to the present of another, and it builds these graphs across both the historical window and the prediction horizon. Alerting then fuses a numerical forecast view with a structural view through cross-attention, so structural evidence can contribute even when the source variable's numerical deviation is subtle. Explanation reuses the very same predicted graphs: a Graph Deviation Score compares the alerted segment's aggregated graph against a normal reference graph, adding direct and multi-hop dependency deviations, and ranks variables at negligible extra cost. The paper reports that this joint design outperforms forecasting-only and pseudo-anomaly baselines on five benchmarks, with larger AUC-PR gains than F1 gains, which it reads as evidence that the model produces a more reliable global ranking of anomaly likelihood rather than a better single operating point.
Load-bearing premise
The load-bearing premise is that the learned top-$K$ lag-aware directed graphs capture genuine dependency changes that precede anomalies, and if the contrast score mostly locks onto spurious correlations—especially as the number of variables grows—the structural view adds noise instead of signal, as the paper's own WADI result hints.
Editorial extensions
If this is right
- Structural precursors become usable evidence: alerts can fire on dependency rearrangements before numerical deviations become visible, addressing delayed detection.
- Point-wise anomaly discrimination improves in the supervised-label setting, with reported average gains of 19.7% in F1 and 41.3% in AUC-PR over the strongest baselines, and the larger AUC-PR gains indicate a better-ranked anomaly score space.
- Variable-level explanations come without extra training or inference: NPE reuses the predicted graphs, adds under 0.5% runtime, and improves MRR by 26.6% on the annotated datasets.
- The two-stage design means the dependency graphs are learned purely from forecasting objectives and then consumed by both alerting and explanation, so the quality of the graph bounds the quality of both downstream outputs.
- Lag range is consequential: sensitivity analysis shows that increasing the lag window from 1 to 3 patches helps, while too long a lag range degrades performance, making lag aggregation a tunable and load-bearing design choice.
Reading between the lines
- If the learned graph is the true carrier of the gains, then on higher-dimensional systems the fixed Top-$K$ sparsification ($K_g=5$, $K_{\max}=3$) is likely to become a bottleneck, and an adaptive per-variable or per-dataset sparsity schedule is a natural testable extension.
- The graphs are optimized for forecasting MSE, not for causal fidelity, so the NPE rankings should not be read as root causes without additional validation; an intervention or counterfactual test would be needed to separate structural evidence from spurious correlation.
- Because the dual-view alerting head consumes only 13 fixed statistics per graph slice, edge-level detail is compressed away; a graph encoder that operates on the full adjacency matrix is a plausible upgrade if the structural signal plateaus.
- A reasonable stress test of the paper's logic is to compare JAPE against a purely numerical forecaster on a benchmark where known anomalies are designed to have no numerical footprint but a clear dependency shift, since the framework's core prediction is that the structural view alone should still alert.
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes JAPE, a framework for multivariate time-series anomaly prediction over a future horizon H, together with variable-level explanations at alert time. The Decoupled Spatio-Temporal Representation (DSTR) backbone produces both point forecasts and dynamic directed dependency graphs through a lag-aware directional contrast score and top-K graph construction (Eqs. 1-4). A dual-view alerting head fuses forecast tokens with structural descriptors derived from the graph sequence, and the Native Predictive Explanation (NPE) module reuses the predicted graphs to compute a Graph Deviation Score that ranks variables. Experiments on SMD, WADI, MSL, PSM, and EXATHLON report large average gains in F1, AUC-PR, and MRR over the tested baselines.
Significance. If the reported results hold, the paper makes a useful contribution: it is, to my knowledge, the first anomaly-prediction method to use evolving dependency graphs for both point-wise alerting and native variable-level explanation, and the design is described in enough detail to reimplement, with code provided. The use of strict point-wise evaluation and the inclusion of ablations for the backbone and the graph signal are strengths. The main caveat is that the quantitative claims currently rest on single runs and on a graph module whose quality is not directly validated; the WADI ablation and the K_max sensitivity results show that the graph can also be a source of noise. The central idea is defensible and the manuscript is worth publishing after the evaluation is strengthened.
major comments (4)
- [Section 4.4, Table 4] The ablation labeled 'w/o Dynamic dependency graph' removes the graph input from the alerting head, but it does not compare against a static-graph variant or against an existing graph-based detector such as GDN or MTAD-GAT. As a result, the reported average gains cannot be attributed specifically to evolving dependency modeling rather than to the DSTR backbone or the supervised alerting head. Please add a static-versus-dynamic graph comparison or a graph-based baseline that shares the same forecasting backbone and alerting head.
- [Section 4.2, Tables 2, 6, and 7] All reported numbers are single runs, with no error bars, standard deviations, or significance tests. Given that Table 6 shows K_max=5 collapses MSL F1 from 61.2 to 35.5 and K_g choices swing results by several F1 points on SMD and MSL, the headline improvements of 19.7% F1 and 41.3% AUC-PR could be within hyperparameter or seed noise. Please report multiple seeds with mean and standard deviation, and add a significance test or at least per-seed results for the main comparisons.
- [Section 3.3 and Section 4.3] The NPE explanation scores are computed from graphs that are never validated as true structural precursors. The graph is trained only through forecast MSE and the alerting head's focal loss (Algorithm 1, Stages 1-2), so nothing ensures that the top-K edges correspond to real lead-lag relationships. The WADI result in Table 4 and the K_max sensitivity in Table 6 show that the learned graph can add noise. Please add (i) a sanity check of learned edges against known or plausible dependencies, for example using a synthetic dataset with ground-truth structure or the process annotations in SMD, and (ii) a graph-agnostic attribution baseline so that the value of the graph can be separated from the value of the forecasting representation.
- [Introduction and Section 4.2] The paper motivates JAPE with 'a practical setting where a small number of anomaly labels are available,' but no experiment varies the number of labeled windows; all supervised methods use the full label set. Add an ablation that scales the fraction of labeled windows used for alert-head training to support this practical claim.
minor comments (4)
- [Section 3.3] The sentence immediately after Eq. (7) contains a duplicated phrase: 'Specifically, Specifically,'. Please remove the duplicate.
- [Abstract and Introduction] The text contains missing spaces from LaTeX macros, e.g., 'JAPEis' in the abstract and 'aJoint' in the introduction. Please fix the rendering throughout.
- [Table 2] Several entries are hard to read because adjacent numbers are not separated, e.g., '53.8 54.642.562.8' and '51.544.9'. Reformat the table so each (F1, AUC-PR) pair is clearly delimited.
- [Section 4.3] The explanation evaluation reports only point estimates on SMD and WADI, and WADI contains only 15 events. Please add at least standard deviations or per-event breakdowns for the explanation metrics, and state how the normal reference windows for GDS are selected (size and position).
Circularity Check
No circular derivation: JAPE's graphs are trained under forecasting objectives, the alerting head is supervised from real labels, and the explanation module is evaluated against external event annotations.
full rationale
JAPE's derivation chain is self-contained rather than circular. The dynamic dependency graphs are not defined from anomaly labels: Eq. (1)-(5) construct them from lagged projections and are trained with forecasting MSE (Section 3.1.4), while the future-oriented branch uses a stop-gradient copy and its own auxiliary MSE objective. The point-wise alerting head is a supervised classifier trained with focal loss on real labels (Algorithm 1, lines 8-11); predicting anomaly probabilities from labeled windows is ordinary supervised prediction, not a fitted parameter renamed as a prediction. NPE reuses the same predicted graphs, but its GDS (Eqs. 7-11) compares an alerted segment's graph with a normal reference graph computed from normal windows, and the resulting ranking is evaluated against external event-associated variable annotations (SMD/WADI), not against any quantity fitted from those annotations. The only mild concern, that explanation quality inherits graph quality, is representational sharing, not definitional equivalence. Self-citations [10,18,19,20,40,41] concern trajectory similarity/compression and are not load-bearing for the anomaly-prediction claim. The graph-validity question raised by the WADI and K_max sensitivity results is an empirical robustness risk, not circularity.
Assumptions & free parameters
free parameters (8)
- K_g (top-k source variables per target) =
5, tuned per dataset in sensitivity (SMD best at 10)
- K_max (max lag steps) =
3 (WADI: 5)
- beta (incoming-dependency penalty in GDS) =
0.7
- omega (multi-hop weight in GDS) =
1.0
- alpha_gds (residual propagation coefficient) =
0.8
- K_path (max dependency path length) =
2
- R (refinement steps) =
1
- tau (tail fraction for segment-level structural features) =
0.3
assumptions (4)
- domain assumption Anomaly labels from the target system are available for alert-head training
- ad hoc to paper The lag-aware directional contrast score in Eq. (3) measures meaningful lead-lag dependency
- domain assumption Normal reference windows are anomaly-free and representative
- domain assumption MSE forecasting supervision transfers to anomaly-discriminative graphs
Cite this review
Pith. "Pith review of JAPE: Joint Anomaly Prediction and Intrinsic Explanation in Multivariate Time Series." pith.science (2026). https://pith.science/paper/R2XZ64Z7
@misc{pith2026260811801,
author = {Pith},
title = {Pith review of: JAPE: Joint Anomaly Prediction and Intrinsic Explanation in Multivariate Time Series},
year = {2026},
howpublished = {\url{https://pith.science/paper/R2XZ64Z7}},
note = {Machine review of arXiv:2608.11801}
}
read the original abstract

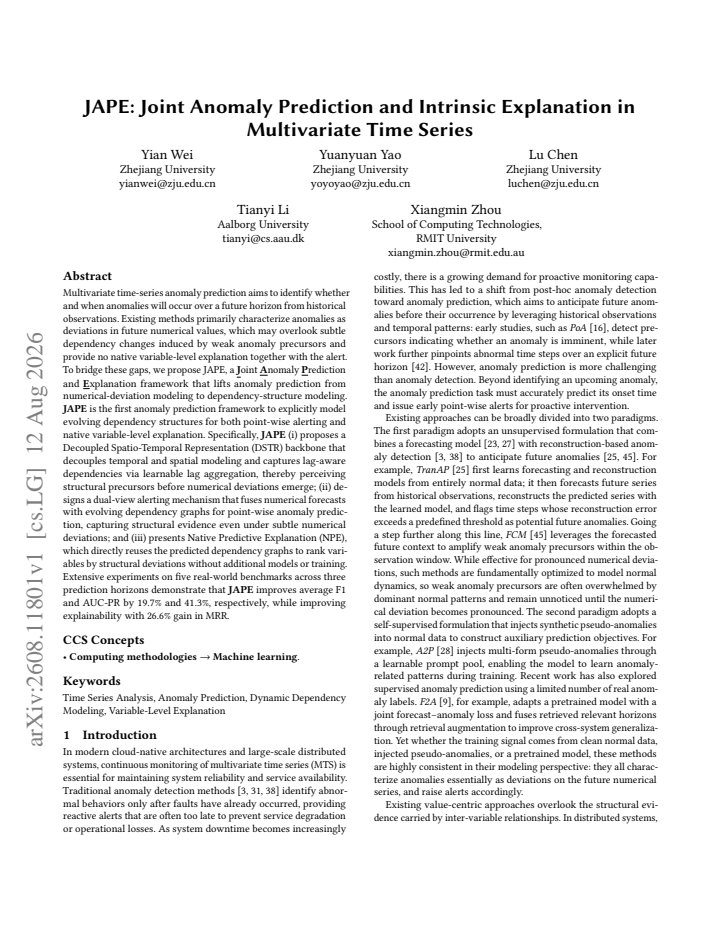

Multivariate time-series anomaly prediction aims to identify whether and when anomalies will occur over a future horizon from historical observations. Existing methods primarily characterize anomalies as deviations in future numerical values, which may overlook subtle dependency changes induced by weak anomaly precursors and provide no native variable-level explanation together with the alert. To bridge these gaps, we propose JAPE, a Joint Anomaly Prediction and Explanation framework that lifts anomaly prediction from numerical-deviation modeling to dependency-structure modeling. JAPE is the first anomaly prediction framework to explicitly model evolving dependency structures for both point-wise alerting and native variable-level explanation. Specifically, JAPE (i) proposes a Decoupled Spatio-Temporal Representation (DSTR) backbone that decouples temporal and spatial modeling and captures lag-aware dependencies via learnable lag aggregation, thereby perceiving structural precursors before numerical deviations emerge; (ii) designs a dual-view alerting mechanism that fuses numerical forecasts with evolving dependency graphs for point-wise anomaly prediction, capturing structural evidence even under subtle numerical deviations; and (iii) presents Native Predictive Explanation (NPE), which directly reuses the predicted dependency graphs to rank variables by structural deviations without additional models or training. Extensive experiments on five real-world benchmarks across three prediction horizons demonstrate that JAPE improves average F1 and AUC-PR by 19.7% and 41.3%, respectively, while improving explainability with 26.6% gain in MRR.
