Phase-plane formulation of weak gravitational deflection in static spherical spacetimes

T0 review · 0 major / 4 minor · reviewed 2026-08-16 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A phase-plane rewrite of Schwarzschild null scattering delivers an explicit all-order formula for the weak bending angle, with every coefficient a finite sum and the series converging up to the photon-sphere limit.

desk verdict The all-order phase-plane coefficient formula is correct and clean, the general extension is honestly scoped, and the paper deserves a serious referee. read the letter →

arxiv 2608.12423 v1 pith:FBILM4ZG submitted 2026-08-12 gr-qc

Reggie C. Pantig , Ali Övgün This is my paper · ORCID
classification gr-qc MSC 83C1083C57 PACS 04.70.-s95.30.Sf
keywords gravitationallensingweakdeflectionangleSchwarzschildspacetimephase-planemethodnullgeodesicsstaticsphericalspacetimesphotonsphereLagrangeinversion
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper argues that gravitational deflection of light in Schwarzschild spacetime is best computed not by tracking a displaced outgoing orbit but by watching an intrinsic phase run through one fixed half-cycle, from 0 to π. In these variables the exact radial first integral forces the orbit's reciprocal amplitude to obey a cubic algebraic relation, and Lagrange inversion of that cubic yields every coefficient of the bending-angle series in powers of $M/b$, where $b$ is the asymptotic impact parameter, as a finite combinatorial sum. If correct, this makes higher-order weak deflection a matter of one algebraic map plus elementary trigonometric integrals, and it explains why even powers of $M/b$ carry a factor of π while odd powers are rational. The same fixed-phase construction extends to general static spherical spacetimes, with Schwarzschild as the simplest member of a broader algebraic family.

What carries the argument

The central object is the exact amplitude-phase representation of the null orbit, $z=A\sin\Theta$, $z'=A\cos\Theta$, which turns the second-order orbit equation into a phase-rate equation and an amplitude equation. For Schwarzschild, the first integral reduces the amplitude to the cubic $2q=y-y^3$ for $y=1/A$ and $q=\epsilon\sin^3\Theta$, so the local phase factor is $F(q)=-dy/dq$. The bending angle becomes the fixed-interval integral $\alpha=\int_0^\pi [F(\epsilon\sin^3\Theta)-1]\,d\Theta$. Lagrange inversion of $\delta=1-y$ supplies the coefficients of $F$, and the universal trigonometric moments $I_m=\int_0^\pi\sin^m\Theta\,d\Theta$ carry the global half-cycle information; their product with the algebraic coefficients produces each $A_n$.

What would settle it

Evaluate Eq. (5.33) at, say, $n=10$ by independently expanding the exact radial integral (6.7) to order $(M/b)^{10}$ with computer algebra; if any coefficient differs from the finite-sum formula, or if partial sums of (5.31) fail to approach the exact integral at $\epsilon=0.19$ (just below $\epsilon_c=1/(3\sqrt{3})\approx0.19245$), the all-order claim and the claimed radius of convergence are wrong.

Watch

Extended reading notes

Core claim

The paper's central claim is that the entire weak-deflection series for Schwarzschild light bending follows from one algebraic phase map. Writing the inverse-radius orbit as $z=A\sin\Theta$, the exact radial first integral forces the reciprocal amplitude $y=1/A$ to satisfy the cubic $2q=y-y^3$ with $q=(M/b)\sin^3\Theta$. Inverting that cubic at $q=0$ by Lagrange inversion, the local phase factor $F(q)=d\delta/dq$ has coefficients $f_n=\sum_{s=0}^n 2^{-s}\binom{2n-s}{n}\binom{n+s}{n}$, and the bending angle is $\alpha=\sum_{n\ge1} f_n (M/b)^n \int_0^\pi \sin^{3n}\Theta\,d\Theta$. Combining the finite sum with the $\beta$-function moment $I_m=\sqrt{\pi}\,\Gamma((m+1)/2)/\Gamma((m+2)/2)$ gives Eq. (5.33), $A_n = [\sqrt{\pi}\Gamma((3n+1)/2)/\Gamma((3n+2)/2)]\,f_n$. The same construction reproduces the standard coefficients $4,\ 15\pi/4,\ 128/3,\ 3465\pi/64,\ldots$ and locates the radius of convergence at $M/b=1/(3\sqrt{3})$, where the algebraic branch meets the unstable photon orbit.

Load-bearing premise

The load-bearing premise is that every scattered ray has exactly one turning point, so the intrinsic phase $\Theta$ sweeps monotonically from 0 to $\pi$ and can serve as the integration variable; if a ray had multiple turning points, a non-monotonic areal radius, or a vanishing phase rate, the fixed-endpoint formula would not apply.

Editorial extensions

If this is right

  • Any desired order of the weak Schwarzschild deflection can be written down directly from $n$ through a finite sum, so no orbit-perturbation hierarchy needs to be solved to get the next coefficient.
  • The weak series converges throughout $0\le M/b<1/(3\sqrt{3})$, with the photon-sphere impact parameter as the boundary; as $b\to b_c^+$ the exact bending angle diverges logarithmically, recovering the standard strong-deflection singularity.
  • The parity structure of the series is explained at once: even powers of $M/b$ carry a factor of $\pi$ and odd powers are rational, because the moment $I_{3n}$ is rational or $\pi$-times-rational according to the parity of $n$.
  • The fixed-phase integral extends to any asymptotically flat static spherical spacetime; for example, in Reissner–Nordström it reproduces the standard corrections $4M/b+(15\pi M^2-3\pi Q^2)/(4b^2)$ while keeping the same interval $0\le\Theta\le\pi$.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The same Lagrange-inversion route should yield explicit all-order coefficient formulas for every orbit equation $z''+z=\lambda\epsilon^p z^m$, since the paper shows the amplitude then obeys an algebraic relation; only the Schwarzschild series is written out.
  • If the endpoint phases are recomputed for finite source and observer radii, the phase-lag integrand may give finite-distance deflection angles directly, bypassing the asymptotic bending angle in a lens equation.
  • The large-order estimate $A_n\sim(3\sqrt{3})^n/n$ suggests that resummation or analytic continuation of the weak series could reach the strong-deflection regime, a connection the paper names only as a possible direction.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

0 major / 4 minor

Summary. This paper develops an exact phase-plane formulation of null geodesic deflection in static spherically symmetric spacetimes, with Schwarzschild as the main case. The authors write the dimensionless inverse-radius variable z(φ) in amplitude-phase form z=A sinΘ, z'=A cosΘ and derive exact evolution equations for A and Θ. Combining the phase equations with the radial first integral reduces the Schwarzschild amplitude to the cubic relation 2q=y−y³ with q=ε sin³Θ and y=1/A, and the local phase rate to F(q)=2/(3y²−1). The bending angle becomes the fixed-interval integral α=∫_0^π [F(ε sin³Θ)−1]dΘ. Lagrange inversion of the cubic map yields an explicit finite-sum all-order coefficient formula, Eq. (5.33), giving α=Σ A_n (M/b)^n, with A_n factored into an algebraic coefficient f_n and a trigonometric moment. The authors show that odd orders are rational while even orders carry π, identify the radius of convergence |ε|<1/(3√3) with the branch point at the photon sphere, and recover the logarithmic strong-deflection divergence from the large-order coefficients. They check the first coefficients against the radial scattering integral and a conventional orbit perturbation, extend the phase framework to general static spherical metrics and Reissner–Nordström, and state the validity limitations in Sec. VIII.

Significance. If the central claims are correct—and my reading confirms the derivation—the paper is a genuine methodological contribution. It supplies a direct closed-form expression for every weak-deflection coefficient of Schwarzschild bending, obtained without solving an orbit hierarchy. The derivation is self-contained, uses no fitted parameters and no target result as input, and the main algebraic steps (the cubic reduction, the Lagrange-inversion formula, the uniform-convergence argument, and the large-order analysis) are explicit and reproducible. The factorization into local phase coefficients and universal trigonometric moments gives a clean explanation of the alternating rational/π structure of the series, and the identification of the convergence boundary with the photon-sphere branch point unifies weak and strong deflection in a single phase-plane picture. The general static-spherical extension and the Reissner–Nordström check show that the method is not an artifact of the Schwarzschild cubic. The main limitation, appropriately acknowledged in Sec. VIII, is that the local amplitude and phase are radial-representation-dependent; the integrated deflection angle remains invariant.

minor comments (4)
  1. [§5, text above Eq. (5.40)] The value of the twelfth trigonometric moment is misprinted as 'I12 = 231/pi/1024'; it should read I12 = 231π/1024, which is what the preceding coefficient A4 = 3465π/64 requires.
  2. [§6, Table I caption] The caption refers to the 'radiative coefficient' and 'scaled energies E_i'; these should be the deflection coefficient and the scaled relative errors E_N defined in Eq. (6.35).
  3. [§6, opening paragraph] The checks in this section are described as 'independent,' but they all use the same Schwarzschild geodesic first integral as input; I suggest calling them consistency checks (the first paragraph already notes this concern, making the label in the section heading slightly stronger than warranted).
  4. [§8, Eq. (8.5)] The convergence statement |ε|<1/(3√3) refers to the Taylor series as an analytic function; the paper explains this immediately after, but a brief note that the physical regime is 0<ε<ε_c would prevent a misreading for negative ε.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the all-order Schwarzschild coefficient formula follows from the exact first integral and a cubic inversion, not from the target series.

full rationale

The derivation chain is self-contained. Starting from the exact dimensionless first integral (2.10) and orbit equation (2.11), the paper introduces the phase-plane variables z=A sin Θ, z'=A cos Θ and derives the exact amplitude relation A^2=1+2εA^3 sin^3 Θ (Eq. 3.25) directly from that first integral. The substitution y=1/A turns this into the cubic 2q=y−y^3 (Eq. 4.12), whose physical branch is inverted by Lagrange inversion; Eq. (5.17) then gives the finite-sum phase coefficients, and Eq. (5.33) follows by multiplying by the fixed trigonometric moments ∫ sin^{3n}Θ dΘ. No fitted parameter, no occurrence of the target coefficients A_n on the right-hand side, and no imported theorem is used: the monotonic-phase condition is proved from the turning-point bound 0<3εz0<1 (Eqs. 3.11–3.16), and the radius of convergence 1/(3√3) is derived from the branch point of the same cubic. The only self-citation (Ref. [37]) is a contextual reference to the authors' prior finite-distance curvature formulation and is not load-bearing. Section VI's numerical and radial-integral comparisons are consistency checks that share the same geodesic first integral, which limits their independent verification power but does not make the derivation circular.

Assumptions & free parameters 0 free parameters · 5 assumptions · 0 invented entities

No parameters are fitted to data; epsilon = M/b is the physical expansion variable, and the coefficients are derived rather than adjusted. No new physical entities are introduced: the amplitude and phase are mathematical reparametrizations of the orbit, not new particles, forces, or conserved charges. The axioms listed are the standard GR background, the domain restrictions for returning orbits, and the classical mathematical tools used in the derivation.

assumptions (5)
  • domain assumption The Schwarzschild exterior metric and the null geodesic equation describe photon propagation (Eqs. 2.1 and 2.9).
    This is the physical setting of the central claim; all coefficients are derived from this background.
  • domain assumption Scattering orbits have exactly one radial turning point and asymptote to spatial infinity, with b > b_c = 3 sqrt(3) M (Eq. 2.15).
    The fixed phase endpoints Theta = 0 and Theta = pi and the existence of a returning orbit require this restriction.
  • domain assumption The intrinsic phase Theta is strictly monotonic along the orbit (Eq. 3.16).
    This allows Theta to be used as the global integration variable; the proof uses the bound on 3 epsilon z0 from the turning-point equation.
  • domain assumption For the general static spherical extension, H(z, epsilon) > 0 on the open scattering branches and D(z, epsilon) = H - (z/2) H_z > 0 (Section VII and Eq. 8.27).
    These conditions guarantee phase monotonicity and a single ordinary turning point for the generalized formula.
  • standard math Standard mathematical tools: Lagrange inversion, Euler beta integrals, and algebraic branch analysis.
    Used without proof in Sections V and VIII; these are standard results.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Phase-plane formulation of weak gravitational deflection in static spherical spacetimes." pith.science (2026). https://pith.science/paper/FBILM4ZG

@misc{pith2026260812423,
  author       = {Pith},
  title        = {Pith review of: Phase-plane formulation of weak gravitational deflection in static spherical spacetimes},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/FBILM4ZG}},
  note         = {Machine review of arXiv:2608.12423}
}
abstract

This paper develops a phase-plane formulation of gravitational light deflection by static and spherically symmetric black holes, with Schwarzschild spacetime as the principal case. Instead of perturbing the null trajectory and locating the displaced outgoing asymptote, we represent the orbit through an amplitude and an intrinsic phase. The bending angle then follows from the excess physical azimuth accumulated while the intrinsic phase advances between two fixed asymptotic endpoints. For Schwarzschild spacetime, the exact radial first integral reduces the amplitude evolution to a cubic algebraic relation. Its physical branch generates the local phase factor through a single inverse algebraic map. Lagrange inversion then yields an explicit all-order weak-deflection coefficient formula in powers of the invariant ratio \(M/b\). Each coefficient separates into an algebraic phase contribution and a universal trigonometric moment, which explains the alternating rational and \(\pi\)-dependent structure of the Schwarzschild series. Independent comparison with the exact radial scattering integral and conventional orbit perturbation reproduces the standard weak-bending coefficients. The same phase framework extends to general static spherical geometries, while the Schwarzschild cubic represents an especially simple member of a broader algebraic class. The branch singularity of the phase map also coincides with the critical photon orbit and governs the convergence of the weak-deflection expansion.

Figures

Figures reproduced from arXiv: 2608.12423 by the authors.

Figure 1
Figure 1. FIG. 1. Phase portrait of flat and Schwarzschild null scattering [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

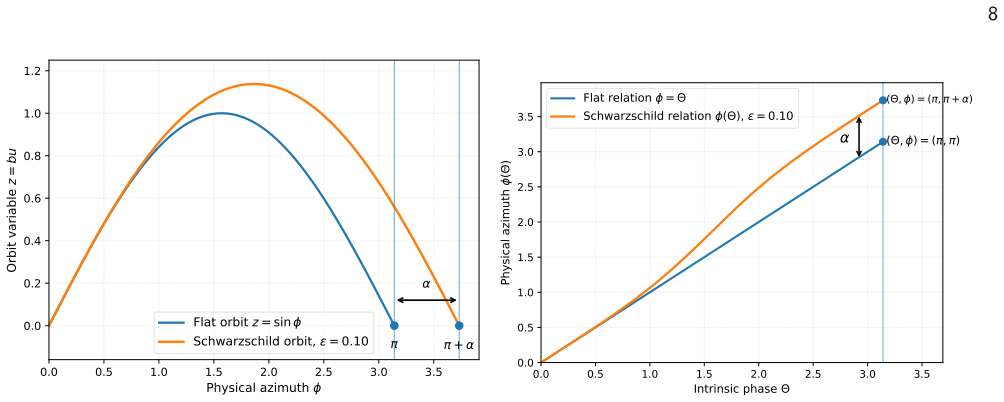

Figure 2. FIG. 2. Equivalent representations of Schwarzschild bending. The left panel shows the displaced outgoing root, while the right panel [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. FIG. 3. Physical inverse branch of [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figures from the paper (1 more)
Figure 4
Figure 4. Figure 4: FIG. 4. Exact Schwarzschild bending and phase-series accuracy. The left panel compares the exact result with first through fourth-order [PITH_FULL_IMAGE:figures/full_fig_p015_4.png]
