Pith's one-line read TTARO claims that online retraining of a neural feature map and Gaussian-process surrogate on every accumulated figure-of-merit label improves Bayesian optimization sample efficiency, cutting regret AUC by 15.2% on average and up to 46.7%.

desk verdict A competent, unusually broad empirical study of a known idea (retraining DKL at each BO step) applied to analog topology search; the headline gains are plausible but the unreported initial sample size makes the DKL comparison hard to trust. read the letter →

arxiv 2608.12687 v1 pith:CU4RKLHE submitted 2026-08-13 cs.LG

Fin Amin , Sounak Dutta , Paul D. Franzon This is my paper · ORCID

classification cs.LG

keywords analogcircuitdesignBayesianoptimizationrepresentationlearningtopologysynthesiselectronicautomationonlineadaptationdeepkerneltest-time

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Analog circuit topology search is expensive because each candidate must be simulated before its quality is known, so methods that find good circuits in fewer evaluations are practically valuable. This paper claims that Bayesian optimization over pretrained circuit embeddings leaves sample efficiency on the table, because the embedding geometry is organized by circuit structure rather than by the performance metric being optimized. It introduces TTARO, which after every circuit evaluation retrains a small neural feature map and a Gaussian-process surrogate on all figure-of-merit labels collected so far, and uses that updated geometry to select the next candidate. Across 40 encoder/kernel/acquisition settings on the Ckt-Bench-101 and Ckt-Bench-301 op-amp benchmarks, TTARO reduces regret area under the curve by 15.2% on average relative to fixed-embedding BO and by 20.7% relative to deep kernel learning, with individual reductions as large as 46.7%. If the claim holds, representation-based BO should not freeze its representation: re-aligning the search geometry to the objective is a general and inexpensive route to better acquisition decisions.

What carries the argument

The load-bearing object is the learned feature map $\phi_{\theta_t}$, a two-layer multilayer perceptron that sends each normalized fixed embedding $\bar{h}_i$ to a 16-dimensional adapted representation $z^{(t)}_i = \phi_{\theta_t}(\bar{h}_i)$ at iteration $t$. It is fit together with the Gaussian-process hyperparameters by minimizing the negative log marginal likelihood on the accumulated labels $\mathcal{D}_t$, and the GP then acts on the adapted coordinates through a scaled linear kernel or a scaled RBF kernel. The mechanism does its work through the covariance: because the feature map enters every off-diagonal entry of the training covariance $K_t$ and every cross-covariance vector $k_{t,j}$, retraining $\theta_t$ rewires which circuits the surrogate treats as similar, and that rewired geometry is what changes the acquisition function's next pick.

What would settle it

Vary the initial sample size $n_0$ from very small to nearly the full budget while holding the evaluation budget fixed, and plot regret AUC for TTARO against the deep-kernel baseline that freezes its representation after the initial sample; if TTARO's advantage shrinks toward zero as $n_0$ grows, the reported gain is mostly extra training data, not online adaptation. Alternatively, give the frozen baseline access to the same total number of training labels that TTARO has at the end of the run and check whether the 20.7% average reduction survives.

Watch

Extended reading notes

Core claim

The paper's central discovery is that the surrogate's kernel geometry, not just the surrogate itself, should be updated during Bayesian optimization. Starting from any pretrained circuit embedding, TTARO normalizes the candidate bank and at each iteration fits a feature map -- a two-layer MLP mapping the normalized embedding into 16 adapted coordinates -- jointly with an exact Gaussian-process surrogate by minimizing the negative log marginal likelihood on the observed figure-of-merit labels. The adapted coordinates replace the original embeddings in the kernel, so every pairwise similarity, posterior mean, posterior variance, and acquisition score changes with each retraining. The comparison against deep kernel learning isolates the mechanism: DKL uses the same surrogate structure but trains its feature map only on the initial evaluated set and then freezes it, and on Ckt-Bench-301 DKL actually degrades relative to plain GP (regret AUC rising from 19,901 to 23,634 and final best FoM falling from 152.7 to 134.0), while TTARO improves both. The paper also reports that TTARO reaches 252.8 FoM by 60% of the budget on Ckt-Bench-101, already above GP's final value of 247.6, and matches GP's final 152.7 on Ckt-Bench-301 by 60% of the budget with 40% of evaluations still unused.

Load-bearing premise

The comparison assumes the initial sample size $n_0$ and evaluation budget $B$ are chosen so that the frozen-after-initial-sample deep-kernel baseline is fairly matched; the paper never reports $n_0$ or $B$, so if $n_0$ is small, TTARO's reported advantage over that baseline may reflect more training labels rather than online adaptation.

Editorial extensions

If this is right

If TTARO is correct, latent-space BO pipelines for analog design should keep representation learning coupled to the search loop rather than treating the encoder as a frozen preprocessing step.
The gains are not confined to one encoder or acquisition function: TTARO improves regret AUC in 37 of 40 settings, spanning learned GNN embeddings, graph-autoencoder embeddings, high-dimensional WL features, linear and RBF kernels, and EI, UCB, and Thompson sampling.
Freezing a deep kernel after the initial sample can be actively harmful on larger, more heterogeneous search spaces: DKL degrades below plain GP on Ckt-Bench-301, whereas TTARO avoids the degradation.
TTARO's benefit appears early enough to matter under a fixed budget: at 60% of the budget it already exceeds GP's final best FoM on Ckt-Bench-101 and matches it on Ckt-Bench-301.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

A natural extension, not tested in the paper, is that the same online-adaptation recipe transfers to any finite-bank search with pretrained embeddings and expensive labels, such as molecule selection, materials screening, or device sizing.
Because the kernel changes at every iteration, standard GP regret bounds do not directly apply to TTARO; a regret analysis for a sequence of adaptively learned kernels is an open question the paper leaves implicit.
The paper's own diagnostic suggests a testable mechanism: if Top-2% KNN@5 in the adapted space rises monotonically and predicts regret reduction across encoders, then objective-aligned geometry is the cause; if not, the gains may simply come from refitting the surrogate on more data.
A cheap ablation would retrain the feature map on each iteration but with the FoM labels randomly permuted; if the regret reduction persists, the benefit is from surrogate retraining rather than from representation alignment.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

Two things to know up front. First, the algorithmic contribution is a re-implementation of deep kernel learning retrained after every BO evaluation — the paper says as much, citing Deep Kernel Bayesian Optimization [19]. Second, what is genuinely new is the scale and consistency of the empirical study: 8 encoder–dataset pairings, 5 kernel/acquisition settings, 20 seeds, 40 headline configurations, with TTARO beating fixed-embedding GP in 37 of 40 settings. That is a solid, useful result for anyone doing BO in finite-bank topology search.

The paper does several things well. It uses the public OCB benchmarks, compares against a reasonable fixed-embedding GP baseline, and includes an oracle upper bound that is properly described as not deployable. The writing is clear about the distinction between DKL (feature map trained once on the initial set) and TTARO (feature map retrained every step). The acknowledgment of the DKL lineage is honest.

The soft spots are real but fixable. The main one: n0 and B are never reported. Algorithm 1 takes them as inputs, and B can be inferred as 100 from Figure 5 and Table III, but n0 is absent. If n0 is small, the DKL baseline is trained on very few labels while TTARO accumulates labels across all 100 evaluations. That would make the 20.7% regret-AUC reduction relative to DKL partly a training-data effect, not purely an online-adaptation effect. The paper needs to report n0 and, ideally, run DKL with larger initial samples as a robustness check. Second, no significance tests are provided; several standard-error bars overlap, especially in the small-gain configurations. Third, the Fig. 4 Top-2% KNN@5 diagnostic is circular — the labels used to measure FoM concentration are the same labels that trained the feature map. The paper does call it a diagnostic for visualization, so it is not deceptive, but it should not be used as evidence for optimization quality. Fourth, the abstract says 'outperforming prior art,' but the comparison set is GP, DKL, and an oracle, not the SILBO/LOCo/CoBO family the related-work section discusses.

Overall, the central claim — online representation adaptation improves sample efficiency in this domain — is plausible and supported by the direction of the results. The magnitude is less certain. If I were the editor, I would send this to peer review, and in the revision require n0, B, per-seed data or significance tests, and a corrected abstract. The paper is a useful contribution to EDA-oriented BO, but it needs a bit more care before the numbers are citable.

Referee Report

3 major / 6 minor

Summary. The paper introduces TTARO, an online deep-kernel Bayesian optimization procedure for finite-bank analog circuit topology search. Starting from pretrained fixed circuit embeddings, TTARO retrains a two-layer MLP feature map jointly with a GP surrogate at each BO iteration on all FoM labels observed so far, then applies a standard acquisition function to select the next candidate. The method is compared against a fixed-embedding GP, a DKL baseline whose feature map is trained only on the initial sample and then frozen, and a GP-oracle whose feature map is trained on all labels before optimization. Experiments cover two OCB benchmarks, four encoders per benchmark, two kernels, and three acquisition functions (40 settings at 20 seeds), and report regret-AUC reductions of 19.6% over GP on Ckt-Bench-101 and 12.2% on Ckt-Bench-301, which the abstract aggregates to 15.2% vs GP and 20.7% vs DKL.

Significance. If the results hold, the contribution is a simple, general, and practically useful wrapper around standard BO: retraining the deep-kernel representation as FoM labels accumulate improves sample efficiency on a real analog-topology benchmark. The strengths of the paper are the breadth of the evaluation (40 settings x 20 seeds on public benchmarks), the method's agnosticism to encoders, kernels, and acquisition functions, and the clear separation of GP, DKL, and oracle baselines. The main weaknesses are that the headline comparison against DKL depends on unreported protocol parameters (n0 and B), the per-setting gains are not supported by significance tests, and the oracle condition is not consistently an upper bound. These issues are fixable with additional reporting and analysis.

major comments (3)

[V.D and Algorithm 1] The initial sample size n0 and the total evaluation budget B are never reported, although Algorithm 1 lists both as inputs and Figure 5 and Table III implicitly use a budget expressed in percent. Because the DKL baseline trains its feature map only on the n0 initial FoM labels, an unreported small n0 would make the headline 20.7% regret-AUC reduction relative to DKL partly a data-quantity effect rather than an effect of online adaptation. Please state n0 and B for every configuration, and provide an ablation in which a retrained-DKL baseline receives additional training at the same checkpoints as TTARO (or otherwise controls for the number of training labels) to separate adaptation from increased training data.
[VI, Tables I and II] The claim that TTARO 'outperforms prior art in most settings' is not supported by significance testing. In several settings the mean differences are smaller than the standard error, for example Ckt-Bench-101 D-VAE-GCN Linear/TS (29726.3±930.2 vs 31408.0±622.8) and Ckt-Bench-301 DAGNN Linear/EI (11183.7±1472.5 vs 12144.2±1253.1). Because the experiments use paired seeds, report paired tests (e.g., Wilcoxon signed-rank or paired t-test) across the 20 seeds, or at least report per-setting confidence intervals for the regret-AUC reduction, so that the 37-of-40 directional count can be interpreted as statistical evidence.
[V.C and VI] The GP-oracle condition is described as an 'upper-reference condition,' but it is not consistently better than the fixed GP. For example, Ckt-Bench-101 CktGNN RBF/UCB has oracle regret AUC 30246.8±2835.0 vs GP 24013.6±1432.6, and several other oracle rows are worse than the corresponding GP row. If training the feature map on all available FoM labels can degrade BO performance, the paper's motivating claim that objective-aligned geometry improves the surrogate needs qualification (for example, overfitting or optimization difficulty of the MLP), and the term 'upper-reference' should be either justified or revised.

minor comments (6)

[Abstract and Section I] The abstract contains LaTeX artifacts such as 'T est-Time' and 'O ptimization'; these should be fixed before publication.
[Section I] The statement 'As far as we are aware, no prior art has explored this framework for analog circuit topologies' should be narrowed: Section II.D itself cites representation-adaptive BO methods (SILBO, CoBO, LOCo), so the novelty claim should explicitly be limited to the analog-topology finite-bank setting rather than suggesting no prior art exists for adaptive representations in BO generally.
[Section IV.A, Eq. (10)] The dropout rate, optimizer, learning rate, number of training epochs, and stopping criterion for the MLP/GP fit are not reported. These details are needed for reproducibility, especially because the feature map is a roughly ten-thousand-parameter MLP trained on at most about one hundred labels.
[Section V.D and Figure 4] The Top-2% KNN@5 diagnostic is computed from the same FoM labels that trained the feature map, so it is not an independent measure of representation quality. The text should state this circularity explicitly rather than only noting that the quantity is 'used only as a diagnostic.'
[Table III] Because the budget is reported in percent, the caption should state the absolute evaluation budget B and the initial sample size n0.
[References] References [19] and [25] are technical reports or non-standard venues; if published versions exist, the authors should cite those instead.

Circularity Check

1 steps flagged · score 2.0 of 10

Central regret-AUC claim is not circular: it is evaluated against fixed OCB FoM labels and external GP/DKL baselines. The only self-referential element is the Top-2% KNN@5 diagnostic, which the paper itself demotes to a visualization aid.

self definitional [Section V-D (Optimization Protocol and Evaluation Metrics), Figure 4 caption]
"For each circuit whose FoM is in the top 2% of the candidate bank, Top-2% KNN@5 measures the fraction of its five nearest representation-space neighbors that are also top-2% FoM circuits. Higher values indicate that high-performing circuits are more locally concentrated in the learned representation. This quantity is used only as a diagnostic for the visualization; the primary optimization metrics are regret AUC and final best-so-far FoM."

The KNN@5 diagnostic is computed from the same top-2% FoM labels that TTARO uses to train its feature map and GP surrogate at every iteration (Eq. 15). An increase in top-2% neighbor concentration under the adapted representation is therefore partly a restatement of the fitting procedure rather than an independent confirmation of 'objective-aligned geometry.' Because the paper explicitly labels the metric 'only as a diagnostic,' and because the central regret-AUC comparisons rely on fixed OCB FoM labels against external baselines, this self-referentiality does not infect the main claim.

full rationale

The paper's core derivation chain is not circular. TTARO's representation update is trained on the FoM labels of circuits evaluated so far, and the reported optimization metrics (regret AUC, best-so-far FoM) are computed from the fixed, externally defined Open Circuit Benchmark FoM labels. The comparisons against fixed-representation GP, DKL, and the oracle representation are external baselines; none of these baselines is defined in terms of TTARO's outputs. The DKL comparison is a legitimate empirical ablation of 'retraining versus freezing the feature map' under the same kernel and network structure. The unreported initial sample size n0 and budget B could affect the fairness of the DKL comparison, but that is an experimental-protocol concern, not circularity. The paper's self-citations ([11], [14]) appear only in related-work context and are not load-bearing for the central claim. No uniqueness theorem, ansatz-smuggling citation, or fitted-input-called-prediction step is present. The only identifiable circular element is the Top-2% KNN@5 visualization diagnostic, which is self-referential because the labels used to measure concentration are the same labels used to train the representation; the paper explicitly demotes it, so the appropriate score is low.

Assumptions & free parameters 6 free parameters · 5 assumptions · 0 invented entities

The central claim rests on a small set of protocol assumptions and domain assumptions. No new physical or mathematical entities are introduced. The main hand-chosen hyperparameters (MLP width 128, d_z=16) are not swept, and the initial sample size and training details are unreported, which are the most consequential ledger entries.

free parameters (6)

Initial sample size n0
Algorithm 1 Line 2 takes n0 as input; never reported in the paper. The DKL baseline learns its single feature map from this set, so the fairness of the comparison depends on its size.
BO budget B = implied 100
B is not stated explicitly in the protocol; Figure 5 uses a 0-100% budget axis and Table III reports 20% checkpoints, implying B=100, but this is not confirmed in the text.
MLP hidden width = 128
Equation 10: chosen by hand, not tuned or justified.
Adapted latent dimension d_z = 16
Equation 9: chosen by hand; no sensitivity sweep is reported.
Dropout rate
Equation 10 uses Dropout, but the rate is never specified.
Optimizer, learning rate, training steps
Joint training in Lines 9-10 is not specified; these hyperparameters affect the quality of the surrogate fit at every iteration.

assumptions (5)

domain assumption The candidate bank X is finite and fixed, with precomputed representations and deterministic stored FoM values.
Section III assumes the upstream topology-generation step is done; evaluation is a label query, not noisy simulation. This makes the benchmark easier than real analog design.
domain assumption Pretrained encoders (CktGNN, DAGNN, D-VAE, D-VAE-GCN, WL) produce representations faithful enough for topology search.
Section V-B: TTARO inherits any information loss from fixed embeddings; if the encoder discards FoM-relevant structure, no adaptation can recover it.
ad hoc to paper A 2-layer MLP trained on at most about 100 labels can transform the embedding so that GP kernel similarity aligns with FoM without overfitting.
This is the core inductive bias of TTARO; no theory or regularization analysis is provided, and the oracle condition's instability (Table I, CktGNN RBF/UCB) suggests the MLP feature map can degrade geometry.
domain assumption The FoM definition in Eq. 31 is a valid objective for analog circuit quality.
Taken verbatim from OCB; any bias in the FoM propagates to all methods equally, so it is fair but domain-specific.
standard math Gaussian process regression and the marginal likelihood in Eq. 15 are correctly computed by the implementation.
Standard GP machinery; the paper provides no code to verify the implementation.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Finding the Needle in a Haystack: Test-Time Analog Circuit Representation Adaptation for Bayesian Optimization." pith.science (2026). https://pith.science/paper/CU4RKLHE

@misc{pith2026260812687,
  author       = {Pith},
  title        = {Pith review of: Finding the Needle in a Haystack: Test-Time Analog Circuit Representation Adaptation for Bayesian Optimization},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/CU4RKLHE}},
  note         = {Machine review of arXiv:2608.12687}
}

read the original abstract

Bayesian optimization (BO) is a sample-efficient framework for analog circuit topology search, where evaluating each candidate topology can require costly simulation. However, representation-based BO methods typically treat circuit embeddings as fixed after encoder training. This creates a mismatch between representation learning and optimization: embeddings learned to encode or reconstruct circuit structure are not necessarily organized according to the figure of merit (FoM) being optimized. This paper introduces Test-Time Analog Representation Adaptation for Bayesian Optimization (TTARO), an online deep-kernel BO framework that adapts circuit representations throughout the search process. Starting from pretrained circuit embeddings, TTARO jointly learns a nonlinear feature transformation and a Gaussian-process surrogate using the FoM labels of the circuits evaluated so far. Following each new evaluation, TTARO updates the representation and surrogate before selecting the next candidate. We compare TTARO with conventional Gaussian Process-based BO over fixed embeddings and with Deep Kernel Learning (DKL), which learns the representation only from the initial evaluated designs and keeps it fixed throughout the remainder of the search. By continually incorporating newly observed FoM labels into representation learning, TTARO aligns the search space with the optimization objective as BO progresses. In our experiments, TTARO reduces regret AUC by 15.2% on average relative to BO and by 20.7% relative to DKL across 40 encoder/kernel/acquisition settings, outperforming prior art in most settings with reductions as large as 46.7%.

Figures

Figures reproduced from arXiv: 2608.12687 by the authors.

**Figure 1.** Two-dimensional UMAP [1] visualization analog topology representations before and after TTARO adaptation, with each candidate colored by its FoM percentile. Before adaptation, high- and low-performing circuits are broadly intermixed throughout the representation space. After TTARO, the FoM exhibits substantially stronger spatial organization, with high-performing candidates concentrated within a more coherent regio… view at source ↗

**Figure 2.** Two-dimensional UMAP visualization of the DKL representation for Ckt-Bench-301 using CktGNN embeddings. Circuits within the top 2% of the FoM distribution are highlighted in orange, while all remaining candidates are shown in gray. Although DKL introduces localized performance structure, high- and low-performing circuits remain interspersed throughout much of the representation space. Because this representation is … view at source ↗

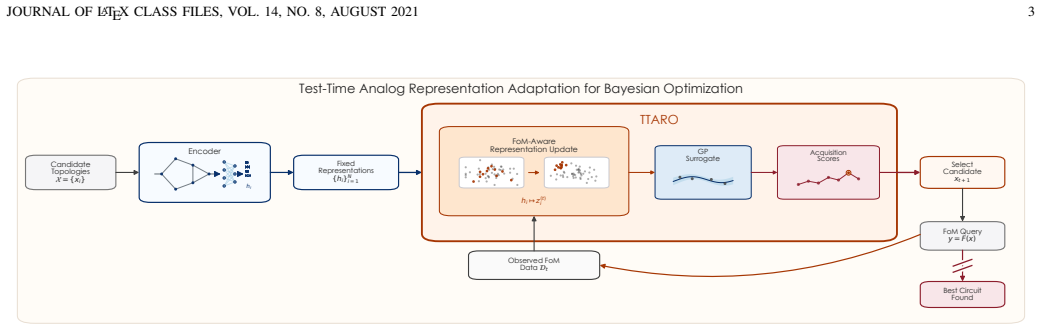

**Figure 3.** Overview of Test-Time Analog Representation Adaptation for Bayesian Optimization (TTARO). Candidate circuit topologies are first mapped by a pretrained encoder to fixed representations. At each BO iteration, TTARO uses the observed FoM data to adapt these representations, which are then used by the GP surrogate to compute acquisition scores and select the next circuit for evaluation. The newly observed FoM is added … view at source ↗

Figures from the paper (3 more)

**Figure 4.** Figure 4: Two-dimensional UMAP visualization of analog topology representations during TTARO adaptation on Ckt-Bench-301 using CktGNN embeddings. Each candidate is colored by its FoM percentile. Panel subtitles report Top-2% KNN@5, the fraction of five nearest representation-spa…

**Figure 5.** Figure 5: Best observed FoM as a function of BO budget on Ckt-Bench-301 using CktGNN representations and a linear kernel. The acquisition functions are (a) upper confidence bound (UCB), (b) expected improvement (EI), and (c) Thompson sampling (TS). The curves compare GP, GP-orac…

**Figure 6.** Figure 6: Mean Regret AUC Across Kernel and Acquisition-Function Configurations. Lower values indicate more sample-efficient optimization. Error bars denote the standard error of the mean across encoders. V. EXPERIMENTAL SETUP A. Benchmark Search Spaces We evaluate TTARO on the …
