RIS-Aided Cooperative ISAC Networks for Structural Health Monitoring

T0 review · 5 major / 5 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read RIS-aided cellular ISAC can detect millimeter-level building deformation.

desk verdict Fresh RIS differential-sensing idea for SHM, but two concrete errors need fixing before the millimeter-level claims are trustworthy. read the letter →

arxiv 2507.02731 v1 pith:26E6OHSV submitted 2025-07-03 cs.IT eess.SPmath.IT

Jie Yang , Chao-Kai Wen , Xiao Li , Shi Jin This is my paper · ORCID
classification cs.ITeess.SPmath.IT
keywords integratedsensingandcommunicationstructuralhealthmonitoringreconfigurableintelligentsurfacesFisherinformationmatrixpositionerrorboundcooperativelocalizationdeformationdetectionellipsoid
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to establish that an ordinary cellular ISAC network, with a reconfigurable intelligent surface mounted on a structure as a reference point, can measure millimeter-level deformation by subtracting measurements taken under two alternating RIS phase configurations. The subtraction cancels static background multipath while the RIS path changes, turning the RIS phase modulation into a radio marker for the structure's position. The authors derive Fisher information bounds for 3D RIS localization and show that observation time, cooperative receivers, bandwidth, and RIS size reduce the position error bound enough to meet structural health monitoring limits. A Bayesian hypothesis test then maps the estimated displacement into an unchanged versus damaged structural state. If correct, this would let dense cellular infrastructure double as quantitative deformation sensors without new dedicated hardware.

What carries the argument

The carrying object is the information ellipsoid, an equivalent Fisher information representation $\mathbf{F}_e(\mathbf{r})=\lambda_{\tau_r}\mathbf{u}_{\tau_r}\mathbf{u}_{\tau_r}^H+(\lambda_{\phi_r^{az}}-\chi_{\phi_r^{az}\phi_r^{el}})\mathbf{u}_{\phi_r^{az}}\mathbf{u}_{\phi_r^{az}}^H+(\lambda_{\phi_r^{el}}-\chi_{\phi_r^{el}\phi_r^{az}})\mathbf{u}_{\phi_r^{el}}\mathbf{u}_{\phi_r^{el}}^H$ built from three mutually orthogonal unit vectors for range, azimuth, and elevation. The range intensity grows with bandwidth squared, while the angle intensities grow with effective array aperture and decay with target distance. The companion mechanism is the two-state RIS phase alternation with phases $-\left(\bar\phi_m-\bar\theta_m\right)$ and $\pi-\left(\bar\phi_m-\bar\theta_m\right)$, which makes the differenced measurement add coherently and gives $\beta_{**}=4M^4$ and $\gamma_{**}=N_T^2P_T$, converting RIS size and transmit power directly into Fisher information. The ellipsoid is then fed into a Wald test and a Bayesian state-inference model to produce detection probabilities for structural damage.

What would settle it

Take two adjacent measurements with the RIS alternating phases while a scatterer such as a passing car or a pedestrian changes the background channel between them, and check whether the estimated RIS position still tracks a known millimeter-level displacement applied to the structure; the model predicts no background residual, so any observed bias or PEB increase beyond the predicted bound would falsify the static-scatterer assumption. A second check is to simulate a receiver position-error covariance that is diagonal in Cartesian coordinates but not diagonal in the target basis $\mathbf{U}$, which would break the assumptions behind Theorem 5.

Watch

Extended reading notes

Core claim

The central claim is that the channel difference between two closely spaced instants with different RIS phase configurations isolates the RIS reflection: $\mathbf{H}_s[i]=\mathbf{H}_s[i-1]$, so $\mathbf{s}_{i,i-1}=(\mathbf{H}_r[i]-\mathbf{H}_r[i-1])\mathbf{f}x+\mathbf{w}_{i,i-1}$. Fisher information theory then yields a closed-form position error bound in 3D, expressed as an information ellipsoid whose axes are range information intensity, proportional to bandwidth squared, and angle information intensities, proportional to array aperture divided by distance squared. The paper claims that increasing observation time multiplies the equivalent Fisher information by $(T-1)$ under optimized phases, that extra receivers always weakly decrease the Cram\'er-Rao lower bound, that receivers with self-positioning errors still help unless their error is very large, and that the resulting millimeter-level position error bound supports detection probabilities near 100 percent for millimeter deformations under adequate time, bandwidth, and RIS size. The numerical validation with a Newtonized orthogonal matching pursuit estimator shows delay and angle root-mean-square error close to the derived CRLB.

Load-bearing premise

The load-bearing premise is that the background multipath channel is identical at the two closely spaced measurement instants, as stated in Eq. (6), so subtracting adjacent measurements removes all non-RIS reflections; if any scatterer moves or changes between instants, its residual becomes unmodeled clutter that can swamp millimeter-level detection.

Editorial extensions

If this is right

  • If the central claim holds, a 16x16 RIS with an 8x8 receive array can reach a 100 percent detection probability for millimeter-level deformation by integrating over one 20 ms radio frame with 2240 OFDM symbols.
  • Cooperative receivers with meter-level self-positioning errors do not degrade the network CRLB, and three receivers with millimeter-level self-positioning errors match a perfectly positioned receiver in the simulated setup.
  • Deployment Type II, with cooperative receivers spread along the positive y-axis, gives a smaller PEB than Deployment Type I because of spatial diversity, making receiver placement a design lever.
  • RIS phases optimized at installation remain robust to sub-meter RIS position shifts and to a few degrees of orientation change, so frequent reconfiguration may be unnecessary.
  • Performance improves monotonically with observation time, receiver count, bandwidth, antenna count, and RIS size under the model.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The paper leaves implicit that the same differencing idea could monitor rotation, torsion, and bending by placing several RISs on one structure and combining their estimated displacements, since the single-RIS framework only detects translation.
  • A testable extension is to apply the method to a real bridge or high-rise with an independent laser or GNSS reference and deliberately create moving background scatterers, because the static-scatterer assumption in Eq. (6) is the first premise likely to break at millimeter accuracy.
  • An unproven corner is Theorem 5's assumption that the receiver position-error covariance is diagonal in the target-centric basis $\mathbf{U}$; a numerical test with a Cartesian-diagonal $\mathbf{Q}_R$ that is not diagonal in $\mathbf{U}$ would show how much optimism remains.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

5 major / 5 minor

Summary. This paper proposes an RIS-aided cooperative ISAC framework for structural health monitoring. The key idea is to mount an RIS on a possibly deformable structure, alternate its phase configuration between two closely spaced observation instants, and subtract the received signals so that the static background multipath channel cancels. The remaining differential signal is then used to estimate the RIS position via a Fisher information analysis. The authors derive closed-form FIM and EFIM expressions, extend them to temporal accumulation, multiple cooperative receivers, and receivers with self-positioning errors, and build a Bayesian/Wald detection model for structural state identification. Numerical results validate the CRLB through the NOMP algorithm and study the PEB and detection probability as functions of bandwidth, array size, RIS size, observation time, and cooperative node geometry.

Significance. If the result holds, the paper is a useful contribution: it translates SHM accuracy requirements into concrete network design parameters and provides analytic expressions for the PEB of an RIS reference point as a function of bandwidth, antenna count, RIS size, observation time, node placement, and receiver position uncertainty. The ideal-case EFIM derivation follows standard CRLB machinery, and the NOMP simulation in Section V-C supports the single-configuration CRLB expressions. The paper also makes falsifiable predictions (e.g., PEB decreases with T, K, M, and B) and compares concrete deployment strategies. However, the central claim of millimeter-level deformation detection is not yet robust: the RIS gain expression appears to contain a factor-M^2 algebraic error, the static-background assumption that enables the whole differential measurement is not bounded or stress-tested, and the detection model has dimensional inconsistencies. These issues are load-bearing for the central claim, but they appear correctable within the manuscript's scope.

major comments (5)
  1. [Section III-A, Eqs. (19a)-(21)] The text states that with the optimized RIS phases, beta_{**} = 4M^4. Direct evaluation of Eq. (19a) with unit-modulus steering vectors and |Omega[i]-Omega[i-1]|_mm = 2 gives beta_{**} = 4M^2, because each scalar factor in (19a) is a sum of M terms of magnitude at most 2, so the product has magnitude at most (2M)^2 = 4M^2. The asserted value 4M^4 overestimates the RIS contribution by a factor of M^2. Since the per-antenna SNR in Eq. (20) and all subsequent FIM entries, including (24), (26), (28), (30), and (32), inherit this factor, the reported PEB values in Figs. 5-9 and the detection probabilities in Figs. 11-12 are optimistically biased. This algebraic error must be corrected and the simulations rerun before the millimeter-level claim can be accepted.
  2. [Section II-A, Eq. (6)] The central cancellation H_s[i] = H_s[i-1] is assumed but never bounded. In a real deployment, the two observation instants are separated by at least one RIS phase switch, and vehicles, pedestrians, foliage, wind, or thermal drift can alter the background scatterer channel. The residual Delta H_s = H_s[i] - H_s[i-1] enters the differential signal in Eq. (10) as unmodeled clutter, and at the claimed millimeter accuracy even a weak residual scatterer can produce a bias comparable to the deformation signal. The numerical validation in Section V-C uses synthetic data generated under exactly the same static-background model, so it cannot detect a violation of (6). The authors should either model Delta H_s in the FIM or provide an explicit condition (e.g., a bound on residual scatterer power or a coherence-time requirement) under which the millimeter-level PEB claim remains valid.
  3. [Section IV-C, Eq. (61)] The step Q_R^{-1} = U tilde-Q_R^{-1} U^H assumes that the receiver position-error covariance is diagonal in the target-centric U basis. For the diagonal Cartesian covariance stated in Eq. (59), this is generally false: the columns of U are geometry-dependent direction vectors (u_tau, u_phi_az, u_phi_el) and are not eigenvectors of an arbitrary diagonal Q_R. Consequently, Theorem 5 and Corollary 6 do not hold for arbitrary diagonal Q_R. The authors should either derive the EFIM for a general Q_R, or state and justify an additional assumption such as isotropic error (Q_R = qI), or show that the diagonalization in the U basis is a conservative bound.
  4. [Section III-C, Eqs. (42)-(44)] The detection model is dimensionally inconsistent. The statistic d(hat-r) = (hat-r - r0)^T F(hat-r)(hat-r - r0) is dimensionless because F has units m^{-2}, yet the threshold kappa is stated in millimeters and the assumed variances sigma_p^2 have units m^2. Under H0, the exact distribution of d is a chi-squared distribution with three degrees of freedom (for a known FIM), not a zero-mean Gaussian. This undermines the quantitative detection-probability results in Figs. 11-12. The authors should define a physical displacement statistic with proper units, or use the correct noncentral chi-squared / quadratic-form distribution for the Wald test, and then recompute the detection probabilities.
  5. [Section IV-B, Corollary 4] Corollary 4 relies on the EFIM being a sum of positive semidefinite rank-one terms for each receiver. This is valid if each receiver's FIM is expressed in the same global coordinate basis, which the paper does implicitly. However, the proof in Eq. (55) uses an EFIM decomposition in which the U_k matrices differ per receiver; the inequality F[1:K+1] >= F[1:K] follows as stated, but the authors should clarify that the U_k columns are expressed in a common coordinate frame to avoid an apparent basis mismatch.
minor comments (5)
  1. [Section III-A, Eq. (21)] The beamforming vector is written as f = a_H^T(...) in the text; it should be f = a_T(theta_az, theta_el), a column vector, with the Hermitian transpose used only in the alignment argument.
  2. [Section III-A, Eq. (19a)] The notation beta_{**} is undefined; the subscripts should be tied to the parameter pair (e.g., beta_{tau_r tau_r}, beta_{phi_az phi_az}) for readability.
  3. [Appendix C, Eq. (86)] There is a typo in 'Acoording' in the proof of the non-negativity result; the sentence should read 'According'.
  4. [Section V-C, Fig. 10] The label 'CRLBApprox.' is missing a space and could be typeset as 'CRLB Approx.'; also, the figure caption should state explicitly which curves are which, since the legend is small.
  5. [Section II-A, Eq. (2)] The channel model in Eq. (2) includes the RIS phase matrix Omega[i] as an M x M diagonal matrix premultiplying the RIS steering vectors; the dimensions of the product are not immediately obvious, and a short dimension-check or block diagram would help the reader verify the M-scaling of the final expressions.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the CRLB/EFIM and detection-probability results are derived from the stated signal model, with no fitted parameter or self-citation chain forcing the millimeter-level conclusion.

full rationale

The derivation chain is self-contained. The received-signal model (1)-(10) defines the measurement; Eqs. (11)-(17) define the FIM, CRLB, and PEB from derivatives of that model. The closed-form FIM elements (24)-(32), Theorem 1's EFIM (37), and Corollaries 2-6 are algebraic consequences of the model and of external EFIM results [29], [30], [32], [34]; none of those citations is authored by the present paper's authors, and none smuggles in the millimeter-level conclusion. The self-citations ([1], [15]) point only to earlier WOCC material and a prior ISAC-SLAM method; neither is load-bearing for the PEB. The Bayesian detection model in Section III-C deliberately defines the likelihood variances through the PEB, so the detection-probability curves in Figs. 11-12 are derived consequences of the PEB rather than independent empirical predictions; this is a modeling and consistency check, not a fitted-parameter circularity. Similarly, the NOMP simulation in Section V-C uses data generated from the same signal model and therefore validates the algebra of the EFIM, not the physical assumptions. The main caveat, Eq. (6) H_s[i]=H_s[i-1], is a stated stationarity premise; an unmodeled violation would bias the estimates, but assuming a premise is not circular reasoning.

Assumptions & free parameters 1 free parameters · 5 assumptions · 0 invented entities

The framework pulls most of its analytical machinery from prior EFIM and CRLB work, and the main new ingredients are the differential RIS phase-coding assumption and the SHM application. The free parameters and assumptions listed above are the choices that the millimeter-level claims depend on; none of them is independently validated by experimental data.

free parameters (1)
  • per-antenna SNR = 20 dB (simulation parameter)
    All PEB and detection probability results scale with the assumed SNR, which is set to 20 dB in Section V without a link budget or path-loss model. The millimeter-level conclusions depend directly on this chosen value.
assumptions (5)
  • domain assumption Static scatterer channel between adjacent observation instants: H_s[i] = H_s[i-1] (Eq. 6)
    This is the foundation of the subtraction in Eq. (8)-(10). If the background scattering changes between the two RIS phase configurations, residual clutter is unmodeled and the millimeter-level accuracy claims would not hold.
  • domain assumption Far-field point-target model for the RIS, with known initial position and orientation (Section II-A)
    The paper explicitly treats the RIS as a point target in the far field. Near-field effects and finite RIS aperture are deferred to future work, but they could affect millimeter-level position estimation at realistic ranges.
  • standard math Block-diagonal structure of the channel-parameter FIM, FB = 0 (Section III-B, Eq. (34))
    This follows [29], [30] for the chosen parameterization. The paper cites the prior derivation rather than reproving it, which is acceptable for this framework.
  • ad hoc to paper Receiver position-error covariance Q_R is diagonal in the U basis (Section IV-C, Eq. (61))
    The derivation of Theorem 5 requires Q_R^{-1} = U diag(epsilon_tau^{-1}, epsilon_phi^{-1}, epsilon_theta^{-1}) U^H. For a diagonal covariance in Cartesian coordinates, this is generally false. This is an unstated and restrictive assumption that makes the exact EFIM expression in Eq. (62) invalid for arbitrary diagonal Q_R.
  • domain assumption Gaussian likelihoods for the Wald statistic d(r_hat) under both hypotheses (Section III-C)
    The detection probability analysis models f(d|U) and f(d|D) as Gaussians with variances given by the PEB. In reality d(r_hat) is a quadratic form of a Gaussian vector and is chi-square-like, so the Gaussian approximation is a modeling choice that affects the reported detection probabilities.

how reviews work

0 comments
Cite this review

Pith. "Pith review of RIS-Aided Cooperative ISAC Networks for Structural Health Monitoring." pith.science (2026). https://pith.science/paper/26E6OHSV

@misc{pith2026250702731,
  author       = {Pith},
  title        = {Pith review of: RIS-Aided Cooperative ISAC Networks for Structural Health Monitoring},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/26E6OHSV}},
  note         = {Machine review of arXiv:2507.02731}
}
read the original abstract

Integrated sensing and communication (ISAC) is a key feature of future cellular systems, enabling applications such as intruder detection, monitoring, and tracking using the same infrastructure. However, its potential for structural health monitoring (SHM), which requires the detection of slow and subtle structural changes, remains largely unexplored due to challenges such as multipath interference and the need for ultra-high sensing precision. This study introduces a novel theoretical framework for SHM via ISAC by leveraging reconfigurable intelligent surfaces (RIS) as reference points in collaboration with base stations and users. By dynamically adjusting RIS phases to generate distinct radio signals that suppress background multipath interference, measurement accuracy at these reference points is enhanced. We theoretically analyze RIS-aided collaborative sensing in three-dimensional cellular networks using Fisher information theory, demonstrating how increasing observation time, incorporating additional receivers (even with self-positioning errors), optimizing RIS phases, and refining collaborative node selection can reduce the position error bound to meet SHM's stringent accuracy requirements. Furthermore, we develop a Bayesian inference model to identify structural states and validate damage detection probabilities. Both theoretical and numerical analyses confirm ISAC's capability for millimeter-level deformation detection, highlighting its potential for high-precision SHM applications.

Figures

Figures reproduced from arXiv: 2507.02731 by the authors.

Figure 1

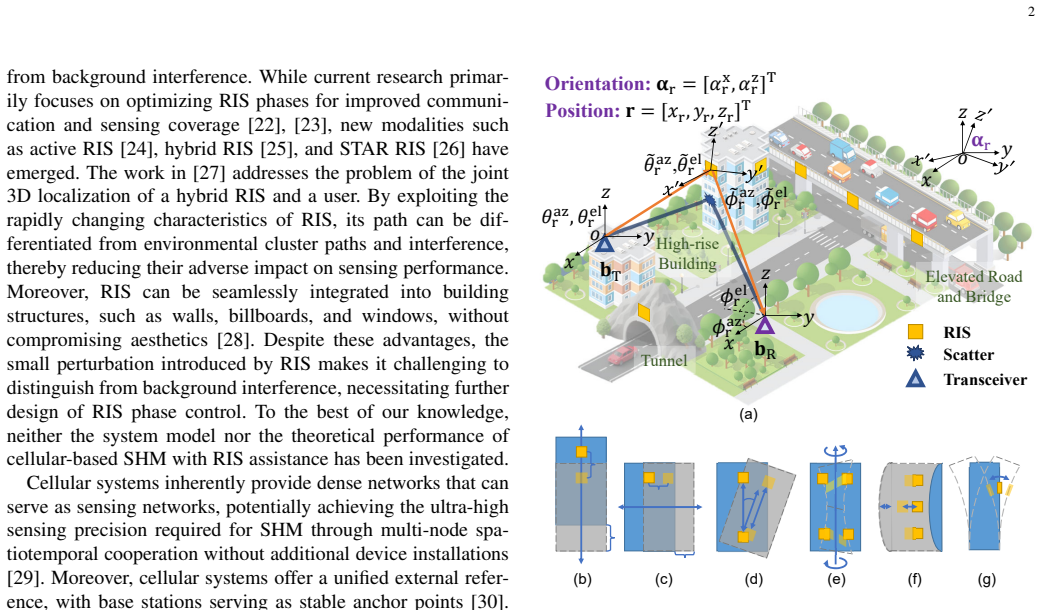

Figure 1. (a) 3D scenario of cellular-based SHM with RIS assistance; (b)-(g) [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Illustration of the RIS phase configuration. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Illustration of information accumulation using information ellipsoids. (a) The information ellipsoids is composed of range information, azimuth angle [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figures from the paper (7 more)
Figure 5
Figure 5. Figure 5: Relationship among scene scale, bandwidth, and (a) RII and AII, and (b) PEB. [PITH_FULL_IMAGE:figures/full_fig_p009_5.png]
Figure 6
Figure 6. Figure 6: PEB variations with respect to receiver position changes. [PITH_FULL_IMAGE:figures/full_fig_p010_6.png]
Figure 8

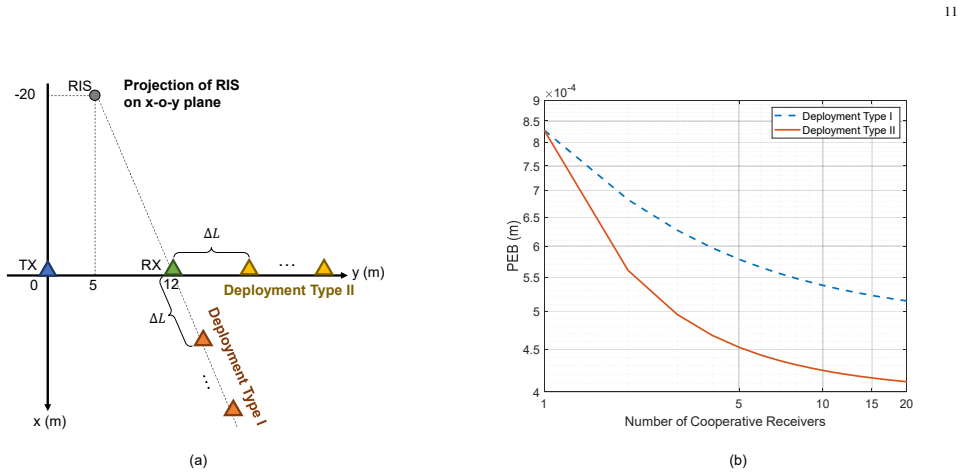

Figure 8. Figure 8: PEB performance in spatial cooperation. (a) Illustration of Deployment Types I and II. (b)Relationship between PEB and the number of cooperative [PITH_FULL_IMAGE:figures/full_fig_p011_8.png]
Figure 9
Figure 9. Figure 9: The impact of cooperative receiver self-positioning error on PEB per [PITH_FULL_IMAGE:figures/full_fig_p011_9.png]
Figure 10

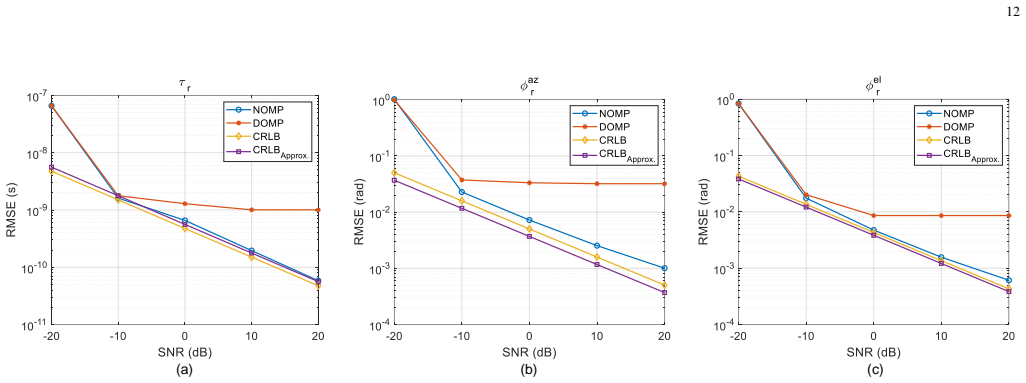

Figure 10. Figure 10: RMSE of the delay, azimuth AOA, and elevation AOA estimation as a function of SNR. The estimators of DOMP and NOMP, and CRLB are [PITH_FULL_IMAGE:figures/full_fig_p012_10.png]
