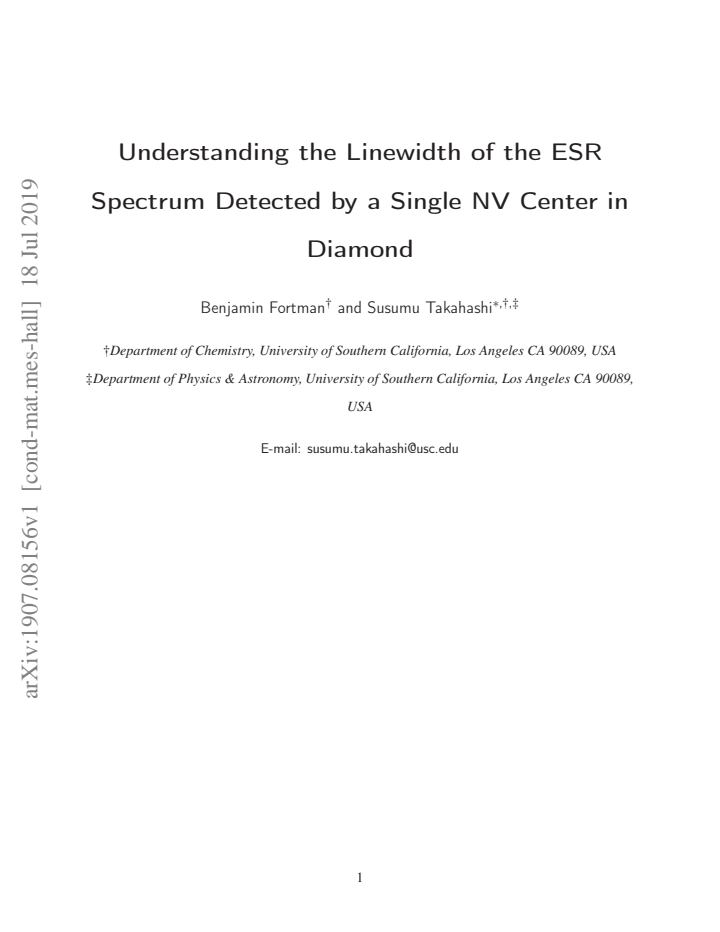

Understanding the Linewidth of the ESR Spectrum Detected by a Single NV Center in Diamond
Pith reviewed 2026-05-24 19:39 UTC · model grok-4.3
The pith
NV-ESR linewidth from single P1 centers reaches 0.3 MHz when limited by inhomogeneous broadening via DEER bandwidth tuning.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
NV-ESR spectra of P1 centers are acquired with DEER; dependence of the measured linewidth on DEER excitation bandwidth demonstrates that spectral resolution improves markedly and becomes limited by inhomogeneous broadening of the P1 ESR, allowing linewidths as narrow as 0.3 MHz.
What carries the argument
The measured dependence of NV-ESR linewidth on DEER excitation bandwidth, which isolates the contribution from P1 inhomogeneous broadening.
If this is right
- NV-ESR spectral resolution improves substantially once DEER bandwidth is reduced to match the P1 inhomogeneous width.
- The narrowest NV-ESR linewidth achievable is 0.3 MHz and is set by P1 inhomogeneous broadening.
- Higher-resolution NV-ESR enables improved characterization of spin concentration and dynamics at the nanoscale.
- The technique separates sensor-limited effects from target-spin properties in single-NV detection.
Where Pith is reading between the lines
- The same bandwidth-tuning approach could be tested on other paramagnetic defects to determine whether their linewidths are similarly resolution-limited.
- If the 0.3 MHz limit holds across samples, it sets a practical bound for resolving hyperfine or dipolar splittings in NV-detected spectra.
- Extensions to pulsed sequences that further suppress residual NV decoherence might push the effective resolution below the P1 inhomogeneous value.
Load-bearing premise
Changes in DEER excitation bandwidth isolate the inhomogeneous broadening of the P1 ESR without residual effects from NV coherence time, pulse errors, or other detection artifacts.
What would settle it
Direct comparison of the narrowest NV-ESR linewidth obtained at minimal DEER bandwidth against an independent bulk ESR measurement of P1 inhomogeneous broadening that yields a different value.
read the original abstract
Spectral analysis of electron spin resonance (ESR) is a powerful technique for various investigations including characterization of spin systems, measurements of spin concentration, and probing spin dynamics. The nitrogen-vacancy (NV) center in diamond is a promising magnetic sensor enabling improvement of ESR sensitivity to the level of a single spin. Therefore, understanding the nature of NV-detected ESR (NV-ESR) spectrum is critical for applications to nanoscale ESR. Within this work we investigate the linewidth of NV-ESR from single substitutional nitrogen centers (called P1 centers). NV-ESR is detected by a double electron-electron resonance (DEER) technique. By studying the dependence of the DEER excitation bandwidth on NV-ESR linewidth, we find that the spectral resolution is improved significantly and eventually limited by inhomogeneous broadening of the detected P1 ESR. Moreover, we show that the NV-ESR linewidth can be as narrow as 0.3 MHz.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript investigates the linewidth of NV-detected ESR spectra from single P1 centers in diamond via the DEER technique. By examining the dependence of the observed linewidth on DEER excitation bandwidth, the authors report that spectral resolution improves and becomes limited by inhomogeneous broadening of the P1 ESR, with the narrowest achieved linewidth being 0.3 MHz.
Significance. If the attribution to P1 inhomogeneity is substantiated, the result would demonstrate that NV-based ESR can reach a resolution set by the target's intrinsic properties rather than sensor limitations, which is relevant for single-spin characterization and nanoscale magnetic resonance applications.
major comments (1)
- [Abstract] Abstract: The conclusion that the 0.3 MHz linewidth is limited by P1 inhomogeneous broadening requires that NV coherence time, finite pulse bandwidth, and detection artifacts have been shown to lie below this value. The manuscript should include explicit controls, such as NV Ramsey or Hahn-echo data acquired under identical microwave power, timing, and detuning conditions, or a quantitative subtraction of residual broadening terms, to support the isolation claim.
Simulated Author's Rebuttal
We thank the referee for their constructive comment, which helps clarify the conditions needed to support our claim about the limiting factor of the NV-ESR linewidth. We address the point below and will revise the manuscript accordingly.
read point-by-point responses
-
Referee: [Abstract] Abstract: The conclusion that the 0.3 MHz linewidth is limited by P1 inhomogeneous broadening requires that NV coherence time, finite pulse bandwidth, and detection artifacts have been shown to lie below this value. The manuscript should include explicit controls, such as NV Ramsey or Hahn-echo data acquired under identical microwave power, timing, and detuning conditions, or a quantitative subtraction of residual broadening terms, to support the isolation claim.
Authors: We agree that a robust claim of P1 inhomogeneous broadening as the limit requires ruling out contributions from NV coherence, pulse bandwidth, and artifacts. Our manuscript already shows that increasing DEER excitation bandwidth causes the observed linewidth to decrease and saturate at 0.3 MHz, which indicates that finite pulse bandwidth is not the dominant term once the bandwidth exceeds a threshold. Nevertheless, we acknowledge that this indirect evidence is insufficient without direct controls. In the revision we will add NV Ramsey and Hahn-echo measurements performed under microwave power, timing, and detuning conditions identical to the DEER sequences. These data will be used to compute the corresponding NV linewidth contribution and to perform a quantitative subtraction of residual broadening terms, thereby confirming that NV-related and instrumental contributions lie well below 0.3 MHz. revision: yes
Circularity Check
No circularity: purely experimental linewidth measurement
full rationale
The paper reports direct experimental observations of NV-ESR linewidth via DEER on P1 centers, with the 0.3 MHz narrowest value obtained by varying excitation bandwidth until limited by inhomogeneous broadening. No equations, derivations, fitted parameters renamed as predictions, or self-citation chains appear in the provided abstract or described content. The central claim is an empirical result from measurement, not a constructed quantity that reduces to its inputs by definition. This matches the default expectation of a self-contained experimental paper.
