Efficient and simple fourth-order compact finite difference methods for convection-diffusion-reaction equations on arbitrary curved domains

Qiwei Feng , Bin Han , Peter Minev This is my paper

Pith reviewed 2026-05-21 02:28 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords finite difference methodsconvection-diffusion-reactioncurved domainsfourth-order compactCartesian meshirregular stencilsDirichlet boundary
0
0 comments X

The pith

A fourth-order compact finite difference method achieves stable convergence for convection-diffusion-reaction equations on arbitrary curved domains using only interior points of a Cartesian mesh.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a fourth-order compact finite difference method for convection-diffusion-reaction equations on complex curved domains using a uniform Cartesian grid. It handles regular interior points with the standard nine-point stencil and develops specialized stencils for irregular points near the boundary through transformations in ten cases. These boundary stencils are derived by solving small linear systems for coefficients and using explicit expressions for the forcing terms, relying on low-order derivatives. Numerical tests on domains with highly oscillatory and curved boundaries demonstrate fourth-order convergence in both L2 and infinity norms while using only points inside the domain. This matters for practical simulations where high accuracy on irregular geometries is needed without the complications of exterior ghost points.

Core claim

By combining the classical fourth-order compact nine-point discretization at interior points with a set of ten specially constructed compact stencils at irregular boundary-adjacent points, the method achieves a uniform fourth-order truncation error throughout the domain. Each irregular stencil is obtained by a sequence of vertical and horizontal grid-aligned transformations whose coefficients satisfy a linear system of size at most six by twenty-four; the right-hand side remains an explicit combination of the source term and its first derivatives. The construction uses only grid points that lie inside the computational domain and incorporates up to third-order derivatives of the boundary and

What carries the argument

The central mechanism is the derivation of ten families of fourth-order compact stencils for irregular centers via vertical and horizontal transformations, each obtained by solving an at most 6x24 linear system to match Taylor expansion terms up to order four while using only interior grid points.

If this is right

  • The method maintains fourth-order accuracy and stability on domains with 100-leaf high-curvature boundaries.
  • Only first-order partial derivatives of the PDE coefficients are required at irregular stencils.
  • All stencils retain a simple nine-point structure by discarding any exterior points.
  • The left-hand side coefficients come from a small explicitly solvable linear system while the right-hand side is given by an explicit formula.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same vertical and horizontal transformation technique could be adapted to three-dimensional problems or to other classes of elliptic operators.
  • Because every stencil uses only interior points the approach may integrate directly with moving-boundary or adaptive-refinement algorithms.
  • The modest derivative requirements at the boundary suggest the method could be modified for problems with reduced regularity if the Taylor-matching conditions are relaxed accordingly.

Load-bearing premise

The boundary admits a parametric representation with derivatives up to third order that are sufficiently smooth, and the PDE coefficients are smooth enough for the Taylor expansions in the stencil derivations to hold at the required orders.

What would settle it

Running the scheme on a domain whose boundary parametrization has only C^2 smoothness and measuring whether the observed convergence rate in the l2 or l-infinity norm falls below four would directly test the necessity of the smoothness assumption.

Figures

Figures reproduced from arXiv: 2605.20842 by Bin Han, Peter Minev, Qiwei Feng.

Figure 1
Figure 1. Figure 1: Three examples of Ω with complicated boundary curves ∂Ω for the model problem (1.1): Ω is the region enclosed by a 20-leaf boundary curve (left), Ω is the region enclosed by two 5-leaf boundary curves (middle), and Ω is the thin region enclosed by two 100-leaf boundary curves (right). In this paper, we derive the fourth-order compact finite difference method (FDM) to solve the 2D convection-diffusion-react… view at source ↗
Figure 2
Figure 2. Figure 2: Left: Regular (blue) and irregular (red) stencil centers. Right: Orthogonal projections (black points) of the stencil centers (red points) of boundary irregular stencils onto the boundary curve ∂Ω (the black curve). -0.5 -0.4 -0.3 -0.2 -0.1 0 0.1 0.2 0.3 0.4 0.5 x -0.5 -0.4 -0.3 -0.2 -0.1 0 0.1 0.2 0.3 0.4 0.5 y -0.5 -0.4 -0.3 -0.2 -0.1 0 0.1 0.2 0.3 0.4 0.5 x -0.5 -0.4 -0.3 -0.2 -0.1 0 0.1 0.2 0.3 0.4 0.5… view at source ↗
Figure 3
Figure 3. Figure 3: Illustrations for compact FDMs at irregular stencil centers, where each red point is the stencil center of a boundary irregular stencil near ∂Ω, a black point is the orthogonal projection of the stencil center of the boundary stencil onto ∂Ω, the blue star points are remaining grid points used in compact FDMs, and the black curve is the boundary ∂Ω. This paper is organized as following: In Section 2, we pr… view at source ↗
Figure 4
Figure 4. Figure 4: The illustration of vertical transformations for the subcase 1 with q (1) ̸= ±p (1) and q (1) ̸= ± √ 3p (1) of the case 1 with |q (1)/p(1)| ≥ 1. generates that u(x + x o i , y + y o j ) = X 3 m,n=0 m+n≤3 x my n m!n! u (m,n) + O(h 4 ) with (x, y) ∈ (−2h, 2h) 2 , (3.17) where u (m,n) is defined in (3.3) and (3.6). Plugging (3.11) and (3.13) into (3.17), we have u(x + x o i , y + y o j ) =X 2 n=0 G1,n(x, y)u … view at source ↗
Figure 5
Figure 5. Figure 5: The illustration of vertical transformations for the subcase 2 with q (1) = p (1) of the case 1 with |q (1)/p(1)| ≥ 1. u (0,0) u (0,1) u (0,2) u (0,3) u (1,0) u (1,1) u (1,2) u (2,0) u (2,1) u (3,0) u (0,0) u (0,1) u (0,2) u (0,3) u (1,0) u (1,1) u (1,2) u (0,1) u (0,2) u (1,2) [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: The illustration of vertical transformations for the subcase 3 with q (1) = −p (1) of the case 1 with |q (1)/p(1)| ≥ 1. u (0,0) u (0,1) u (0,2) u (0,3) u (1,0) u (1,1) u (1,2) u (2,0) u (2,1) u (3,0) u (0,0) u (0,1) u (0,2) u (0,3) u (1,0) u (1,1) u (1,2) u (0,1) u (1,1) u (0,3) [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: The illustration of vertical transformations for subcases 4 and 5 with q (1) = ± √ 3p (1) of the case 1 with |q (1)/p(1)| ≥ 1. Next, we construct the fourth-order compact FDM at the irregular stencil center point for the case 2 with |q (1)/p(1)| ≤ 1. Case 2: |q (1)/p(1)| ≤ 1. Similar to the case 1, we also need to discuss 5 subcases. Subcase 1 of the case 2: q (1) ̸= ±p (1) and q (1) ̸= ± √ 3 3 p (1) . We … view at source ↗
Figure 8
Figure 8. Figure 8: The illustration of horizontal transformations for the subcase 1 with q (1) ̸= ±p (1) and q (1) ̸= ± √ 3 3 p (1) of the case 2 with |q (1)/p(1)| ≤ 1. Then the following compact FDM (see [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗

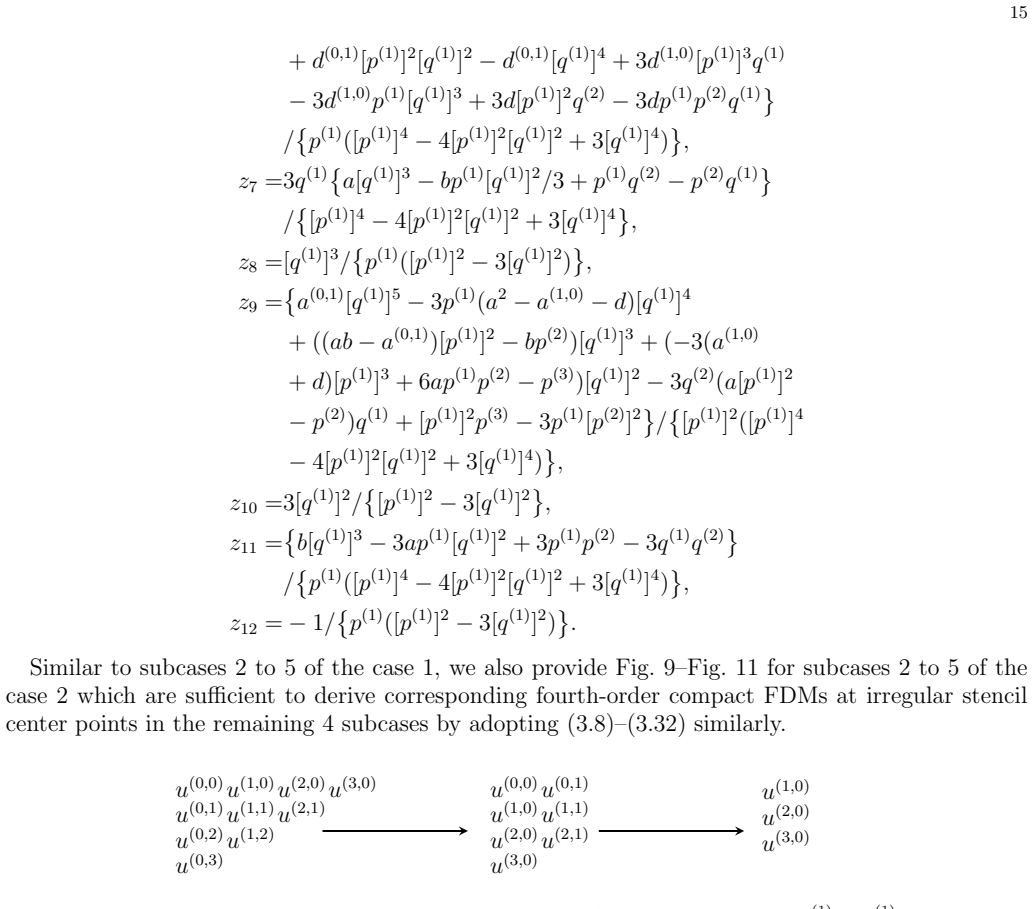

Figure 9
Figure 9. Figure 9: The illustration of horizontal transformations for the subcase 2 with q (1) = p (1) of the case 2 with |q (1)/p(1)| ≤ 1. u (0,0) u (0,1) u (0,2) u (0,3) u (1,0) u (1,1) u (1,2) u (2,0) u (2,1) u (3,0) u (0,0) u (1,0) u (2,0) u (3,0) u (0,1) u (1,1) u (2,1) u (0,1) u (2,0) u (3,0) [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: The illustration of horizontal transformations for the subcase 3 with q (1) = −p (1) of the case 2 with |q (1)/p(1)| ≤ 1. u (0,0) u (0,1) u (0,2) u (0,3) u (1,0) u (1,1) u (1,2) u (2,0) u (2,1) u (3,0) u (0,0) u (1,0) u (2,0) u (3,0) u (0,1) u (1,1) u (2,1) u (0,1) u (1,1) u (3,0) [PITH_FULL_IMAGE:figures/full_fig_p015_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: The illustration of horizontal transformations for subcases 4 and 5 with q (1) = ± √ 3 3 p (1) of the case 2 with |q (1)/p(1)| ≤ 1 [PITH_FULL_IMAGE:figures/full_fig_p015_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Up to symmetric transformations and rotations, compact FDMs at irregular stencil center points only have the above 7 configurations for any complex boundary curves when the mesh size h is reasonably small, where red points are irregular stencil center points, blue star points are remaining grid points used in compact FDMs, and black curves are boundaries. See [13, Figs. 3-5] for more configurations if h i… view at source ↗

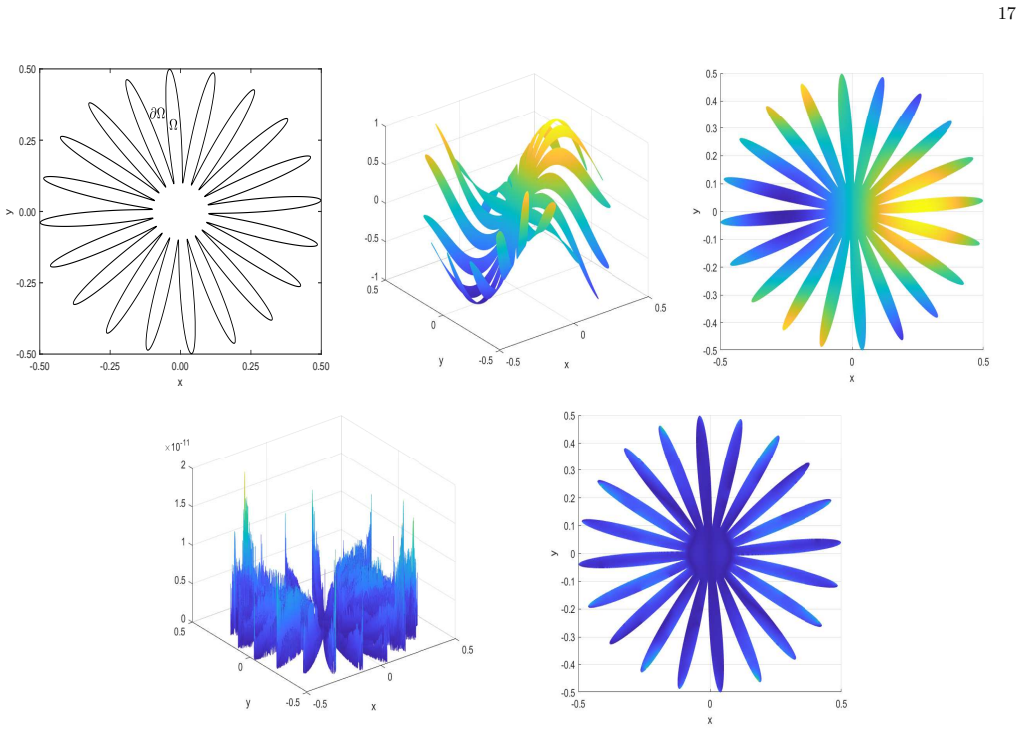

Figure 13
Figure 13. Figure 13: Performance in Example 4.1 of the proposed fourth-order compact FDM. The domain Ω that is enclosed by a 20-leaf boundary curve ∂Ω (left panel in the first row), uh on Ωh with h = 1/2 12 (middle and right panels in the first row), and |uh − u| on Ωh with h = 1/2 12 (left and right panels in the second row) [PITH_FULL_IMAGE:figures/full_fig_p017_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Performance in Example 4.2 of the proposed fourth-order compact FDM with u = cos(10(x − y)). The domain Ω = {(x(t), y(t)) : [0.2 + 0.15 sin(5t)]2 < x(t) 2 + y(t) 2 < [0.3 + 0.16 sin(5t)]2 , t ∈ [0, 2π)} that is enclosed by two 5-leaf boundary curves ∂Ω (left panel in the first row), uh on Ωh with h = 1/2 13 (middle and right panels in the first row), and |uh − u| on Ωh with h = 1/2 13 (left and right pane… view at source ↗
Figure 15
Figure 15. Figure 15: Performance in Example 4.2 of the proposed fourth-order compact FDM with u = cos(5(x − y)). The domain Ω = {(x(t), y(t)) : [0.1 + 0.05 sin(5t)]2 < x(t) 2 + y(t) 2 < [0.35 + 0.1 sin(20t)]2 , t ∈ [0, 2π)} that is enclosed by 5-leaf and 20-leaf boundary curves ∂Ω (left panel in the first row), uh on Ωh with h = 1/2 12 (middle and right panels in the first row), and |uh − u| on Ωh with h = 1/2 12 (left and ri… view at source ↗
Figure 16
Figure 16. Figure 16: Performance in Example 4.3 of the proposed fourth-order compact FDM with u = sin(4x) cos(4y). The domain Ω = {(x(t), y(t)) : [0.33 + 0.02 sin(20t)]2 < x(t) 2 + y(t) 2 < [0.35 + 0.02 sin(20t)]2 , t ∈ [0, 2π)} that is enclosed by two 20-leaf boundary curves ∂Ω (left panel in the first row), uh on Ωh with h = 1/2 12 (middle and right panels in the first row), and |uh − u| on Ωh with h = 1/2 12 (left and righ… view at source ↗
Figure 17
Figure 17. Figure 17: Performance in Example 4.3 of the proposed fourth-order compact FDM with u = sin(10x) cos(10y). The domain Ω = {(x(t), y(t)) : [0.33 + 0.02 sin(40t)]2 < x(t) 2 + y(t) 2 < [0.35 + 0.02 sin(40t)]2 , t ∈ [0, 2π)} that is enclosed by two 40-leaf boundary curves ∂Ω (left panel in the first row), uh on Ωh with h = 1/2 13 (middle and right panels in the first row), and |uh − u| on Ωh with h = 1/2 13 (left and ri… view at source ↗
Figure 18
Figure 18. Figure 18: Performance in Example 4.3 of the proposed fourth-order compact FDM with u = sin(50x) cos(50y). The domain Ω = {(x(t), y(t)) : [0.33 + 0.02 sin(100t)]2 < x(t) 2 + y(t) 2 < [0.35 + 0.02 sin(100t)]2 , t ∈ [0, 2π)} that is enclosed by two 100-leaf boundary curves ∂Ω (left panel in the first row), uh on Ωh with h = 1/2 14 (middle and right panels in the first row), and |uh − u| on Ωh with h = 1/2 14 (left and… view at source ↗
Figure 19
Figure 19. Figure 19: Performance in Example 4.3 of the proposed fourth-order compact FDM with u = sin(50x) cos(50y). The domain Ω = {(x(t), y(t)) : [0.349 + 0.02 sin(20t)]2 < x(t) 2 + y(t) 2 < [0.35 + 0.02 sin(20t)]2 , t ∈ [0, 2π)} that is enclosed by two nearly overlapping 20-leaf boundary curves ∂Ω (left and middle panels in the first row), uh on Ωh with h = 1/2 14 (right panel in the first row and left panel in the second … view at source ↗
read the original abstract

In this paper, we discuss the 2D convection-diffusion-reaction equation with variable smooth coefficients and the Dirichlet boundary condition on a complicated, thin, and curved domain. We propose the fourth-order compact FDM at every grid point with the uniform Cartesian mesh. For the regular stencil center, we utilize the fourth-order compact 9-point FDM to approximate the solution. According to the preliminary analysis, we use vertical and horizontal transformations to derive fourth-order compact FDMs in 10 cases for all irregular stencil centers. To obtain the left-hand side of the stencil of the fourth-order FDM in each case, we only need to solve an at most $6 \times 24$ linear system which is presented with the explicit formula. The right-hand side of the FDM is constructed in explicit expression for any irregular stencil centers too. To achieve the fourth-order consistency, up to second-order partial derivatives of convection, diffusion, reaction, and source terms are used for the FDM at the regular stencil center, and the FDM at an irregular stencil center only requires first-order partial derivatives of convection, diffusion, reaction, and source terms, and up to third-order derivatives of the Dirichlet boundary function and the parametric expression of the boundary curve. We test challenging domains with 100-leaf, high-curvature, high-frequency, sharply varying, and nearly overlapping boundary curves, the proposed FDM produces the high accuracy and the stable fourth-order convergence rate in $l_2$ and $l_{\infty}$ norms. All stencils of our FDMs have a simple desired structure by only keeping grid points inside $\Omega$ in the standard compact 9-point stencil for both regular stencils and boundary stencils, but without assuming any information outside the domain $\Omega$.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript develops fourth-order compact finite difference methods for the 2D convection-diffusion-reaction equation with variable smooth coefficients and Dirichlet boundary conditions on arbitrary curved domains. It employs a uniform Cartesian mesh with a standard 9-point stencil at regular interior points and derives specialized fourth-order compact stencils for irregular boundary points via vertical/horizontal transformations, solving at most 6×24 linear systems whose rows encode Taylor matching conditions that incorporate up to third-order derivatives of the boundary parametrization. Explicit formulas are given for both the left- and right-hand sides of the irregular stencils, which use only interior grid points. Numerical tests on domains featuring 100-leaf, high-curvature, high-frequency, and nearly overlapping boundaries report high accuracy together with stable fourth-order convergence in both the ℓ₂ and ℓ∞ norms.

Significance. If the claimed fourth-order consistency and observed convergence rates hold under the stated smoothness assumptions, the work supplies a practical, mesh-generation-free route to high-order accuracy on highly irregular geometries while preserving a compact stencil structure. The explicit construction of the irregular-stencil coefficients and the reduced derivative requirements (only first-order PDE coefficients for irregular points) are concrete strengths that lower implementation cost relative to schemes needing higher-order coefficient derivatives everywhere. The successful application to the most demanding test cases (100-leaf high-curvature boundaries) provides direct evidence of robustness that is valuable for applications in fluid mechanics and reaction-diffusion modeling on complex domains.

major comments (2)
  1. [irregular stencil centers] § on irregular stencil centers: the fourth-order consistency claim rests on the solution of the at most 6×24 linear system obtained from Taylor matching that includes up to third-order boundary-curve derivatives. The manuscript does not supply an explicit truncation-error expansion demonstrating that the solved coefficients cancel all terms through O(h³) (including the contributions arising from the boundary parametrization), leaving the order of consistency verified only by the numerical rates rather than by direct analysis. This is load-bearing for the central claim.
  2. [numerical experiments] Numerical experiments on high-curvature domains: although stable fourth-order convergence is reported for the 100-leaf test cases, no data or bounds are given on the condition numbers of the 6×24 matrices or on the magnitude of the resulting stencil coefficients when third derivatives of the parametrization become large. Severe ill-conditioning could amplify round-off and destroy the O(h⁴) truncation error that the derivation asserts; the absence of this check leaves open the possibility that the observed rates are limited by other factors rather than confirming the scheme’s theoretical order.
minor comments (2)
  1. A concise table or diagram summarizing the ten distinct irregular-stencil configurations and the corresponding transformation choices would improve readability and reproducibility.
  2. The explicit right-hand-side expressions for the irregular stencils should be collected in a single numbered display or appendix to facilitate direct implementation.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thorough review and constructive feedback on our manuscript. We address each major comment below and have revised the manuscript accordingly to strengthen the presentation of the theoretical aspects and numerical robustness.

read point-by-point responses

  1. Referee: § on irregular stencil centers: the fourth-order consistency claim rests on the solution of the at most 6×24 linear system obtained from Taylor matching that includes up to third-order boundary-curve derivatives. The manuscript does not supply an explicit truncation-error expansion demonstrating that the solved coefficients cancel all terms through O(h³) (including the contributions arising from the boundary parametrization), leaving the order of consistency verified only by the numerical rates rather than by direct analysis. This is load-bearing for the central claim.

    Authors: We agree that an explicit truncation error analysis would strengthen the manuscript. The linear system is constructed precisely so that the discrete operator matches the continuous PDE and boundary conditions through terms of order h^3 in the Taylor expansions at the irregular point, incorporating the derivatives of the boundary parametrization. By solving for the coefficients to satisfy these matching conditions, the local truncation error is O(h^4) by construction. However, to address the referee's concern directly, we will add a section or appendix in the revised version that derives the explicit truncation error expansion for the irregular stencils, confirming the cancellation of lower-order terms. revision: yes

  2. Referee: Numerical experiments on high-curvature domains: although stable fourth-order convergence is reported for the 100-leaf test cases, no data or bounds are given on the condition numbers of the 6×24 matrices or on the magnitude of the resulting stencil coefficients when third derivatives of the parametrization become large. Severe ill-conditioning could amplify round-off and destroy the O(h⁴) truncation error that the derivation asserts; the absence of this check leaves open the possibility that the observed rates are limited by other factors rather than confirming the scheme’s theoretical order.

    Authors: This is a valid point regarding the practical implementation and stability. In the revised manuscript, we will include additional numerical results reporting the condition numbers of the 6×24 systems for the high-curvature and 100-leaf boundary cases. We will also provide bounds or observations on the magnitude of the stencil coefficients and discuss their impact on round-off errors. Preliminary checks indicate that the matrices remain well-conditioned under the smoothness assumptions, but we will document this explicitly to support the observed convergence rates. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained via Taylor matching

full rationale

The paper derives its fourth-order compact FDM stencils explicitly from Taylor series expansions around regular and irregular grid points, solving at most 6x24 linear systems to match terms up to the required order for O(h^4) consistency. This process uses the assumed smoothness of coefficients and boundary parametrization (up to third derivatives) as inputs to construct the scheme, without fitting parameters to solution data or renaming fitted quantities as predictions. No load-bearing self-citations, uniqueness theorems, or ansatzes from prior author work are invoked in the provided derivation chain; the convergence claims are verified numerically on test domains rather than enforced by construction. The method remains independent of the target solution values.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on Taylor expansions of the solution and coefficients up to the orders needed for fourth-order consistency, smoothness of the boundary parametrization, and the assumption that the Dirichlet data and its derivatives are available to the required order.

axioms (2)
  • domain assumption The solution and coefficients admit Taylor expansions of sufficient order at every grid point inside or near the boundary.
    Invoked to derive the compact stencils for both regular and irregular points.
  • domain assumption The boundary curve is parametrized by a sufficiently smooth function whose derivatives up to order three can be evaluated.
    Required for the irregular-stencil formulas that incorporate boundary derivatives.
