Flower Interaction Subsystem for a Precision Pollination Robot

Jared Strader , Jennifer Nguyen , Christopher Tatsch , Yixin Du , Kyle Lassak , Benjamin Buzzo , Ryan Watson , Henry Cerbone
show 3 more authors
Nicholas Ohi Chizhao Yang Yu Gu
This is my paper

Pith reviewed 2026-05-25 18:36 UTC · model grok-4.3

classification 💻 cs.RO
keywords robotic pollinationautonomous robotflower detectionprecision agricultureagricultural roboticscomputer visionmechanical end-effectorartificial flowers
0
0 comments X

The pith

A robot with a flower interaction subsystem autonomously detects and pollinates individual small flowers at 93 percent accuracy on artificial tests.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a fully autonomous robot equipped with a flower interaction subsystem for precise pollination of individual small flowers. This addresses needs for stable pollination methods in environments unsuitable for bees, such as greenhouses, growth chambers, and outer space. The subsystem combines detection with mechanical interaction to achieve the required precision and autonomy. Experiments on high-fidelity artificial flowers show 93.1 percent detection accuracy and 76.9 percent pollination success rate. If the approach holds, it supplies a cost-effective alternative to natural pollinators for crop production.

Core claim

The authors describe the design of a flower interaction subsystem that enables a precision pollination robot to autonomously locate, approach, and interact with small flowers, achieving 93.1 percent detection accuracy and 76.9 percent pollination success rate when tested with high-fidelity artificial flowers.

What carries the argument

The flower interaction subsystem, which integrates vision-based flower detection with a mechanical end-effector to perform precise physical pollination of individual flowers.

If this is right

  • The robot enables pollination in greenhouses, growth chambers, and outer space where bees cannot operate.
  • It supplies a stable, cost-effective method for pollinating plants without dependence on natural pollinators.
  • The subsystem achieves both high precision and full autonomy in handling individual small flowers.
  • Experimental rates of 93.1 percent detection and 76.9 percent success demonstrate practical capability in controlled settings.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The subsystem's detection and interaction methods could extend to other precision tasks such as selective harvesting or targeted spraying.
  • Performance gaps between artificial and real flowers would indicate needed changes to vision or mechanical components for field deployment.
  • Widespread adoption might reduce overall reliance on managed bee colonies in commercial agriculture.

Load-bearing premise

Results from tests on high-fidelity artificial flowers will translate to real flowers under variable natural or greenhouse conditions including differences in texture, lighting, and movement.

What would settle it

A direct comparison experiment measuring detection accuracy and pollination success rate when the robot operates on living flowers in a greenhouse with natural lighting and wind variations.

Figures

Figures reproduced from arXiv: 1906.09294 by Benjamin Buzzo, Chizhao Yang, Christopher Tatsch, Henry Cerbone, Jared Strader, Jennifer Nguyen, Kyle Lassak, Nicholas Ohi, Ryan Watson, Yixin Du, Yu Gu.

Figure 1
Figure 1. Figure 1: Experimental setup featuring the robotic arm with at [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

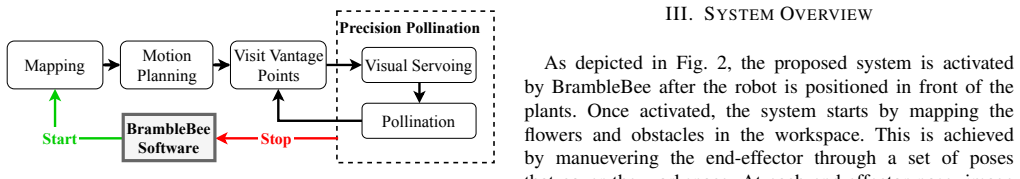

Figure 2. Figure 2: Diagram of the overall concept of operations devel [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

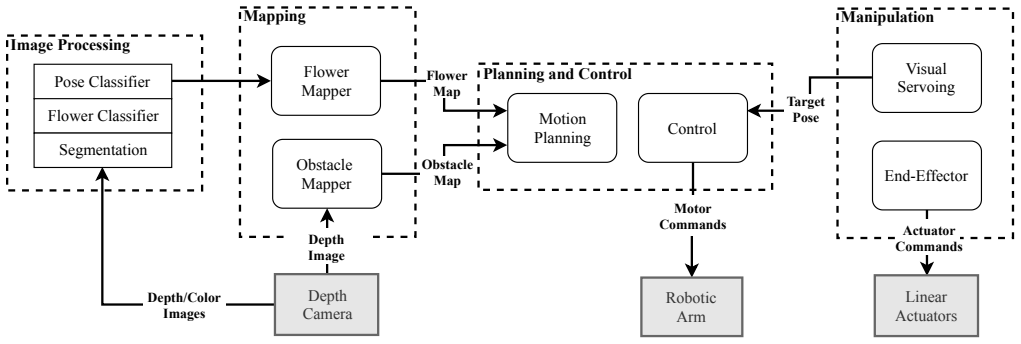

Figure 3. Figure 3: An overview of the software architecture developed for the system. The software is managed through a finite-state [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: Examples of orientation classes where the center of [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Example of an occupancy map estimated during [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7

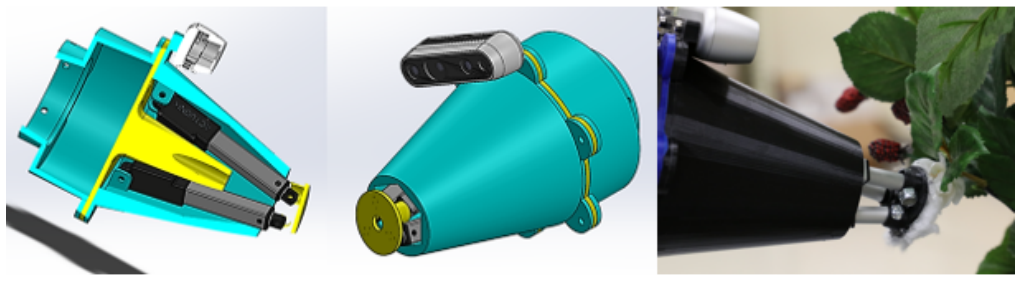

Figure 7. Figure 7: (Left) Section view of the end-effector showing two of the three linear servos inside the 3D printed housing mounted [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
read the original abstract

Robotic pollinators not only can aid farmers by providing more cost effective and stable methods for pollinating plants but also benefit crop production in environments not suitable for bees such as greenhouses, growth chambers, and in outer space. Robotic pollination requires a high degree of precision and autonomy but few systems have addressed both of these aspects in practice. In this paper, a fully autonomous robot is presented, capable of precise pollination of individual small flowers. Experimental results show that the proposed system is able to achieve a 93.1% detection accuracy and a 76.9% 'pollination' success rate tested with high-fidelity artificial flowers.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript presents a flower interaction subsystem for a precision pollination robot. It claims a fully autonomous system for precise pollination of individual small flowers, with experimental results reporting 93.1% detection accuracy and 76.9% 'pollination' success rate obtained exclusively on high-fidelity artificial flowers.

Significance. If the reported performance generalizes, the subsystem could contribute to robotic pollination in controlled environments such as greenhouses. The quantitative metrics on artificial test subjects provide an initial benchmark, but the absence of real-flower validation limits the assessed impact on practical crop production.

major comments (2)
  1. [Abstract and Results] Abstract and Results section: The central claim that the robot is 'capable of precise pollination of individual small flowers' rests entirely on tests with high-fidelity artificial flowers. No experiments, data, or discussion of performance on living flowers (accounting for texture, lighting variation, color differences, or motion) are provided, which directly undermines the asserted practical capability.
  2. [Results and Methods] Experimental protocol (throughout Results and Methods): Despite stating quantitative results in the abstract, the manuscript supplies no experimental protocol, definition or measurement procedure for 'pollination' success, error analysis, number of trials, or baseline comparisons. This absence is load-bearing for evaluating the reliability of the 93.1% and 76.9% figures.
minor comments (1)
  1. [Abstract] Abstract: The quotes around 'pollination' imply a proxy metric; this should be explicitly defined and justified in the main text.

Simulated Author's Rebuttal

2 responses · 1 unresolved

Thank you for the constructive feedback. We address each major comment below, clarifying the scope of our work on artificial flowers and committing to revisions for improved clarity and detail.

read point-by-point responses

  1. Referee: [Abstract and Results] Abstract and Results section: The central claim that the robot is 'capable of precise pollination of individual small flowers' rests entirely on tests with high-fidelity artificial flowers. No experiments, data, or discussion of performance on living flowers (accounting for texture, lighting variation, color differences, or motion) are provided, which directly undermines the asserted practical capability.

    Authors: The abstract and results explicitly state that all quantitative results were obtained exclusively on high-fidelity artificial flowers, establishing a controlled benchmark for the subsystem. The claim of capability is scoped to these tests rather than asserting immediate generalization to real crops. We agree real-flower validation is needed for practical impact and will add a limitations and future work subsection discussing differences in texture, lighting, color, and motion, plus plans for living-flower experiments. revision: partial

  2. Referee: [Results and Methods] Experimental protocol (throughout Results and Methods): Despite stating quantitative results in the abstract, the manuscript supplies no experimental protocol, definition or measurement procedure for 'pollination' success, error analysis, number of trials, or baseline comparisons. This absence is load-bearing for evaluating the reliability of the 93.1% and 76.9% figures.

    Authors: We will expand the Methods and Results sections in revision to provide the full experimental protocol, a precise definition of 'pollination' success (e.g., tool insertion depth and contact confirmation), number of trials performed, error analysis (false positives/negatives), and any baseline comparisons used. revision: yes

standing simulated objections not resolved
  • Experiments, data, or quantitative results on living flowers, as none were collected in the current study.

Circularity Check

0 steps flagged

No circularity; purely empirical system description and testing

full rationale

The paper describes a robotic hardware/software system and reports experimental detection and success rates obtained on artificial flowers. No derivations, equations, fitted parameters, or predictions are presented that could reduce to self-definitions or self-citations. The central claims rest on direct experimental measurements rather than any chain that loops back to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that artificial-flower tests adequately proxy real-flower performance; no free parameters or invented entities are introduced.

axioms (1)
  • domain assumption Performance metrics obtained with high-fidelity artificial flowers are representative of performance on real flowers.
    All reported experiments used only artificial flowers.

pith-pipeline@v0.9.0 · 5658 in / 1035 out tokens · 30810 ms · 2026-05-25T18:36:35.065401+00:00 · methodology
