arxiv: 1907.02559 · v1 · pith:2IUQVHVInew · submitted 2019-07-04 · 📡 eess.SY · cs.SY

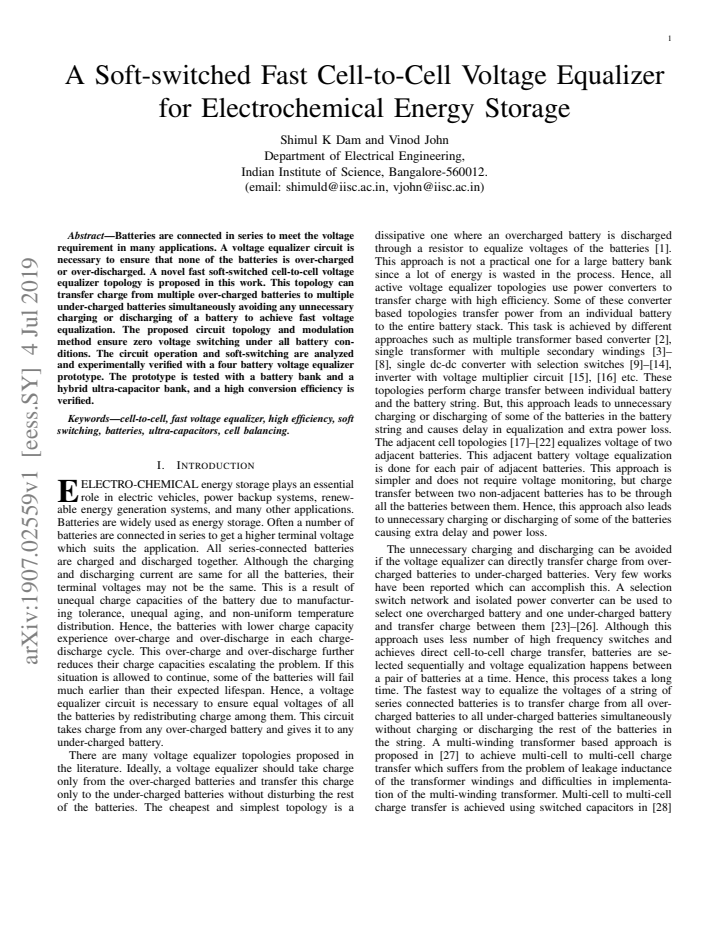

A Soft-switched Fast Cell-to-Cell Voltage Equalizer for Electrochemical Energy Storage

Shimul K Dam , Vinod John This is my paper

Pith reviewed 2026-05-25 08:53 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords voltage equalizerbattery balancingsoft switchingzero voltage switchingcell-to-cell equalizationenergy storagemodulation method
0
0 comments X

The pith

A new equalizer topology transfers charge simultaneously among multiple over-charged and under-charged cells while enforcing zero-voltage switching in every condition.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a cell-to-cell voltage equalizer circuit for series-connected batteries that moves energy directly from several over-charged cells to several under-charged cells at once. This avoids the extra charge-discharge cycles that occur in conventional sequential balancing methods. The circuit and its modulation scheme are shown to produce zero-voltage switching regardless of the individual cell voltages, and the performance is confirmed on a four-cell hardware prototype tested with both battery and ultra-capacitor banks.

Core claim

The central claim is that the proposed soft-switched cell-to-cell voltage equalizer topology, together with its modulation method, enables simultaneous charge transfer between multiple over-charged and multiple under-charged cells without forcing any cell through unnecessary charging or discharging, while guaranteeing zero-voltage switching under all battery voltage conditions.

What carries the argument

The circuit topology and modulation method that together permit simultaneous multi-cell charge transfer and enforce zero-voltage switching.

If this is right

  • Equalization time decreases because multiple cells exchange charge in parallel rather than sequentially.
  • Energy loss is reduced by eliminating the extra charge and discharge steps required in pair-wise methods.
  • The same hardware works with both conventional battery banks and ultra-capacitor banks at high efficiency.
  • Zero-voltage switching holds across the full range of cell voltage differences encountered in normal operation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach could shorten balancing time in large series strings used in electric vehicles or grid storage.
  • Direct multi-cell transfer may lower cumulative stress on individual cells and thereby extend pack lifetime.
  • The topology might be extended to larger numbers of cells if the modulation rules remain valid at higher cell counts.

Load-bearing premise

The modulation method produces zero-voltage switching for every possible combination of cell voltages.

What would settle it

Waveform measurements on the prototype that show non-zero voltage at the switching instants for any tested combination of cell voltages or load conditions.

Figures

Figures reproduced from arXiv: 1907.02559 by Shimul K Dam, Vinod John.

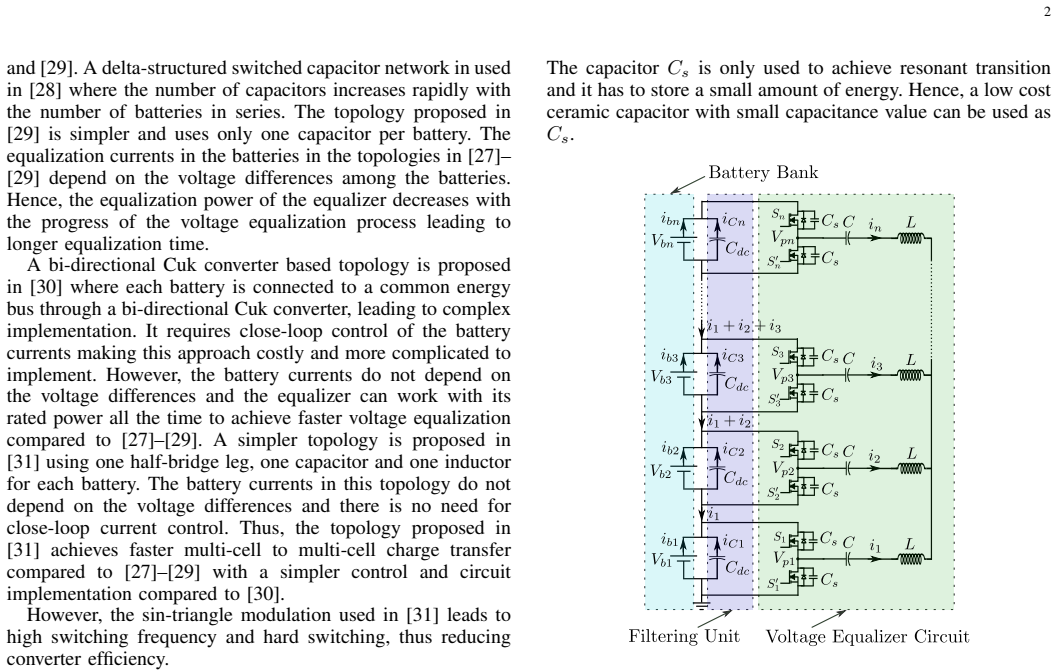

Figure 1
Figure 1. Figure 1: Schematic diagram of the proposed voltage equalizer. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

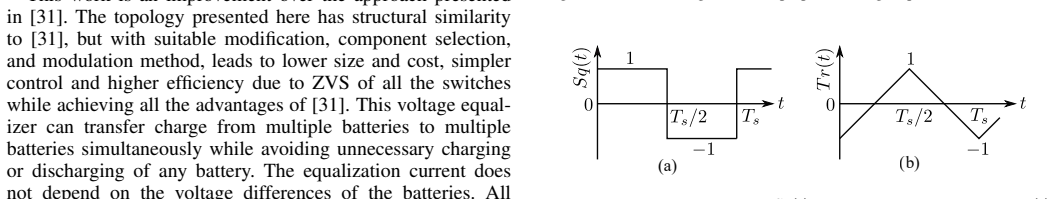

Figure 2
Figure 2. Figure 2: (a) Square wave function, Sq(t), (b) Triangular wave function, T r(t) . A. Modulation The modulation strategy uses phase shifted square-waves instead of sine-triangle PWM used in [31]. This modulation technique helps to achieve higher efficiency with lower circuit component requirements and lower complexity in implement￾ing the control algorithm in digital controller. The proposed modulation strategy along… view at source ↗

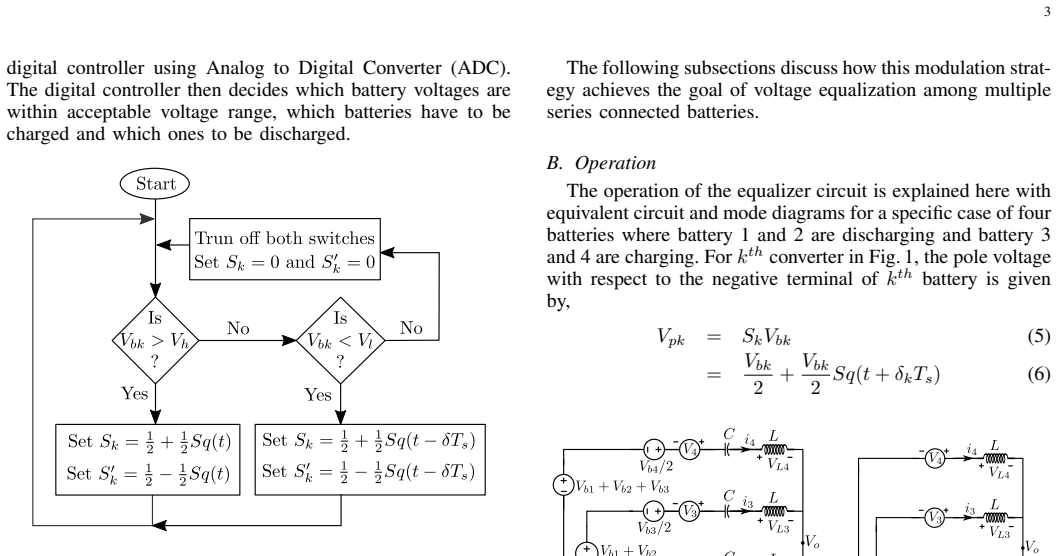

Figure 3
Figure 3. Figure 3: Flowchart of the algorithm for controlling charging and discharging [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

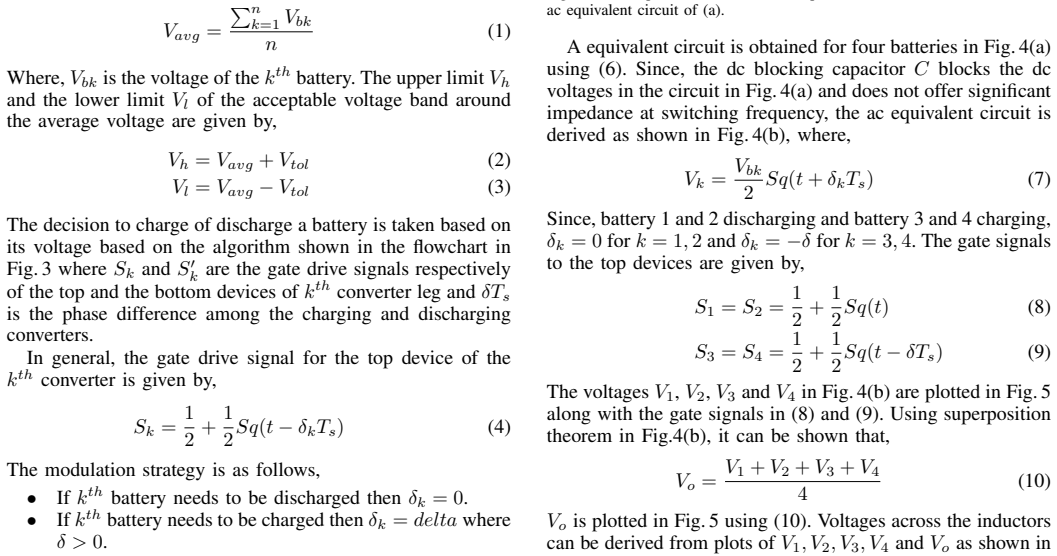

Figure 5
Figure 5. Figure 5: The voltages across the inductors are used to obtain the [PITH_FULL_IMAGE:figures/full_fig_p003_5.png] view at source ↗

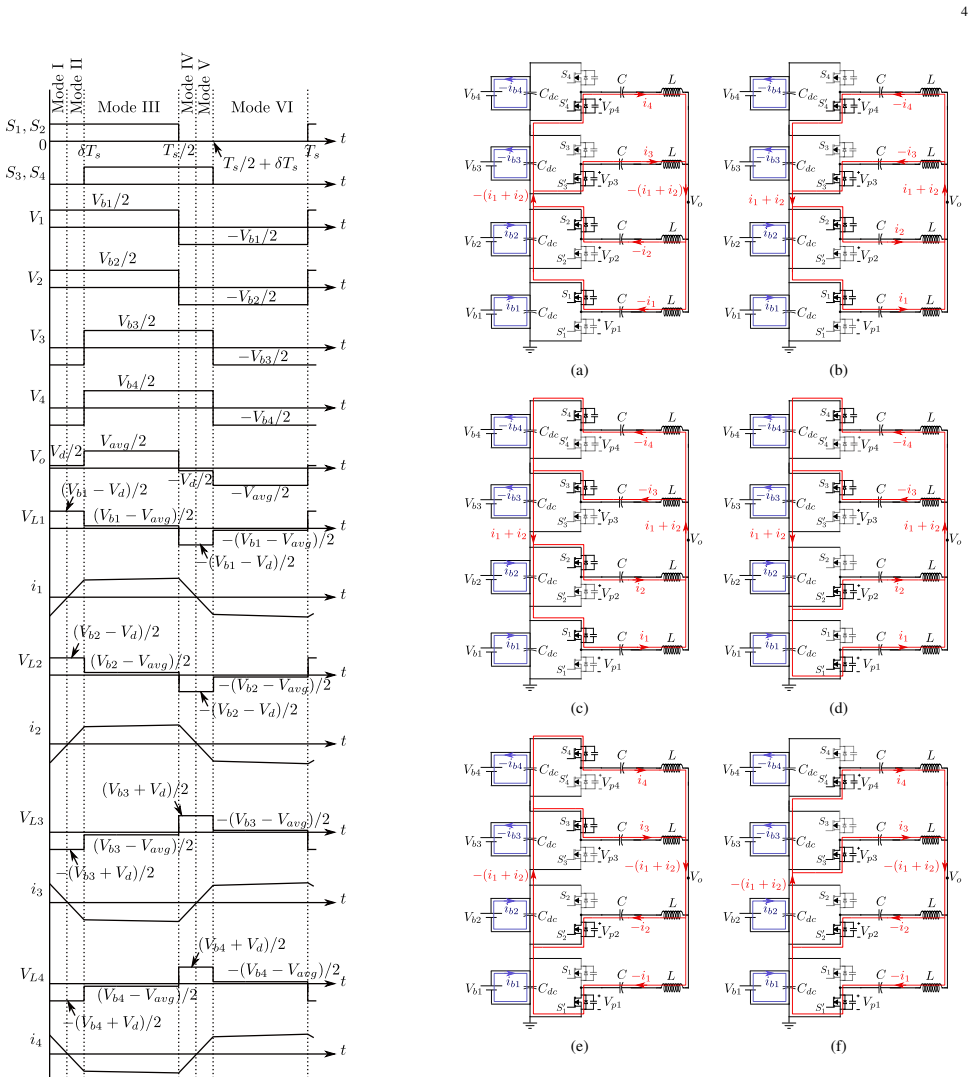

Figure 6
Figure 6. Figure 6: Different modes of operations of a four cell equalizer, (a) mode I, [PITH_FULL_IMAGE:figures/full_fig_p004_6.png] view at source ↗

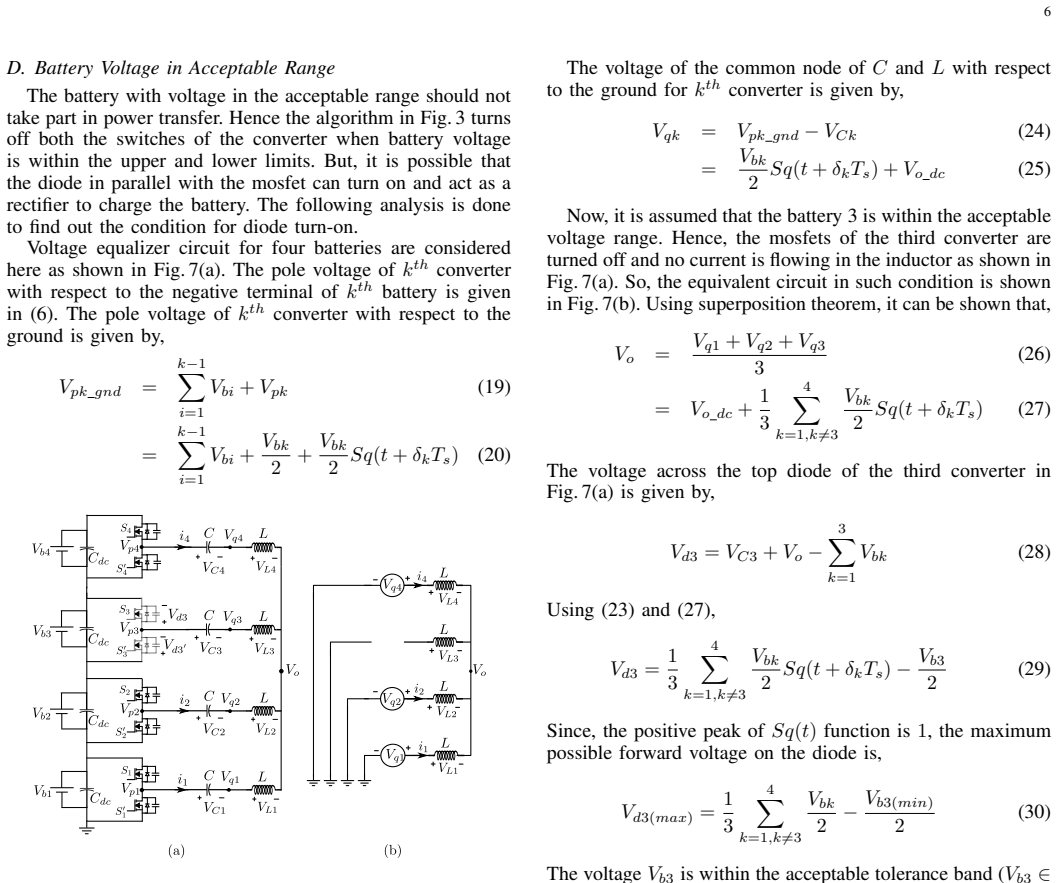

Figure 7
Figure 7. Figure 7: (a) Schematic diagram and (b) equivalent circuit of a four cell [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗

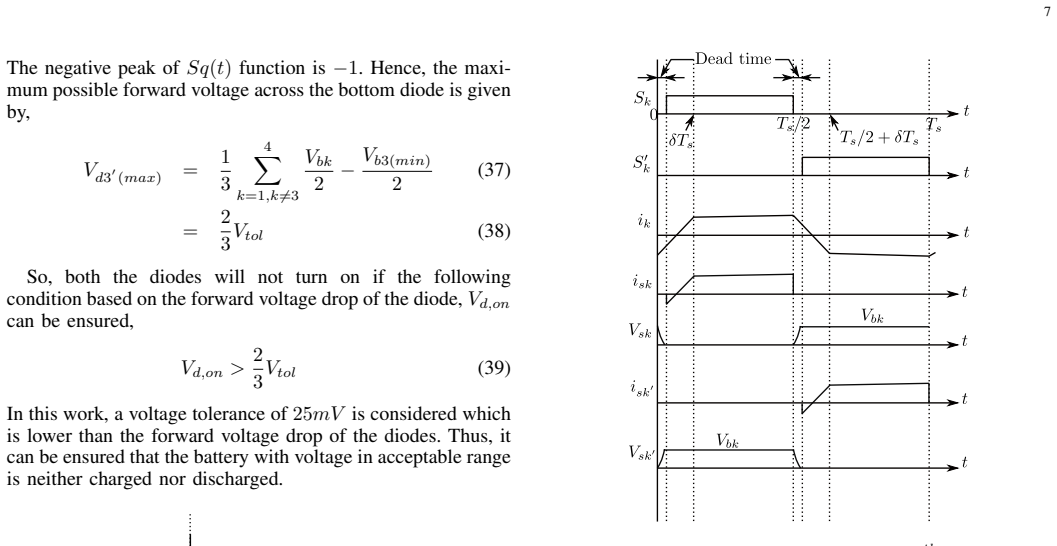

Figure 9
Figure 9. Figure 9: Voltages across and currents in the mosfets in [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗

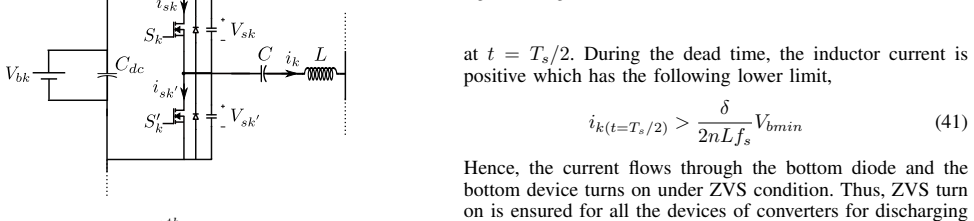

Figure 8
Figure 8. Figure 8: Schematic diagram of the k th converter. III. SOFT-SWITCHING A. Turn-on Transition [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗

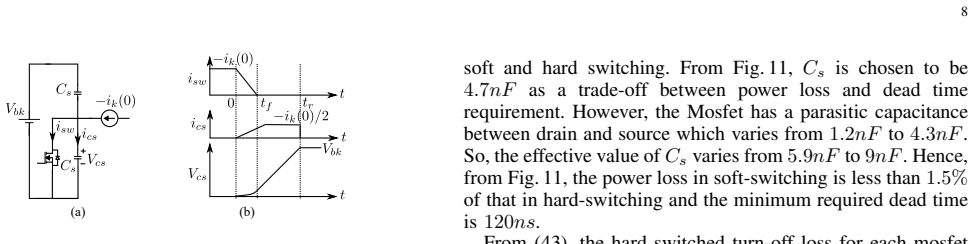

Figure 10
Figure 10. Figure 10: Current fall during turn off transition of bottom device, (a) equivalent [PITH_FULL_IMAGE:figures/full_fig_p008_10.png] view at source ↗

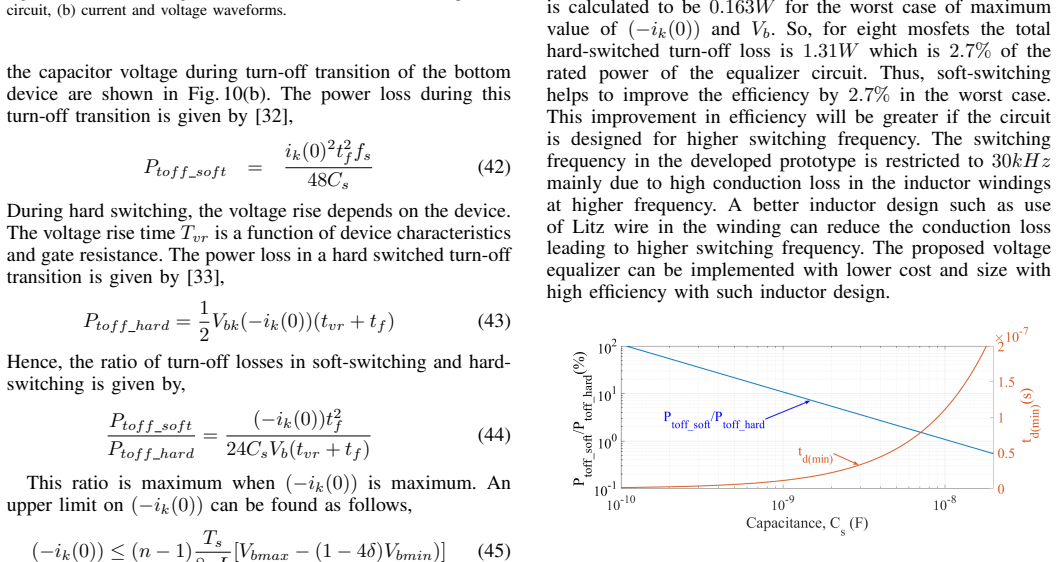

Figure 11
Figure 11. Figure 11: Plot of the ratio of turn-off power loss between soft-switched and [PITH_FULL_IMAGE:figures/full_fig_p008_11.png] view at source ↗

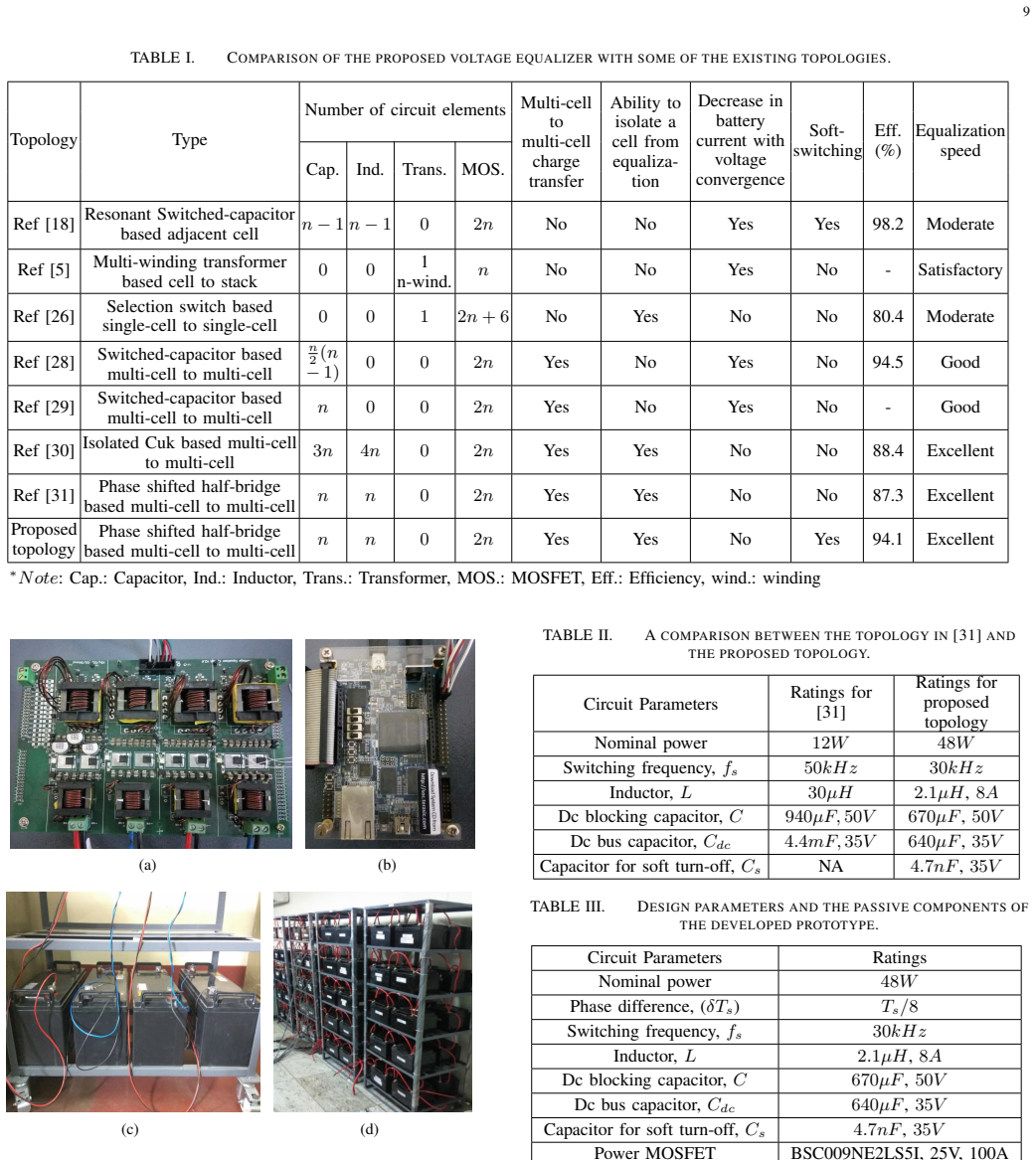

Figure 12
Figure 12. Figure 12: Hardware images: (a) voltage equalizer circuit, (b) FPGA based [PITH_FULL_IMAGE:figures/full_fig_p009_12.png] view at source ↗

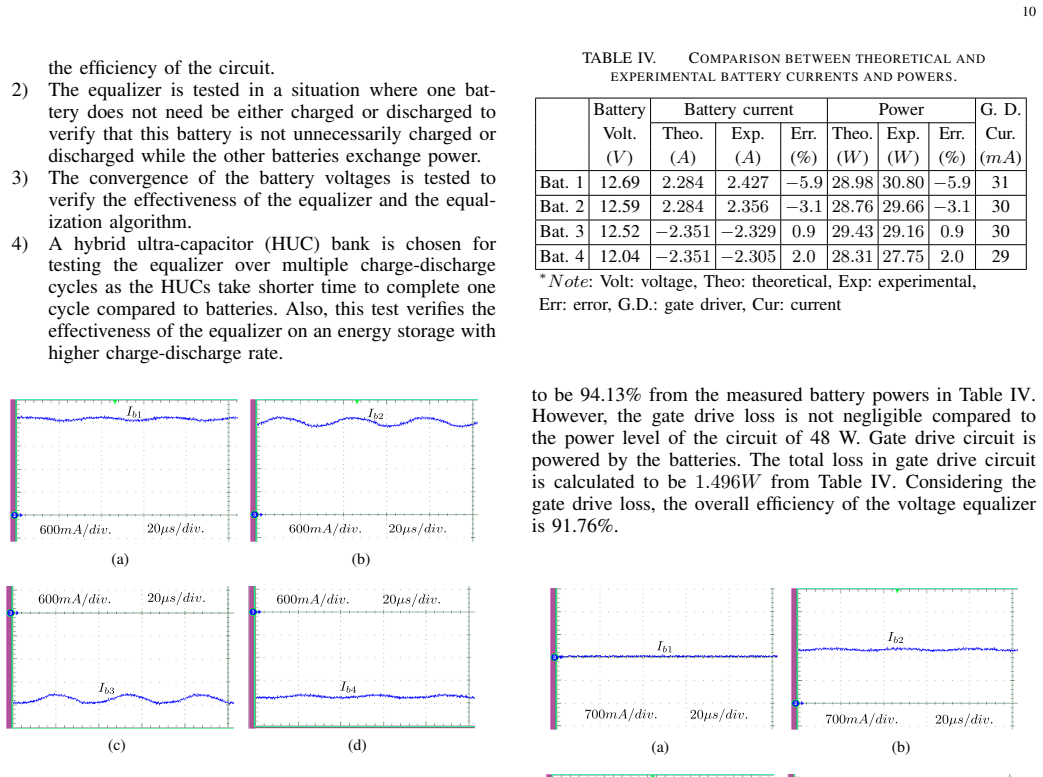

Figure 13
Figure 13. Figure 13: Experimental waveforms of (a) battery 1 current, (b) battery 2 [PITH_FULL_IMAGE:figures/full_fig_p010_13.png] view at source ↗

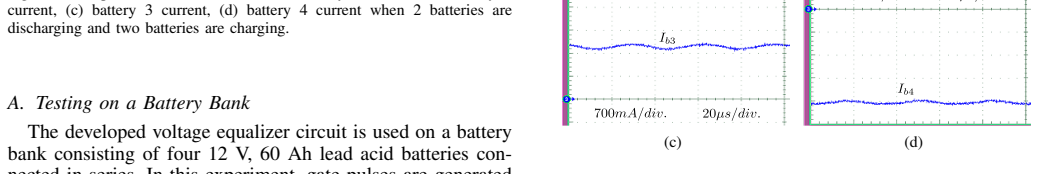

Figure 14
Figure 14. Figure 14: Experimental waveforms of (a) battery 1 current, (b) battery 2 [PITH_FULL_IMAGE:figures/full_fig_p010_14.png] view at source ↗

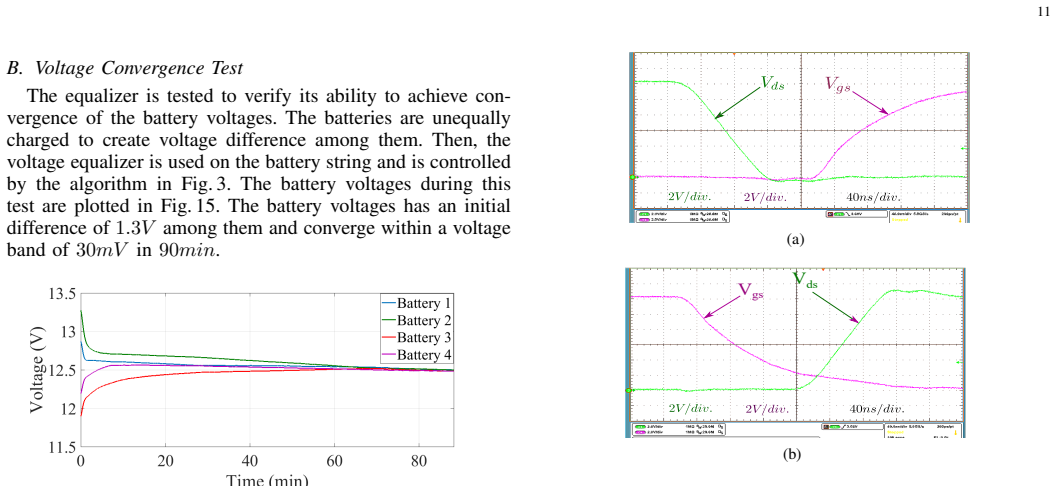

Figure 16
Figure 16. Figure 16: (a) shows the turn-on transition. The voltage across the device, Vds falls to zero before the gate voltage, Vgs starts to rise. So, the current rise in the device occurs at zero voltage across the device. Hence, zero voltage switching (ZVS) is achieved in turn-on transition [PITH_FULL_IMAGE:figures/full_fig_p011_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: Voltages of HUC racks over 18 charge-discharge cycles with the [PITH_FULL_IMAGE:figures/full_fig_p011_17.png] view at source ↗

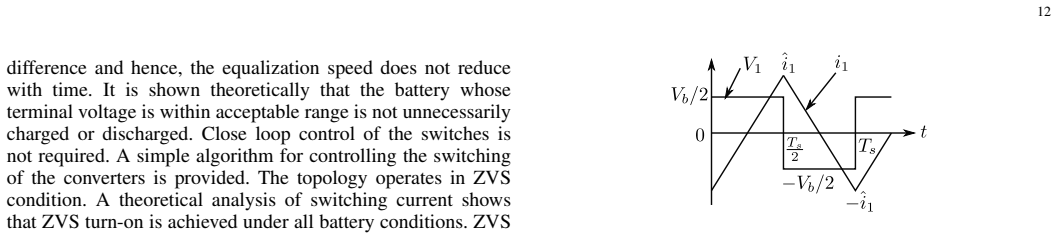

Figure 19
Figure 19. Figure 19: Applied voltage and resulting inductor current when only one source [PITH_FULL_IMAGE:figures/full_fig_p012_19.png] view at source ↗

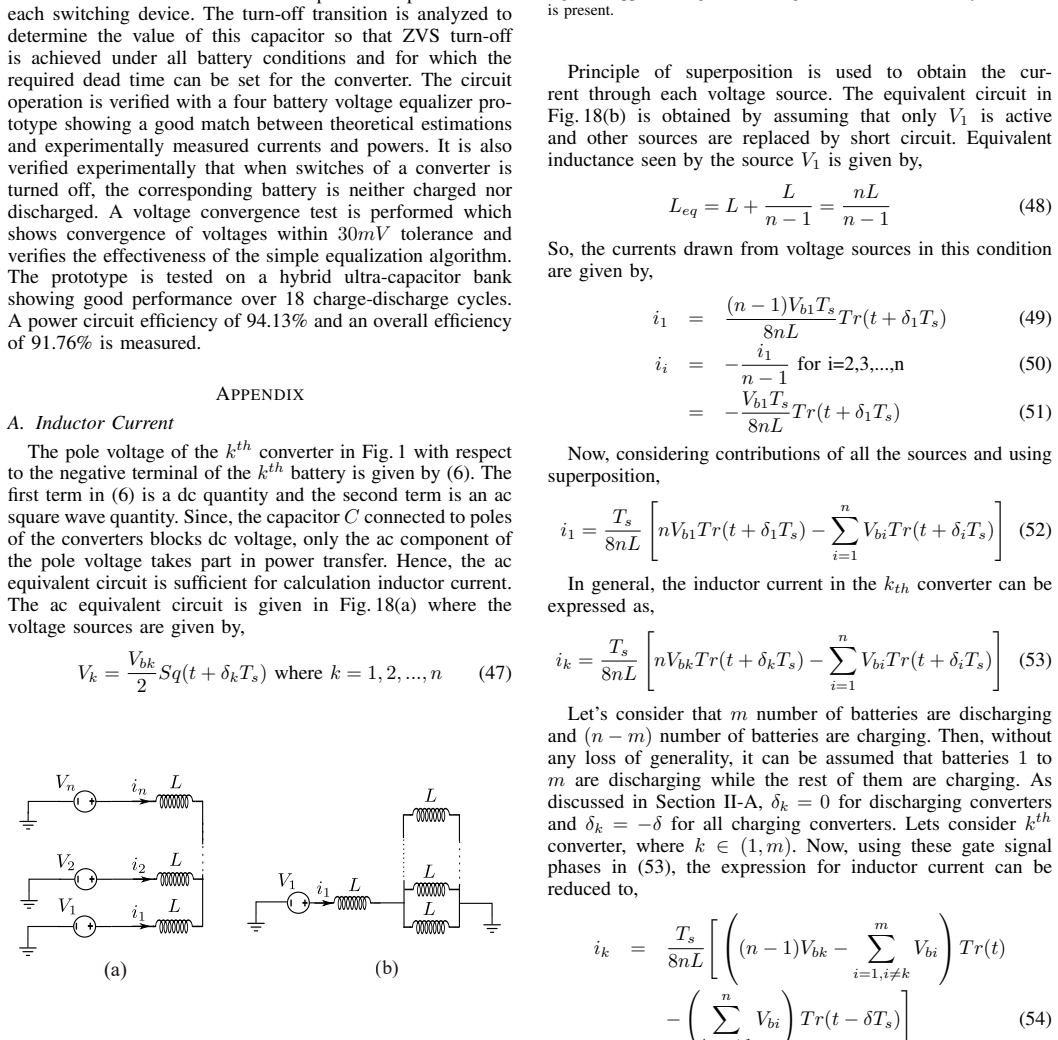

Figure 18
Figure 18. Figure 18: Equivalent circuit for square wave modulation, (a) all the sources [PITH_FULL_IMAGE:figures/full_fig_p012_18.png] view at source ↗

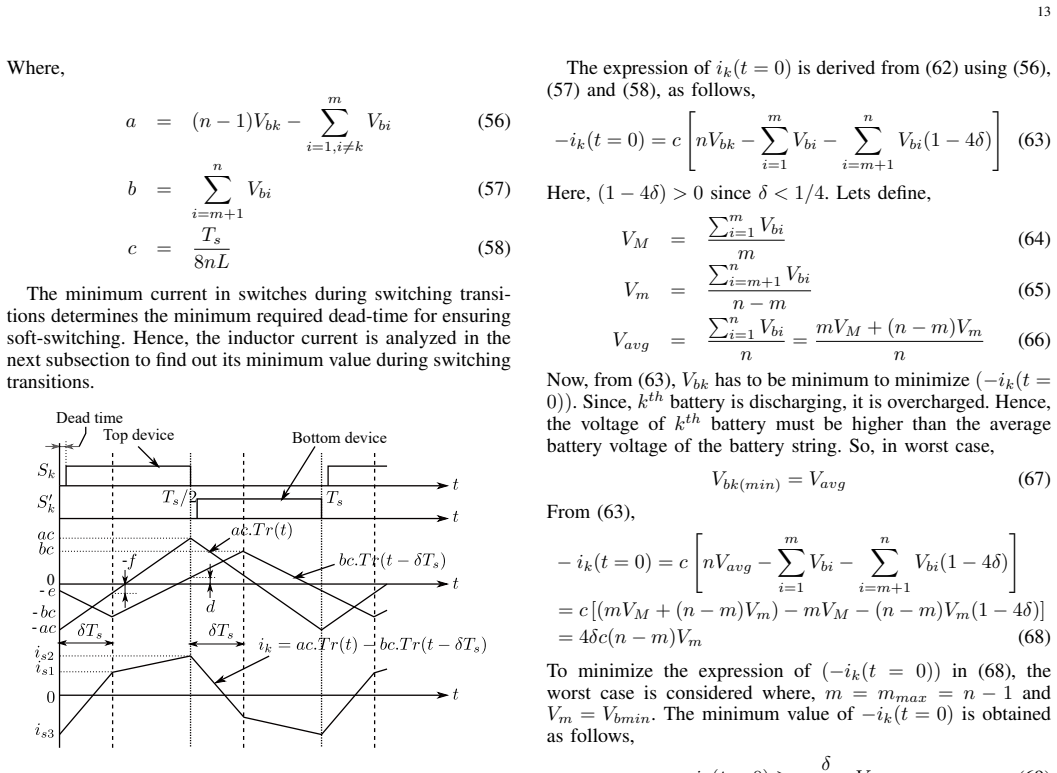

Figure 20
Figure 20. Figure 20: Waveforms of gate pulses and inductor current of a converter leg [PITH_FULL_IMAGE:figures/full_fig_p013_20.png] view at source ↗
read the original abstract

Batteries are connected in series to meet the voltage requirement in many applications. A voltage equalizer circuit is necessary to ensure that none of the batteries is over-charged or over-discharged. A novel fast soft-switched cell-to-cell voltage equalizer topology is proposed in this work. This topology can transfer charge from multiple over-charged batteries to multiple under-charged batteries simultaneously avoiding any unnecessary charging or discharging of a battery to achieve fast voltage equalization. The proposed circuit topology and modulation method ensure zero voltage switching under all battery conditions. The circuit operation and soft-switching are analyzed and experimentally verified with a four battery voltage equalizer prototype. The prototype is tested with a battery bank and a hybrid ultra-capacitor bank, and a high conversion efficiency is verified.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes a novel fast soft-switched cell-to-cell voltage equalizer topology for series-connected batteries. It claims this topology enables simultaneous charge transfer from multiple over-charged cells to multiple under-charged cells without unnecessary intermediate cycling, that the circuit topology and modulation method guarantee zero-voltage switching (ZVS) under all battery voltage and current conditions, analyzes the operation, and experimentally validates the design with a four-cell prototype tested on both a battery bank and a hybrid ultra-capacitor bank, reporting high conversion efficiency.

Significance. If the simultaneous multi-cell transfer and universal ZVS claims hold, the work could reduce equalization time and switching losses in large-series battery packs used in EVs and grid storage. The experimental prototype with two different storage media supplies concrete feasibility data; reproducible hardware results of this type strengthen the contribution relative to purely simulation-based equalizer papers.

major comments (2)
  1. [modulation / ZVS analysis] § on modulation method / ZVS analysis: the central claim that the proposed modulation produces ZVS for every combination of cell voltages (including the equal-voltage case V1=V2=V3=V4 and simultaneous opposing transfers) and every current direction lacks explicit boundary equations or resonant-current reversal conditions; without these, coverage of the edge cases identified in the stress-test note cannot be verified.
  2. [experimental results] Experimental results section: the prototype verification is asserted to confirm ZVS under all conditions, yet the reported waveforms and test matrix do not enumerate the voltage/current ranges, the equal-voltage operating point, or the simultaneous multi-cell transfer cases; this leaves the load-bearing “all conditions” assertion without sufficient supporting data.
minor comments (2)
  1. [abstract] The abstract states “high conversion efficiency” but supplies no numerical range or load condition; adding a specific efficiency figure would improve clarity.
  2. [circuit description] Notation for the resonant tank components and switch timing variables should be defined once in a table or nomenclature section to avoid repeated inline definitions.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. The comments highlight areas where additional explicit derivations and expanded experimental documentation would strengthen the presentation of the ZVS claims. We address each major comment below and indicate the revisions we will make.

read point-by-point responses

  1. Referee: [modulation / ZVS analysis] § on modulation method / ZVS analysis: the central claim that the proposed modulation produces ZVS for every combination of cell voltages (including the equal-voltage case V1=V2=V3=V4 and simultaneous opposing transfers) and every current direction lacks explicit boundary equations or resonant-current reversal conditions; without these, coverage of the edge cases identified in the stress-test note cannot be verified.

    Authors: We agree that the ZVS analysis would benefit from more explicit boundary equations. Section III derives the resonant current paths and shows that the modulation ensures current reversal sufficient for ZVS across voltage combinations, including the equal-voltage case (where the resonant tank still produces the required negative current at turn-on) and opposing transfers. To address the request directly, we will add a new subsection with closed-form boundary conditions on the resonant current reversal for all voltage polarity combinations and current directions, including the V1=V2=V3=V4 case. revision: yes

  2. Referee: [experimental results] Experimental results section: the prototype verification is asserted to confirm ZVS under all conditions, yet the reported waveforms and test matrix do not enumerate the voltage/current ranges, the equal-voltage operating point, or the simultaneous multi-cell transfer cases; this leaves the load-bearing “all conditions” assertion without sufficient supporting data.

    Authors: The existing experimental section includes representative waveforms for simultaneous multi-cell transfers and efficiency data over a range of operating points on both battery and ultracapacitor banks. However, we acknowledge that an explicit test matrix listing all enumerated voltage/current combinations, including the equal-voltage point, would provide clearer support for the universal-ZVS claim. We will expand the results section with an additional table and waveforms covering the equal-voltage case and the full set of simultaneous transfer scenarios tested. revision: yes

Circularity Check

0 steps flagged

No circularity; claims rest on explicit circuit analysis plus prototype measurements

full rationale

The paper presents a circuit topology and modulation scheme whose ZVS property is asserted after analysis of operating modes and then confirmed on a four-cell hardware prototype under battery and ultracapacitor loads. No step reduces a claimed prediction to a fitted parameter, renames an input as an output, or relies on a self-citation chain whose supporting result is itself unverified. The derivation chain therefore remains self-contained against external circuit equations and measured waveforms.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No specific free parameters, axioms, or invented entities are mentioned in the abstract; the work relies on established principles of power electronics and soft-switching techniques.
