Reconfigurable Stream Network Architecture

T0 review · 3 major / 6 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read An ISA-level network abstraction treats the datapath as a circuit-switched network of stateful FUs; on VCK190 it cuts BERT latency 6.1x and lifts throughput 2.4x-3.2x over the prior art.

desk verdict Genuine prototype with reproducible numbers; the ISA-generality claim outruns the evidence because datapath construction is manual, but this is a solid, citable systems paper. read the letter →

arxiv 2411.17966 v3 pith:2PCMGJHU submitted 2024-11-27 cs.AR

Chengyue Wang , Xiaofan Zhang , Jason Cong , James C. Hoe This is my paper · ORCID
classification cs.AR
keywords reconfigurablestreamnetworkFPGAoverlayAIengineVersalVCK190dataflowarchitecturelayerfusionbandwidthmappingDNNinference
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper argues that the right way to program heterogeneous DNN hardware is to expose the datapath as a reconfigurable network: stateful functional units as nodes, streams as edges, and a computation as a triggered path through the network. The authors claim this abstraction unifies resource orchestration across FPGAs and AI engines, removes layer-granular serialization in overlays, and makes phase transitions nearly stall-free by letting software interleave loads, compute, and stores at fine grain. On the Versal VCK190 platform, their RSN-XNN prototype is reported to cut BERT encoder latency 6.1x and improve throughput 2.4x-3.2x against the state of the art, and to reach 2.1x better FP32 energy efficiency than an A100 at the same process node. A sympathetic reader would care because the result suggests that low-entropy, deterministic DNN control can be encoded at compile time as sparse path-triggering instructions, avoiding both bitstream reconfiguration and heavyweight runtime scheduling.

What carries the argument

The central object is the reconfigurable stream network: a circuit-switched network whose nodes are stateful functional units (FUs), each with a uOP decoder, input/output ports, and kernel logic, and whose edges are latency-insensitive streams. Programming is triggering a path; a 32-bit packet with opcode, mask, window size, and reuse count encodes repeated uOP sequences, so one byte of instruction can drive up to 1.6 GFLOPs of computation. The load-bearing mechanism is partial path reprogramming: only FUs whose dataflow changes receive new instructions, so switching between mapping styles (one large GEMM, pipelined small GEMMs, fused non-MM ops) is cheap, and the DDR FU's explicit load/store interleaving keeps off-chip bandwidth busy during phase transitions.

What would settle it

Run an unseen transformer layer containing an operator not in the hand-built functional-unit set, or a model with data-dependent control flow such as dynamic masking, on the same RSN-XNN bitstream: if it executes without datapath modification and keeps close to the reported 6.1x latency gain, the abstraction generalizes; if it stalls or requires a rebuilt FU network, the compile-time path model is limited to statically known, hand-covered layers.

Watch

Extended reading notes

Core claim

RSN's central claim is that a circuit-switched network of stateful functional units, with latency-insensitive streams between them, is a sufficient and efficient ISA abstraction for DNN computation: each computation is launched by triggering a path, and software sees the compute and communication latency of every unit so it can overlap and fuse phases. The paper further claims that this abstraction is the first on FPGAs to combine dynamic layer fusion with fine-grained bandwidth mapping, and the prototype measurements back that up with a 6.1x latency reduction, 2.4x-3.2x throughput gains, and near-peak GEMM throughput of 6.78 TFLOPS on VCK190.

Load-bearing premise

The architecture presumes that DNN workloads are deterministic and have low control entropy, so compile-time path programming can replace runtime scheduling; it also relies on a designer-built union datapath, since automatic datapath generation is explicitly out of scope.

Editorial extensions

If this is right

  • Overlay accelerators no longer need to serialize at layer granularity: the same bitstream can dynamically switch between a single fused GEMM and a pipeline of dependent small GEMMs, which is how attention layers avoid off-chip round-trips.
  • Instruction-level control overhead can be made negligible, with one byte of instruction driving up to 1.6 GFLOPs, so the bottleneck becomes the datapath rather than the decoder.
  • Heterogeneous units such as AIE arrays and FPGA fabric can be virtualized behind one FU interface, letting software treat the whole device as a network without knowing each node's implementation.
  • Fine-grained load/store interleaving, not just double buffering, can hide phase-transition stalls and keep a single DDR channel nearly fully utilized.
  • Energy efficiency gains relative to GPUs come from a 2.6x-2.8x reduction in off-chip DRAM traffic, achieved through on-chip reuse and pipelined execution that keeps intermediates on-chip.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The paper leaves implicit that its manual union-datapath construction is a natural next target for automation; testing whether a compiler-generated datapath preserves the 6.1x and 2.4x-3.2x numbers on models the designers did not hand-tune would settle how general the abstraction really is.
  • The explicit bandwidth-interleaving mechanism points toward an instruction-level memory-scheduling policy; comparing RSN-XNN against the same datapath with a hardware memory controller scheduler would isolate how much of the speedup comes from instruction-level interleaving rather than raw bandwidth.
  • If the network abstraction is extended to other streaming-intensive domains such as scientific computing, the same path-triggering model should apply to kernels with statically known loop nests, but the FU set and union datapath would need to be derived automatically for those workloads.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The manuscript introduces the Reconfigurable Stream Network (RSN), an ISA abstraction that models a DNN accelerator's datapath as a circuit-switched network of stateful functional units (FUs) with streaming edges, where programming a computation corresponds to triggering a path through the network. The authors implement a proof-of-concept design, RSN-XNN, on the AMD Versal VCK190 (combining AIEs and FPGA fabric), using a fixed set of FUs (MMEs, MemA/B/C, MeshA/B, DDR, LPDDR) controlled by a multi-level decoder. They report a measured latency of 17.98 ms for the first encoder of BERT-Large, a 6.1x latency reduction and 2.4x–3.2x throughput improvement over CHARM, an AIE GEMM throughput up to 6.78 TFLOPS (59% of the 8 TFLOPS peak), and a 2.1x FP32 energy-efficiency advantage over an A100 at the same 7 nm node. The artifact is open-source and includes the expected 17.98 ms result for reproducibility.

Significance. If the measured results are reproducible, the paper demonstrates a useful orchestration mechanism for heterogeneous AIE+FPGA systems: the stream-network abstraction achieves low instruction overhead (1.4 MB/s instruction rate, 1.6 GFLOPs per instruction byte) and enables dynamic switching between mapping types (single-layer, pipelined, fused) on a fixed bitstream. The main strengths are the concrete prototype and the open artifact: latency is measured on board, the expected value is stated in the artifact appendix, and the CHARM comparison can be checked against a public repository. The main limitation is that the datapath is hand-constructed for transformer/MLP workloads; no evidence is provided that the 'program by triggering a path' model extends to DNN layer types outside the pre-built FU set. This is a substantial caveat, but the paper can be revised to scope the contribution more precisely.

major comments (3)
  1. [§4.2, §4.5, §1] The central claim of a programmable ISA is not yet supported by the evidence. §4.2 describes datapath generation as a designer-led 'union datapath' construction, and §4.5 states that 'automatic generation of the datapath from arbitrary input code is beyond the scope of this paper.' All four evaluated models (BERT, ViT, NCF, MLP) consist only of the hand-built FU types (GEMM, softmax, GELU, LayerNorm, transpose), so the measured 6.1x and 2.4x–3.2x results do not demonstrate that a computation outside this set, such as a strided convolution or an LSTM with data-dependent gates, can be expressed by triggering paths. The abstract's claim that 'programming a computation corresponds to triggering a path' requires the path to exist in hardware; for an arbitrary DNN the path does not exist. Please either add a case study that requires a new FU type or datapath reconfiguration, provide an expressiveness analysis of the FU set for a defined DNN domain, or revise the central claims to describe RSN as a model-family-specific overlay with a fixed FU library.
  2. [§3.3] The paper states that 'comprehensive deadlock prevention is more complex and beyond the scope of this paper' and reports only that setting FIFO depths to six is deadlock-free in the implementation. Because RSN is presented as a general execution model in which arbitrary paths can be triggered, the correctness contract is incomplete: a programmer has no stated condition (e.g., acyclicity of the stream graph, or a buffer-sizing rule) to guarantee that a given uOP sequence does not deadlock. Please provide a formal deadlock-avoidance condition for the supported program class, or explicitly restrict the programming model to acyclic stream graphs and state this restriction in the abstraction definition in §3.1.
  3. [§5.7] The bandwidth sensitivity analysis simulates different off-chip bandwidths by changing the amount of data moved off-chip and padding the remainder on-chip. This alters the access pattern and does not reproduce the timing behavior of a real bandwidth change (DRAM bank conflicts, refresh, AXI arbitration), so the conclusion that 'the current use of bandwidth is already highly efficient' and the associated 78.6% utilization figure are not directly validated. Please either implement a real bandwidth change (e.g., by clock or interconnect configuration) or explicitly label this as a first-order estimate and discuss its limitations. This does not affect the directly measured latency/throughput results but weakens the paper's bandwidth-efficiency argument.
minor comments (6)
  1. [Table 7] The header row of Table 7 spells the design name as 'RSD-XNN'; this should be 'RSN-XNN'.
  2. [§4.1] In the second sentence of Section 4.1, 'for the LHS operands from MeshB FUs' should read 'for the RHS operands from MeshB FUs'.
  3. [§5.6, Table 10] The GPU comparison reports single-point latency and power numbers (vendor reports for T4/V100/A100 and one Colab session for L4) without variance or measurement repetitions; please report the number of runs and the observed spread, and clarify whether the VCK190 power in Table 10 is the BEAM measurement from Section 5 or the Vivado estimate from Table 4.
  4. [§4.2] The 'first-order formula-based calculation' used for model segmentation is mentioned but never specified; please include the formula (or pseudocode) so that the segmentation decision can be reproduced.
  5. [§3.3] The deadlock-free FIFO depth of six is reported for the tested implementation only; a short discussion of how the required FIFO depth scales with the number of FUs, stream depths, and instruction windows would help readers apply the result to other RSN configurations.
  6. [§1] The phrase 'dynamic layer fusion' in the contributions list and abstract is not formally defined; please clarify that it refers to runtime switching between mapping types such as pipelined, fused, and layer-by-layer execution.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the measured prototype results are self-contained and open to external checking, and the manual datapath construction is a scope limitation rather than a circular step.

full rationale

The paper's central numerical claims—6.1x latency reduction, 2.4x–3.2x throughput improvement, and 2.1x FP32 energy efficiency versus A100—are based on on-board measurements of the RSN-XNN prototype, not on parameters fitted to the outcomes being predicted. The evaluation section reports measured latencies, resource utilization, power estimates, and instruction counts, and the artifact appendix provides a bootable SD card image, reference outputs, and scripts for reproducing the reported 17.98 ms BERT-Large encoder latency. No equation in the paper reduces a predicted quantity to a fitted input or to the definition of another claimed result. The RSN abstraction is introduced conceptually and then instantiated in hardware; the flexibility and low instruction overhead are supported by direct measurements such as the 1.4 MB/s instruction processing rate and the 1.6 GFLOPs-per-byte compute-to-instruction ratio. The manual datapath generation process described in Section 4.2 and the statement in Section 4.5 that 'Exploring the automatic generation of the datapath from arbitrary input code is beyond the scope of this paper' are genuine scope limitations that constrain the generality of the claimed abstraction, but they do not make the reported measurements circular. The comparison baseline CHARM shares a co-author with the present paper, but it is a published prior implementation used as a benchmark, not an unverified self-citation that the argument depends on. Overall, the derivation chain is self-contained and empirically grounded, so the circularity score is 0.

Assumptions & free parameters 3 free parameters · 5 assumptions · 2 invented entities

The results rest on hand-tuned tiling, stream-grouping, and FIFO depth choices; on workload assumptions of determinism and low entropy; and on standard performance-modeling assumptions. The RSN FU and instruction packet are new design constructs whose only evidence so far is the authors' own artifact.

free parameters (3)
  • MM tiling parameters (LHS 768x128, RHS 128x1024, OUT 768x1024) = 768x128, 128x1024, 768x1024
    Chosen to achieve 768x RHS reuse and 1024x LHS reuse, directly enabling the 4.7 TFLOPS result in Table 6b; these are hand-tuned to the VCK190's bandwidth/compute ratio and not derived from first principles.
  • AIE tile grouping (4x4x4, 64 tiles per MME) = 64 tiles per MME, 6 groups, 384 tiles
    Hand-chosen grouping to fit within the 234/156 AIE-to-PL stream limits while using 96% of AIE tiles; this configuration is a design decision affecting the achieved GEMM throughput.
  • Decoder FIFO depth between uOP and mOP decoders = 6
    The paper asserts this depth is deadlock-free in their implementation without proof; increasing it would change area, decreasing it risks deadlock, so the value is an ad hoc design parameter for the deadlock-freedom claim.
assumptions (5)
  • domain assumption DNN execution is deterministic and has low control information entropy, so compile-time scheduling without runtime speculation is sufficient.
    Stated in §1 ('the deterministic nature of DNN execution allows for compile-time analysis of data dependencies') and §2.1; underpins the entire network-of-FUs abstraction and rules out data-dependent dynamic behavior.
  • domain assumption Latency-insensitive streaming with matching send/receive counts is a correct execution model; a receiver with fewer sends blocks indefinitely, a sender with excess sends blocks when the channel is full.
    Defined in §3.1; this is the synchronization contract of RSN. It assumes the programmer/compiler can statically match stream counts, which is not proven for all programs.
  • domain assumption The roofline model adequately estimates latency for the four mapping types in Table 3.
    Used in §4.3 to justify Type D pipelining for attention layers; standard performance modeling assumption.
  • ad hoc to paper Simulating bandwidth variations by padding data on-chip preserves the latency model.
    Table 11's sensitivity analysis pads data on-chip to emulate lower/higher bandwidth, which changes data movement patterns and may not faithfully represent real bandwidth changes.
  • domain assumption Vivado power estimates (over-estimated in absolute terms) provide valid ratios for energy comparisons.
    The paper states Table 4 numbers are 'over-estimated in absolute terms' but uses them to argue decoder overhead <0.08%; the validity of these ratios is not cross-checked against on-board measurement.
invented entities (2)
  • RSN functional unit (FU) abstraction
    purpose: Virtualize heterogeneous AIE/PL/memory resources as stateful network nodes with uOP control.
    The abstraction is the paper's proposal; its only implementation is the authors' RSN-XNN, and no third-party reproduction is reported.
  • RSN instruction packet with window size and reuse
    purpose: Compress repeated uOP sequences to reduce instruction overhead.
    The 1.6 GFLOPs/byte figure is measured on the authors' prototype; no external benchmark validates the packet format.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Reconfigurable Stream Network Architecture." pith.science (2026). https://pith.science/paper/2PCMGJHU

@misc{pith2026241117966,
  author       = {Pith},
  title        = {Pith review of: Reconfigurable Stream Network Architecture},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/2PCMGJHU}},
  note         = {Machine review of arXiv:2411.17966}
}
read the original abstract

As AI systems grow increasingly specialized and complex, managing hardware heterogeneity becomes a pressing challenge. How can we efficiently coordinate and synchronize heterogeneous hardware resources to achieve high utilization? How can we minimize the friction of transitioning between diverse computation phases, reducing costly stalls from initialization, pipeline setup, or drain? Our insight is that a network abstraction at the ISA level naturally unifies heterogeneous resource orchestration and phase transitions. This paper presents a Reconfigurable Stream Network Architecture (RSN), a novel ISA abstraction designed for the DNN domain. RSN models the datapath as a circuit-switched network with stateful functional units as nodes and data streaming on the edges. Programming a computation corresponds to triggering a path. Software is explicitly exposed to the compute and communication latency of each functional unit, enabling precise control over data movement for optimizations such as compute-communication overlap and layer fusion. As nodes in a network naturally differ, the RSN abstraction can efficiently virtualize heterogeneous hardware resources by separating control from the data plane, enabling low instruction-level intervention. We build a proof-of-concept design RSN-XNN on VCK190, a heterogeneous platform with FPGA fabric and AI engines. Compared to the SOTA solution on this platform, it reduces latency by 6.1x and improves throughput by 2.4x-3.2x. Compared to the T4 GPU with the same FP32 performance, it matches latency with only 18% of the memory bandwidth. Compared to the A100 GPU at the same 7nm process node, it achieves 2.1x higher energy efficiency in FP32.

Figures

Figures reproduced from arXiv: 2411.17966 by the authors.

Figure 1
Figure 1. Reconfigurable Stream Network Overview Motivated by these observed challenges, we ask the question: What is the right abstraction for bridging software with highly het￾erogeneous hardware? Ideally, it should meet two key requirements: • Flexibility: Computation and bandwidth must be flexibly allocated to support different phases, such as prolog, steady state, and epilog within a layer, as well as varying operator ty… view at source ↗
Figure 3
Figure 3. Four Mapping Types and Their Disadvantages [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Functional Unit and Datapath Abstraction [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figures from the paper (10 more)

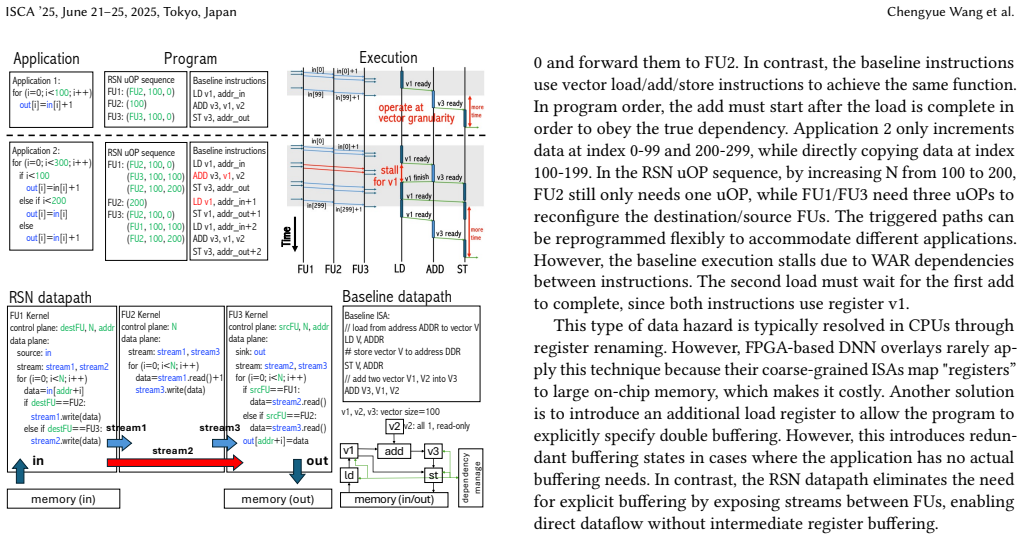

Figure 6
Figure 6. Figure 6: Comparison of RSN and Baseline Datapath must ensure that the number of sends from the producer kernel exactly matches the number of receives in the consumer kernels. If the sends are fewer than the receives, the receiving kernel will block indefinitely; if the sends ex…
Figure 7
Figure 7. Figure 7: A Flexible Datapath Supporting Dynamic Two Se [PITH_FULL_IMAGE:figures/full_fig_p007_7.png]
Figure 8
Figure 8. Figure 8: Instruction Decoder: Fuse uOP Streams into 1 RSN [PITH_FULL_IMAGE:figures/full_fig_p008_8.png]
Figure 10
Figure 10. Figure 10: RSN-XNN Datapath and Example Application [PITH_FULL_IMAGE:figures/full_fig_p008_10.png]
Figure 11
Figure 11. Figure 11: Pipeline Non-MMs and Their Adjacent MMs [PITH_FULL_IMAGE:figures/full_fig_p010_11.png]
Figure 12
Figure 12. Figure 12: Three Ways to Map Load and Store Operations to [PITH_FULL_IMAGE:figures/full_fig_p010_12.png]
Figure 14
Figure 14. Figure 14: Device View of the Routed Design [PITH_FULL_IMAGE:figures/full_fig_p011_14.png]
Figure 15
Figure 15. Figure 15: Power Estimation Summary (Total 98.66 W) [PITH_FULL_IMAGE:figures/full_fig_p011_15.png]
Figure 17
Figure 17. Figure 17: Reuse of AIE to/from PL Streams [PITH_FULL_IMAGE:figures/full_fig_p012_17.png]
Figure 18
Figure 18. Figure 18: Achieved Latency/Throughput VS CHARM [119] [PITH_FULL_IMAGE:figures/full_fig_p012_18.png]
