arxiv: 2606.30328 · v1 · pith:2ZZIKVFBnew · submitted 2026-06-29 · 📊 stat.ML · cs.LG· cs.NA· math.NA

Extrapolating from Regularised Solutions for Solving Ill-Conditioned Linear Systems in Machine Learning

Disha Hegde , Jon Cockayne , Chris. J. Oates This is my paper

Pith reviewed 2026-06-30 03:56 UTC · model grok-4.3

classification 📊 stat.ML cs.LGcs.NAmath.NA
keywords ill-conditioned linear systemsTikhonov regularizationRichardson extrapolationautomatic differentiationmachine learning prototypingnumerical linear algebranugget parameter
0
0 comments X

The pith

Richardson extrapolation on multiple Tikhonov-regularized solutions solves ill-conditioned linear systems more accurately than any single nugget.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces autonugget as a method that applies Richardson extrapolation to a sequence of Tikhonov-regularized solutions of an ill-conditioned linear system. The goal is to recover a solution to the original system without selecting one fixed regularization parameter by hand. The approach uses results from several linear solves rather than returning only one, and it is built to remain compatible with automatic differentiation in JAX so that end-to-end training does not become unstable. A sympathetic reader would care because many machine-learning algorithms rely on linear algebra steps that become numerically fragile when matrices are ill-conditioned, and the method offers an automatic way to improve accuracy during rapid prototyping.

Core claim

The paper claims that autonugget recovers the solution of an ill-conditioned linear system by combining multiple Tikhonov-regularized solves through Richardson extrapolation, yielding higher accuracy than any single-nugget approximation while remaining stable under automatic differentiation.

What carries the argument

autonugget, which performs Richardson extrapolation across Tikhonov-regularized solutions obtained with a sequence of nugget values.

Load-bearing premise

Richardson extrapolation applied to a sequence of Tikhonov-regularized solutions will converge to a more accurate solution of the original ill-conditioned system than any single regularized solve, and that this holds stably under automatic differentiation.

What would settle it

Solve a known ill-conditioned system whose exact solution is available, compute both the single-nugget approximations and the extrapolated result, and check whether the extrapolated error is smaller for every tested matrix and nugget sequence.

Figures

Figures reproduced from arXiv: 2606.30328 by Chris. J. Oates, Disha Hegde, Jon Cockayne.

Figure 1
Figure 1. Figure 1: Empirical evidence in support is presented in Section 4. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 1

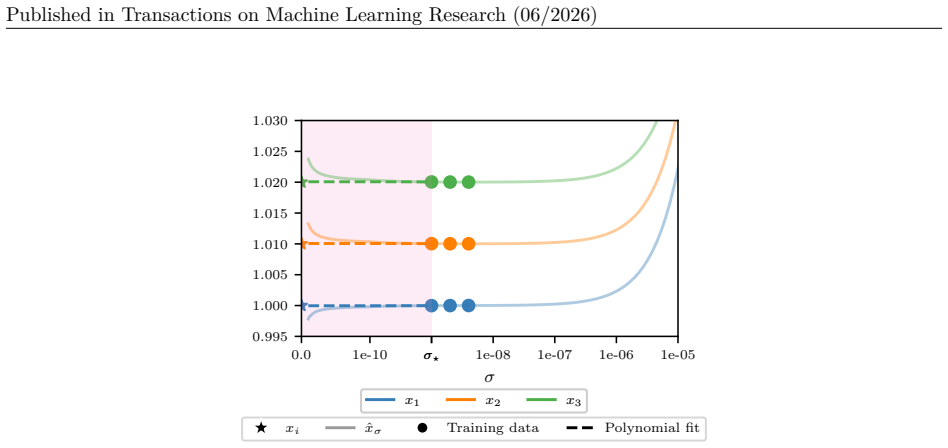

Figure 1. Figure 1: Illustration of autonugget: Here we plot numerical approximations xˆσ to xσ as the nugget σ is varied (to aid in visualisation, only the first three coordinates are displayed). The numerical approximations were obtained using linalg.solve in numpy (Harris et al., 2020), a direct method based on LU factorisation. There is a critical value σ⋆ (shaded) below which xˆσ fails to reliably approximate xσ. On the … view at source ↗
Figure 2

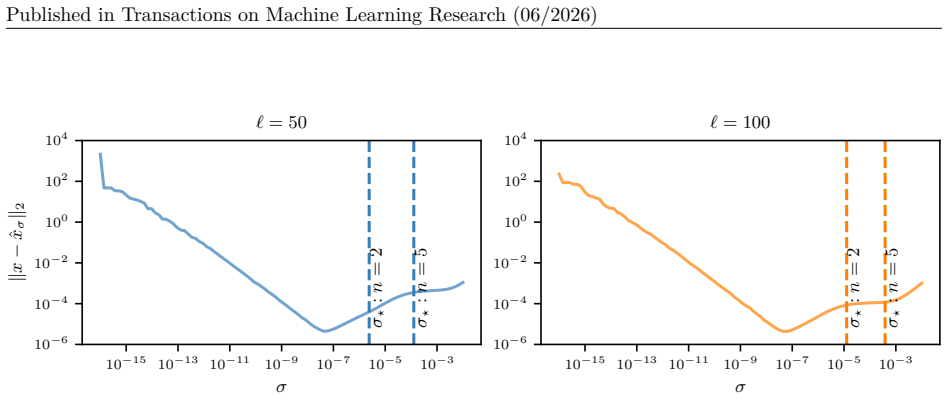

Figure 2. Figure 2: Identification of the critical value σ⋆, below which xˆσ fails to be a reliable approximation to xσ, using the approach proposed in Section 2.4. Here the matrix A was a Gram matrix associated to a kernel with length-scale ℓ; larger values of ℓ are associated with A being more ill-conditioned. The numerical approximations were obtained using linalg.solve in numpy, a direct method based on LU factorisation. … view at source ↗
Figure 3

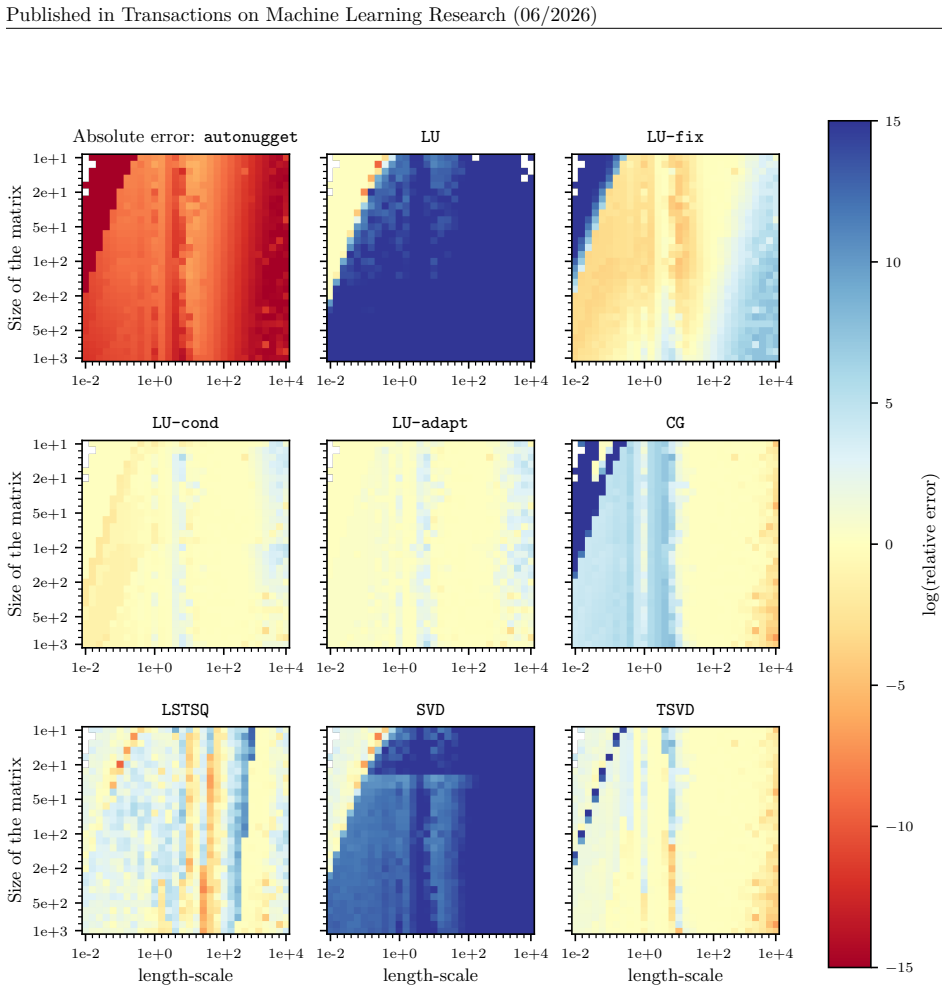

Figure 3. Figure 3: Solver accuracy assessment. Here we compared [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4

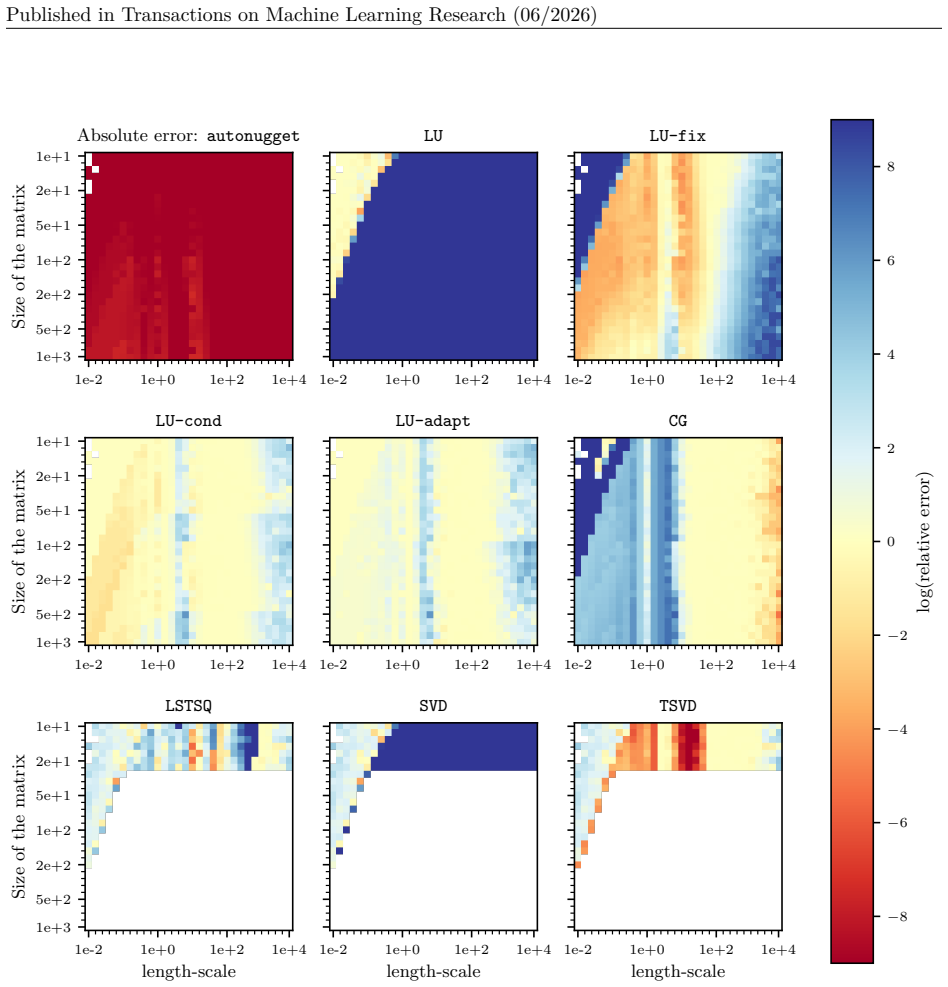

Figure 4. Figure 4: Derivative accuracy assessment. Here we compare [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗
Figure 5

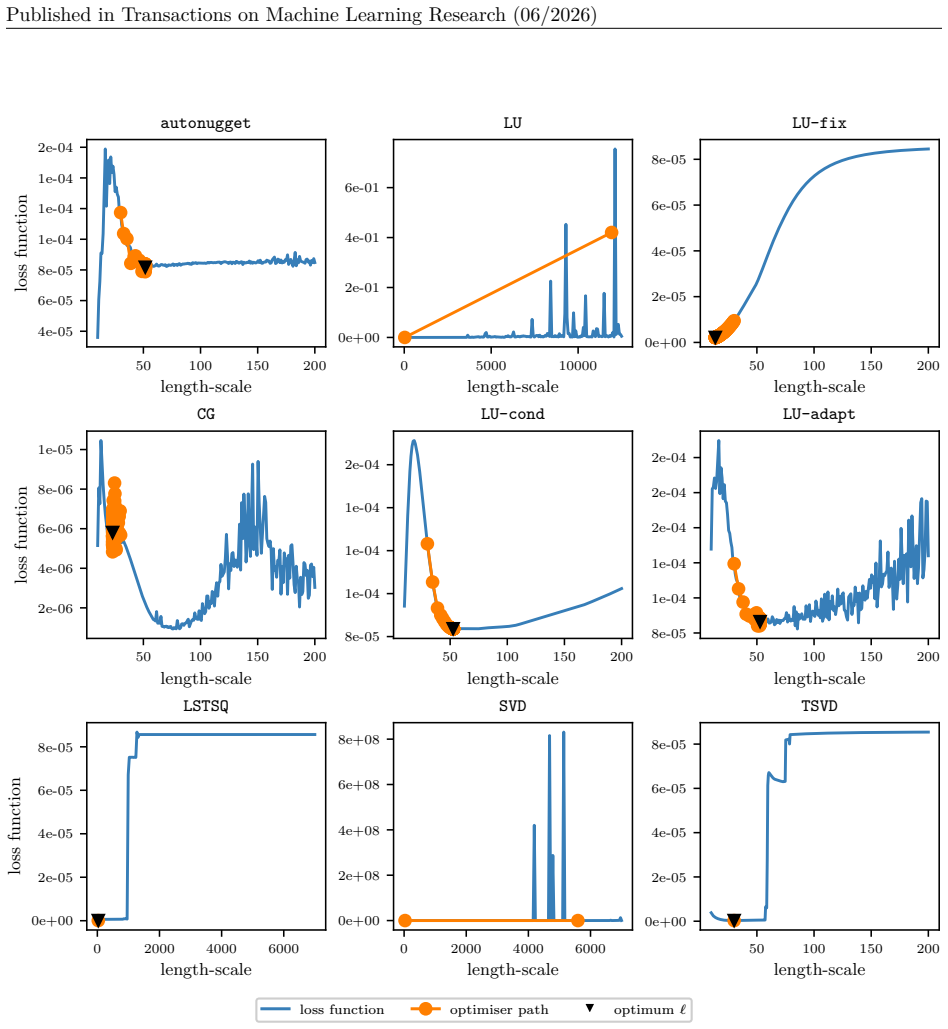

Figure 5. Figure 5: Application to a Gaussian process regression task. A gradient-based optimiser was applied to the [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6

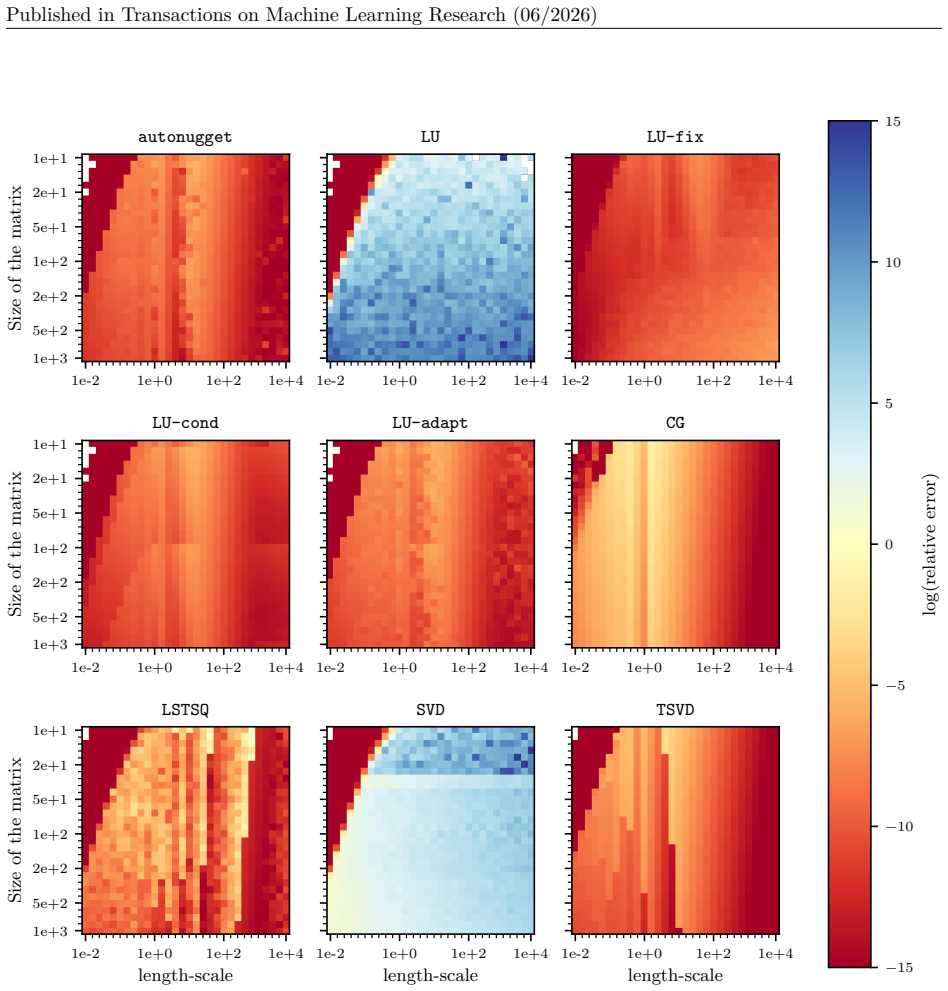

Figure 6. Figure 6: Absolute errors of all methods for the experiment in Fig. 3. [PITH_FULL_IMAGE:figures/full_fig_p020_6.png] view at source ↗
Figure 7

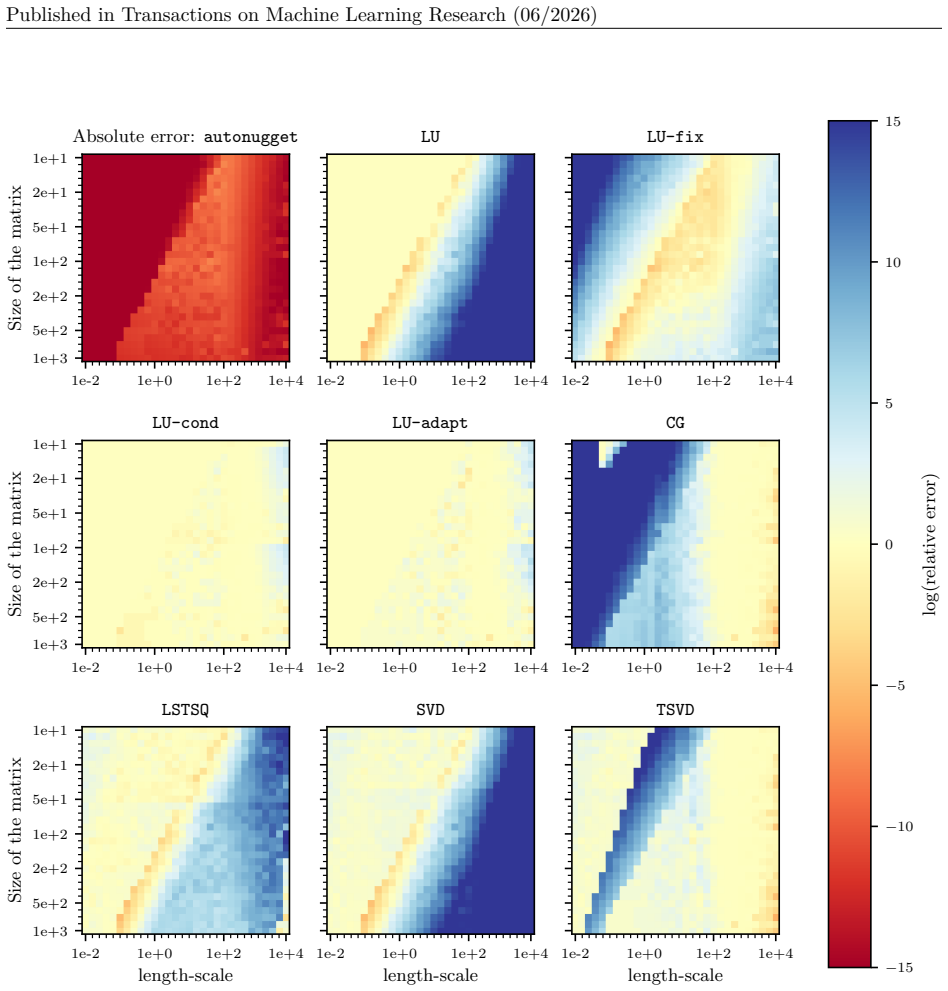

Figure 7. Figure 7: Results on the Matérn kernel matrices. Here we compare [PITH_FULL_IMAGE:figures/full_fig_p021_7.png] view at source ↗
Figure 8

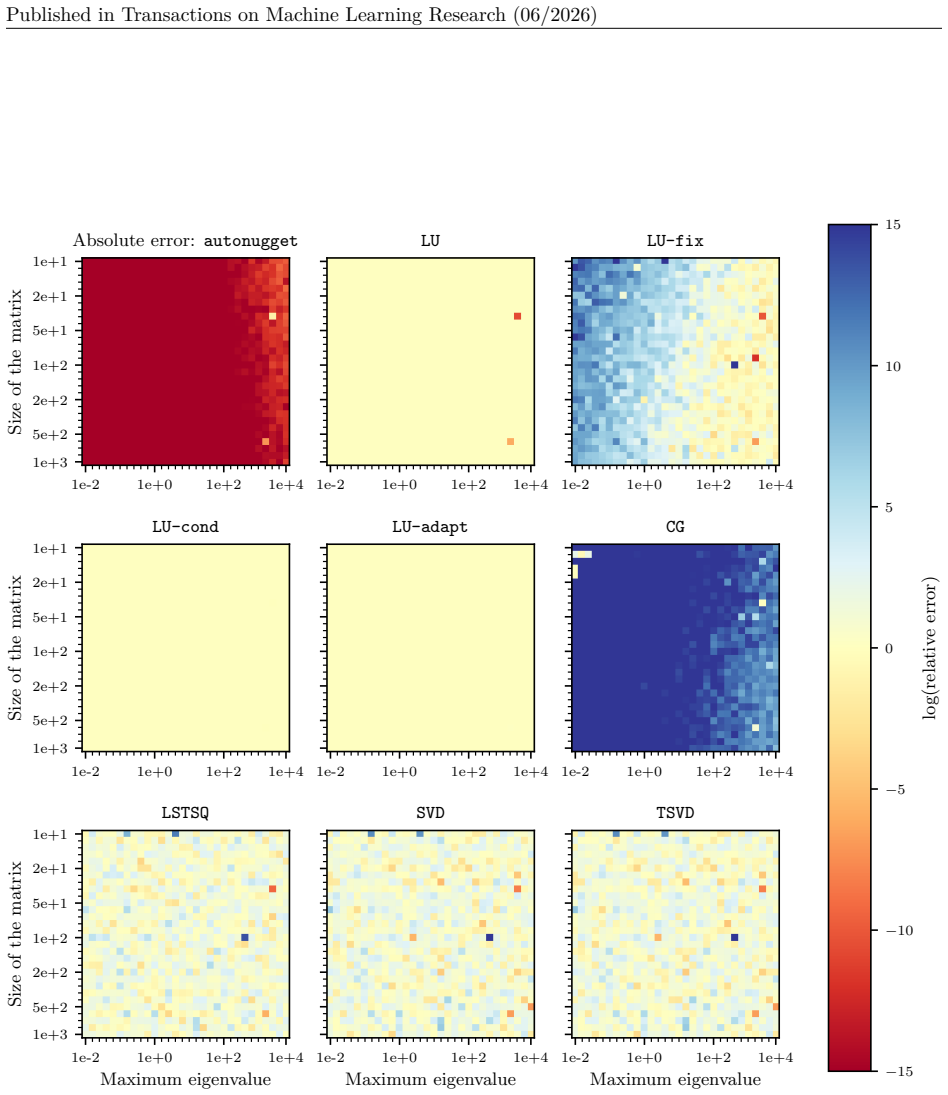

Figure 8. Figure 8: Results on non-kernel type matrices. Here we compared [PITH_FULL_IMAGE:figures/full_fig_p022_8.png] view at source ↗
Figure 9

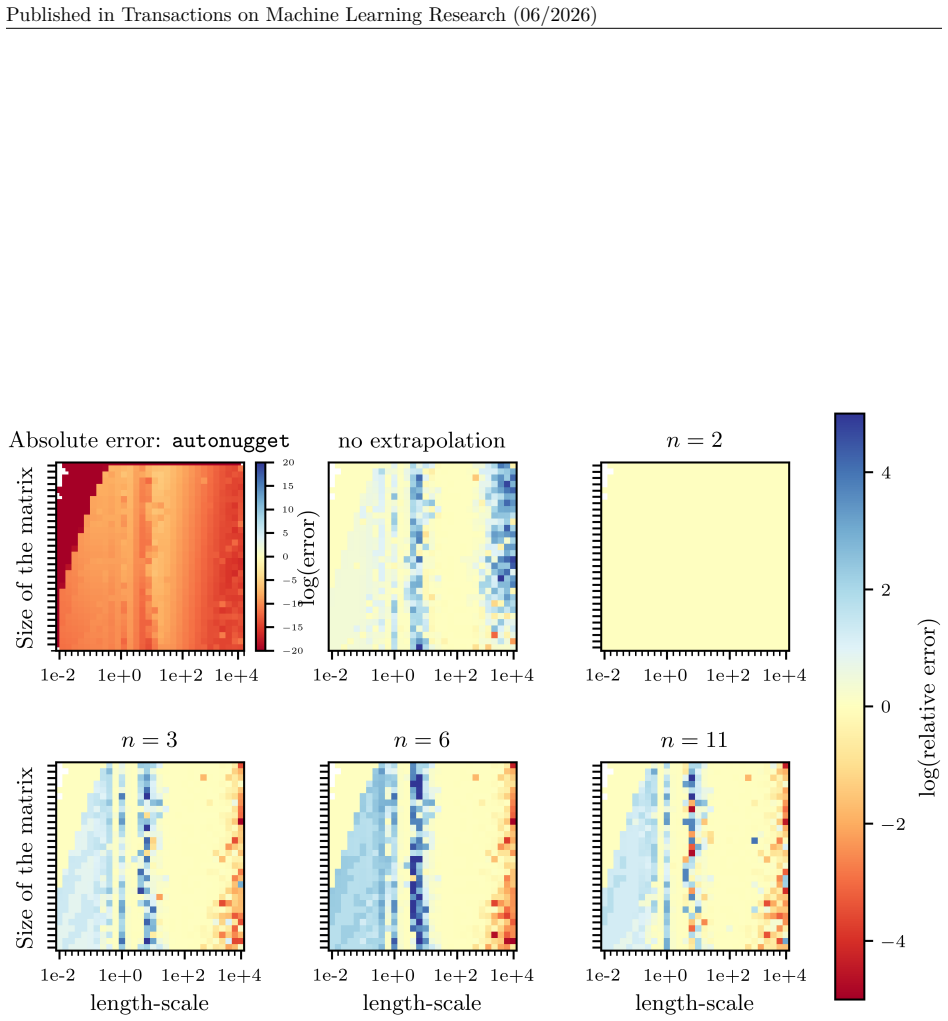

Figure 9. Figure 9: Results on the squared exponential kernel matrices, comparing solutions with no extrapolation [PITH_FULL_IMAGE:figures/full_fig_p023_9.png] view at source ↗
Figure 10

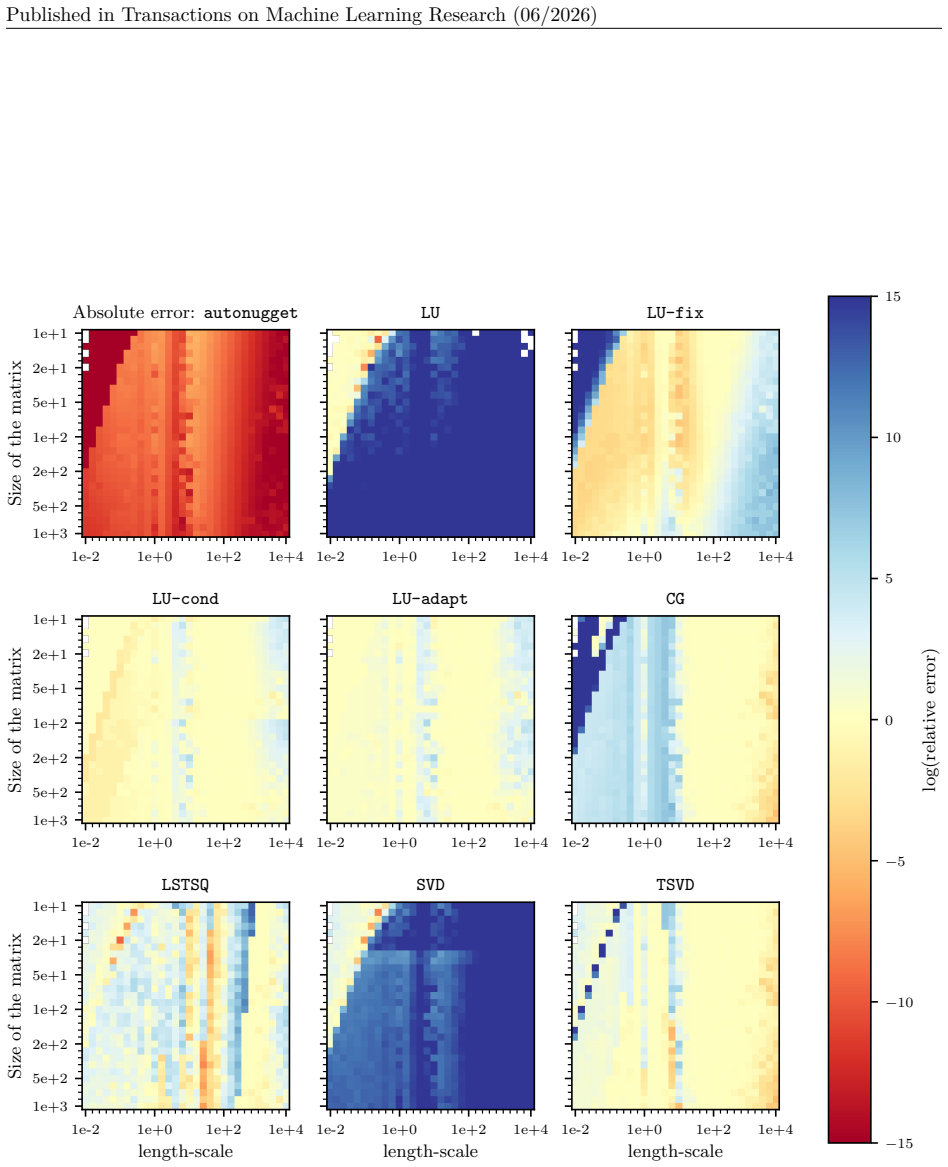

Figure 10. Figure 10: Fig. 3 computed with a different seed. This shows that the results are robust to stochasticity in [PITH_FULL_IMAGE:figures/full_fig_p024_10.png] view at source ↗
Figure 11

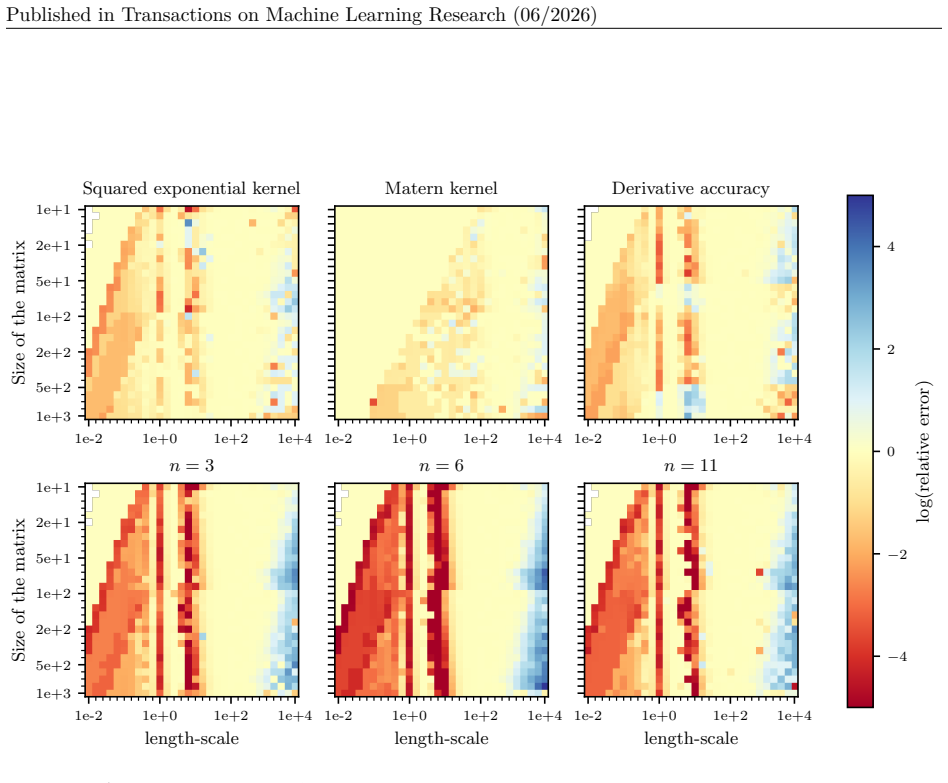

Figure 11. Figure 11: Accuracy assessment of autonugget-cond. Here we compared autonugget-cond to autonugget, in the settings described in Sections 4.2 and 4.3. The logarithm of the error relative to autonugget is reported. 25 50 75 100 125 150 175 200 length-scale 2.0e-05 4.0e-05 6.0e-05 8.0e-05 1.0e-04 1.2e-04 1.4e-04 1.6e-04 loss function autonugget 25 50 75 100 125 150 175 200 length-scale 2.0e-05 4.0e-05 6.0e-05 8.0e-05 1… view at source ↗
Figure 12

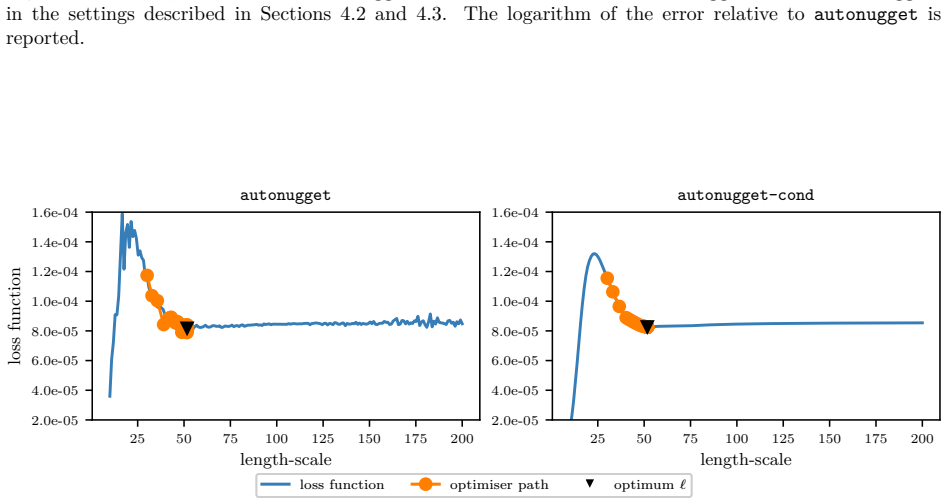

Figure 12. Figure 12: Comparison of autonugget-cond with autonugget for the problem in Section 4.4. 25 [PITH_FULL_IMAGE:figures/full_fig_p025_12.png] view at source ↗
Figure 13

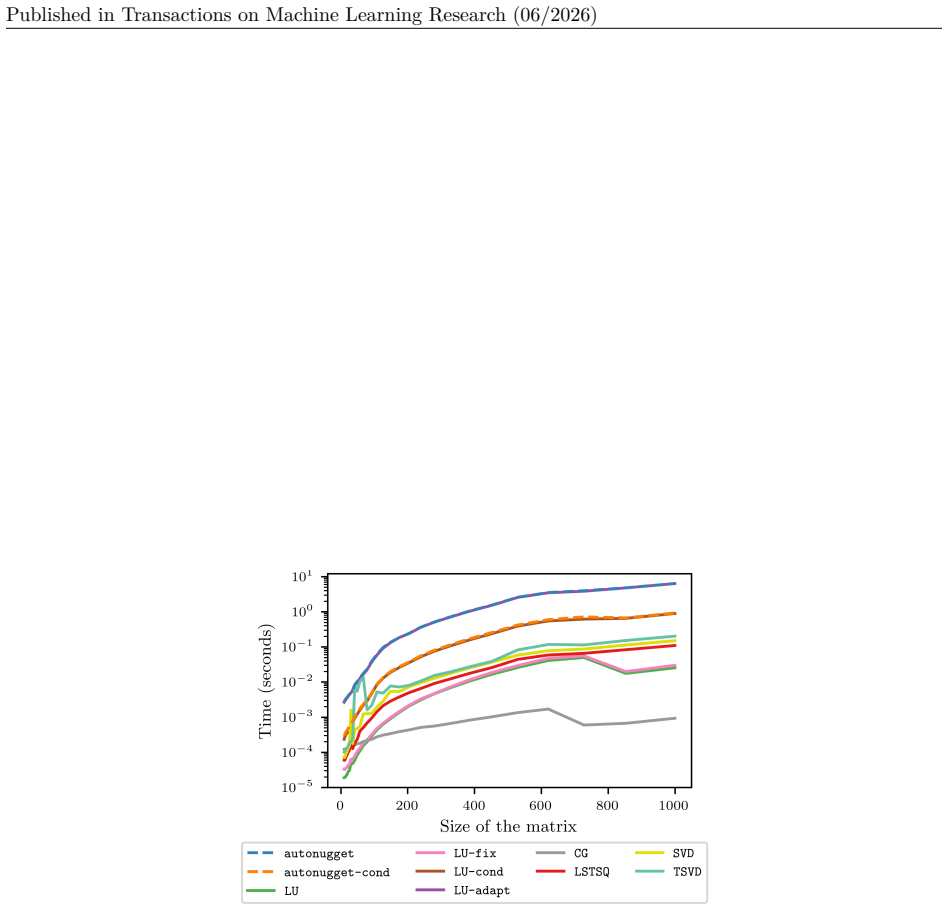

Figure 13. Figure 13: Comparison of wall time autonugget with other methods for the experiment in Section 4.2. 26 [PITH_FULL_IMAGE:figures/full_fig_p026_13.png] view at source ↗
read the original abstract

Rapid prototyping of algorithms is a critical step in modern machine learning. Most algorithms exploit linear algebra, creating a need for lightweight numerical routines which -- while potentially sub-optimal for the task at hand -- can be rapidly implemented. For the numerical solution of ill-conditioned linear systems of equations, the standard solution for prototyping is Tikhonov-regularised inversion using a nugget. However, selection of the size of nugget is often difficult, and the use of data-adaptive procedures precludes automatic differentiation, introducing instabilities into end-to-end training. Further, while data-adaptive procedures perform multiple linear solves to select the size of nugget, only the result of one such solve is returned, which we argue is wasteful. This paper aims to circumvent the above difficulties, presenting autonugget; a Python package for automatic and stable numerical solution of linear systems suitable for rapid prototyping, and fully compatible with automatic differentiation using JAX. autonugget combines multiple linear solves using Richardson extrapolation to determine the solution of the ill-conditioned system, improving in accuracy over approximations based on a single nugget.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper presents autonugget, a Python package for solving ill-conditioned linear systems in machine learning prototyping. It uses Richardson extrapolation on multiple Tikhonov-regularized solutions (with varying nugget sizes) to obtain the solution, claiming improved accuracy over any single regularized solve, while remaining stable and compatible with automatic differentiation in JAX without requiring data-adaptive nugget selection.

Significance. If the claimed accuracy improvement holds and the method remains stable under AD for typical ML linear systems, autonugget could provide a practical, lightweight alternative to manual regularization tuning for rapid algorithm prototyping. The approach avoids wasting computation on multiple solves used only for parameter selection and integrates directly with differentiable pipelines.

major comments (2)
  1. [Abstract] Abstract: The central claim that Richardson extrapolation on the sequence of Tikhonov solutions x_λ improves accuracy over the best single-λ solve is load-bearing but unsupported. No equations, error analysis, or conditions are supplied showing that the map λ ↦ x_λ admits an asymptotic expansion x_λ = x* + c₁λ + c₂λ² + … whose leading terms can be cancelled. For general ill-conditioned A the bias is governed by singular-value decay and the projection of b, so the effective order is not uniform in λ.
  2. [Abstract] Abstract: The stability claim under automatic differentiation is asserted without any description of the implementation (how the multiple solves and extrapolation are coded in JAX) or verification that the extrapolated result remains differentiable and closer to the minimum-norm solution than a single solve.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive report. We respond point-by-point to the major comments and will make the indicated revisions to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim that Richardson extrapolation on the sequence of Tikhonov solutions x_λ improves accuracy over the best single-λ solve is load-bearing but unsupported. No equations, error analysis, or conditions are supplied showing that the map λ ↦ x_λ admits an asymptotic expansion x_λ = x* + c₁λ + c₂λ² + … whose leading terms can be cancelled. For general ill-conditioned A the bias is governed by singular-value decay and the projection of b, so the effective order is not uniform in λ.

    Authors: We agree that the abstract would be strengthened by an explicit reference to the asymptotic expansion. The approach applies standard Richardson extrapolation to the bias term of Tikhonov regularization, which admits an expansion in powers of λ for sufficiently small λ when the right-hand side has a suitable projection onto the singular vectors. We will revise the abstract to include a brief statement of the expansion and add a short paragraph in the methods section that states the conditions (in terms of singular-value decay) under which the leading terms cancel, while acknowledging that the effective order is not uniform for arbitrary ill-conditioned operators. revision: yes

  2. Referee: [Abstract] Abstract: The stability claim under automatic differentiation is asserted without any description of the implementation (how the multiple solves and extrapolation are coded in JAX) or verification that the extrapolated result remains differentiable and closer to the minimum-norm solution than a single solve.

    Authors: We accept that the current abstract lacks implementation details and verification. The package implements the procedure by vmapping JAX's linear_solve over a fixed sequence of nugget values and then forming a linear combination of the resulting vectors; because each solve is differentiable and the combination is a fixed linear map, the overall map remains differentiable. We will add a dedicated implementation subsection describing the JAX code and include numerical checks confirming that the gradient through the extrapolated solution is stable and that the result is closer to the minimum-norm solution than any individual regularized solve on the reported examples. revision: yes

Circularity Check

0 steps flagged

No circularity detected; method is a direct numerical procedure

full rationale

The paper presents autonugget as a numerical routine that applies Richardson extrapolation to a sequence of Tikhonov-regularized solves. No equations, derivations, or self-citations are exhibited that reduce the claimed accuracy improvement to a fitted parameter, self-definition, or prior result by the same authors. The central claim rests on the numerical behavior of the extrapolation operator applied to the regularized map, which is independent of any input that is itself defined in terms of the output. This is the most common honest finding for a methods paper whose contribution is algorithmic rather than deductive.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Only abstract available; ledger entries are inferred from the high-level description and standard numerical analysis assumptions.

axioms (1)
  • domain assumption Richardson extrapolation applied to a sequence of Tikhonov-regularized solutions recovers an accurate solution to the original ill-conditioned system
    The method presupposes that the extrapolation limit as nugget size approaches zero yields the desired unregularized solution.

pith-pipeline@v0.9.1-grok · 5735 in / 1207 out tokens · 53982 ms · 2026-06-30T03:56:42.511045+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

34 extracted references · 2 canonical work pages

  1. [1]

    Learning the optimal T ikhonov regularizer for inverse problems

    Giovanni S Alberti, Ernesto De Vito, Matti Lassas, Luca Ratti, and Matteo Santacesaria. Learning the optimal T ikhonov regularizer for inverse problems. Advances in Neural Information Processing Systems, 34: 0 25205--25216, 2021

    2021

  2. [2]

    The effect of the nugget on G aussian process emulators of computer models

    Ioannis Andrianakis and Peter G Challenor. The effect of the nugget on G aussian process emulators of computer models. Computational Statistics & Data Analysis, 56 0 (12): 0 4215--4228, 2012

    2012

  3. [3]

    On the effectiveness of R ichardson extrapolation in data science

    Francis Bach. On the effectiveness of R ichardson extrapolation in data science. SIAM Journal on Mathematics of Data Science, 3 0 (4): 0 1251--1277, 2021

    2021

  4. [4]

    JAX : C omposable transformations of P ython+ N um P y programs, 2018

    James Bradbury, Roy Frostig, Peter Hawkins, Matthew James Johnson, Chris Leary, Dougal Maclaurin, George Necula, Adam Paszke, Jake Vander P las, Skye Wanderman- M ilne, and Qiao Zhang. JAX : C omposable transformations of P ython+ N um P y programs, 2018. URL http://github.com/jax-ml/jax

    2018

  5. [5]

    Sparse C holesky factorization for solving nonlinear PDE s via G aussian processes

    Yifan Chen, Houman Owhadi, and Florian Sch \"a fer. Sparse C holesky factorization for solving nonlinear PDE s via G aussian processes. Mathematics of Computation, 94 0 (353): 0 1235--1280, 2025

    2025

  6. [6]

    Learning regularization parameters for general-form T ikhonov

    Julianne Chung and Malena I Espa \ n ol. Learning regularization parameters for general-form T ikhonov. Inverse Problems, 33 0 (7): 0 074004, 2017

    2017

  7. [7]

    Preconditioning kernel matrices

    Kurt Cutajar, Michael Osborne, John Cunningham, and Maurizio Filippone. Preconditioning kernel matrices. In International Conference on Machine Learning, pages 2529--2538. PMLR, 2016

    2016

  8. [8]

    A machine learning approach to optimal T ikhonov regularization I : A ffine manifolds

    Ernesto De Vito, Massimo Fornasier, and Valeriya Naumova. A machine learning approach to optimal T ikhonov regularization I : A ffine manifolds. Analysis and Applications, 20 0 (02): 0 353--400, 2022

    2022

  9. [9]

    Computing eigenvalues and singular values to high relative accuracy

    Zlatko Drma c . Computing eigenvalues and singular values to high relative accuracy. In Handbook of Linear Algebra, pages 46--1. Chapman and Hall/CRC, 2006

    2006

  10. [10]

    On the choice of the regularization parameter for iterated T ikhonov regularization of ill-posed problems

    Heinz W Engl. On the choice of the regularization parameter for iterated T ikhonov regularization of ill-posed problems. Journal of Approximation Theory, 49 0 (1): 0 55--63, 1987

    1987

  11. [11]

    Bayesian Optimization

    Roman Garnett. Bayesian Optimization . Cambridge University Press, 2023

    2023

  12. [12]

    On K rylov projection methods and T ikhonov regularization

    Silvia Gazzola, Paolo Novati, Maria Rosaria Russo, et al. On K rylov projection methods and T ikhonov regularization. Electronic Transactions on Numerical Analysis, 44 0 (1): 0 83--123, 2015

    2015

  13. [13]

    An a posteriori parameter choice for ordinary and iterated T ikhonov regularization of ill-posed problems leading to optimal convergence rates

    Helmut Gfrerer. An a posteriori parameter choice for ordinary and iterated T ikhonov regularization of ill-posed problems leading to optimal convergence rates. Mathematics of Computation, 49 0 (180): 0 507--522, 1987

    1987

  14. [14]

    Robert B. Gramacy. Surrogates: Gaussian Process Modeling , Design , and Optimization for the Applied Sciences . Chapman and Hall/CRC, New York, March 2020. ISBN 978-0-367-81549-3. doi:10.1201/9780367815493

    work page doi:10.1201/9780367815493 2020

  15. [15]

    Extrapolation and the method of regularization for generalized inverses

    CW Groetsch and JT King. Extrapolation and the method of regularization for generalized inverses. Journal of Approximation Theory, 25 0 (3): 0 233--247, 1979

    1979

  16. [16]

    Harris, K

    Charles R. Harris, K. Jarrod Millman, St \' e fan J. van der Walt, Ralf Gommers, Pauli Virtanen, David Cournapeau, Eric Wieser, Julian Taylor, Sebastian Berg, Nathaniel J. Smith, Robert Kern, Matti Picus, Stephan Hoyer, Marten H. van Kerkwijk, Matthew Brett, Allan Haldane, Jaime Fern \' a ndez del R \' i o, Mark Wiebe, Pearu Peterson, Pierre G \' e rard-M...

    2020

  17. [17]

    Osborne, and Hans P

    Philipp Hennig, Michael A. Osborne, and Hans P. Kersting. Probabilistic Numerics: Computation as Machine Learning. Cambridge University Press, Cambridge, 2022. ISBN 978-1-107-16344-7. doi:10.1017/9781316681411

    work page doi:10.1017/9781316681411 2022

  18. [18]

    Methods of conjugate gradients for solving linear systems

    Magnus R Hestenes, Eduard Stiefel, et al. Methods of conjugate gradients for solving linear systems. Journal of Research of the National Bureau of Standards, 49 0 (6): 0 409--436, 1952

    1952

  19. [19]

    Splines and PDE s: F rom approximation theory to numerical linear algebra

    Angela Kunoth, Tom Lyche, Giancarlo Sangalli, Stefano Serra-Capizzano, Carla Manni, and Hendrik Speleers. Splines and PDE s: F rom approximation theory to numerical linear algebra . Springer, 2018

    2018

  20. [20]

    The Splitting Extrapolation Method: A New Technique In Numerical Solution Of Multidimensional Problems

    Chin Bo Liem and Tsimin Shih. The Splitting Extrapolation Method: A New Technique In Numerical Solution Of Multidimensional Problems . World Scientific, 1995

    1995

  21. [21]

    Improving linear system solvers for hyperparameter optimisation in iterative G aussian processes

    Jihao Andreas Lin, Shreyas Padhy, Bruno Mlodozeniec, Javier Antor \'a n, and Jos \'e Miguel Hern \'a ndez-Lobato. Improving linear system solvers for hyperparameter optimisation in iterative G aussian processes. Advances in Neural Information Processing Systems, 37: 0 15460--15496, 2024

    2024

  22. [22]

    A dynamical T ikhonov regularization for solving ill-posed linear algebraic systems

    Chein-Shan Liu. A dynamical T ikhonov regularization for solving ill-posed linear algebraic systems. Acta Applicandae Mathematicae, 123 0 (1): 0 285--307, 2013

    2013

  23. [23]

    Preconditioning discretizations of systems of partial differential equations

    Kent-Andre Mardal and Ragnar Winther. Preconditioning discretizations of systems of partial differential equations. Numerical Linear Algebra with Applications, 18 0 (1): 0 1--40, 2011

    2011

  24. [24]

    Jorge Nocedal and Stephen J. Wright. Numerical Optimization. Springer, 2nd edition, 2006

    2006

  25. [25]

    Probabilistic R ichardson extrapolation

    Chris J Oates, Toni Karvonen, Aretha L Teckentrup, Marina Strocchi, and Steven A Niederer. Probabilistic R ichardson extrapolation. Journal of the Royal Statistical Society Series B: Statistical Methodology, 87 0 (2): 0 457--479, 2025

    2025

  26. [26]

    Gaussian Processes for Machine Learning

    Carl Edward Rasmussen and Christopher KI Williams. Gaussian Processes for Machine Learning. MIT Press Cambridge, MA, 2006

    2006

  27. [27]

    The approximate arithmetical solution by finite differences of physical problems involving differential equations, with an application to the stresses in a masonry dam

    Lewis Fry Richardson. The approximate arithmetical solution by finite differences of physical problems involving differential equations, with an application to the stresses in a masonry dam. Philosophical Transactions of the Royal Society of London, Series A, 210 0 (459-470): 0 307--357, 1911

    1911

  28. [28]

    FALKON : A n optimal large scale kernel method

    Alessandro Rudi, Luigi Carratino, and Lorenzo Rosasco. FALKON : A n optimal large scale kernel method. Advances in Neural Information Processing Systems, 30, 2017

    2017

  29. [29]

    Scaled conjugate gradient method for nonconvex optimization in deep neural networks

    Naoki Sato, Koshiro Izumi, and Hideaki Iiduka. Scaled conjugate gradient method for nonconvex optimization in deep neural networks. Journal of Machine Learning Research, 25 0 (395): 0 1--37, 2024

    2024

  30. [30]

    Compression, inversion, and approximate PCA of dense kernel matrices at near-linear computational complexity

    Florian Schafer, Timothy John Sullivan, and Houman Owhadi. Compression, inversion, and approximate PCA of dense kernel matrices at near-linear computational complexity. Multiscale Modeling & Simulation, 19 0 (2): 0 688--730, 2021

    2021

  31. [31]

    Approximation of generalized inverses by iterated regularization

    J Thomas King and David Chillingworth. Approximation of generalized inverses by iterated regularization. Numerical Functional Analysis and Optimization, 1 0 (5): 0 499--513, 1979

    1979

  32. [32]

    Numerical Linear Algebra

    Lloyd N Trefethen and David Bau. Numerical Linear Algebra. SIAM, 2022

    2022

  33. [33]

    Average condition number for solving linear equations

    N Weiss, GW Wasilkowski, H Wo \'z niakowski, and M Shub. Average condition number for solving linear equations. Linear Algebra and Its Applications, 83: 0 79--102, 1986

    1986

  34. [34]

    Accurate inverses for computing eigenvalues of extremely ill-conditioned matrices and differential operators

    Qiang Ye. Accurate inverses for computing eigenvalues of extremely ill-conditioned matrices and differential operators. Mathematics of Computation, 87 0 (309): 0 237--259, 2018

    2018
