Exploring Bottlenecks in VLM-LLM Navigation: How 3D Scene Understanding Capability Impacts Zero-Shot VLN

Chaoran Xiong; Ling Pei; Litao Wei; Xinhao Hu; Ziyi Xia

REVIEW 2 major objections 2 minor 1 cited by

Exploring Bottlenecks in VLM-LLM Navigation: How 3D Scene Understanding Capability Impacts Zero-Shot VLN

T0 review · 2 major / 2 minor · reviewed 2026-06-30 · grok-4.3

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read 3D perception accuracy in zero-shot VLN reaches diminishing returns after a moderate threshold, capping gains from pixel-level precision.

desk verdict The paper's contribution is the statistical upper bounds on the two subsystems plus the saturation finding, but those bounds depend on unshown independence between planner and navigator. read the letter →

arxiv 2605.14801 v1 pith:332H6RY7 submitted 2026-05-14 cs.RO

Ziyi Xia , Chaoran Xiong , Litao Wei , Xinhao Hu , Ling Pei This is my paper

classification cs.RO

keywords zero-shotVLN3DsceneunderstandingVLM-LLMnavigationperceptionsaturationboundingboxestopologicalmappingsuccessrateboundsembodied

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper quantifies the effect of 3D scene understanding quality on zero-shot vision-and-language navigation that combines VLMs for scene graphs with LLMs for planning. It derives statistical upper bounds on success rates for the high-level LLM planner that uses topological semantics and the low-level reactive navigator that uses coordinates and boxes. Tests with current perception models confirm the bounds while showing that accuracy past a certain level adds little to navigation outcomes. The result points toward redesigning 3D perception around navigation-specific features rather than general pixel fidelity to meet real-time constraints.

What carries the argument

statistical success rate upper bounds on the LLM planner (topological mapping semantics) and reactive navigator (spatial coordinates and bounding boxes) subsystems

What would settle it

Navigation trials that increase 3D perception accuracy past the reported saturation threshold and record sustained large gains in success rate would falsify the diminishing-returns claim.

Watch

Extended reading notes

Core claim

Based on typical VLM-LLM frameworks, the paper proposes statistical success rate upper bounds for the slow LLM planner relying on topological mapping semantics and the fast reactive navigator using spatial coordinates and bounding boxes. Evaluations with state-of-the-art 3D scene understanding models validate the bounds and reveal a perception saturation phenomenon in which further accuracy gains beyond a threshold produce diminishing returns in navigation success. The findings indicate that 3D scene understanding for VLN should shift priority from strict pixel-level precision to navigation-relevant core vocabularies and accurate bounding box proportions.

Load-bearing premise

The proposed statistical success rate upper bounds for the slow LLM planner and fast reactive navigator correctly capture the limiting impact of 3D scene understanding on overall VLN performance without additional unstated modeling assumptions about subsystem independence or error propagation.

Editorial extensions

If this is right

VLN success rates remain limited by 3D perception quality up to the identified saturation threshold.
Accuracy improvements beyond moderate levels deliver negligible additional navigation benefit.
Perception models for navigation should target core vocabularies and bounding-box fidelity rather than pixel-level detail.
Embodied systems can meet real-time limits by relaxing demands for high-precision 3D reconstruction.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

Specialized perception training on navigation vocabularies could reach required accuracy with lower compute cost.
The saturation pattern may appear in other embodied tasks such as object manipulation or exploration.
Hybrid planners could adapt their reliance on perception quality in real time using the derived bounds.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Desk Editor's Note

read the letter

The punchline is that this work splits a typical VLM-LLM VLN stack into a slow topological LLM planner and a fast reactive navigator, writes down separate statistical success-rate upper bounds for each, and then shows with current 3D models that extra perception accuracy stops buying navigation success after a modest threshold.

What is actually new is the explicit quantitative framing of those bounds and the saturation observation. Prior work on VLM-LLM integration mostly reports end-to-end numbers; here they isolate the perception component and give a concrete reason to stop chasing pixel-level 3D fidelity. The experiments use off-the-shelf SOTA scene-understanding models and report the expected diminishing returns, which is the part that could be useful to people building real-time systems.

The soft spot is exactly the one the stress-test note flags. The bounds treat the two subsystems as separable, but the paper does not show that perception errors (especially in shared VLM features) do not propagate jointly. If bounding-box or vocabulary mistakes affect both the topological map and the reactive controller at once, the separate upper bounds become loose and the saturation claim rests on an untested modeling choice. The evaluations validate the numbers they compute, but they do not test the independence assumption itself.

This is for researchers already working on zero-shot VLN or on 3D perception tuned to downstream tasks. A reader who wants a practical argument against over-precise reconstruction will get something out of it. It deserves a serious referee because the claim is falsifiable, they supply data, and the gap is fixable with an added ablation rather than a rewrite of the whole story.

Referee Report

2 major / 2 minor

Summary. The manuscript investigates bottlenecks in zero-shot VLN within VLM-LLM frameworks. It proposes statistical success rate (SR) upper bounds separately for the slow LLM planner (relying on topological mapping semantics) and the fast reactive navigator (using spatial coordinates and bounding boxes). Evaluations with state-of-the-art 3D scene understanding models are claimed to validate these bounds and demonstrate a perception saturation phenomenon, where accuracy improvements beyond a threshold yield diminishing returns in navigation success. The authors conclude that 3D scene understanding for VLN should prioritize navigation-relevant core vocabularies and accurate bounding box proportions over strict pixel-level precision.

Significance. If the statistical bounds are shown to be valid under explicit modeling assumptions, the work offers a quantitative lens on perception-navigation trade-offs that could usefully redirect research toward task-specific rather than generic 3D perception models. The saturation finding, if robust, would be a concrete contribution to embodied AI efficiency discussions. The manuscript does not ship machine-checked proofs or fully reproducible code, but the empirical validation with SOTA models is a positive element if the underlying derivations hold.

major comments (2)

[Abstract / bounds derivation] Abstract and methods (bounds proposal): The statistical SR upper bounds are defined separately for the LLM planner and reactive navigator without any demonstration that the subsystems are statistically independent or that error propagation between them (via shared VLM features) is negligible. This modeling step is load-bearing for both the saturation claim and the policy recommendation; if perception errors are correlated, the separate bounds become loose or invalid.
[Evaluations] Evaluation section: The claim that evaluations 'validate our proposed bounds' and reveal saturation is presented without details on how the bounds are computed from perception metrics, whether parameters were fitted post-hoc, or any sensitivity analysis to the independence assumption. This leaves open the possibility that the observed diminishing returns are an artifact of the bound construction rather than an empirical phenomenon.

minor comments (2)

[Introduction] Notation for the two subsystems (planner vs. navigator) should be introduced with explicit symbols early in the text to improve readability when the bounds are later referenced.
[Abstract] The abstract states that current 3D perception models 'prioritize pixel-level accuracy' in conflict with real-time limits; a brief citation or quantitative example of this conflict would strengthen the motivation.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We address the two major comments below regarding the independence assumption in the bounds and the evaluation details. We will revise the manuscript to strengthen these aspects.

read point-by-point responses

Referee: [Abstract / bounds derivation] Abstract and methods (bounds proposal): The statistical SR upper bounds are defined separately for the LLM planner and reactive navigator without any demonstration that the subsystems are statistically independent or that error propagation between them (via shared VLM features) is negligible. This modeling step is load-bearing for both the saturation claim and the policy recommendation; if perception errors are correlated, the separate bounds become loose or invalid.

Authors: The separate bounds are derived from the distinct roles and input types of each subsystem (topological semantics for the planner vs. spatial coordinates/bounding boxes for the navigator), which is a standard modular decomposition in VLN literature. We agree that an explicit statement of the independence assumption and discussion of potential correlations through shared VLM features is warranted. In revision we will add a paragraph in Section 3 detailing the assumption, its justification based on processing stages, and a note that the bounds may be loose under strong correlation. revision: yes
Referee: [Evaluations] Evaluation section: The claim that evaluations 'validate our proposed bounds' and reveal saturation is presented without details on how the bounds are computed from perception metrics, whether parameters were fitted post-hoc, or any sensitivity analysis to the independence assumption. This leaves open the possibility that the observed diminishing returns are an artifact of the bound construction rather than an empirical phenomenon.

Authors: Bounds are obtained by substituting the empirical perception metrics (detection accuracy, IoU, etc.) reported by each 3D model directly into the closed-form statistical expressions; no post-hoc parameter fitting occurs. We will revise the evaluation section to include the exact substitution steps, example calculations, and a sensitivity analysis that varies the correlation coefficient between subsystems to confirm the saturation trend persists. revision: yes

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: bounds proposed from framework structure and validated empirically

full rationale

The paper proposes statistical SR upper bounds for the slow LLM planner (topological semantics) and fast reactive navigator (spatial coordinates/bounding boxes) based on typical VLM-LLM frameworks, then validates them via evaluations with SOTA 3D models to identify saturation. No equations, fitted parameters, self-citations, or self-definitional reductions appear in the abstract or described claims; the bounds are presented as theoretical proposals whose validity is checked externally rather than derived from the target VLN performance by construction. The derivation chain remains self-contained against external benchmarks.

Assumptions & free parameters 0 free parameters · 0 assumptions · 0 invented entities

Abstract-only review supplies insufficient detail to enumerate free parameters, axioms, or invented entities; no numerical thresholds, statistical models, or new entities are specified.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Exploring Bottlenecks in VLM-LLM Navigation: How 3D Scene Understanding Capability Impacts Zero-Shot VLN." pith.science (2026). https://pith.science/paper/332H6RY7

@misc{pith2026260514801,
  author       = {Pith},
  title        = {Pith review of: Exploring Bottlenecks in VLM-LLM Navigation: How 3D Scene Understanding Capability Impacts Zero-Shot VLN},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/332H6RY7}},
  note         = {Machine review of arXiv:2605.14801}
}

read the original abstract

Zero-shot vision-and-language navigation (VLN) has gained significant attention due to its minimal data collection costs and inherent generalization. This paradigm is typically driven by the integration of pre-trained Vision-Language Models (VLMs) and Large Language Models (LLMs), where VLMs construct 3D scene graphs while LLMs handle high-level reasoning and decision-making. However, a critical bottleneck exists in this system: current 3D perception models prioritize pixel-level accuracy, directly conflicting with the strict computational limits and real-time efficiency demanded by embodied navigation. To address this gap, this paper quantifies the actual impact of 3D scene understanding capability on VLN performance. Based on typical VLM-LLM frameworks, we propose statistical success rate (SR) upper bounds for two core subsystems: 1) the slow LLM planner, which relies on topological mapping semantics, and 2) the fast reactive navigator, which utilizes spatial coordinates and bounding boxes to execute LLM decisions. Evaluations using state-of-the-art 3D scene understanding models validate our proposed bounds and reveal a perception saturation phenomenon, indicating that improvements in perception accuracy beyond a certain threshold yield diminishing returns in navigation success. Our findings suggest that 3D scene understanding for VLN should pivot away from strict pixel-level precision, prioritizing instead navigation-relevant core vocabularies and accurate bounding box proportions.

Figures

Figures reproduced from arXiv: 2605.14801 by the authors.

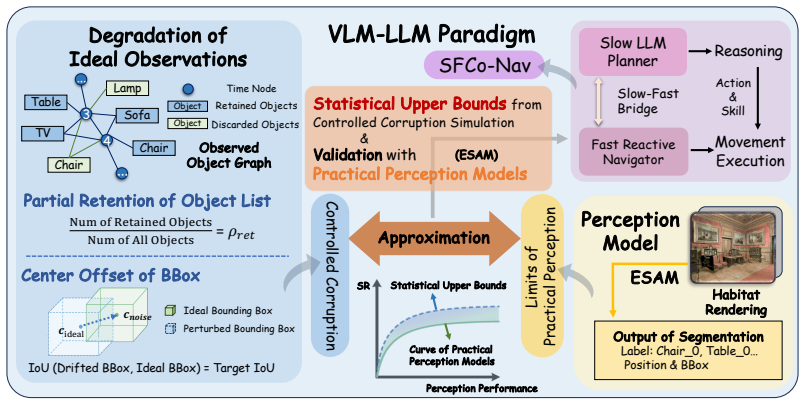

**Figure 2.** Overview of our analysis framework. We quantify how 3D scene understanding affects zero-shot VLN by studying two core modules in a typical [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

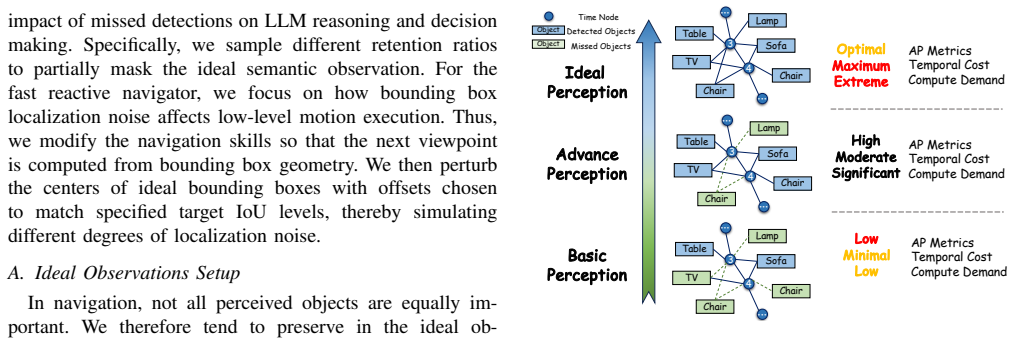

**Figure 3.** Topological graphs and efficiency trade-offs under different [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

Figures from the paper (2 more)

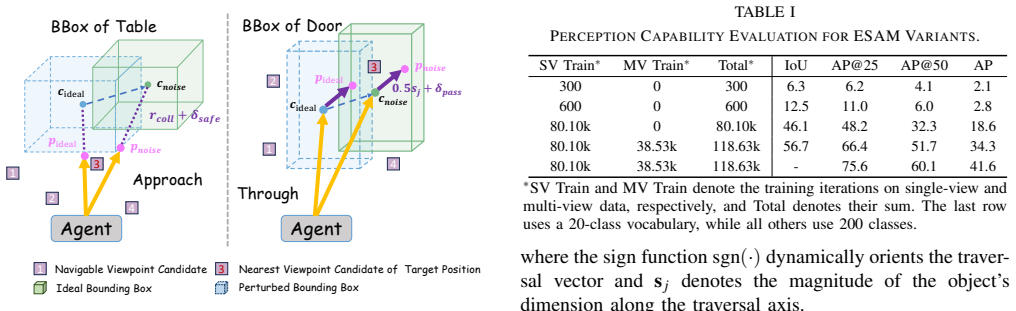

**Figure 4.** Figure 4: Center offsets to ideal BBox and updated skills. [PITH_FULL_IMAGE:figures/full_fig_p004_4.png]

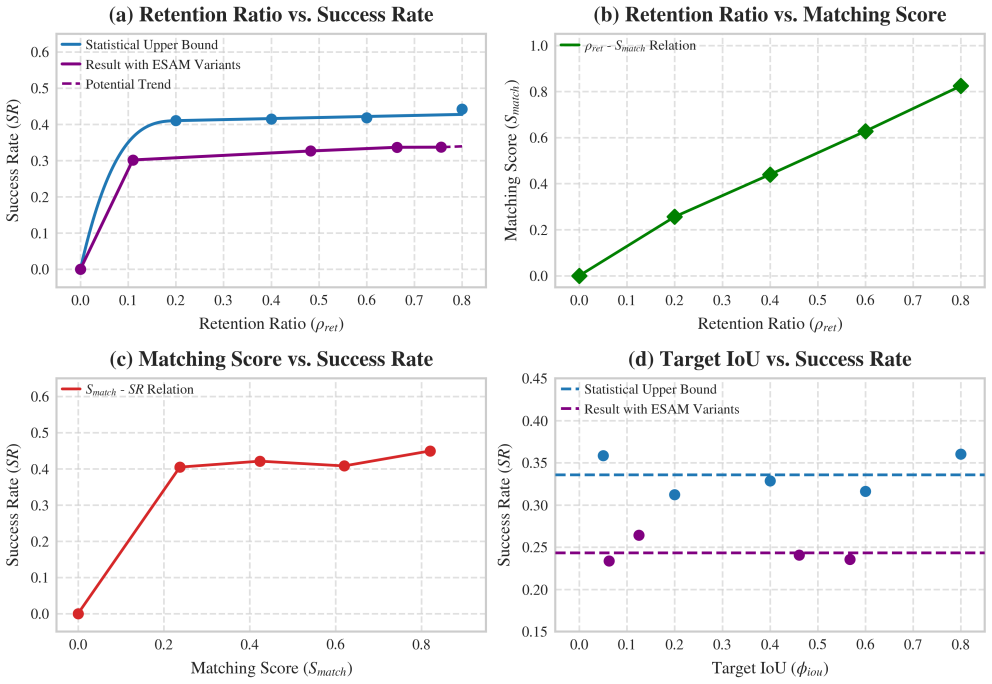

**Figure 5.** Figure 5: Impact of 3D scene understanding on navigation. Blue lines denote the statistical upper bounds of success rate (SR) under controlled corruption, [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]

Discussion (0). Sign in to comment.
