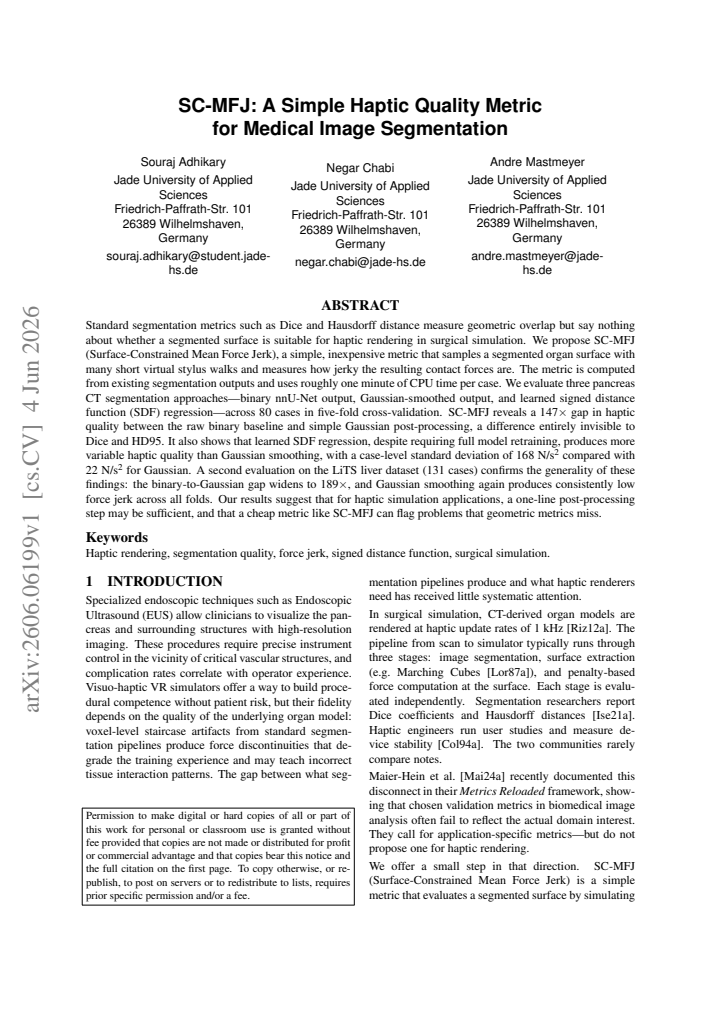

SC-MFJ: A Simple Haptic Quality Metric for Medical Image Segmentation

Souraj Adhikary , Negar Chabi , Andre Mastmeyer This is my paper

Pith reviewed 2026-06-28 02:37 UTC · model grok-4.3

classification 💻 cs.CV cs.GR
keywords haptic quality metricmedical image segmentationforce jerksurgical simulationGaussian post-processingsigned distance functionpancreas CTliver segmentation
0
0 comments X

The pith

SC-MFJ reveals that Gaussian post-processing improves haptic quality of segmentations by a factor of 147 over raw binary outputs, a gap missed by Dice and HD95.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper proposes SC-MFJ as a metric to assess the suitability of medical segmentations for haptic rendering by measuring force jerk along virtual stylus paths on the surface. It demonstrates through evaluations on pancreas and liver datasets that this metric detects substantial quality differences between segmentation methods that geometric metrics overlook. The results point to Gaussian smoothing as an effective and low-cost way to enhance haptic performance without full model retraining.

Core claim

The central discovery is that SC-MFJ, which computes mean force jerk from surface-constrained virtual stylus walks, shows a 147x reduction in jerk for Gaussian-smoothed pancreas segmentations compared to binary outputs across 80 cases, while Dice and HD95 remain insensitive to this difference. On the LiTS liver dataset the gap increases to 189x, and Gaussian smoothing produces lower variability than SDF regression.

What carries the argument

Surface-Constrained Mean Force Jerk (SC-MFJ), which samples the segmented surface with short virtual stylus walks and averages the jerk of computed contact forces.

If this is right

  • Simple Gaussian post-processing can deliver markedly better haptic quality than raw binary segmentations for surgical simulation.
  • SC-MFJ can detect haptic deficiencies that standard geometric metrics like Dice and HD95 fail to identify.
  • Learned SDF regression, while requiring retraining, does not consistently outperform Gaussian smoothing in haptic consistency.
  • The findings hold across different organs, as confirmed on the liver dataset with an even larger improvement factor.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Segmentation pipelines for haptic applications could benefit from incorporating surface smoothness checks using SC-MFJ during validation.
  • Future work might explore using SC-MFJ as an additional training objective to optimize segmentations directly for low force jerk.
  • Since the metric runs in about one minute per case, it could be adopted as a standard quality control step in clinical simulation development.

Load-bearing premise

The computed contact forces from virtual stylus walks on the segmented surface accurately reflect the haptic experience in real surgical simulations.

What would settle it

An experiment that measures actual force profiles using a physical haptic device on 3D printed versions of the segmented organs and checks if the jerk values match those predicted by SC-MFJ; significant discrepancy would falsify the metric's relevance.

Figures

Figures reproduced from arXiv: 2606.06199 by Andre Mastmeyer, Negar Chabi, Souraj Adhikary.

Figure 1

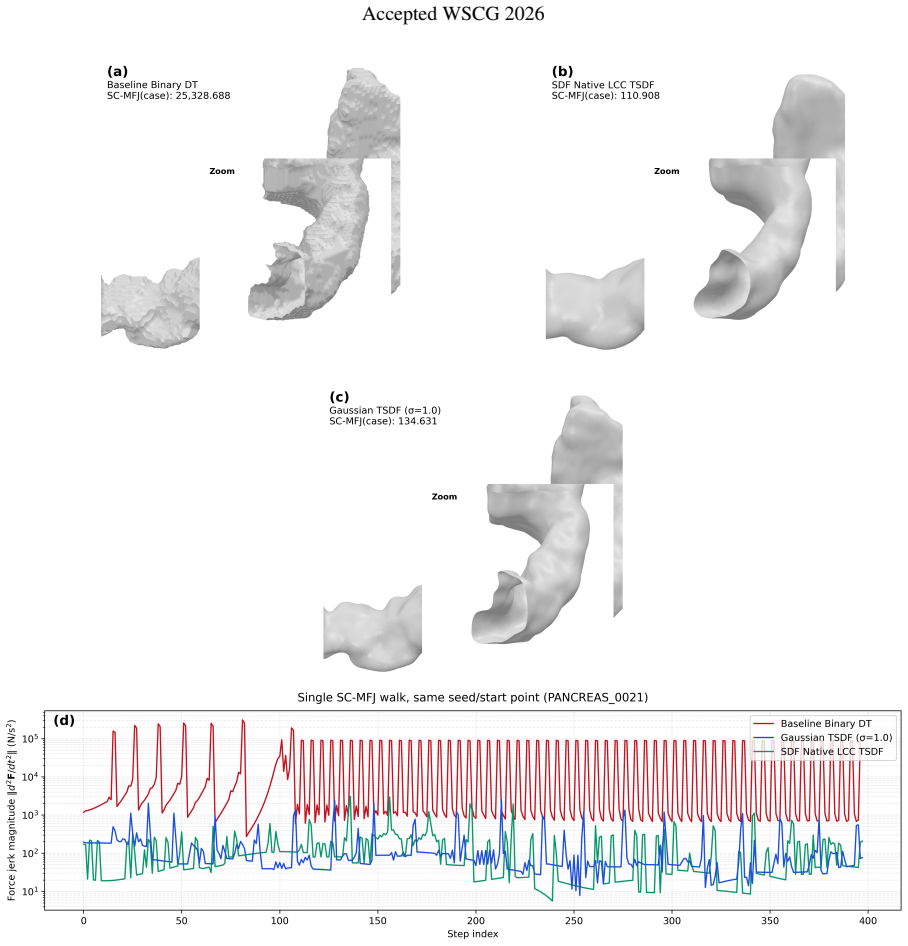

Figure 1. Figure 1: Representative case PANCREAS_0021, selected because Gaussian and SDF achieve comparable Dice, isolating surface quality. (a) Binary baseline: SC-MFJ = 25,329. (b) SDF Native LCC: SC-MFJ = 111. (c) Gaussian σ=1.0: SC-MFJ = 135, highlighted in the bottom row to emphasize the main result. Zoom insets highlight staircase artifacts on the binary surface. (d) Force jerk magnitude along one surface walk (log scal… view at source ↗
Figure 2

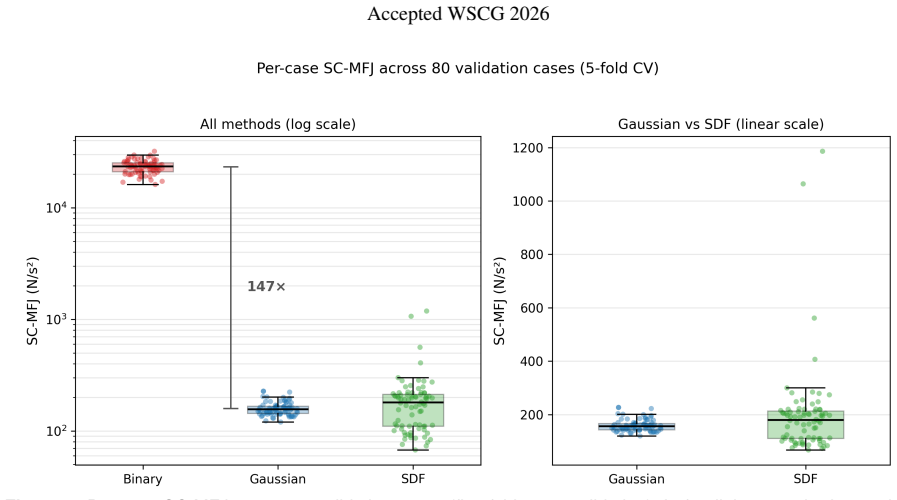

Figure 2. Figure 2: Per-case SC-MFJ across 80 validation cases (five-fold cross-validation). Left: all three methods on a log scale; the 147× gap between binary and the smooth methods is visible at a glance. Right: Gaussian vs. SDF on a linear scale. Gaussian smoothing produces consistently low SC-MFJ with minimal outliers; SDF regression shows substantially higher variance, including several cases above 400 N/s2 [PITH_FULL… view at source ↗
Figure 4

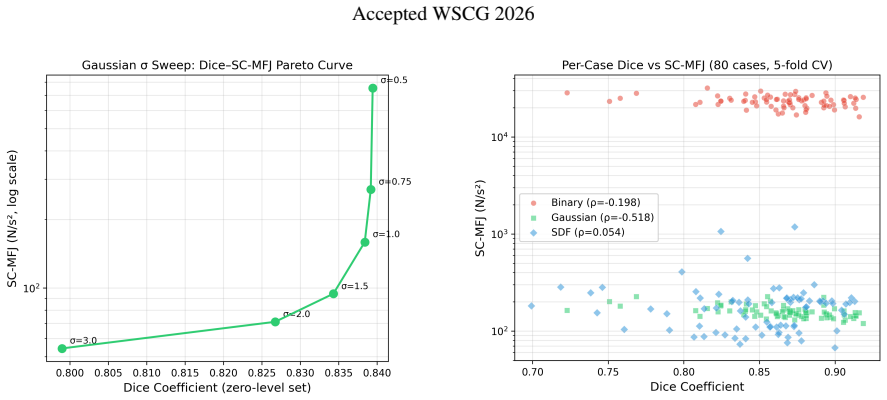

Figure 4. Figure 4: Per-case Dice vs. SC-MFJ for 80 cases across three methods (log scale for SC-MFJ). Spear￾man ρ values are reported per method. The weak-to￾moderate correlations—especially ρ = 0.054 for SDF— support that Dice and SC-MFJ measure largely orthog￾onal aspects of segmentation quality. correlation (Gaussian) leaves most of the rank varia￾tion unexplained. The near-zero correlation for SDF (ρ = 0.054) is particul… view at source ↗
Figure 5

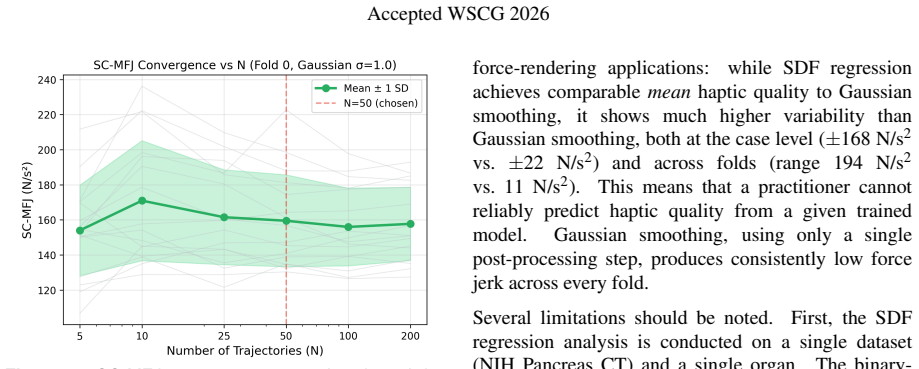

Figure 5. Figure 5: SC-MFJ convergence as a function of the number of trajectories N (Fold 0, 16 cases, Gaussian σ = 1.0). The aggregate mean (green line) stabilizes by N = 50 (dashed red); the shaded band shows ±1 stan￾dard deviation across cases. Grey lines show individual cases. gap observed on pancreas. Mean binary Dice is 0.963± 0.038, substantially higher than on the more challeng￾ing pancreas anatomy, yet the binary ba… view at source ↗
read the original abstract

Standard segmentation metrics such as Dice and Hausdorff distance measure geometric overlap but say nothing about whether a segmented surface is suitable for haptic rendering in surgical simulation. We propose SC-MFJ (Surface-Constrained Mean Force Jerk), a simple, inexpensive metric that samples a segmented organ surface with many short virtual stylus walks and measures how jerky the resulting contact forces are. The metric is computed from existing segmentation outputs and uses roughly one minute of CPU time per case. We evaluate three pancreas CT segmentation approaches-binary nnU-Net output, Gaussian-smoothed output, and learned signed distance function (SDF) regression-across 80 cases in five-fold cross-validation. SC-MFJ reveals a 147x gap in haptic quality between the raw binary baseline and simple Gaussian post-processing, a difference entirely invisible to Dice and HD95. It also shows that learned SDF regression, despite requiring full model retraining, produces more variable haptic quality than Gaussian smoothing, with a case-level standard deviation of 168 N/s2 compared with 22 N/s2 for Gaussian. A second evaluation on the LiTS liver dataset (131 cases) confirms the generality of these findings: the binary-to-Gaussian gap widens to 189x, and Gaussian smoothing again produces consistently low force jerk across all folds. Our results suggest that for haptic simulation applications, a one-line post-processing step may be sufficient, and that a cheap metric like SC-MFJ can flag problems that geometric metrics miss.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes SC-MFJ, a metric that samples segmented organ surfaces with short virtual stylus walks and computes mean force jerk to quantify suitability for haptic rendering in surgical simulation. On 80 pancreas CT cases it reports a 147x reduction in force jerk from Gaussian post-processing of nnU-Net binary outputs versus raw binary (invisible to Dice/HD95), with learned SDF regression showing higher case-level variability (std 168 vs 22 N/s²); the pattern is confirmed on 131 LiTS liver cases with a 189x gap. The metric is presented as inexpensive (~1 min CPU per case) and computed from existing outputs.

Significance. If the simulated jerk statistics prove predictive of real haptic feedback, SC-MFJ would fill a genuine gap left by geometric metrics for simulation-oriented segmentation. The computational simplicity and consistent behavior across two datasets are strengths; the work also correctly notes that a trivial post-processing step can dominate more complex learned alternatives on this axis.

major comments (2)
  1. [§3] §3: The contact-force model, stylus trajectory sampling, and jerk aggregation are defined without calibration to any physical haptic device (e.g., measured forces on a Phantom or Omega interface) or correlation with surgeon perception ratings of the same surfaces; this assumption is load-bearing for the central claim that the 147×/189× numerical gap constitutes a difference in 'haptic quality' rather than an artifact of the chosen simulation.
  2. [Evaluation sections] Evaluation sections (pancreas and LiTS): no statistical significance tests, confidence intervals, or ablation on sampling density/length are reported for the headline force-jerk ratios, leaving open whether the reported gaps are robust to reasonable variations in the virtual-stylus parameters.
minor comments (2)
  1. [Abstract, §3] Abstract and §3: the precise definition of 'mean force jerk' (units, aggregation over walks, handling of contact discontinuities) should be stated explicitly rather than summarized.
  2. The manuscript would benefit from a short limitations paragraph acknowledging that SC-MFJ currently measures a simulation proxy rather than validated perceptual quality.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We address the two major comments point-by-point below and will revise the manuscript to incorporate clarifications and additional analyses where feasible.

read point-by-point responses

  1. Referee: [§3] §3: The contact-force model, stylus trajectory sampling, and jerk aggregation are defined without calibration to any physical haptic device (e.g., measured forces on a Phantom or Omega interface) or correlation with surgeon perception ratings of the same surfaces; this assumption is load-bearing for the central claim that the 147×/189× numerical gap constitutes a difference in 'haptic quality' rather than an artifact of the chosen simulation.

    Authors: We agree this is a substantive limitation. SC-MFJ is a simulation-derived proxy that quantifies jerk under a specific contact-force model; without device calibration or perceptual studies, the 147×/189× gaps demonstrate differences in simulated force smoothness rather than proven real-world haptic quality. We will revise the methods and discussion sections to state this assumption explicitly, frame SC-MFJ as a comparative screening tool, and list empirical validation against physical interfaces and surgeon ratings as required future work. The metric's value for exposing post-processing effects invisible to Dice/HD remains intact under the simulation. revision: partial

  2. Referee: [Evaluation sections] Evaluation sections (pancreas and LiTS): no statistical significance tests, confidence intervals, or ablation on sampling density/length are reported for the headline force-jerk ratios, leaving open whether the reported gaps are robust to reasonable variations in the virtual-stylus parameters.

    Authors: We accept this criticism. The revised manuscript will report bootstrap 95% confidence intervals on the mean force-jerk values and ratios for both datasets. We will also add paired statistical tests (e.g., Wilcoxon signed-rank) across the 80 pancreas and 131 liver cases to assess whether the observed gaps are significant. Finally, we will include a parameter ablation varying stylus walk length and sampling density to confirm the headline ratios are stable under reasonable perturbations of the virtual-stylus settings. revision: yes

Circularity Check

0 steps flagged

No significant circularity; metric defined and evaluated independently

full rationale

The paper introduces SC-MFJ as an explicit computational procedure (surface sampling via virtual stylus walks, contact force model, mean jerk aggregation) applied to existing segmentation outputs. Evaluations on pancreas CT (80 cases, 5-fold CV) and LiTS (131 cases) are direct applications of this definition to external data, with comparisons to Dice/HD95 also computed independently. No parameters are fitted to the target results and then relabeled as predictions, no self-citations are invoked as load-bearing uniqueness theorems, and no ansatz or renaming reduces the central claim to its inputs by construction. The derivation chain is self-contained against the stated external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Based on abstract only; the metric introduces a new computation but relies on standard physics concepts for force and jerk. Limited information on parameters or assumptions.

axioms (1)
  • domain assumption Jerk is a suitable measure of haptic quality
    Assumes that force jerk correlates with perceived haptic smoothness in surgical contexts.

pith-pipeline@v0.9.1-grok · 5801 in / 1083 out tokens · 48868 ms · 2026-06-28T02:37:16.370130+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

21 extracted references

  1. [1]

    The Liver Tumor Segmentation Benchmark (LiTS)

    Bilic, P., Christ, P., Li, H.B., Vorontsov, E., et al. The Liver Tumor Segmentation Benchmark (LiTS). Medical Image Analysis, 84, p.102680, 2023

    2023

  2. [2]

    High-fidelity haptic and visual rendering for patient-specific simulation of temporal bone surgery

    Chan, S., Li, P., Locketz, G., Salisbury, K., and Blevins, N.H. High-fidelity haptic and visual rendering for patient-specific simulation of temporal bone surgery. Computer Assisted Surgery, 21(1), pp.85--101, 2016

    2016

  3. [3]

    and Brown, J.M

    Colgate, J.E. and Brown, J.M. Factors affecting the Z-width of a haptic display. In Proc.\ IEEE Int.\ Conf.\ Robotics and Automation (ICRA), pp.3205--3210, 1994

    1994

  4. [4]

    On the development of objective metrics for surgical skills evaluation based on tool motion

    Estrada, S., O'Malley, M.K., Duran, C., Schulz, D.G., and Bismuth, J. On the development of objective metrics for surgical skills evaluation based on tool motion. In Proc.\ IEEE Int.\ Conf.\ Systems, Man, and Cybernetics, pp.3144--3149, 2014

    2014

  5. [5]

    and Hogan, N

    Flash, T. and Hogan, N. The coordination of arm movements: An experimentally confirmed mathematical model. Journal of Neuroscience, 5(7), pp.1688--1703, 1985

    1985

  6. [6]

    Optimized image-based soft tissue deformation algorithms for visualization of haptic needle insertion

    Fortmeier, D., Mastmeyer, A., and Handels, H. Optimized image-based soft tissue deformation algorithms for visualization of haptic needle insertion. Studies in Health Technology and Informatics, 184, pp.136--140, 2013

    2013

  7. [7]

    nnU-Net: a self-configuring method for deep learning-based biomedical image segmentation

    Isensee, F., Jaeger, P.F., Kohl, S.A.A., Petersen, J., and Maier-Hein, K.H. nnU-Net: a self-configuring method for deep learning-based biomedical image segmentation. Nature Methods, 18(2), pp.203--211, 2021

    2021

  8. [8]

    and Otaduy, M.A

    Lin, M.C. and Otaduy, M.A. Haptic Rendering: Foundations, Algorithms, and Applications. A K Peters, 2008

    2008

  9. [9]

    and Cline, H.E

    Lorensen, W.E. and Cline, H.E. Marching Cubes: A high resolution 3D surface construction algorithm. ACM SIGGRAPH Computer Graphics, 21(4), pp.163--169, 1987

    1987

  10. [10]

    How distance transform maps boost segmentation CNNs: An empirical study

    Ma, J., Wei, Z., Zhang, Y., Wang, Y., et al. How distance transform maps boost segmentation CNNs: An empirical study. In Proc.\ Medical Imaging with Deep Learning (MIDL), pp.479--492, 2020

    2020

  11. [11]

    Metrics reloaded: recommendations for image analysis validation

    Maier-Hein, L., Reinke, A., Godau, P., Tizabi, M.D., et al. Metrics reloaded: recommendations for image analysis validation. Nature Methods, 21(2), pp.195--212, 2024

    2024

  12. [12]

    Anisotropic diffusion for direct haptic volume rendering in lumbar puncture simulation

    Mastmeyer, A., Fortmeier, D., and Handels, H. Anisotropic diffusion for direct haptic volume rendering in lumbar puncture simulation. In Proc.\ Bildverarbeitung f\" u r die Medizin (BVM) , pp.286--291, 2012

    2012

  13. [13]

    Ray-casting-based evaluation framework for needle insertion force feedback algorithms

    Mastmeyer, A., Hecht, T., Fortmeier, D., and Handels, H. Ray-casting-based evaluation framework for needle insertion force feedback algorithms. In Proc.\ Bildverarbeitung f\" u r die Medizin (BVM) , pp.3--8, 2013

    2013

  14. [14]

    Clinically applicable segmentation of head and neck anatomy for radiotherapy: deep learning algorithm development and validation study

    Nikolov, S., Blackwell, S., Zverovitch, A., Mendes, R., et al. Clinically applicable segmentation of head and neck anatomy for radiotherapy: deep learning algorithm development and validation study. Journal of Medical Internet Research, 23(7), p.e26151, 2021

    2021

  15. [15]

    o , F., Olsson, P., Malmberg, F., Carlbom, I.B., and Nystr\

    Nysj\" o , F., Olsson, P., Malmberg, F., Carlbom, I.B., and Nystr\" o m, I. Using anti-aliased signed distance fields for generating surgical guides and plates from CT images. Journal of WSCG, 25(1), pp.11--20, 2017

    2017

  16. [16]

    Comparison of algorithms for haptic interaction with isosurfaces extracted from volumetric datasets

    Rizzi, S.H., Luciano, C.J., and Banerjee, P. Comparison of algorithms for haptic interaction with isosurfaces extracted from volumetric datasets. ASME J.\ Comput.\ Inf.\ Sci.\ Eng., 12(2), p.021004, 2012

    2012

  17. [17]

    DeepOrgan: Multi-level deep convolutional networks for automated pancreas segmentation

    Roth, H.R., Lu, L., Farag, A., Shin, H.-C., Liu, J., Turkbey, E.B., and Summers, R.M. DeepOrgan: Multi-level deep convolutional networks for automated pancreas segmentation. In Proc.\ MICCAI, pp.556--564, 2015

    2015

  18. [18]

    Measuring hand movement for suturing skill assessment: A simulation-based study

    Shayan, A.M., Singh, S., Gao, J., et al. Measuring hand movement for suturing skill assessment: A simulation-based study. Surgery, 174(5), pp.1184--1192, 2023

    2023

  19. [19]

    clDice---A novel topology-preserving loss function for tubular structure segmentation

    Shit, S., Paetzold, J.C., Sekuboyina, A., et al. clDice---A novel topology-preserving loss function for tubular structure segmentation. In Proc.\ IEEE/CVF Conf.\ Computer Vision and Pattern Recognition (CVPR), pp.16560--16569, 2021

    2021

  20. [20]

    Shape-aware organ segmentation by predicting signed distance maps

    Xue, Y., Tang, H., Qiao, Z., et al. Shape-aware organ segmentation by predicting signed distance maps. In Proc.\ AAAI Conference on Artificial Intelligence, pp.12565--12572, 2020

    2020

  21. [21]

    StEik: Stabilizing the optimization of neural signed distance functions and finer shape representation

    Yang, H., Sun, Y., Sundaramoorthi, G., and Yezzi, A. StEik: Stabilizing the optimization of neural signed distance functions and finer shape representation. In Advances in Neural Information Processing Systems (NeurIPS), pp.13993--14004, 2023

    2023
